Perko 0317 Series User manual

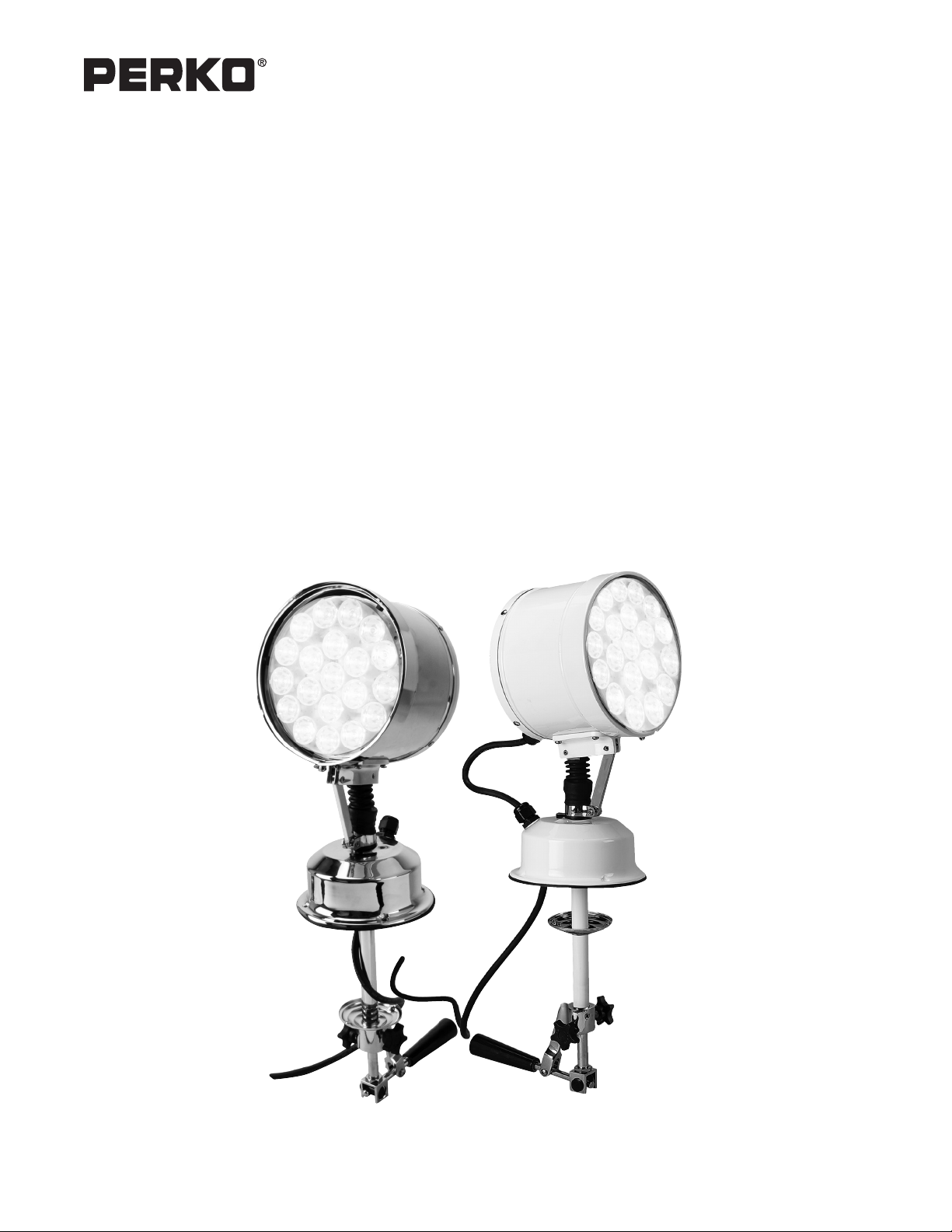

Fig. 0317 Series
Installation and Spare Parts Manual
12V LED Pilot House Control
7” Searchlights
• 16490 N.W. 13th Avenue • Miami, FL 33169-5707 • www.perko.com
Rev: 12/20210317PTD51A WARNING: Cancer and birth defects or other reproductive harm (can
expose you to lead & DINP) For more information go to www.P65Warnings.ca.gov.

2
Fig. 0317 LED Pilot House Control
Searchlight Installation Manual
Table of Contents
Page
• Fig. 0317 Searchlight Installation Instructions................................................. 3
• Fig. 0317 Mounting Template ......................................................................... 4
• Fig. 0317 Spare Parts Diagram and Ordering Information.............................. 5
• Solar-Ray®Searchlight Limited Warranty........................................................ 6

3
PERKO FIG. 0317 SERIES
PILOT HOUSE CONTROL SEARCHLIGHT
INSTALLATION INSTRUCTIONS
READ ALL DIRECTIONS BEFORE PROCEEDING
1). Examine mounting template, and choose appropriate mounting location.
2). Orient the template so that desired range of horizontal motion is achieved, then use the
template to drill mounting, control and wiring holes.
3). Loosen two control knobs (#34) on control assembly. Loosen locknut (#35) by turning
counter-clockwise as viewed from the top of the light.
4). Loosen the two set screws (#32) on the fulcrum (#41).
5). Remove the control handle assembly (#36 thru #41) from the control rod by rotating the entire
assembly around the control tube. Simultaneously remove the locknut.
6). Do not attempt to remove the control tube & rod. (#31).
7). Install mounting gasket by sliding it up the control rod to the base.
8). Mount light from above, lowering control tube & rod through the deck.
9). Be sure to observe polarity (black - negative, white - positive) and make 12 volt electrical supply
connections in accordance with A.B.Y.C. Standard E-9* and U.S. Coast Guard Safety Standards
for Boat Electrical Systems*.
10). Fasten to deck with #8 oval head screws.
11). Install ceiling plate.
12). Re-install handle assembly. Note that the two set screws (#32) are for retention only and should
be snug, but loose enough for the fulcrum to rotate. Adjust control tension with the two control
knobs (#34).
13). To align handle position with searchlight direction: loosen lock nut (#35), twist handle assembly
to desired position and re-tighten the lock nut.
* The above referenced standards can be obtained from:
(1) American Boat & Yacht Council, Inc. (2). U.S. Coast Guard
613 Third Street, Suite 10 Washington, D.C. 20593
Annapolis, MD 21403 (or your local C.G. office)
PERKO, INC.
16490 N. W. 13th AVENUE
0317INS1 MIAMI, FL 33169 5707
11/21 www.perko.com

4

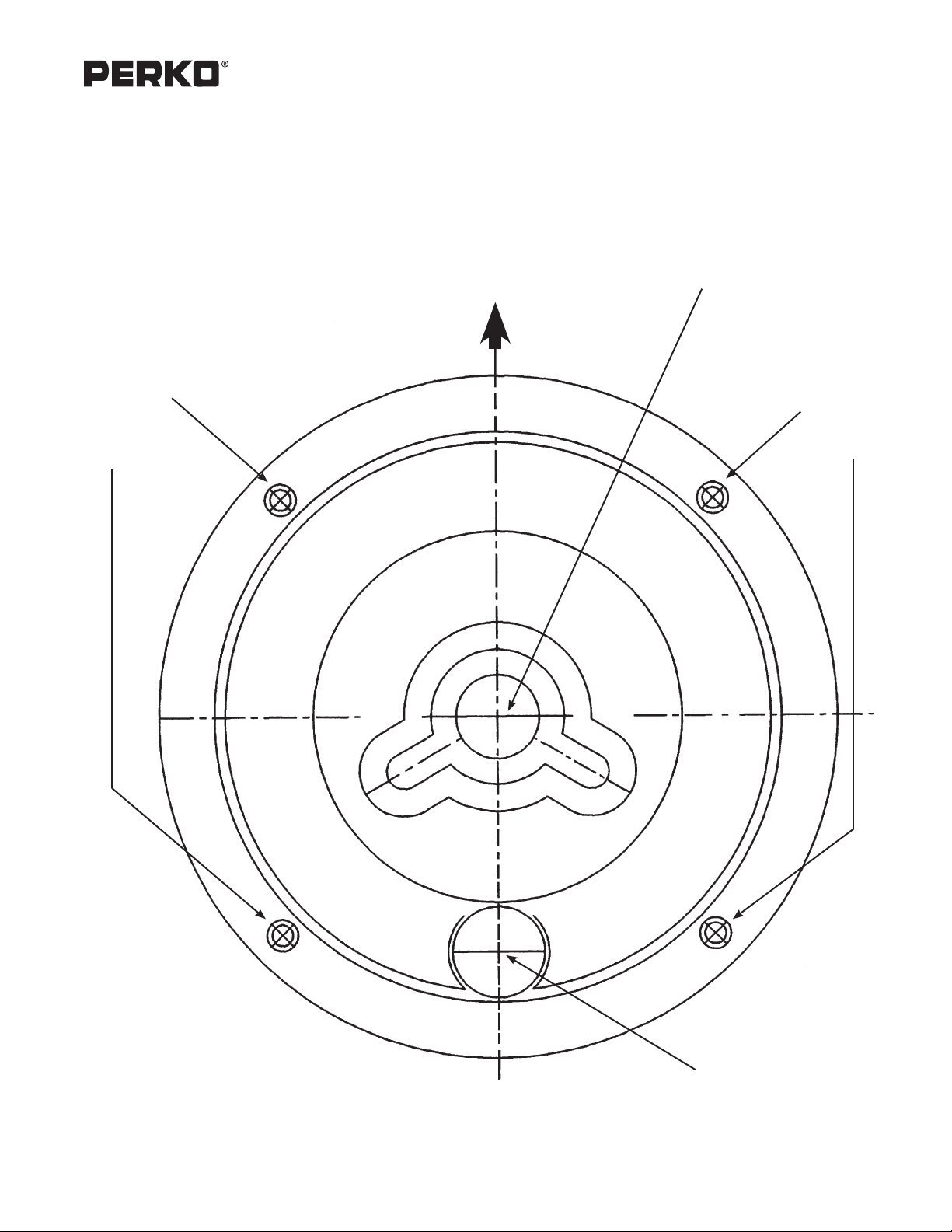

AHEAD
Drill For
#8 Oval
Head
Screws
Drill For
#8 Oval
Head
Screws
Fig. 0317 LED Searchlight
MOUNTING TEMPLATE
Drill 3/8” Hole
for Electrical
Cable
Drill 13/16” Hole
for Control Tube

Fig. 0317 LED Searchlight - 7 inch
Spare Parts Diagram Ordering Information
Item Cat. No. Description Qty.
1-7 0317SPRC17 Front Ring - Chrome (7”) 1
1-7 0317SPRW17 Front Ring - White (7”) 1
2-7 Housing Assembly - Chrome (7”) 1
2-7 Housing Assembly - White (7”) 1
3 Label, Perko 1
4 Screw (Rear Cover Retainer) 4
5-7 Back Cover (7”) 1
6 0314SPR006 Gland 2
7 0314SPR007 Cord Assembly 1
8 Drum Bracket 1
9 Screw (Drum Bracket Retainer) 4
10 Nut (Drum Bracket Retainer) 4
11 Lock Washer (Star Type) 4
12-7 12V LED Assy (7” Head) 1
13-7 Front Glass 1
19 0314SPR019 Rubber Boot 1
20 0314SPR020 Lock Nut 1
21 0314SPR021 Bushing (Control Rod) 1
22 0314SPR022 Split Bushing (Control Bracket) 1
23 0314SPR023 Stop Collar 1
24 0314SPR024 Fulcrum Strap 1
25 0314SPR025 “Cone Point” Set Screw 6
26 0314SPR026 Control Bracket 1
27 Set-Screw (Lock Nut Retainer) 1
28 0314SPR028 Base Assembly 1
29 0314SPR029 Mounting Gasket 1
30 0314SPR030 Ceiling Plate 1
31 0314SPR031 Control Rod with Pivot Bar 1
32 0314SPR032 Set-Screw (“Dog Point”) 2
33 0314SPR033 Split Bushing (Fulcrum) 1
34 0314SPR034 Knob Assembly 2
35 0314SPR035 Nut, Control Rod 1
36 0314SPR036 Yoke 1
37 0314SPR037 Pivot Bearing 1
38 0314SPR038 Handle Rod 1
39 0314SPR039 Screw and Nut 1
40 0314SPR040 Control Handle 1
41 0314SPR041 Fulcrum 1
42 0314SPR042 Screw (Front Ring Retainer) 1
43 Included with #42 Lock Washer (Star Type) 1
44 Included with #42 Nut (Front Ring Retainer) 1
Bill of Materials
16490 N.W. 13th Avenue Miami, FL 33169-5707
Scale: None
Date: 11/29/21
Revised: 11/29/21
Drawn By: H. Ahmed
Fig. 0317 LED Searchlight Assembly (7”)

6
SOLAR-RAY®SEARCHLIGHT
ONE YEAR LIMITED WARRANTY
PERKO, INC. (PERKO) warrants to the original commercial-purchaser
that PERKO’S commercial products will be free from defective materials or
workmanship, and that the PERKOPLATE/PERKO•KOTE Finish will remain
corrosion-free under normal use and service, for a period of one (1) year from
the original purchase date.
ALL IMPLIED WARRANTIES, INCLUDING MERCHANTABILITY, ARE
ALSO LIMITED IN DURATION TO THE ONE YEAR PERIOD FROM THE
ORIGINAL PURCHASE DATE.
PERKO SHALL NOT BE LIABLE FOR LOSS OF USE OF ANY OF
ITS COMMERCIAL PRODUCTS, NOR FOR OTHER INCIDENTAL OR
CONSEQUENTIAL COSTS, EXPENSES, OR DAMAGES INCURRED
BY THE ORIGINAL COMMERCIAL-PURCHASER OR BY ANY OTHER
PERSON.
SOME STATES DO NOT ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY LASTS, SO THE ABOVE LIMITATION MAY OR MAY
NOT APPLY TO YOU. SOME STATES DO NOT ALLOW THE EXCLUSION
OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO
THE ABOVE LIMITATION OR EXCLUSION MAY OR MAY NOT APPLY TO
YOU.
This warranty is void if the commercial product warranted has been
damaged by accident or unreasonable use, neglect, improper service or other
cause not arising out of defects in material or workmanship. Excluded from this
warranty are Electric Light Bulbs (lamps), Sealed Beam Units and Fuses.
During the warranty period, your PERKO product will either be repaired or
it will be replaced with a like product (at PERKO’s option) without charge to
the original commercial-purchaser, when returned prepaid and insured, with
proof-of-purchase date to PERKO at the address shown below. In the event of
replacement, the replacement product will continue the warranty of the original
product, or ninety (90) days, whichever is longer.
PERKO does not authorize any person or company to create for it any other
obligation or liability in connection with any of its products.
Serial Number____________________________________
Date of Purchase_________________________________
(Retain with Proof-of-Purchase Documentation)
PERKO, Inc. • 16490 N.W. 13th Avenue • Miami, FL 33169-5707 9901 019 FRM
