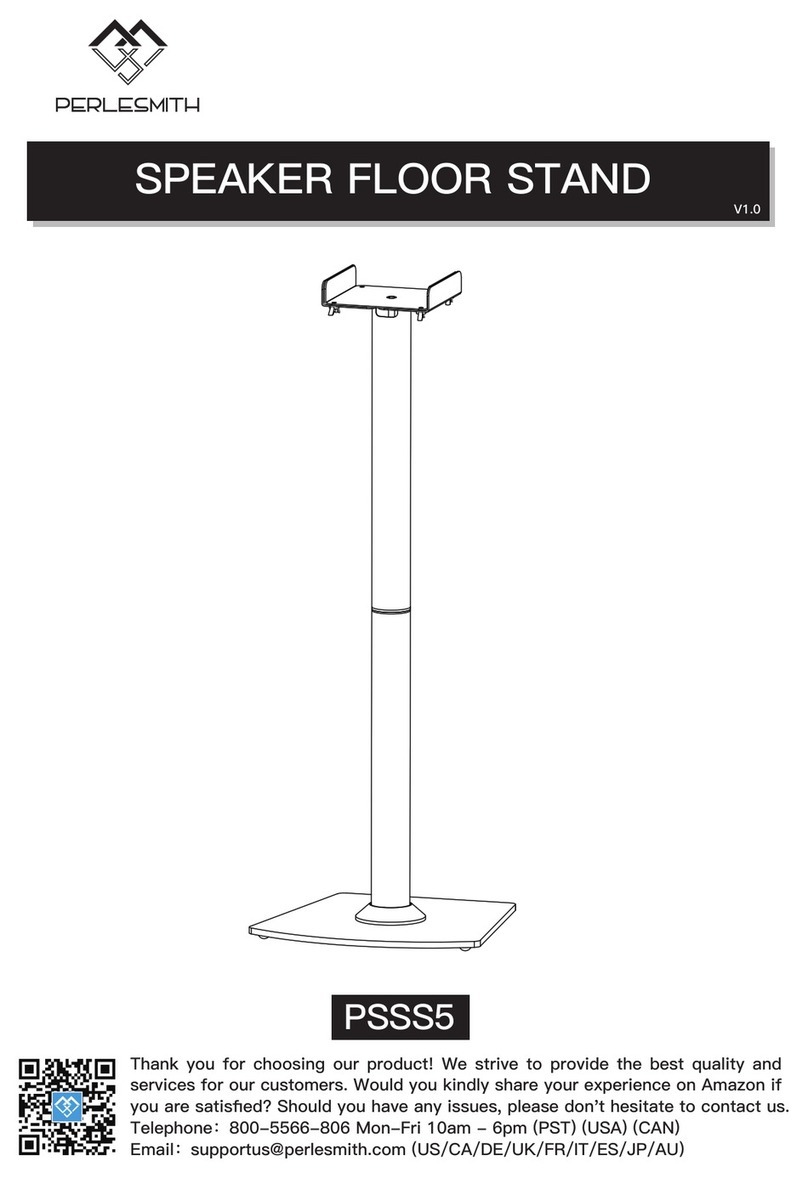

Perlesmith PSSS5 User manual

Thank you for choosing our product! We strive to provide the best quality and
services for our customers. Would you kindly share your experience on Amazon if
you are satisfied? Should you have any issues, please don't hesitate to contact us.
Telephone: [phone] Mon-Fri 10am - 6pm (PST) (USA) (CAN)
Email：[email protected] (US/CA/DE/UK/FR/IT/ES/AU)
PSSS5
V2.0
SPEAKER FLOOR STAND

•Check package contents against Supplied Parts and Hardware List to assure that all compo-
nents were received undamaged. Do not use damaged or defective parts. lf you require replac-
ement parts, contact customer service at [email protected].
•Not all parts and hardware included will be used.
•Carefully read all instructions before attempting installation. If you do not understand the inst-
ructions or have any concerns or questions, please contact customer service at
[email protected]
•This product may contain moving parts. Use with caution.
•Do not use this product for any purpose or in any configuration not explicitly specified in this
instruction. We hereby disclaims any liability for injury or damage arising from incorrect asse-
mbly or incorrect use of this product.
•Please check www.perlesmith.com for more products and company information.
Important Safety Instructions
Phillips Screwdriver
TOOLS NEEDED (NOT INCLUDED)
SUPPLIED PARTS
HARDWARE KIT
1
Plastic Washer
BA C D
Inner Hexagon
Screw M6*25mm Rubber Pad Screw M4x12mm
X 2X 2 X 2 X 8
E
X 2
Screw M6*16mm
Base X 2
01
Rod X 2
04
Speaker Bracket
X2
08 Speaker Bracket
X2
09 Speaker Bracket
X2
10 Speaker Bracket
X2
11 EVA Pad
X2
12
Decorative Cover X 2
05 Connector X 2 06 Sponge X 4 07
Lower Post X 2
02 Upper Post X 2 03

STEP 1 Attach the Rubber Pads to the Bases
STEP 2 Secure the Lower Posts to the Bases and Manage
the Cables
2
x2
Washer φ
5*15mm
x1
Allen Key
M4
x2
F G M HJK
Screw
M5x12mm
x2 x2 x2
Washer
φ6.5*16mm
Screw
M6x12mm Screw
1/4-20x1/2”
Remove the backpapers
from the rubber pads
Side of blacksprayed
D
01
Secure the lower posts to
the bases
Manage the cables
K
B
D
01
02
05
C
02
06

3
STEP 3 Connect the Upper Posts to the Lower Posts
STEP 3-2
Thread cables
through the
posts
STEP 3-3
Connect the upper posts to the
lower posts
04
03
02
02
03
04
STEP 3-1
Fasten the rods
to the lower
post
02
04

4
STEP 4 Secure Speaker to the Upper Posts
Speaker option A: Bookshelf Speakers
07
Secure the
speaker
bracket
Attach the
sponge (remove
the back paper
at first)
K
A
08
08
Put the speakers in plates and tighten
the nuts to secure speakers. Manage
the cable.
Loosen the nuts and slide to
adjust the plates to fit the
speaker.
bookshelf speaker
OPT
A

5
E or F or
M or H
G or J
(Optional)
Remove the
back paper at
first, then attach
the EVA pad
Speaker option B: Sonos play 1 Speaker
Insert the cable into the
cable hole of the speaker
12
09
K
A
OPT
B

6
K
A
10
Speaker option C: PLAY: 3 (HORIZONTAL) Speakers
10
Select the proper sepeaker brackets according to your speaker
E or F
or M
or H
G or J
(Optional)
Remove the
back paper at
first, then attach
the EVA pad
12
Route the cables
OPT
C
Attention! Ensure the degree of the speaker
brackets fit the degree of speakers.
Side view of speaker
Side view of speaker brackets
Upper post
10

7
11
Route the cables
Speaker option D: PLAY:3 (VERTICAL) Speakers
Select the proper sepeaker brackets according to your speaker
OPT
D
Attention! Ensure the degree of the speaker
brackets fit the degree of speakers.
11
Side view of speaker
Side view of speaker brackets
Upper post
K
A
11
E or F
or M
or H
G or J
(Optional)
Remove the
back paper at
first, then attach
the EVA pad
12
