PERRARO PANDA TRIKE User manual
Perraro E-Trike Owner's Manual
info@perraroelectricbike.com 949-414-8003
www.perraroelectricbike.com
Parts description
Assembly instructions
Display User Manual·
Inflating and suspention
Troubleshootings
Safety Notes
Driving Range
Recommended Torque
Daily check
----------------------------------------
1
--------------------------------------- 2
--------------------------------------- 14
--------------------------------------- 28
-----------------------------------------
29
-----------------------------------------
30
----------------------------------------
- 31
--------------------------------------- 32
--------------------------------------- 33
Table of Contents
Scan QR Code or visit the link below
Front Hub Motor Rear Outer Derailleur
Li-ion Battery
Rear Cargo Bag
Foldable
Frame
Front Basket
Front Light
Controller
20*4.0 Fat Tire
Saddle
24 x 4 Fat Tire
1
1. Use two people to prevent scratching the frame.
2. Have one person lift the trike from the bottom frame while another person unfolds it.
3. Fit the frame together and secure the clamp.
UNFOLDING THE PANDA ETRIKE
2
1. Remove the nut on top and slide it up the stem of the handlebars.
2. Take the two chrome pieces for the front basket and place them back-to-back. Insert the stem of the handlebars through them,
ensuring they face the front.
3. Slide the stem of the handlebars into the frame and use the provided tool to tighten the screw located straight up from the stem.
4. Push the nut back down and tighten it securely.
HANDLE BAR INSTALLMENT
3
1. Remove the nut and two washers from both sides of the wheel.
2. Identify the right side of the wheel (as you're sitting on the trike) by locating the side with the black cord.
3. Put the irregular washer on both sides of the wheel with the protruding side towards the wheel. Turn it until it seats into place.
4. With another person lifting the frame, roll the wheel under the fork and lower the frame. If the fork doesn't fit easily, roll the
wheel to find the flat spot where the fork fits properly.
FRONT WHEEL INSTALLMENT
4
1. Put the washer and the nut on both sides and tighten them with a large wrench.
2. Plug in the black cord to the connector found on the right fork. Ensure it is correctly
connected and pushed all the way in.
FRONT WHEEL INSTALLMENT
5
1. Use the existing bolt and nut to attach the front light and fender. Remove the nut using the correct Allen wrench and the
smallest box wrench.
2. Remove the bolt, line up the light and fender, then replace the bolt and tighten the nut securely.
3. Fasten the fender braces on each side of the wheel to prevent scraping.
4. Tighten allen wrench, make sure the mount is firmly attached to the e-bike, ensuring stability during rides.
FRONT FENDER AND HEAD LIGHT INSTALLMENT
6
1. Insert the post into the saddle tube at the desired position.
2. Tighten the screw and secure the lever to keep the saddle in place.
3. Align the saddle with the frame to ensure it is straight.
4. Adjust the saddle height for comfort. Generally, a suitable height is where your leg on the down pedal is fairly straight. Do not
exceed the safety tick marks on the Saddle Post.
5. Adjust the backrest to a comfortable position. Ride the trike to determine the optimal adjustment.
6. Tighten the clamp
SADDLE INSTALLMENT
7
1. Remove the crank arm bolt using an appropriate allen wrench.
2. Take the right crank arm and slide it securely onto the spindle. Tighten the bolt securely.
3. Carefully place the chain and thread it onto the right-side chaining of the crank arm.
CRANK ARM ISTALLMENT
8
1. Locate the packet labeled "rear basket" and remove the bolts and nuts.
2. Fit the back rack on the trike, ensuring the holes on the sides for the fenders align with the wheels.
3. Attach the fenders to the fender mount racks first. Bolt the fender racks to the back basket.
REAR FENDER & BASKET INSTALLMENT
9
1. Leave the battery out to provide room for tightening the nuts and removing the insert.
2. Bolt the rack onto the trike and tighten the nuts under the rack.
REAR FENDER & BASKET INSTALLMENT
10
1. Use four nuts and bolts from the labeled "front basket" bag to
attach the basket to the trike. Use two additional nuts and bolts
for the lid.
2. Install the basket before attaching the lid to avoid obstruction.
3. Tighten the four bolts to the chrome pieces under the
handlebars.
4. Attach the lid using the other two nuts and bolts.
1. Identify the right and left pedals, ensuring the correct
threading. Look for "R" or "L" markings; if not visible, make
an informed guess.
2. Install the left pedal first by turning it to the left (opposite of
the usual screwing direction). Use a washer on each pedal.
If the left pedal doesn't go in, it may be the wrong one.
Both pedals should turn toward the front wheel. Use a box
wrench to tighten it securely. Remember not to turn the
pedal while tightening, as it needs to rotate. Place the
wrench on the flat area at the back of the pedal.
3. Proceed to the right side. Install the crank with the big
wheel first, using the pre-existing nut.
4. Ensure the chain is correctly positioned on the wheel
before assembling it onto the trike. If the chain appears too
short, untangle it from under the gears.
5. Install the right pedal by turning it to the right, following the
usual screwing direction. Tighten it securely using the
wrench.
FRONT BASKET & PEDAL INSTALLMENT
11
1. The battery key has three positions. The first position is "On" and is all the way to the right. The second position is "Off" and is
in the middle. The third position is the "Unlock" position, which is all the way to the left. Please note that you may need to
push the key a little to turn it to the unlock position.Ensure that the key is fully turned and engaged in the unlock position.
2. To remove the battery, gently lift and pull back using the finger slots at the bottom. If it resists, slightly wiggle it right and left to
loosen the connection from the electrical system. Be careful not to exert excessive force.
BATTERY INSERTION & REMOVAL
12
1. Plug the charger into the battery first, then connect it to the wall plug. Remember to unplug it from the wall before
disconnecting it from the battery. Charge for approximately 8-10 hours for the initial charge.
2. The battery can be charged either on or off the trike. When charging with the battery on the trike, turn the key to the off
position.
3. Charge the battery in dry conditions and indoors, away from direct sunlight. Always check the charger cables, charger, and
battery for any damage before each charge.
4. When handling the battery, avoid touching the "+" and "-" contacts, especially with wet hands or metallic objects.
BATTERY CHARGING
13
2
2
. . -
iD 48.2V
, 0.1
Speed
RANGE
BAT 10% 2
Km/h
J
DS103 DISPL
AY
USER MANUAL
14
On/O
Power-on password
M
M
.
3
INPUT SSWORD
2
△
▽
DS103 DISPL
AY
USER MANUAL
15
S level sele
ct
ion
OFF,
l0.1
BAER l,g_j POWER
DS103 DISPL
AY
USER MANUAL
16

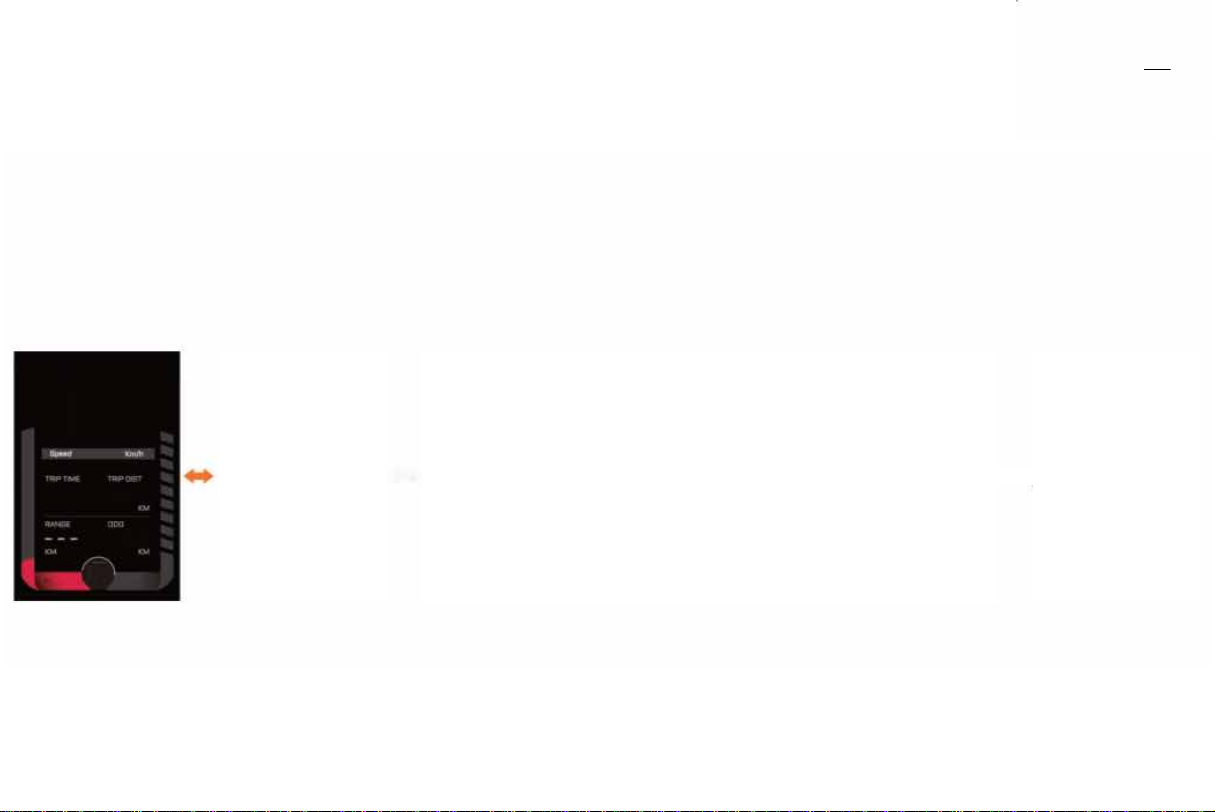

Speed and mileage display switch
M
DISPL
AY
S
E
TTI
NG
DS103 DISPL
AY
USER MANUAL
m",
l 0
.1
6
Km/h
u�
n�
�
l 0.1
Km/h
=
2
17
Headlight switch
A
A
07:07 48.2V
RANC[
2
J
DISPL
AY
S
E
TTI
NG
DS103 DISPL
AY
USER MANUAL
18
