Pedelec Impulse 2.0 Product information sheet

Contents
1 Safety 4
1.1 General 4
1.2 Statutory requirements 4
1.2.1 Meaning for the rider 4
1.3 Battery 5
1.4 Charger 6
1.5 Motor 7
1.6 Adjustments/maintenance/repair 7
1.7 Transportation of the Pedelec 7
1.7.1 The Pedelec and your car 7
1.7.2 The Pedelec on trains 7
1.7.3 The Pedelec on aeroplanes 7
2 Composition of the vehicle 8
3 First steps 9
3.1 Checking the tightening torques 9
3.2 Fitting the pedals 9
3.3 Adjusting the saddle height 9
3.3.1 Clamping screw 9
3.3.2 Quick-release device 9
4 Quick start 10
5 Battery 11
5.1 Charging the battery 11
5.1.1 Removing the battery 12
5.1.2 Charging operation 12
5.1.3 Installing the battery 13
5.2 Battery information system 14
5.2.1 Checking the charge state 14
5.2.2 Checking the capacity 14
5.3 Battery management 15
5.3.1 Sleep mode 15
5.4 Warranty and service life 15
5.5 Storage 16
5.6 Shipping 16
5.7 Disposal 16
6 Charger 16
7 Control panel and display 17
7.1 Control panel 17
7.1.1 Switching on/o 17
7.1.2 Push assist 17
7.1.3 / buttons 17
7.2 Display small 18
7.2.1 Assistance indicator 18
7.2.2 Battery charge state indicator 18
7.2.3 Units 19
7.3 Display 19
7.3.1 Assistance indicator 19
7.3.2 Battery charge state indicator 19
7.3.3 Units 19
7.3.4 Remaining range indicator 19
7.4 Programming and settings 19
7.4.1 Drive data 20
7.4.2 Delete trip data 20
7.4.3 Delete overall data 20
7.4.4 Device settings 20
7.4.4.1 Display 20
7.4.4.2 Drive 21
7.4.4.3 Miscellaneous 22
7.4.5 Personalize 22
7.4.6 Target cost 22
8 The motor 24
8.1 Operation 24
8.2 Range 24
8.3 Riding your Pedelec eciently 25
8.4 Warranty and service life 25
9 Troubleshooting 26
10 Cleaning 27
10.1 Battery 27
10.2 Motor 27
10.3 Display 27
10.4 Control panel 27
10.5 Charger 27
11 Technical data 28

Original User Manual | Pedelec Impulse 2.0 3
Introduction
Thank you for choosing the Pedelec Impulse 2.0 om
Derby Cycle. This Pedelec is equipped with an innovative
electric drive that assists you when you are cycling. This
will make your trip much more enjoyable if you are riding
up hills, carrying loads or riding into the wind. You can
decide yourself how much you want to use it.
The purpose of this User Manual is to help you get the
most out of your Pedelec Impulse 2.0 and use it correctly.
Structure of the User Manual
You will nd information on how to use your Pedelec in

Chapter 1 “Safety”.
You will nd a brief introduction in

Chapter 4 “Quick
start”.
The most important components of your Pedelec are de-
scribed in detail in the following chapters.
You will nd the technical data for your Pedelec Impulse
2.0 in

Chapter 11 “Technical data”.
The information in this User Manual specically refers to
your Pedelec Impulse 2.0. For general information, on the
bike technology, for example, refer to the “Original User
Manual | General” (CD).
CD with important information
On the enclosed CD, you will nd versions of the “Original
User Manual | Pedelec Impulse 2.0” in various languages.
In addition, the CD also contains the “Original User
Manual | General” with general information on the bike
technology.
When connected to the Internet, you can download the
latest version of the User Manual. There you will also nd
manuals for the individual bike components.
You can run the CD using any commercially available PC or
laptop. To do so, proceed as follows:
PROCEDURE A:
1. Insert the CD.
2. Double-click on the le shelexec.exe using the le
mouse button.
3. Select the desired language.
4. Select “Open User Manual om CD” or “Check for new
version of User Manual online”.
PROCEDURE B:
1. Insert the CD.
2. Using the mouse, right-click once on: “Open folder to
display les.”
3. Double-click on “Start” using the le mouse button.
4. Select the desired language.
5. Select “Open User Manual om CD” or “Check for new
version of User Manual online”.
To call up the les, you need the program Adobe Reader. It
has been included on the CD or can be downloaded ee of
charge om www.adobe.com.
If you would like a printed copy of the “Original User Man-
ual | General”, you can have the document sent to you ee
of charge by requesting it om the following address:
Derby Cycle GmbH
Siemensstrasse 1-3
49661 Cloppenburg, Germany
+ 49 (4471) 966-0
[email protected]
Even if you can't wait to go for a ride, you should
read through the “Original User Manual | Pedelec
Impulse 2.0” and the “Original User Manual | Gen-
eral” (CD) carelly before using your Pedelec for
the rst time.
The manufacturer accepts no liability for damage
resulting om the failure to adhere to these
manuals.
Use your Pedelec only as intended. Otherwise,
there is a risk of technical failure, which can lead
to unforeseeable accidents! Improper use may
void the warranty and guarantee.
Keep this User Manual for your information and
ture reference.
Pass on the manual to anyone who uses, maintains
or repairs this Pedelec.

4 Original User Manual | Pedelec Impulse 2.0
1 Safety
The User Manual contains the following symbols that
denote dangers or important information. Read all the
safety information. Failure to observe the instructions can
cause electric shock, re and/or serious injury.
WARNING
regarding possible physical injury, increased
risk of falls or other injuries.
IMPORTANT ADDITIONAL INFORMATION
or special information on using the Pedelec.
NOTE
regarding possible damage to property or the
environment.
1.1 General
If risk-ee operation of your Pedelec cannot be
assumed, take it out of operation and make sure
it cannot be used until you have it checked by a
specialist cycle shop. Risk-ee use is no longer
possible if live parts or the battery shows signs of
damage.
Never ride with no hands! This poses an acute risk
of falling.
Take the battery out of the Pedelec before begin-
ning work on the Pedelec.
Observe the maximum permitted gross weight
of your Pedelec, as this could otherwise lead to
breakage or failure of safety-relevant components

Chapter 11 “Technical data”.
If you wish to make any adjustments to the ride
characteristics of your Pedelec, please consult
your specialist cycle shop.
1.2 Statutory requirements
The Pedelec, like all other bikes, must comply with
the national regulations for road safety. Please
observe the relevant explanations and general
information provided in the “Original User Manual
| General” (CD).
These statutory requirements apply for a Pedelec:
•The motor is designed only to provide pedal-
ling assistance, i.e. it can only “assist” the rider
when he/she turns the pedals.
•The average motor output must not exceed
250W.
•As the speed increases, the rate at which the
motor output reduces must also increase more
intensely.
•The motor must switch o once the bike reaches
a speed of 25 km/h.
1.2.1 Meaning for the rider
•You do not legally have to wear a helmet. Howev-
er, in the interest of your own safety, you should
never ride without a helmet.
•You do not legally have to have a driving licence.
•You do not legally have to have insurance.
•No age restriction applies for a Pedelec.

Original User Manual | Pedelec Impulse 2.0 5
•The regulations governing the use of cycle paths
are the same as for normal bikes.
These regulations apply to you wherever you are
in the European Union. It is possible that dierent
regulations exist in other countries, also inside
the EU in individual cases. Before using your Pe-
delec abroad, nd out about the applicable legis-
lation in the relevant country.
It is generally permitted for children to be carried
in bike trailers on Pedelecs. Observe the maximum
permitted gross weight of the bike

Chapter 30
“Technical data” of the “Original User Manual |
General” (CD). The Impulse 2.0 mountain bike is
an exception. Bike trailers may not be used on this
bike.
1.3 Battery
The battery contains chemical substances, which
could cause dangerous reactions if the safety
information given here is not adhered to.
Avoid contact with liquid leaking om a damaged
battery. In case of contact, rinse o the liquid with
water. In case of eye contact, consult a doctor
aer rinsing.
Never attempt to repair your battery. Batteries
must not be dismantled, opened or crushed. The
improper opening or destruction of the battery
poses the risk of serious injury. Opening the bat-
tery voids the warranty claim. If your battery is
damaged, contact your specialist cycle shop. The
specialists here will discuss the next steps with
you.
A battery must not be exposed to heat (e.g. heat-
er) or re. External heat can cause the battery to
explode. In addition, high temperatures shorten
battery service life. When charging, always ensure
there is adequate ventilation.
A battery must not be short-circuited. Batteries
must not be stored unsafely in a box or compart-
ment where they can short-circuit one another
or can be short-circuited by other conductive
materials (paper clips, coins, keys, nails, screws).
A short circuit between the battery contacts can
cause burns or re. Short-circuit damage which
emerges in this context voids all guarantee claims.
Batteries must not be exposed to mechanical
shocks. Even if a battery shows no visible signs
of damage aer falling or being knocked, it may
be damaged. For this reason, even batteries that
seem ne must be taken to a specialist dealer for
inspection. Damaged batteries must neither be
charged nor used for another application.
Keep the battery away om children.
Use the battery solely for your Pedelec.
Ideally, take the battery out of your Pedelec when
not in use.
Batteries not designed for use in the Pedelec must
not be used.
Never transport damaged batteries. The safety of
damaged batteries cannot be guaranteed.
Lithium reacts very strongly upon direct contact
with water. Never put the battery into water. Cau-
tion is therefore also required in the case of dam-
aged batteries which have become wet: They may
catch re.
In case of re, water should be used to extinguish
any ames in the immediate vicinity, but not the
battery itself. Fire extinguishers with metal re
powder (Class D) are better suited to this task. If
the battery can be safely moved outdoors, the re
can also be suocated using sand.

6 Original User Manual | Pedelec Impulse 2.0
The Pedelec operates using extra-low voltage
(36volts). Never attempt to operate the Pedelec
using power om a source other than a suitable
genuine battery. The designations of approved
batteries are listed in

Chapter 11 “Technical
data”.
1.4 Charger
The charger may only be used to charge the bat-
tery supplied. Use of the charger for other pur-
poses is not permitted. Any kind of manipulation
of the charger or battery housing is forbidden!
The mains voltage must correspond to the voltage
given on the type plate of the charger. The supply
voltage of the charger is given on the type plate on
the back of the device.
The charger is only intended for use indoors. The
battery may only be charged in a dry, non-amma-
ble environment. During the charging process, the
battery and charger must be placed on an even,
non-ammable surface. Battery and charger must
not be covered. There must be no highly combus-
tible materials in the immediate vicinity. This also
applies when charging the battery on the Pedelec.
In this case, you must place the Pedelec so as to
prevent any re om spreading quickly (exercise
caution with carpeted oors!).
Ingress of water and damp in the charger must
be avoided at all costs. In case of ingress of wa-
ter, immediately disconnect the charger om the
mains and have it checked by a specialist.
The battery may heat up during charging. A maxi-
mum temperature of 45°C may be reached. If the
battery becomes any warmer than this, suspend
the charging process immediately. Such a battery
may no longer be used, and you must have it in-
spected by the dealer.
A battery that displays a fault may not be charged
anymore.
The battery should not be le unattended while
charging. Alternatively, charge the battery in a
metal box.
Damaged batteries must not be charged (risk of
explosion!).
Do not attempt to modi or take apart the charger.
Have repairs carried out only by specialists.
A charger with a damaged mains plug or mains
cable may not be connected to the mains and must
be replaced by a specialist. The same applies for
extension cables that are not in perfect technical
condition.
Do not charge batteries for an extended period if
they will not be used.
If you detect smoke or an unusual smell, immedi-
ately unplug the plug of the charger om the sock-
et and disconnect the battery om the charger.
No chargers other than those specically intended
for use with the battery may be used. The use of a
dierent charger may cause malnctions, short-
ened service life, re or explosion.
Do not continue to use damaged batteries and
chargers (plug, housing, cable).
Do not replace the mains cable. This poses the risk
of re and explosion.
Condensation may form on the charger if the
temperature changes suddenly om cold to hot.
In case of condensation, wait approximately one
hour before connecting the charger to the mains,
until it has warmed up to the temperature of the
room. Ideally, avoid such situations by storing the
charger in the place where it is operated.
Only charge the battery at ambient temperatures
of between 0°C and 45°C. However, you can max-
imise a battery's service life by charging it at an
ambient temperature of between 10°C and 30°C.

Original User Manual | Pedelec Impulse 2.0 7
1.7 Transportation of the Pedelec
For the transportation of your Pedelec, we recom-
mend removing the battery om the Pedelec and
packaging it separately. A suitable transport con-
tainer can be obtained om your specialist cycle
shop.
1.7.1 The Pedelec and your car
If you transport your Pedelec on a bike rack, ensure that it
is designed for the higher weight of a Pedelec. In order to
relieve the load on the rack and protect the battery om
climatic conditions, it must be transported inside the car.
1.7.2 The Pedelec on trains
In Germany, you can take your Pedelec with you on trains
which are marked with the bike symbol. To do so on
German Intercity (IC) and EuroCity (EC) trains, you must
book a place for your bike in advance. As a rule, you may
not take bikes with you on German Intercity Express (ICE)
trains.
1.7.3 The Pedelec on aeroplanes
Your Pedelec is generally subject to the policies of the
respective airline concerning bikes. Batteries are subject
to dangerous goods legislation. Therefore, they must not
be carried on passenger planes – neither in the cargo
hold, nor the cabin. Please contact the relevant airline for
detailed information.
1.5 Motor
If children are present, keep a close eye on them,
especially if there is a possibility they could insert
objects into the motor through apertures in the
housing. This poses the danger of fatal electric
shock.
Bear in mind that the motor can heat up on long
ascents. Be carel not to touch it with your hands,
feet or legs. You could burn yourself.
Live parts may be exposed when you open covers
or remove parts. Connection points may also be
live. Maintenance or repairs on the motor when it
is open must only be carried out by a professional
bike workshop.
1.6 Adjustments/maintenance/repair
When carrying out adjustments and maintenance
or when cleaning, avoid crushing cables or damag-
ing them with sharp edges.
Please have all installation and adjustment work
carried out by your specialist cycle shop. In case
you have to fasten something in place or change
something yourself, you will nd an exhaustive list
at the end of the “Original User Manual | General”
(CD) detailing the tightening torques which must
always be adhered to.

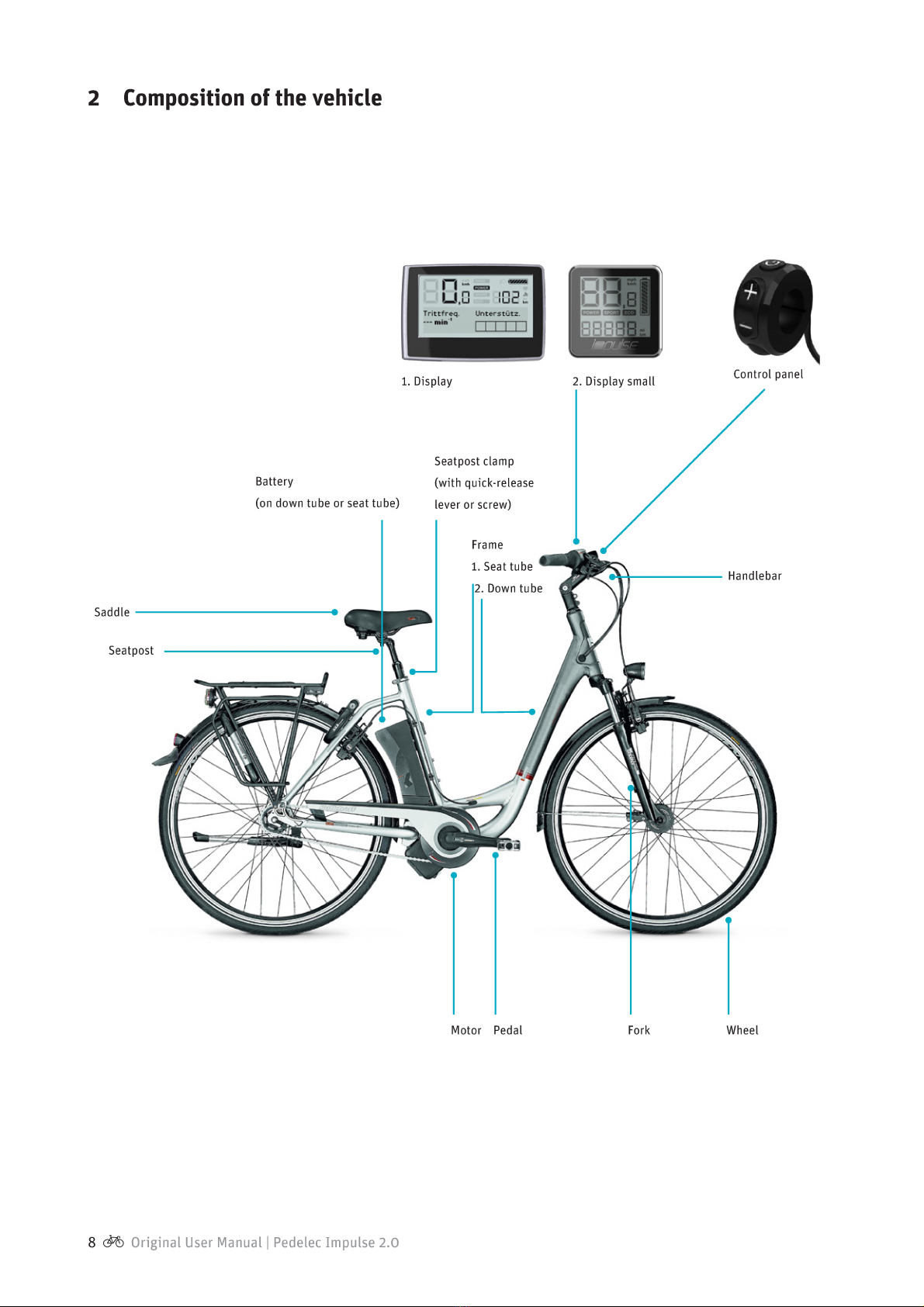

Original User Manual | Pedelec Impulse 2.0 9
3 First steps
3.1 Checking the tightening torques
Check that all screws and important components are fas-
tened securely and correctly. You will nd a table with im-
portant screw connections and the prescribed tightening
torques in

Chapter 30 “Technical data” of the “Original
User Manual | General” (CD).
3.2 Fitting the pedals
It may be that the pedals for your Pedelec have yet to be
tted on delivery:
The right pedal (marked with an “R”) is screwed clockwise
into the right crank arm. The le pedal (marked with an
“L”) is screwed anticlockwise into the le crank arm. Both
pedals are screwed in tightly in the direction of the ont
wheel using a size15 open-ended spanner or a suitable
Allen key. The tightening torque is 40Nm.
If the pedals are not screwed in straight, the
thread in the crank arm may be severely damaged.
This could lead to serious accidents and injuries.
3.3 Adjusting the saddle height
3.3.1 Clamping screw
If a torque is specied (in Nm) on the seatpost clamp,
tighten the clamping screw according to this value. If no
tightening torque is specied, tighten an M6 screw (dia.
6mm) and an M5 screw (dia. 5mm) to 5.5Nm.

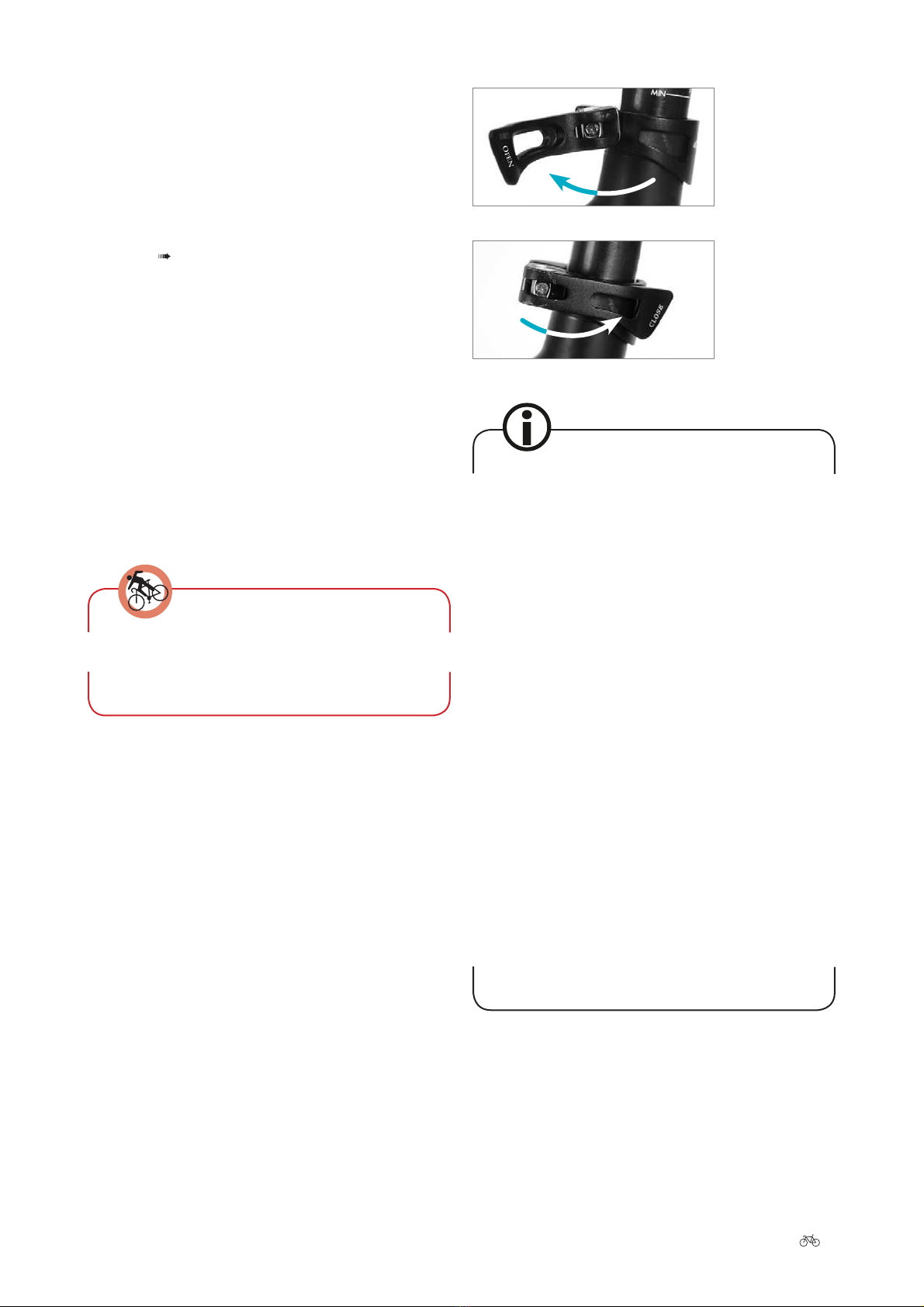

3.3.2 Quick-release device
For opening, the quick-release lever must be folded back
through 180° – you will see the lettering “OPEN”. For clos-
ing, fold the quick-release lever back in through 180° –
you will see the lettering “CLOSE”.
Opening the quick-release lever
OPEN
Closing the quick-release lever
CLOSE
As a rule of thumb, you can be condent that the
quick-release device clamp is suciently secure
if the quick-release lever can only be closed us-
ing the heel of the hand and a certain level of
force. During the closing process, you will feel
an increasing level of counterpressure om the
lever, beginning when the lever is at approx. 90°.
If the seatpost is not clamped rmly or securely
enough, tighten the clamping nut or turn the screw
clockwise by another half a turn respectively while
the quick-release lever is open. Close the quick-
release lever and check that the saddle is securely
fastened once more.
Check that all quick-release levers are fastened
correctly and securely before every journey and
every time you return to your bike having le it
unattended for a short time.
With regard to the saddle height, there is a sim-
ple test procedure: Whilst sitting on the saddle,
the heel of your lly-stretched leg should reach
the lowest pedal position. By contrast, the balls
of your feet should reach the centre of the pedal
in the lowest pedal position with your leg bent
slightly.

10 Original User Manual | Pedelec Impulse 2.0
4 Quick start
Charge the battery completely before riding for the rst
time. Charge temperature: 0°C to 45°C.
Charging the battery
SEAT TUBE BATTERY
1. Remove the cover om the charging socket.
2. Connect the plug of the charger to the battery.
Charging the battery
DOWN TUBE BATTERY SEAT TUBE BATTERY
3. Insert the mains plug for the charger into the socket.
You must charge the battery completely before
using it for the rst time. As required by transport
law, the battery leaves the factory with an ap-
proximately 30% charge.
You can also remove the battery om your Pedelec
and charge it elsewhere. For more information,
refer to

Chapter 5 “Battery”. Please note, the
battery is heavy. Hold on tight to it!
4. Once all of the battery LEDs have gone out, the battery
is lly charged. Pull the plug of the charger out of the
charging socket and take the mains plug of the charger
out of the socket.
5. a) Down tube battery: If you removed the battery for
charging, replace it in the holder om the ont/above.
At the same time, the key must be in the lock and must
be turned anticlockwise. Press the battery down into
the holder until the locking mechanism engages.
b) Seat tube battery: If you removed the battery for
charging, reinsert the battery into the holder on the
Pedelec om the le-hand side. Tilt the battery out-
wards at an angle of roughly 45° as you do so. Move
the battery into the upright position until the locking
mechanism engages.
Installing the battery
DOWN TUBE BATTERY SEAT TUBE BATTERY
6. Now turn the key clockwise and remove it. The battery
is now locked in place.
Locking the battery
DOWN TUBE BATTERY SEAT TUBE BATTERY
7. Make sure that the battery is securely positioned and
that the key is no longer in the lock.
8. Press the button on the control panel to switch on
the drive system.
9. a) Pedelec without backpedal nction: Aer the wel-
come screen, the display shows the power-assist mode
that was last set. Press the / buttons to select the
level of assistance: ECO (low), SPORT (medium),
POWER (high) or no assistance. Pressing once changes
the level of assistance by one level. This works both
ways, depending on which of the buttons you press.
b) Pedelec with backpedal nction: Aer the welcome
screen, the display shows “Please move the pedals”
or “PEDAL”. This instruction will disappear as soon as
you start riding. Press the / buttons to select the
level of assistance: ECO (low), SPORT (medium),

Original User Manual | Pedelec Impulse 2.0 11
POWER (high) or no assistance. Pressing once changes
the level of assistance by one level. This works both
ways, depending on which of the buttons you press.
If you cannot feel any assistance, simply back-
pedal briey and then pedal forwards again to
trigger the system check. If there is still no as-
sistance being delivered, the instruction “Please
move the pedals” or “PEDAL” will continue to be
displayed. In this case you should consult your
specialist bike shop.
10. You can now ride o just as you would if you were
riding a normal bike. The motor starts providing assis-
tance as soon as the rear wheel starts turning.
Apply the brake before putting your foot on the
pedal.
From the rst moment on, you have ll assistance.
Practice starting up in a safe location before ven-
turing into the road trac.
If your bicycle is an Impulse 2.0 Ooad, wait
ve seconds aer switching on before turning the
pedals. If you do not wait, you may not get ll
assistance.
5 Battery
Your battery is a lithium-ion battery, the ideal type of bat-
tery for this application. One of the main benets of this
battery is its low weight combined with a high capacity.
5.1 Charging the battery
You can charge the battery whilst it is on the Pedelec

Chapter 4 “Quick start”.
Alternatively, you can take the battery out of its holder
and charge it in a separate location. This is recommended
if it is cold outside, in order to charge the battery in a
warmer room.
Condensation may form on the charger if the
temperature changes suddenly om cold to hot.
In case of condensation, wait approximately one
hour before connecting the charger to the mains,
until it has warmed up to the temperature of the
room. Ideally, avoid such situations by storing the
charger in the place where it is operated.
The battery can be charged at temperatures between 0°C
and 45°C. However, you can maximise a battery's service
life by charging it at an ambient temperature of between
10°C and 30°C.

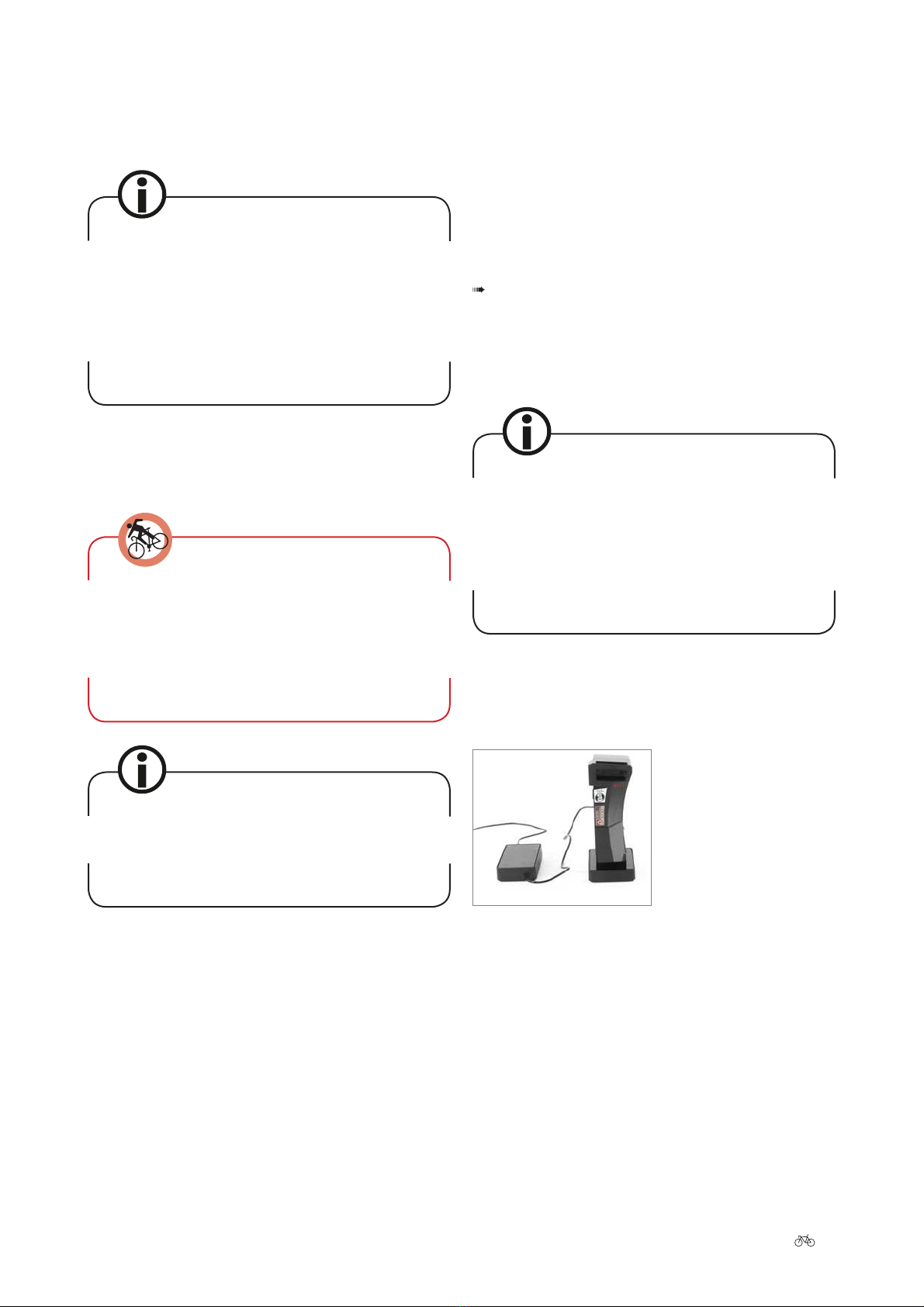

Battery in the charger
SEAT TUBE BATTERY

12 Original User Manual | Pedelec Impulse 2.0
5.1.1 Removing the battery
1. Grip the battery by the handle, insert the key into
the lock and turn it anticlockwise. The battery is now
unlocked.
Unlocking the battery
DOWN TUBE BATTERY SEAT TUBE BATTERY
2. a) Down tube battery: Grip the battery with both hands
and li it forwards/upwards out of its holder. In do-
ing so, hold on tight to the battery to avoid dropping
it. Place the battery down on a suitable surface. This
should be dry, even and non-ammable.
b) Seat tube battery: Grip the battery by the handle
and remove it om the Pedelec by tilting it sideways.
In doing so, hold on tight to the battery to prevent it
om falling out.
Removing the battery
DOWN TUBE BATTERY SEAT TUBE BATTERY
3. You should now remove the key and keep it in a safe
place to prevent it om breaking o or being lost.
5.1.2 Charging operation
Before charging the battery, read the directions on
the charger carelly.
1. a) Down tube battery: Take the charger provided out
of its packaging and plug the mains plug into a socket
(230–240V).
b) Seat tube battery: Take the charger provided and
the docking station out of their packaging and plug
the mains plug into a socket (230–240V). Connect the
charger to the docking station. The LED in the charger
now lights up briey in red and then permanently in
green.
To charge the battery safely, the charger must be
placed on a suitable surface. This should be dry
and non-ammable.
Seat tube battery: The charger must be supported
on its four feet. This is the only way to ensure that
the hot air around the battery can dissipate via
the surrounding ventilation slots.
2. a) Down tube battery: Connect the plug of the charger
to the battery.
b) Seat tube battery: Put the battery in the holder of
the docking station. The LED in the charger lights up in
green.
Charging the battery
SEAT TUBE BATTERY
3. a) Down tube battery: The charging process begins. If
your charger has an LED, this lights up red. The bat-
tery is charged in ve stages. When charging of one

Original User Manual | Pedelec Impulse 2.0 13
stage is in progress, the corresponding LED ashes.
If this stage has been lly charged, the LED will light
up permanently. Now the next LED will begin to ash.
Aer all ve LEDs have gone out, the battery is lly
charged.
b) Seat tube battery: The charging process begins.
The LED of the charger lights up in green. The battery
LEDs light up one by one to indicate the progress of
the charging operation. The battery is charged in ve
stages. When charging of one stage is in progress, the
corresponding LED ashes. If this stage has been lly
charged, the LED will light up permanently. Now the
next LED will begin to ash. Aer all ve LEDs have
gone out, the battery is lly charged.
If your charger has an LED, it may be that this
ashes red permanently. If this is the case, a
charging fault has occurred. Have the charger and
battery checked by your specialist cycle shop.
4. Pull the charger plug out of the socket once the charg-
ing operation is complete.
Damaged batteries may not be charged, and r-
ther use is not permitted.
The battery may heat up during charging. A maxi-
mum temperature of 45°C may be reached. If the
battery becomes any warmer than this, suspend
the charging process immediately.
There is no memory eect. You can therefore lly
recharge your battery aer every trip so you are
always ready for the o.
Ideally you should charge the battery at a temper-
ature of between +10°C and +30°C. It takes longer
to charge the battery at low temperatures, while
the battery will not charge up at temperatures
higher than +45°C. Ideally, you should charge and
store the battery inside your house or in a warm
garage when the outside temperature is low. In
this case, you should only t the battery onto your
bike just before using it.
5.1.3 Installing the battery
1. a) Down tube battery: Insert the battery into the bat-
tery holder of the Pedelec om the ont/above. At the
same time, the key must be in the lock and must be
turned anticlockwise.
b) Seat tube battery: Insert the battery into the holder
of the Pedelec om the le by tilting it outwards at
roughly 45°.
Installing the battery
DOWN TUBE BATTERY SEAT TUBE BATTERY
2. Press the battery down into the holder until the lock-
ing mechanism engages. Now turn the key clockwise
and remove it. The battery is now locked in place.
Locking the battery
DOWN TUBE BATTERY SEAT TUBE BATTERY
3. Make sure the battery is rmly in place.

14 Original User Manual | Pedelec Impulse 2.0
5.2 Battery information system
There is a display panel on the outer face of the battery
which includes ve LEDs and a battery key or push button.
The LEDs light up as soon as you press the battery key
or push button. Information about the charge state and
capacity of the battery is provided based on the number of
LEDs that light up and the way in which they light up.
Battery key Push button
DOWN TUBE BATTERY SEAT TUBE BATTERY
5.2.1 Checking the charge state
a) Down tube battery: Press the battery key briey, the
LEDs light up and display the current battery charge state.
DISPLAY BATTERY CHARGE STATE
•••••5 LEDs light up 100–%
••••4 LEDs light up –%
•••3 LEDs light up –%
••2 LEDs light up –%
•1 LED lights up –%

1 LED ashes –%
b) Seat tube battery: Press the push button briey, the
LEDs light up and display the current battery charge state.
SEAT TUBE BATTERY DISPLAY BATTERY CHARGE STATE
•••••5 LEDs light up 100–%
••••4 LEDs light up –%
•••3 LEDs light up –%
••2 LEDs light up –%
•1 LED lights up –%

1 LED ashes –%
5 LEDs ash quickly % or overloaded*
1st LED ashes
quickly
Charging fault **
* All 5 LEDs ash quickly: The battery is a) empty and is
being switched o, or is b) overloaded.
a) If the battery is overloaded, it will switch back on aer
a short idle period and can then be used normally.
b) If the battery is empty, it will work once again briey
following a short period of rejuvenation and will then
switch back o. It must now be charged.
** The 1st LED ashes quickly: A charging fault is present.
Please take the battery to your specialist cycle shop.
5.2.2 Checking the capacity
a) Down tube battery: If you hold down the battery key for
roughly ve seconds, the LEDs show the current battery
capacity.
SEAT TUBE BATTERY DISPLAY CAPACITY
••••4 LEDs light up approx. –%
•••3 LEDs light up approx. –%
••2 LEDs light up approx. –%
•1 LED lights up approx. –%

1 LED ashes approx. –%
b) Seat tube battery: If you press the push button for ve
seconds, the LEDs show the current capacity of the battery.
SEAT TUBE BATTERY DISPLAY CAPACITY
•••••5 LEDs light up –%
••••4 LEDs light up –%
•••3 LEDs light up –%
••2 LEDs light up –%
•1 LED lights up –%

1 LED ashes  %

Original User Manual | Pedelec Impulse 2.0 15
The range of the battery is less in winter due to
the lower temperatures. Only move the battery
om the warm room where you store it and t it
on your Pedelec just before you set o. This will
help to prevent the eect of the low temperature
on the range of the battery.

Chapter 5.4 “War-
ranty and service life”.
5.3 Battery management
The battery management monitors the temperature of
your battery and warns you of incorrect use.
If an external short-circuit has been caused at the
contacts or the charging socket, please consult
your specialist cycle shop.
Please always supervise the battery charging pro-
cess and disconnect the charger aerwards.
5.3.1 Sleep mode
The battery management switches the battery to sleep
mode to prevent a so-called total discharge. At the latest,
the battery management activates the sleep mode aer
ten days without use. The system exits sleep mode when
you connect the battery to the charger or press the battery
key or push button on the battery. This “wakes up” the
battery.
Down tube battery: If the battery does not wake
up, the cell voltage may be too low. In this case,
connect up the charger and press the battery key.
The battery is charged for one minute.
Seat tube battery: The battery can also be put into
sleep mode manually. To do so, press the push
button for eight seconds. Release the push button
as soon as the second LED lights up.
5.4 Warranty and service life
Batteries are wear parts. Wear parts come with a two-year
warranty.
If a fault occurs during this period, your specialist cycle
shop will replace the battery. Normal ageing and battery
wear do not constitute a fault.
The service life of the battery depends on dierent factors.
The most important wear-relevant factors are:
•The number of charging processes
Aer 1,100 charging cycles, your battery will still
have 60% of its initial capacity, providing it has
been well looked aer. This means 6.6 Ah in an 11
Ah battery and 7.2 Ah in a 15.5 Ah battery. A charg-
ing cycle is dened as the sum of the individual
charges until the charges reach the overall capacity
of the battery.
For example: You charge the battery with 5 Ah on
the rst day, 2 Ah on the second day and 4 Ah on
the third day; the sum is 11 Ah. The battery has
thereby completed one charge cycle.
According to the technical denition, the battery
is exhausted when less than 60% of the initial
capacity is available. Providing you can still cover
the journey distances with the remaining battery
capacity, you can of course continue using it. If the
capacity is no longer sucient, you can take your
battery to a specialist cycle shop who will dispose
of your battery and sell you a new one.
•The age of the battery
A battery also ages during storage.
This means: Even if you do not use your battery, its
capacity reduces. You can expect the battery to age
by approximately 3 to 5%.
Ensure that the battery does not become too
hot. The rate at which the battery ages increases
signicantly at temperatures above 40°C. Direct
sunlight can heat the battery considerably. Be sure
not to leave the battery in a hot car and always
stand your Pedelec in the shade during breaks in
cycle trips. If you cannot prevent exposure to heat,
please ensure that the battery is not charged dur-
ing this period.

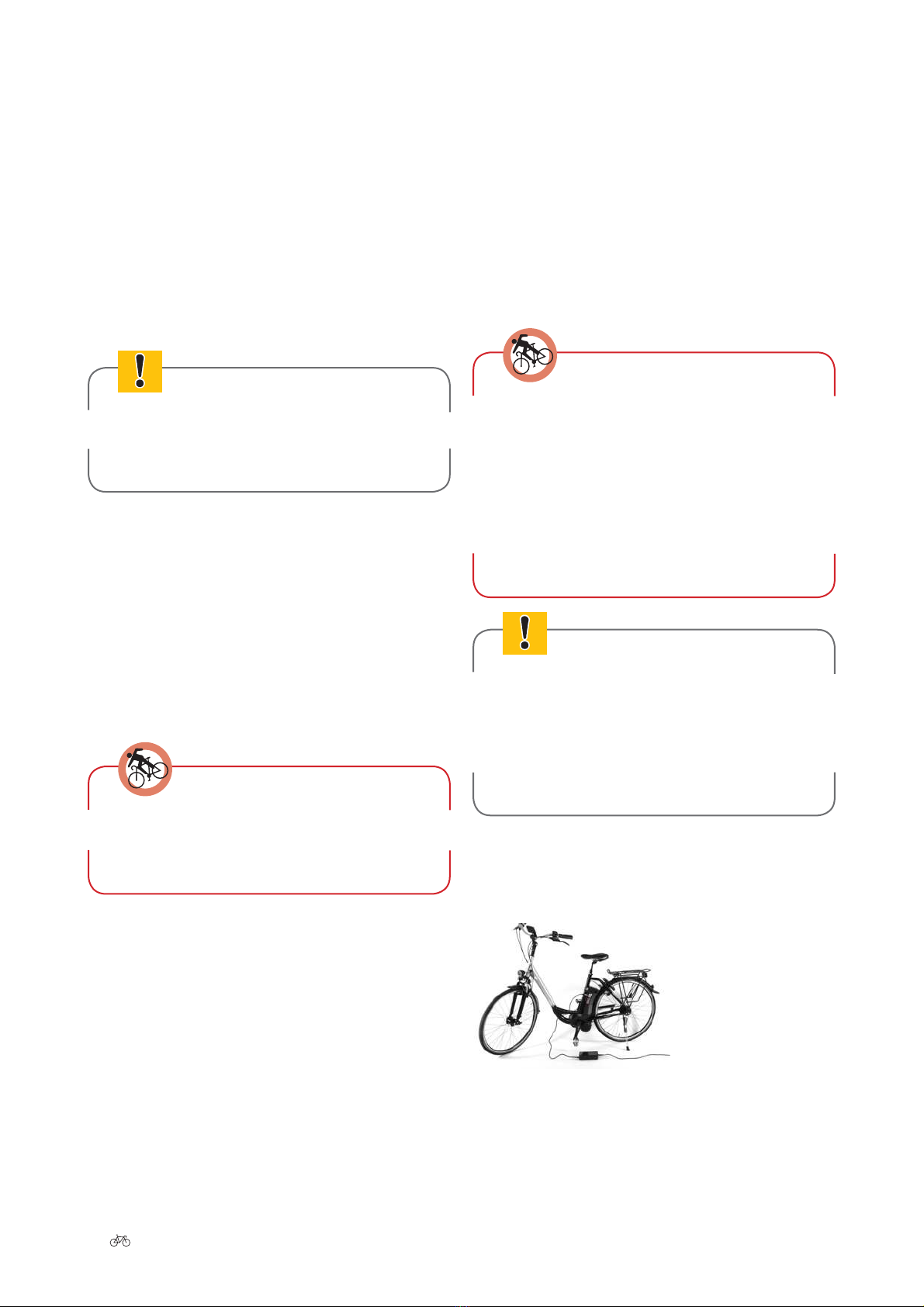

16 Original User Manual | Pedelec Impulse 2.0
A lly charged battery ages at an even greater rate
than a partially charged one at high temperatures.
•If you always ride with maximum motor output,
your motor will always require a stronger cur-
rent. Stronger currents cause the battery to age
more quickly.
•You can also extend the service life of the bat-
tery by using the assistance selectively. Use a
low assist level when riding. With lower dis-
charge currents, you conserve your battery.
Make sure that the battery is lly charged before
you ride your bike for the rst time or if you have
not used it for a while.
5.5 Storage
If you do not need your battery for a while, store it at a
temperature of 18–23°C at 50–70% of its ll charge
capacity. If you do not use the battery for six months, you
must recharge it.
5.6 Shipping
Do not ship batteries! A battery is a hazardous
article which can overheat and catch re in certain
conditions.
The preparation and shipping of a battery may only be
carried out by trained personnel.
If you would like to return your battery for replacement,
please always arrange this via your specialist cycle shop.
Specialist cycle shops can have the battery picked up
ee of charge and in compliance with dangerous goods
legislation.
5.7 Disposal
Batteries are not to be disposed of with domestic waste.
Consumers are legally bound to dispose of used or dam-
aged batteries at the locations designated for the purpose
(battery collection point or specialist cycle shop). The
disposal of batteries is clearly regulated in each country's
laws.
6 Charger
If used incorrectly, the device may be damaged or
inict injuries.
•Only use the charger in dry rooms.
•Only place the charger in a secure stable position
on a suitable surface.
•Do not cover the charger or place any objects on
it as otherwise it could overheat and catch re.
Do not use other chargers. Only charge the battery
using the charger provided, or a charger approved
by us for the purpose.
Read the type plates on the charger before using it
for the rst time.
You can charge your Pedelec Impulse 2.0 directly via a
charging socket in the battery. The battery can remain on
the Pedelec whilst the charging operation is in progress.
Charging the battery
SEAT TUBE BATTERY
Alternatively, you can take the battery out of its holder
and charge it elsewhere. This is recommended if it is cold
outside, in order to charge the battery in a warmer room.

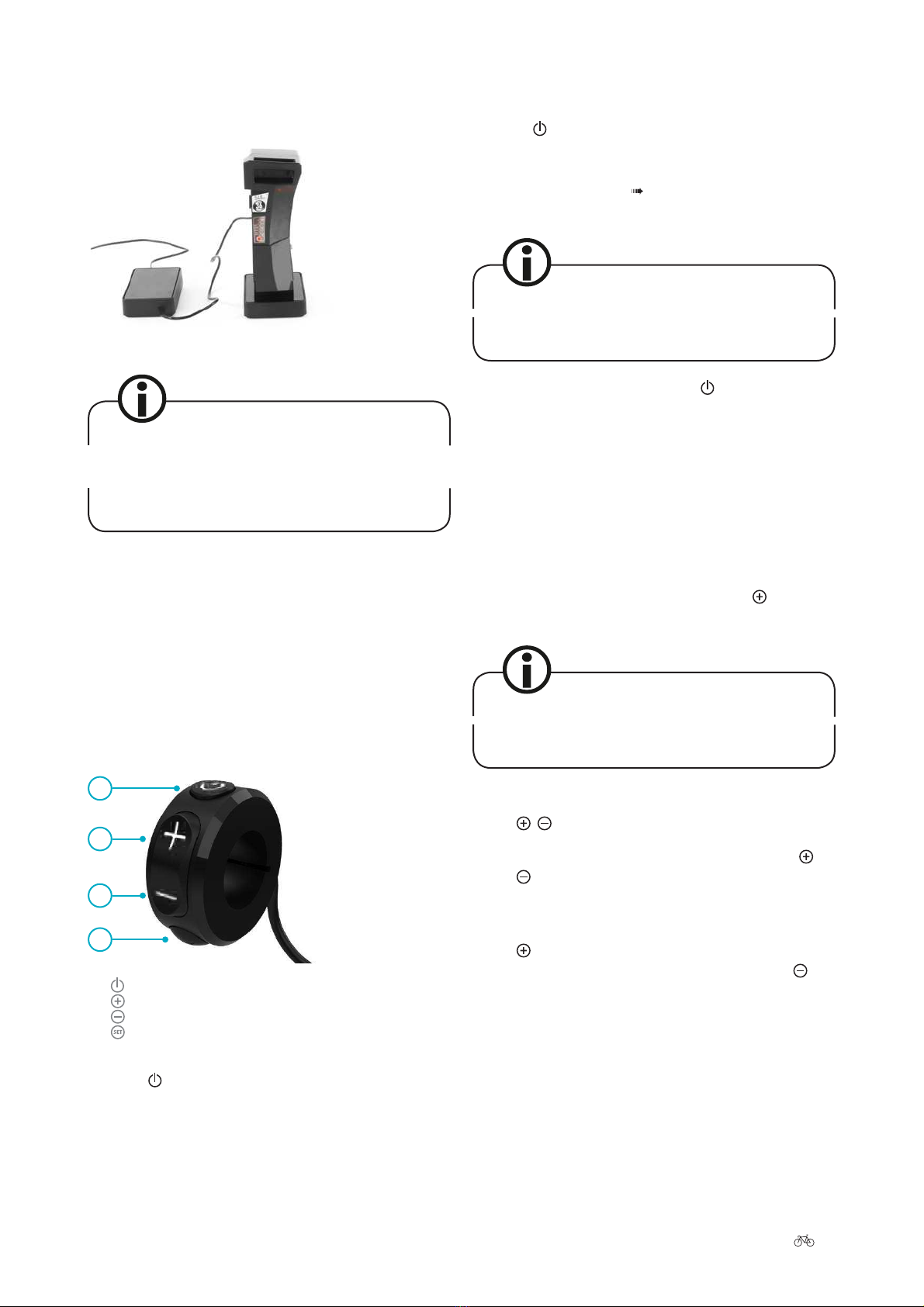

Original User Manual | Pedelec Impulse 2.0 17
The battery can be charged at temperatures between 0°C
and 45°C.
Battery in the docking station
SEAT TUBE BATTERY
If a charging fault occurs, the LED (where present)
in the charger ashes red. In this case, the charg-
ing current is too high. Consult your specialist
cycle shop.
7 Control panel and display
The Pedelec Impulse 2.0 can be controlled via two ele-
ments. The control panel can be found on the handlebar
grip; the display is located in the middle of the handlebar.
7.1 Control panel
1 button, on and o button
2 button, increase value/scroll up
3 button, decrease value/scroll down
4 button
1
2
3
4
Press the button to switch the system on and o.
Buttons 2 to 4 have dierent nctions depending on the
item of the settings menu in which you are located.
7.1.1 Switching on/o
Press the button on the control panel to switch the Im-
pulse system on. Aer a few seconds, the welcome screen
appears, followed by the start menu. From there you can
carry out rther settings

Chapter 7.4 “Programming and
settings”.
Aer switching on, the system is always in the
display mode in which you switched it o.
To switch your Pedelec o, press the button on the con-
trol panel in the start menu.
7.1.2 Push assist
The pushing assistance moves the Pedelec slowly (at a
maximum speed of 6 km/h) without you having to turn the
pedals, e.g. if you are manoeuvring in a tight space or are
pushing your Pedelec out of a basement garage.
To activate the pushing assistance, press the button for
three seconds.
The pushing assistance is not suitable for use as
starting assistance.
7.1.3 / buttons
•You can speci the power-assist level via the /
buttons.
•Each time you press one of these two buttons the
power assist changes by one level. If you press the
button, the level of assistance increases by one
level each time you press it. If you press the
button, the assistance becomes weaker each time
you press it.

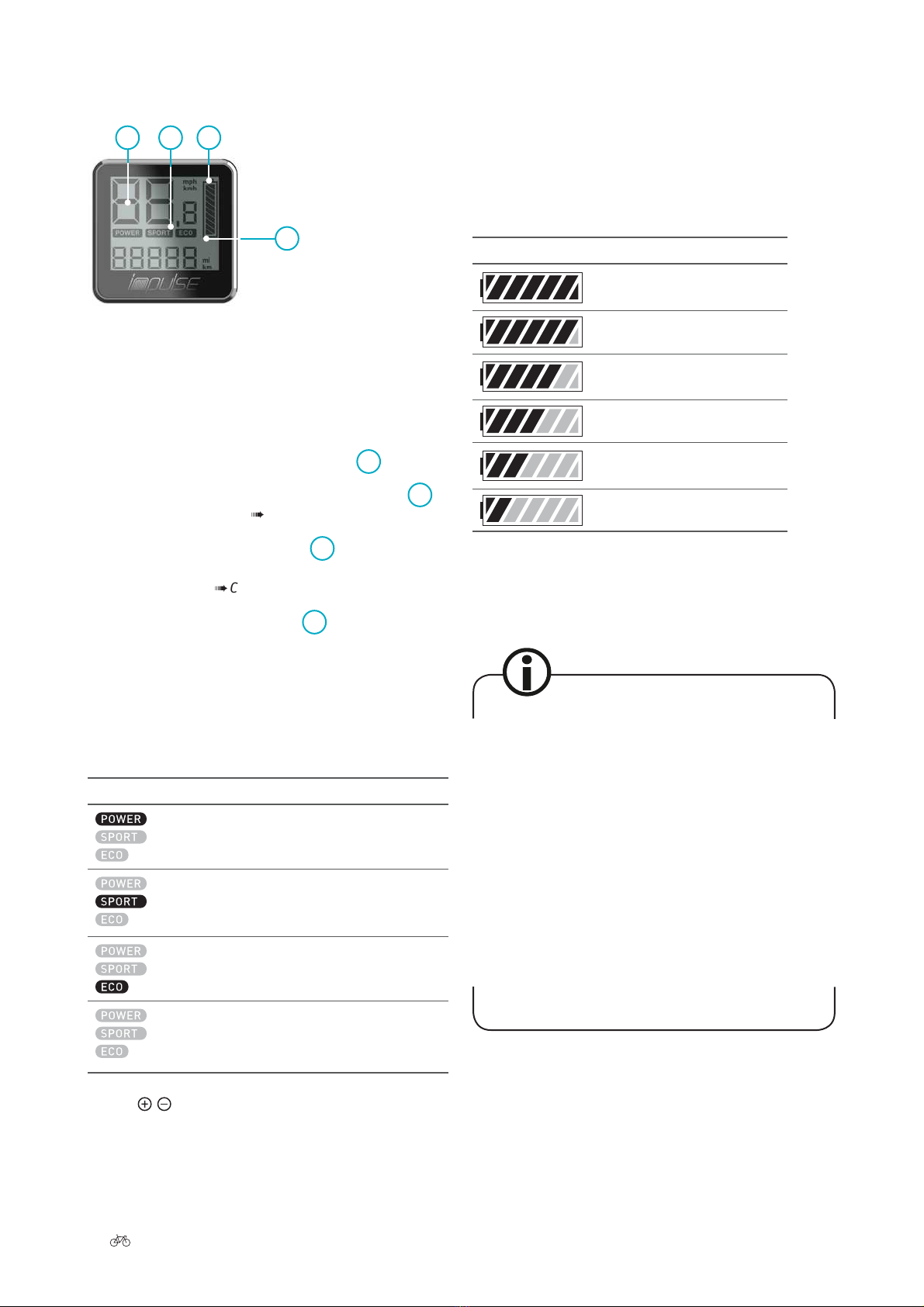

18 Original User Manual | Pedelec Impulse 2.0
7.2 Display small
1 Speed
2 Power-assist mode
3 Battery charge state
4 Kilometres covered during the day or overall
1
4
2 3
The display in the middle of the handlebar is divided into
four dierent display panels.
•At the top on the le is your current 1speed.
•Below this is a display showing the selected 2
power-assist mode

Chapter 7.2.1.
•At the top on the right is the 3battery symbol
which tells you the current battery charge state of
your Pedelec

Chapter 7.2.2.
•Below this is the display of 4kilometres covered
during the day and overall.
7.2.1 Assistance indicator
The display shows you how much assistance the motor is
currently providing.
DISPLAY SCREEN ASSISTANCE
This means the assistance is
working hard.
This means the assistance is
working with a medium level of
eort.
This means the assistance is
working with a low level of eort.
No assistance. Battery indicator
still lights up.
Use the / buttons to switch between the individual
power-assist modes.
7.2.2 Battery charge state indicator
The battery charge state indicator is located at the top on
the right of the display. Using a stylised battery divided
into seven segments, it shows the charge remaining in the
battery. The lower the charge state of the battery, the few-
er segments are displayed.
DISPLAY BATTERY CHARGE STATE
–.%
.–.%
.–.%
.–. %
.–.%
.–.%
If the battery charge state falls below a minimum level,
the assistance switches o via the motor. Then the entire
display fades and goes o, too.
If you do not use your Pedelec for ten minutes, the
system switches o automatically. If you subse-
quently want to ride using the assistance, you will
have to switch it back on via the control panel.
If the conditions of the journey change, for ex-
ample, by riding up an incline aer a long, at
stretch, the value displayed can also change at
short notice. Please consider this factor when
planning your trips. You are probably familiar
with this eect om the remaining range indicator
of your car. The remaining range depends on the
current battery charge state and the assist mode
which has been set (POWER, SPORT or ECO).

Original User Manual | Pedelec Impulse 2.0 19
•The display of journey time during the current
trip and the top speed reached on this trip.
•The average speed during the current trip and
the total distance covered.
You can switch between the various displays with-
in the information area by pressing the button
in the main menu.
7.3.1 Assistance indicator

Chapter 7.2.1
7.3.2 Battery charge state indicator

Chapter 7.2.2
7.3.3 Units

Chapter 7.2.3
7.3.4 Remaining range indicator
Below and to the right of the battery charge state indica-
tor, the distance in km over which you can still travel with
power assist is displayed. This is the remaining range
indicator.
7.4 Programming and settings
Aer switching on the Impulse system, you can switch
om the main menu to the menu sub-items, by pressing
the button for three seconds.
You are taken to the menu sub-items:
•Drive data

Chapter 7.4.1
•Delete trip data

Chapter 1.2.1
•Delete overall data

Chapter 7.4.3
•Device settings

Chapter 7.4.4
•Personalize

Chapter 7.4.5
•Target cost

Chapter 7.4.6
•Back
You can select the menu sub-items using the / buttons
on the control panel. You can conrm your selection by
7.2.3 Units
Press and hold the button for three seconds to switch
between kmh (speed)/ km (remaining range indicator) and
mph/mi.
7.3 Display
1 Speed
2 Power-assist mode
3 Battery charge state
4 Remaining range
5 Information area
1
5
4
23
The display in the middle of the handlebar is divided into
ve dierent display panels.
•At the top on the le is your current 1speed.
•To the right of the current speed is a display show-
ing the selected 2power-assist mode

Chapter 7.2.1.
•At the top on the right is the 3battery symbol
which tells you the current battery charge state of
your Pedelec

Chapter 7.2.2.
•Below this the remaining 4range is displayed

Chapter 7.3.3.
•Along the bottom section of the display is a long
5information area that can be used to display
the following information:
•How much of its potential output the motor is
currently delivering.
•The costs that have been incurred in the course
of the current trip and during the entire service
life.
•The savings achieved in both euros and CO in
comparison with the same journey by car.
•The total number of kilometres covered.
•The display of kilometres covered during the
day and overall.

20 Original User Manual | Pedelec Impulse 2.0
7.4.4 Device settings
Under the menu sub-item “Device settings”, you can select
the following items by pressing the / button:
•Display

Chapter 7.4.4.1
•Drive

Chapter 7.4.4.2
•Miscellaneous

Chapter 7.4.4.3
•Back
Conrm your selection by tapping the button.
7.4.4.1 Display
Choose om the following using the / button:
•Contrast
•Brightness
•Language
•Unit
•Back
Conrm your selection by tapping the button.
Contrast: You can select the following values using the
/ button:
Very low contrast -35%
-30%
-25%
-20%
-15%
-10%
-5%
Average “Standard”
5%
10%
15%
Very high contrast 20%
The change in contrast is implemented immediately. Tap-
ping the button conrms your selection and then takes
you back to the menu sub-item display.
pressing the button. The respective contents are then
displayed for you. In order to return to the main menu
display om the menu sub-items, you must select the
menu sub-item “Back” and conrm by pressing the but-
ton. You can also return to the main menu by pressing and
holding the button for three seconds.
7.4.1 Drive data
The following data are displayed in the menu sub-item
“Drive data”:
•Trip (in km)
•Trip time (in 00:00:00)
•Trip max (in km/h)
•Trip Ø (in km/h)
•Trip cost (in €)
•Tour (in km)
•Tour Ø (in km/h)
•Tour cost (in €)
•Overall (in km)
•Overall savings (in €)
•Tot. sav. CO2(in kg)
•Back
Selected the desired item using the / buttons. The
selected item is highlighted in bold. Conrm your selec-
tion by tapping the button. You are taken back to the
menu sub-items.
7.4.2 Delete trip data
Under the menu sub-item “Delete trip data”, you can
delete the kilometres indicated for the current day trip.
The following question appears on the display: “Conrm
delete?”, and below it “Yes” or “No”. Select the desired
item using the / button. The selection is highlighted
in bold. Conrm your selection by tapping the button.
You are taken back to the menu sub-items.
7.4.3 Delete overall data
Under the menu sub-item “Delete overall data”, you can
delete the total kilometres covered. The following ques-
tion appears on the display: “Conrm delete?”, and below
it “Yes” or “No”. Select the desired item using the /
button. The selection is highlighted in bold. Conrm your
selection by tapping the button. You are taken back to
the menu sub-items.
