Perrin & Rowe UKIT1570LS User manual

Perrin & Rowe® Filtration featuring “Triow® Technology”

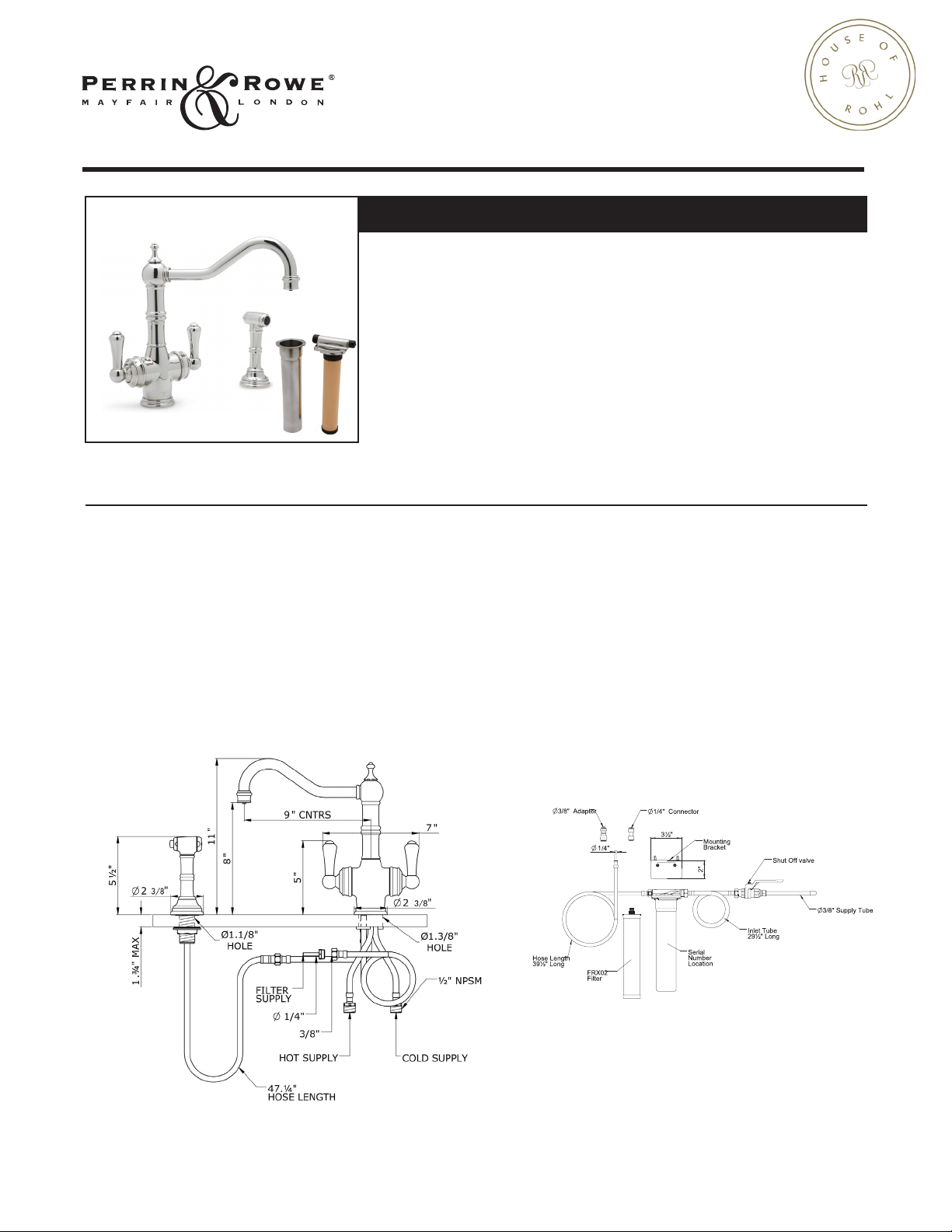

TRADITIONAL 2-LEVER KITCHEN FAUCET WITH SIDESPRAY
UKIT1570LS
FEATURES
• Metal lever handles only
• Made from solid brass barstock, CNC machined
• Ceramic disc control cartridge
• Insulated brass sidespray
• 1 3/4” max. installation depth on deck
• Faucet made in England. Filter made
in Switzerland.
• 9” reach swivel spout, 11” overall height
• Filtered water .5 GPM, hot and cold water 1.5 GPM @ 45 PSI
FINISHES
• Polished Chrome
• Polished Nickel
• Satin Nickel
• English Gold*
• English Bronze
• Satin English Gold*
• Unlacquered Brass**
WARRANTY
• Limited Lifetime
(*) 5-Year Limited Warranty
(**) No Warranty
houseofrohl.com
Consult your local House of Rohl showroom for additional information and specications. For complete warranty details and a list of showrooms, go to houseofrohl.com

www.rohlhome.com
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.

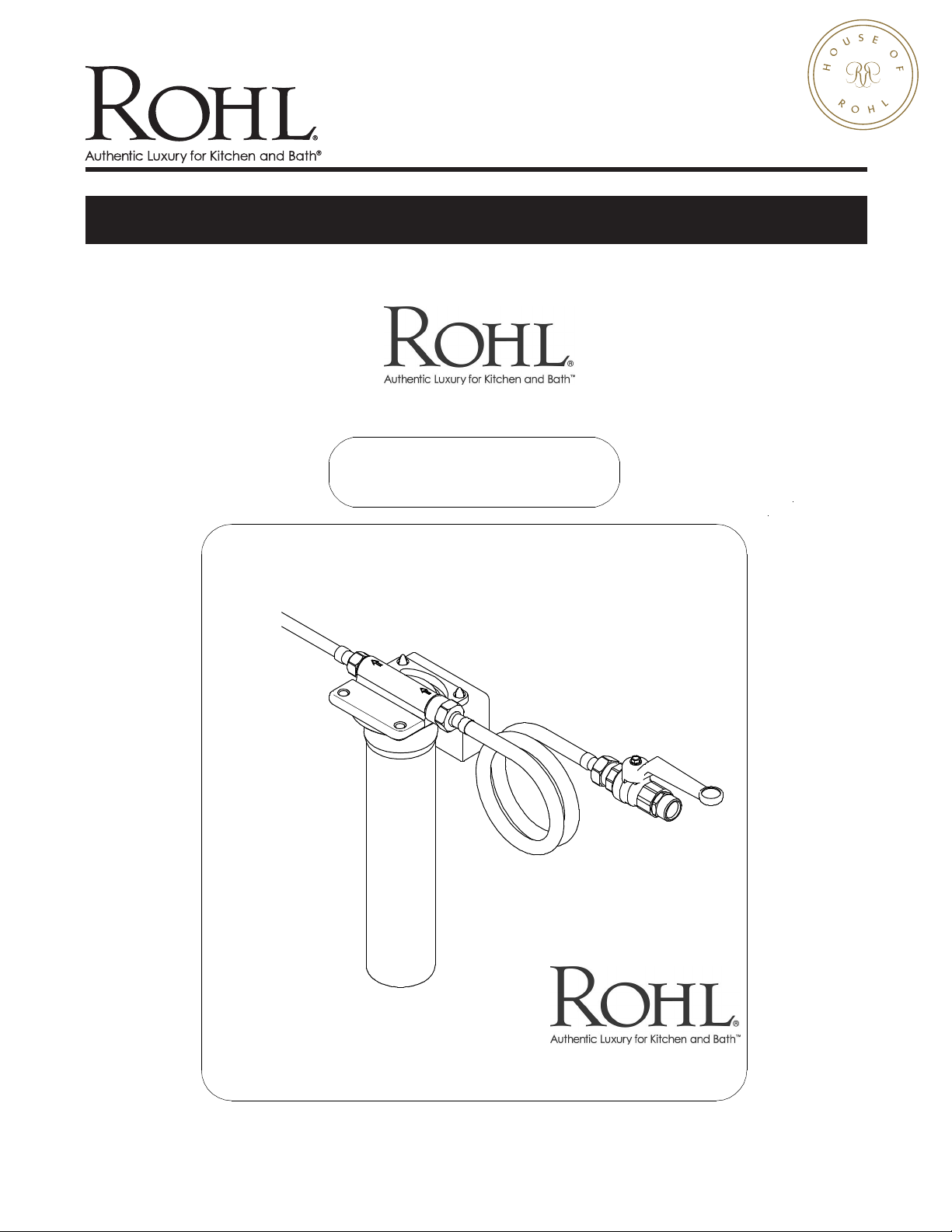

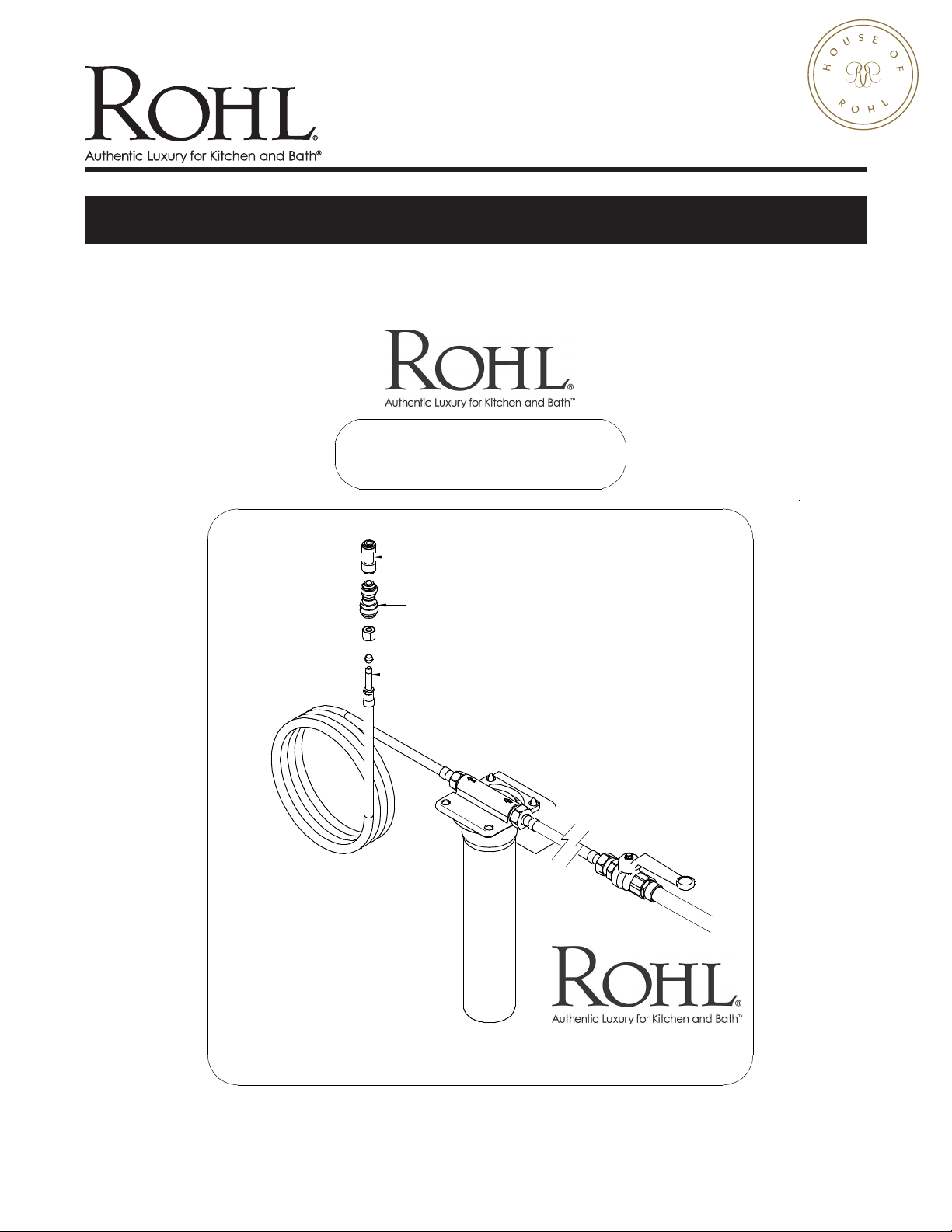

INSTALLATION INSTRUCTIONS
The Kitchen Filtration Collection
Arolla™ Filter Installation Guide
9001816U Issue 9
Temp Range:
Max 85°C/185°F
Recommended
Working Pressure:
Min 1.7bar/25psi
Max 5bar/75psi
Please register your new product.
Complete the enclosed registration card, or call Toll free on 800.777.9762
•HRK-2000 Arolla Filter Fitted with HRF-1000 Filter Cartridge
ROHL WARRANTY POLICY
All products supplied by ROHL carry warranties against manufacturing defects.
Our products carry a Limited Lifetime Warranty.
For full ROHL LLC WARRANTY please contact ROHL or visit www.rohlhome.com
Ø 1/4" to Ø 1/4"
PUSH FIT
Ø 1/4" to Ø 3/8"
PUSH FIT
Ø 1/4"
Katadyn of Switzerland
Exclusive manufacturers of the HRF-1000 Filter Cartridges.
9.03619
9.28851
9.28850
9.31629
9.130617
9.311005
9.07495
9.030366
9.160002
SPARES
Cartridge Service
ROHL
3 Parker
Irvine, CA 92618
800-777-9762
www.rohlhome.com
HRF-1000

www.rohlhome.com
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
INSTALLATION INSTRUCTIONS
ROHL Arolla Filter Installation Guide
CARE & MAINTENANCE
Wipe down after use to avoid water spotting and mineral build up.
Replace HRF-1000 every six (6) months or 1,000 Gallons usage.
2
4
1
3
6
Turn on the main supply valve.
Run the filtered water for 2 minutes to
flush the system, and carefully check
the system for leaks. The system is
now ready for use.
Small air pockets may remain in the
ceramic filter which may cause the
water to appear cloudy, this is normal
and will disappear with continued use.
Ensure you have the correct fittings to connect
to the filter faucet
Congratulations on the purchase of your ROHL Arolla™ Filtration product. Correctly installed and with sensible
care, this product will give you many years of trouble free service.
IMPORTANT INFORMATION
These are instructions for ROHL Arolla Filtration. Please read carefully to ensure correct
installation.
Before you proceed... We recommend you engage the services of aregistered plumber
to install this product.

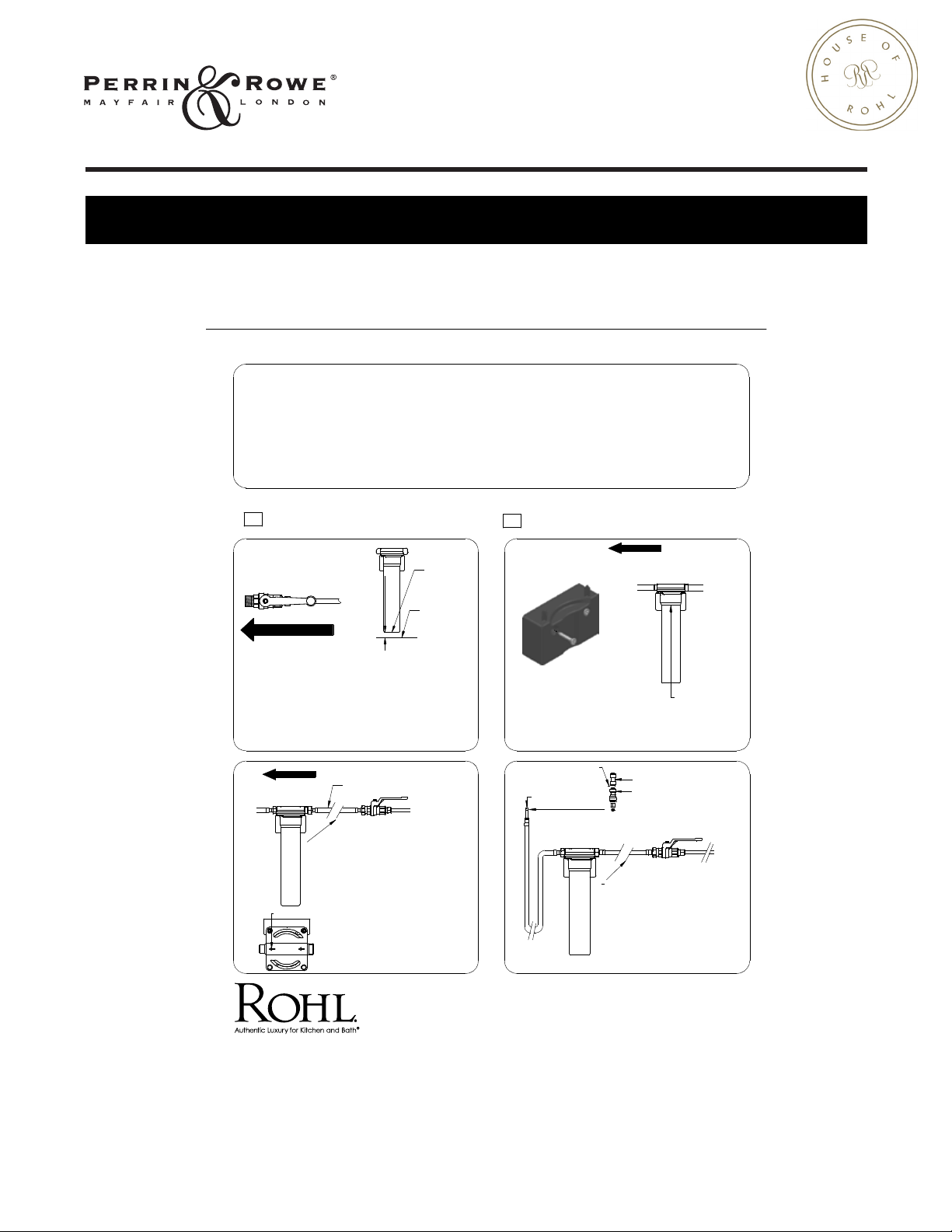

Preparation for Installer
Flush the plumbing system before
installing the Kitchen product.
ø3/8"
Main Cold Feed
Flow Direction
Base of
cabinet
Allow room
around the
housing
Filter
HRK-2000
Main cold
feed
To Filter
Tap
5
To Filtered
Tap
Filter
Flow direction
Supplied
hose
1 " Minimum
ø1/4" to ø1/4" Connector
ø1/4" to ø3/8"
Connector
ø1/4" Connector
Flow direction
Flow direction
Filter
Connection
Kit
Shut off mains supply. A stop valve was
supplied with the system for this purpose,
and will be located on the adjacent pipe work.
If you plan to be away from home for extended
periods, carry out the procedures above, to prevent
the risk of freezing. Freezing will invalidate the
warranty.
Turn the filtered lever on the faucet to the
on position. This will confirm the water supply
is off, and release the pressure in the system.
To Winterize the Unit
Position the filter housing
leaving room around it
for future access and
cartridge replacement.
Mark the screw holes
ready for pilot holes.
Leave room for the
Pre-filter housing if
necessary.
Remember to
leave room
for servicing
the cartridge
housings.
Drill the pilot holes
and screw the filter
housing bracket in
position. Making
sure to keep as
level as possible.
Check the hose
length for distance
Install the supplied
stop valve in an easily
accessible area to allow
access to turn off the
water supply in the
future, for servicing
and cartridge
replacement.
Tighten the hoses from
the stop valve to the
housings following the
flow of the water
shown on the cap.
IMPORTANT NOTES
Do not use with water, that is microbiologically unsafe or of unknown quality without adequate disinfection
before or after the system. Systems certified for cyst reductions may be used on disinfected waters that may
contain filterable cysts.
Please ensure that the installation complies with applicable State & local plumbing codes.
System is to be supplied with cold water only.
3 Parker
Irvine, CA 92618
800-777-9762
www.rohlhome.com
HRK-2000

www.rohlhome.com
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
INSTALLATION INSTRUCTIONS
ROHL Arolla Filter Installation Guide
CARE & MAINTENANCE
Wipe down after use to avoid water spotting and mineral build up.
Replace HRF-1000 every six (6) months or 1,000 Gallons usage.
2
4
1
3
6
Turn on the main supply valve.
Run the filtered water for 2 minutes to
flush the system, and carefully check
the system for leaks. The system is
now ready for use.
Small air pockets may remain in the
ceramic filter which may cause the
water to appear cloudy, this is normal
and will disappear with continued use.
Ensure you have the correct fittings to connect
to the filter faucet
Congratulations on the purchase of your ROHL Arolla™ Filtration product. Correctly installed and with sensible
care, this product will give you many years of trouble free service.
IMPORTANT INFORMATION
These are instructions for ROHL Arolla Filtration. Please read carefully to ensure correct
installation.
Before you proceed... We recommend you engage the services of aregistered plumber
to install this product.
Preparation for Installer
Flush the plumbing system before
installing the Kitchen product.
ø3/8"
Main Cold Feed
Flow Direction
Base of
cabinet
Allow room
around the
housing
Filter
HRK-2000
Main cold
feed
To Filter
Tap
5
To Filtered
Tap
Filter
Flow direction
Supplied
hose
1 " Minimum
ø1/4" to ø1/4" Connector
ø1/4" to ø3/8"
Connector
ø1/4" Connector
Flow direction
Flow direction
Filter
Connection
Kit
Shut off mains supply. A stop valve was
supplied with the system for this purpose,
and will be located on the adjacent pipe work.
If you plan to be away from home for extended
periods, carry out the procedures above, to prevent
the risk of freezing. Freezing will invalidate the
warranty.
Turn the filtered lever on the faucet to the
on position. This will confirm the water supply
is off, and release the pressure in the system.
To Winterize the Unit
Position the filter housing
leaving room around it
for future access and
cartridge replacement.
Mark the screw holes
ready for pilot holes.
Leave room for the
Pre-filter housing if
necessary.
Remember to
leave room
for servicing
the cartridge
housings.
Drill the pilot holes
and screw the filter
housing bracket in
position. Making
sure to keep as
level as possible.
Check the hose
length for distance
Install the supplied
stop valve in an easily
accessible area to allow
access to turn off the
water supply in the
future, for servicing
and cartridge
replacement.
Tighten the hoses from
the stop valve to the
housings following the
flow of the water
shown on the cap.
IMPORTANT NOTES
Do not use with water, that is microbiologically unsafe or of unknown quality without adequate disinfection
before or after the system. Systems certified for cyst reductions may be used on disinfected waters that may
contain filterable cysts.
Please ensure that the installation complies with applicable State & local plumbing codes.
System is to be supplied with cold water only.
3 Parker
Irvine, CA 92618
800-777-9762
www.rohlhome.com
HRK-2000

www.rohlhome.com
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
INSTALLATION INSTRUCTIONS
The Kitchen Filtration Collection
Arolla™ Filter Installation Guide
9001816U Issue 9
Temp Range:
Max 85°C/185°F
Recommended
Working Pressure:
Min 1.7bar/25psi
Max 5bar/75psi
Please register your new product.
Complete the enclosed registration card, or call Toll free on 800.777.9762
•HRK-2000 Arolla Filter Fitted with HRF-1000 Filter Cartridge
ROHL WARRANTY POLICY
All products supplied by ROHL carry warranties against manufacturing defects.
Our products carry a Limited Lifetime Warranty.
For full ROHL LLC WARRANTY please contact ROHL or visit www.rohlhome.com
Ø 1/4" to Ø 1/4"
PUSH FIT
Ø 1/4" to Ø 3/8"
PUSH FIT
Ø 1/4"
Katadyn of Switzerland
Exclusive manufacturers of the HRF-1000 Filter Cartridges.
9.03619
9.28851
9.28850
9.31629
9.130617
9.311005
9.07495
9.030366
9.160002
SPARES
Cartridge Service
ROHL
3 Parker
Irvine, CA 92618
800-777-9762
www.rohlhome.com
HRF-1000

www.rohlhome.com
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
INSTALLATION INSTRUCTIONS

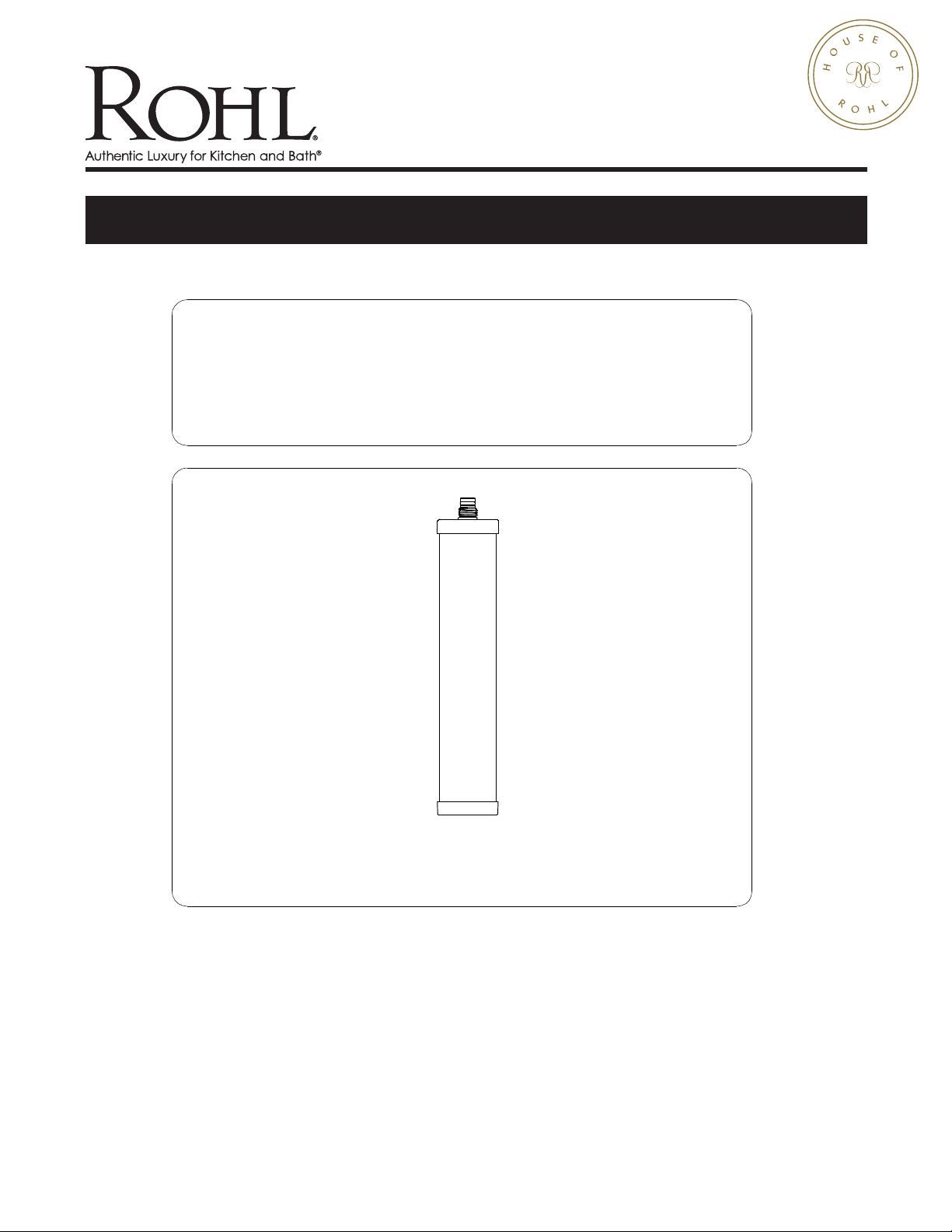

Replacement Filter HRF-1000 installed in the
HRK-2000 Filtration canister
The Kitchen Filtration Collection
Arolla™ Filter Replacement Guide
Temp Range:
Max 85°C/185°F
Recommended
Working Pressure:
Min 1.7bar/25psi
Max 5bar/75psi
Please register your new product.
Complete the enclosed registration card, or call Toll free on 800.777.9762
• HRK-2000 Filtration Canister
• HRF-1000 Replacement Filter
9001802U Issue 7
Katadyn of Switzerland
Exclusive manufacturers of the U.1802 Filter Cartridges.
Cartridge Service
ROHL
3 Parker
Irvine, CA 92618
800-777-9762
www.rohlhome.com
ROHL WARRANTY POLICY
All products supplied by ROHL carry warranties against manufacturing defects.
Our products carry a Limited Lifetime Warranty.
For full ROHL LLC WARRANTY please contact ROHL or visit www.rohlhome.com

www.rohlhome.com
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
INSTALLATION INSTRUCTIONS
Thank you for your continuing support of the ROHL Filtration products
2

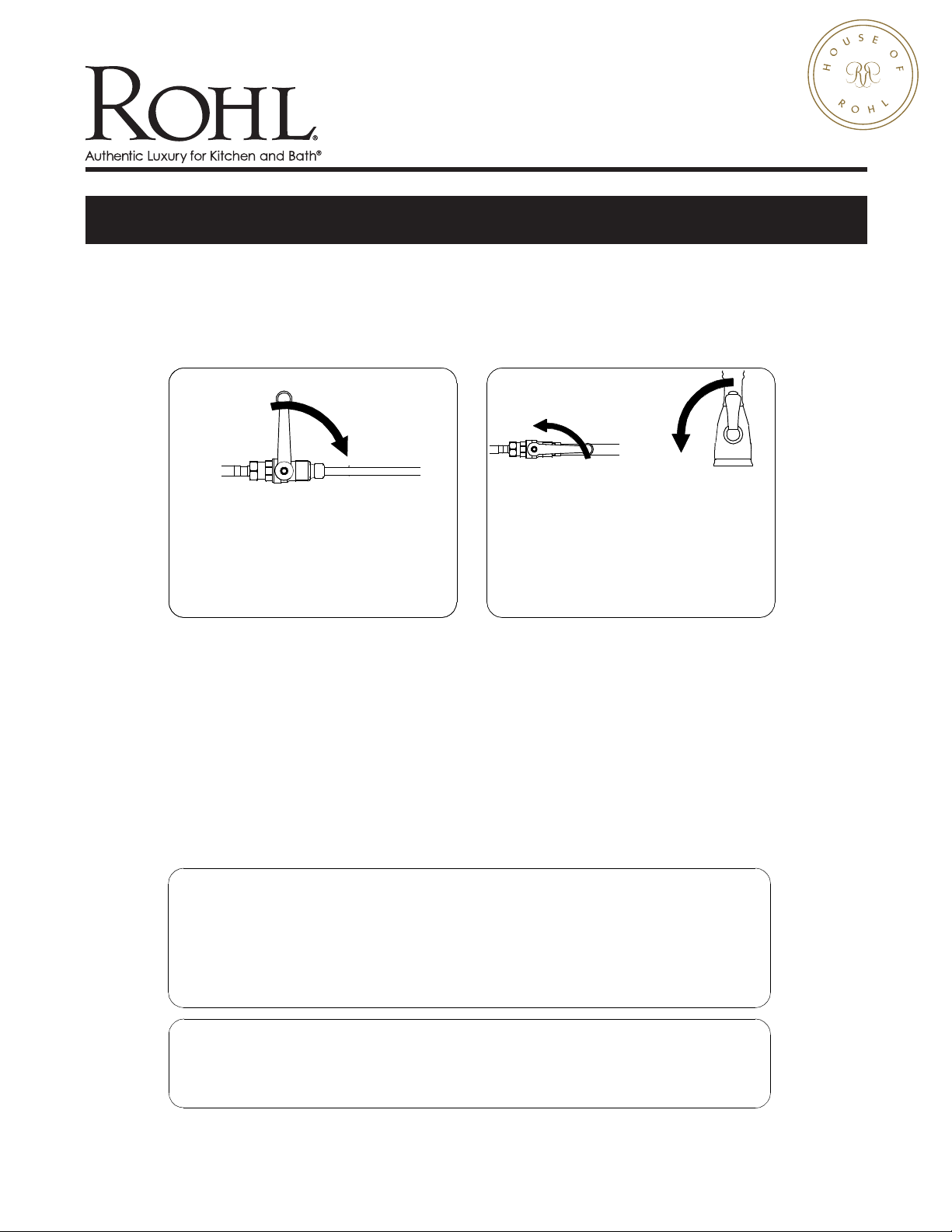

To Winterize the Unit
If you plan to be away from home for extended periods, or the filter housing maybe subject to the risk of
freezing, carry out the procedures 1-2 as above. When the risk of freezing has subsided or you wish to use the
system again open the main supply and allow the water to run for 2 minutes to flush the system, the system is
now ready to use. Freezing will invalidate the warranty.
1
Shut off main supply.
A stop valve was
supplied with the
system for this
purpose, and will
be located on the
adjacent pipe work.
Turn the filtered
lever on the faucet
to the on position.
This will confirm
the water supply is
off, and release the
pressure in the
system.
5 :
Lift the filter unit
from its retaining
bracket.
67
89
Take the new cartridge
and wet the two 'O' seals
on the threaded end of the
cartridge.
Screw
carefully into
the female
thread on
the inside
of the cap.
Fit the
housing
back over
the cartridge
with a quarter
turn counter
clockwise
Please Note:
The cartridge is
fragile and can
be easily
damaged
if not handled
carefully. Care
should
therefore be
taken when
screwing the
cartridge into
the housing
cap.
Be careful not to
cross thread or
over tighten the
cartridge.
Replace the unit on the bracket, and
(if removed) tighten the hoses onto the
cap.
Turn on the main supply valve.
Run the filtered water for 2 minutes to
flush the system, and carefully check
the system for leaks. The system is
now ready for use.
Small air pockets may remain in the
ceramic filter which may cause the
water to appear cloudy. This is normal
and will disappear with continued use.
Holding the cap clip
down rotate the
housing clockwise a
quarter turn and
slide the housing
down.
4
Slide the
housing off
the filter cartridge.
While holding the
cap firmly,
unscrew the
cartridge. Discard
the cartridge with
your house-hold
waste, wrapped in
news paper or
placed in a
polythene bag.
Wash the housing in warm soapy
water, then rinse well.
If space is
restricted
slide the
housing
down and
then unscrew
the cartridge.
Then remove
both the
cartridge and
the housing
together.
Conveniently
position a suitable
receptacle to
catch the
residual water
from the housing
and remove
hoses.
Only if necessary due to restricted access.
IMPORTANT INFORMATION
The following instructions are for the filter replacement you are installing.
Please read carefully to ensure correct installation.
IMPORTANT NOTE
Do not use with water, that is microbiologically unsafe or of unknown quality without adequate disinfection
before or after the system.
With a rated service capacity of 3406 litres (900 gallons) the HRF-1000 filter cartridge should be replaced
every six months to ensure optimum performance.
23
Only if fitted
with clip, as on
early models.
3 Parker
Irvine, CA 92618
800-777-9762
www.rohlhome.com
ROHL Arolla Filter Replacement Guide

www.rohlhome.com
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
INSTALLATION INSTRUCTIONS
Thank you for your continuing support of the ROHL Filtration products
2
To Winterize the Unit
If you plan to be away from home for extended periods, or the filter housing maybe subject to the risk of
freezing, carry out the procedures 1-2 as above. When the risk of freezing has subsided or you wish to use the
system again open the main supply and allow the water to run for 2 minutes to flush the system, the system is
now ready to use. Freezing will invalidate the warranty.
1
Shut off main supply.
A stop valve was
supplied with the
system for this
purpose, and will
be located on the
adjacent pipe work.
Turn the filtered
lever on the faucet
to the on position.
This will confirm
the water supply is
off, and release the
pressure in the
system.
5 :
Lift the filter unit
from its retaining
bracket.
67
89
Take the new cartridge
and wet the two 'O' seals
on the threaded end of the
cartridge.
Screw
carefully into
the female
thread on
the inside
of the cap.
Fit the
housing
back over
the cartridge
with a quarter
turn counter
clockwise
Please Note:
The cartridge is
fragile and can
be easily
damaged
if not handled
carefully. Care
should
therefore be
taken when
screwing the
cartridge into
the housing
cap.
Be careful not to
cross thread or
over tighten the
cartridge.
Replace the unit on the bracket, and
(if removed) tighten the hoses onto the
cap.
Turn on the main supply valve.
Run the filtered water for 2 minutes to
flush the system, and carefully check
the system for leaks. The system is
now ready for use.
Small air pockets may remain in the
ceramic filter which may cause the
water to appear cloudy. This is normal
and will disappear with continued use.
Holding the cap clip
down rotate the
housing clockwise a
quarter turn and
slide the housing
down.
4
Slide the
housing off
the filter cartridge.
While holding the
cap firmly,
unscrew the
cartridge. Discard
the cartridge with
your house-hold
waste, wrapped in
news paper or
placed in a
polythene bag.
Wash the housing in warm soapy
water, then rinse well.
If space is
restricted
slide the
housing
down and
then unscrew
the cartridge.
Then remove
both the
cartridge and
the housing
together.
Conveniently
position a suitable
receptacle to
catch the
residual water
from the housing
and remove
hoses.
Only if necessary due to restricted access.
IMPORTANT INFORMATION
The following instructions are for the filter replacement you are installing.
Please read carefully to ensure correct installation.
IMPORTANT NOTE
Do not use with water, that is microbiologically unsafe or of unknown quality without adequate disinfection
before or after the system.
With a rated service capacity of 3406 litres (900 gallons) the HRF-1000 filter cartridge should be replaced
every six months to ensure optimum performance.
23
Only if fitted
with clip, as on
early models.
3 Parker
Irvine, CA 92618
800-777-9762
www.rohlhome.com
ROHL Arolla Filter Replacement Guide

www.rohlhome.com
Consult your local ROHL showroom for additional information and specications. For complete warranty details and a list of showrooms, go to www.rohlhome.com.
INSTALLATION INSTRUCTIONS
Replacement Filter HRF-1000 installed in the
HRK-2000 Filtration canister
The Kitchen Filtration Collection
Arolla™ Filter Replacement Guide
Temp Range:
Max 85°C/185°F
Recommended
Working Pressure:
Min 1.7bar/25psi
Max 5bar/75psi
Please register your new product.
Complete the enclosed registration card, or call Toll free on 800.777.9762
• HRK-2000 Filtration Canister
• HRF-1000 Replacement Filter
9001802U Issue 7
Katadyn of Switzerland
Exclusive manufacturers of the U.1802 Filter Cartridges.
Cartridge Service
ROHL
3 Parker
Irvine, CA 92618
800-777-9762
www.rohlhome.com
ROHL WARRANTY POLICY
All products supplied by ROHL carry warranties against manufacturing defects.
Our products carry a Limited Lifetime Warranty.
For full ROHL LLC WARRANTY please contact ROHL or visit www.rohlhome.com

INSTALLATION INSTRUCTIONS
Congratulations on the purchase of your Perrin and Rowe/Triflow filtration Product. Correctly installed and with
sensible care, this product will give you many years of trouble free service.
The Perrin and Rowe Collection
Filter Installation Guide
CARE & MAINTENANCE
Wipe down after use to avoid water spotting and mineralbuild up.
2
4
1
3
7
6
Turn on the main supply valve.
Run the filtered water for 2 minutes to
flush the system, and carefully check
the system for leaks. The system is
now ready for use.
For optimum filter performance when
using the U.1802 filter cartridge use
the stop valve to set a water flow of
0.4gpm to 0.5gpm max.
Preparation for Installer
Ensure you have the correct fittings to connect
to the filter faucet
IMPORTANT INFORMATION
These are instructions for Triflow filters andtheoptional add on pre-filter version of the model
you are installing. Please read carefully to ensurecorrect installation.
Beforeyou proceed... Werecommendyou engage the servicesof aregistered plumber
to install this product.
In addition to the guide below it is essential that thewritten information overleaf is
carefully read andunderstood.
Flush the plumbing system before
installing the Kitchen product.
ø3/8"
Main Cold Feed
Flow Direction
Base of
cabinet
Allow room
around the
housing
Filter
U.1812
Main cold
feed
To Filter
Tap
5
To Filtered
Tap
Filter
U.1812
Flow direction
Supplied
hose
1" Minimum
ø1/4" to ø1/4" Connector
ø1/4" to ø3/8"
Connector
ø1/4" Connector
Flow direction
Flow direction
Filter
Connection
Kit
Shut off mains supply. A stop valve was
supplied with the system for this purpose,
and will be located on the adjacent pipe work.
If you plan to be away from home for extended
periods, carry out the procedures above, to prevent
the risk of freezing. Freezing will invalidate the
warranty.
Turn the filtered lever on the faucet to the
on position. This will confirm the water supply
is off, and release the pressure in the system.
To Winterize theUnit
8
Pre-filter Installation
PreFilter
U.1816
Filter
U.1812
Remember to
leave room for
servicing the
cartridge on
both housings.
Flow direction
8Recommended "
To Filter
Tap From Stop
Valve
Install
Pre-filter
here.
(Follow
steps 7 to 8)
INSTALL
PRE-FILTER
HERE.
(Follow steps
7 to 8)
To Stop
Valve
To Filtered
Tap
PreFilter
U.1816
Filter
U.1812
Flow direction
Supplied
hose
Flow direction
Position the filter housing
leaving room around it
for future access and
cartridge replacement.
Mark the screw holes
ready for pilot holes.
Leave room for the
Pre-filter housing if
necessary.
Remember to
leave room
for servicing
the cartridge
on both
housings.
Drill the pilot holes
and screw the filter
housing bracket in
position. Making
sure to keep as
level as possible.
Check the hose
length for distance
Install the supplied
stop valve in an easily
accessible area to allow
access to turn off the
water supply in the
future, for servicing
and cartridge
replacement.
Tighten the hoses from
the stop valve to the
housings following the
flow of the water
shown on the cap.
If installing a Pre-filter
the system flows from
the stop valve to the
Pre-filter and on to the
filter housing and then
up to the filter tap.
With the supplied connector kit
connect the hose from the
filter housing to the filter tap
using one of the connectors.
Check the
hose length
for distance.
If installing a Pre-filter follow steps 1-3 for the
second bracket taking into account the hose
length supplied from the Pre-filter to the filter.
Tighten the hoses from the stop valve to the
housings following the flow of the water shown on
the cap. When installing the Pre-filter the system
flows from the stop valve to the Pre-filter and on to
the filter housing and then up to the filter tap.
IMPORTANT NOTES
Do not use with water, that is microbiologically unsafe or of unknown quality without adequate disinfection
before or after the system. Systems certified for cyst reductions may be used on disinfected waters that may
contain filterable cysts.
Please ensure that the installation complies with applicable State & local plumbing codes.
System is to be supplied with cold water only.
3 Parker
Irvine, CA 92618
800-777-9762
www.rohlhome.com
houseofrohl.com
Consult your local House of Rohl showroom for additional information and specications. For complete warranty details and a list of showrooms, go to houseofrohl.com
