PetPi TF68 User manual

TF68
INTELLIGENT 2 IN 1 DOG TRAINING &
OUTDOOR WIRELESS FENCE SYSTEM

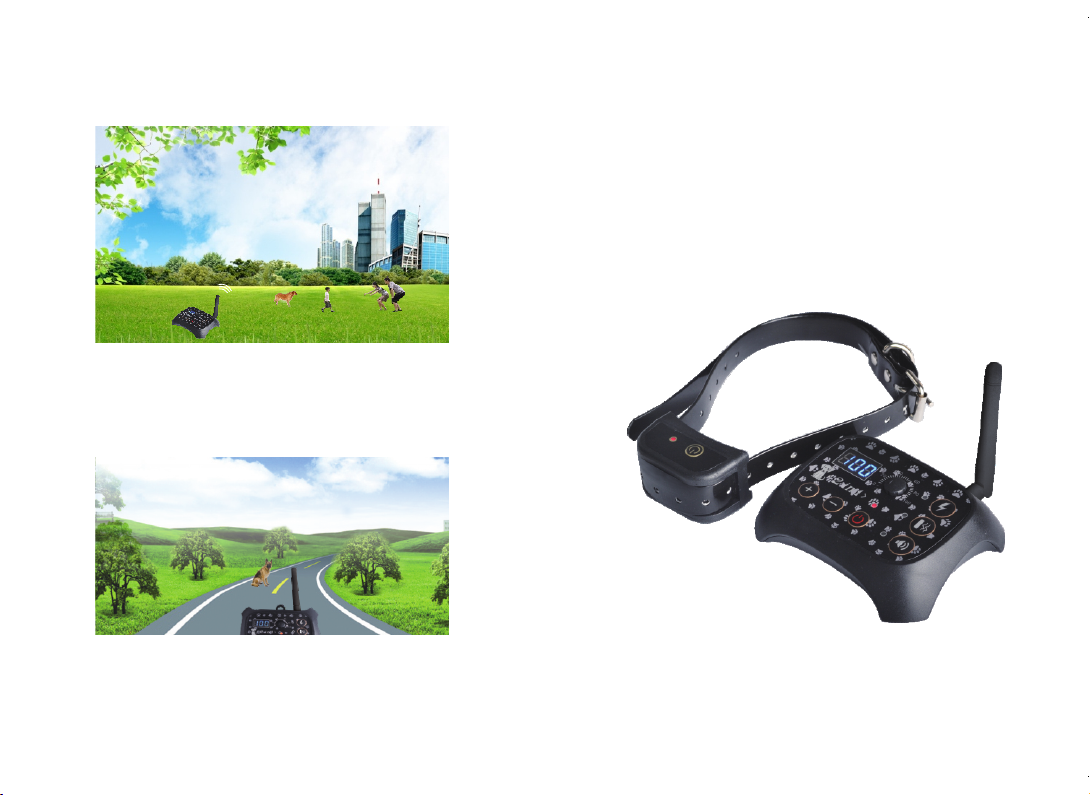

Outdoor 360º dog training site scene:
Set the antenna vertical with the horizontal level and upward
will be best
Highway 180º dog training site scene:
Set the antenna parallel with the horizontal level and forward
will be best
Important Note:
This product is not applicable to indoor use since there're too
many interference factors in indoor. Please Read This Entire Guide Before Beginning

The intelligent 2-in-1 dog training & outdoor wireless fence
system is the unique and new type product in the market,
the lovely design shape, comfortable handling, What is
worthy of mention is that the product combines the dog
training system with the wireless fence system, the features
simple operation and convenient mode switching, and it is
capable of reliably protecting the safety of your pet and
excellent training your pet within the set boundary.
Introduction to the Functions of Transmitter
1. Rotary Antenna
2. Remote Transmitter Static
Shock button
3. Remote Transmitter
Vibration button
4. Remote Transmitter
Tone button
5. Function Indicator Light
6. ON/OFF Button
7. Wireless Pet Fence Signal Intensity
Down Button
8. Wireless Pet Fence
Signal Intensity Up Button
9. Power Indicator
10. Wireless Pet Fence
Digital Display
11. Power Input: DC 5V
12. Static Intensity Adjustment Knob
Switching between the modes of dog training system and outdoor
wireless fence system
1. When the digital display turns on, it is the outdoor wireless fence
system, press any of function button at the right side to switch to the
dog training system.
2. When the digital display is off, it is dog training system, press the
signal Intensity +/- button on the left side to switch to the outdoor
wireless fence system.
Outdoor Wireless Fence System Press any of function button
Press the signal intensity
“+” or “-” button Dog Training System
Note:
1.Please fully charge the product and install the antenna before using it.
2.In order to convenient to carry and use, wear the exquisite hang strap
when you need.

Directions of Dog Training Remote Transmitter
1. Press the power button to start the product, the red power indicator
keeps on, and the digital display keeps off, the function light keeps
green, then it is dog training system.
2. The remote control distance of the dog training system to radius
250 meters (about 820 feet).
3. Independent “Tone”, “Vibration”, “Static Shock” three functions,
choose one of the functions and the corresponding LED indicator will
keep green.
4. When choose the “Tone” function, press the corresponding button
until not need the training.
5. When choose the “Vibration” function, press the corresponding
button until not need the training.
6. When choose the “Static Shock” function, press the corresponding
button until not need the training, the static intensity can be adjusted
by turning the intensity knob in the range of 0-100 level.
7. The static intensity keeps at the level of the last operation, if you
adjust the knob to 50-level, after restarting the product, the static
intensity will keep at 50-level, please directly turn the adjustment
knob to change the level.
8. When the dog training system function is adopted, to train one dog,
please directly operate the dog training system; and if to train several
dogs, then the dogs will be trained simultaneously and the collar will
receive the same function signal when operating the dog training
remote. Turn off the power supply of the receiver for the dog which
doesn't need to be trained.
Directions of Outdoor Electronic Wireless Pet Fence System
2.The max control radius of the outdoor wireless fence with the center
of transmitter is 150 meters(about 492 feet).
3.Adjust the signal intensity by pressing “+”/“-” at the range of 001-100
levels, the corresponding distance of receiver is 15-150 m(about 49.2
-492 feet), which means 15 m(about 49.2 feet)for 001-level and 150m
for 100-level, the middle values can be adjusted freely, and the signal
intensity will be showed in the digital display.
4.The static intensity is adjusted by turning the Static Intensity knob at
the range of 0-100 levels.
5.When the dog approaches the set boundary, the receiver will
automatically enable the training function, vibrate for about 3-5
seconds, then stop vibration, and automatically switch to static shock
for 3-5 seconds to prompt the dog to return to the safe area. If the dog
keeps going, it will vibrate for about 3-5 seconds, enable the static
shock for about 3-5 seconds, and then the dog will realize the vibration
warning, and won't keep going.
6. If the dog do not listen to the warning or running too fast and far from
the set boundary, then you can switch the transmitter to the dog
training system to training the dog, after the dog back to the safe area,
you can freely switch back to outdoor wireless fence system
7. One transmitter supports several receivers to work simultaneously.
8.The transmitter can work continuous for about 20h after full charged.
9. Charging by: DC 5V
Note:
1.When the transmitter has low battery, the Power indicator will flash
slowly; During charging, the Power indicator flashes quickly; after
charging full, the Power indicator keeps light on.
2.Press directly the power button can shut down this transmitter
1.Press the power button to start the product,
the red power indicator keeps on, if the digital
display keeps on, then it is outdoor wireless
fence system.

1.Press the “ON/OFF” button flash light 2 times then can let go. If the
light flash more than 2 times, you can easily let go.
2.The receiver adopts the mode of power supply, after connecting with
the charging cable, the signal light will flash, after charging full, the
signal light keeps ON.
3.The receiver will be automatically dormant state when it is in
stillness for more than 30 second. With the vibration induction switch
in it, the receiver will be turned on automatically upon shaking or
touching, so as to save the electricity
4.LED test light is used for testing the static intensity, the brighter the
test light is, the stronger the electric shock intensity is.
5.Waterproof, chargeable, durable collar receiver.
6.The contact points can be changed on the receiver. There are two
sets of contact points: normal and extended length. Please choose the
appropriate size according to your pet body size
7.Press directly the power button can shut down this receiver
Note:
The signal light will flash when the receiver is low battery.
1.Signal Light
2.Test Light
3.Contact Points
4.on-off Button
Directions of Collar Receiver:
1 15 49.22 35 83 272.32 69 127 416.6 9
2 17 55.78 36 85 278.89 70 127 416.6 9
3 19 62.34 37 87 285.45 71 128 419.9 7
4 21 68.90 38 89 292.01 72 129 423.2 5
5 23 75.46 39 91 298.57 73 130 426.5 3
6 25 82.03 40 93 305.13 74 130 426.5 3
7 27 88.59 41 95 311.70 75 131 429.8 1
8 29 95.15 42 97 318.26 76 132 433.0 9
9 31 101.71 43 99 324.82 77 132 433.0 9
10 33 108.27 44 101 331.38 78 133 436.3 7
11 35 114.84 45 103 337.94 79 134 439.6 5
12 37 121.40 46 105 344.51 80 135 442.9 4
13 39 127.96 47 107 351.07 81 135 442.9 4
14 41 134.52 48 109 357.63 82 136 446.2 2
15 43 141.08 49 111 364.19 83 137 449.5 0
16 45 147.65 50 113 370.75 84 138 452.7 8
17 47 154.21 51 113 370.75 85 138 452.7 8
18 49 160.77 52 114 374.03 86 139 456.0 6
19 51 167.33 53 115 377.32 87 140 459.3 4
20 53 173.89 54 115 377.32 88 141 462.6 2
21 55 180.46 55 116 380.60 89 141 462.6 2
22 57 187.02 56 117 383.88 90 142 465.9 0
23 59 193.58 57 118 387.16 91 143 469.1 8
24 61 200.14 58 118 387.16 92 144 472.4 6
25 63 206.70 59 119 390.44 93 144 472.4 6
26 65 213.27 60 120 393.72 94 145 475.7 5
27 67 219.83 61 121 397.00 95 146 479.0 3
28 69 226.39 62 121 397.00 96 147 482.3 1
29 71 232.95 63 122 400.28 97 147 482.3 1
30 73 239.51 64 123 403.56 98 148 485.5 9
31 75 246.08 65 124 406.84 99 149 488.8 7
32 77 252.64 66 124 406.84 100 150 492.1 5
33 79 259.20 67 125 410.1 3
34 81 265.76 68 126 413.4 1
Length in Meters
Length in Feet
Static Correcti on
Boundary
Length in Meters Length in Meters
Length in Feet Length in Feet
Static Correcti on
Boundary
Static Correcti on
Boundary
1. The following data is test base on the transmitter is at 1meter and receiver
at 0.2 meter height, and it is only for reference.
2. Some weather and surrounding environmental disturbances (such as the
wifi intensity, or other wireless signal) may possibly cause little deviation
between the actual data and the parameters listed in the form below.
Setting the Distance of the Outdoor Wireless Pet Fence according
to the Signal Intensity
