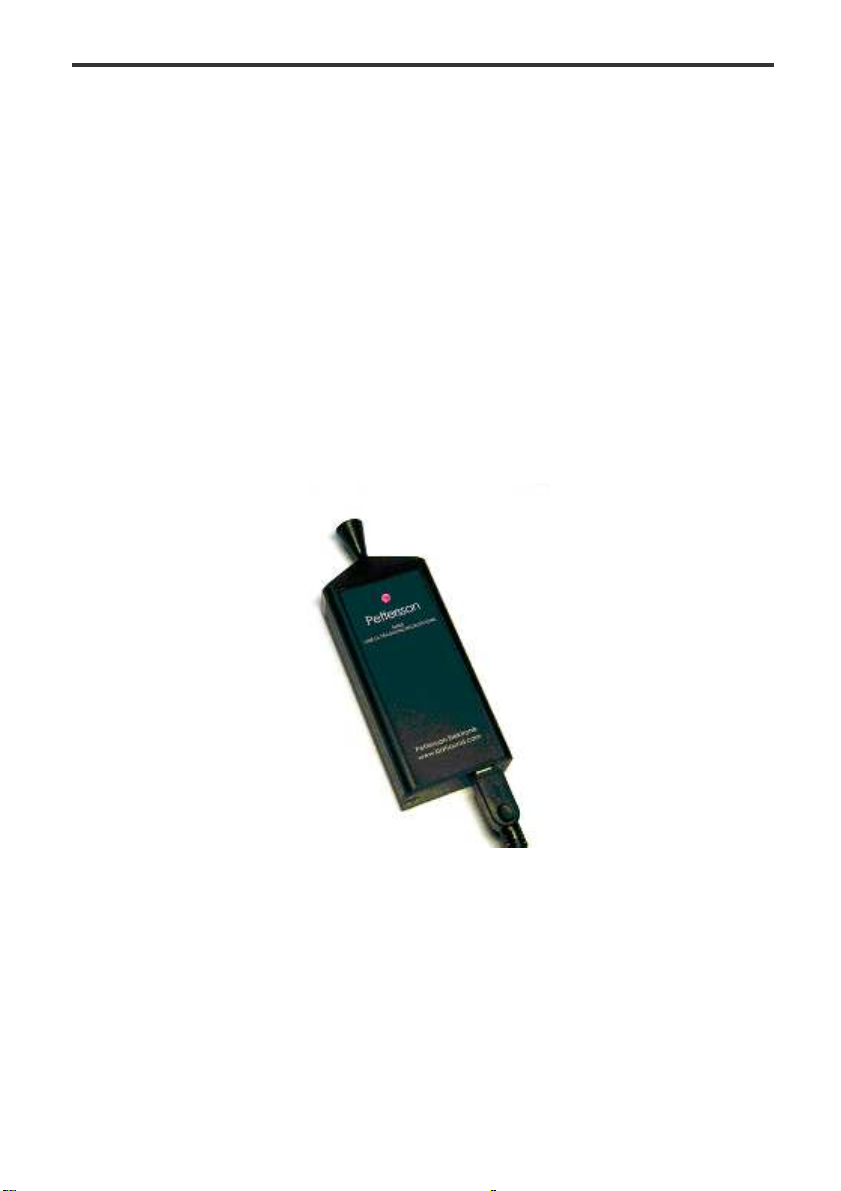

Pettersson M500 USB Ultrasound Microphone
Pettersson M500 USB Ultrasound Microphone
BatSound
®
Touch Lite
Quick Start Guide
Pettersson Elektronik AB
www.batsound.com

Pettersson M500 USB Ultrasound Microphone
GUARANTEE
This product is guaranteed against defects in material and workmanship for a period of one year from the date of purchase.
In order for the guarantee to be granted, a proof of purchase (normally the original invoice/receipt) is required and the serial
number label must not be removed from the product. Pettersson Elektronik AB, Sweden (“Pettersson”) will repair or replace
the product if it proves to be defective during the guarantee period, provided it is returned to Pettersson. No other guarantee
is expressed or implied.
This product does not contain any user-serviceable parts. Always refer servicing to the manufacturer or any other party
approved by the manufacturer.
The guarantee covers none of the following:
1. Damage to the product resulting from abuse and misuse, including but not limited to (a) the failure to use this product for
its normal purpose or in accordance with Pettersson’s instructions on the proper use and maintenance of this product and (b)
the installation or the use of this product in a manner inconsistent with the technical or safety standards in force in the
country where the product is used.
2. Damage to the product resulting from non-authorized modifications made to the product.
3. Repairs done by non-authorized technicians.
4. Accidents or similar causes beyond the control of Pettersson, including but not limited to lightning, water, fire and public
disturbances.
LIMITATION OF LIABILITIES
In no event shall Pettersson be liable for any special, incidental or consequential damages of any nature including, but not
limited to, damages resulting from loss of profit or revenue, recall costs, claims for service interruptions or failure to supply
downtime, testing, installation or removal costs, costs of substitute products, property damage, personal injury, death or legal
expenses. The customer's recovery from Pettersson for any claim shall not exceed the purchase price paid by the customer
for the goods, irrespective of the nature of the claim, whether in warrant, contract or otherwise. The customer shall
indemnify, defend and hold Pettersson harmless from any claims brought by any party regarding products supplied by
Pettersson and incorporated into the customer’s product.
Pettersson assumes no responsibility for any damage or loss resulting from the use of this manual.
Pettersson assumes no responsibility for any loss or claims by third parties which may arise through the use of this product.
Pettersson assumes no responsibility for any damage or loss caused by deletion of data as a result of malfunction, repairs or
battery replacement. Be sure to back up all important data on other media to protect against its loss.
PRODUCT SAFETY NOTICE AND RESTRICTIONS
This product is intended for commercial use only. Products sold by Pettersson are not designed, intended or authorized for
use in life support, life sustaining, human implantable, nuclear facilities, flight control systems, or other applications in
which the failure of such products could result in personal injury, loss of life or catastrophic property damage. If the
customer uses or sells the products for use in any such applications: (1) the customer acknowledges that such use or sale is at
the customer's sole risk; (2) the customer agrees that Pettersson is not liable, in whole or in part, for any claim or damage
arising from such use; and (3) the customer agrees to indemnify, defend and hold Pettersson harmless from and against any
and all claims, damages, losses, costs, expenses and liabilities arising out of or in connection with such use or sale.
Windows is a registered trademark of Microsoft Corporation. Other company, product and service names mentioned in this
manual, may be trademarks of others. Specifications are subject to change without notice.
Note: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of
the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment
is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instruction manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
Modifications not expressly approved by the manufacturer could void the user's authority to operate the equipment under
FCC rules. © Pettersson Elektronik AB, Sweden 2019. All rights reserved.
Hardware version 1.0, Firmware version 1.0, Software version BST 1.3.4, July 2019

Pettersson M500 USB Ultrasound Microphone
INTRODUCTION
The M500 USB Ultrasound Microphone enables you to make high-quality, full spectrum recordings of bat calls or other
ultrasonic signals with a Windows tablet PC or laptop.
The M500 comes in a small and durable aluminium enclosure. It utilizes the same advanced electret microphone technology
as the well-known D500X detector and can be used both in directional and omnidirectional modes (with or without the
directional horn).
Low-noise technology, high sampling frequency and efficient anti-aliasing filter provide highest quality recordings.
The microphone comes with an easy-to-use Windows recording program, BatSound Touch Lite, that saves the recordings as
16 bit wav files. Real-time display of the waveform and the spectrogram as well as real-time monitoring of the bat calls are
also available. The program offers various triggering modes; manual and automatic, with or without pre-trigger, level
triggered or frequency triggered operation. BatSound Touch Lite can be downloaded from www.batsound.com.
BatSound Touch Lite, which is a special version of the BatSound Touch software with limited functionality, can only be
used with the M500, not with other sound devices. The full version of BatSound Touch, which can be purchased from
Pettersson Elektronik, offers full functionality.
SYSTEM REQUIREMENTS
• Computer with Windows 7, Windows 8/8.1 or Windows 10 operating system.
• Minimum 1 GB RAM
• Minimum 1.33 GHz quad core processor
• Microsoft .NET Framework 4.5 (included in Windows 8/8.1/10)
• Microsoft Visual C++ Redistributable Package for Visual Studio 2013*
• Internet access during installation (only for installing .NET Framework 4.5)
• USB 2 High-speed or USB 3 interface/host type with USB bus power (minimum 150 mA).
In order to reduce the load on the processor and increase the performance, we recommend you to:
• Close all other programs running on the computer, if possible
• Disable anti-virus scanning, if an anti-virus program is used.
• Disable computer functions such as WiFi, Bluetooth and certain Power Options ("Turn off the display after x
minutes" and "Put the computer to sleep after x minutes").
IMPORTANT! Do not plug the M500 into a USB port on your computer yet. The M500 software
and driver must be installed first! Please refer to the BatSound Touch User Manual for more
information. The User Manual is available as a pdf file on the USB memory stick that comes with
the M500.
* Included in the BatSound Touch Lite installation package
INSTALLING THE SOFTWARE
1. Download BatSound Touch Lite from www.batsound.com and run the file "BatSoundTouchInstaller32.exe".
2. Accept the Security Warning and click "Run".
3. Read the license agreement and check the box "I agree to the license terms and conditions" to confirm that you agree and
click Install.
4. If a User Account Control window appears, click Yes.
5. The installation now begins. If Microsoft Visual C++ 2013 Redistributable (x86) is not already installed on your system, a
dialog box will open. Read the Microsoft Software License Terms and check the box "I agree to the license terms and
conditions" to confirm that you agree and click Install. When it is completed, press Close to finish the installation of
BatSound Touch.
!

Pettersson M500 USB Ultrasound Microphone
USING THE M500
Getting started
Connect the M500 to a USB 2.0 high-speed or USB 3 port of your computer, using the supplied USB cable*. A sound will
be heard from the computer as an acknowledgement and the text "Pettersson" on the M500 will be illuminated to indicate
that the M500 receives power from the computer. This process may take a few seconds. The M500 is now ready to be used.
If no "USB device connected" acknowledgement sound is heard and/or the red indicator remains constantly on after
plugging the M500 into the USB jack, please disconnect the M500 a few seconds and then connect it again and wait to let it
establish the USB connection.
Next, start the BatSound Touch software. There will be two empty diagrams for the waveform (oscillogram) and
spectrogram. Tap the "Live View" symbol above the respective diagram to turn on the Live View. Rub two
fingers in front of the microphone and you will "see" this sound in real-time on the screen. The red indicator on the M500
will flash once every second in this mode.
To make a recording, simply tap the red recording symbol in the toolbar at the right The red indicator will then
light constantly. To stop the recording, tap the black stop symbol.
Other recording modes are also available, such as the triggered and circular buffer modes. For more information about these,
please refer to the BatSound Touch User Manual in the BatSound Touch program folder.
The recorded files will be saved in the C:\Users\"Your Account"\Documents\BatSound\Recordings\ folder by default. "Your
Account" is the name of the user account that is currently used.
* In order to connect the M500 to a computer with a micro USB jack (e.g. a tablet PC) an adapter with an OTG USB micro
plug is required. Separate cables with USB Mini-B and USB Micro-B/OTG plugs are also available on the market.
Changing the microphone directionality
The M500 comes with a detachable directional horn. In order to obtain a more directional microphone characteristic as well
as a higher on-axis sensitivity, the directional horn should be used. To remove the horn, pull the horn straight away from the
microphone tip. Do not put pressure on the horn sideways - this may damage the microphone! When the horn is put back on
the microphone tip, please hold the horn at the edge while pressing it onto the tip. This avoids increasing the air pressure
over the microphone port, which might occur if the horn opening is closed e.g. with a finger.
Weather protection
The M500 is not waterproof and should be protected against the elements if used e.g. under humid conditions. The housing
and circuit board are relatively insensitive to humidity, but the microphone element and USB connector may require
protection.
M500 Specifications
Microphone: Advanced electret
Sampling frequency: 500 kHz
ADC resolution: 16 bits
Interface: USB 2.0, high speed or USB 3
Anti-aliasing filter: 8th order, 210 kHz
Frequency range: 10 kHz - 210 kHz
Real-time monitoring: Through the PC sound card (under-sampling)
Size: 43 x 114 x 13 mm (incl microphone horn)
Weight: 60 g
Power: USB bus powered (5 V, 150 mA max)
Pettersson Elektronik AB, Uppsala Science Park, 75183 Uppsala, Sweden
