PEUGEOT 3008 HYbrif4 User manual

Handbook

PEUGEOT's SERVICE BOX Internet site permits easy
and free consultation of your vehicle documentation
on line.
Your vehicle lives on the Internet!
Access the latest information available.
Connect to http://public.servicebox.peugeot.com:
Simple and user friendly, SERVICE BOX allows you access:
●to your Handbook,
●to previous Vehicle documentation.
Please note the following point:
The fitting of electrical equipment or accessories which are not recommended by PEUGEOT may result in a failure
of your vehicle's electronic system. Please note this specific warning. It is advisable to contact a PEUGEOT dealer
to be shown the recommended equipment and accessories.
select your language,
click on the link in the "Private customer access"
zone to consult the Vehicle documentation,
select your vehicle,
finally, click on the item which is of interest to you.
choose its body type then the date of publication
of the handbook,
A window opens giving access to all of the handbooks...

Page reference:
this symbol invites you to refer
to the pages which provide de-
tails of the function.
Key
Protection of the
environment:
this symbol accompanies ad-
vice relating to protection of the envi-
ronment.
Information:
this symbol draws your atten-
tion to additional information
for better use of your vehicle.
Warning:
this symbol marks warnings
which it is essential to observe
for your own safety, for the safety of oth-
ers or to avoid any risk of damaging your
vehicle.
WELCOME
Thank you for choosing a 3008 HYbrid4,
a symbol of pleasure and innovation.
This handbook has been designed to
enable you to make the most of your
3008 HYbrid4.
On the first few pages, you will find a
detailed summary, followed by a quick
reference guide intended to make it
easier for you to become familiar with
your vehicle.
All of the details specific to your 3008
HYbrid4, comfort, safety, driving, are
then presented in this handbook, to in-
crease your appreciation of the vehicle
and help you make the most of it.
At the end of the handbook, illustra-
tions of the interior and exterior of the
vehicle will assist you in locating infor-
mation on equipment or a function in
the book.
Each model will be fitted with only
some of the equipment mentioned in
this handbook, depending on its trim
level, model, version and the specifica-
tion for the country in which it is sold.

CONTENTS
FAMILIARISATION 4-25
INSTRUMENTS
and CONTROLS 44-58 CHILD SAFETY 118-128
MULTIFUNCTION
SCREENS 59-67 SAFETY 129-138
COMFORT 68-81
ACCESS 82-96
VISIBILITY 97-106
FITTINGS 107-117
Instrument panels........................... 44
Indicator and warning lamps .......... 46
Indicators........................................ 54
Adjustment buttons......................... 58
Child seats.....................................118
ISOFIX child seats........................ 125
Child lock...................................... 128
Screen C
(Peugeot Connect Sound)............ 59
16/9 high definition retractable
colour screen
(Peugeot Connect Media) ............ 62
Direction indicators....................... 129
Hazard warning lamps.................. 129
Horn.............................................. 129
ESC system.................................. 130
Front seat belts............................. 132
Airbags ......................................... 135
Heating and Ventilation .................. 68
Rear screen demist - defrost.......... 69
Dual-zone digital air conditioning ... 70
Front seats ..................................... 73
Rear seats ...................................... 77
Steering wheel adjustment............. 79
Mirrors ............................................ 80
Remote control key ........................ 82
Alarm .............................................. 87
Electric windows............................. 89
Doors.............................................. 91
Boot ................................................ 93
Lower tailgate ................................. 94
Fuel tank......................................... 95
Misfuel prevention (Diesel)............. 96
Lighting controls ............................. 97
Automatic illumination
of headlamps.............................. 100
Headlamp adjustment .................. 100
Wiper controls .............................. 101
Automatic rain sensitive wipers.... 103
Courtesy lamps ............................ 104
Interior mood lighting.................... 105
Boot lamp ..................................... 106
Interior fittings............................... 107
Front armrest................................ 109
Rear multimedia ............................111
Panoramic sunroof ........................113
Boot fittings....................................114
HYBRID SYSTEM 26-43
Eco-driving...................................... 37

CONTENTS
ALPHABETICAL
INDEX 272-275
DRIVING 139-158
CHECKS 159-165
PRACTICAL
INFORMATION 166-195
TECHNICAL
DATA 196-200
AUDIO EQUIPMENT
and TELEMATICS 201-271
Electric parking brake................... 139
Hill start assist .............................. 144
Head-up display ........................... 147
Speed limiter ................................ 149
Cruise control ............................... 151
6-speed electronic gear control
gearbox ...................................... 153
Parking sensors............................ 157
Bonnet .......................................... 160
Running out of fuel (Diesel).......... 161
Diesel engine................................ 162
Checking levels ............................ 163
Checks.......................................... 164
Temporary puncture repair kit ...... 166
Changing a wheel......................... 172
Changing a bulb ........................... 175
Changing a fuse ........................... 179
12 V Battery.................................. 186
Energy economy mode ................ 189
Changing a wiper blade ............... 190
Recovering the vehicle................. 190
Towing a trailer ............................. 192
Fitting roof bars ............................ 193
Very cold climate screen .............. 193
Accessories .................................. 194
Electric motor ............................... 196
Diesel engine................................ 197
Diesel weights .............................. 198
Dimensions................................... 199
Identification markings.................. 200
VISUAL
SEARCH 276-280
Emergency or assistance............. 201
Peugeot Connect Media............... 205
Peugeot Connect Sound (RD5) ... 249

4
FAMILIARISATION
PRESENTATION OF THE HYbrid4 SYSTEM
26
Thank you for choosing a 3008 HYbrid4;
this vehicle has characteristics that are
different from conventional vehicles.
Study this handbook to learn about the
specific hybrid functions and for more
information, refer to the "Hybrid System"
section.
The HYbrid4 technology allows two
sources of energy to be associated in an
effective manner: that of the Diesel HDi
engine which drives the front wheels and
that of the electric motor which drives the
rear wheels.
These two motors can operate alter-
nately or simultaneously, according to
the hybrid mode selected and the driving
conditions.
The electric motor alone provides power
for the vehicle in "ZEV" (Zero Emissions
Vehicle) mode, and in "Auto" mode for
running at slow speed and low load. It
also assists the Diesel engine when
moving off, accelerating and changing
gear.
The battery that powers the electric mo-
tor recharges itself during phases of
deceleration and stores the energy for
subsequent use.
1. Diesel HDi engine (front wheel drive).
2. Electric motor (rear wheel drive).
3. 200 V battery.
4. Electronic power supervisor.
5. Stop & Start system.
6. Electronic gear control gearbox.
7. Electric flow.

5
FAMILIARISATION

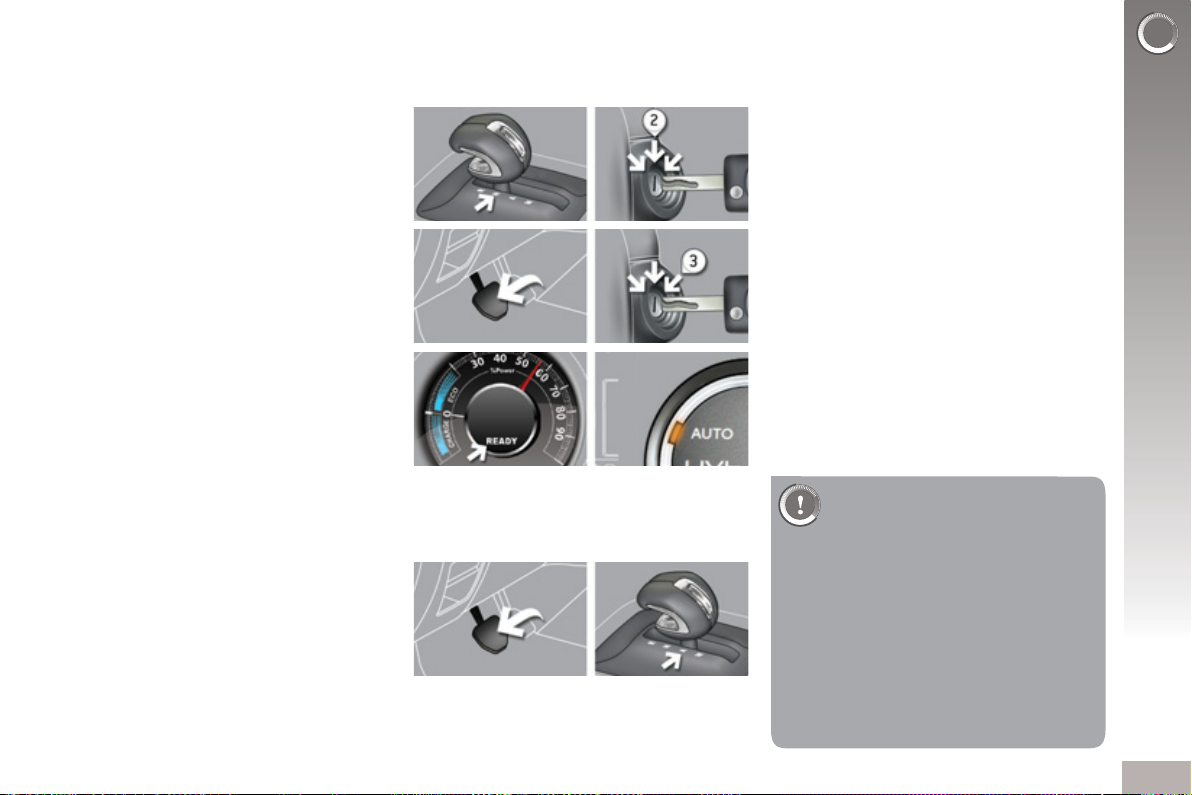

How to start your vehicle
- Ensure that the gear lever is in posi-
tion N.
- Switch the ignition on by turning the
key to position 2.
- The instrument panel and the Ready
lamp come on. The power meter
needle sweeps through its travel
indicating that the hybrid system is
active, confirmed by a message;
the dial in the centre console is
in AUTO mode (default mode for
starting).
- The hybrid system determines
whether it is necessary to start the
Diesel engine.
- With the brake still applied, move
the gear lever to position Ato go
forwards or R(by lifting the lever
slightly) for reverse.
- Lift your foot off the brake pedal, you
can move off.
- The parking brake is released auto-
matically as you move off, if configured
to do so (otherwise, release the park-
ing brake manually).
How to stop your vehicle
and the hybrid system
- Apply the brake until the vehicle
comes to a complete stop.
- Place the gear lever in position N.
- Turn the ignition key to position 1,
the parking brake is applied auto-
matically if configured to do so.
- Otherwise apply the parking brake
manually, the Pwarning lamp must
be on.
- Press firmly on the brake pedal, turn
the ignition key to position 3to start
up the hybrid system, then release
the key.
When stationary, switch off the
ignition and ensure that the
Ready lamp is off before you
leave the vehicle. Otherwise the
hybrid system will still be active. See
"Underbonnet precautions/warnings".
When your vehicle starts in electric
mode, this means that it makes no
noise. Be very careful of pedestrians
as they will not hear you coming.

6
FAMILIARISATION
HYBRID4 MODE SELECTOR
AUTO Mode
"Zero emissions vehicle" operation is
provided by 100% electric drive.
This mode allows silent running to be
imposed at moderate speed (urban,
parking, …).
This mode can be activated when con-
ditions permit (in particular if the state
of charge of the high voltage battery is
high enough) and allows driving up to
around 35 mph (60 km/h).
ZEV mode
(Zero Emissions Vehicle)
When stationary and when starting
the hybrid system
This mode automatically manages the
operation of the Diesel engine and the
electric motor, separately or together,
according to the vehicle's own inherent
parameters, the driving conditions and
the driving style.
The standard mode to use
in preference for optimum
fuel consumption.
This mode is activated automatically
on starting the vehicle.
In particular, this mode will activate "zero
emissions" electric operation when the
conditions permit.
The electric motor is also used to sup-
plement the Diesel engine when mov-
ing off and changing gear and when the
front wheels do not provide sufficient
traction.
The range depends on the
state of charge of the battery
and the driving conditions (of
the order of 1.2 miles (2 km)
in favourable conditions).

7
FAMILIARISATION

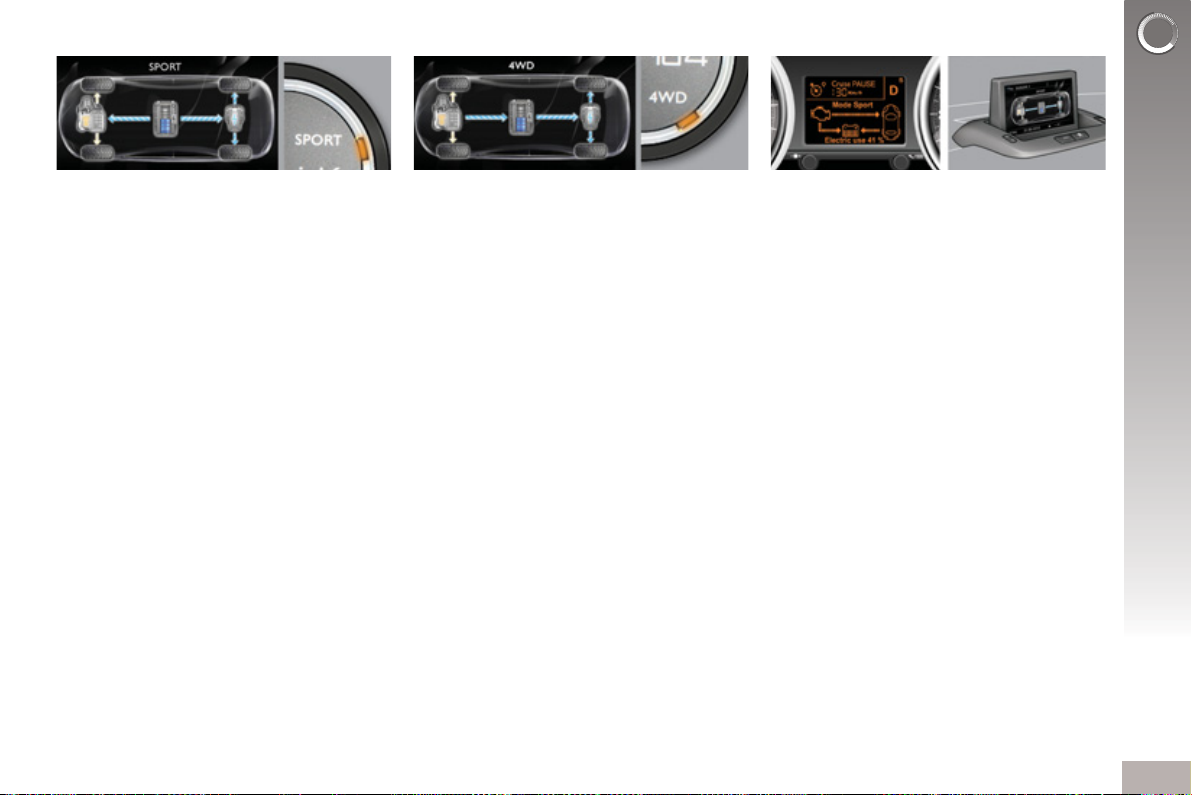

Displays according to version in the
instrument panel screen or the main
screen.
This mode allows a more dynamic driving
style providing increased performance.
Acceleration and pickup are maximised
using the full capacity of the electric motor
to supplement the Diesel engine.
The Stop & Start system also operates
in this mode.
This mode provides improved traction.
The Diesel engine drives the front
wheels continuously and the electric
motor drives the rear wheels.
Their coupling is managed automati-
cally to optimise traction on slippery
surfaces. This mode should be used on
snow covered roads and difficult ground
(mud, sand, …).
Sport mode 4WD mode
(4 wheel drive)

8
FAMILIARISATION
FOR ECONOMICAL DRIVING, CARING FOR THE ENVIRONMENT

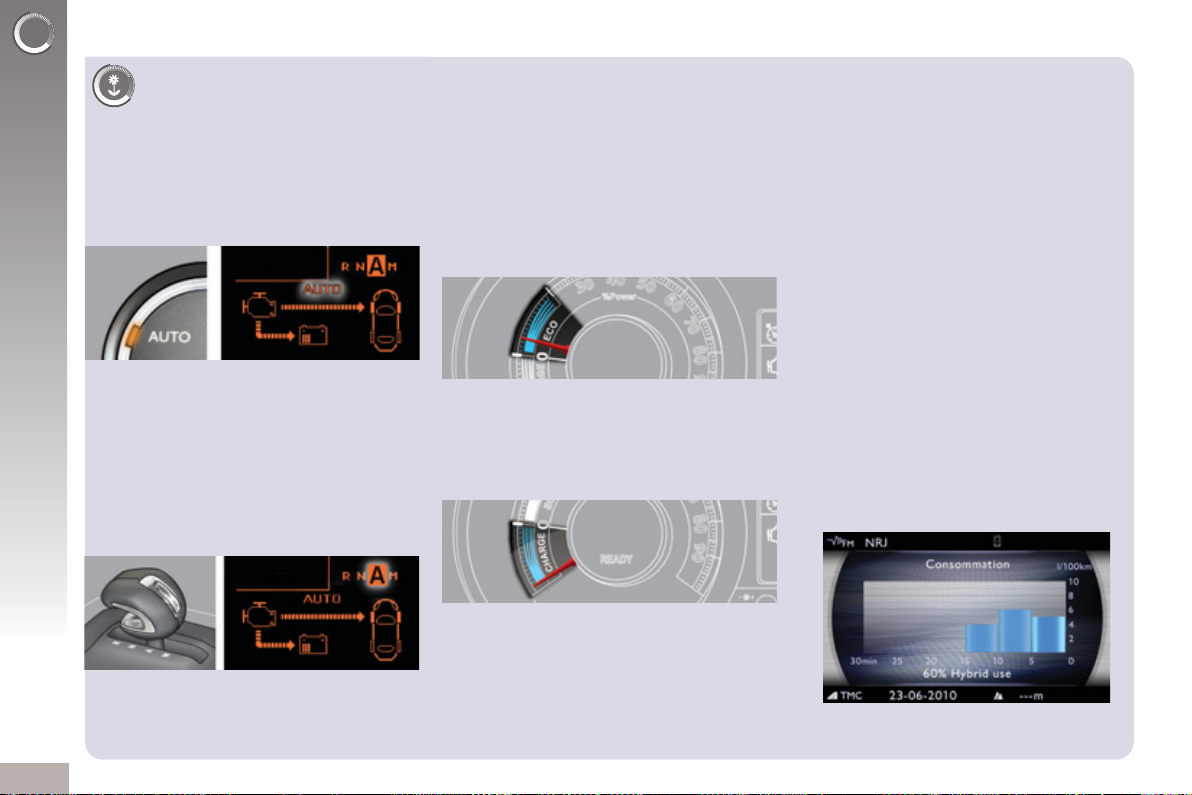

Main recommendations for driving economically
Gear lever
Use the automatic mode Aas much as
possible as this optimises gear changes
to suit the requirements.
The fuel consumption of a vehicle varies greatly:
- according to the driver's style of driving (moderate, aggressive, fast, ...),
- according to the type of journeys made (urban, main road, motorway, flowing,
heavy traffic, …) and the speed.
Hybrid mode selector
To optimise fuel consumption, use the
Auto mode of the selector whenever
possible (the mode is activated auto-
matically when starting) including for
urban journeys.
This mode optimises the use of the energy
sources (internal combustion engine and/or
electric) contrary to other modes, which are
for use in particular cases.
Stay in the "eco" zone indicated in the
power meter: accelerate gently, drive at
steady speeds using the speed limiter
or cruise control as soon as possible.
Causes of high consumption
and checks
As with any vehicle, limit overloading,
wind resistance (windows open above
30 mph (50 km/h), roof rack, loaded or
not, …), the use of power consumers
(air conditioning, heated seats, heated
rear screen, …).
Observe the recommendations on
checks (regular check of tyre pres-
sures, correct tyre pressures, …) and
routine servicing.
Consumption history
See the impact of your style of driving
and the type of journey by reviewing
the history of your energy consumption.
Refer to the "Multifunction screens"
section.
Use the "charge" zone: anticipate the
need to slow down by taking your foot off
the accelerator rather than braking. The
movement of the power meter needle (into
the "charge" zone), indicates the level of
energy recovery.
Drive smoothly

9
FAMILIARISATION

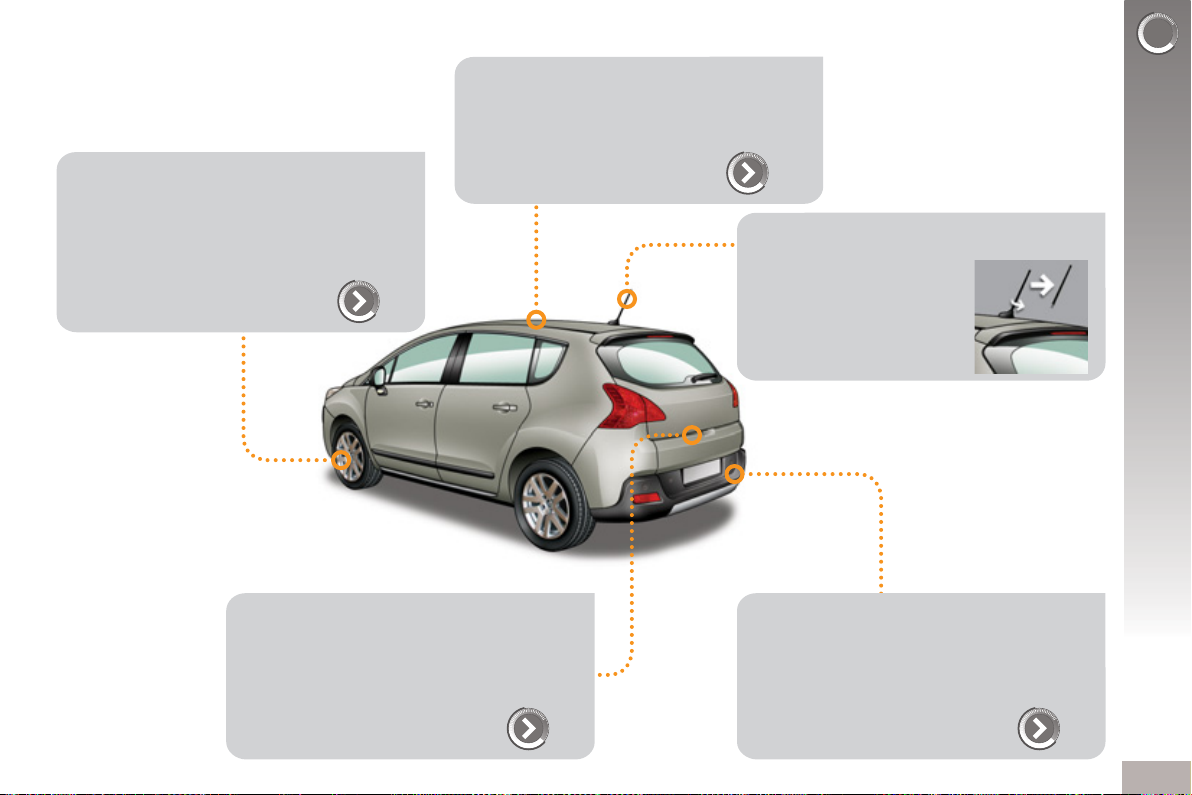

EXTERIOR
Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
113
Temporary tyre repair kit
This kit is a complete system, consisting
of a compressor and an integral sealant
cartridge, for the temporary repair of a
tyre.
166
Lower tailgate
This lower tailgate permits remarkable
accessibility and makes the loading of
bulky objects easier.
94
Visual and audible front and/or
rear parking sensors
This system warns you if an obstacle is
detected in front of or behind the vehicle
in forward or reverse gear.
157
When using an automatic car wash:
- unscrew the aerial,
- fold back the mirrors.

10
FAMILIARISATION
OPENING

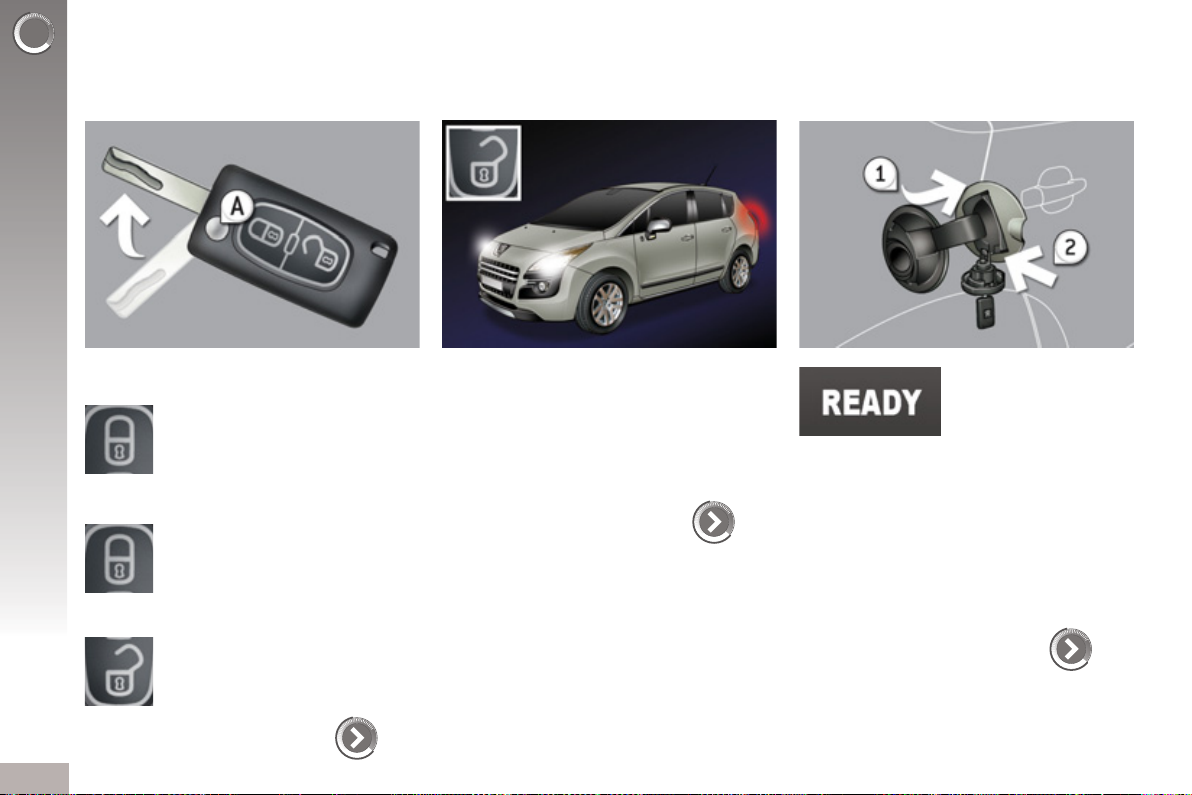

Remote control key
A. Unfolding/Folding the key.
Normal locking
(press once; fixed lighting of
the direction indicators).
Deadlocking the vehicle
(press twice in succession;
fixed lighting of the direction
indicators).
Complete or selective unlock-
ing of the vehicle
(rapid flashing of the direction
indicators).
or
82
When the light is poor, detected by a sen-
sor, the remote switching on of the dipped
headlamps and sidelamps makes your
approach to the vehicle easier.
This function can be programmed via the
configuration menu.
99
95
Fuel tank
Before refuelling, you
must switch of the
ignition and ensure
that the Ready lamp
is off.
1. Open the fuel filler flap.
2. Open and hook the fuel filler cap.
The type of fuel to be used is indicated
on the inner face of the fuel filler flap.
Capacity of the tank: approximately
56.5 litres.
Welcome lighting

11
FAMILIARISATION
OPENING
Boot
Opening
)After unlocking the vehicle using the
remote control or the key, press the
handle Aand lift the tailgate.
Closing
)After closing the lower tailgate, pull
the handle Bdownwards to guide
the tailgate.
Lower tailgate
93
Opening
)Push the handle Cto the right and
tilt the tailgate D.
Closing
)Raise the tailgate D, push it fully
to close it, check that it is locked
correctly.
94

12
FAMILIARISATION
INTERIOR
Electric parking brake
This combines the functions of automatic
application on switching off the engine
and automatic release on acceleration.
Manual application/release is possible.
139
Audio and communication systems
These systems benefit from the latest
technology: MP3 compatible audio sys-
tem, USB player, Bluetooth hands-free
system, satellite navigation system with
colour screen, HiFi audio system.
205
Head-up display
This system projects certain information
into the driver's field of vision: speed,
cruise control/speed limiter.
147
Dual-zone digital air conditioning
This systems allows different levels of
comfort to be set for the driver and front
passenger. It then controls these level
automatically according to the ambient
conditions.
70
Peugeot Connect
Sound (RD5) 249
109,
256
Peugeot
Connect USB
Peugeot Connect Media
Navigation (NG4 3D)
Bluetooth 233,
259
Peugeot
Assistance 201

13
FAMILIARISATION
INSTRUMENTS AND CONTROLS 1. Cruise control/speed limiter
switches.
2. Steering wheel adjustment control.
3. Lighting and direction indicator
control stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Electric parking brake.
8. Front armrest - Peugeot Connect
USB.
9. Bonnet release.
10. Driver's storage compartment
(Handbook).
11. ECO OFF button
Alarm button.
Parking sensors button.
Dynamic stability control button
(DSC).
12. Manual headlamp adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media Navigation
(NG4 3D).
13. Door mirror controls.
Electric window controls.
Child lock.
14. Front side window demisting vent.
15. Windscreen demisting vent.

14
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Audio and telematics system
steering mounted control.
3. Wipers/screenwash/trip computer
control stalk.
4. Central adjustable air vents.
5. Head-up display.
6. Multifunction screen.
7. Passenger's airbag.
8. Side adjustable air vent.
9. Glove box - Audio/video sockets -
Passenger's airbag deactivation.
10. Storage compartment with net.
11. HYbrid4 mode selector.
12. 12 V accessory socket.
13. Grab handle.
14. Heating/air conditioning controls.
15. Audio and telematics system.
16. Buttons:
- head-up display,
- hazard warning lamps,
- central locking.

15
FAMILIARISATION
SITTING COMFORTABLY
Driver's seat
Forwards-backwards Height
Manual adjustment
73
Electric adjustment
74
Seat back angle

16
FAMILIARISATION
SITTING COMFORTABLY
Front seats
Head restraint height and angle
Lumbar
75
Steering wheel adjustment
1. Release the adjustment mechanism.
2. Adjust for height and reach.
3. Lock the adjustment mechanism.
As a safety precaution, these operations
must only be carried out when stationary.
79
Table position
(front passenger seat)
To place objects on the table or to make
the loading of long objects in the vehicle
easier.
76
Front armrest
It contains the Peugeot Connect USB port.
109

17
FAMILIARISATION
SITTING COMFORTABLY
Door mirrors
Adjustment
A. Selection of the mirror to be adjusted.
B. Adjustment of the position of the
mirror in the four directions.
80
Rear view mirror
Manual model
1. Selection of the "day" position of the
mirror.
2. Adjustment of the mirror.
81
Automatic day/night model
1. Adjustment of the mirror.
81
Front seat belts
1. Fastening of the buckle.
132
2. Height adjustment.
Also...
C. Folding/Unfolding.

18
FAMILIARISATION
SEEING CLEARLY
Lighting
Ring A
Lighting off.
Ring B
Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps.
Automatic illumination of
headlamps.
97, 98
Direction indicators
Raise or lower the lighting stalk passing
the point of resistance; the corresponding
direction indicators will flash for as long
as the stalk remains in this position.
"Motorway" function
Press the lighting stalk up or down once,
without passing the point of resistance;
the corresponding direction indicators
will flash three times.
This function can be used at any speed,
but it is particularly useful when chang-
ing lane on high-speed roads.
129
Wipers
Stalk A: windscreen wipers
Switching on "AUTO"
)Press the stalk down and release it.
Switching off "AUTO"
)Push the stalk up and return it to
position "0".
101
Ring B: rear wiper
Park.
Intermittent wipe.
Wash-wipe.
102
