PEUGEOT RCZ User manual

HANDBOOK

RCZ_EN_CHAP00A_SOMMAIRE_ED02-2013
WELCOME
KEY
WARNING:
this symbol marks warnings which it is essential to observe for
your own safety, for the safety of others or to avoid any risk of
damaging your vehicle.
INFORMATION:
this symbol draws your attention to additional information for
better use of your vehicle.
PROTECTION OF THE ENVIRONMENT:
this symbol accompanies advice relating to protection of the
environment.
PAGE REFERENCE:
this symbol invites you to refer to the pages which provide details
of the function.
Thank you for choosing an RCZ, a symbol of confi dence, passion and
inspiration.
This handbook has been designed to enable you to make the most of
your vehicle in all situations.
Therefore, on the fi rst few pages, you will fi nd a list of contents followed
by a quick reference guide intended to make it easier for you to become
familiar with your vehicle.
All of the details specifi c to your vehicle, comfort, safety, driving, are
then presented in this handbook, to increase your appreciation of the
vehicle and to help you make the most of it.
Your vehicle is fi tted with only some of the equipment described in this
document, depending on its trim level, version and the specifi cation for
the country in which it was sold.

79
96
107
161
146
4
RCZ_EN_CHAP00B_PRISE EN MAIN_ED02-2013
EXTERIOR

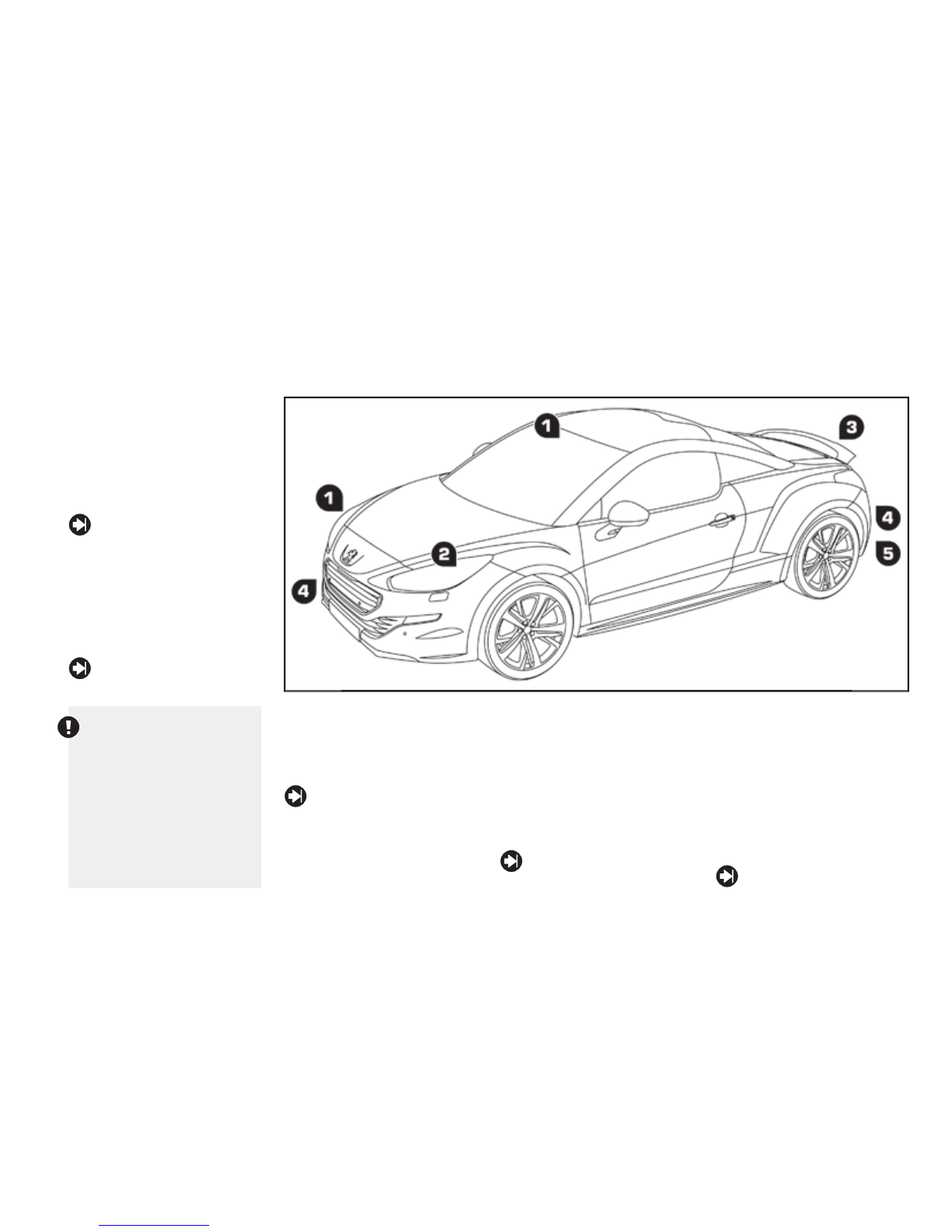

1. Welcome lighting
This additional exterior and
interior lighting, controlled
remotely, makes your approach to
the vehicle easier when the light
is poor.
2. Directional lighting
This lighting automatically
provides additional visibility when
cornering.
5. Temporary tyre repair kit
This kit is a complete system,
consisting of a compressor
and a sealant cartridge, for the
temporary repair of a tyre.
3. Spoiler
This system improves the
aerodynamics of the vehicle.
4. Front and rear parking
sensors
This system warns you of any
obstacles detected in front of or
behind the vehicle when parking.
Aluminium arches
For maintenance of these
arches, do not use a dry
cloth with an abrasive
product. Use a sponge and
soapy water.

51
80
79
FAMILIARISATION
RCZ_EN_CHAP00B_PRISE EN MAIN_ED02-2013
ACCESS

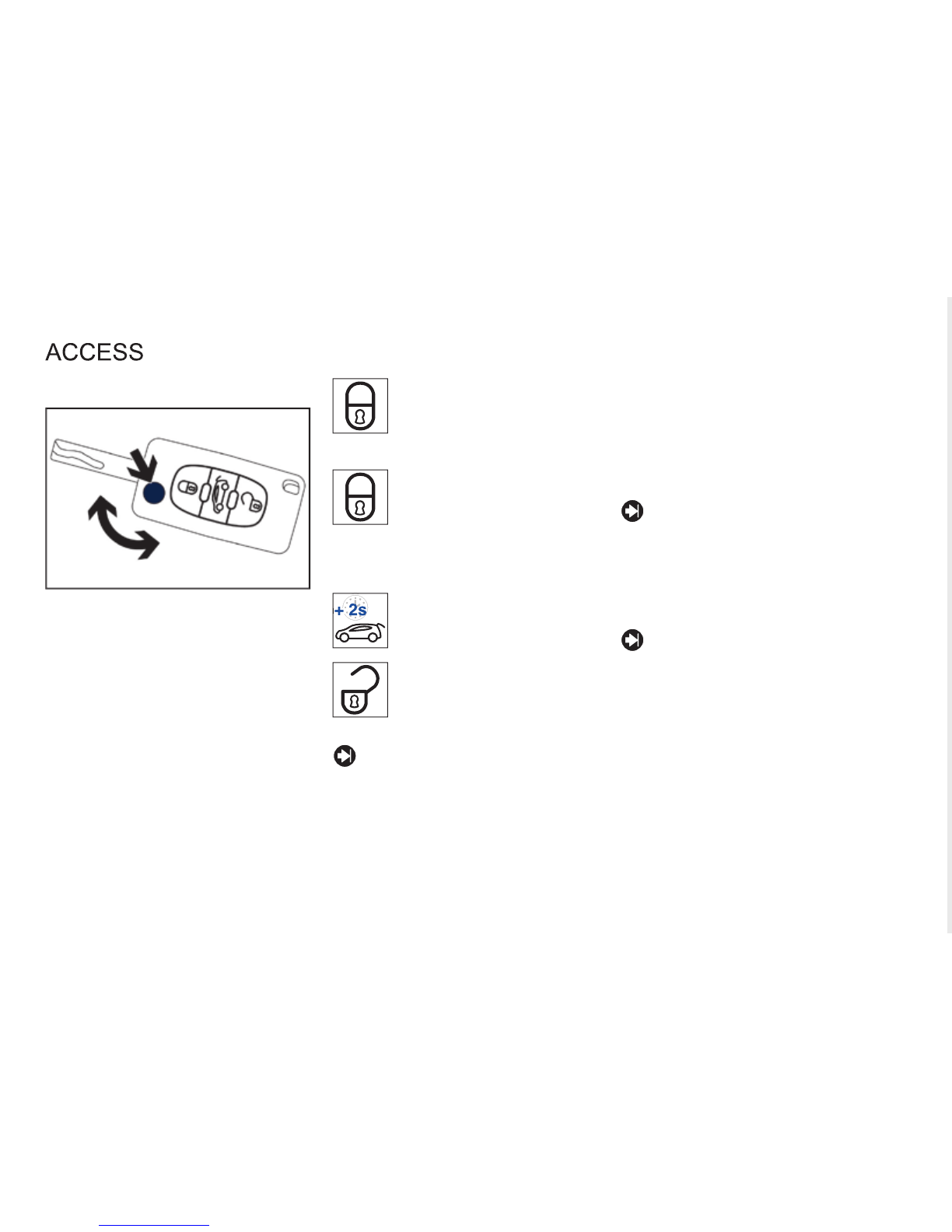

REMOTE CONTROL KEY
Unfolding / Folding the key
(press fi rst before unfolding or folding the key).
Normal locking
(press once; fi xed lighting of the
direction indicators).
or
Deadlocking the vehicle
(press twice in succession; fi xed
lighting of the direction indicators).
Unlocking and partial opening of
the boot lid
(press for more than two seconds).
Complete or selective unlocking of
the vehicle
(rapid fl ashing of the direction
indicators).
WELCOME LIGHTING
When poor light is detected by a sensor,
the remote switching on of the dipped beam
headlamps and sidelamps makes your
approach to the vehicle easier.
In the same way, the passenger compartment
lighting, such as the courtesy lamps, the door
sill lamps and the footwell lamps, comes on.

63
150
6
RCZ_EN_CHAP00B_PRISE EN MAIN_ED02-2013

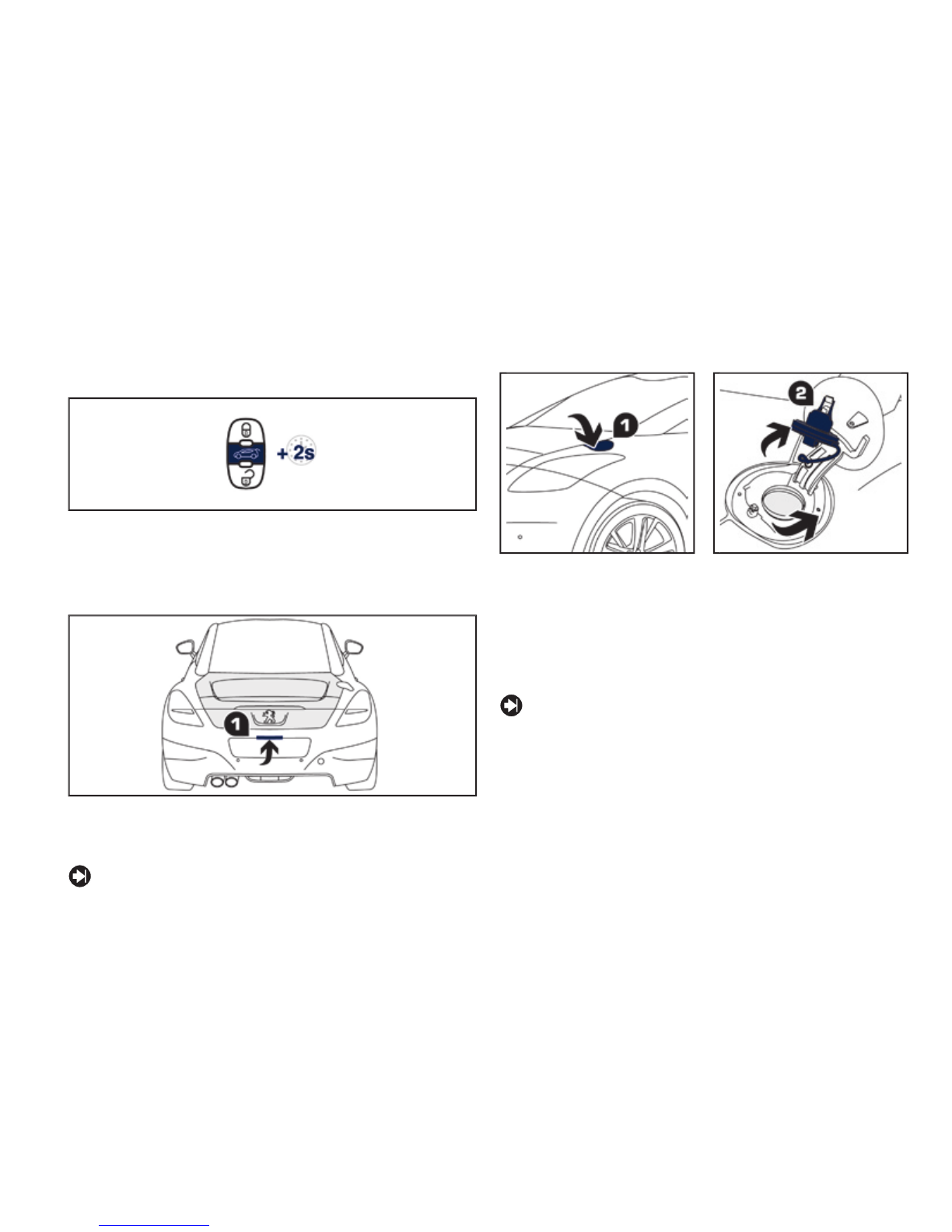

1. Unlocking and partial opening of the boot lid.
2. Open the boot lid.
For access to the fuel fi ller cap, the vehicle must be unlocked.
1. Open the fuel fi ller fl ap by pressing at its rear edge.
2. Remove the fuel fi ller cap by unscrewing it and hook it on to the
back of the fi ller fl ap.
Capacity of the tank: approximately 55 litres.
FUEL TANKBOOT
1. Partial opening of the boot lid.
2. Open the boot lid.
Vehicle locked
Vehicle unlocked

79
211
255
107
75
309
FAMILIARISATION
RCZ_EN_CHAP00B_PRISE EN MAIN_ED02-2013
INTERIOR
1. Interior mood lighting
This dimmed lighting of the passenger
compartment facilitates visibility inside the
vehicle when the light is poor.
2. Audio and telematic systems
This equipment benefi ts from the latest technology:
MP3 compatible PEUGEOT Connect Sound (RD5),
PEUGEOT Connect Navigation (RT6) or PEUGEOT
Connect Media Navigation (NG4 3D) with 16/9 retractable
colour screen, JBL audio system, auxiliary sockets.
PEUGEOT Connect Media Navigation (NG4 3D)
PEUGEOT Connect Navigation (RT6)
4. Active spoiler control
(except 1.6 litre THP 270 hp version)
This automatic system can be controlled
manually by means of this control on the
centre console.
3. Dual-zone digital air conditioning
This systems allows different levels of comfort
to be set for the driver and front passenger.
It then controls these levels automatically
according to the ambient conditions.
PEUGEOT Techno PVC
For maintenance of this trim, do not use
solvent or detergent with a dry cloth.
Remove dust fi rst, then use a soft cloth
and soapy water. Dry using another soft
cloth.
PEUGEOT Connect Sound (RD5)

8
RCZ_EN_CHAP00B_PRISE EN MAIN_ED02-2013
INSTRUMENTS AND CONTROLS

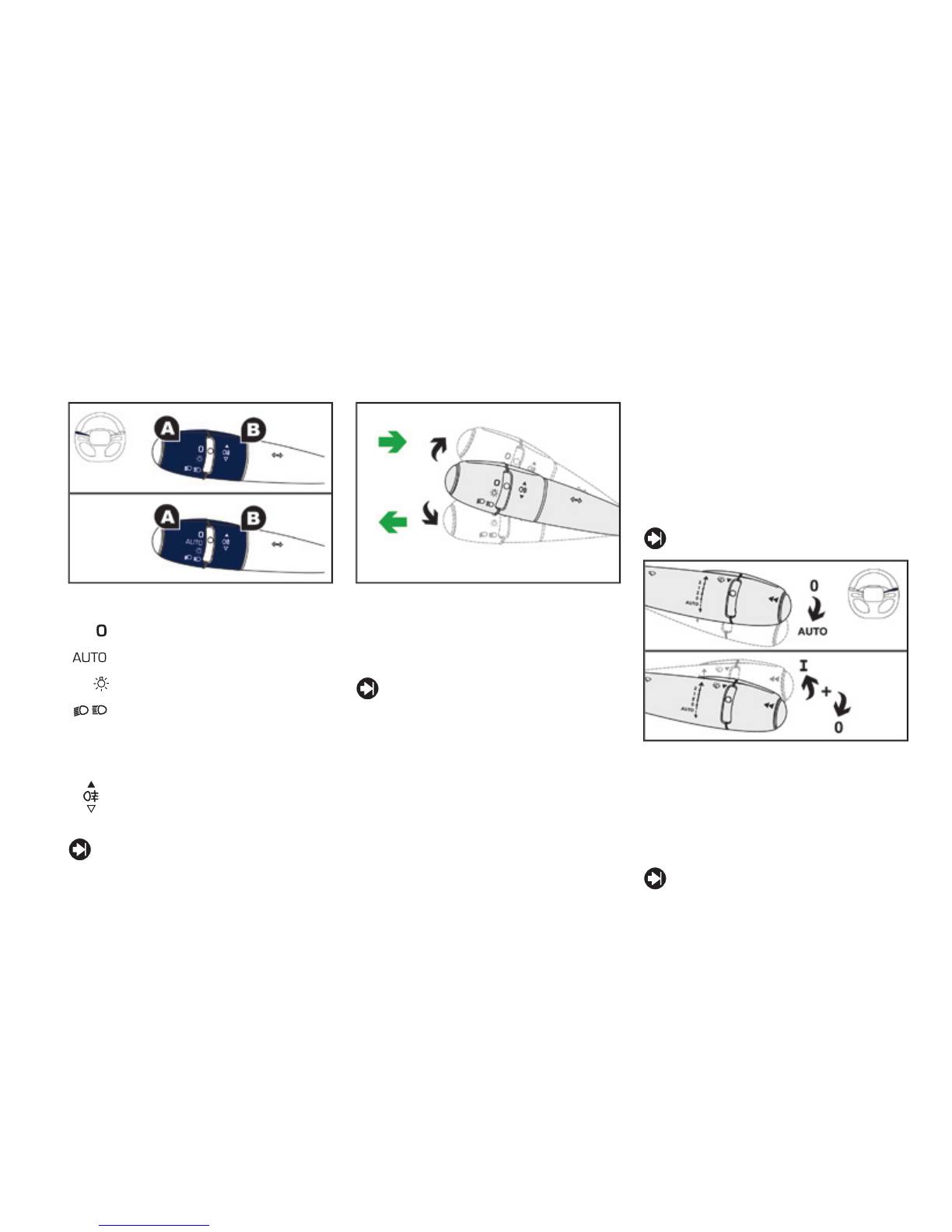

1. Cruise control / speed limiter switches.
2. Steering wheel adjustment control.
3. Lighting and direction indicator control
stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. Bonnet release.
9. Fusebox.
10. Manual headlamp height adjustment.
11. Side adjustable air vent.
12. Speaker (tweeter).

FAMILIARISATION
RCZ_EN_CHAP00B_PRISE EN MAIN_ED02-2013
INSTRUMENTS AND CONTROLS
1. Wipers / screenwash / trip computer
control stalk.
2. Steering lock and ignition.
3. Audio and telematics system steering
wheel control stalk.
4. Door mirror controls.
Electric window controls.
5. Central adjustable air vents.
6. Windscreen demisting vent.
7. Sunshine sensor.
8. Front side window demisting vent.

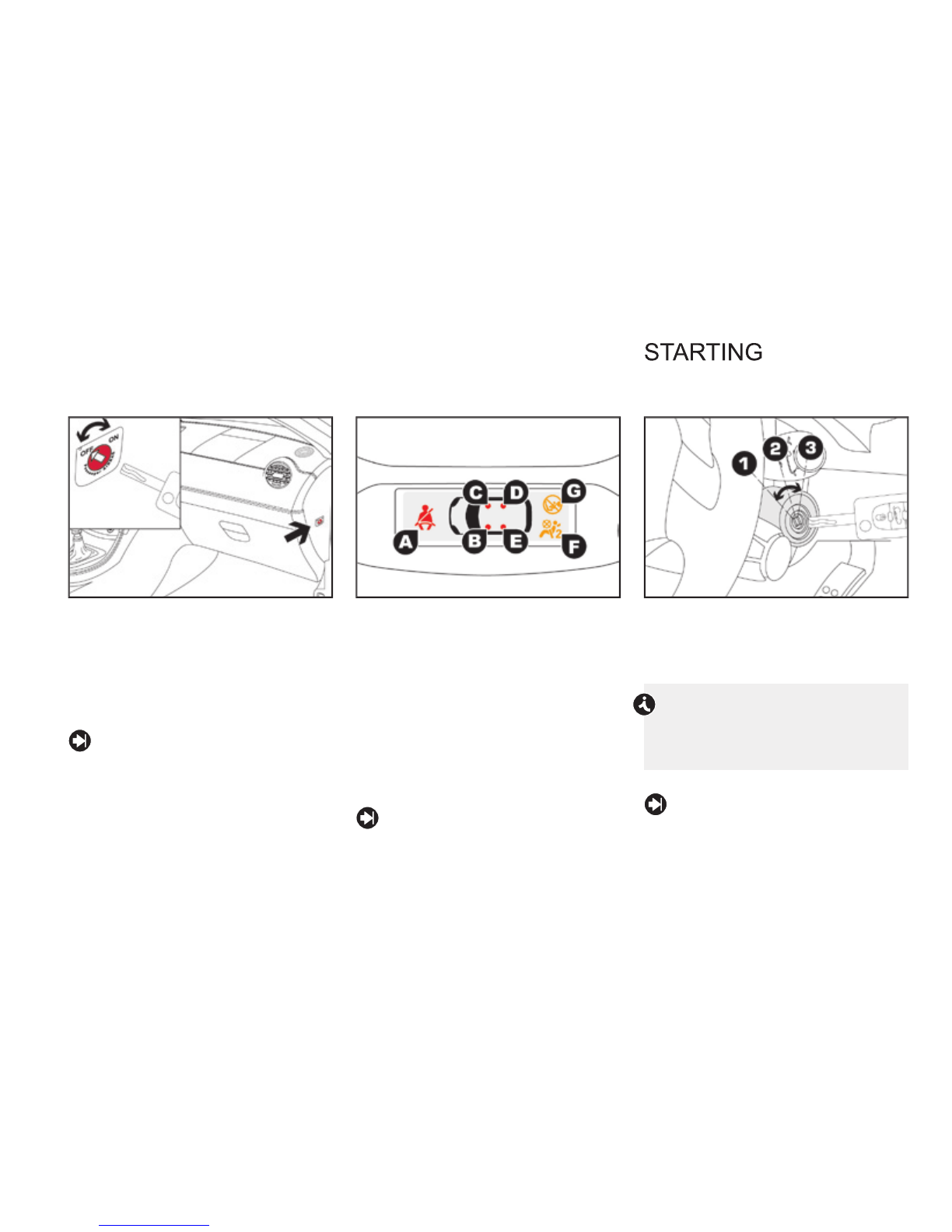

9. Passenger's airbag deactivation switch.
10. Glove box / Audio/video sockets.
11. Passenger's airbag.

10
RCZ_EN_CHAP00B_PRISE EN MAIN_ED02-2013

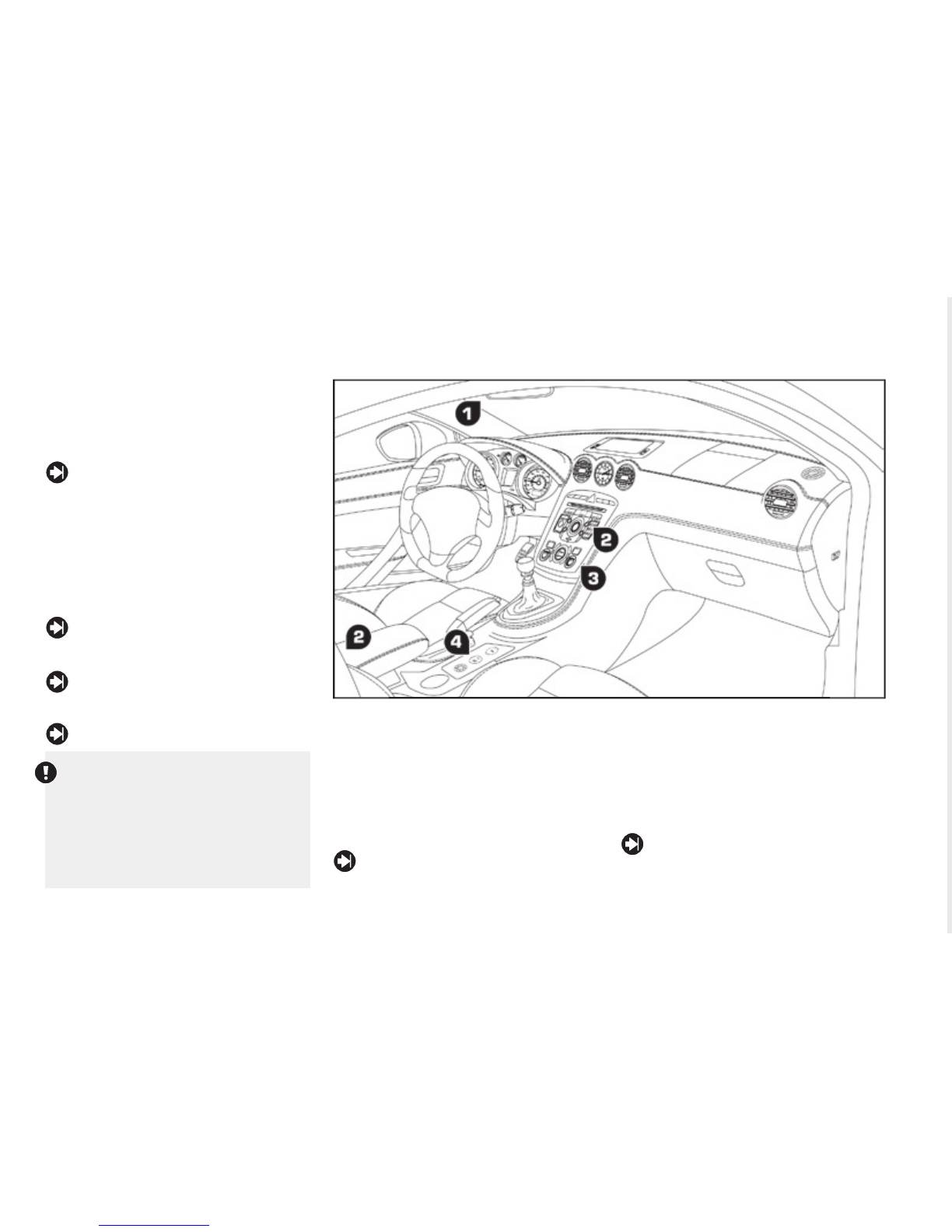

CENTRE CONSOLES
1. Audio and telematic system microphone.
2. Courtesy lamp / Map reading lamps /
Interior mood lighting.
3. Seat belt and front passenger's airbag
warning lamps display.
4. Interior volumetric sensors (alarm).
5. Multifunction screen.
6. Clock.
7. Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control (ESC/ASR/EBA)
button.
Parking sensors button.
PEUGEOT services button.
8. PEUGEOT Connect Sound (RD5)
and storage compartment, PEUGEOT
Connect Navigation (RT6) or PEUGEOT
Connect Media Navigation (NG4 3D).
9. Heating / air conditioning controls.
10. Front ashtray.
11. 12 V accessories socket.
12. Active spoiler control.
13. Storage compartment or instrument panel
navigator associated with the PEUGEOT
Connect Media Navigation (NG4 3D).
14. Cup holder.
15. Front armrest / USB / auxiliary socket.

64
65
FAMILIARISATION
RCZ_EN_CHAP00B_PRISE EN MAIN_ED02-2013

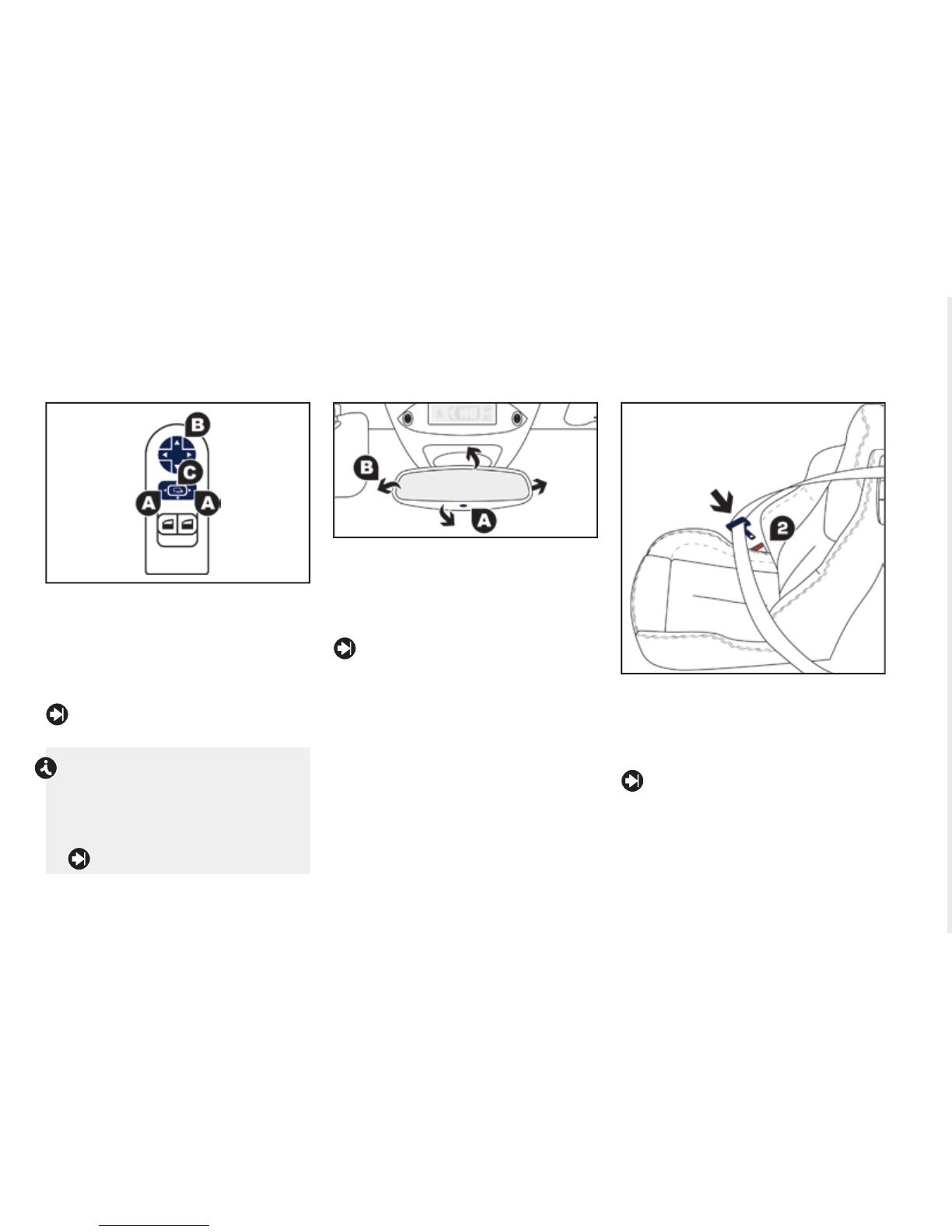

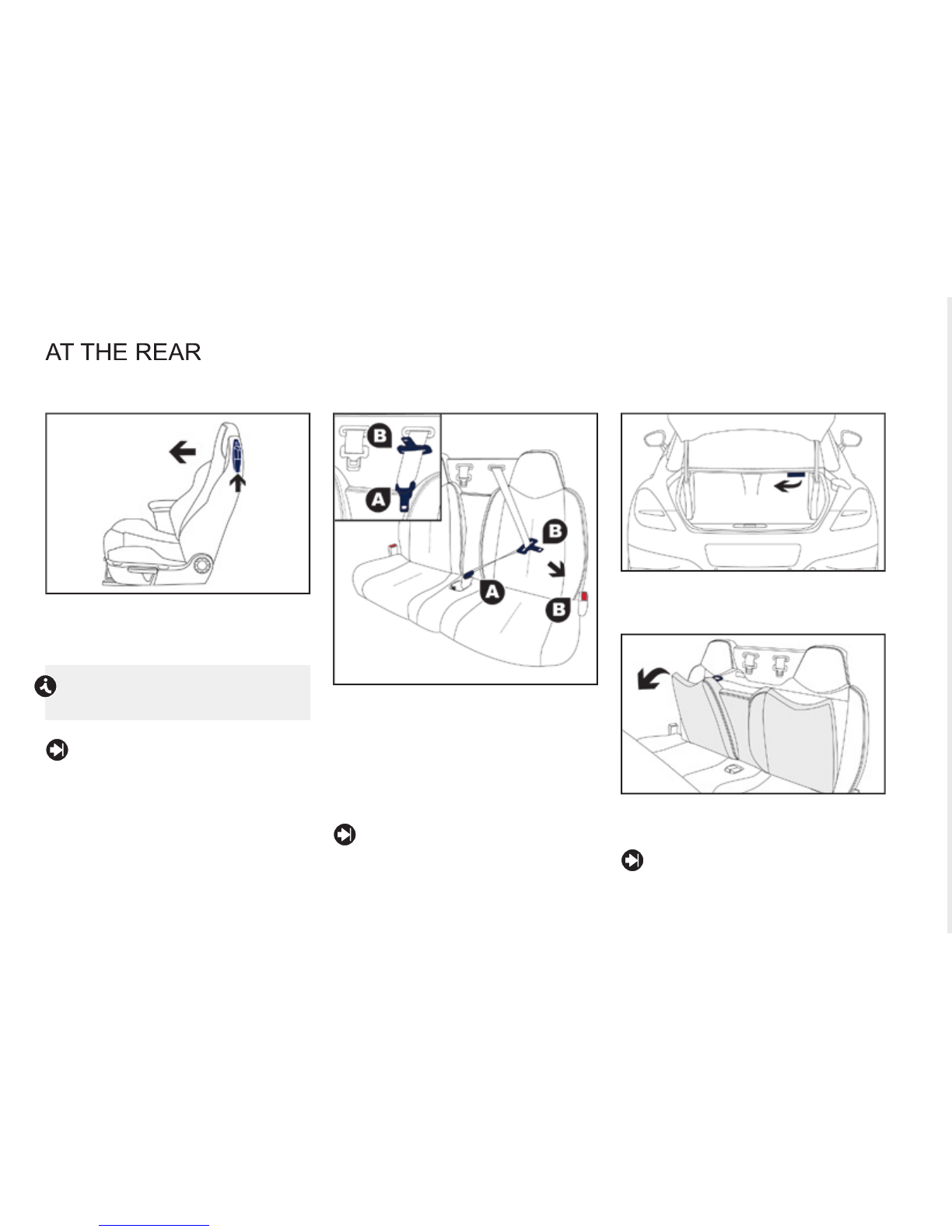

SITTING COMFORTABLY

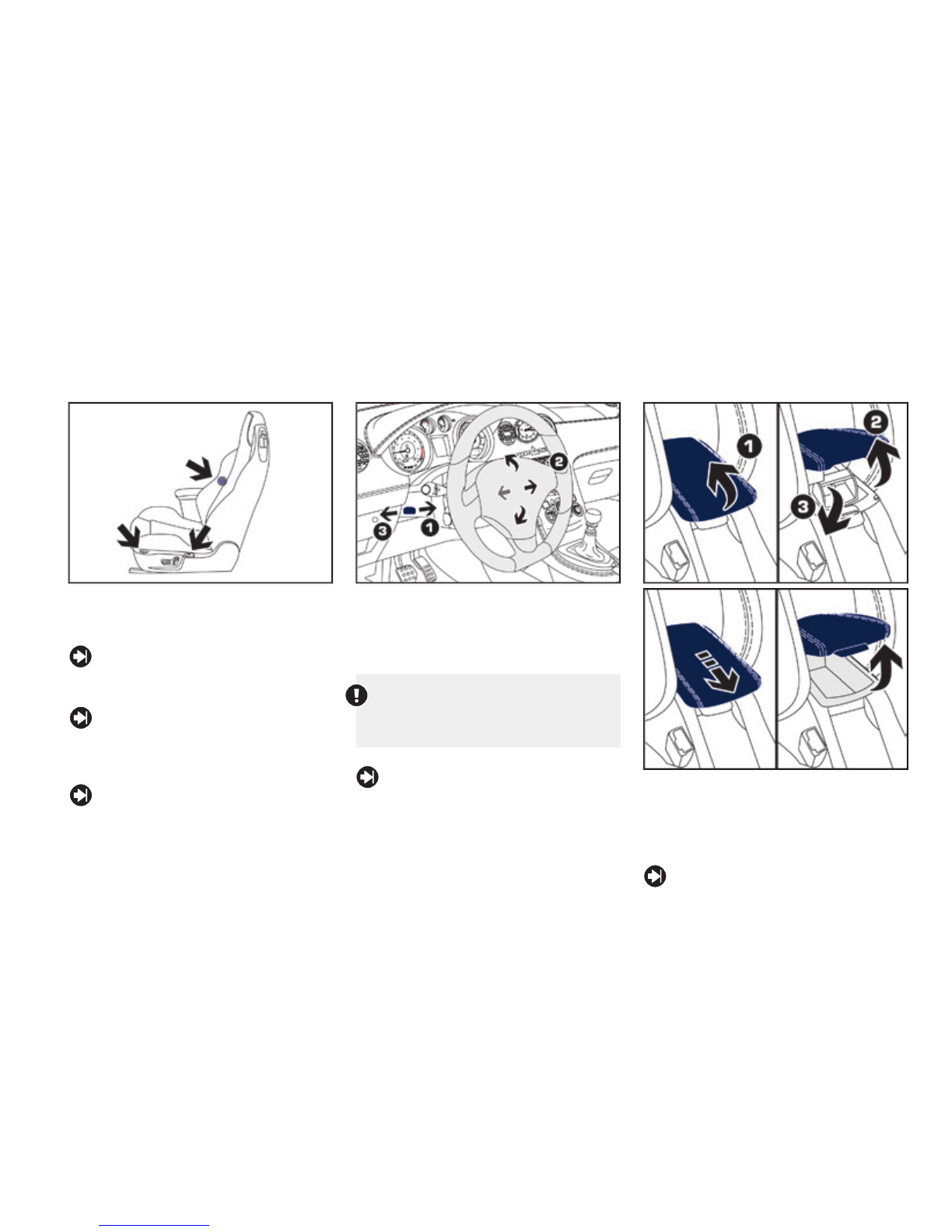

FRONT SEATS
Forwards-backwards Height
MANUAL ADJUSTMENTS
ELECTRIC ADJUSTMENTS
Seat back angle
