FAMILIARISATION
EXTERIOR
Welcome lighting
This additional exterior and interior lighting,
controlled remotely, makes your approach
to the vehicle easier when the light is poor.
90
Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
105
Directional lighting
This lighting automatically provides addi-
tional visibility when cornering.
92
AP_5008_01_2010_anglais_cag_pdfX4 4
AP_5008_01_2010_anglais_cag_pdfX4 4
03/02/2010 11:43:41
03/02/2010 11:43:41

5
FAMILIARISATION
EXTERIOR
Visual and audible front and/or rear
parking sensors
This system warns you if an obstacle is
detected behind or in front of the vehicle
in reverse or forward gear.
159
Parking space sensor
This system measures the size of the
parking space available between two ve-
hicles or obstacles.
161
Temporary tyre repair kit
This kit is a complete system, consisting
of a compressor and an integrated seal-
ant product, for the temporary repair of
a tyre.
171
When washing your vehicle in a car
wash:
- remove the aerial,
- fold back the mirrors.
AP_5008_01_2010_anglais_cag_pdfX5 5
AP_5008_01_2010_anglais_cag_pdfX5 5
03/02/2010 11:43:43
03/02/2010 11:43:43

6
FAMILIARISATION
OPEN
Remote control key
A. Unfolding/Folding of the key.
Normal locking
(press once; ¿xed lighting of
the direction indicators).
Deadlocking of the vehicle
(press twice in succession;
¿xed lighting of the direction
indicators).
Complete or selective unlocking
of the vehicle
(rapid Àashing of the direction
indicators).
or
73
When the light is poor, detected by
a sensor, the remote switching on of
the dipped headlamps and sidelamps
makes your approach to the vehicle
easier.
This function can be programmed via
the con¿guration menu.
90
86
Fuel tank
1. Opening the fuel ¿ller Àap.
2. Opening and hooking the fuel ¿ller
cap.
The type of fuel to be used is indicated
on the inner face of the fuel ¿ller Àap.
Capacity of the tank: approximately
60 litres.
Welcome lighting
AP_5008_01_2010_anglais_cag_pdfX6 6
AP_5008_01_2010_anglais_cag_pdfX6 6
03/02/2010 11:43:44
03/02/2010 11:43:44

7
FAMILIARISATION
OPENING
Boot Panoramic sunroof
1. Opening the blind.
2. Closing the blind.
1. Unlocking the vehicle.
2. Opening the boot.
84 105
AP_5008_01_2010_anglais_cag_pdfX7 7
AP_5008_01_2010_anglais_cag_pdfX7 7
03/02/2010 11:43:45
03/02/2010 11:43:45

8
FAMILIARISATION

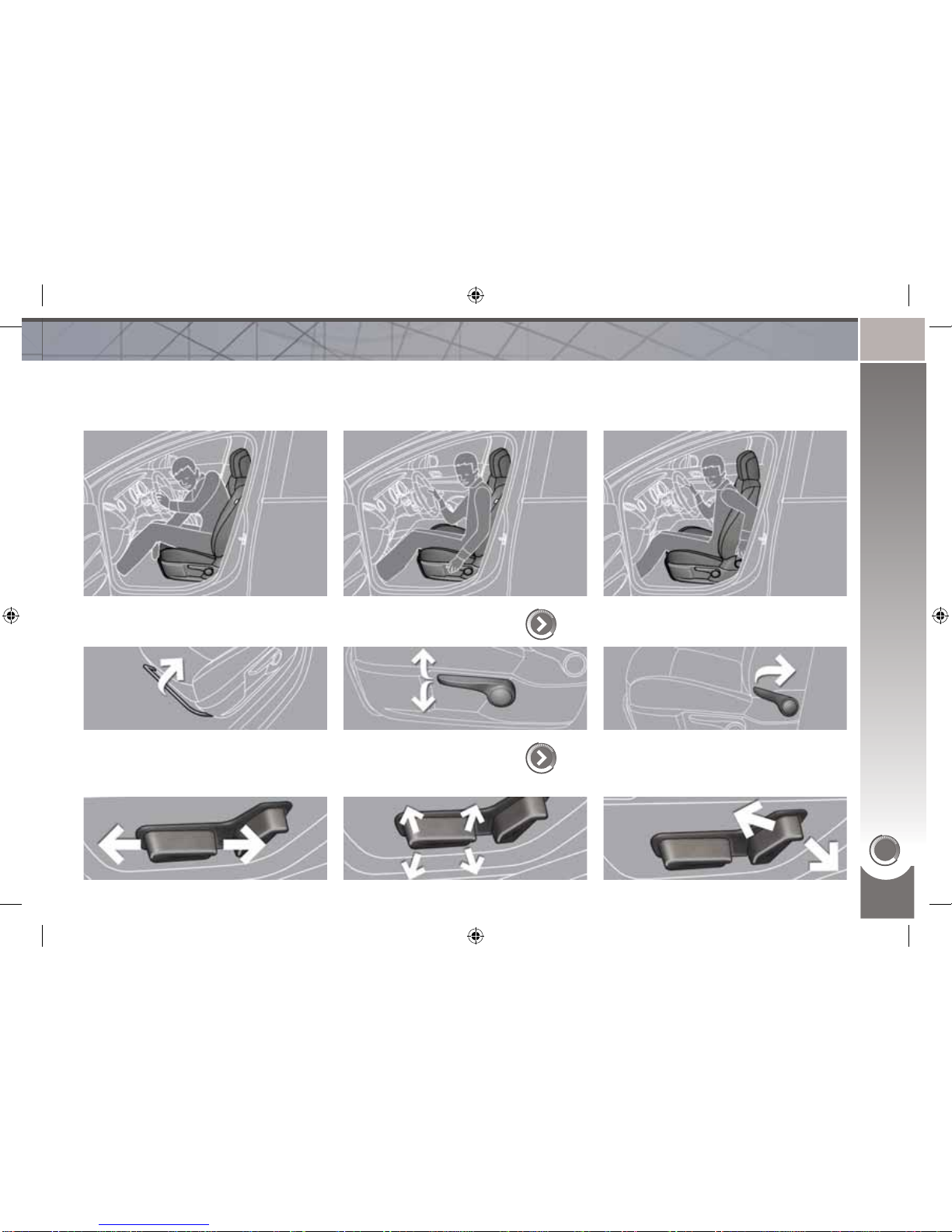

INTERIOR
Electric parking brake
This combines the functions of auto-
matic application on switching off the
engine and automatic release on accel-
eration.
Manual application/release is possible.
135
Audio and communication systems
This equipment bene¿ts from the latest tech-
nology: MP3 compatible Peugeot Connect
Sound, Peugeot Connect USB, Bluetooth,
Peugeot Connect Navigation or Peugeot
Connect Media with 16/9 retractable colour
screen, JBLaudio system, auxiliary sockets.
211

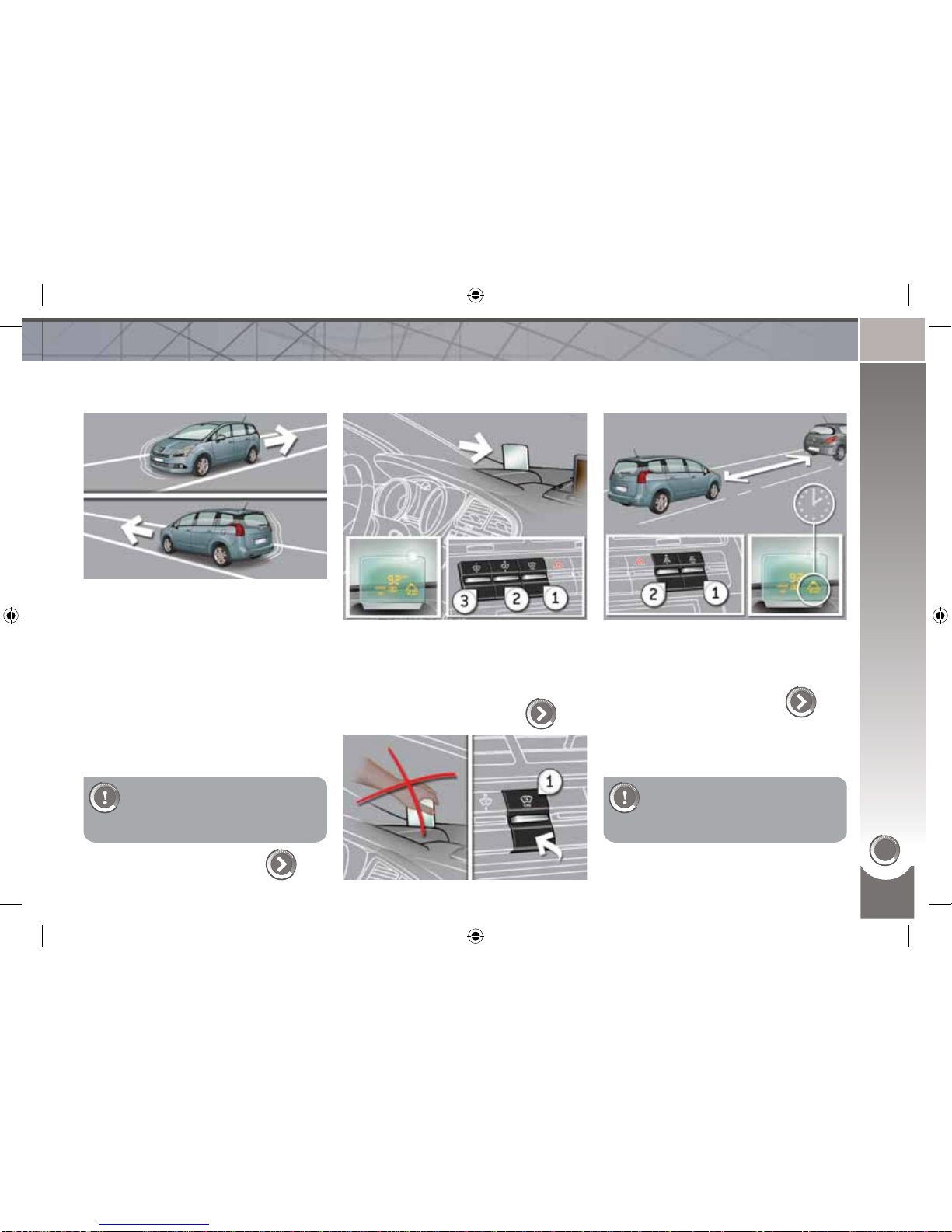

Head-up display
This system projects certain information
into the ¿eld of vision of the driver: the
speed, the cruise control/speed limiter
and the Distance alert.
143
Dual-zone digital air conditioning
This system allows different levels of
comfort to be set for the driver and front
passenger. It then controls these levels
automatically according to the climatic
conditions.
59
Peugeot Connect
Navigation 251
281Peugeot Connect
Sound.
Peugeot Connect
Media Peugeot Connect
USB 232,
288
Bluetooth 237,
269,
291
PEUGEOT
Assistance 209
AP_5008_01_2010_anglais_cag_pdfX8 8
AP_5008_01_2010_anglais_cag_pdfX8 8
03/02/2010 11:43:46
03/02/2010 11:43:46

9
FAMILIARISATION

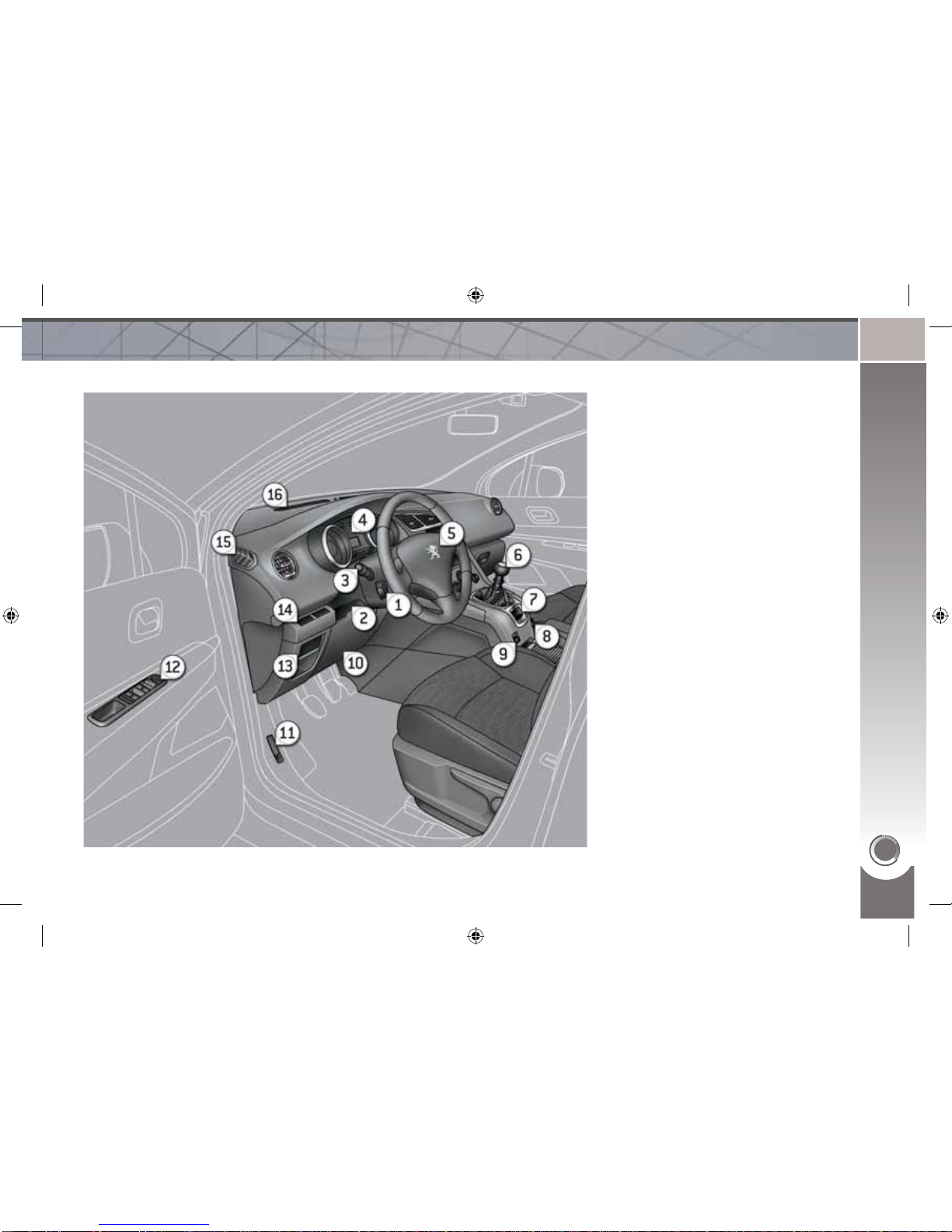

INSTRUMENTS AND CONTROLS
1. Cruise control/speed limiter
switches.
2. Steering wheel adjustment.

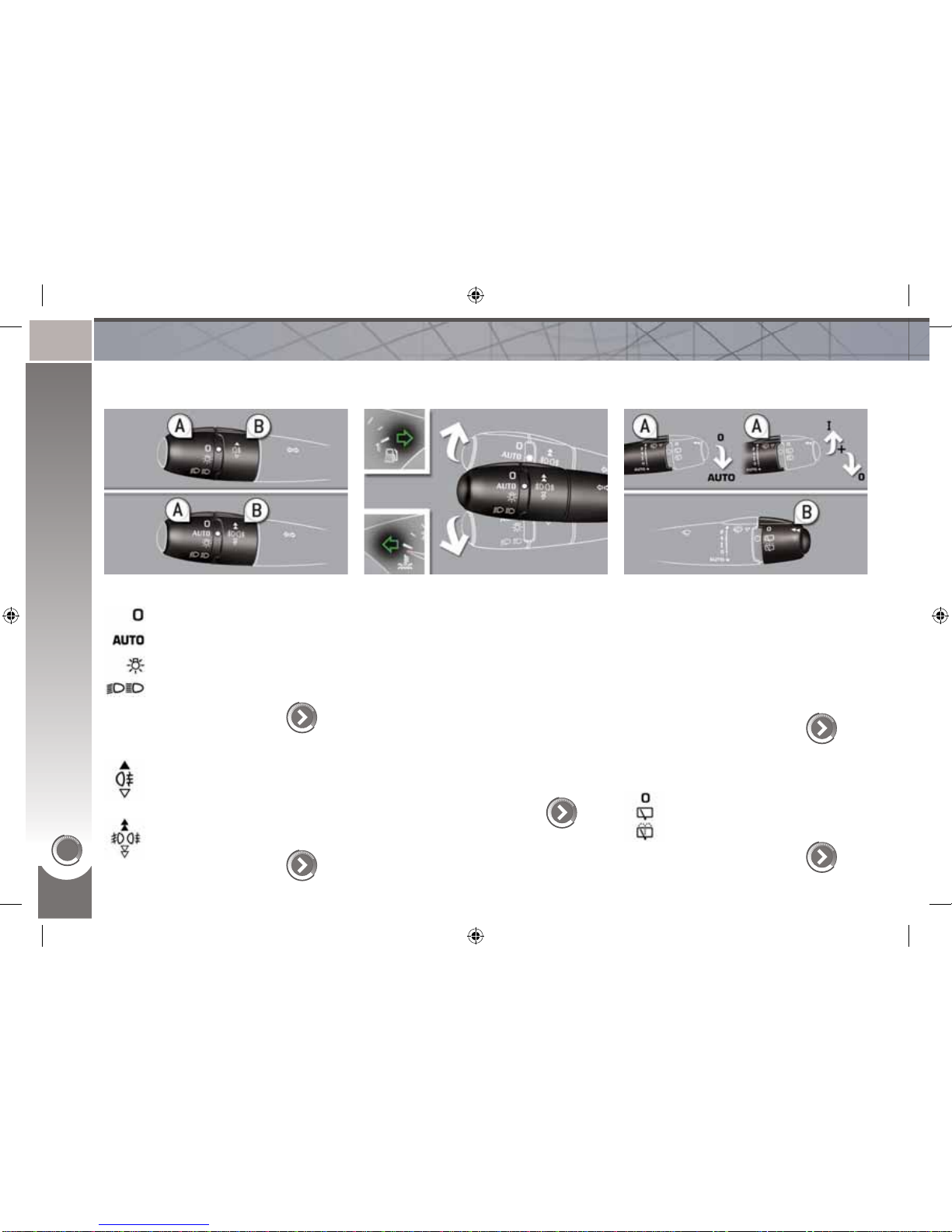

3. Lighting and direction indicator
stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Electric parking brake.
8. 12 V accessories socket.
9. Panoramic sunroof control.
10.Owner's Handbook storage
compartment.
11. Bonnet release.
12.Door mirror controls.
Electric window controls.
Child lock.
13.Manual headlamp height
adjustment.
Instrument panel navigator
associated with the Peugeot
Connect Media.
14.Alarm button.
Parking sensors button.
Dynamic stability control
(ESP/ASR) button.
15.Front door window demist/defrost
vent.
16.Windscreen demist/defrost vent.
AP_5008_01_2010_anglais_cag_pdfX9 9
AP_5008_01_2010_anglais_cag_pdfX9 9
03/02/2010 11:43:47
03/02/2010 11:43:47

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Audio and telematics system
steering wheel control.
3. Wash-wipe/trip computer stalk.
4. Central adjustable vents.
5. Head-up display.
6. Multifunction screen.
7. Passenger's airbag.
8. Side adjustable air vent vent
9. Glove box - Audio/video sockets -
Passenger airbag deactivation.
10.Centre console.
11. 12 V accessories socket.
12.Heating/air conditioning controls.
13.Audio and telematics system.
14.Selector buttons:
- head-up display,
- hazard warning lamps,
- Distance alert,
- central locking.
