4
FAMILIARISATION
EXTERIOR
Welcome lighting
This additional exterior and interior
lighting,controlledremotely,makesyour
approach to the vehicle easier when the
light is poor.
96, 102
Directional lighting
This lighting automatically provides
additional visibility when cornering.
97
Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
90
Temporary puncture repair kit
Thiskitisacompletesystem,consisting
of a compressor and an integrated
sealant product, for temporary repair
of the tyre.
165
AP_308_BB_02_2009_anglais_cag_pd4 4
AP_308_BB_02_2009_anglais_cag_pd4 4
04/02/2010 16:44:19
04/02/2010 16:44:19

5
FAMILIARISATION
EXTERIOR
Panoramic sunroof
This roof provides incomparable visibility
and light in the passenger compartment.
90
Opening rear screen
This allows you to access the luggage
compartment easily without having to
open the tailgate.
89
Roof bars
Transverse bars ¿tted on longitudinal
bars, these allow you to load long and
bulky objects on the roof.
198
Seat modularity
The individual rear seats of the 2nd and
3rd rows can be arranged in various
ways to permit different layout and
loading con¿gurations.
73
AP_308_BB_02_2009_anglais_cag_pd5 5
AP_308_BB_02_2009_anglais_cag_pd5 5
04/02/2010 16:44:23
04/02/2010 16:44:23

6
FAMILIARISATION
OPEN
Remote control key
A. Unfolding/Folding of the key.
Normal locking
(press once; ¿xed lighting of
the direction indicators).
Fuel tank
1. Opening the fuel ¿ller Àap.
2. Opening and hooking the fuel tank
cap.
Unlocking and partial opening
of the rear screen (SW)
(press once for more than
two seconds)
When a sensor detects a low level of
light, the remote switching on of the
dipped beam headlamps and sidelamps
makes your approach to the vehicle
easier.
In the same way, the passenger
compartment lighting, such as the
courtesy lights, the front door sill lights
and the footwell lights, comes on.
or
Deadlocking of the vehicle
(press twice in succession;
¿xed lighting of the direction
indicators).
78 102 91
Capacity of the tank: approximately
60 litres.
96
Complete unlocking of the
vehicle
(rapid Àashing of the direction
indicators).
AP_308_BB_02_2009_anglais_cag_pd6 6
AP_308_BB_02_2009_anglais_cag_pd6 6
04/02/2010 16:44:26
04/02/2010 16:44:26

i
7
FAMILIARISATION
OPEN
Panoramic glass roof Boot Rear screen
1. Unlocking and partial opening of
the rear screen.
2. Opening of the rear screen.
90
1. Opening the blind.
2. Closing the blind.
1. Unlocking the vehicle.
2. Opening the boot.
89
The tailgate and the rear screen
cannot both be open at the same
time, to prevent damage to the
glass and to the rear screen itself. 1. Partial opening of the rear screen.
2. Opening of the rear screen.
89
Vehicle locked
Vehicle unlocked
AP_308_BB_02_2009_anglais_cag_pd7 7
AP_308_BB_02_2009_anglais_cag_pd7 7
04/02/2010 16:44:32
04/02/2010 16:44:32

8
FAMILIARISATION
INTERIOR
Interior mood lighting
This dimmed lighting of the passenger
compartment facilitates visibility inside
the vehicle when the light is poor.
102

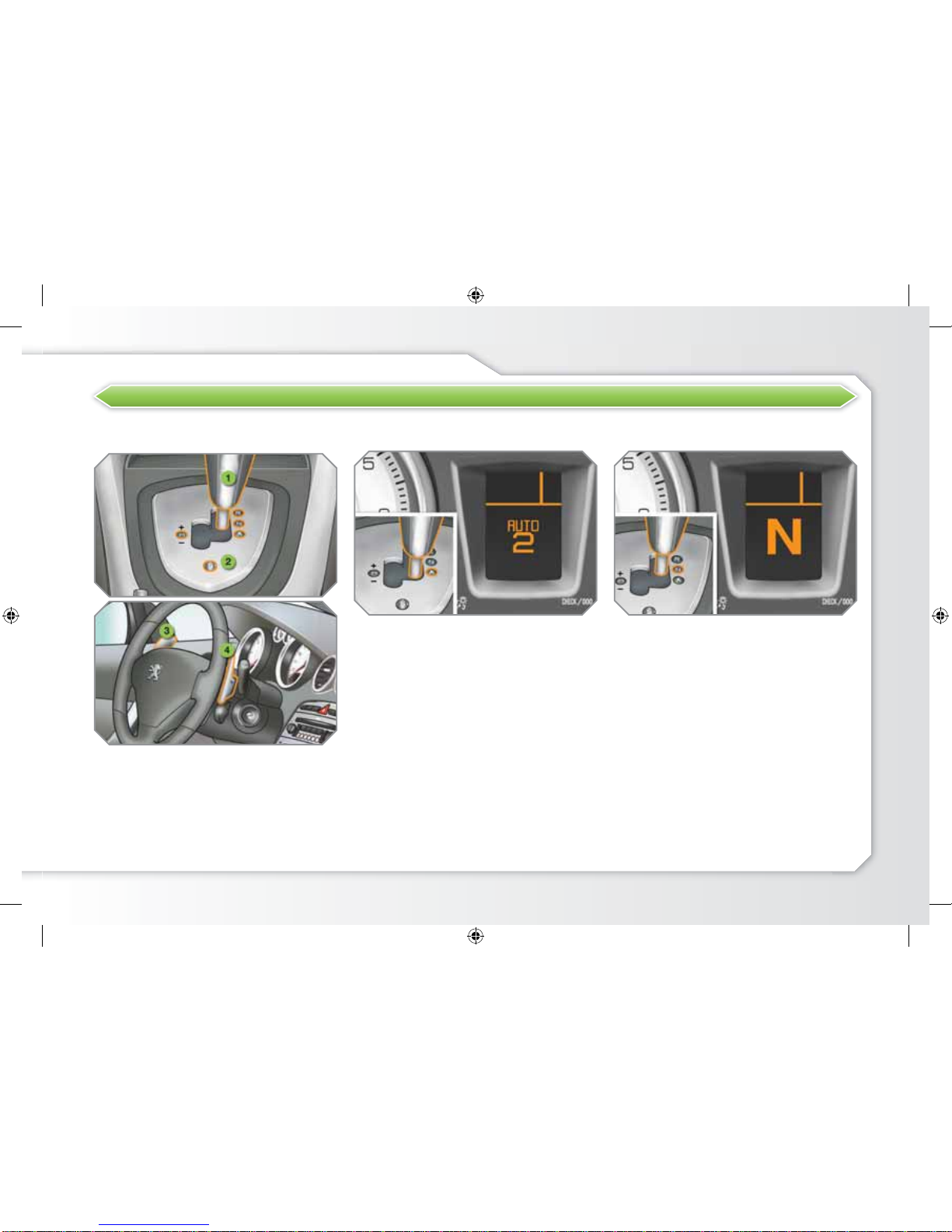

6-speed electronic gear control
gearbox
This system offers driving combining a
fully automatic mode, a manual mode
and an auto-sequential mode which
combines the advantages of the other
two modes.
143
Audio and communication systems
This equipment bene¿ts from the latest
technology: MP3 compatible PC Sound,
Bluetooth, PC Nav or PC Com 3D with
16/9 retractable colour screen, JBL
audio system, auxiliary sockets.
PC Sound299
PC Nav 271
PC Com 3D 231
AP_308_BB_02_2009_anglais_cag_pd8 8
AP_308_BB_02_2009_anglais_cag_pd8 8
04/02/2010 16:44:40
04/02/2010 16:44:40

9
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Cruise control/speed limiter
switches.
2. Steering wheel adjustment control.
3. Lighting and direction indicator
control stalk.
4. Instrument panel.
5. Driver's airbag.
Horn.
6. Gear lever.
7. Parking brake.
8. Panoramic sunroof blind control.
9. Heated seat control.
10.Bonnet release.
11. Door mirror controls.
Electric window controls.
12.Fusebox.
13.Manual headlamp height
adjustment.
14.Front side window demisting vent.
15.Speaker (tweeter).
16.Windscreen demisting vent.
AP_308_BB_02_2009_anglais_cag_pd9 9
AP_308_BB_02_2009_anglais_cag_pd9 9
04/02/2010 16:44:43
04/02/2010 16:44:43

10
FAMILIARISATION
INSTRUMENTS AND CONTROLS
1. Steering lock and ignition.
2. Audio and telematics system
steering mounted control.
3. Wiper/wash-wipe/trip computer
control stalk.
4. Central adjustable air vents.
5. Multifunction screen.
6. Sunshine sensor.
7. Passenger's airbag.
8. Side adjustable air vent.
9. Passenger's airbag deactivation.
10.Glove box/Audio/video sockets.
11. Storage compartment or instrument
panel navigator associated with the
PC Com 3D.
12.12 V accessories socket.
13.Front ashtray.
14.Heating/air conditioning controls.
15.CD changer.
16.Audio and telematics system.
17.Emergency call button.
Alarm button.
Central locking button.
Hazard warning lamps button.
Dynamic stability control
(ESP/ASR) button.
Parking sensors button.
PEUGEOT services button
AP_308_BB_02_2009_anglais_cag_pd10 10
AP_308_BB_02_2009_anglais_cag_pd10 10
04/02/2010 16:44:46
04/02/2010 16:44:46

11
FAMILIARISATION
SITTING COMFORTABLY
Driver's seat
Manual adjustment
Electric adjustment
Forwards-backwards
62
63
Seat back angleHeight
AP_308_BB_02_2009_anglais_cag_pd11 11
AP_308_BB_02_2009_anglais_cag_pd11 11
04/02/2010 16:44:50
04/02/2010 16:44:50

i
!
12
FAMILIARISATION
Steering wheel adjustment
1. Unlocking the control.
2. Adjustment for height and reach.
3. Locking the control.
SITTING COMFORTABLY
Front seats Other functions available...
Access to the rear seats (3-door).
Table position for the front
passenger seat (SW).
Storing driving positions (driver's
electric seat).
Heated seats.
Head restraint height
Lumbar
Front armrest
64 10677
For your comfort, the height and longi-
tudinal position of the front armrest can
be adjusted.
It also has a storage compartment.
As a safety precaution, these
operations must only be carried
out when stationary.
AP_308_BB_02_2009_anglais_cag_pd12 12
AP_308_BB_02_2009_anglais_cag_pd12 12
04/02/2010 16:44:57
04/02/2010 16:44:57

i
13
FAMILIARISATION
SITTING COMFORTABLY
Door mirrors
Adjustment
Other functions available...
Folding/Unfolding.
Automatic tilting of the mirror in
reverse gear for parking.
Rear view mirror
Manual day/night model
Front seat belts
1. Fastening the buckle.
2. Height adjustment.
A. Selection of the mirror to be adjusted.
B. Adjustment of the position of the
mirror in the four directions.
C. De-selection of the mirror.
76
132
75
1. Selection of the "day" position of
the mirror.
2. Mirror orientation.
Automatic day/night model
1. Automatic detection of the day/
night mode.
2. Mirror orientation.
77
AP_308_BB_02_2009_anglais_cag_pd13 13
AP_308_BB_02_2009_anglais_cag_pd13 13
04/02/2010 16:45:02
04/02/2010 16:45:02

14
FAMILIARISATION
SEEING CLEARLY
Lighting
Ring A
Ring B
Raise or lower the lighting stalk passing
the point of resistance; the correspond-
ing direction indicators will Àash for as
long as the stalk remains in this posi-
tion.
Direction indicators
Switching on "AUTO"
)Press the stalk down and release it.
Ring B: rear wiper
93 99
Lighting off.
Automatic illumination of head-
lamps.
Sidelamps.
Dipped/main beam headlamps.
Rear foglamp.
or
Front and rear foglamps. Park.
Intermittent wipe.
Wash-wipe.
Stalk A: windscreen wipers
98
Wipers
Switching off "AUTO"
)Push the stalk up and return it to
position "0".
100
128
"Motorway" function
Pressthe lightingstalkupordown once,
without passing the point of resistance;
the corresponding direction indicators
will Àash three times.
This function can be used at any
speed, but it is particularly useful when
changing lane on high-speed roads.
AP_308_BB_02_2009_anglais_cag_pd14 14
AP_308_BB_02_2009_anglais_cag_pd14 14
04/02/2010 16:45:07
04/02/2010 16:45:07

–
15
FAMILIARISATION
VENTILATION
Recommended interior settings
Automatic air conditioning: we recommend use of the fully automatic mode by pressing the "AUTO" button.
I require...
Heating or Manual Air Conditioning
Air distribution Air Àow Air recirculation/
Intake of outside air Temperature Manual A/C
HOT
COLD
DEMISTING
DEFROSTING
AP_308_BB_02_2009_anglais_cag_pd15 15
AP_308_BB_02_2009_anglais_cag_pd15 15
04/02/2010 16:45:11
04/02/2010 16:45:11

16
FAMILIARISATION
MONITORING
Instrument panel Switch panel
A. With the ignition on, the needle should
indicate the level of fuel remaining.
B. With the engine running, its
associated low level warning lamp
should switch off.
C. With the ignition on, the oil level
indicator should display "OIL OK"
for a few seconds.
If the levels are not correct, top up the
levels which are low.
Lighting of the indicator lamp indicates
the status of the corresponding function.
A. Emergency call in progress.
227
B. Deactivation of the alarm interior
protection.
82
C. Central locking.
87
D. Deactivation of the ESP/ASR
system.
131
E. Deactivation of the front and rear
parking sensors.
155
F. Access to PEUGEOT services.
227
1. With the ignition on, the orange and
red warning lamps come on.
2. With the engine running, these
warning lamps should switch off.
If warning lamps remain on, refer to the
page concerned.
Warning lamps
22 26
AP_308_BB_02_2009_anglais_cag_pd16 16
AP_308_BB_02_2009_anglais_cag_pd16 16
04/02/2010 16:45:14
04/02/2010 16:45:14

17
FAMILIARISATION
PASSENGER SAFETY
Passenger's front airbag Electric child lock
1. Insert the key.
2. Select the position:
"OFF" (deactivation), with "rear
facing" child seat,
"ON" (activation), with front
passenger or "forwards facing"
child seat.
3. Remove the key keeping the switch
in the new position.
Lighting of the indicator lamp indicates
the status of the corresponding function.
A. Activation of the electric child lock.
A. Front and/or rear seat belts not
fastened/unfastened warning lamp.
B. Front left seat belt warning lamp.
C. Front right seat belt warning lamp.
D. Rear right seat belt warning lamp*.
E. Rear centre seat belt warning
lamp*.
F. Rear left seat belt warning lamp*.
G. Passenger's front airbag
deactivated warning lamp.
H. Passenger's front airbag activated
warning lamp.
Seat belts and passenger's
front airbag
133, 138137 127
* On SW with panoramic sunroof only.
AP_308_BB_02_2009_anglais_cag_pd17 17
AP_308_BB_02_2009_anglais_cag_pd17 17
04/02/2010 16:45:17
04/02/2010 16:45:17

18
FAMILIARISATION
PASSENGER COMFORT
Operating the rear seats
2nd row rear seats
1. Forwards-backwards adjustment.
2. Seat back angle adjustment/Table
position.
3. Head restraint height adjustment.
4. Folding.
5. Removal/Installation.
6. Carrying.
69
3rd row additional seats
A. Seat back angle adjustment/Table
position.
B. Head restraint height adjustment.
C. Folding.
D. Removal/Installation.
E. Carrying.
71
Operating the front
passenger seat
Table position
A. Placing in the partial table position.
B. Placing in the full table position.
65
AP_308_BB_02_2009_anglais_cag_pd18 18
AP_308_BB_02_2009_anglais_cag_pd18 18
04/02/2010 16:45:20
04/02/2010 16:45:20

19
FAMILIARISATION
SEAT CONFIGURATION
A few examples of seat modularity
7 seats
7 seats in 5 seats with additional seats folded
con¿guration
Transporting long objects
Loading a large volume
73
AP_308_BB_02_2009_anglais_cag_pd19 19
AP_308_BB_02_2009_anglais_cag_pd19 19
04/02/2010 16:45:23
04/02/2010 16:45:23

20
FAMILIARISATION
DRIVING SAFELY
Speed limiter "LIMIT" Display on the instrument panel
1. Limiter mode Selection/Off.
2. Decreasing of the programmed
value.
3. Increasing of the programmed
value.
4. Speed limiter On/Off. Thecruise controlor speedlimiter mode
appears on the instrument panel when
it is selected.
1. Cruise control mode Selection/Off.
2. Programming a speed/Decreasing
of the programmed value.
3. Programming a speed/Increasing of
the programmed value.
4. Cruise control Off/Resume.
Cruise control "CRUISE"
Cruise control
Speed limiter
152150
In order to be programmed or activated,
the vehicle speed must be higher than
25 mph (40 km/h), with at least fourth
gear engaged on the manual gearbox
(second gear for the 6-speed electronic
gearbox or automatic gearbox).
The values must be set with the engine
running.
AP_308_BB_02_2009_anglais_cag_pd20 20
AP_308_BB_02_2009_anglais_cag_pd20 20
04/02/2010 16:45:26
04/02/2010 16:45:26

21
FAMILIARISATION
DRIVING SAFELY
This 6-speed gearbox offers a choice
between the comfort of fully automatic
operation or the pleasure of manual
gear changing.
1. Gear lever.
2. Button "S" (sport).
3. Steering wheel "-" paddle.
4. Steering wheel "+" paddle.
The gear or the driving mode select-
ed appears on the instrument panel
screen.
N: neutral.
R: reverse gear.
1 2 3 4 5 6: gears engaged.
AUTO: automatic mode.
S: Sport driving style.
Display on the instrument panel
)Select position Nand press the
brake pedal ¿rmly while starting the
engine.
)Engage ¿rst gear (position Aor M)
or reverse (position R) using the
gear lever 1.
)Release the parking brake.
)Take your foot off the brake pedal
then accelerate.
Moving off
143
6-speed electronic gear
control gearbox
AP_308_BB_02_2009_anglais_cag_pd21 21
AP_308_BB_02_2009_anglais_cag_pd21 21
04/02/2010 16:45:31
04/02/2010 16:45:31
