PEUGEOT BOXER 2018 User manual

BOXER
HANDBOOK

Access to the Handbook
The Handbook is available on the PEUGEOT website,
in the "Personal space" section or at the following
address:
http://public.servicebox.peugeot.com/ddb/
Direct access to the Handbook.
Select:
- the language,
- the vehicle, its body style,
- the print edition of your handbook corresponding to the date of 1st
registration of your vehicle.
Then select:
- the vehicle,
- the print edition corresponding to the date of 1st registration of your
vehicle.
Download the content of the vehicle's Handbook.
From the appropriate Store, download the Scan
MyPeugeot APP smartphone application.
This symbol indicates the latest information
available.

Welcome
Thank you for choosing a Peugeot Boxer.
This document presents the information and recommendations required
for you to be able to explore your vehicle in complete safety.
Your vehicle will be fitted with only some of the equipment described in
this document, depending on its trim level, model and the specification
for the country in which it was sold.
In this document, you will find all of the instructions and
recommendations on use that will allow you to enjoy your vehicle to the
fullest. It is strongly recommended that you familiarise yourself with it,
as well as the Warranty and Maintenance Record which will provide you
with information about warranties, servicing and roadside assistance
associated with your vehicle.
Key
The descriptions and illustrations are given without any obligation.
Automobiles PEUGEOT reserves the right to modify the technical
specifications, equipment and accessories without having to update this
edition of the guide.
If ownership of your vehicle is transferred, please ensure this Complete
Handbook is passed on to the new owner.
Safety warning
Additional information
Contributes to the protection of the environment
Left-hand drive vehicle
Right-hand drive vehicle
Key
This key will enable you to identify the special features of your vehicle:
Van
Double cab
Crew cab
Chassis cab
Floor cab
Tipper
Combi, minibus

2
.
.
Contents
Instrument panels 7
Warning and indicator lamps 8
Indicators 18
Vehicle conguration 22
Setting the date and time 28
Trip computer 28
Tachograph 29
Instruments and controls 4
Centre console 4 Key 30 Remote control 30
Anti-intrusion security 33
Front doors 33
Sliding side door 33
Rear doors 34
Alarm 35
Electric windows 36
Driver's seat 37
2-seat front bench seat 39
Rear seats 40
Rear bench seats 40
Steering wheel adjustment 41
Mirrors 42
Heating/Manual air conditioning 43
Automatic air conditioning 44
Additional heating systems 46
Rear heating and/or air conditioning 46
Programmable additional heating 47
Recommendations for ventilation and air
conditioning 50
Front demist – defrost 51
Defrosting the rear screen and
door mirrors 51
Cab layout 52
Rear ttings 57
Exterior ttings 60
Lighting controls 61
LED daytime running lamps 62
Automatic illumination of headlamps 62
Guide-me-home lighting 62
Adaptive lighting 63
Parking lamps 64
Headlamp beam height adjustment 65
Wiper control stalk 65
General safety recommendations 67
Hazard warning lamps 68
Horn 68
Electronic stability control (ESC) 68
Seat belts 72
Airbags 75
Child seats 77
Deactivating the passenger's front airbag 78
ISOFIX mountings and child seats 83
Child lock 86
Overview
Dashboard instruments
Access
Ease of use and comfort
Safety
Lighting and visibility
Eco-driving

3
.
.
.
10
Contents
Driving recommendations 87
Anti-theft protection 89
Starting-switching off the engine 90
Battery standby system 91
Parking brake 91
Manual gearbox 92
Gear shift indicator 92
Stop & Start 93
Hill start assist 95
Trafc sign recognition 96
Speed limiter 99
Fixed speed limiter 100
Cruise control 101
Cruise control (3 litre HDi engine) 103
Lane Departure Warning System 105
Under-ination detection 110
Rear parking sensors, audible assistance 111
Reversing camera 112
Pneumatic suspension 113
Fuel 116
Compatibility of fuels 118
Snow chains 119
Towing a trailer 119
Towbar with quickly detachable towball 120
Roof carrying systems 123
Changing a wiper blade 124
Bonnet 124
Diesel engines 126
Checking levels 126
Checks 129
AdBlue® (BlueHDi engines) 132
Temporary puncture repair kit 135
Spare wheel 137
Changing a bulb 143
Changing a fuse 149
Battery 153
Towing 155
Engine technical data and towed loads 157
Diesel engines 158
Weights and towed loads 159
Dimensions 162
Identication markings 167
Glossary of labels 168
Driving Practical information
In the event of a breakdown
Technical data
Alphabetical index
Special features
Crew cab 171
Chassis cab/Floor cab 172
Double cab 176
Tipper 180
Audio equipment and telematics

4
Overview
Instruments and controls 10. Driver's front airbag/Horn.
11. Steering wheel mounted audio system
controls.
Centre console
3. Storage/portable ashtray.
4. 12 Volt accessory socket (180 W max).
5. USB port/Cigarette lighter.
6. Dynamic stability control (DCS/ASR)/
Intelligent traction control.
7. Hill descent control.
8. Lane Departure Warning System.
9. Hazard warning lamps.
10. Central locking/Locking indicator lamp.
11. Demisting/Defrosting.
12. Gear lever.
1. Fusebox.
2. Programmable additional heating.
3. Pneumatic suspension/Reading lamps/
Additional rear ventilation.
4. Cruise control/speed limiter controls.
5. Vehicle configuration/Headlamp beam
height/Front/rear foglamps.
6. Lighting and direction indicator control
stalk.
7. Instrument panel with display.
8. Wiper/screenwash/trip computer stalk.
9. Ignition switch.
1. Audio system/Navigation.
2. Heating/Air conditioning.

.
5
Eco-driving
As a passenger, if you avoid connecting your
multimedia devices (film, music, video game,
etc.), you will contribute towards limiting the
consumption of electrical energy, and so of
fuel.
Disconnect your portable devices before
leaving the vehicle.
Eco-driving
Eco-driving is a range of everyday practices that allow the motorist to optimise their fuel consumption and CO2emissions.
Optimise the use of your
gearbox
With a manual gearbox, move off gently
and change up without waiting. During
acceleration, change up early.
With an automatic gearbox, give preference
to automatic mode and avoid pressing the
accelerator pedal heavily or suddenly.
The gear shift indicator invites you to engage
the most suitable gear: as soon as the
indication is displayed in the instrument panel,
follow it straight away.
For vehicles fitted with an automatic gearbox,
this indicator appears only in manual mode.
Drive smoothly
Maintain a safe distance between vehicles,
use engine braking rather than the
brake pedal, and press the accelerator
progressively. These practices contribute
towards a reduction in fuel consumption and
CO2emissions and also help reduce the
background traffic noise.
If your vehicle has cruise control, make use of
the system at speeds above 25 mph (40 km/h)
when the traffic is flowing well.
Control the use of your electrical
equipment
Before moving off, if the passenger
compartment is too warm, ventilate it by
opening the windows and air vents before
using the air conditioning.
Above 30 mph (50 km/h), close the windows
and leave the air vents open.
Consider using equipment that can help
keep the temperature in the passenger
compartment down (sunroof blind and window
blinds, etc.).
Switch off the headlamps and front foglamps
when the ambient light level does not require
their use.
Avoid running the engine before moving off,
particularly in winter; your vehicle will warm up
much faster while driving.
Unless it has automatic regulation, switch off
the air conditioning as soon as the desired
temperature has been reached.
Switch off the demisting and defrosting
controls, if these are not automatically
managed.
Switch off the heated seat as soon as
possible.

6
Eco-driving
Limit the causes of excess
consumption
Spread loads throughout the vehicle; place
the heaviest items in the bottom of the boot,
as close as possible to the rear seats.
Limit the loads carried in the vehicle and
reduce wind resistance (roof bars, roof rack,
bicycle carrier, trailer, etc.). Preferably, use a
roof box.
Remove roof bars and roof racks after use.
At the end of winter, remove snow tyres and
refit your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly, when cold,
referring to the label in the door aperture,
driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Do not forget the spare wheel and the tyres on
any trailer or caravan.
Have your vehicle serviced regularly (engine
oil, oil filter, air filter, cabin filter, etc.) and
observe the schedule of operations in the
manufacturer's service schedule.
When filling the tank, do not continue after the
3rd cut-off of the nozzle to avoid overflow.
At the wheel of your new vehicle, it is only
after the first 1,900 miles (3,000 kilometres)
that you will see the fuel consumption settle
down to a consistent average.
With a BlueHDi Diesel engine, if the SCR
system is faulty, your vehicle becomes
polluting. As soon as possible, visit
a PEUGEOT dealer or a qualified workshop
to make your vehicle's level of nitrogen oxides
emissions compliant to the standard.

7
1
Dashboard instruments
Instrument panels
Level 1 instrument panel/
display screen
1. Speedometer (mph or km/h).
2. Display screen.
3. Fuel gauge.
4. Coolant temperature.
5. Rev counter (rpm x 1,000).

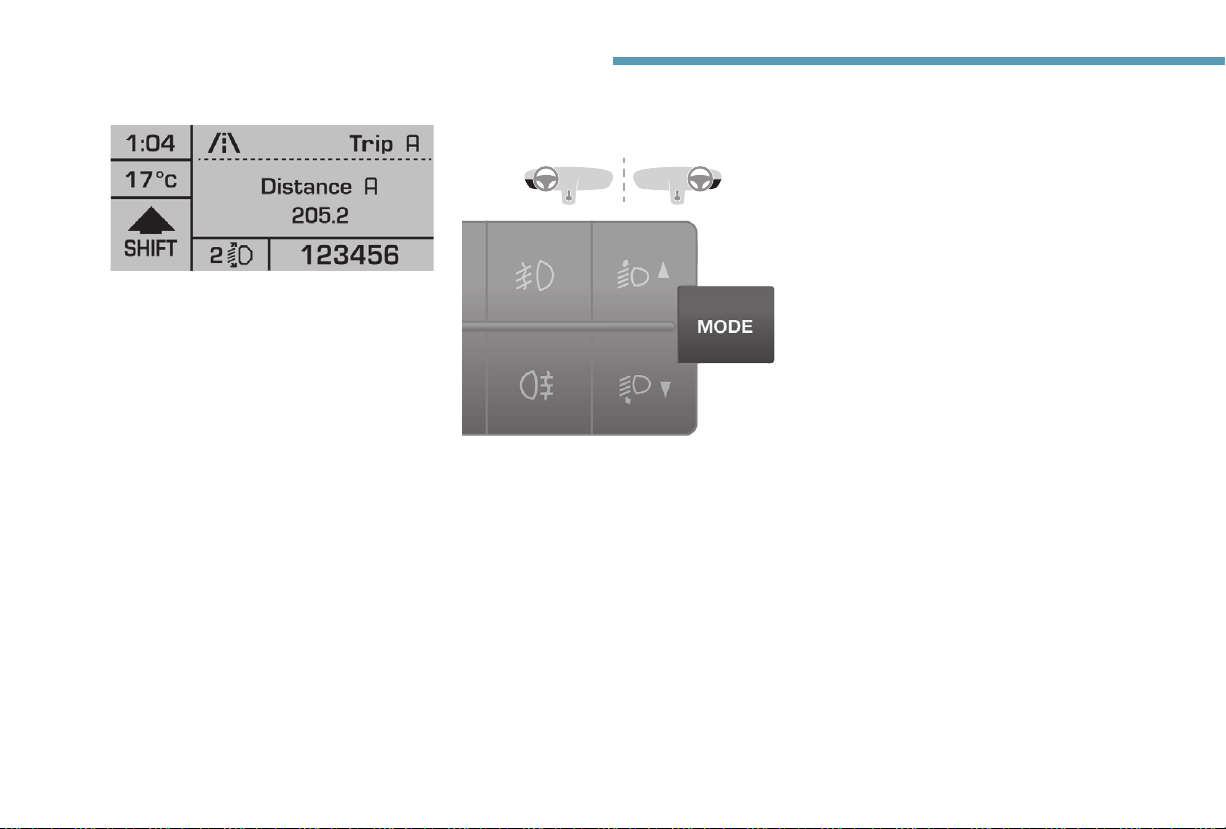

Level 1 display screen
In the lower part:
- Time,
- Exterior temperature,
- Miles/kilometres travelled,
- Trip computer (range, fuel consumption,
etc.),
- Headlamp beam height,
- Programmable overspeed warning,
- Cruise control or speed limiter,
- Gear shift indicator ~ Gear efficiency
indicator,
- Stop & Start.
In the upper part:
- Date,

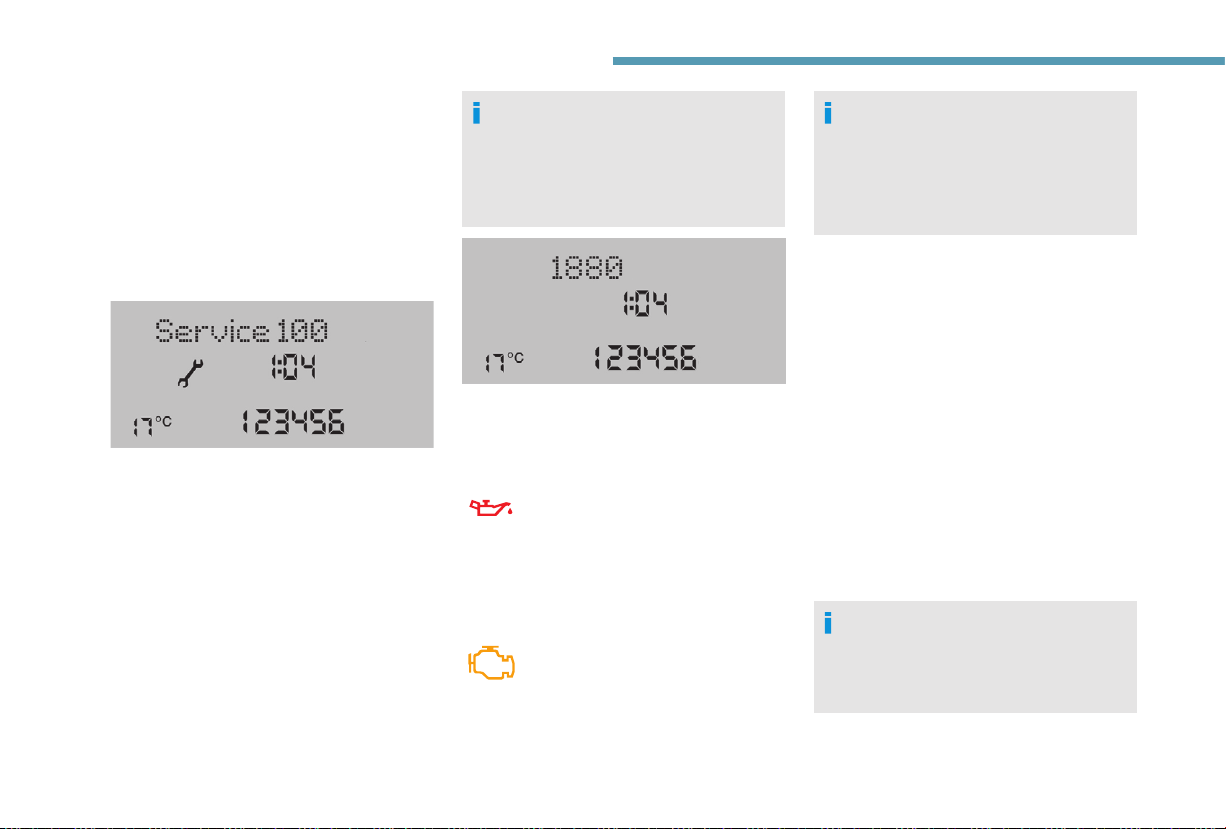

- Service indicator,
- Alert messages,
- System status messages,
- Vehicle configuration.
Level 2 instrument panel/
display screen
1. Speedometer (mph or km/h).
2. Display screen.
3. Fuel gauge.
4. Coolant temperature.
5. Rev counter (rpm x 1,000).

8
Dashboard instruments
In the left-hand part:
- Time,
- Exterior temperature,
- Warning or indicator lamps,
- Cruise control or speed limiter.
In the right-hand part:
- Date,
- Service indicator,
- Trip computer (range, fuel consumption,
etc.),
- Alert messages,
- System status messages,
- Vehicle configuration,
- Headlamp beam height,
- Miles/kilometres travelled.

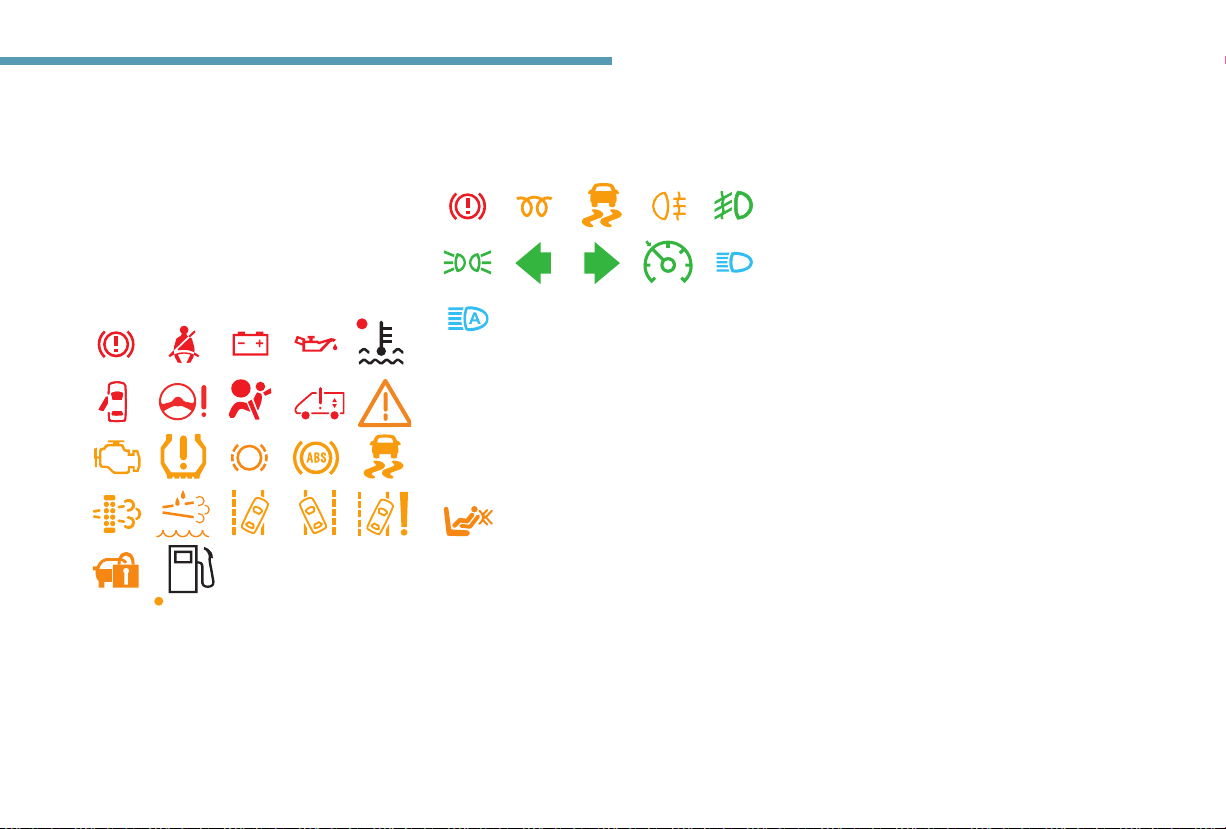

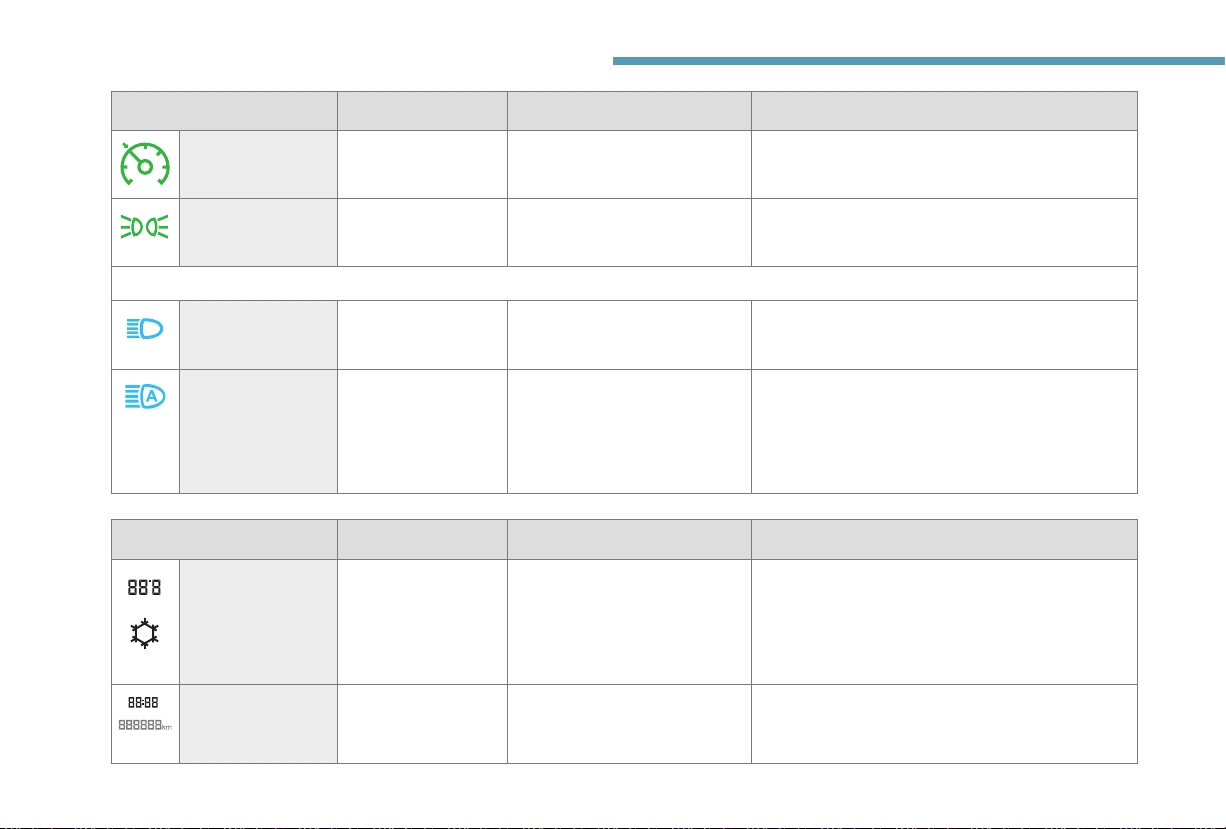

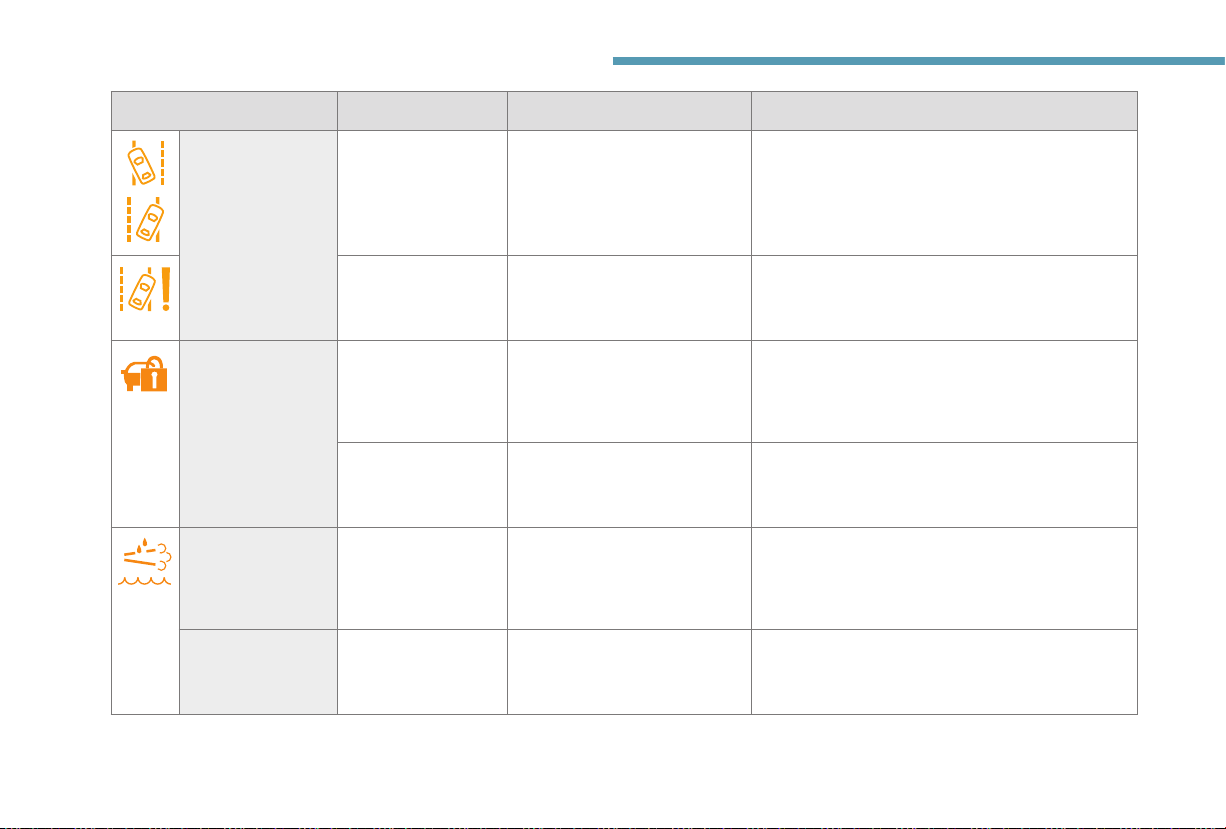

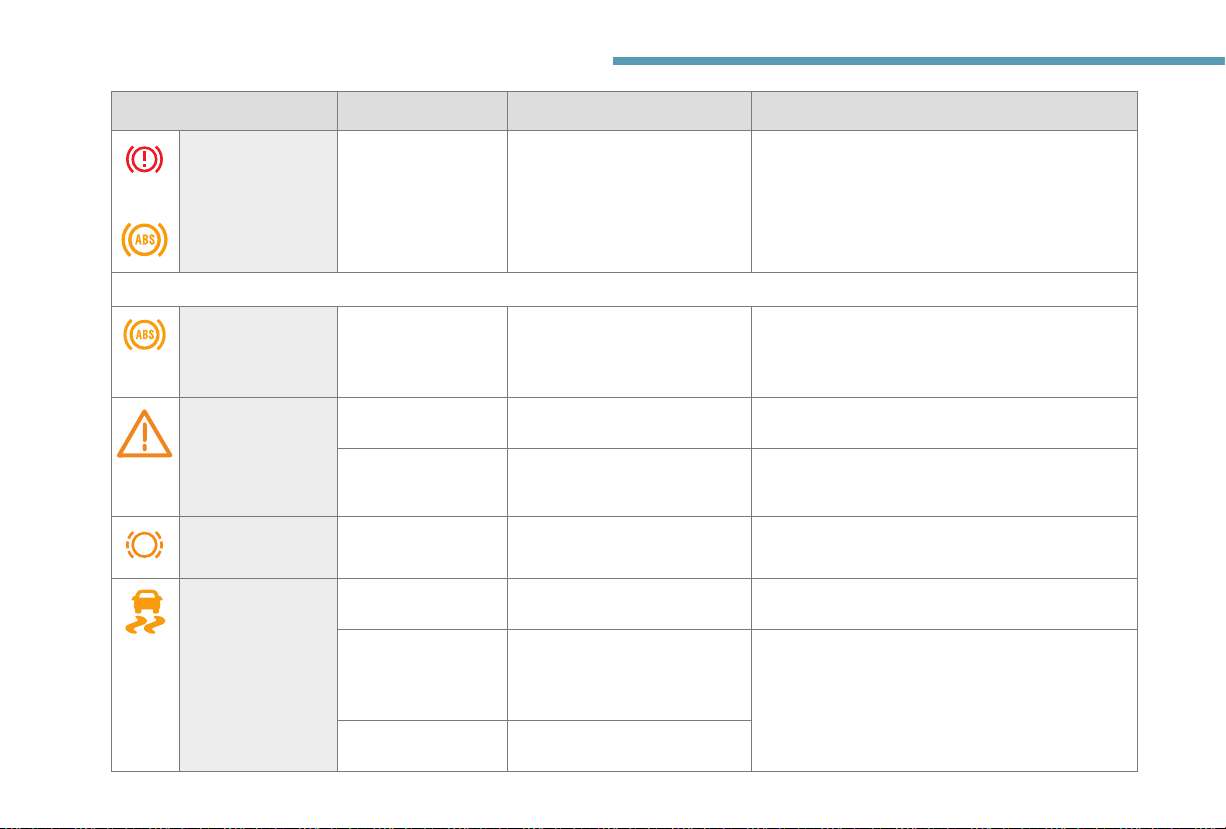

Warning and indicator
lamps
When the ignition is switched on
Certain warning lamps come on for a few
seconds when the vehicle's ignition is switched
on.
When the engine is started, these same
warning lamps should go off.
If they remain on, before moving off refer to the
information on the warning lamp concerned.
Level 2 display screen Brightness of instruments
and controls
The instruments and controls can be adjusted
for brightness by pressing the MODE button,
with the sidelamps on.
For more information on Vehicle
configuration, refer to the corresponding
section.
Associated warnings
Certain warning lamps may come on in one of
two modes: fixed (continuous) or flashing.
Only by relating the type of lighting to the
operating status of the vehicle can it be
ascertained whether the situation is normal or
whether a fault has occurred.
In the event of a fault, the illumination of the
warning lamp may be accompanied by an
audible signal and/or a message.
Visual indicators informing the driver
that a system is in operation (operation
or deactivation indicator lamps) or of the
occurrence of a fault (warning lamps).

9
1
Dashboard instruments
Warning lamps
When the engine is running or the vehicle is
being driven, illumination of one of the following
warning lamps indicates a fault which requires
action on the part of the driver.
Any fault resulting in the illumination of
a warning lamp must be investigated further
using the associated message.
If you encounter any problems, contact
a PEUGEOT dealer or a qualified workshop.
Operation indicator lamps
The lighting of one of the following indicator
lamps confirms that the corresponding system
is on.
Deactivation indicator lamp
If this indicator lamp comes on, this confirms
that the corresponding system has been
switched off intentionally.
This may be accompanied by an audible signal
and a message being displayed.

10
Dashboard instruments
Warning/indicator lamp State Cause Actions/Comments
Red warning/indicator lamps
Coolant
temperature On H in the red zone. The coolant temperature is too high
and/or
an abnormal increase.
Park and switch off the ignition.
Allow the system to cool sufficiently.
Check the level visually.
For more information on Checking levels, refer to the
corresponding section.
If the level is low, top it up.
If the level is correct, contact a PEUGEOT dealer or
a qualified workshop.
Fixed, with the needle
in the red zone.
Engine oil pressure Flashing for a few
seconds, with
a message in the
screen.
A high level of deterioration of the
engine oil. Have the engine oil changed as soon as possible. After the second level of alert, engine performance will
be limited.
Lit temporarily or
fixed, with the engine
running.
Low oil level
or
a major fault.
Park and switch off the ignition.
Check the level manually.
For more information on Checking levels, refer to the
corresponding section.
If the level is low, top it up.
If the level is correct, contact a PEUGEOT dealer or
a qualified workshop.
Battery charge Fixed. A fault with the charging system
or the battery. Check the battery terminals. For more information on the Battery, refer to the
corresponding section.
Fixed or flashing,
despite the checks. A fault with the ignition or injection system. Have it checked by a PEUGEOT dealer or a qualified workshop.
Opening detection Fixed. One of the vehicle access
openings is not properly closed. Check that the cab doors, the rear and side doors and the bonnet are closed.

11
1
Dashboard instruments
Warning/indicator lamp State Cause Actions/Comments
Power steering Fixed, accompanied
by an audible signal
and a message in the
screen.
The power steering has a fault. The vehicle retains conventional steering without
assistance.
Have it checked by a PEUGEOT dealer or a qualified
workshop.
Front/lateral
airbag Flashing or fixed. A fault with an airbag or a seat belt pretensioner. Have it checked by a PEUGEOT dealer or a qualified workshop.
For more information on the Airbags, refer to the
corresponding section.
Seat belt not
fastened Fixed, then flashing. The driver has not fastened their seat belt. Pull the strap then insert the tongue in the buckle.
Accompanied by an
audible signal, then
fixed.
The vehicle is moving with the
driver's seat belt unfastened. Check that the seat belt is fastened correctly by pulling the strap.
Pneumatic
suspension Fixed. There is a fault with the system. Have it checked by a PEUGEOT dealer or a qualified workshop.
Parking brake Fixed. The parking brake is applied or
not properly released. Release the parking brake to switch off the warning lamp, keeping your foot on the brake pedal.
Brake fluid level Fixed. The fluid level is too low. Top up with a fluid approved by PEUGEOT.
Fixed, although the
level is correct. You must stop as soon as it is safe to do so. Park, switch off the ignition and call a PEUGEOT
dealer or a qualified workshop.

12
Dashboard instruments
Indicator lamp State Indicates Actions/Comments
+
Electronic brake
force distribution Fixed. There is a fault with the system. You must stop as soon as it is safe to do so. Contact a PEUGEOT dealer or a qualified
workshop.
Orange warning/indicator lamps
Anti-lock Braking
System (ABS) Fixed. The anti-lock braking system has a fault. The vehicle retains conventional braking. Drive carefully at reduced speed and contact
a PEUGEOT dealer or a qualified workshop without
delay.
Service Temporarily on. Minor faults are present. Contact a PEUGEOT dealer or a qualified workshop.
Fixed, accompanied
by a message in the
screen.
Major faults are present. Make a note of the warning message and call
a PEUGEOT dealer or a qualified workshop.
Brake pads Fixed. The front brake pads are worn. Have the brake pads replaced by a PEUGEOT dealer
or a qualified workshop.
DSC/ASR Flashing. It is operating. The system optimises traction and allows improved
directional stability of the vehicle.
Fixed, accompanied
by an audible signal
and a message in the
screen.
There is a fault with the system
or the hill start assist. Contact a PEUGEOT dealer or a qualified workshop. For more information on Dynamic Stability Control
or Anti-Slip Regulation, refer to the corresponding
sections.
Fixed. There is a fault with the
Intelligent Traction Control.

13
1
Dashboard instruments
Warning/indicator lamp State Cause Actions/Comments
Engine diagnostic
system Fixed. A fault with the engine or the emission control system (EOBD)
has been detected.
EOBD (European On Board
Diagnosis) is a diagnostics
system which complies with,
among others, the standards on
emissions limits of:
- CO (carbon monoxide),
- HC (unburnt hydrocarbons),
- NOx (nitrogen oxides),
detected by oxygen sensors
placed downstream of the
catalytic converters,
- particles.
Have it checked as soon as possible by a PEUGEOT
dealer or by a qualified workshop.
Particle filter
(Diesel) Fixed. Regeneration of the particle filter.
It is recommended that you leave the engine running until the
warning lamp goes off so that regeneration can be completed.
For more information on Checking levels, refer to the
corresponding section.
Under-inflation
detection Fixed. A deflated or punctured tyre. Park and switch off the ignition. Change or repair the wheel.
+
Fixed, accompanied
by the service lamp. A faulty sensor. Have it checked by a PEUGEOT dealer or by a qualified workshop.

14
Dashboard instruments
Lane Departure
Warning System Flashing, accompanied by an
audible signal.
Unintended wandering to the
left or right. Turn the steering wheel in the opposite direction to return to the correct trajectory.
Fixed, accompanied
by an audible signal. The lane departure warning system is defective. Clean the windscreen. If the problem persists, have the system checked by
a PEUGEOT dealer or a qualified workshop.
Warning/indicator lamp State Cause Actions/Comments
Electronic
immobiliser Fixed. The ignition key introduced has not been recognised.
Starting is not possible.
Use another key and have the faulty key checked by
a PEUGEOT dealer.
For more information on Anti-theft protection, refer
to the corresponding section.
On for about
10 seconds after
switching on the ignition.
Triggering of the alarm. Have the state of the locks checked by a PEUGEOT
dealer or a qualified workshop.
Water in Diesel fuel
filter Fixed, accompanied by a message in the
screen.
There is water in the fuel filter. Have the filter purged by a PEUGEOT dealer or
a qualified workshop.
For more information on Checks, refer to the
corresponding section.
AdBlue
Fixed, then flashing,
accompanied by
a message in the screen.
Reduced driving range. Have the AdBlue topped up without delay.
For more information on AdBlue®, refer to the
corresponding section.

15
1
Dashboard instruments
Low fuel level Fixed, with the needle
in the E zone. The fuel reserve is being used. Refuel without delay. The calculation of the remaining fuel depends on
the style of driving, the profile of the road, the time
elapsed and the distance travelled since the lamp first
came on.
Flashing. There is a fault with the system. Contact a PEUGEOT dealer or a qualified workshop.
Warning/indicator lamp State Cause Actions/Comments
Diesel pre-heater Fixed. Climate conditions cause pre-
heating to be necessary. Wait until the lamp goes off before starting the engine.
Rear foglamps Fixed. The button on the MODE control
panel is engaged. Manual selection. The lamps only operate when the dipped beam
headlamps are on.
In normal visibility, please switch them off.
Green warning/indicator lamps
Left-hand direction
indicator Flashing with audible signal. A steering change using the lighting control stalk. Move the stalk down.
Right-hand
direction indicator Flashing with audible signal. A steering change using the lighting control stalk. Move the stalk up.
Front foglamps Fixed. The button on the MODE control
panel is engaged. Manual selection. The lamps only operate when the dipped beam
headlamps are on.

16
Dashboard instruments
Warning/indicator lamp State Cause Actions/Comments
Cruise control Fixed. Cruise control is selected. Manual selection.
Dipped beam
headlamps Fixed. A manual selection. Turn the lighting control stalk ring to the second position.
Blue warning/indicator lamps
Main beam
headlamps Fixed. The lighting control stalk has been pulled towards you. Pull the stalk to return to dipped beam headlamps.
Adaptive lighting Fixed. This function is activated in the
"MODE" menu. Switching on and off of the main beam headlamps is managed automatically depending on the driving
conditions and the traffic.
For more information on Vehicle configuration, refer
to the corresponding section.
Temperature/Ice The ice warning
lamp, the temperature
flashing, accompanied
by a message on
screen.
Weather conditions which could
result in ice on the road. Be particularly vigilant and do not brake sharply.
Date/Time Setting: the date, the
time. A configuration via the "MODE" menu. For more information on Vehicle configuration, refer to the corresponding section.
Warning/indicator in the
display screen Displays Indicates Actions/Comments

17
1
Dashboard instruments
Service spanner A service spanner
which remains on. A service will soon be due. Refer to the list of checks in the manufacturer's service schedule, then have the service carried out.
Stop & Start Fixed. When the vehicle stops (red
lights, traffic jams, etc.) the Stop
& Start system puts the engine
into STOP mode.
The warning lamp goes off and the engine restarts
automatically in START mode, as soon as you want to
move off.
Flashes for a few
seconds, then goes
off.
STOP mode is temporarily
unavailable. For more information on Stop & Start, refer to the corresponding section.
Gear shift indicator An upwards arrow. The next higher gear may be
engaged. For more information on the Gear shift indicator, refer to the corresponding section.
Speed limiter Fixed. The speed limiter is on. Manual selection.
For more information on the Speed limiter, refer to
the corresponding section.
Fixed with "OFF". The speed limiter is selected but
inactive.
Warning/indicator lamp in
the display screen Displays Indicates Actions/Comments
Headlamp beam
height Headlamp adjustment. A position from 0 to 3 depending on the load carried. Adjust using the buttons in the MODE control panel.

18
Dashboard instruments
Indicators
Service information
For a few seconds after the ignition is
switched on, the spanner symbolising service
information comes on: the screen informs you
when the next service is due, in accordance
with the servicing schedule indicated in the
manufacturer's service schedule.
Engine oil level
Depending on the engine, the engine oil level
then appears, graduated from 1 (Min.) to 5
(Max.).
If no graduation is displayed, the oil level is
too low; it is essential that you top up to avoid
damaging the engine.
For the oil level reading to be accurate, the
vehicle must be parked on level ground, with
the engine off for more than 30 minutes.
This information is determined in relation to the
distance travelled since the previous service.
If in doubt, check the level with the
dipstick.
For more information on Checking levels,
refer to the corresponding section.
Engine oil condition
This warning lamp flashes and,
if your vehicle has this function,
a message is displayed at every
engine start: the system has
detected deterioration of the engine
oil. Have the oil changed as soon as
possible.
This 2nd warning lamp, coupled with the
1st, comes on in the instrument panel
when the oil has not been changed and
the deterioration of the oil has gone
beyond a new threshold. If this warning
comes on at regular intervals, have the
oil changed as soon as possible.
For 3.0 litre HDi engines, the engine
speed is restricted to 3,000 rpm, then
1,500 rpm until the oil is changed. Have
the engine oil changed to avoid any risk of
damage.
After a few seconds, the display returns to its
usual functions.
Resetting the servicing
information
Refer to the list of checks in the
manufacturer's service schedule which
was given to you on handover of the
vehicle.
Continuous flashing of the indicator is stopped
by a qualified workshop using a diagnostic tool,
after each service.
If you have serviced your vehicle personally,
you must reset the service indicator as follows:
Finsert the ignition key into the switch,
Fturn it to the MAR position,
Fsimultaneously press the brake and
accelerator pedals for more than
15 seconds.
