PEUGEOT PARTNER 2016 User manual

Handbook
PARTNER

On-line handbook
Select one of the following means of access to view your handbook
on-line...
Referring to the handbook on-line also gives you access to the latest
information available, easily identified by the bookmark, associated
with this symbol:
If the "MyPEUGEOT" function is not available on the PEUGEOT
public website for your country, you can find your handbook at
the following address:
http://public.servicebox.peugeot.com/ddb/
the language,
the vehicle, its body style,
the print edition of your handbook appropriate for the date of
registration of your vehicle.
Select:
Find your handbook on the PEUGEOT website, under "MyPEUGEOT".
Scan this code for direct access to your handbook.
This personal space offers advice and other useful information for the
care and maintenance of your vehicle.

Partner-2-VU_en_Chap00a_Sommaire_ed02-2016
Welcome
Thank you for choosing this vehicle.
This handbook has been designed to enable you to
make the most of your vehicle in all situations.
This handbook has been designed to help you make
the most of your Partner in all circumstances and in
complete safety.
Take the time to read through it so as to familiarise
yourself with your vehicle.
This handbook covers all of the variations in
equipment available across the whole Partner range.
Your vehicle will be tted with only some of the
equipment described in this document, depending
on its trim level, version and the specication for the
country in which it was sold.
The descriptions and illustrations are given as
indications only.
Automobiles PEUGEOT reserves the right to
modify the technical characteristics, equipment and
accessories without having to update this edition of
the handbook.
This document forms an integral part of your vehicle.
Remember to pass it on to the new owner in the event
of the sale of the vehicle.
Key
safety warning
additional information
contributes to the protection of the environment

2
Contents
Partner-2-VU_en_Chap00a_Sommaire_ed02-2016
Key 18
Remote control 18
Alarm 20
Doors 21
Rear roof ap 25
Tailgate 26
Central locking 27
Instrument panel 28
Date and time 29
Warning lamps 32
Fuel gauge 40
Coolant 40
Under-ination detection 41
Service indicator 43
Lighting dimmer 44
Steering wheel
adjustment 45
Manual gearbox 45
Gear shift indicator 46
6-speed electronic
gearbox 47
Stop & Start 49
Starting and stopping 52
Hill start assist 53
Driving recommendations 54
Lighting 55
Wipers 58
Trip computer 60
Cruise control 61
Speed limiter 64
Heating / Air conditioning
manual 67
digital 69
Demisting and defrosting 72
Front seats 74
Individual passenger seat 75
Multi-Flex bench seat 76
Congurations 78
Front ttings 79
Courtesy lamps 81
Crew cab 82
Load space 84
Roof bars 86
Mirrors 87
Electric windows 89
3.
18-54
READY TO GO 5.
90-117
SAFETY
Exterior 5
Interior 6
left hand drive 6
right hand drive 7
Instruments and controls 8
left hand drive 8
right hand drive 10
Technical data -
Maintenance 12
1.
4-14
OVERVIEW
General safety
recommendations 90
Horn 91
Hazard warning lamps 91
Parking brake 91
Parking sensors 92
Reversing camera 94
Anti-lock braking system
(ABS) 95
EBA 95
ASR and DSC 96
Grip control 97
Active City Brake 99
Seat belts 103
Airbags 105
Carrying children 109
Deactivating the
passenger's front
airbag 111
Recommended seats 114
Installation 115
4.
55-89
EASE OF USE and
COMFORT
2.
15-17
ECO-DRIVING
Environment 15
Eco-driving 16
The "Visual Search" (visual
index) section assists
you in nding the controls
and functions and their
associated page numbers
on the schematic outlines of
the vehicle.
Instruments and controls
left hand drive 13
right hand drive 14

3
Contents
CONTENTS
Partner-2-VU_en_Chap00a_Sommaire_ed02-2016
Corresponds to
a left hand drive
vehicle.
Corresponds to a
right hand drive
vehicle.
10.
171-252
TECHNOLOGY on
BOARD
6.
118-123
ACCESSORIES
7.
124-141
CHECKS
8.
142-163
QUICK HELP
7-inch touch screen 171
PEUGEOT Connect Sound
(RD5) 233
Towing a trailer 118
Towbar with detachable
swan neck towball 120
Other accessories 122

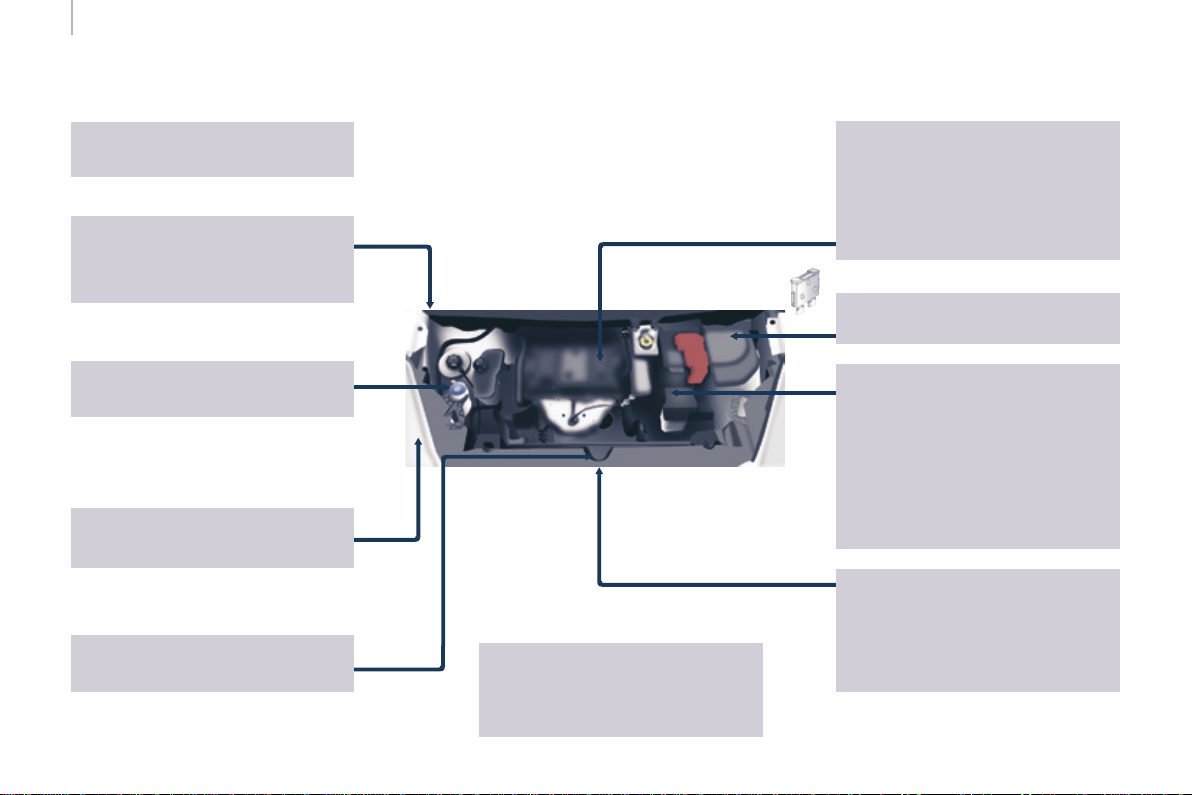

Opening the bonnet 125
Petrol engine 126
Diesel engine 127
Levels 128
Checks 130
Fuel 132
Fuel cut-off 134
Diesel priming pump 134
BlueHDi and AdBlue 135
Battery 142
Temporary puncture
repair kit 143
Changing a wheel 144
Removable snow
screen 148
Snow chains 149
Changing a bulb 150
a fuse 156
a wiper blade 160
Being towed 161
Precautions 162
9.
164-170
TECHNICAL DATA
Dimensions 164
Engines 169
Weights 169
Identication markings 170
The "Technology on board"
section presents the new
audio/navigation systems.
PEUGEOT Connect is the
name given to all of the
new equipment of the radio/
navigation range.

4
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2016
PRESENTATION
Within the chapters, symbols draw
your attention to specic information:
directs you to the chapter and
section which contains detailed
information concerning a function,
indicates important information
relating to use of the equipment,
alerts you to the safety of
individuals and equipment on
board.
For any work on your vehicle, use
a qualied workshop that has the
technical information, skills and
equipment required, all of which a
PEUGEOT dealer is able to provide.
The equipment presented may be
standard, an option or not available,
depending on the model and can vary
from one country to another or not be
available in all countries of sale.

5
1
OVERVIEW
Location
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2016

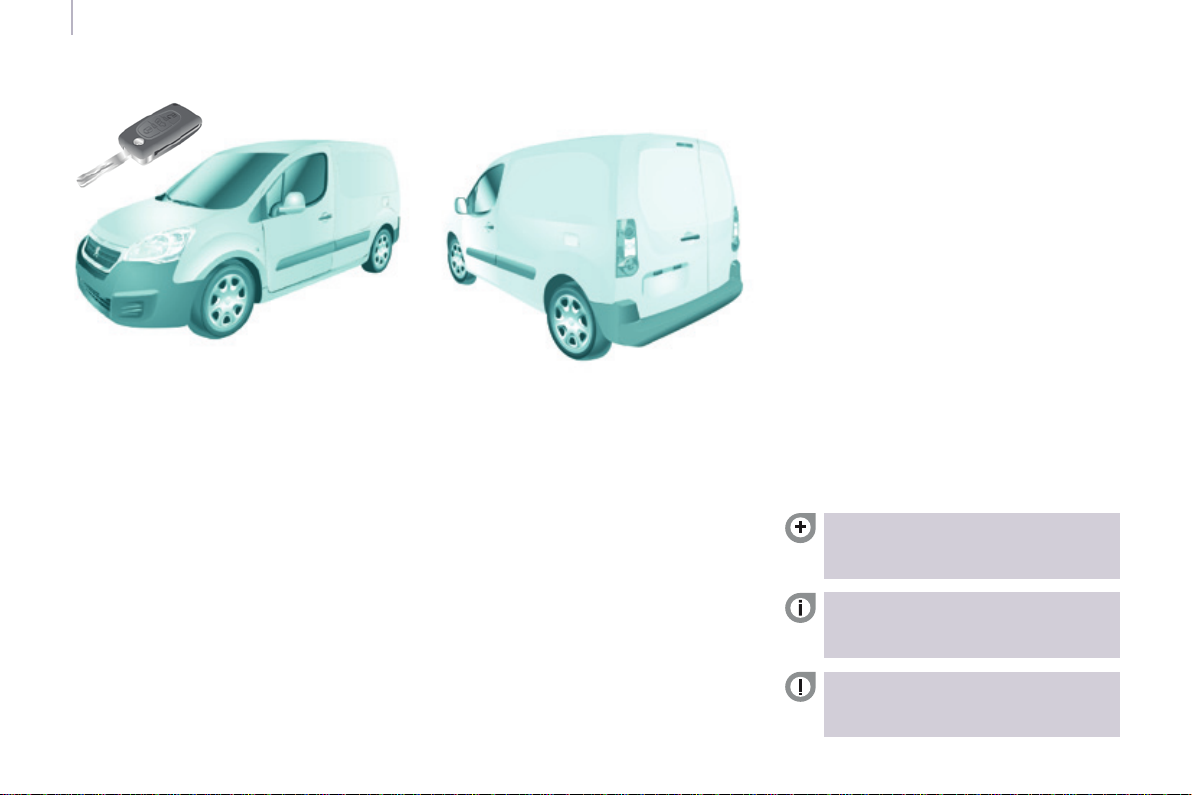

EXTERIOR Remote control 18-19
Changing the battery,
reinitialisation 19
Key 18
Starting 52
Hill start assist 53
Central locking / unlocking 18, 27
Locking / unlocking the load
space 18, 27
Filler cap, fuel tank 132-133
Fuel cut-off, Diesel priming 133
AdBlue®,
topping up 38-39, 135-141
Wiper blades 160
Door mirrors 87-88
Side repeater 153
Active City Brake 99-102
Front lamps, foglamps, direction
indicators 55-57, 150-153
Headlamp beam height
adjustment 57
Changing front bulbs 150-153
Snow cover 148
Front doors 21
Sliding side door 22
Key 18
Opening the bonnet 125
Towing, lifting 161
Towbar, swan-neck towball 118-120
Towed loads 169
Parking sensors 92-93
Reversing camera 94
Number plate lamp 155
Puncture repair kit 143
Spare wheel, jack, changing
a wheel, tools 144-148
Rear lamps, direction
indicators 55-56, 154-155
3rd brake lamp 155
Changing rear bulbs 150, 154-155
Load space, opening 18, 27
Doors, tailgate 23-24, 26
Accessories 122-123
Roof bars 86
Rear roof ap 25
Emergency control 26
Dimensions 164-167
Floor cab dimensions 168
Brakes, pads 91, 128, 130
Emergency braking 95
ABS, EBFD 95
ASR, DSC 96
"Grip control" 97-98
Active City Brake 99-102
Tyres, ination, pressures 170
Tyre under-ination
detection 41-42
Snow chains 149

6
Location
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2016
Rear view mirror 88
Front courtesy lamp 81
Changing courtesy
lamp bulbs 153
Spare wheel, jack, changing a
wheel, tools 144-148
Snow chains 149
Front, lateral airbags 105-108
Passenger's airbag
deactivation 108, 111
Battery, recharging, starting 142
Opening the bonnet 125
Towing, towbar, coachbuilders,
oor cab fuses 158
Front seats, adjustments, head
restraint 74-75
Multi-Flex bench seat 76-77
Seat, bench congurations 78
Seat belts 103-104

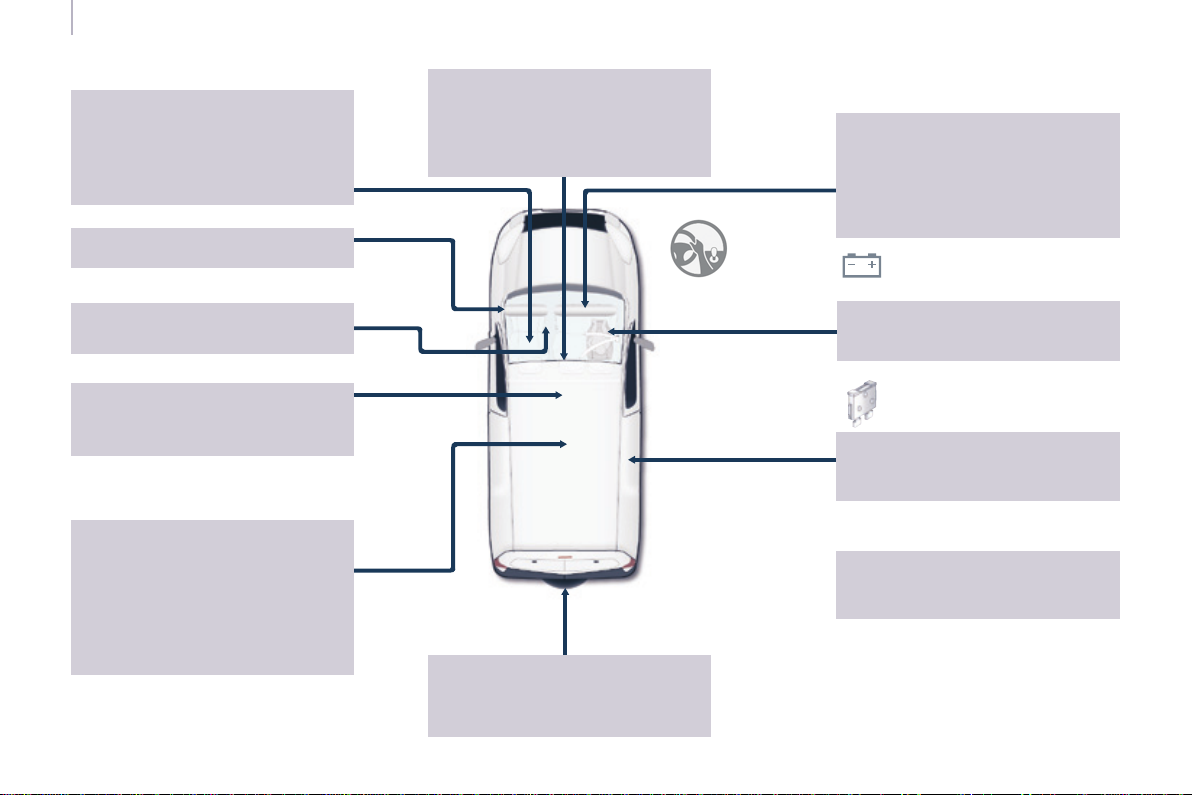

INTERIOR
Rear courtesy lamp 81
Changing courtesy lamp bulbs 153
Load space 84-86
- 12 volt socket,
- stowing rings,
- trim,
- load retainer,
- ladder separation or partition,
- removable ap.
Child seats 109-117
Parking brake, handbrake 91
Accessories 122-123

7
1
OVERVIEW
Location
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2016
INTERIOR
Rear view mirror 88
Front courtesy lamp 81
Changing courtesy
lamp bulbs 153
Spare wheel, jack, changing a
wheel, tools 144-148
Snow chains 149
Front, lateral airbags 105-108
Passenger's airbag
deactivation 108, 111
Battery, recharging, starting 142
Child seats 109-117
Parking brake, handbrake 91
Front seats, adjustments,
head restraint 74-75
Multi-Flex bench seat 76-77
Seat, bench congurations 78
Seat belts 103-104
Accessories 122-123
Rear courtesy lamp 81
Changing courtesy
lamp bulbs 153
Load space 84-86
- 12 volt socket,
- stowing rings,
- trim,
- load retainer,
- ladder separation or partition,
- removable ap.
Opening the bonnet 125
Towing, towbar, coachbuilders,
oor cab fuses 158

8
Location
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2016
ASR-DSC 96
Parking sensors 92-93
Electric mirrors 87-88
Headlamp beam height adjustment 57
Stop & Start 49-51
Starter motor, ignition switch 52
Wipers 58-59
Automatic wiping 58
Windscreen wash 59, 129
Trip computer 60
Cruise control 61-63
Speed limiter 64-66
Lighting 55-57
Automatic illumination of
headlamps 56
Foglamps 56, 57

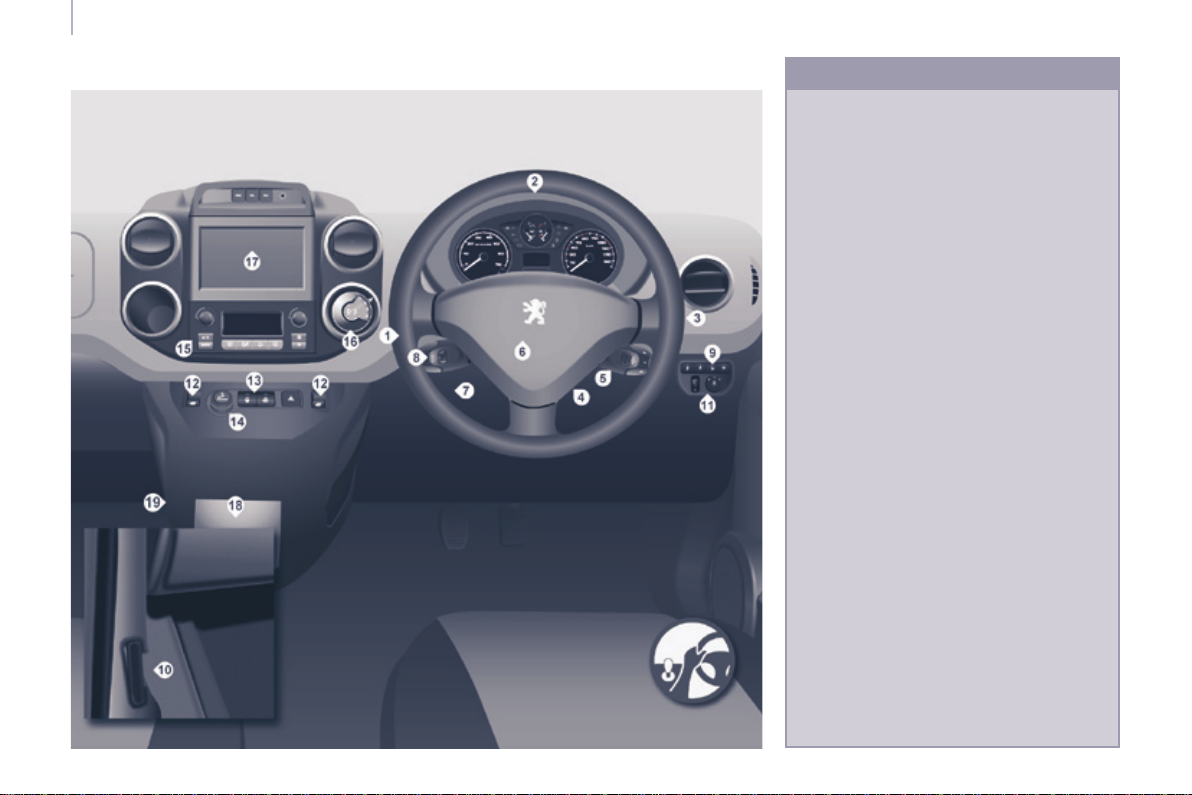

INSTRUMENTS AND CONTROLS
Dashboard, passenger
compartment fuses 156-158
Opening the bonnet 125
Parking brake, handbrake 91
Instrument panels, screens,
dials 28-29
Warning lamps,
indicator lamps 32-39
Indicators, gauge 40, 43-44
Setting the time in the instrument
panel 29
Lighting dimmer 44
Gear shift indicator 46
Steering mounted controls:
- Touch screen 174
- PEUGEOT Connect Sound
(RD5) 235
Steering wheel adjustment 45
Horn 90
6-speed electronic gearbox 47-48

9
1
OVERVIEW
Location
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2016
Cab ttings 79-80
- storage compartment.
- glove box,
- bottle holder,
- side storage,
- bag holder,
- console,
- overhead storage,
- sun visor,
- storage compartments under
seats.
Rear view mirror 88
Passenger's front airbag
deactivation 108, 111
Courtesy lamps 81, 153
Gearbox 45
Controls
- electric windows 89
- hazard warning lamps 91
- load space locking 27
- central locking 27
Screens, menus 28, 175, 236
Setting the date and time 30-31
Heating, ventilation
- heating 67-68, 71
- air conditioning 67-68, 71
Digital air conditioning 69-70, 71
Demisting/defrosting 72-73
"Grip control" 97-98
Touch screen 171-231
PEUGEOT Connect Sound
(RD5) 233-250
Reversing camera 94

10
Location
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2016
Heating, ventilation
- heating 67-68, 71
- air conditioning 67-68, 71
Digital air conditioning 69-70, 71
Demisting/defrosting 72-73
Rear view mirror 88
Controls
- electric windows 89
- hazard warning lamps 91
- load space locking 27
- central locking 27
"Grip control" 97-98
Cab ttings 79-80
- storage compartment.
- glove box,
- bottle holder,
- side storage,
- bag holder,
- console,
- overhead storage,
- sun visor,
-
storage compartments under seats.
Dashboard, passenger
compartment fuses 156-158
Opening the bonnet 125
Touch screen 171-231
PEUGEOT Connect Sound (RD5) 233-250
Reversing camera 94
Screens, menus 28, 175, 236
Setting the date and time 30-31
Gearbox 45
Courtesy lamps 81, 153
INSTRUMENTS AND CONTROLS

11
1
OVERVIEW
Location
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2016
Parking brake, handbrake 91
Instrument panels, screens,
dials 28-29
Warning lamps, indicator
lamps 32-39
Indicators, gauge 40, 43-44
Setting the time in the instrument
panel 29
Lighting dimmer 44
Gear shift indicator 46
Passenger's front airbag
deactivation 108, 111
ASR-DSC 96
Parking sensors 92-93
Electric mirrors 87-88
Headlamp beam height
adjustment 57
Stop & Start 49-51
Starter motor, ignition switch 52
Wipers 58-59
Automatic wiping 58
Windscreen wash 59, 129
Trip computer 60
Steering mounted controls:
- Touch screen 174
- PEUGEOT Connect Sound
(RD5) 235
Steering wheel adjustment 45
Horn 90
6-speed electronic
gearbox 47-48
Lighting 55-57
Automatic illumination of
headlamps 56
Foglamps 56, 57
Cruise control 61-63
Speed limiter 64-66

12
Location
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2016
TECHNICAL DATA - MAINTENANCE
Identication markings, serial
number, paint code, tyres 170
Windscreen / headlamp wash,
levels 129
Changing bulbs, lighting 150-155
Checks 130-131
- battery,
- brake pads,
- brake drums, discs.
- parking brake,
-
carbon/passenger compartment lter,
- oil lter,
- particle lter,
- gearbox.
Emissions controls 41
Engine fuses 156, 159
Under the bonnet:
- Diesel 127
- petrol 126
Fuel cut-off, Diesel priming 134
AdBlue 135-141
Opening the bonnet, stay 125
Levels 128-129
- dipstick,
- brake uid,
- coolant.
- power steering uid,
- Diesel additive,
Bleeding water, Diesel lter 131
Warning lamps 32-39
Snow chains 149
Dimensions 164-167
Floor cab dimensions 168
Engines / Weights 169

13
1
OVERVIEW
Presentation
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2016
INSTRUMENTS AND CONTROLS
1. Lighting and direction indicator control
stalk.
2. Instrument panel with screen.
3. Wiper, screenwash, trip computer
control stalk.
4. Ignition switch.
5. Audio controls.
6. Driver's front airbag, horn.
7. Steering wheel height and reach
adjustment.
8. Cruise control, speed limiter controls.
9. Switch panel: parking sensors,
headlamp beam adjustment, DSC,
Stop & Start.
10. Bonnet release lever.
11. Electric door mirror adjustment.
12. Front electric window switches.
13. Switch panel: hazard warning
lamps, central locking (passenger
compartment, load space).
14. Cigarette lighter.
15. Heating-ventilation controls.
16. Electronic gearbox control or Grip
control button.
17. Touch screen.
18. USB port
(with electronic gearbox).
19. USB port
(with manual gearbox).

14
Presentation
Partner-2-VU_en_Chap01_vue-ensemble_ed02-2016
1. Lighting and direction indicator control
stalk.
2. Instrument panel with screen.
3. Wiper, screenwash, trip computer
control stalk.
4. Ignition switch.
5. Audio controls.
6. Driver's front airbag, horn.
7. Steering wheel height and reach
adjustment.
8. Cruise control, speed limiter controls.
9. Switch panel: parking sensors,
headlamp beam adjustment, DSC,
Stop & Start, alarm.
10. Bonnet release lever.
11. Electric door mirror adjustment.
12. Front electric window switches.
13. Switch panel: hazard warning
lamps, central locking (passenger
compartment, load space).
14. Cigarette lighter.
15. Heating-ventilation controls.
16. Electronic gearbox control or Grip
control button.
17. Touch screen.
18. USB port
(with electronic gearbox).
19. USB port
(with manual gearbox).
INSTRUMENTS AND CONTROLS

15
2
ECO-DRIVING
Motoring & the Environment
Partner-2-VU_en_Chap02_eco-conduite_ed02-2016
Environment
With you, PEUGEOT acts to protect
the environment.
We invite you to visit the
www.peugeot.co.uk website.
As the driver, you also can contribute
to protecting the environment in the
following way:
- drive smoothly, without frequent
and harsh acceleration,
- observe the service intervals;
we recommend that services are
carried out by a PEUGEOT dealer,
authorised to collect used batteries
and uids,
- in order to preserve the reliability
of the engine and emission control
systems, do not use engine oil
additives.
Refer to information on eco-driving at
the end of this section.

16
Motoring & the Environment
Partner-2-VU_en_Chap02_eco-conduite_ed02-2016
Eco-driving is a range of everyday
practices that allow the motorist to
optimise their fuel consumption and
CO2emissions.
Eco-driving
Optimise the use of your
gearbox
With a manual gearbox, move off
gently and change up without waiting.
During acceleration change up early.
With an automatic or electronic
gearbox, give preference to automatic
mode and avoid pressing the
accelerator pedal heavily or suddenly.
The gear efciency indicator invites
you to engage the most suitable gear:
as soon as the indication is displayed
in the instrument panel, follow it
straight away.
For vehicles tted with an electronic
or automatic gearbox, this indicator
appears only in manual mode.
Drive smoothly
Maintain a safe distance between
vehicles, use engine braking rather
than the brake pedal, and press the
accelerator progressively. These
practices contribute towards a
reduction in fuel consumption and
CO2emissions and also help to reduce
the background trafc noise.
If your vehicle has cruise control, make
use of the system at speeds above
25 mph (40 km/h) when the trafc is
owing well.
Control the use of your
electrical equipment
Switch off the demisting and
defrosting controls, if not automatic.
Switch off the heated seat as soon as
possible.
Switch off the headlamps and front
foglamps when the level of light does
not require their use.
Avoid running the engine before
moving off, particularly in winter; your
vehicle will warm up much faster
while driving.
As a passenger, if you avoid
connecting your multimedia devices
(lm, music, video game...), you
will contribute towards limiting the
consumption of electrical energy, and
so of fuel.
Disconnect your portable devices
before leaving the vehicle.
Before moving off, if the passenger
compartment is too warm, ventilate it
by opening the windows and air vents
before using the air conditioning.
Above 30 mph (50 km/h), close the
windows and leave the air vents open.
Remember to make use of equipment
that can help keep the temperature
in the passenger compartment down
(sunroof and window blinds...).
Switch off the air conditioning, unless
it has automatic regulation, as soon as
the desired temperature is attained.

17
2
ECO-DRIVING
Motoring & the Environment
Partner-2-VU_en_Chap02_eco-conduite_ed02-2016
Limit the causes of excess
consumption
Spread loads throughout the vehicle;
place the heaviest items in the bottom
of the boot, as close as possible to
the rear seats.
Limit the loads carried in the
vehicle and reduce wind resistance
(roof bars, roof rack, bicycle
carrier, trailer...). Use a roof box in
preference.
Remove roof bars and roof racks
after use.
At the end of winter, remove snow
tyres and ret your summer tyres.
Observe the recommendations
on maintenance
Check the tyre pressures regularly,
when cold, referring to the label in the
door aperture, driver's side.
Carry out this check in particular:
- before a long journey,
- at each change of season,
- after a long period out of use.
Don't forget the spare wheel and the
tyres on any trailer or caravan.
Have your vehicle serviced regularly
(engine oil, oil lter, air lter, passenger
compartment lter...) and observe the
schedule of operations recommended
in the manufacturer's service schedule.
With a BlueHDi Diesel engine, if the
SCR system is faulty your vehicle
becomes polluting; go to a PEUGEOT
dealer or a qualied workshop without
delay to have the emissions of nitrogen
oxides brought back to the legal level.
When refuelling, do not continue after
the third cut-off of the nozzle to avoid
any overow.
At the wheel of your new vehicle,
it is only after the rst 1 800 miles
(3 000 kilometres) that you will see
the fuel consumption settle down to a
consistent average.

18
Access
Partner-2-VU_en_Chap03_Pret-a-partir_ed02-2016
KEY
This locks and unlocks the vehicle's
doors, opens and closes the fuel ller
cap, as well as starting and stopping
the engine.
Security of use
REMOTE CONTROL
Unlocking the cab or the vehicle
Unlocking the load space
Locking
Press this button to lock the
vehicle completely.
The direction indicators ash once.
If one of the doors is open
(transportation of long loads) or is not
closed correctly, the central locking will
not work.
Deadlocking
A second press on the closed padlock
on the remote control within ve
seconds after locking changes the
locking to deadlocking.
This is conrmed by xed lighting
of the direction indicators for
approximately two seconds.
Deadlocking renders the exterior
and interior door opening handles
inoperative: do not leave anyone inside
the vehicle when it is deadlocked.
If deadlocking is activated from inside
the vehicle using the remote control, it
will change to normal locking when the
vehicle is started.
To unlock the load space only:
Press this control to unlock
the load space, the front
doors alone remain locked.
Press this control to lock the
vehicle completely.
Press this button to unlock all
of the rear doors.
Press this button once to
unlock the front doors.
Press this button again
to unlock your vehicle
completely.
The direction indicators ash twice.
