INFORMATION
You have just bought a Peugeot vehicle.
We would like to thank you for purchasing one of our
products.
Please take some time to read this manual carefully
before using the vehicle.
This user manual should always be kept in the boot of the
vehicle. It contains instructions for use, checks and
maintenance of the vehicle, and important safety
instructions intended to protect the user and third parties
against accidents.
It will give you plenty of advice on how to keep your
vehicle in full working order.
Your authorised dealer is familiar with all the vehicle's
characteristics and has genuine spare parts and specific
tools. He can advise you and service your vehicle in the
best conditions according to the established service
schedule to ensure that you can enjoy driving it in
complete safety.
This manual must be considered as an integral part of the
vehicle and must remain with it even if the vehicle is sold
on.
PEUGEOT MOTOCYCLES is constantly improving its
vehicles. It therefore reserves the right to remove, modify
or add any reference mentioned.
SAFETY ADVICE
A inexperienced motorcyclist should make himself
completely familiar with his vehicle before going out in
traffic. You are strongly advised not to lend your vehicle
to an inexperienced rider.
To ride a motorbike, you are required by law to hold a
licence or to have completed specific training with a
professional, depending on the applicable legislation and
based on its category.
Wearing an approved helmet and gloves is obligatory for
the user and passenger. You are also advised to wear
goggles and light-coloured or reflective clothing adapted
to motorcycling.
In some countries, the applicable legislation may not
authorise transportation of a passenger, and elsewhere
it may oblige motorcycle users to contract a civil liability
insurance policy to protect third parties and the
passenger against potential damage resulting from an
accident.
Driving whilst under the influence of alcohol, drugs or
certain medicines is inexcusable and dangerous for
yourself and others.
Excessive speed is an important factor in many accidents.
You must observe the road signs and signals and adapt
your speed to the weather conditions.
The engine and the exhaust system components can
reach very high temperatures. When parking your
vehicle, be careful to avoid contact with inflamable
materials which could cause a fire or with parts of the
body which could result in serious burns.
Luggage carriers and paniers approved by PEUGEOT
MOTOCYCLES are available as options (depending on
the model). The assembly instructions must be complied
with and the maximum permissible load (3 to 5 kg
depending on the equipment) must not be exceeded.
Fitting accessories such as the driver's apron, top-case,
etc. may affect the vehicle's stability (wind factor, load,
etc.).
When riding the vehicle fitted with accessories, the driver
should reduce speed.
Mounting adaptable parts that have not been approved by
PEUGEOT MOTOCYCLES, which alter the technical
characteristics or performances of the vehicle is
forbidden. Any modification will invalidate the warranty
and the vehicle will no longer be in compliance with the
version approved by the appropriate services.

Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles 5/53
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.
CHARACTERISTICS
METROPOLIS ABS
Official type-approval code X1A
Weight in kg
Unladen weight 264
In working order 280
Authorised maximum. Total weight of the vehicle, the user, the
passenger, the accessories and luggage. 455

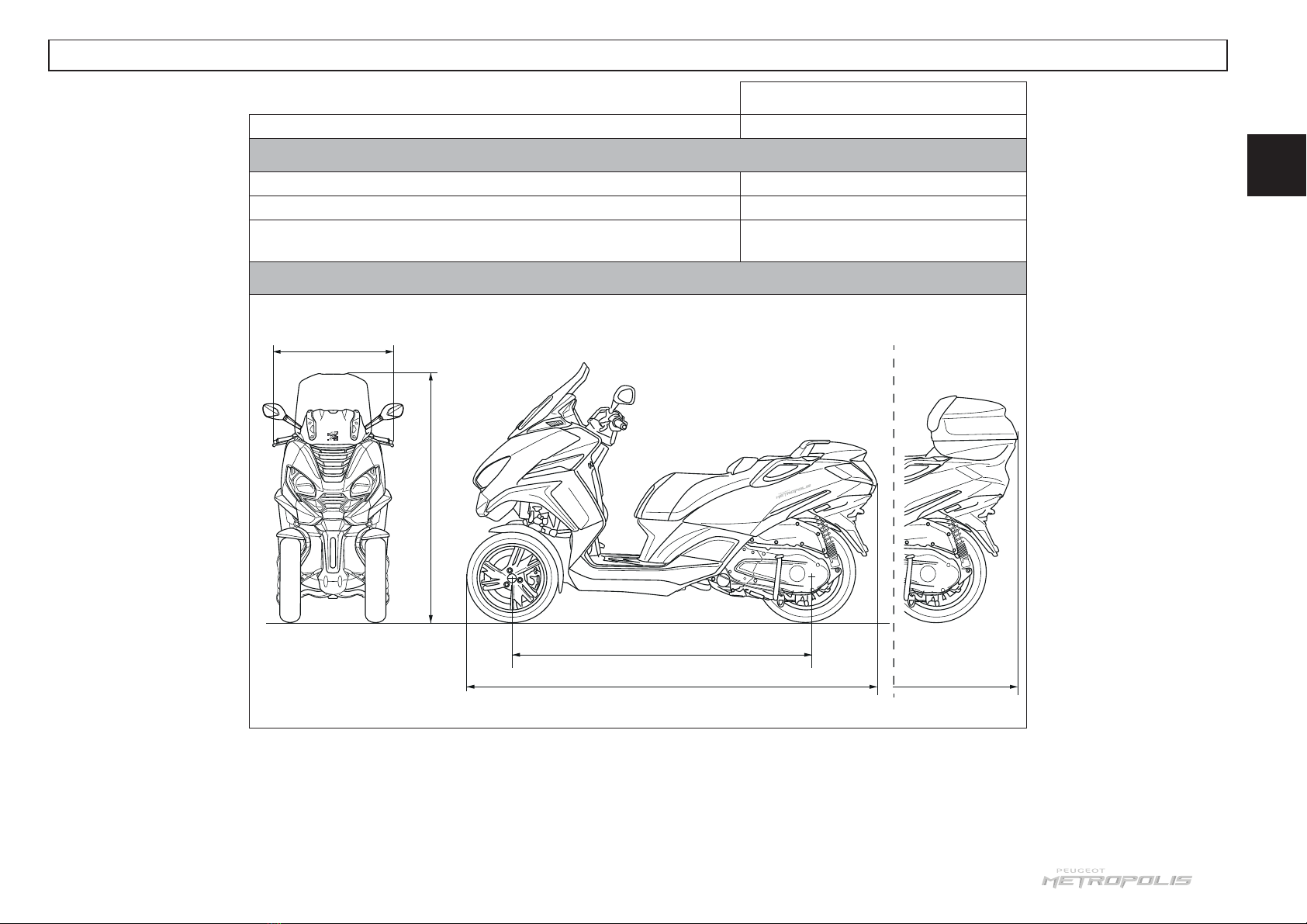

Dimensions in mm
* Large windshield, high position.
** GT version windshield, high position.
PEUGEOT
750
1540
1520* / 1400**
2162 2210

6/53 Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.
CHARACTERISTICS
METROPOLIS ABS
Engine
Identification P6F
Engine type 4-stroke single-cylinder
Cubic capacity 400
Bore x stroke in mm 84 X 72
Maximum power 26.2 kW at 7250 rpm
Maximum torque 38.1 Nm at 5750 rpm
Cooling Fluid cooling system
Fuel supply Indirect electronic injection
Spark plug NGK CPR8EB-9
Lubrication Pressurised wet sump lubrication
Exhaust Catalytic
Anti-pollution standard Euro 5
Consumption a3.9 l/100
CO2emission (On cycle) 89 g/km
a. These consumption values are established according to the regulation 134/2014 Annex VII. They may
vary according to driving behaviour, traffic conditions, weather conditions, the load in the vehicle,
vehicle maintenance and use of the accessories...

Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles 7/53
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.
CHARACTERISTICS
METROPOLIS ABS
Capacities in litres
Engine oil
- Without oil filter replacement 1.8
- With oil filter replacement 2
Relay box oil 0.25
Coolant 2
Fuel tank 12.8
Tyre dimensions
Front 110/70-13
Minimum load index and speed rating 27 N
Rear 140/70-14
Minimum load index and speed rating 66 N
Cold inflation pressure (bar)
Front 2
Rear 2.5
Suspension
Front
Deformable parallelogram with double wishbone
(Dual Tilting Wheels (DTW))
Single shock absorber. Travel: 120 mm
Rear Adjustable shock absorbers
Travel: 103 mm

8/53 Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.
CHARACTERISTICS
METROPOLIS ABS
Brakes
Braking system Integral braking
Front 2 Ø230 disks
Rear 1 Ø240 disk
Electrical equipment
Headlights LED
Rear light LED
Number plate light 12V - 5W
Storage compartment lighting 12V - 5W
Battery Maintenance-free batteries 12V - 17Ah. YUASA
YTX20A-BS

Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles 9/53
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.
VEHICLE IDENTIFICATION
A.Manufacturer's plate.
B.Vehicle identification number (V.I.N).
Located in the glove compartment, the plate and
identification number are visible after removing a hatch.
C.Engine number.
D.Tyre pressure label.
The label affixed under the saddle gives the cold tyre
pressures when riding alone and with a passenger.
PRODUCTS TO USE
Temperature variations modify tyre
pressure.
The tyre pressure must be checked once
a month when cold.
B
A
D
C
Fuel
Engine oil
SAE 5W40
100% Synthetic
Minimum grade API SL
Relay box oil
SAE 80W90 API GL4
Coolant
coolant: PEUGEOT. Type C
Grease
High-temperature grease
Multi-use grease
Brake fluid
Brake fluid DOT 5.1

10/53 Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.
INFORMATION ABOUT THE
INSTRUCTIONS
Specific information is indicated by the following symbols:
Möbius band
Recyclable.
Means that the product or the package can be
recycled.
Explosive
The product may explode upon contact with a
naked flame, spark or static electricity,or due
to the effect of heat, an impact or friction.
Handle and keep away from heat sources and
other causes of sparks.
Flammable
The product may ignite in contact with a naked
flame, a spark or static electricity, or due to
the effect of heat, friction, in contact with the
air or in contact with water, releasing
inflammable gases.
Handle and keep away from heat sources and
other causes of sparks.
Corrosive
The product is corrosive.
It can attack (corrode) or destroy metals.
Contact with the product or splashes of the
product may burn the skin and cause lesions
to the eyes. Avoid any contact with the eyes
and skin. Do not inhale.
Harmful to health
The product can be poisonous in high doses.
It may irritate the skin, eyes and airways.
It may cause skin allergies.
It may cause drowsiness or dizziness. Avoid all
contact with the product.
Toxic or fatal
The product can rapidly be fatal.
It poisons rapidly, even at low doses. Wear
protective equipment.
Avoid any contact (oral, skin, inhalation) with
the product and wash all exposed areas
carefully after use.
Harmful for the environment
The product pollutes.
It has a harmful effect (in the short and/or long
term) on organisms in aquatic environments.
Do not dispose of it in the environment.
Do not throw away into a garbage can
One of the product's component is toxic and
can be hazardous to environment. Do not
throw the used product in the dustbin. Take it
back to the trader or to a specific waste
disposal site.
People's safety
Operation that can be dangerous for people.
People's safety can be seriously affected if the
recommendations are not fully respected.
Important
Operation that can be hazardous to the
vehicle.
Indicate the specific procedures that shall be
followed in order not to damage the vehicle.
Note
Gives key information concerning operation of
the vehicle.

Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles 11/53
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.

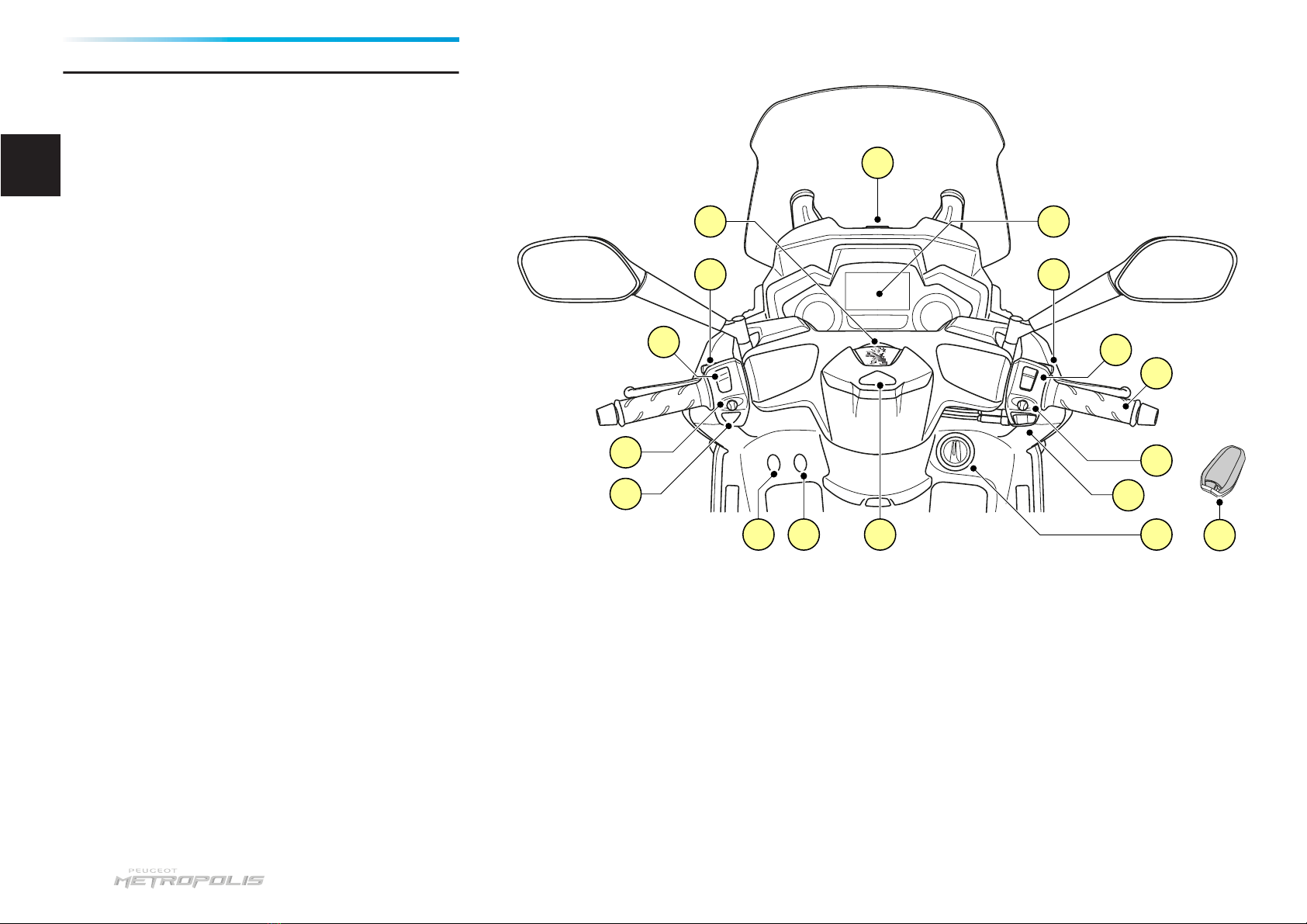

DESCRIPTION OF THE VEHICLE
1. Instrument panel
2.
Adjustable windshield
3. Brake fluid level
4. Right brake lever
5. Brake pedal (integral main brake)
6. Folding passenger footrests
7. Engine oil gauge
8. Adjustable shock absorbers
9. Emergency storage compartment opening control
10. Rear storage compartment
11. Passenger saddle and grab handle
12. Front storage compartment
13. Rider saddle
14. Aspherical rear view mirrors
15. Coolant level
16. Glove box / Chassis markings / Manufacturer's plate
17. Utility hanger
18. Storage compartment / USB socket / Emergency
antenna
19. Fuel tank cap
20. Battery / Fuses
21. Adjustable backrest
22. Engine number
23. Central stand
24. Left brake lever
8
8
11
11
12 13
18
21
236
22
567
2
14
14 3
3
24
4
1
19 20
15
16
17
10
9

12/53 Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.
DESCRIPTION OF THE VEHICLE
1. Instrument panel
2.
"SELECT" selection button
3. Light button
4. Throttle
5. System control Anti-tilting
6. Starter switch / Emergency stop button
7. Smart-Key key
8. Rotating knob
9. Hazard warning lights switch
10. Unlocking control for front storage compartment
11. Unlocking control for rear storage compartment
12. Horn switch
13. Indicators switch
14. Code button / Headlight / Flashing the lights
15. "EXIT" selection button
16. Parking brake control
17. Attachment for Smartphone bracket (Accessory)
5
4
3
2
1
6
89 7 10
17
11
12
13
15
16
14

Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles 13/53
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.
CONTROLS
Right controls.
1. Emergency stop button/Starter switch.
Set the button to this position in case of emergency
to stop the engine.
Set the button to this position before starting the
engine.
Press this button and simultaneously press the
right or left brake lever to start the engine.
2. System switch for Anti-Tilting.
For handling purposes, the vehicle has a hinge on the
front wheels allowing the two front wheels to tilt while
remaining parallel when taking a bend.
The Anti-Tilting system is used to lock this hinge and thus
stabilise the vehicle when it is moving at slow speed or
park the vehicle without using the stand.
Push the switch to this position to lock the front
axle. The warning light comes on with the emission
of a long beep.
Push the switch to this position to unlock the front
axle. The warning light goes off with the emission
of 2 beeps.
Conditions for locking the front axle manually
- The speed of the vehicle must be less than 11 km/hour
and the engine speed under 2800 rpm when the switch
is set to the locking position.
Conditions for automatic unlocking of the front axle
- The front axle is automatically unlocked if the speed of
the vehicle is greater than 11 km/hour and/or the
engine speed greater than 2800 rpm.
Manually unlocking the front axle
- Outside the conditions for automatic unlocking, set the
switch to the unlocking position.
3. Lighting switch/Daytime lights (DRL).
With the ignition on, push the switch to this
position. The daytime lights are on.
With the ignition on, push the switch to this
position. The daytime lights and dipped lights are
on.
4. "SELECT" selection button.
This control enables:
- access to the connectivity menu1(Press and hold for 2
seconds).
- navigation within the menus (exiting a menu).
- confirmation of a choice (Press and hold for 2
seconds).
See chapter: Personalisation - Configuration menu.
1
2
3
4
Unlocking the front axle may lead to the
vehicle falling over. If the vehicle is
stopped with the rotating knob set to the
"on" position, do not operate the throttle
(engine running) or the Anti-Tilting
switch if the stability of the vehicle is not
under control.
The parking brake and the Anti-Tilting
might not hold the vehicle upright in all
situations. Load on the vehicle, steep
slope, prolonged immobilisation...
Preferably park the vehicle on the central
stand.
The daytime lights switch off
automatically 15 seconds after the
ignition is switched off.
1. Depending on model

14/53 Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.

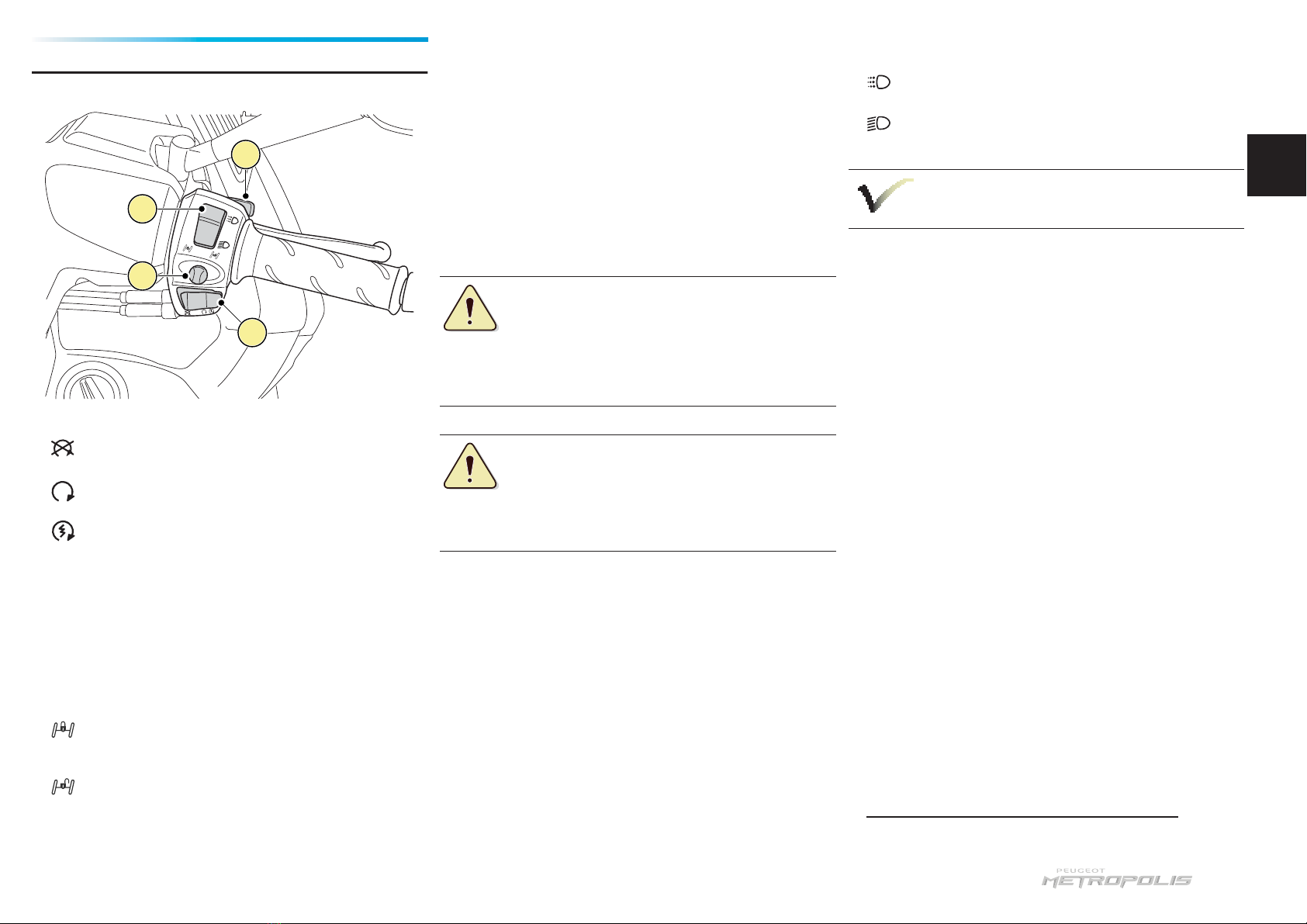

Left controls.
5. Horn switch.
6. Indicators switch.
To indicate a change of direction, press the switch:
• Either to the right.
• Or to the left.
To stop the indicators flashing, press the switch.
7. Dipped light switch / High beam / Flashing the
lights.
The dipped lights and main beams only operate if the
lighting switch on the right handlebar is in position .
a. Push the switch to this position to switch on the
dipped lights.
b. Push the switch to this position to switch on the
main beams.
c. Press this button to flash the headlights.
.8. "EXIT" selection button.
This control enables:
- access to the instrument panel personalisation menu
(Press and hold for 2 seconds).
- navigation within the menus (exiting a menu).
- confirmation of a choice (Press and hold for 2
seconds).
See chapter: Personalisation - Configuration menu.

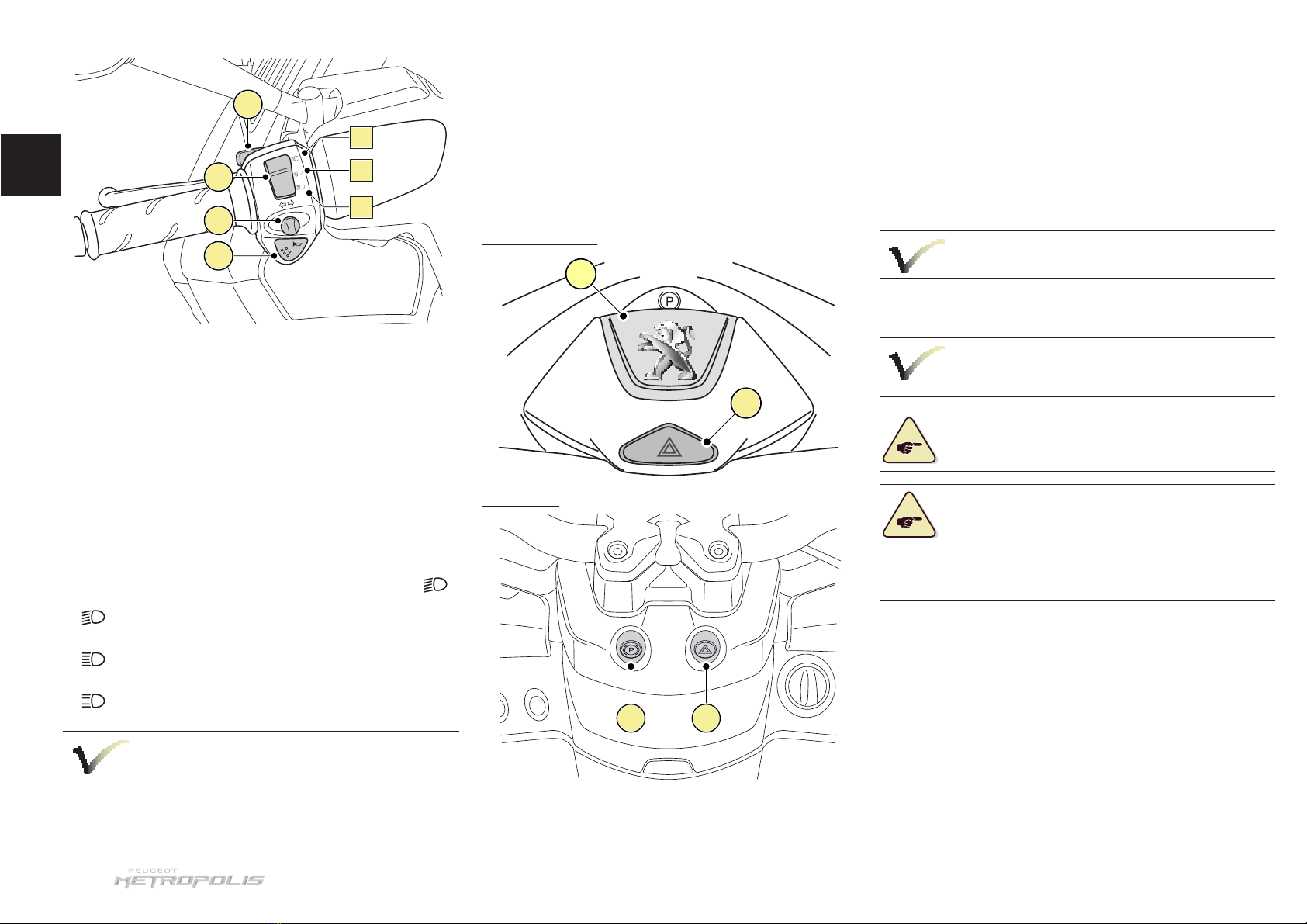

Central controls.
Standard version
Version GT
9. Hazard warning light switch.
The hazard warning lights can only be switched on with
the ignition in the "ON" position.
The hazard warning lights are automatically deactivated 1
hour after the ignition is switched off to save the battery.
10. Electric parking brake button.
Apply moderate pressure to the button to
activate/deactivate the parking brake.
Conditions for activation of the parking brake.
- The speed of the vehicle must be less than 3 km/h.
The presence of mist on the inside of the
headlight glass is normal. It disappears a
few minutes after the lights are switched
on.
6
7
8
a
c
b
5
10
9
10 9
Do not force when the button is pressed
as far as it can go.
The warning light comes on on the
dashboard to indicate that the parking
brake is active.
Always engage the electric parking brake
each time the vehicle is parked.
The parking brake and the Anti-Tilting
might not hold the vehicle upright in all
situations. Load on the vehicle, steep
slope, prolonged immobilisation...
Preferably park the vehicle on the central
stand.

Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles 15/53
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.

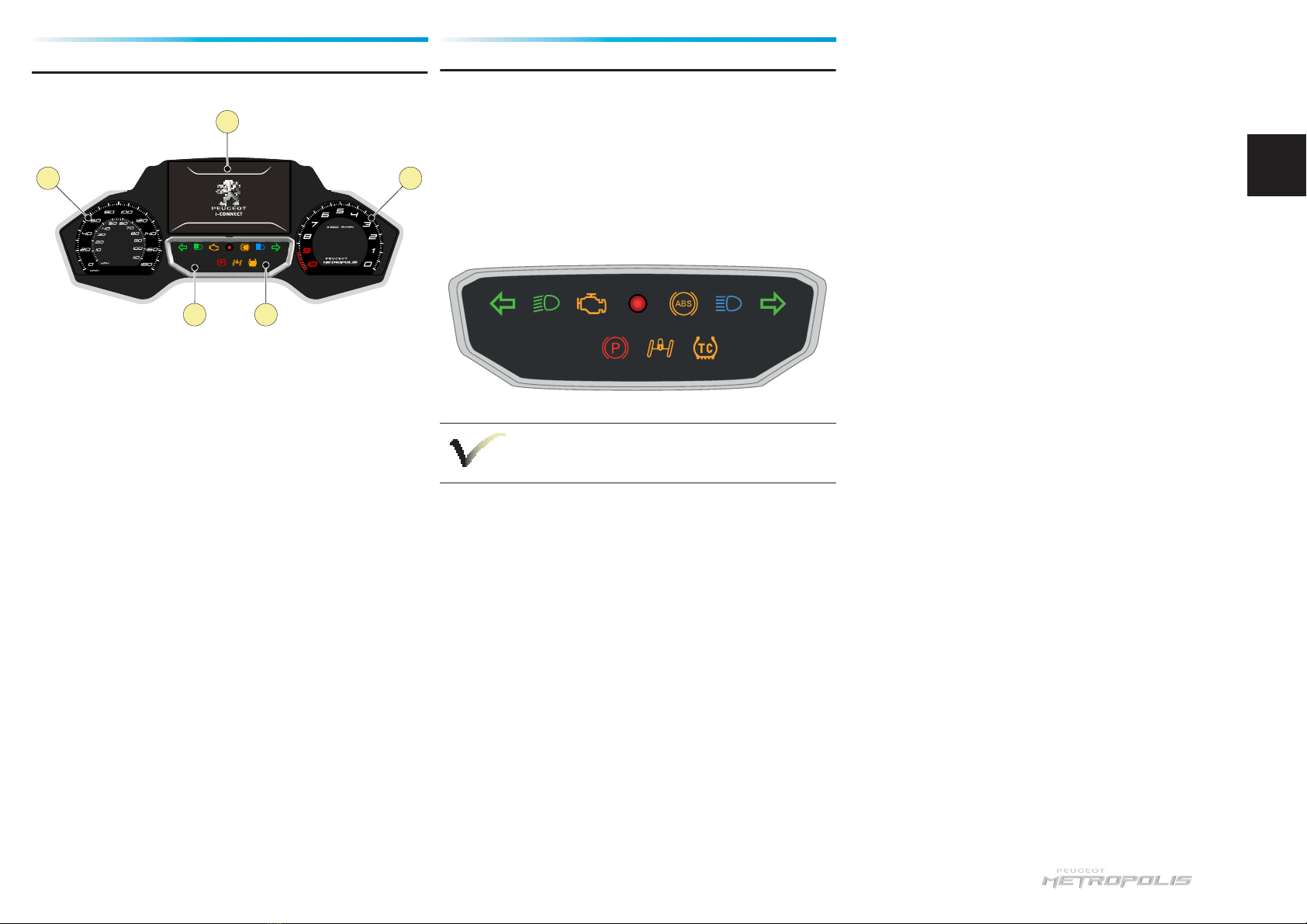

INSTRUMENTS
1 - Digital display (I-CONNECT).
You can change the appearance of the handset by
selecting:
- A display colour.
- A background colour.
- The display of certain information (See chapter:
Personalisation - Configuration menu).
2 - Analogue speedometer.
- The speedometer has a dual display (km/miles).
3 - Revolution counter.
- The analog rev counter shows the speed of rotation of
the engine.
4 - Area displaying the warning lights / Operating
lights.
5 - Brightness sensor.
(See chapter: Personalisation - Configuration menu).
WARNING LIGHTS
The warning lights inform the driver of the start-up of a
system or appearance of a malfunction.
- On ignition, some warning lights are displayed for a
few seconds.
- Once the engine is started, these warning lights will
disappear.
If they remain on, use the table to check the relevant
warning light before driving off.
2 3
45
1
The ABS system ON warning light
disappears when the vehicle starts to
move.

16/53 Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.

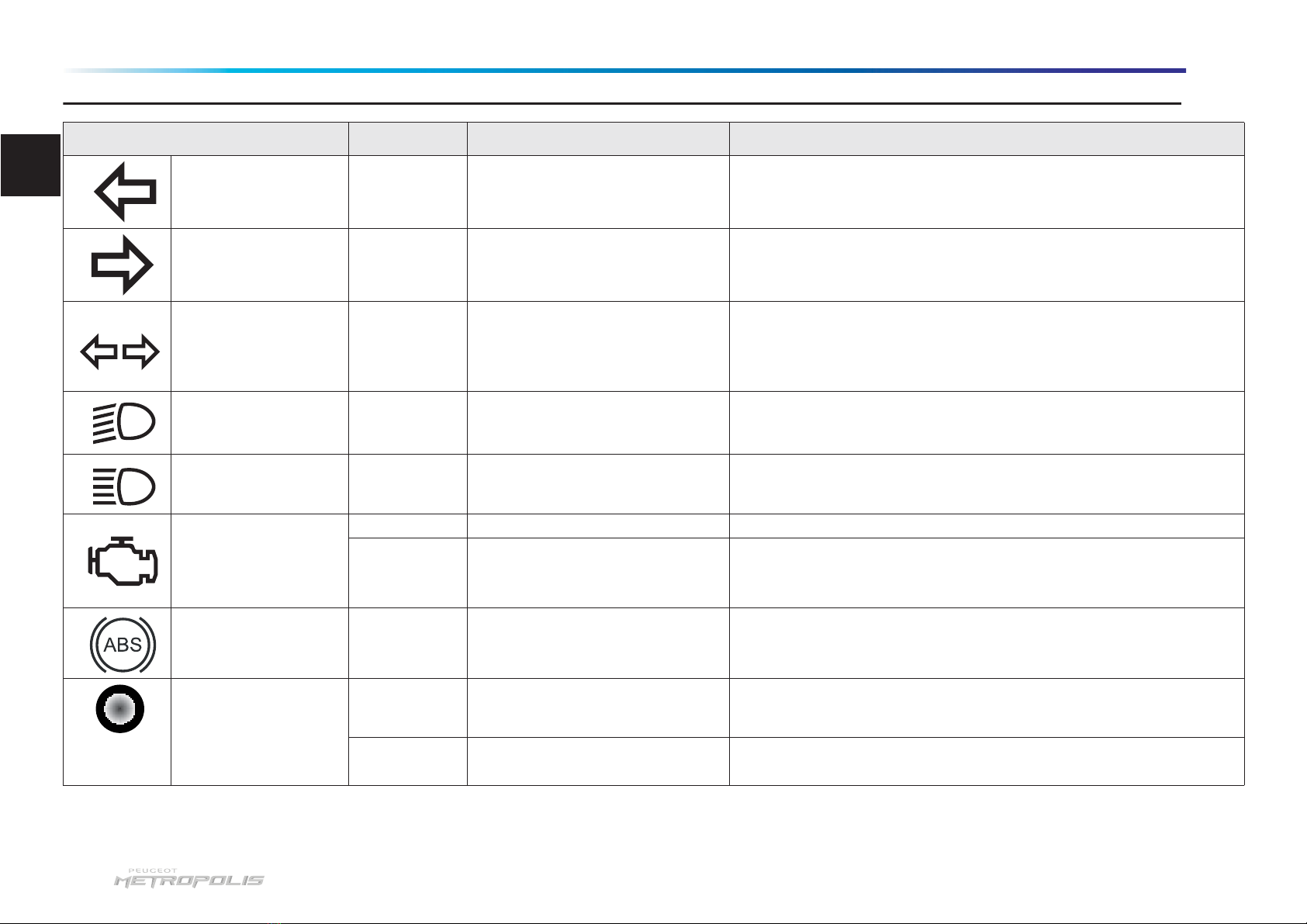

LIST OF WARNING LIGHTS
Indicator Status Cause Actions / Observations
Left indicators Flashing The indicator control is activated to
the left.
If the warning light flashes quickly, there is a fault in the direction indicators.
Right indicators Flashing The indicator control is activated to
the right.
If the warning light flashes quickly, there is a fault in the direction indicators.
Hazard warning lights Flashing The hazard warning lights control is
activated.
The left and right direction indicators, as well as their associated warning
lights, flash simultaneously.
Automatic cut out after 1 hour to preserve the battery.
Automatic triggering of the hazard lights during emergency braking.
Dip beam fixed The lighting control is in the
"dipped-beam headlamps" position.
High beam fixed The lighting control is in the
"main-beam headlamps" position.
Emissions control
system failure warning
light / Engine
self-diagnostic
fixed The anti-pollution system is faulty. You are advised to have the vehicle checked by an authorised dealer.
Flashing The engine control system is faulty. You are advised to have the vehicle checked by an authorised dealer.
Wheel anti-lock system
(ABS)
fixed The ABS system is faulty. The vehicle has a standard braking system.
Drive carefully at moderate speed and have the vehicle checked by an
authorised dealer.
Deterrence light Flashing The ignition is switched off, the
anti-theft deterrence system is
active.
The warning light flashes for 1 minute.
fixed The immobiliser system is faulty. Impossible to start the engine.
You are advised to have the vehicle checked by an authorised dealer.

Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles 17/53
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.
Indicator Status Cause Actions / Observations
Anti-Tilting light Off The anti-tilting systel is unlocked. The front axle locking conditions are not met.
fixed The anti-tilting system is locked. The front axle is automatically unlocked if the speed of the vehicle is greater
than 11 km/hour and/or the engine speed greater than 2800 rpm.
Slow flashing If the warning light flashes slowly at
slow speed this indicates that the
systm can be locked.
The speed of the vehicle must be less than 11 km/hour and the engine
speed under 2800 rpm when the switch is set to the locking position.
Unlocking the front axle may lead to the vehicle falling over.
If the vehicle is stopped with the rotating knob set to the "on"
position, do not operate the throttle (engine running) or the
anti-Tilting switch if the stability of the vehicle is not under
control.
Fast flashing The system is faulty. In this case, the engine speed is limited to 2000 km/h.
You are advised to have the vehicle checked by an authorised dealer.
In case of malfunction of the anti-tilting system when locked or a
battery fault, the hinge can be released manually. See chapter:
Repair procedures.
Electric parking brake
warning light.
Off The parking brake is released.
fixed If the warning light is lit, the parking
brake is on.
When the parking brake is on, the engine speed is limited to 2000 rpm.
Flashing The system is faulty. In this case, the engine speed is limited to 2000 km/h.
You are advised to have the vehicle checked by an authorised dealer.
In case of malfunction of the parking brake when engaged or a
battery fault, a manual release procedure is possible to allow the
vehicle to be moved. See chapter: Repair procedures.

18/53 Reproduction or translation, even partial, is forbidden without the written consent of Peugeot Motocycles
)5
*%
'(
,7
(6
1/
*5
6(
37
),
'.
Indicator Status Cause Actions / Observations
Traction control indicator
light (Traction Control
System)
Off The system is functioning correctly
but is inactive.
The system is automatically activated each time the vehicle starts up.
Fast flashing The system is functioning correctly
and is active (Low grip conditions).
When the grip level is reached, you should reduce your speed to
ensure your safety on the road.
fixed The system is deactivated and does
not operate if grip is lost (Mode:
Deactivated).
To guarantee maximum grip, make sure the traction-control
function is on (1 mode, 2 mode).
fixed If the warning light is steadily lit with
mode 1 or 2 selected, this means
that the system is faulty.
You are advised to have the vehicle checked by an authorised dealer.
Engine lubrication
warning light afixed When the engine is running, the
warning light is indicative of a failure
of the engine lubrication system.
It is imperative to stop the vehicle under the best possible
conditions of safety and to turn off the engine.
You are advised to have the vehicle checked by an authorised
dealer.
When the oil pressure warning light comes on while the engine
is running, a warning message appears in the digital display at
regular intervals.
Engine temperature
warning light
fixed A high temperature reading is
indicated by a red warning light.
You are advised to switch of the engine and check the coolant
level after it has cooled down. If the level is correct, have the
vehicle checked by an approved dealer.
a. Depending on equipment.
