Pfaff Smart 200c User manual

200c
OWNER’S MANUAL

SYMBOL INSTRUCTIONS
Raise needle Raise presser foot Lower presser foot

This houshold sewing machine is designed to comply with IEC/EN 60335-2-28 and UL1594
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic safety precautions should always be followed, including the following:
Read all instructions before using this household sewing machine.
DANGER - To reduce the risk of electric shock:
• A sewing machine should never be left unattended when plugged in. Always unplug this sewing machine
from the electric outlet immediately after using and before cleaning.
• Always unplug before relamping. Replace bulb with same type rated 5 Watt.
WARNING - To reduce the risk of burns, fire,
electric shock, or injury to persons:
• Do not allow to be used as a toy. Close attention is necessary when this sewing machine is used by or
near children or infirm person.
• Use this sewing machine only for its intended use as described in this manual. Use only attachments
recommended by the manufacturer as contained in this manual.
• Never operate this sewing machine if it has a damaged cord or plug, if it is not working properly, if it has
been dropped or damaged, or dropped into water. Return the sewing machine to the nearest authorised
dealer or service center for examination, repair, electrical or mechanical adjustment.
• Never operate the sewing machine with any air openings blocked. Keep ventilation openings of the
sewing machine and foot control free from the accumulation of lint, dust, and loose cloth.
• Keep fingers away from all moving parts. Special care is required around the sewing machine needle.
• Always use the proper needle plate. The wrong plate can cause the needle to break.
• Do not use bent needles.
• Do not pull or push fabric while stitching. It may deflect the needle causing it to break.
• Switch the sewing machine off (“0”) when making any adjustment in the needle area, such as threading
needle, changing needle, threading bobbin, or changing presser foot, etc.
• Always unplug the sewing machine from the electrical outlet when removing covers, lubricating, or when
making any other user servicing adjustments mentioned in the instruction manual.
• Never drop or insert any object into any opening.
• Do not use outdoors.
• Do not operate where aerosol (spray) products are being used or where oxygen is being administrated.
• To disconnect, turn all controls to the off (“0”) position, then remove plug from outlet.
• Do not unplug by pulling on cord. To unplug, grasp the plug, not the cord.
SAVE THESE INSTRUCTIONS

4
CONTENTS
PRINCIPAL PARTS OF THE MACHINE............................................................................................................6
BUTTONS OF THE MACHINE..........................................................................................................................7
LCD SCREEN....................................................................................................................................................9
PATTERN CHART ...........................................................................................................................................10
ACCESSORIES ............................................................................................................................................... 11
CONNECTING THE MACHINE TO THE POWER SOURCE..........................................................................12
START SEWING..............................................................................................................................................13
Speed adjustment lever....................................................................................................................................13
Foot control ......................................................................................................................................................13
REPLACING THE NEEDLE.............................................................................................................................14
CHANGING THE PRESSER FOOT.................................................................................................................14
ADJUSTING PRESSER FOOT PRESSURE...................................................................................................15
MATCHING NEEDLE/ FABRIC/ THREAD ......................................................................................................15
TYPE OF PRESSER FOOT CHART ...............................................................................................................16
WINDING THE BOBBIN..................................................................................................................................17
INSERTING THE BOBBIN...............................................................................................................................19
THREADING THE UPPER THREAD...............................................................................................................20
USING THE NEEDLE THREADER .................................................................................................................22
TOP THREAD TENSION .................................................................................................................................23
BRINGING UP THE BOBBIN THREAD..........................................................................................................24
CUTTING THE THREAD .................................................................................................................................24
PRESSER FOOT LIFT.....................................................................................................................................25
RAISE OR LOWER THE FEED DOGS ...........................................................................................................25
OPERATION BUTTONS..................................................................................................................................26
Reverse button.................................................................................................................................................26
Auto-lock button ..............................................................................................................................................27
Needle up/down button ....................................................................................................................................27
FUNCTION BUTTONS.....................................................................................................................................28
Stitch width button............................................................................................................................................28
Stitch length button...........................................................................................................................................29
MODE selection button ....................................................................................................................................29
Pattern mirroring button....................................................................................................................................30
MEMORY BUTTONS.......................................................................................................................................31
Memory button .................................................................................................................................................31
Clear button......................................................................................................................................................31
Arrow button.....................................................................................................................................................31
SELECTION BUTTONS...................................................................................................................................32
Direct pattern selection buttons........................................................................................................................32
Number buttons................................................................................................................................................32
USEFUL SKILLS .............................................................................................................................................33
Sewing corners.................................................................................................................................................33
Reverse............................................................................................................................................................33
Free arm...........................................................................................................................................................33
Sewing on heavy fabric ....................................................................................................................................34
STRAIGHT STITCHES AND NEEDLE POSITION..........................................................................................35
Changing the needle position...........................................................................................................................35
Changing the stitch length................................................................................................................................35
ZIGZAG STITCHES.........................................................................................................................................35
Adjusting the stitch length ................................................................................................................................35

5
Adjusting the stitch width..................................................................................................................................35
STRETCH STITCHES......................................................................................................................................36
OVERCASTING STITCHES ............................................................................................................................37
Using the overcasting foot................................................................................................................................37
Using the standard foot ....................................................................................................................................37
BLINDHEM.......................................................................................................................................................38
BUTTON SEWING...........................................................................................................................................39
BUTTONHOLE STITCHING............................................................................................................................40
Making a buttonhole on stretch fabrics.............................................................................................................43
BAR TACK STITCH.........................................................................................................................................44
EYELET STITCH..............................................................................................................................................45
DARNING STITCH...........................................................................................................................................46
ZIPPER INSERTION........................................................................................................................................48
QUILTING.........................................................................................................................................................49
SCALLOP EDGES...........................................................................................................................................49
FREE-MOTION, DARNING, EMBROIDERY AND MONOGRAMMING..........................................................50
Darning.............................................................................................................................................................50
Embroidery.......................................................................................................................................................51
Monogramming ................................................................................................................................................51
MIRRORING ....................................................................................................................................................52
MEMORY..........................................................................................................................................................53
Program patterns or letters...............................................................................................................................53
Add patterns or letters......................................................................................................................................54
Clear patterns or letters....................................................................................................................................54
Recall and sew the memorized pattern............................................................................................................55
WARNING FUNCTIONS..................................................................................................................................56
Warning animation message display................................................................................................................56
Instruction animation message display ............................................................................................................56
Warning beeping sound....................................................................................................................................56
REPLACING THE LIGHT BULB .....................................................................................................................57
MAINTENANCE...............................................................................................................................................58
Cleaning the screen .........................................................................................................................................58
Cleaning the sewing machine surface..............................................................................................................58
Cleaning the hook ............................................................................................................................................58
TROUBLESHOOTING GUIDE.........................................................................................................................60
QUICK REFERENCE CHART.........................................................................................................................62

6
PRINCIPAL PARTS OF THE MACHINE
Tension dial
Presser foot pressure
Face plate
Operation buttons
Thread cutter
Buttonhole lever
Needle threader
Needle plate
Accessory tray
Pattern plate
Bobbin winder
LCD screen
Function buttons
Memory buttons
Selection buttons
Function buttons
Speed
adjustment lever
Hole for second
spool pin
Handwheel
Main power switch
Power cord
Foot control connector
Horizontal spool pin
Handle
Presser foot lift
Feed dog adjustment
lever

7

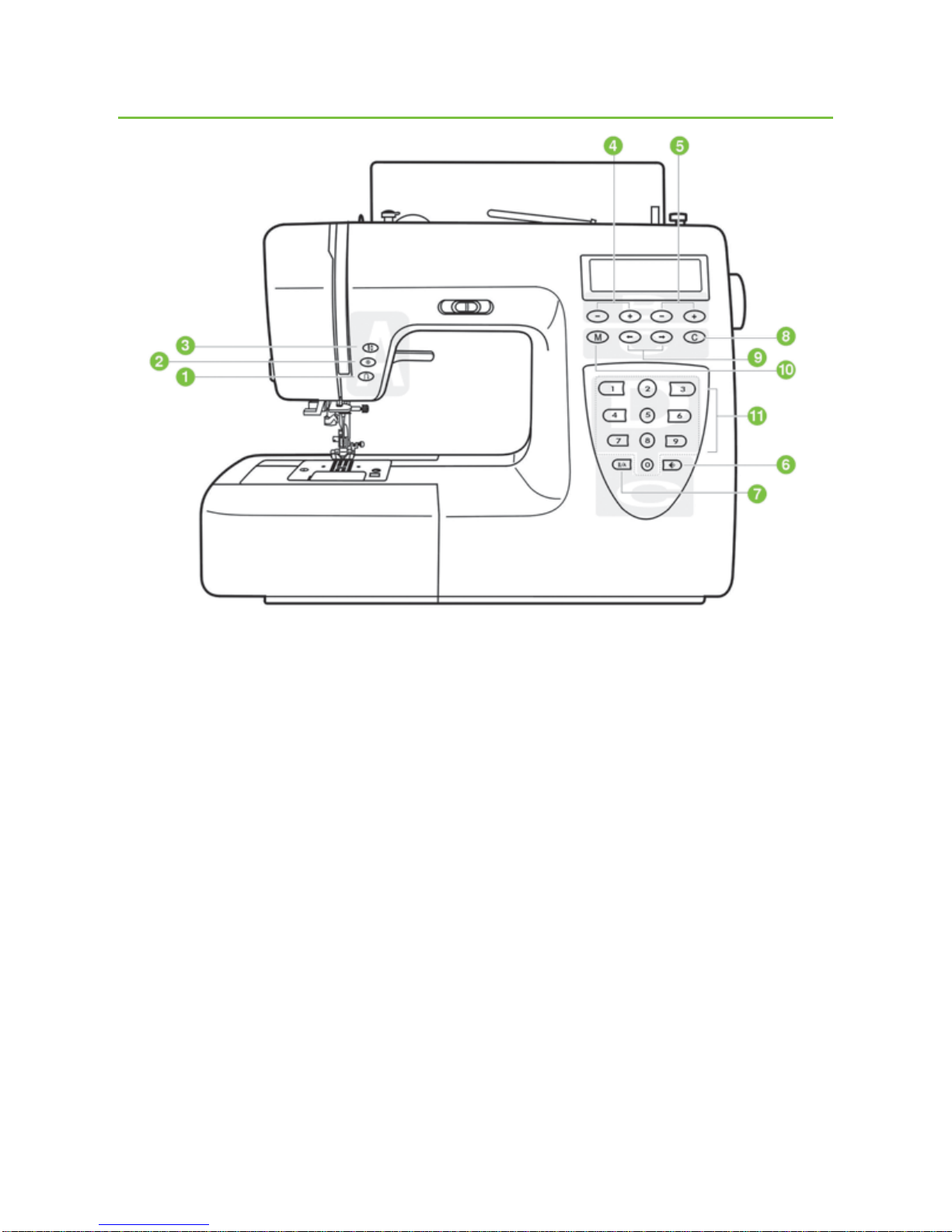

BUTTONS OF THE MACHINE
A. Operation buttons
1. Reverse button
Hold down this button to sew either backwards or a reinforcement stitch at a low speed.
2. Auto-lock button
Hold down this button to sew locking stitches immediately or at the end of the current pattern
and automatically stop.
3. Needle up/down button
Press this button to move the needle either up or down.
B. Function buttons
4. Stitch length
Press this button to adjust the length of the stitch.

8
5. Stitch width
Press this button to adjust the width of the stitch.
6. Pattern mirroring
Press this button to sew a mirrored pattern.
7. Mode selection
Press this button to select direct mode, utility and decorative pattern mode or block letter
mode.
C. Memory buttons
8. Clear button
If an incorrect pattern is selected or programmed, pressing this button will clear it.
9. Arrow button
Press the “ “ button or “ “ button until the desired stitch number in the programmed
combination is displayed.
10. Memory button
Press this button to enter or store the programmed pattern combination in the memory.
D. Selection buttons
11. Direct pattern selection and number buttons
Instant access to direct pattern or press the pattern number to select the desired pattern.

9

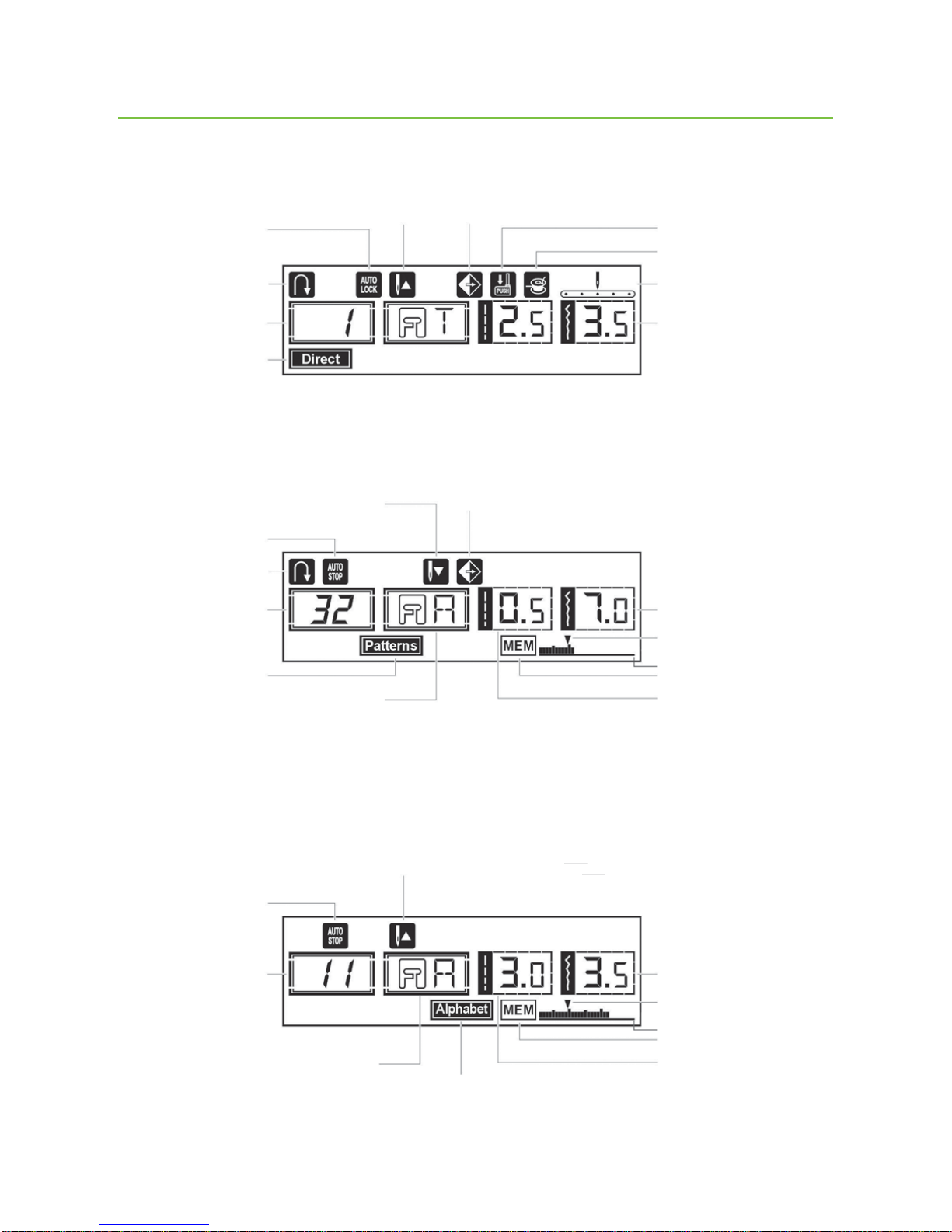

LCD SCREEN
Direct Pattern
Auto-lock
Reverse
Pattern number
Direct mode
Needle up Mirror Buttonhole lever
Bobbin winding
Needle position
Stitch width
Pattern
Alphabet
Auto-stop
Reverse
Pattern number
Normal mode
Suggested presser foot
Needle down Mirror
Stitch width
Current position in the
programmed memory
Total space in the memory
Memory
Stitch length
Suggested presser foot
Pattern number
Auto-stop
Needle up
Stitch width
Memory
Stitch length
Alphabet mode
Current position in the
programmed memory
Total space in the memory

10
PATTERN CHART
The portion marked in color on the chart below shows the one unit of each pattern.

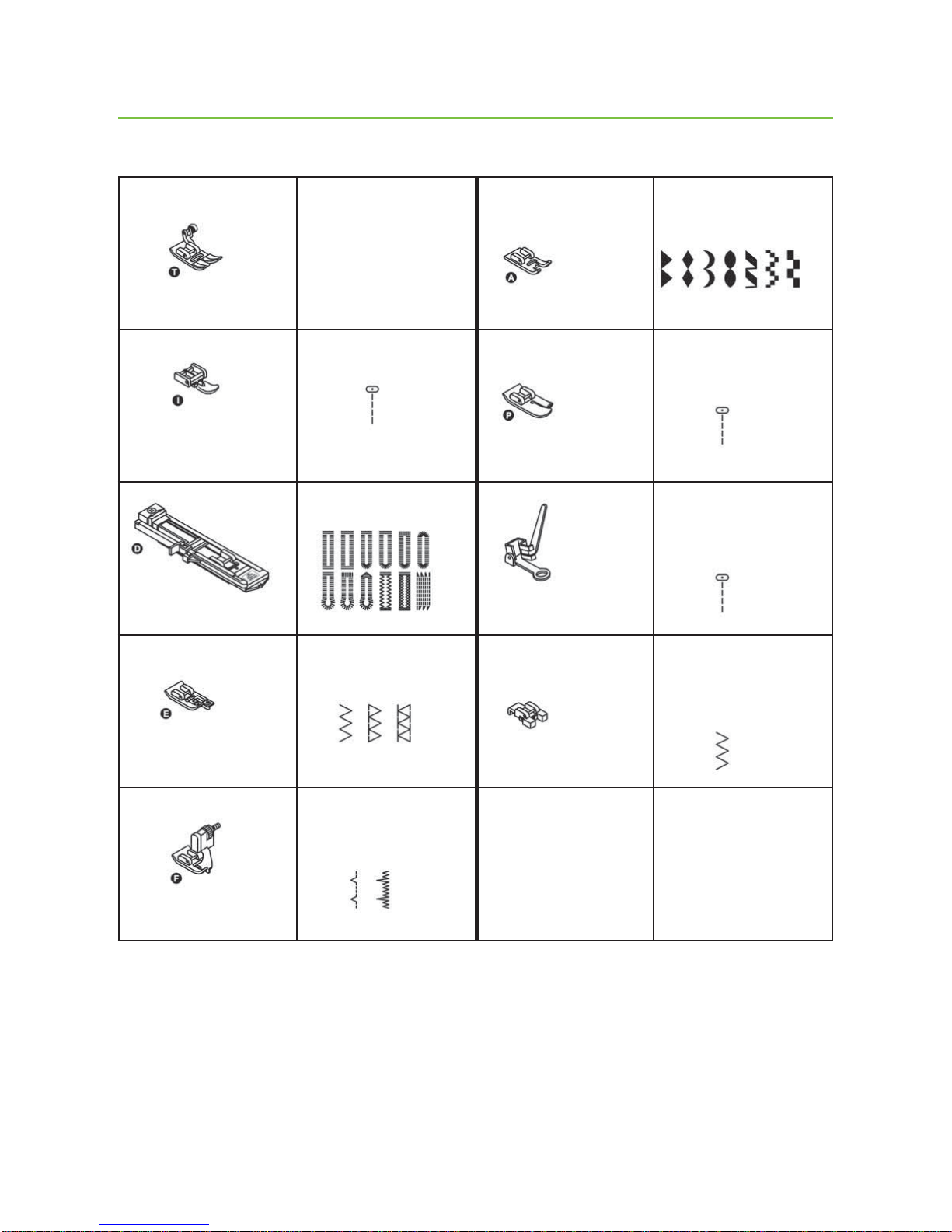

A. Direct selection patterns
B. Pattern selection by number
C. Alphabet
