Pfeiffer Vacuum HiCube Classic User manual

Betriebsanleitung • Operating Instructions
PT 0264 BE/A (0901)
Turbo Pumping Station
HiCube Classic
Translation of the Original Operating Instructions

2
Ta b l e o f c o n t e n t s
Table of contents
1Aboutthismanual......................................3
1.1 Validity. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
1.2 Conventions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
2Safety................................................4
2.1 Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
2.2 Proper use. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
2.3 Improper use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
3Transportandstorage..................................6
3.1 Transport. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
3.2 Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
4Productdescription....................................7
4.1 Product identification. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.2 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
4.3 Range of application . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
5Installation...........................................10
5.1 Set-up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.2 Preparatory work . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
5.3 Connecting the high vacuum side . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.4 Connecting the exhaust side. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
5.5 Connecting to the mains power supply . . . . . . . . . . . . . . . . . . . . . . 12
5.6 Connecting accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.7 Connecting an external turbopump . . . . . . . . . . . . . . . . . . . . . . . . . 14
6Operation............................................15
6.1 Commissioning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
6.2 Operation modes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6.3 Function description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.4 Saving energy . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
6.5 Operation with gas ballast valve . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.6 Operation with fore-vacuum valve. . . . . . . . . . . . . . . . . . . . . . . . . . 18
6.7 Switching off and venting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
7Maintenance/replacement.............................19
7.1 Maintenance intervals and responsibilities . . . . . . . . . . . . . . . . . . . 19
7.2 Removal of components for their maintenance. . . . . . . . . . . . . . . . 20
7.3 Changing the operating fluid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8Decommissioning.....................................23
8.1 Shutting down for longer periods. . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.2 Re-starting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
8.3 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9Malfunctions.........................................24
9.1 Rectifying malfunctions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10 Service . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
11 Spare parts HiCube Classic . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
12 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
12.1 HiCube 80 Classic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
12.2 HiCube 300 Classic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
12.3 HiCube 400 Classic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
12.4 HiCube 700 Classic. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
13 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Declaration of conformit. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

3
About this manual
1Aboutthismanual
1.1 Validity
This operating manual is for customers of Pfeiffer Vacuum. It describes the func-
tioning of the designated product and provides the most important information for
safe use of the unit. The description follows applicable EU guidelines. All informa-
tion provided in this operating manual refer to the current state of the product's de-
velopment. The documentation remains valid as long as the customer does not
make any changes to the product.
Up-to-date operating instructions can also be downloaded from
www.pfeiffer-vacuum.net.
Applicable docu-
ments
*also available via www.pfeiffer-vacuum.net
For information about other certifications, if applicable, please see the signet on
the product or:
•www.tuvdotcom.com
•TUVdotCOM-ID0000021320
1.2 Conventions
Safety instructions The safety instructions in Pfeiffer Vacuum operating manuals are the result of risk
evaluations and hazard analyses and are oriented on international certification
standards as specified by UL, CSA, ANSI Z-535, Semi-S1, ISO 3864 and DIN 4844.
In this document, the following hazard levels and information are considered:
HiCube Classic Operating instructions
Safety information for vacuum pumps "Safety Guide" PT 0300 BN*
Declaration of Conformity Part of this document
Operating instructions for components see product description*
Operating instructions for accessories see section "Accessories"*
DANGER
Immediate danger
Death or very severe injuries occur.
WARNING
Possible danger
Death or injuries may occur.
CAUTION
Possible danger
Medium to slight injuries may occur.
NOTE
Command or note
Command to perform an action or information about properties, the disregarding of
which may result in damage to the product.

4
Safety
Pictograph
definitions
Instructions in the
text
Work instruction: here you have to do something.
Abbreviations used DCU:Display and operating unit
HPU:Handheld programming unit
TC:Electronic drive unit for turbopump
TPS:Mains pack
Symbols used The following symbels are used consistently throughout the diagrams:
High vacuum flange
Fore-vacuum connection
Electric connection
Air cooling unit
Venting connection
Sealing gas connection
Exhaust connection
2Safety
2.1 Safety precautions
•Donotloosenanyplugconnectionduringoperations.
• Wait for the rotor to reach standstill before peforming work on the high vacuum
flange.
Prohibition of an action or activity in connection with a
source of danger, the disregarding of which may result in
serious accidents.
Warning of a displayed source of danger in connection
with operation of the unit or equipment.
Command to perform an action or task associated with a
source of danger, the disregarding of which may result in
serious accidents.
H
VV
F
SG
NOTE
Duty to inform
Each person involved in the installation, operation or maintenance of the pumping
station must read and observe the safety-related parts of these operating instuctions
and the components instructions.
Absolute observe the safety information for vacuum pumps (PT 0300 BN) !
The operator is obligated to make operating personnel aware of dangers originating
from the vacuum pump, the pumped medium or the entire system.

5
Safety
•Keepleadsandcableswellawayfromhotsurfaces(>70°C).
•Neverfilloroperateturbopumpwithcleaningagent.
• Do not carry out any unauthorised modifications or conversions to the pumps.
•TheunithasbeenaccreditedwithprotectionclassIP20.Wheninstallinginto
ambient conditions, which afford higher protection classes, the necessary
measures must be taken.
2.2 Proper use
•Onlyusethepumpingstationforcreatingvacuum.
•Onlyoperatethepumpingstationasanentireunit.
•Onlyusethepumpingstationforevacuationofdryandinertgases;otherappli-
cations only after consultation with Pfeiffer Vacuum.
2.3 Improper use
Improper use will cause all claims for liability and guarantees to be forfeited. Im-
proper use is deemed to be all use for purposes deviating from those mentioned
above, especially:
•Pumpingofcorrosiveorexplosivemedia.
•Pumpingofcondensingvapors.
•Operationwithimproperhighlevelsofgasloads.
•Operationwithimproperhighfore-vacuumpressures.
•Operationwithimpropergasmode.
•Operationwithimproperhighlevelsofinsulatedheatinput.
•Ventingwithimproperhighventingrates.
• The operation of the devices in potentially radioactive areas.
•Theoperationofthedevicesinsystemswheretheturbopumpsaresubjectedto
impact-like stress and vibrations or the effect of periodically occurring forces.
•Theconnectiontoapowersupplywithearthingofadirectvoltagepole.
•Theuseofaccessories,whicharenotnamedinthismanual.
NOTE
CE conformity
The manufacturer's declaration of conformity becomes invalid if the operator modifies
the original product or installs additional components.
Following installation into a plant and before commissioning, the operator must
check the entire system for compliance with the valid EU directives and reassess it
accordingly.
Warranty void
if seal is broken
NOTE
Warranty seal
The product is sealed at the factory. Damaging or removal of the seal leads to the loss
of liability and warranty entitlements.
Do not open the product within its warranty period!
For process-related shorter maintenance intervals please contact the Pfeiffer Vacu-
um Service.

6
Transport and storage
3Transportandstorage
3.1 Transport

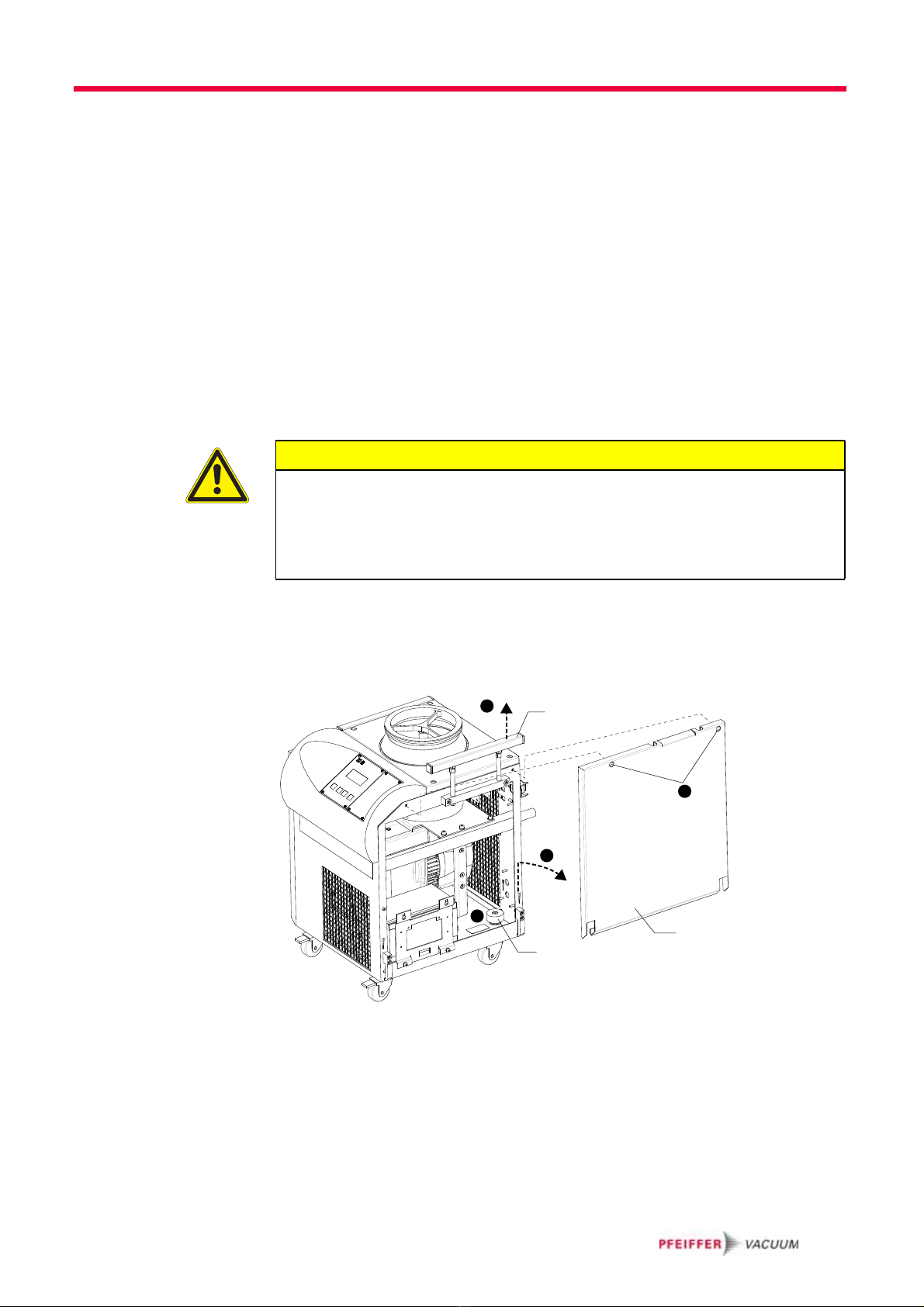

Always transport the pumping station uprightly and as even as possible.
Keep the original protective covers.
Transportation lock The backing pump of the pumping station HiCube Classic is secured against dam-
age during transport.
Follow instructions concerning the installation location!
Before putting into operation loosen the backing pump's transportation lock de-
vice at the installation location.
3.2 Storage
Close the flange openings by using the original protective covers.
Close further connection ports by using the corresponding protective covers.
Only store the pumping station indoors at an ambient temperature
between -25 °C and +55 °C.
In rooms with moist or aggressive atmospheres, the pumping station must be
airproof shrink-wrapped in a plastic bag together with a bag of dessicant.
WARNING
Danger from falling and swinging loads!
When lifting the pumping station there is a danger of falling parts.
Only fix a lifting device for transport on the provided eye bolts of the high vacuum
flange of the turbopump.
Make sure that there are no persons under the suspended load.
Only lift the pumping station with the handles manually.
CAUTION
Risk of injury due to the pumping station's tipping or or rolling away
Superstructural parts provided by customer can shift the pumping station's center of
gravity, creating a risk of tipping. On inclined planes, there are general risks of tipping
and injury due to squeezing from rolling pumping stations.
Do not transport or move pumping stations with superstructural parts.
Do not transport or position a pumping station on inclined planes with a downgrade
> 5° (approx. 8.7%).
60° max

7
Product description

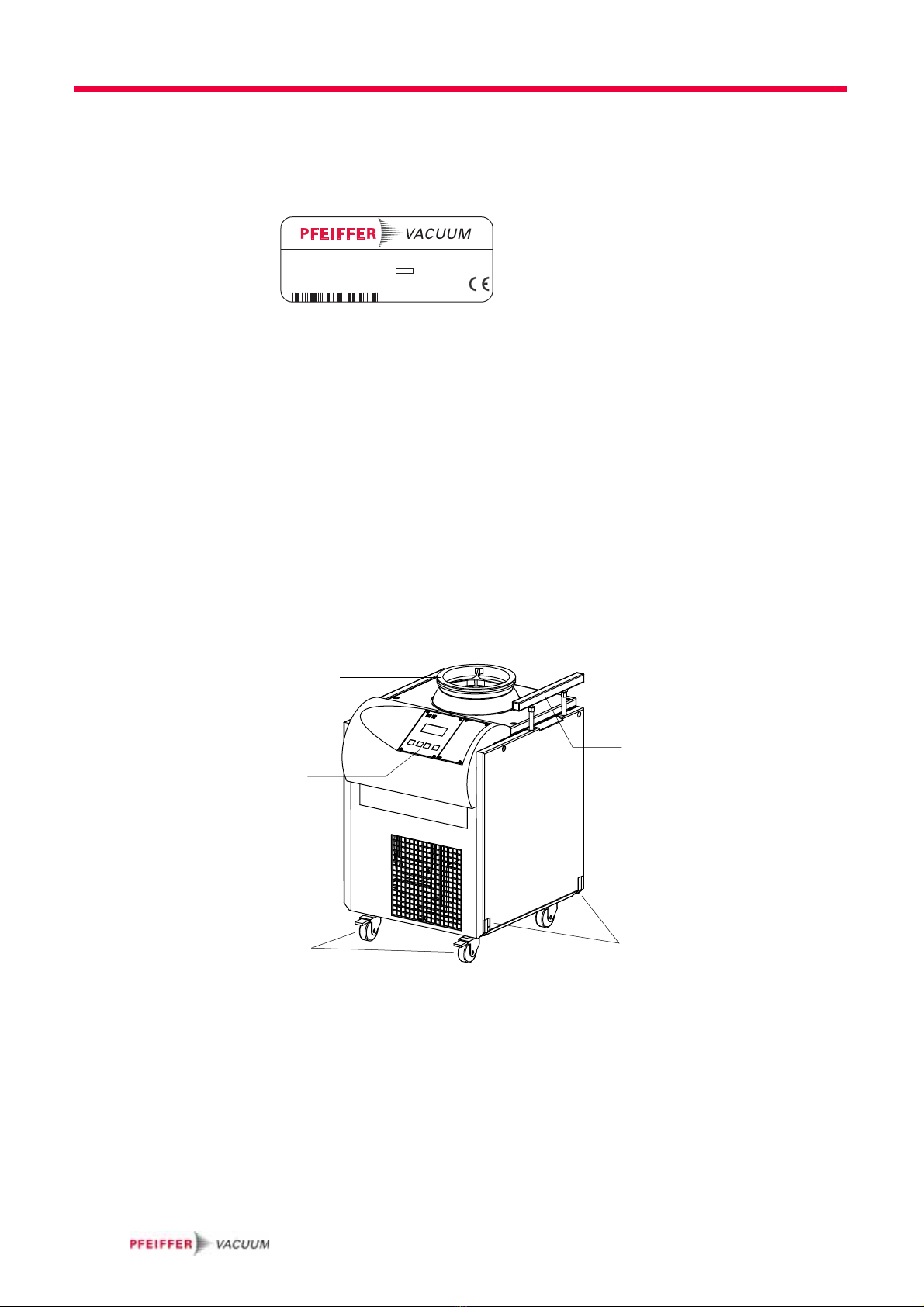

4Productdescription
Fig. 1: Selection of Turbopumps and Backing Pumps for HiCube Classic
HiPace 700
HiPace 400
HiPace 300
HiPace 80
DCU
TPS
DUO 5 M
DUO 2.5
MVP 015-2
MVP 040
MVP 070
Feature HiCube Classic Operating
Instructions
HV Flange DN 40 / DN 63 DN 100 DN 160
Tu rb o pu mp HiPace 80 HiPace 300 HiPace 400 HiPace 700
PT 0208 BN
PT 0200 BN
PT 0209 BN
PT 0210 BN
Electronic Drive Unit TC 110 TC 400 TC 400 TC 400
PT 0204 BN
PT 0203 BN
Venting Valve yes yes yes yes PT 0228 BN
Backing Pump: Diaphragm
Pump
MVP 015-2
MVP 040
MVP 070
MVP 015-2
MVP 040
MVP 070
MVP 040
MVP 070
MVP 040
MVP 070
PU 0012 BN
PU 0050 BN
PU 0050 BN
Backing Pump: Rotary Vane
Pump
DUO 2.5
DUO 5 M
DUO 2.5
DUO 5 M
DUO 2.5
DUO 5 M
DUO 2.5
DUO 5 M
PK 0152 BN
PK 0197 BN
Casing Heating
(water cooling required)
optional, only
with CF flange
optional, only
with CF flange
optional, only
with CF flange
optional, only
with CF flange PT 0233 BN
Display Control Unit DCU 002 DCU 002 DCU 002 DCU 002 PT 0250 BN
Mains Pack TPS 110 TPS 310 TPS 400 TPS 400 PT 0199 BN

8
Product description
4.1 Product identification
Product features To corr e c tly i dent ify t he prod u ct w hen com m u nicati ng w ith P f eiffer Vacuu m, al-
ways have the information from the rating plate available.
Fig. 2: Example for a rating plate
Scope of delivery •HiCubeClassic
•Onlywithrotaryvanepumpasbackingpump:operatingfluidandfillertube
•Mainscable
•Protectivecoverforthehighvacuumflange
•Operatingmanualsforpumpingstationandindividualcomponents
•Eyebolts
4.2 Function
The turbo pumping stations in the HiCube range are fully automatic pump units
which are ready for connection. The turbo pumping station consists of a portable
or mobile vacuum pumping unit with a turbopump and a specially matched back-
ing pump.
The display and control unit DCU serves to control and monitor the pumping sta-
tion.
Drive Electronic drive unit of the turbopump
Cooling •Aircooling
• Water cooling (optional)
In the case of excess temperature the electronic drive unit reduces the drive power
automatically.
Mod.:
Mod.-No.:
Ser. No.:
115 - 230 V, 50/60 Hz
Wiring diagram PM 061
Made in Germany 2008/09
HiCube Classic
PM S28 250 00 Mass:
D-35614 Asslar
T4 AH
28 kg
Fig. 3: View of HiCube Classic
15 HiPace turbopump
84 Carrying handle
106 Securing hook
127 Display and control unit DCU 002
159 Transport roller (optional)
84
15
159
127
106

9
Product description
4.3 Range of application
The pumping station HiCube Classic must be installed and operated in the follow-
ing ambient conditions.
Installation location weather protected (indoors)
Te m p e r a t u r e +5 °C to +40 °C (up to +35 °C with air cooling)
Protection category IP 20
Protection class I
Relative humidity max. 80 %, at T ≤31 °C, up to max. 50% at T ≤40 °C
Atmospheric pressure: 77 kPa - 106 kPa
Installation altitude 2000 m max.
Degree of pollution 2
Overvoltage category II
Connection voltage TC 24 or 48 VDC ±5%
Limit value for HiPace 80 HiPace 300 HiPace 400 HiPace 700
Permissible magnetic field
max. 3.3 mT 5.5 mT 6 mT 6 mT
Permissible irradiated heat
input 3 W 8 W 14 W 14 W

10
Installation
5 Installation
Fig. 4: HiCube Classic, connections
5.1 Set-up
The installation location is to be chosen so that components that need servicing are
freely accessible at all times. No special foundations or base are necessary for in-
stallation. The unit must not be used outdoors. Conditions are:
•Theambientconditionsspecifiedfortheareaofuse.
•alevel,vibration-freesurface.
•Distancetosidewallsoradjacentdevices:atleast50cm.
• Distance to possible edges of tables: at least 10 cm.
•Whenusingacasingheatingandawatercoolingunitthetemperatureofthe
connected flange of the vacuum chamber must not exceed 120 °C.
• It is not allowed to operate the device in systems where impact-like stresses and
vibrations or periodically forces occur.
5.2 Preparatory work
Ensure sufficient cooling for the pumping station.
When magnetic fields exceeding the approved values a suitable shielding must
be used. Check installation location and consult Pfeiffer Vacuum if needed!
The maximum permissible rotor temperature for the turbopump is 90 °C. If high
temperatures arise for process reasons, the radiated heat input must not exceed
the permissible values. Install suitable screening sheets, if necessary (design in-
formation on request).
3.1 External venting connection (opt.)
25.6 Exhaust connection
125.1 Main switch
125.2 Mains connection
127.3 Feedthrough measuring cable
166 Cooling water connection
167.1 Connection for dryer
175.1 Sealing gas connection (optional)
M
F
G
H
125.1
167.1
167.1
125.2
166
25.6
175.1
3.1
127.3

11
Installation
Anchoring the
pumping station
In the case the rotor of the turbopump suddenly blocs, the resulting torque must
be absorbed via the pumping station frame by the fixture provided by customer.
Anchoring the pumping station is mandatory in order to secure the pumping sta-
tion and the vacuum system. For this purpose, there are 4 securing hooks at the
corners of the pumping station frame.
Lock all pumping station roller brakes.
Fasten the pumping station with lashing straps at all 4 securing hooks.
–Payattentiontothefitandthestressofthestraps;thestraploophastobein
the recess of the securing hook.
–Fastensecurelythelashingstrapsprovidedbycustomerinordertobeable
to hold loads up to 2000 N per anchorage point.
5.3 Connecting the high vacuum side
The assembly of superstructure on the pumping station HiCube Classic is in the op-
erator’s responsibility. The load capacity of the high vacuum flange is specific for
the used turbopump. The gross weight of superstructure on the pumping station
HiCube Classic may not exceed 100 kg!
Observe barycentric shifting by using high or lateral protruding superstructure
(e.g. vacuum chamber). Danger of tilting!
Install the high vacuum flange in accordance with the instructions in the opera-
ting manual of the turbopump.
Ensure the greatest possible cleanliness when installing any high vacuum parts.
Unclean components prolong the pump-down time.
Observe the minimum strengh of 170 N/mm
2
for the flange material.
5.4 Connecting the exhaust side
Prepare the exhaust line provided by customer starting from the pumping stati-
on's casing.
Choose the cross-section of the exhaust line to be at least the size of the nominal
connection diameter of the vacuum pump's exhaust connection.
Piping to the pump must be suspended or supported.
Fig. 5: Anchoring the pumping station
106Securing hooks 159Roller
106
159
4x !
CAUTION
High pressure in the exhaust line!
Danger of damage to the seals and danger of the pump bursting.
Install the line without shut-off valves on the exhaust side.
Pumpe nicht mit Überdruck am Einlass betreiben; max. zulässige Drücke und Druck-
differenzen beachten.

12
Installation
–Physicalforcesfromthepipingsystemmustnotbeallowedtoactonvacuum
pumps.
Lay piping from the pump sloping downward so that no condensate can flow
back into the pump; otherwise fit a condensate separator.
–Ifanairtrapiscreatedinthesystem, then a device for draining condensation
water must be provided at the lowest point.
5.5 Connecting to the mains power supply
Plug the mains cable into the the mains connection on the rear side of the pum-
ping station and fix it with the clip.
Connect the mains cable to the mains.
5.6 Connecting accessories
•Anaircoolingunitisintegratedinthecasingofthepumpingstationandissui-
table for ambient temperatures up to +35 °C.
• A venting valve is installed and connected to the turbopump.
Generally use water cooling if the ambient temperature is > +35 °C.
Connect additional accessories according to the operating manual of the turbo-
pump.
WARNING
Ensure safe electrical installation
Safe operation after installation is the responsibility of the operator.
Do not independently modify or change the pump and electrical equipment.
Make sure that the system is integrated in an emergency off safety circuit.
Always ensure a safe connection to the protective earthing conductor (PE, protection
class I).
Consult Pfeiffer Vacuum for special requirements.
NOTE
Installation and operation of accessories
Pfeiffer Vacuum pumps can be equipped with a series of adapted accessories. The
installation, operation and maintenance of connected devices are described in detail in
the operating instructions of the individual components.
For information on the operating instructions of components, see "Accessories".
Use original accessory parts only.
CAUTION
Dangerous excess temperatures
Process-related high temperatures can result in impermissible excess temperatures
and thus damage to the turbopump.
Always use water cooling when a casing heating unit is used or when the pump is
connected to a heated vacuum chamber.

13
Installation
Connecting a measu-
ring device
The connection of a measuring gauge (e.g. Pfeiffer Vacuum ActiveLine) is possible
to the display and control unit DCU.
Lift the carrying handle.
Loosen two retaining screws each from a side panel.
Remove the side panel:
–Liftthesidepanelapprox.2-3cmfromits adjustment and tilt it outwards.
–Disconnecttheearthingcablefromtheterminalsocketofthesidepanel.
–Removethesidepanelfromthepumpingstation.
Unscrew the retral perforated plate from the casing of the pumping station (6x
Allen head screw 59).
Run the measuring cable via the measuring connection into the interior of the
pumping station.
Plug the measuring cable in the connection X3 of the DCU.
Settings are possible with the extended parameter set at the DCU.
Fig. 6: HiCube Classic, Running a measuring cable
29 Perforated plate
59 Allen head screw
78 Side panel
127 Display and control unit
127.1 Measuring gauge
127.4 Measuring cable
M
59(6x)
127.1
127.4
127
78
29

14
Installation
5.7 Connecting an external turbopump
Depending on the configuration the turbopump can be operated seperately from
the pumping station. Please observe the following information!
Install the turbopump according to its operating instructions.
Open the casing of the pumping station if necessary.
Extend necessary control leads for the electronic drive unit of the turbopump
using Pfeiffer Vacuum accessories.
Connect the control leads to the electronic drive unit.
Install an air cooling unit (accessories) for the external turbopump and connect
it to the electronic drive unit.
–Usewatercoolingoptionally.
Installing the high va-
cuum flange
Install the high vacuum flange in accordance with the instructions in the opera-
ting manual of the turbopump.
Ensure the greatest possible cleanliness when installing any high vacuum parts.
Unclean components prolong the pump-down time.
Observe the minimum strengh of 170 N/mm
2
for the flange material.
Connecting the fore-
vacuum side
Extend the fore-vacuum line between turbopump and backing pump.
Connect the fore-vacuum line with small-flange components or threaded hose
couplings. Do not narrow the free cross section of the fore-vacuum flange!
With rigid pipe connections: Install bellows for attenuation of vibrations in the
connection line.
NOTE
Operation of the turbopump with the electronic drive unit separatet
The operation of the turbopump with a separated electronic drive unit is only possible
with by using the respective Pfeiffer Vacuum accessories.
WARNING
Danger of the turbopump being torn-off.
If the rotor is suddenly blocked, torques of up to 4200 Nm can occur; if the turbopump
is not properly fastened, it can tear-off.
Precisely follow installation instructions.
Only use original components for the installation.

15
Operation
6Operation
6.1 Commissioning
The following important settings are programmed in the electronic drive unit ex
factory.
•Controlmax.run-uptime:8min
•Gasmode:0=heavygases
•Rotationspeedswitchpoint:80% of the nominal roation speed
•Ventingrotationspeedatdelayedventing:50%ofthenominalrotationspeed
•Ventingtime:3600s
Loosen the transportation lock before first-time starting.
When water cooling is used: Open cooling water supply and check the flow.
When sealing gas is used: Open the sealing gas supply and check the flow.
Transportation lock Turbo pumpin g stations of the HiCube Classic line are equipped with transporta-
tion lock for the backing pumps (see label). The transportation lock consists of two
opposing knurled screws with spring suspension which fasten the backing pump's
bottom plate.
Lift the carrying handle.
Loosen two retaining screws each from a side panel.
Remove the side panel:
–Liftthesidepanelapprox.2-3cmfromits adjustment and tilt it outwards.
–Disconnecttheearthingcablefromtheterminalsocketofthesidepanel.
–Removethesidepanelfromthepumpingstation.
Loosen the knurled screw of the transportation lock.
CAUTION
Danger of the pump being destroyed
Pumping of gases with the molecular mass> 39 in the wrong gas mode can lead to
destruction of the pump.
Ensure the gas mode is correctly set.
Contact Pfeiffer Vacuum before using gases with a greater molecular mass (> 80).
Fig. 7: Transportation lock for HiCube Classic
78 Side panel 84 Handle 93 Transportation lock
78
84
93
3
4
1
2

16
Operation
Place the side panel in position.
–Payattentiontotheearthingcable!
Similarly loosen the transportation lock on the opposite side.
Filling up the opera-
ting fluid
Only applies to HiCube with rotary vane pump as backing pump!
•Theoperatingfluidreservoirisalready filled and installed for the turbopump.
•Theoperatingfluidfortherotaryvanepumpisenclosedwiththedelivery.
Lift the carrying handle.
Loosen two retaining screws each from a side panel.
Remove the side panel:
–Liftthesidepanelapprox.2-3cmfromits adjustment and tilt it outwards.
–Disconnecttheearthingcablefromtheterminalsocketofthesidepanel.
–Removethesidepanelfromthepumpingstation.
Fig. 8: Filling the backing pump with operating fluid
Unscrew operating fluid filler screw 25.1.
Unscrew the operating fluid bottle's screw plug and screw the filler tube (both
included in the equipment pack).
Insert the filler tube into the rotary vane pump's filler opening.
Fill operating fluid according to rotary vane pump operating instructions.
Screw in operating fluid filler screw 25.1.
Check fill level: The correct fill level is between the markings on the sight glass.
–Ifthefilllevelhasdroppedbelowthe"Min"marking,addoperatingfluid.
Place the side panel in position.
–Payattentiontotheearthingcable!
6.2 Operation modes
The following operation modes are available:
•OperationviaRS485andPfeifferVacuumdisplayandcontrolunitsorPC
25 Backing Pump: Rotary Vane Pump
25.1 Filler Opening/Filler Screw
25.4 Operating Fluid Bottle
25.5 Filler Tube
25
25.5
25.1
25.4

17
Operation
6.3 Function description
Operation with DCU Consider the following manuals for the operation via Pfeiffer Vacuum display
and control units:
•Operatinginstructions"DCU"
•Operatinginstructions"Electronicdriveunit"
Switch on the mains supply via the main switch.
Switch on the pumping station via button "ON/OFF" on the DCU 002.
Settings are possible with the extended parameter set at the DCU.
Settings are possible via the RS485 by using DCU, HPU or PC.
Use of the DCU as a remote control
The display and control unit can be removed from the pumping station and used
as a remote control.
Switch off the pumping station at the master switch.
Disconnect the mains plug.
Unscrew and remove the 4 fastening screws with washers from the front panel
of the display and control unit.
Lift out the display and control unit from the casing.
–Becarefulofthecasingseal.
Swap the connecting cable between the display and control unit and the electro-
nic drive unit marked "RS 485" for a longer M12 interface cable (accessory).
6.4 Saving energy
Depending on the power consumption of the turbopump the electronic drive unit
controls the backing pump operation (type dependant). A relation to the supplied
fore-vacuum pressure is derived from the power consumption. Control of the back-
ing pump can reduce the overall power consumption of the pumping station and
the operating temperature of the backing pump as well.
•Intermittendmodeonlyfordiaphragmpumps
•NocontrolforDuoLine
The diaphragm pump is switched on and off in dependence of the turbopump's
power consumption. The switching thresholds for the backing pump are adjustable
via the DCU. Fluctuations in the power consumption of idling turbopumps and
type-dependent varying fore-vacuum pressures of the backing pumps require the
switching thresholds to be set separately for the intermittend mode.
Parameter [P:794] = 1 (Displaying the extended parameter set at the DCU)
Parameter [P:025] = 1 (Intermittend operation).
Configure thresholds [P:710] and [P:711] according to the operating instruc-
tions "Electronic Drive Unit".
WARNING
Danger due to open high vacuum flange
The rotor of the turbopump turns at high speed. If the high vacuum flange is open,
there is a danger of cut injuries and that the pump can be destroyed by objects falling
into it.
Never operate the pump with an open high vacuum flange.

18
Operation
6.5 Operation with gas ballast valve
Steam or moisture from pumped media can condense in the vacuum pump and
hence impair the suction performance.
Letting in gas ballast improves the discharge of condensate, and the pump
achieves the specified final vacuum more quickly. The gas ballast valve can be re-
placed with a flushing gas connection if necessary.
For operation with gas ballast, please refer to the operating manual for the ba-
cking pump.
6.6 Operation with fore-vacuum valve
The fore-vacuum safety valve (optional accessory) is located in the fore-vacuum
line between the turbopump and the backing pump. It protects the process vacuum
and the turbopump from inadvertent venting upon stillstand of the pumping sta-
tion (backing pump) or power failure. The valve is closed currentless.
•Pumpingstation"On"=Fore-vacuumsafetyvalveopen
•Pumpingstation"Off"=Fore-vacuumsafetyvalveclosed
6.7 Switching off and venting
Switching off After the turbopump is switched off, it must be vented to avoid contamination due
to particles streaming back from the fore-vacuum area.
Switch off the pumping station via the "ON/OFF" button on the DCU.
Venting (possibilities, see below)
Switch off the pumping station at the master switch.
For water cooling: Shut off the water supply.
Venting Venting with P feiffer Vacuum Venting Va lve
Enable venting via the functions of the electronic drive unit.
Settings are possible via the RS485 by using DCU, HPU or PC.
1)When mains power is restored the venting procedure is aborted.
Basic information for the rapid venting
Venting of the vacuum chamber in two steps. Ask for details on individual solutions
from Pfeiffer Vacuum.
Vent for 20 seconds at a rate of pressure rise of max. 15 mbar/s.
–Thevalvecrosssectionfortheventingrateof15mbar/smustbeadaptedto
the size of the vacuum chamber.
–Forsmallvacuumchambers,usethePfeifferVacuumventingvalve.
Then vent with an additional venting valve of any desired size.
WARNING
Risk of electric shock
The pumping station is only free of voltages when the mains plug has been disconnec-
ted.
Switch off the master switch and disconnect the mains plug before all work.
Ve n ti n g ro ta ti o n s p ee d Sw it ch o ff th e pu m pi n g s t at i on M ai n s p owe r fa il u re
1)
50% of the nominal rotation
speed
Ve nt i ng va lv e o pe n s f or 3 6 0 0 s ( 1 h,
works setting)
Venting valve opens for
3600 s (1 h, works setting)

19
Maintenance / replacement
7Maintenance/replacement
7. 1 M a i n t e n a n c e i n t e r v a l s a n d r e s p o n s i b i l i t i e s
• Clean the pumping station externally with a lint-free cloth and little industrial al-
cohol.
•Carryouttherequiredmaintenanceonthecomponentsofthepumpingstation
in accordance with the instructions in the individual operating manuals.
•Clarifyshorterchangeintervalsforextremeloadsorimpureprocesseswith
Pfeiffer Vacuum Service.
•Forallothercleaning,maintenanceorrepairwork,pleasecontactyourPfeiffer
Vacuum ser vice locatio n.
WARNING
Contamination of parts and operating fluid by pumped media is possible.
Poisoning hazard through contact with materials that damage health.
In the case of contamination, carry out appropriate safety precautions in order to pre-
vent danger to health through dangerous substances.
Decontaminate affected parts before carrying out maintenance work.
NOTE
Disclaimer of liability
Pfeiffer Vacuum accepts no liability for personal injury or material damage, losses or
operating malfunctions due to improperly performed maintenance. The liability and
warranty entitlement expires.
WARNING
Risk of electric shock
The pumping station is only free of voltages when the mains plug has been disconnec-
ted.
Switch off the master switch and disconnect the mains plug before all work.

20
Maintenance / replacement
7. 2 R e m o v a l o f c o m p o n e n t s f o r t h e i r m a i n t e n a n c e
In some cases, components may need to be dismantled from the pumping station
so that customers can carry out necessary maintenance work on them (they should
then be reassembled in reverse order).
Dismantling connec-
tions
Switch off the pumping station at the master switch.
Disconnect the mains plug.
Remove the connector plug from the electronic drive unit.
Dismantling the
casing panels
The casing panels are fixed with quick release screws.
Loosen four quick release screws from the casing cover.
Remove the casing cover.
–Disconnecttheearthingcablefromtheterminalsocketofthecasingcover.
Lift the carrying handle.
Loosen two retaining screws each from a side panel.
Remove the side panel:
–Liftthesidepanelapprox.2-3cmfromits adjustment and tilt it outwards.
–Disconnecttheearthingcablefromtheterminalsocketofthesidepanel.
–Removethesidepanelfromthepumpingstation.
NOTE
Note the factory settings.
The accessory connections on the turbopump have been preconfigured at the factory.
If the control lines on the connector are mixed up, this can cause the pumping station
to malfunction or fail.
Do not mix up the control lines.
Accessory connections can be configured for operation with the DCU.
–Formoreinformationrefertotheoperatinginstructionsfortheelectronicdri-
ve unit of the turbopump.
Fig. 9: HiCube Classic, dismantling the casing panels
11 Casing cover 78 Side panel 1 79 Side panel 2
78
79
11
