Pfeiffer Vacuum HEPTA 950 L Owner's manual

SUPPLEMENTARY INFORMATION
EN
Translation of the Original
HEPTA 950 L
Screw pump with integrated frequency converter

Dear Customer,
Thank you for choosing a Pfeiffer Vacuum product. Your new screw pump is designed to
support you with its performance, perfect operation and without impacting your individual
application. The name Pfeiffer Vacuum stands for high-quality vacuum technology, a
comprehensive and complete range of top-quality products and first-class service. With this
expertise, we have acquired a multitude of skills contributing to an efficient and secure
implementation of our product.
Knowing that our product must not interfere with your actual work, we are convinced that our
product offers you the solution that supports you in the effective and trouble-free execution of
your individual application.
Please read these operating instructions before putting your product into operation for the
first time. If you have any questions or suggestions, please feel free to contact info@pfeiffer-
vacuum.de.
Further operating instructions from Pfeiffer Vacuum can be found in the Download Center on
our website.
Disclaimer of liability
These operating instructions describe all models and variants of your product. Note that your
product may not be equipped with all features described in this document. Pfeiffer Vacuum
constantly adapts its products to the latest state of the art without prior notice. Please take
into account that online operating instructions can deviate from the printed operating
instructions supplied with your product.
Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from
the use of the product that contradicts its proper use or is explicitly defined as foreseeable
misuse.
Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/44

Table of contents
1 About this manual 5
1.1 Validity 5
1.1.1 Applicable documents 5
1.1.2 Variants 5
1.2 Conventions 5
1.2.1 Instructions in the text 5
1.2.2 Stickers on the product 5
1.2.3 Abbreviations 6
1.3 Trademark proof 6
2 Safety 7
2.1 General safety information 7
2.2 Safety instructions 7
3 Product description 9
3.1 Functional description of frequency converter 9
3.2 Functional description of remote control 9
4 Installation 11
4.1 Connect to mains power supply 11
4.2 Connect the power supply to the frequency converter 12
4.3 Establishing an electrical connection 13
4.3.1 Connection diagram 13
4.3.2 Digital inputs and outputs 13
4.4 Connect remote control 16
4.5 Install software 17
5 Operation 18
5.1 Commission frequency converter 18
5.2 Adjusting rotation speed 18
6 User-defined parametrization 19
6.1 Deactivate frequency converter 19
6.2 Save parameter settings 19
6.3 Resetting parameters to factory settings 20
7 Set parameters 22
7.1 Pre-set basic parameters 22
7.2 Set Start/Stop functions 22
7.3 Fixed frequency of digital inputs 23
7.3.1 Rotational speed control: 1 fixed frequency with min. frequency 23
7.3.2 Rotational speed control: 3 fixed frequency with min. frequency 24
7.3.3 Rotational speed control: 7 fixed frequency with min. frequency 25
7.4 Set rotational speed control via analog inputs 26
7.4.1 Set rotation speed control for internal potentiometer 26
7.4.2 Voltage inputs for analog input 1 26
7.4.3 Current input for analog input 1 28
7.4.4 Voltage inputs for analog input 2 30
7.4.5 Current input for analog input 2 31
7.5 PID process control 33
7.5.1 Setting PID process controller 34
7.5.2 Standby function PID process control 36
7.6 Activate frequency converter 36
8 Malfunctions 38
8.1 LED flashing codes for malfunction detection 38
8.2 Troubleshooting 39
Table of contents
3/44

9 Accessories 41
10 Technical data 42
Table of contents
4/44

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
This document applies to the following devices:
●Hepta 950 L with frequency converter drive
This supplementary information describes important deviations from the standard product and is valid
only in conjunction with the valid operating instructions.
1.1.1 Applicable documents
Document Number
Operating instructions for Hepta 950 L PU 0089 BN
Supplementary information for INVEOR MMI hand-held unit PU 0093 BN
Declaration of Conformity for INVEOR M frequency converter www.kostal-industrie-elektrik.com
Current documents are available from the Pfeiffer Vacuum Download Center.
1.1.2 Variants
Frequency converter/output Mains connection voltage
Installation size D/22 kW 400 – 480 V AC, 50/60 Hz
Tbl. 1: Product variants
1.2 Conventions
1.2.1 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
1.2.2 Stickers on the product
This section describes all the stickers on the product along with their meanings.
About this manual
5/44

KOSTAL Industrie Elektrik GmbH
Lange Eck 11, D-58099 Hagen
[phone]
www.kostal.com/industrie
S-No.: 90549NDO00001
INV MD4 22.00 L02 A00-go 2004 S00 000 1
Input: 3 AC 400V -15%, 480 V +10%
Output: 3 AC PE 0
IP55
Power Conversion Equipment
E305837 4RH6
Art.-Nr.: 10102296 (00)
HW: 00 SW: 03 70
WE: 14 11 12 00
Rating plate (example)
Rating plate of frequency converter
Tbl. 2: Stickers on the product
1.2.3 Abbreviations
Abbreviation Explanation
AWG American Wire Gauge
DC Direct Connect (peer-to-peer file sharing)
EMC Electromagnetic compatibility
FC Frequency converter
GND Ground
HW Hardware enable
HMI Remote control (human-machine-interface)
SP Setpoint
PLC Programmable logic controller
PC Personal Computer
UL Underwriters Laboratories
Tbl. 3: Abbreviations used
1.3 Trademark proof
●INVEOR® is a registered trademark of KOSTAL Industrie Elektrik GmbH.
●Windows® is a registered trademark of Microsoft Corporation.
About this manual
6/44

2 Safety
2.1 General safety information
The following 4 risk levels and 1 information level are taken into account in this document.
DANGER
Immediately pending danger
Indicates an immediately pending danger that will result in death or serious injury if not observed.
►Instructions to avoid the danger situation
WARNING
Potential pending danger
Indicates a pending danger that could result in death or serious injury if not observed.
►Instructions to avoid the danger situation
CAUTION
Potential pending danger
Indicates a pending danger that could result in minor injuries if not observed.
►Instructions to avoid the danger situation
NOTICE
Danger of damage to property
Is used to highlight actions that are not associated with personal injury.
►Instructions to avoid damage to property
Notes, tips or examples indicate important information about the product or about this docu-
ment.
2.2 Safety instructions
Risks during installation
DANGER
Danger to life from electric shock
Touching exposed and voltage-bearing elements causes an electric shock. Improper connection of
the mains supply leads to the risk of touchable live housing parts. There is a risk to life.
►Before the installation, check that the connection leads are voltage-free.
►Make sure that electrical installations are only carried out by qualified electricians.
►Provide adequate grounding for the device.
►After connection work, carry out an earthed conductor check.
DANGER
Danger to life from electric shock
Risk of electric shock when working on the frequency converter and motor. There is a risk to life!
►Make sure that electrical installations are only carried out by trained electricians who are familiar
with the relevant safety instructions for electrical safety and EMC.
Safety
7/44

DANGER
Danger to life from electric shock in case of contact with the frequency converter
High voltages are present at the terminals and inside the frequency converter after disconnecting the
power supply. There is a risk of electric shock if touched.
►Before working on the frequency converter, disconnect the mains cable from the mains power
supply.
►Wait at least 10 minutes after switching off the frequency converter before you start work.
►Provide adequate grounding for the device.
►Prior to installation, check that the connection leads and terminals are voltage-free.
►After connection work, carry out an earthed conductor check.
WARNING
Risk of fatal injury due to electric shock on account of incorrect installation
The device's power supply uses life-threatening voltages. Unsafe or improper installation can lead to
life-threatening situations from electric shocks obtained from working with or on the unit.
►Ensure safe integration into an emergency off safety circuit.
►Do not carry out your own conversions or modifications on the unit.
Risks during operation
CAUTION
Risk of unintentional start-up
Depending on the configured parameter settings, the motor may start up in an uncontrolled manner
when the power supply is switched on. There is a risk of injury to fingers and hands (e.g. hematoma),
in case of direct contact with the vacuum flange.
►Make sure that the motor starting up does not cause a hazardous situation.
►Maintain sufficient distance to the vacuum flange during all work.
Risks during parametrization
DANGER
Danger to life from electric shock
Risk of electric shock when working on the frequency converter and motor. There is a risk to life!
►Make sure that electrical installations are only carried out by trained electricians who are familiar
with the relevant safety instructions for electrical safety and EMC.
Safety
8/44

3 Product description
3.1 Functional description of frequency converter
The frequency converter (INVEOR M drive controller) controls the speed of three-phase motors on
Pfeiffer Vacuum screw pumps. The frequency converter is fastened to the motor by means of an adapt-
er plate, and wired to the terminal box.
2
1
43
Fig. 1: Frequency converter design
1 Frequency converter 3 Connection for remote control (MMI)
2 Rotary potentiometer 4 Power connection
3.2 Functional description of remote control
Observe the operating instructions for the remote control
A detailed description for operation of the remote control (hand-held unit MMI) can be ob-
tained in the associated operating instructions from Kostal at www.kostal-industrie-elek-
trik.com .
The remote control (INVEOR hand-held unit MMI) provides an alternative to the PC software for com-
missioning, parameter adjustment and for servicing purposes.
1
2
3
4
5
6
Fig. 2: Layout of remote control
1 Display 4 Power supply plug
2 Navigation: up, down, left, right 5 Stop key
3 Start key 6 Acknowledge key (2x)
Key Function
Navigation: up, down Select parameter, change values
Navigation: left, right Navigation cursor
Product description
9/44

Key Function
Acknowledge keys Confirm command shown on display
Start/Stop key Start or stop motor
Tbl. 4: Control and entry
Command, order Version
Continue Call parameter and submenu
Back Up 1 menu level
Break off, interruption Terminate entry without storing
Change Call change mode (cursor is flashing)
Store (to) Store selection, entry and change
Acknowledge Store selected parameter set
Start Command for motor identification
Tbl. 5: Commands
Entry Version
Show 10th/100th/1000th
decimal position
Continue to press “left” arrow key until the desired position is shown
Show decimal point Continue to press “right” arrow key until desired decimal place ap-
pears
Show minus values Place cursor on plus symbol and press “up” arrow key to select and
store minus symbol
Tbl. 6: Entry
Product description
10/44

4 Installation
4.1 Connect to mains power supply
DANGER
Danger to life from electric shock
Touching exposed and voltage-bearing elements causes an electric shock. Improper connection of
the mains supply leads to the risk of touchable live housing parts. There is a risk to life.
►Before the installation, check that the connection leads are voltage-free.
►Make sure that electrical installations are only carried out by qualified electricians.
►Provide adequate grounding for the device.
►After connection work, carry out an earthed conductor check.
DANGER
Danger to life from electric shock
Risk of electric shock when working on the frequency converter and motor. There is a risk to life!
►Make sure that electrical installations are only carried out by trained electricians who are familiar
with the relevant safety instructions for electrical safety and EMC.
DANGER
Danger to life from electric shock in case of contact with the frequency converter
High voltages are present at the terminals and inside the frequency converter after disconnecting the
power supply. There is a risk of electric shock if touched.
►Before working on the frequency converter, disconnect the mains cable from the mains power
supply.
►Wait at least 10 minutes after switching off the frequency converter before you start work.
►Provide adequate grounding for the device.
►Prior to installation, check that the connection leads and terminals are voltage-free.
►After connection work, carry out an earthed conductor check.
WARNING
Risk of fatal injury due to electric shock on account of incorrect installation
The device's power supply uses life-threatening voltages. Unsafe or improper installation can lead to
life-threatening situations from electric shocks obtained from working with or on the unit.
►Ensure safe integration into an emergency off safety circuit.
►Do not carry out your own conversions or modifications on the unit.
Avoid electromagnetic interferences
►Ensure that control cables are routed separately from mains cable and motor cable in order to
guarantee immunity to interference.
►Always use shielded cables for analog control circuits where possible.
–Pfeiffer Vacuum recommends EMC cable glands.
►Ensure that no parasitic currents (compensating currents etc.) are permitted to flow through the
shielding of an analog control cable.
►Lay control cables as far as possible from conducting cables.
–Use separate power channels as required.
►In the event of potential cable crossings, maintain an angle of 90° where possible.
►Ensure that switch elements connected upstream, such as contactors and brake coils or switching
elements, remain fault-free whenever these are switched via outputs of the frequency converter.
►Attach the interference suppressor directly to the contactor coils.
–Pfeiffer Vacuum recommends RC-circuitry for alternating current contactors.
►Use freewheeling diodes or varistors for direct current contactors.
Installation
11/44

4.2 Connect the power supply to the frequency converter
1
2
6
5
4
3
PEL1 L2 L3
VFD
L1
L2
L3
PE
M
Fig. 3: Connect the power supply to the frequency converter
1 Screw (4x) 4 Terminal
2 Cover 5 Cable gland
3 Bottom part 6 Grounding cable
Procedure
1. Remove all screws from cover.
2. Remove cover from bottom part.
3. Leave grounding cable between cover and terminals connected.
4. Feed power supply cable through cable gland.
5. Connect lines at terminals X1 and X4.
–Tightening torque: 4 Nm
6. Refit cover after concluding this work.
7. Secure cover by tightening all screws.
Pin Function
L1 Mains phase 1
L2 Mains phase 2
L3 Mains phase 3
PE Earthed conductor
Tbl. 7: Pin assignment 3 x 400 VAC, terminal X1
Pin Function
L1 DC mains (+)
L2 Unassigned
L3 DC mains (-)
PE Earthed conductor
Tbl. 8: Pin assignment DC feed 565 V, terminal X1
Installation
12/44

Pin Function
PE Earthed conductor
U Motor phase 1
V Motor phase 2
W Motor phase 3
Tbl. 9: Pin assignment motor connection, terminal X4
4.3 Establishing an electrical connection
4.3.1 Connection diagram
Fig. 4: Overview of frequency converter control connections
4.3.2 Digital inputs and outputs
The parameters are pre-set.
Fig. 5: Overview of digital inputs and outputs
Connection terminals Plug-in terminal connection with push actuator (flat-head screwdriver,
max. width 2.5 mm)
Connection cross section 0.5 to 1.5 mm², single wire, AWG 20 to AWG 14
Connection cross section 0.75 to 1.5 mm², fine wire, AWG 18 to AWG 14
Installation
13/44

Connection cross section 0.5 to 1.0 mm², fine wire (wire end ferrules with and without plastic col-
lars)
Stripping length 9 to 10 mm
Tbl. 10: Control terminals X5 – X7
Input Assignment
Digital input 1 – 4 ● Switching level Low < 2 V / High > 18 V
● Imax (at 24 V) = 3 mA
● Rin = 8.6 kOhm
Hardware enable
input
● Switching level Low < 3 V / High > 18 V
● Imax (at 24 V) = 8 mA
Analog inputs 1, 2 ● In +/- 10 V or 0 – 20 mA
● In 2 – 10 V or 4 – 20 mA
● Resolution 10 bit
● Tolerance +/- 2%
● Voltage input: Rin = 10 kOhm
● Current input: Load impedance = 500 ohm
Digital outputs 1, 2 ● Short-circuit-proof
● Imax = 20 mA
Relay 1, 2 ● 1 change-over contact (NO/NC)
● Maximum switching power (max. 2 A according to UL standard 508C)
- with ohmic load (cos ϕ = 1): 5 A at ~ 230 V or = 30 V
- with inductive load (cos ϕ = 0.4 and L/R = 7 ms): 2 A at ~ 230 V or = 30
V
● Maximum response time: 7 ms ± 0.5 ms
● Electric service life: 100,000 switching cycles
Analog output 1
(current)
● Short-circuit-proof
● I out = 0...20 mA
● Load impedance = 500 ohm
● Tolerance +/- 2%
Analog output 1
(voltage)
● Short-circuit-proof
● U out = 0..10 V
● Imax = 10 mA
● Tolerance +/- 2%
Voltage supply 24 V ● Auxiliary voltage U = 24 V DC
● SELV
● Short-circuit-proof
● Imax = 100 mA
● External infeed of 24 V possible
Voltage supply 10 V ● Auxiliary voltage U = 10 V DC
● Short-circuit-proof
● Imax = 30 mA
Tbl. 11: Interface specification
Fig. 6: Overview of digital inputs A
Installation
14/44

Pin Assignment
A. Out 0 ... 20 mA Frequency actual value
10 V Out External voltage conductor
A. Out 0 ... 10 V Frequency actual value
A GND (GROUND 10 V) Mass
A. In 1 PID actual value
A. In 2 Free (unassigned)
Tbl. 12: Pin assignment of digital inputs A
Fig. 7: Overview of digital inputs
Pin Assignment
24 V In External voltage supply
GND Mass
24 V Out Internal voltage supply
Dig. In 1 Setpoint enable
Dig. In 2 Free (unassigned)
Dig. In 3 Free (unassigned)
Dig. In 4 Reset error
En-HW Hardware enable
Tbl. 13: Pin assignment of digital inputs
Installation
15/44

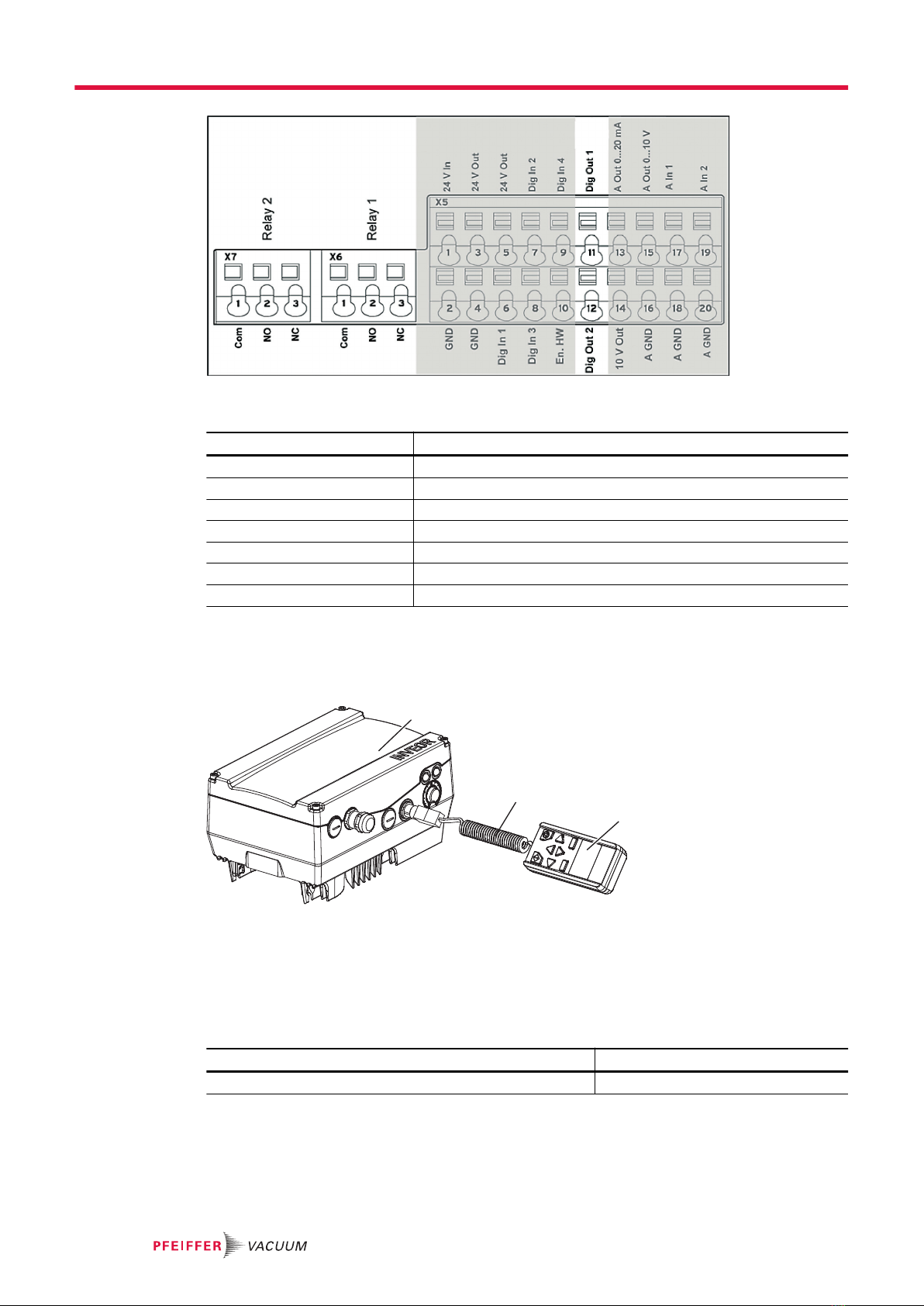

Fig. 8: Overview of digital outputs
Pin Assignment
Dig. Out 1 Error message
Dig. Out 2 Free (unassigned)
Relay 1 Error message
Relay 2 Free (unassigned)
COM Mid-position contact
NO Normally-open contact
NC Normally-closed contact
Tbl. 14: Pin assignment of digital outputs
4.4 Connect remote control
1
2
3
Fig. 9: Remote control (HMI) for frequency converter
1 Frequency converter 3 HMI
2 Connecting cable
Connecting the frequency converter
►Attach 24 V DC control terminals to "En. HW" (hardware enable) port.
Pin Function
En. HW –> 24 V Out Enable drive
Tbl. 15: Frequency converter control terminals (hardware)
Installation
16/44

Setting up the remote control (MMI)
1. Set the setpoint source to "3: MMI/PC" and save setting:
–02.Parameter groups > Basic parameters > Setpoint source.
2. Set the WAF release to "9: Autostart" and save the setting:
–02.Parameter groups > Basic parameters > WAF enable.
3. In the menu "40: Control", use the arrow keys to define a setpoint in %.
For a more detailed description of HMI remote control installation and operation, please see the associ-
ated operating instructions.
4.5 Install software
Install programming software
●Download the software free of charge from www.kostal-industrie-elektrik.com.
●Required operating system: upwards of Windows 7 [32 / 64 bit]).
●Perform installation process as administrator.
Procedure
1. Install INVERTERpc. Software on your computer.
2. Connect computer to M12 plug of frequency converter using connecting cable.
Installation
17/44

5 Operation
5.1 Commission frequency converter
CAUTION
Risk of unintentional start-up
Depending on the configured parameter settings, the motor may start up in an uncontrolled manner
when the power supply is switched on. There is a risk of injury to fingers and hands (e.g. hematoma),
in case of direct contact with the vacuum flange.
►Make sure that the motor starting up does not cause a hazardous situation.
►Maintain sufficient distance to the vacuum flange during all work.
NOTICE
Property damage resulting from repeated starting and stopping of frequency converter
Repeated connection and disconnection of power supply will damage frequency converter.
►Do not start frequency converter more than a max. 2x per minute.
►Wait for at least 10 minutes before starting frequency converter again.
►Use digital start signal whenever a process requires multiple starts.
Commission frequency converter
1. Start up frequency converter using a PC communication cable with integrated interface converter
RS485/RS232, or via remote control (INVEOR hand-held unit MMI).
5.2 Adjusting rotation speed
1
Fig. 10: Frequency converter with rotary potentiometer
1 Rotary potentiometer
Procedure
►Set setpoint for continuous speed between 1500 rpm and 4500 rpm (25 Hz to 75 Hz).
Operation
18/44

6 User-defined parametrization
6.1 Deactivate frequency converter
Fig. 11: Deactivate frequency converter
Procedure
1. Remove bridge between internal power supply "24 V OUT" and software "En HW".
2. Establish power supply for the frequency converter via 24 VDC power supply or via the mains
power supply.
6.2 Save parameter settings
Save parameter settings
Save ".inveor" file in your database in order to store existing or specific parameters for use
at a later time.
Prerequisites
●Software INVERTERpc installed on computer
●Computer connected with frequency converter via connecting cable
●Frequency converter deactivated
1
2
3
Fig. 12: Save parameter setting
1 Save ".inveor" file 3 Connect software
2 Communication port
User-defined parametrization
19/44

Save parameter list
1. Initiate installed software.
2. Click on "Connect" to connect software with frequency converter.
3. Select communication port of cable.
–Communication port "COM 7".
4. Click “OK” to confirm.
5. Click on "File" -> "Save As" and save ".inveor" file with current parameter settings on your hard
drive.
6. Activate frequency converter following working process.
6.3 Resetting parameters to factory settings
Prerequisites
●Software INVERTERpc installed on computer
●Computer connected with frequency converter via connecting cable
●Frequency converter deactivated
1
2
3
Fig. 13: Reset factory settings
1 Communication port 3 Open folder
2 Load ".inveor" file
Load parameter list
1. Initiate installed software.
2. Click on "Open".
3. Select communication port of cable.
–Communication port "COM 7".
4. Click on "Write" and select ".inveor" file with parameter settings on your hard drive.
5. Wait until all files are loaded.
6. Check motor parameters after loading.
User-defined parametrization
20/44
