Pfeiffer Vacuum HICUBE PRO Series User manual

OPERATING INSTRUCTIONS
EN
Translation of the Original
HICUBE PRO
Turbo pumping stations

Dear Customer,
Thank you for choosing a Pfeiffer Vacuum product. Your new turbo pumping station is
designed to support you by its performance, its perfect operation and without interfering your
individual application. The name Pfeiffer Vacuum stands for high-quality vacuum technology,
a comprehensive and complete range of top-quality products and first-class service. With this
expertise, we have acquired a multitude of skills contributing to an efficient and secure
implementation of our product.
Knowing that our product must not interfere with your actual work, we are convinced that our
product offers you the solution that supports you in the effective and trouble-free execution of
your individual application.
Please read these operating instructions before putting your product into operation for the
first time. If you have any questions or suggestions, please feel free to contact info@pfeiffer-
vacuum.de.
Further operating instructions from Pfeiffer Vacuum can be found in the Download Center on
our website.
Disclaimer of liability
These operating instructions describe all models and variants of your product. Note that your
product may not be equipped with all features described in this document. Pfeiffer Vacuum
constantly adapts its products to the latest state of the art without prior notice. Please take
into account that online operating instructions can deviate from the printed operating
instructions supplied with your product.
Furthermore, Pfeiffer Vacuum assumes no responsibility or liability for damage resulting from
the use of the product that contradicts its proper use or is explicitly defined as foreseeable
misuse.
Copyright
This document is the intellectual property of Pfeiffer Vacuum and all contents of this
document are protected by copyright. They may not be copied, altered, reproduced or
published without the prior written permission of Pfeiffer Vacuum.
We reserve the right to make changes to the technical data and information in this document.
2/80

Table of contents
1 About this manual 7
1.1 Validity 7
1.1.1 Applicable documents 7
1.1.2 Variants 7
1.2 Target group 7
1.3 Conventions 7
1.3.1 Instructions in the text 7
1.3.2 Pictographs 8
1.3.3 Stickers on the product 8
1.3.4 Abbreviations 9
2 Safety 10
2.1 General safety information 10
2.2 Safety instructions 10
2.3 Safety precautions 14
2.4 Limits of use of the product 15
2.5 Proper use 15
2.6 Foreseeable improper use 15
3 Product description 17
3.1 Function 17
3.1.1 Operating interface 17
3.1.2 Drive 18
3.1.3 Cooling 18
3.2 Identifying the product 18
3.3 Product features 19
3.4 Scope of delivery 20
4 Transportation and Storage 21
4.1 Transporting the pumping station 21
4.2 Transport lock 22
4.3 Store pumping station 22
5 Installation 23
5.1 Preparing for set-up 23
5.2 Setting up the pumping station 23
5.3 Anchor pumping station 24
5.4 Connecting the high vacuum side 25
5.4.1 Designing the counter flange 25
5.4.2 Use splinter shield or protective screen 25
5.4.3 Using the vibration compensator 26
5.4.4 Connecting the turbopump externally 26
5.4.5 Installation of ISO-KF flange 27
5.4.6 Attaching ISO-K flange onto ISO-K 27
5.4.7 Installation of ISO-K flange onto ISO-F 27
5.4.8 Attaching CF flange to CF-F 29
5.5 Connect the exhaust side 30
5.6 Remove transportation lock 31
5.7 Fill operating fluid 32
5.8 Connecting accessories 33
5.9 Connecting measuring tubes 35
5.10 Ground pumping station 35
5.11 Connect to the mains power supply 36
6 Operation 37
6.1 Commissioning 37
6.2 Switch on turbo pumping station 38
Table of contents
3/80

6.3 Normal operation 38
6.4 Stand-by operation 39
6.5 Operation with gas ballast 39
6.6 Eliminate condensate load 40
6.7 Operation monitoring 41
6.7.1 Operating mode display via LED 41
6.7.2 Temperature monitoring 41
6.8 Operation with fore-vacuum valve 41
6.9 Switching off and venting 41
6.9.1 Shutting down the turbo pumping station 41
6.9.2 Venting 42
7 Maintenance 43
7.1 General maintenance information 43
7.2 Maintenance intervals and responsibilities 43
7.3 Removing components for maintenance 44
7.3.1 Carry out preparatory work 44
7.3.2 Remove turbo pump 44
7.3.3 Install turbopump 46
7.4 Change the operating fluid 46
8 Decommissioning 48
8.1 Shut down for longer periods 48
8.2 Recommissioning 48
9 Recycling and disposal 49
9.1 General disposal information 49
9.2 Dispose of turbopumps 49
9.3 Dispose of rotary vane pump 49
9.4 Dispose of multi-stage roots pumps 50
9.5 Disposing of the scroll pump 50
10 Malfunctions 51
10.1 General 51
10.2 Troubleshooting 51
10.3 Error codes 52
11 Service solutions by Pfeiffer Vacuum 55
12 Accessories 57
13 Technical data and dimensions 58
13.1 General 58
13.2 Technical data 58
13.2.1Technical data for HiCube 80 Pro 58
13.2.2Technical data HiCube 300 Pro 62
13.2.3Technical data HiCube 300 H Pro 65
13.2.4Technical data HiCube 400 Pro 68
13.2.5Technical data HiCube 700 Pro 71
13.2.6Technical data HiCube 700 H Pro 74
13.3 Dimension drawings 76
Declaration of conformity 78
Table of contents
4/80

List of tables
Tbl. 1: Stickers on the product 8
Tbl. 2: Abbreviations used in this document 9
Tbl. 3: Limits of use for turbopump stations 15
Tbl. 4: Pumping station component combination options 20
Tbl. 5: Requirements for the dimensioning of high vacuum connection supplied by
the customer
25
Tbl. 6: Reduction of the pumping speed when using a splinter shield or protective
screen
26
Tbl. 7: Pre-set accessory connections to electronic drive unit TC 400 34
Tbl. 8: Available Pfeiffer Vacuum transmitters for connection to a DCU 35
Tbl. 9: Factory setting of key parameters on delivery 37
Tbl. 10: Description of the key functions of the DCU 39
Tbl. 11: Pre-set switching thresholds for stand-by operation with ACP and HiScroll
backing pumps
39
Tbl. 12: LED display and meaning at the DCU 41
Tbl. 13: Factory settings for delayed venting in turbopumps 42
Tbl. 14: Preset accessory connections 44
Tbl. 15: Tightening torque for fixation of turbopumps 46
Tbl. 16: Troubleshooting 51
Tbl. 17: Warning and error messages when using the DCU 52
Tbl. 18: Error and warning messages for turbopump electronic drive unit 54
Tbl. 19: Conversion table: Pressure units 58
Tbl. 20: Conversion table: Units for gas throughput 58
Tbl. 21: Technical data HiCube 80 Pro, DN 40 ISO-KF 59
Tbl. 22: Technical data HiCube 80 Pro, DN 40 ISO-KF 60
Tbl. 23: Technical data HiCube 80 Pro, DN 63 ISO-K 60
Tbl. 24: Technical data HiCube 80 Pro, DN 63 ISO-K 61
Tbl. 25: Technical data HiCube 80 Pro, DN 63 CF-F 62
Tbl. 26: Technical data HiCube 80 Pro, DN 63 CF-F 62
Tbl. 27: Technical data HiCube 300 Pro, DN 100 ISO-K 63
Tbl. 28: Technical data HiCube 300 Pro, DN 100 ISO-K 64
Tbl. 29: Technical data HiCube 300 Pro, DN 100 CF-F 64
Tbl. 30: Technical data HiCube 300 Pro, DN 100 CF-F 65
Tbl. 31: Technical data HiCube 300 H Pro, DN 100 ISO-K 66
Tbl. 32: Technical data HiCube 300 H Pro, DN 100 ISO-K 67
Tbl. 33: Technical data HiCube 300 H Pro, DN 100 CF-F 67
Tbl. 34: Technical data HiCube 300 H Pro, DN 100 CF-F 68
Tbl. 35: Technical data HiCube 400 Pro, DN 100 ISO-K 69
Tbl. 36: Technical data HiCube 400 Pro, DN 100 ISO-K 69
Tbl. 37: Technical data HiCube 400 Pro, DN 100 CF-F 70
Tbl. 38: Technical data HiCube 400 Pro, DN 100 CF-F 71
Tbl. 39: Technical data HiCube 700 Pro, DN 160 ISO-K 72
Tbl. 40: Technical data HiCube 700 Pro, DN 160 ISO-K 72
Tbl. 41: Technical data HiCube 700 Pro, DN 160 CF-F 73
Tbl. 42: Technical data HiCube 700 Pro, DN 160 CF-F 74
Tbl. 43: Technical data HiCube 700 H Pro, DN 160 ISO-K 74
Tbl. 44: Technical data HiCube 700 H Pro, DN 160 ISO-K 75
Tbl. 45: Technical data HiCube 700 H Pro, DN 160 CF-F 76
Tbl. 46: Technical data HiCube 700 H Pro, DN 160 CF-F 76
Tbl. 47: Dimensions HiCube 80 Pro 77
Tbl. 48: Dimensions HiCube 300 Pro 77
Tbl. 49: Dimensions HiCube 400 Pro 77
Tbl. 50: Dimensions HiCube 700 Pro 77
List of tables
5/80

List of figures
Fig. 1: Position of the stickers on the product 9

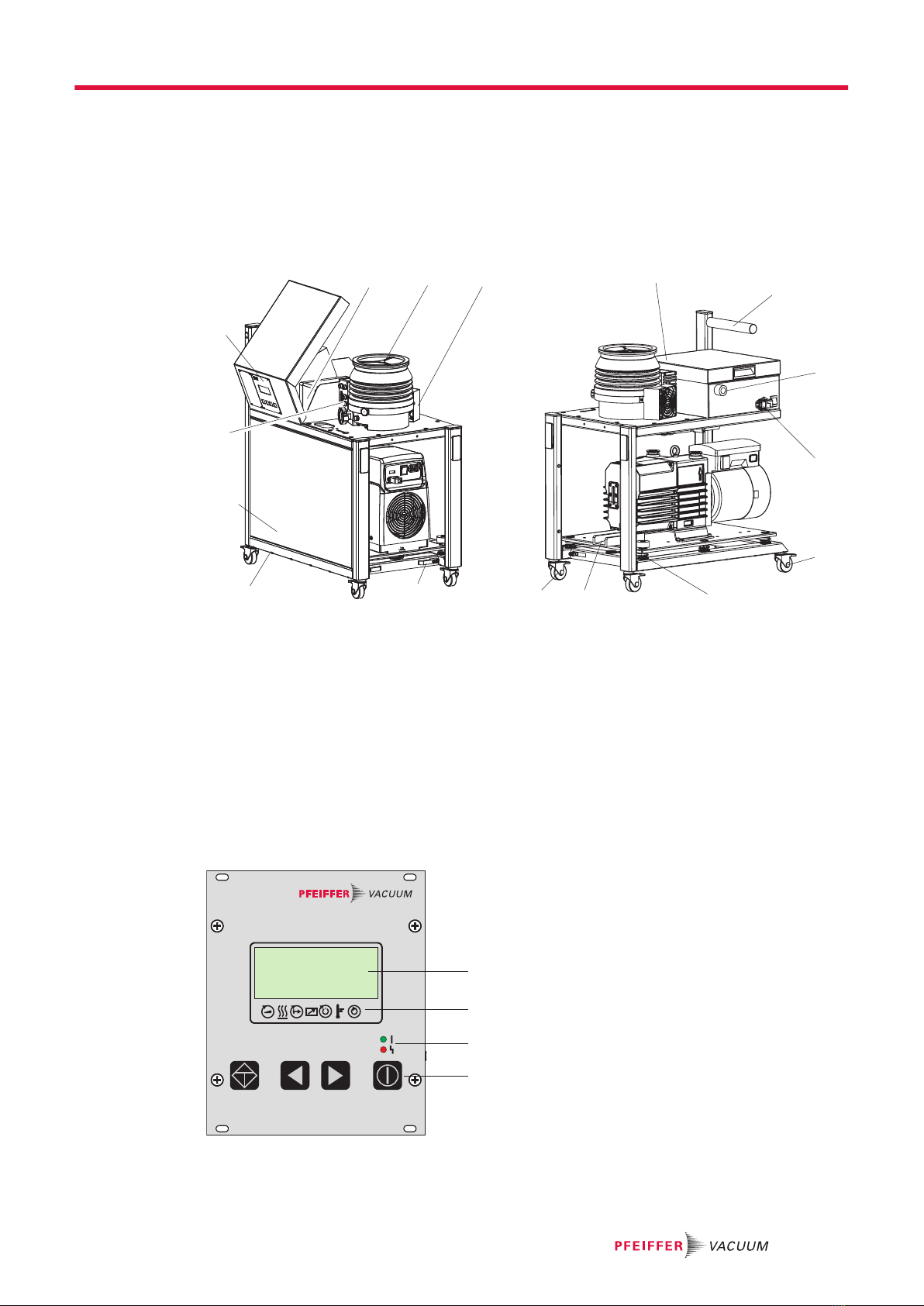

Fig. 2: Product overview with combination examples 17
Fig. 3: DCU control panel 17

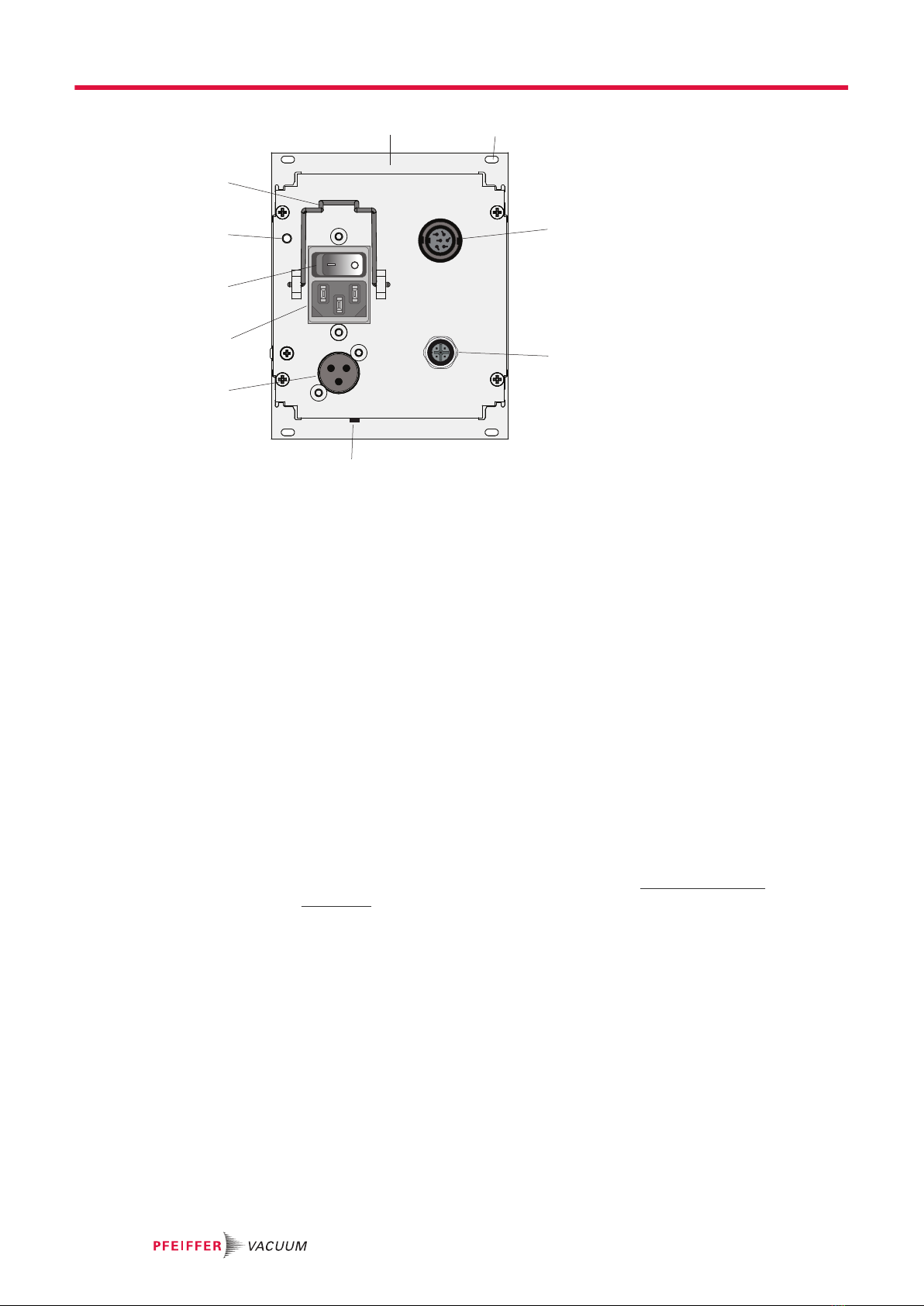

Fig. 4: DCU with integrated power supply pack, rear view 18

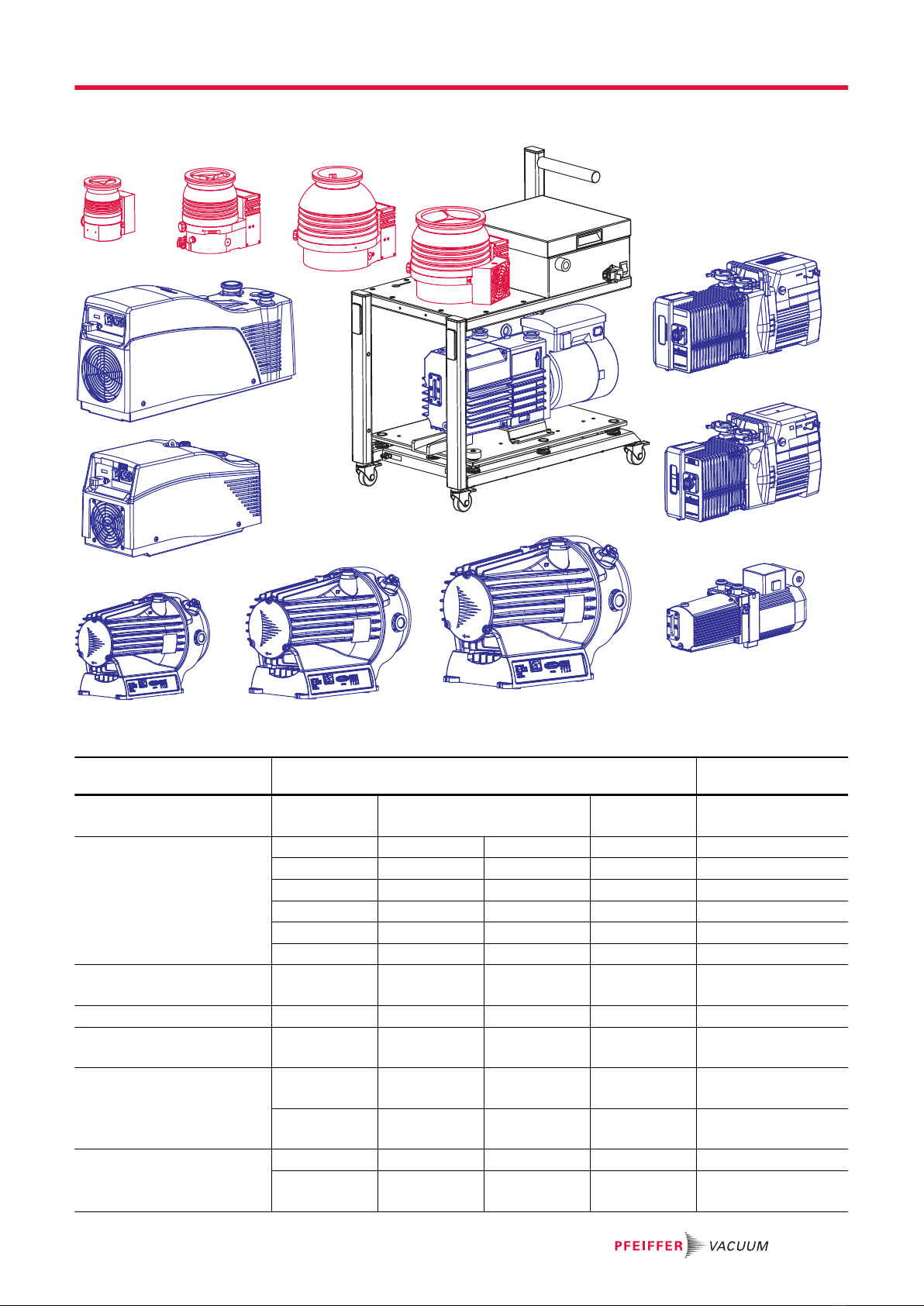

Fig. 5: Overview: Turbo and backing pump combinations 19
Fig. 6: Transport turbo pumping station 21
Fig. 7: Fix pumping station with lashing straps 24
Fig. 8: Flange connection ISO-KF to ISO-KF 27
Fig. 9: Flange connection ISO-K to ISO-F, bracket screws 27
Fig. 10: Flange connection CF-F, hexagon head screw and through hole 29
Fig. 11: Flange connection CF-F, stud screw and tapped hole 30
Fig. 12: Flange connection CF-F, stud screw and through hole 30
Fig. 13: Example backing pump exhaust connection 31
Fig. 14: Backing pump transportation lock 32
Fig. 15: Fill operating fluid 33
Fig. 16: Example of accessory connection via adapter TCS 12 34
Fig. 17: Grounding cable 35
Fig. 18: Power supply connector and main switch on HiCube Pro 36
Fig. 19: Electrical connections 44
Fig. 20: Connections to the turbo pump 45
Fig. 21: Dismantling the turbopump 45
Fig. 22: Operating fluid change with rotary vane pump as backing pump 47
Fig. 23: Dimensions HiCube Pro 77
List of figures
6/80

1 About this manual
IMPORTANT
Read carefully before use.
Keep the manual for future consultation.
1.1 Validity
This operating instructions is a customer document of Pfeiffer Vacuum. The operating instructions de-
scribe the functions of the named product and provide the most important information for the safe use of
the device. The description is written in accordance with the valid directives. The information in this op-
erating instructions refers to the product's current development status. The document shall remain valid
provided that the customer does not make any changes to the product.
1.1.1 Applicable documents
HiCube Pro Operating instructions
Declaration of conformity A component of these instructions
Operating instructions for the individual components see product description
You can find this document in the Pfeiffer Vacuum Download Center.
1.1.2 Variants
These instructions apply to HiCube Eco line turbo pumping stations:
●HiCube 80 Pro
●HiCube 300 Pro
●HiCube 300 H Pro
●HiCube 400 Pro
●HiCube 700 Pro
●HiCube 700 H Pro
1.2 Target group
These operating instructions are aimed at all persons performing the following activities on the product:
●Transportation
●Setup (Installation)
●Usage and operation
●Decommissioning
●Maintenance and cleaning
●Storage or disposal
The work described in this document is only permitted to be performed by persons with the appropriate
technical qualifications (expert personnel) or who have received the relevant training from Pfeiffer Vac-
uum.
1.3 Conventions
1.3.1 Instructions in the text
Usage instructions in the document follow a general structure that is complete in itself. The required ac-
tion is indicated by an individual step or multi-part action steps.
Individual action step
A horizontal, solid triangle indicates the only step in an action.
►This is an individual action step.
About this manual
7/80

Sequence of multi-part action steps
The numerical list indicates an action with multiple necessary steps.
1. Step 1
2. Step 2
3. ...
1.3.2 Pictographs
Pictographs used in the document indicate useful information.
Note
Tip

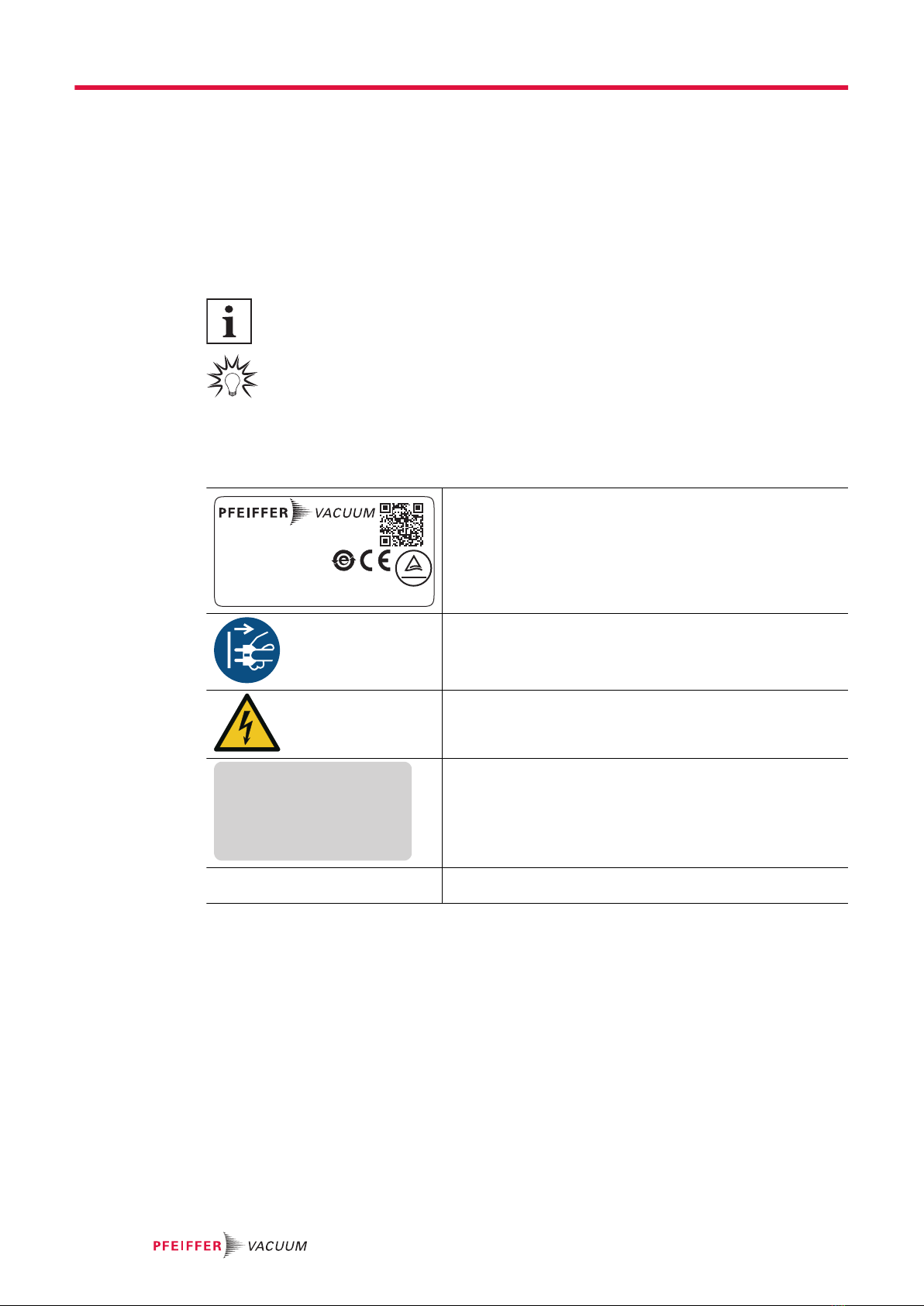

1.3.3 Stickers on the product
This section describes all the stickers on the product along with their meanings.
CUS
TÜV Rheinland
Fuse
S/N
Mod.
HiCube 80 Pro
PM S41 620 00
- - - - - - - -
P/N
Input
Mass
D-35614 Asslar
Made in Germany 2020/06
T 2 A H 230 VAC
200-230 V +/-10 % 2.00 A 50/60 Hz
62.0 kg
Rating plate
The rating plate is located on the rear of the
electronics housing.
Mandatory: disconnect mains plug
The sticker indicates that the mains plug is to be disconnected
from the device prior to installation and maintenance work.
Electrical voltage warning
The sticker warns of the risk of electric shock when working
with the housing open.
VOR INBETRIEBNAHME
TRANSPORTSICHERUNG LÖSEN
BEFORE USE UNFASTEN THE
TRANSPORT PROTECTION
Transport lock
This sticker indicates that the backing pump transport lock
must be released prior to commissioning.
Other stickers Remove stickers on the components according to the respec-
tive operating instructions.
Tbl. 1: Stickers on the product
About this manual
8/80

1
4
23
Fig. 1: Position of the stickers on the product
1 Rating plate 3 Electrical voltage (power supply pack) warning sign
2 Mandatory disconnect mains plug sign 4 Transport lock sticker
1.3.4 Abbreviations
Abbreviation Meaning in this document
CF Flange: Metal-sealed connector in accordance with ISO 3669
dDiameter value (in mm)
DCU Display Control Unit (Pfeiffer Vacuum display and control unit).
DN Nominal diameter as size description
fRotation speed value of a vacuum pump (frequency, in rpm or Hz)
HV High vacuum flange, high vacuum side
ISO Flange: Connector in accordance with ISO 1609 and ISO 2861
LC Display: Liquid crystal display (LCD)
LED Light emitting diode
MVP Diaphragm vacuum pump
PE Protective earth (earthed conductor)
[P:xxx] Electronic drive unit control parameters. Printed in bold as a three-digit number in
square brackets. Frequently displayed in conjunction with a short description.
Example: [P:312] software version
TTemperature (in °C)
TC Turbopump electronic drive unit (turbo controller)
TPS Voltage supply (turbo power supply)
X3 15-pole D-Sub connecting socket on the turbopump TC 110 electronic drive unit
remote 26-pole D-Sub connecting socket on the turbopump TC 400 electronic drive unit
Tbl. 2: Abbreviations used in this document
About this manual
9/80

2 Safety
2.1 General safety information
The following 4 risk levels and 1 information level are taken into account in this document.
DANGER
Immediately pending danger
Indicates an immediately pending danger that will result in death or serious injury if not observed.
►Instructions to avoid the danger situation
WARNING
Potential pending danger
Indicates a pending danger that could result in death or serious injury if not observed.
►Instructions to avoid the danger situation
CAUTION
Potential pending danger
Indicates a pending danger that could result in minor injuries if not observed.
►Instructions to avoid the danger situation
NOTICE
Danger of damage to property
Is used to highlight actions that are not associated with personal injury.
►Instructions to avoid damage to property
Notes, tips or examples indicate important information about the product or about this docu-
ment.
2.2 Safety instructions
All safety instructions in this document are based on the results of the risk assessment carried out in
accordance with Machinery Directive 2006/42/EC Annex I and EN ISO 12100 Section 5. Where applica-
ble, all life cycle phases of the product were taken into account.
Risks during transport
WARNING
Danger of serious injury due to falling objects
Due to falling objects there is a risk of injuries to limbs through to broken bones.
►Take particular care and pay special attention when transporting products manually.
►Do not stack the products.
►Wear protective equipment, e.g. safety shoes.
CAUTION
Danger of injury due to the pumping station tipping or rolling away
Superstructural parts change the center of gravity. There is a danger of crushing due to rolling away
or tipping.
►Place the pumping station on a flat installation surface.
►Anchor the pumping station at the installation location.
►Wear personal protective equipment.
Safety
10/80

Risks during installation
WARNING
Danger to life from electric shock in the event of a fault
In the event of a fault, devices connected to the mains may be live. There is a danger to life from
electric shock when making contact with live components.
►Always keep the mains connection freely accessible so you can disconnect it at any time.
WARNING
Risk of fatal injury due to electric shock on account of incorrect installation
The device's power supply uses life-threatening voltages. Unsafe or improper installation can lead to
life-threatening situations from electric shocks obtained from working with or on the unit.
►Ensure safe integration into an emergency off safety circuit.
►Do not carry out your own conversions or modifications on the unit.
WARNING
Risk of cuts on moving, sharp-edged parts when reaching into the open high vacuum flange
With the high vacuum flange open, access to sharp-edged parts is possible. A manual rotation of the
rotor increases the danger situation. There is the risk of cuts, up to the separation of body parts (e.g.
fingertips). There is a risk of hair and loose clothing being drawn in. Objects falling in destroy the tur-
bopump during subsequent operation.
►Only remove the original protective covers immediately prior to connecting the high vacuum
flange.
►Do not reach into the high vacuum connection.
►Wear protective gloves during installation.
►Do not start the turbopump with open vacuum connections.
►Always carry out the mechanical installation before electrical connection.
►Prevent access to the high vacuum connection of the turbopump from the operator side (e.g.
open vacuum chamber).
WARNING
Risk of injury caused by the turbopump breaking away with the vibration compensator in the
event of a malfunction
Sudden jamming of the rotor generates high destructive torques in accordance with ISO 27892.
When using a vibration compensator, this will probably lead to the turbopump being sheared off in
use. The energy that this would release could throw the entire turbopump or shattered pieces from its
interior through the surrounding space. Potentially dangerous gases can escape. There is a risk of
very serious injuries, including death, and extensive property damage.
►Take suitable safety precautions on-site for the compensation of the occurring torques.
►Before installing a vibration compensator, you must first of all contact Pfeiffer Vacuum.
WARNING
Danger of death from poisoning due to toxic gases being expelled without an exhaust line
Exhaust gases and vapors are released from the turbo pumping station unhindered during normal us-
age. In the case of processes with toxic media, there is a risk of injury and danger of death due to
poisoning.
►Note the corresponding regulations for handling toxic substances.
►Toxic process gases should be safely conveyed away via an exhaust line.
Safety
11/80

CAUTION
Danger of injury due to the pumping station tipping or rolling away
Superstructural parts change the center of gravity. There is a danger of crushing due to rolling away
or tipping.
►Place the pumping station on a flat installation surface.
►Anchor the pumping station at the installation location.
►Wear personal protective equipment.
CAUTION
Danger of injury from bursting as a result of high pressure in the exhaust line
Faulty or inadequate exhaust pipes lead to dangerous situations, e.g. increased exhaust pressure.
There is a danger of bursting. Injuries caused by flying fragments, the escaping of high pressure, and
damage to the unit cannot be excluded.
►Route the exhaust line without shut-off units.
►Observe the permissible pressures and pressure differentials for the product.
►Check the function of the exhaust line on a regular basis.
Risks during operation
WARNING
Danger of death from poisoning due to toxic gases being expelled without an exhaust line
Exhaust gases and vapors are released from the turbo pumping station unhindered during normal us-
age. In the case of processes with toxic media, there is a risk of injury and danger of death due to
poisoning.
►Note the corresponding regulations for handling toxic substances.
►Toxic process gases should be safely conveyed away via an exhaust line.
WARNING
Risk of poisoning from incorrect use of the gas ballast system
The gas ballast system of the scroll pump is vacuum sealed only when used in valid, snapped posi-
tions "0", "1" and "2". When operating the valves in intermediate stages, there is a risk that process
media can escape to the environment uncontrolled. When using toxic process media, there is a risk
of poisoning.
►Change the positions of the valve only for setting the gas ballast stages.
►Operate the gas ballast valve only in the snap positions.
CAUTION
Danger of injury from bursting as a result of high pressure in the exhaust line
Faulty or inadequate exhaust pipes lead to dangerous situations, e.g. increased exhaust pressure.
There is a danger of bursting. Injuries caused by flying fragments, the escaping of high pressure, and
damage to the unit cannot be excluded.
►Route the exhaust line without shut-off units.
►Observe the permissible pressures and pressure differentials for the product.
►Check the function of the exhaust line on a regular basis.
CAUTION
Risk of injuries due to contact with vacuum when venting
While venting the vacuum pump there is a risk of minor injuries due to the direct contact of body parts
with the vacuum, e.g. hematomas.
►Do not fully unscrew the venting screw out of the housing during venting.
►Keep a distance from automatic venting device, such as venting valves.
Safety
12/80

Risks during maintenance, decommissioning and disposal
WARNING
Danger to life from electric shock during maintenance and service work
The device is only completely de-energized when the mains plug has been disconnected and the tur-
bopump is at a standstill. There is a danger to life from electric shock when making contact with live
components.
►Before performing all work, switch off the main switch.
►Wait until the turbopump comes to a standstill (rotation speed =0).
►Remove the mains plug from the device.
►Secure the device against unintentional restarting.
WARNING
Health hazard through poisoning from toxic contaminated components or devices
Toxic process media result in contamination of devices or parts of them. During maintenance work,
there is a risk to health from contact with these poisonous substances. Illegal disposal of toxic sub-
stances causes environmental damage.
►Take suitable safety precautions and prevent health hazards or environmental pollution by toxic
process media.
►Decontaminate affected parts before carrying out maintenance work.
►Wear protective equipment.
WARNING
Health hazard and risk of environmental damage from toxic contaminated operating fluid
Toxic process media can cause operating fluid contamination. When changing the operating fluid,
there is a health hazard due to contact with poisonous substances. Illegal disposal of toxic substan-
ces causes environmental damage.
►Wear suitable personal protective equipment when handling these media.
►Dispose of the operating fluid according to locally applicable regulations.
WARNING
Risk of cuts on moving, sharp-edged parts when reaching into the open high vacuum flange
With the high vacuum flange open, access to sharp-edged parts is possible. A manual rotation of the
rotor increases the danger situation. There is the risk of cuts, up to the separation of body parts (e.g.
fingertips). There is a risk of hair and loose clothing being drawn in. Objects falling in destroy the tur-
bopump during subsequent operation.
►Only remove the original protective covers immediately prior to connecting the high vacuum
flange.
►Do not reach into the high vacuum connection.
►Wear protective gloves during installation.
►Do not start the turbopump with open vacuum connections.
►Always carry out the mechanical installation before electrical connection.
►Prevent access to the high vacuum connection of the turbopump from the operator side (e.g.
open vacuum chamber).
CAUTION
Scalding from hot operating fluid
Danger of burns when draining operating fluid if it comes into contact with the skin.
►Wear protective equipment.
►Use a suitable collection receptacle.
Safety
13/80

Risks in the event of malfunctions
WARNING
Danger to life from electric shock in the event of a fault
In the event of a fault, devices connected to the mains may be live. There is a danger to life from
electric shock when making contact with live components.
►Always keep the mains connection freely accessible so you can disconnect it at any time.
WARNING
Danger to life from the turbopump breaking away in the event of a fault
Sudden jamming of the rotor generates high destructive torques in accordance with ISO 27892. If the
turbopump is not properly secured, it can shear off. The energy that this would release could throw
the entire turbopump or shattered pieces from its interior through the surrounding space. Potentially
dangerous gases can escape. There is a risk of very serious injuries, including death, and extensive
property damage.
►Follow the installation instructions for this turbopump.
►Observe the requirements regarding stability and design of the counter flange.
►Use only original accessories or fixing material approved by Pfeiffer Vacuum for the installation.
WARNING
Risk of injury caused by the turbopump breaking away with the vibration compensator in the
event of a malfunction
Sudden jamming of the rotor generates high destructive torques in accordance with ISO 27892.
When using a vibration compensator, this will probably lead to the turbopump being sheared off in
use. The energy that this would release could throw the entire turbopump or shattered pieces from its
interior through the surrounding space. Potentially dangerous gases can escape. There is a risk of
very serious injuries, including death, and extensive property damage.
►Take suitable safety precautions on-site for the compensation of the occurring torques.
►Before installing a vibration compensator, you must first of all contact Pfeiffer Vacuum.
2.3 Safety precautions
Duty to provide information on potential dangers
The product holder or user is obliged to make all operating personnel aware of dangers
posed by this product.
Every person who is involved in the installation, operation or maintenance of the product
must read, understand and adhere to the safety-related parts of this document.
Infringement of conformity due to modifications to the product
The Declaration of Conformity from the manufacturer is no longer valid if the operator
changes the original product or installs additional equipment.
●Following the installation into a system, the operator is required to check and re-evalu-
ate the conformity of the overall system in the context of the relevant European Direc-
tives, before commissioning that system.
General safety precautions when handling the product
►Observe all applicable safety and accident prevention regulations.
►Check that all safety measures are observed at regular intervals.
►Do not expose body parts to the vacuum.
►Always ensure a secure connection to the earthed conductor (PE).
►Never disconnect plug connections during operation.
►Observe the above shutdown procedures.
►Before working on the high vacuum connection, wait until the rotor has stopped completely (rota-
tion speed f = 0).
►Never put the device into operation with the high vacuum connection open.
Safety
14/80

►Keep lines and cables away from hot surfaces (> 70°C).
►Never fill or operate the unit with cleaning agents or cleaning agent residues.
►Do not carry out your own conversions or modifications on the unit.
►Observe the unit protection class prior to installation or operation in other environments.
2.4 Limits of use of the product
Notes on ambient conditions
The specified permissible ambient temperatures apply to operation of the turbopump at
maximum permissible backing pressure or at maximum gas throughput, depending on the
cooling type. The turbopump is intrinsically safe thanks to redundant temperature monitor-
ing.
●The reduction in backing pressure or gas throughput permits operation of the turbo-
pump at higher ambient temperatures.
●If the maximum permissible operating temperature of the turbopump is exceeded, the
electronic drive unit first reduces the drive output and then switches it off where neces-
sary.
Parameter Limit value
Installation location weatherproof (internal space)
Air pressure 750 hPa to 1060 hPa
Installation altitude max. 2000 m
Rel. air humidity max. 80%, at T < 31 °C
up to max. 50% at T < 40 °C
Installation surface flatness ≤ 5 degrees
Protection class I
Overvoltage category II
Permissible protection degree IP20
Degree of pollution 2
Ambient temperature 5°C to 35°C with air cooling
5°C to 40°C with water cooling
Max. permissible ambient magnetic field ● HiPace 80
● HiPace 300
● HiPace 400
● HiPace 700
● 3.3 mT
● 5.5 mT
● 6 mT
● 6 mT
Maximum irradiated thermal input ● HiPace 80
● HiPace 300
● HiPace 400
● HiPace 700
● 3 W
● 8 W
● 14 W
● 14 W
Maximum permissible rotor temperature of the turbopump 90 °C
Tbl. 3: Limits of use for turbopump stations
2.5 Proper use
●The turbo pumping station is designed exclusively for generating a vacuum.
●The turbo pumping station is designed only for evacuating dry and inert gases.
●The turbo pumping station is designed only for use in closed interiors.
2.6 Foreseeable improper use
Improper use of the product invalidates all warranty and liability claims. Any use that is counter to the
purpose of the product, whether intentional or unintentional, is regarded as misuse, in particular:
●Establishing the voltage supply without correct installation
●Installation with non-specified fastening material
●Pumping explosive media
●Pumping of corrosive media
Safety
15/80

●Pumping of condensing vapors
●Pumping of fluids
●Pumping of dust
●Operation with impermissible high gas throughput
●Operation with impermissible high fore-vacuum pressure
●Operation with excessively high irradiated heat output
●Operation in impermissible high magnetic fields
●Operation in an incorrect gas mode
●Venting with impermissible high venting rates
●Use for pressure generation
●Use in areas with ionizing radiation
●Operation in explosion-hazard areas
●Use in systems in which sporadic loads and vibrations or periodic forces act on the device
●The causing of hazardous operating conditions by a presetting on the electronic drive unit that is
contrary to the process
●Use of accessories or spare parts that are not listed in these instructions
Safety
16/80

3 Product description
3.1 Function
Turbopump stations are fully automatic pump units ready for connection. A turbo pumping station con-
sists of a portable or mobile vacuum pump unit, with a turbopump and a specially matched backing
pump.
1234
5
6
7
8
9
10
11
12
13
14
16
15
Fig. 2: Product overview with combination examples
1 Relay box 9 Transport lock
2 Turbopump 10 Drain channel for operating fluid
3 Air cooling 11 Swivel Castor with wheel brake
4 Electronics housing 12 Fastening hook or security hook
5 Transport handle 13 Frame
6 Exhaust connection 14 Cladding, casing, sheathing
7 Mains connection 15 Electronic drive unit TC
8 Swivel Castor 16 Display and control unit
3.1.1 Operating interface
The integrated display and control unit (DCU) is used to control and monitor the entire turbo pumping
station. The DCU is optionally used as a remote control if removed from the housing and used with an
extension cable.
DCU
1
2
3
4
Fig. 3: DCU control panel
1 LC display, illuminated 3 LED operating mode display
2 Status symbols 4 Controls
Product description
17/80

X3
DC out
RS485
PE
AC in
S1
1
8
3
4
9
10
2
6
7
5
Fig. 4: DCU with integrated power supply pack, rear view
1 Front plate, rear side 6 Connecting socket DC out
2 Mounting hole 7 Connecting plug ACin, mains input
3 Connecting socket X3 8 Mains switch S1
4 Connecting socket RS-485 9 Earthed conductor, M4
5 Contrast setting 10 Mounting bracket for mains connection
3.1.2 Drive
●Electronic drive unit of the turbopump
●Electronic drive unit of the backing pump
3.1.3 Cooling
●Air cooling
●Water cooling (optional)
At excessively high temperatures, the electronic drive unit automatically reduces the drive power.
3.2 Identifying the product
►To ensure clear identification of the product when communicating with Pfeiffer Vacuum, always
keep all of the information on the rating plate to hand.
►Learn about certifications through test seals on the product or at www.certipedia.com with compa-
ny ID no. 000021320.
Product description
18/80

3.3 Product features
HiPace 80 HiPace 300 HiPace 400
HiPace 700
ACP 15
Scroll 6
Scroll 18
Scroll 12
ACP 28
Duo 11
Duo 20
Pascal 2010
Pascal 2021
Fig. 5: Overview: Turbo and backing pump combinations
Feature HiCube Pro Operating instruc-
tions
HV flange size DN 40
DN 63
DN 100 DN 160
Turbopump HiPace 80 PT 0208 BN
HiPace 300 PT 0200 BN
HiPace 300 H PT 0509 BN
HiPace 400 PT 0210 BN
HiPace 700 PT 0209 BN
HiPace 700 H PT 0621 BN
Electronic drive unit TC 110 TC 400
TC 110
TC 400 TC 400 PT 0203 BN
PT 0204 BN
Air cooling yes yes yes yes PT 0500 BN
Backing Pump:
Multi-stage roots pump
ACP 15
ACP 18
ACP 15
ACP 18
ACP 15
ACP 18
ACP 15
ACP 18
123884 O
112369 O
Backing Pump:
Rotary vane pump
Duo 11 M
Duo 20 M
Duo 11 M
Duo 20 M
Duo 11 M
Duo 20 M
Duo 11 M
Duo 20 M
PD 0070 BN
PK 0203 BN
Pascal 2010
Pascal 2021
Pascal 2010
Pascal 2021
Pascal 2010
Pascal 2021
Pascal 2010
Pascal 2021
103275 O
103275 O
Backing Pump:
Scroll Pumps
HiScroll 6 HiScroll 6 HiScroll 6 HiScroll 6 PU 0080 BN
HiScroll 12
HiScroll 18
HiScroll 12
HiScroll 18
HiScroll 12
HiScroll 18
HiScroll 12
HiScroll 18
PU 0081 BN
Product description
19/80

Feature HiCube Pro Operating instruc-
tions
Current supply with display
and control unit
DCU 110 DCU 310 DCU 400 DCU 400 PT 0250 BN
Accessories
Venting valve optional optional optional optional PT 0228 BN
Housing heater (water cool-
ing required)
optional
(only for CF-F)
optional
(only for CF-F)
optional
(only for CF-F)
optional
(only for CF-F)
PT 0233 BN
Control adapter for accesso-
ries
yes yes yes yes PT 0521 BN
Tbl. 4: Pumping station component combination options
3.4 Scope of delivery
●HiCube Pro turbo pumping station
●Protective cover for the high vacuum flange
●Power supply cable, country-specific
●Grounding cable, 3 m (incl. fastening material)
●Operating fluid and filling hose (only with rotary vane pump as backing pump)
●Operating instructions for the turbo pumping station and individual components
Product description
20/80
