PhDsolutions PHD-EXC-505-HDTL-RX User manual

CH-514TXLN/RXLN
HDMI to CAT5e/6/7 Extender with IR
Operation Manual
Operation Manual
PHD-EXC-505-HDTL-RX or TX

SAFETY PRECAUTIONS
Please read all instructions before attempting to unpack, install or
operate this equipment and before connecting the power supply.
Please keep the following in mind as you unpack and install this
equipment:
• Always follow basic safety precautions to reduce the risk of  re,
electrical shock and injury to persons.
• To prevent  re or shock hazard, do not expose the unit to rain,
moisture or install this product near water.
• Never spill liquid of any kind on or into this product.
• Never push an object of any kind into this product through any
openings or empty slots in the unit, as you may damage parts
inside the unit.
• Do not attach the power supply cabling to building surfaces.
• Use only the supplied power supply unit (PSU). Do not use the PSU
if it is damaged.
• Do not allow anything to rest on the power cabling or allow any
weight to be placed upon it or any person walk on it.
• To protect the unit from overheating, do not block any vents or
openings in the unit housing that provide ventilation and allow for
suf cient space for air to circulate around the unit.
REVISION HISTORY
VERSION NO. DATE DD/MM/YY SUMMARY OF CHANGE
VR0 16/06/14 Preliminary Release

CONTENTS
1. Introduction................................................. 1
2. Applications................................................ 1
3. Package Contents ..................................... 1
4. System Requirements................................. 1
5. Features....................................................... 2
6. Operation Controls and Functions............ 3
6.1 Transmitter Front and Rear Panels....... 3
6.2 Receiver Front and Rear Panels .......... 4
6.3 Transmitter and Receiver Top Panels.. 5
6.4 IR Pin Assignment .................................. 5
7. Connection Diagram ................................. 6
8. Specifi cations ............................................. 7
8.1 CAT5e/6/7 Cable Speci cation .......... 8
9. Acronyms .................................................... 9

1
1
1. INTRODUCTION
The HDMI Extender over single CAT5e/6/7 incorporating IR signal
transfer allows for a more ef cient system setup and is easy to install.
Uncompressed video and audio can be transmitted to distances of
up to 60 meters (1080p) and supports High De nition Audio and 3D
signals.
Designed with HDBaseTTM technology for greater fl exibility in custom
installations with full HDMI and control signal transfer over a single
CAT5e/6/7 cable.
2. APPLICATIONS
• Residential entertainment sharing and control
• University lecture hall display and control
• Retail sales display and control
• Meeting room presentation and control
• Commercial advertising display and control
3. PACKAGE CONTENTS
• 1×HDMI to CAT5e/6 with IR Transmitter
• 1×CAT5e/6 to HDMI with IR Receiver
• 1×IR Blaster
• 1×IR Extender
• 2×5 V/2.6 A DC Power Adaptor
• Operation Manual
4. SYSTEM REQUIREMENTS
HDMI source equipment such as DVD/Blu-ray player/PC and TV/
monitor/projector with HDMI input and HDMI to CAT5e/6/7 cables.
• 1×HDMI to CAT5e/6 with IR Transmitter
• 1×CAT5e/6 to HDMI with IR Receiver
• 1×IR Blaster
• 1×IR Extender
• 2×5 V/4 A Desktop Power Supply Unit(PSU)
• 2×Power Cord
• Operation Manual
4. SYSTEM REQUIREMENTS
HDMI source equipment such as DVD/Blu-ray player/PC and TV/
monitor/projector with HDMI input and HDMI to CAT5e/6/7 cables.

2
2
5. FEATURES
• HDMI with 3D, 4K2K support, HDCP and DVI compliant
• Supports HDMI (including HDCP) over a single CAT5e/6/7 up to 60m
• Full HD resolution support (1080p@60Hz/36-bit), 3D, 4K2K@24/25/30&
4K2K YUV420 and PC resolution support (VGA to WUXGA) over
CAT5e/6 cable
• HDMI input up to 6m with 8/12-bit resolution or 5m with 4K2K
resolution
• HDMI output up to 6m with 8/12-bit resolution or 5m with 4K2K
resolution
• Supports HDCP repeater and CEC bypass
• Supports High De nition LPCM 7.1CH, Dolby TrueHD, Dolby Digital
Plus and DTS-HD Master Audio transmission
• Compact size with stylish design
Note: Displaying HDMI 3D and 4K2K contents, equivalent source signal
and HDMI cable are required in order to secure the quality.

3
3
6. OPERATION CONTROLS AND FUNCTIONS
6.1 Transmitter Front and Rear Panels
CAT5e/6 OUT
HDMI INIR1 OUT IR2 IN
DC 5V
HDMI to CAT5e/6
with IR
TRANSMITTER
CAT5e/6 OUT
HDMI IN IR2 INIR1 OUT
DC 5V
HDMI to CAT5e/6
with IR
TRANSMITTER
4 51 2 3
1IR1 OUT/Blaster
Connect to the supplied IR Blaster for IR signal transmission to the
source equipment from IR1 IN's IR signal. Place the IR Blaster in direct
line-of-sight of the equipment to be controlled.
2HDMI IN
Connect to the HDMI input source devices such as a DVD player or a
Set-top Box with HDMI cable or DVI to HDMI cable.
3IR2 IN/Extender
Connect to the supplied IR Extender cable for IR signal reception
and transmission to IR2 OUT. Ensure that remote being used is within
the direct line-of-sight of the IR Extender.
4DC 5V
Plug the 5V DC power supply into the unit and connect the
adaptor to an AC outlet.
5CAT5e/6 OUT
Connect to the Receiver unit with a single CAT5e/6/7 cable for
transmission of all data signals. The yellow LED will illuminate when
both Transmitter and Receiver are connected together with power
supply. The green LED will illuminate when the power supply is
connected to the device.
Plug the 5V Desktop Power Supply Unit with power cord into the
unit and connect to an AC wall outlet for power.

4
4

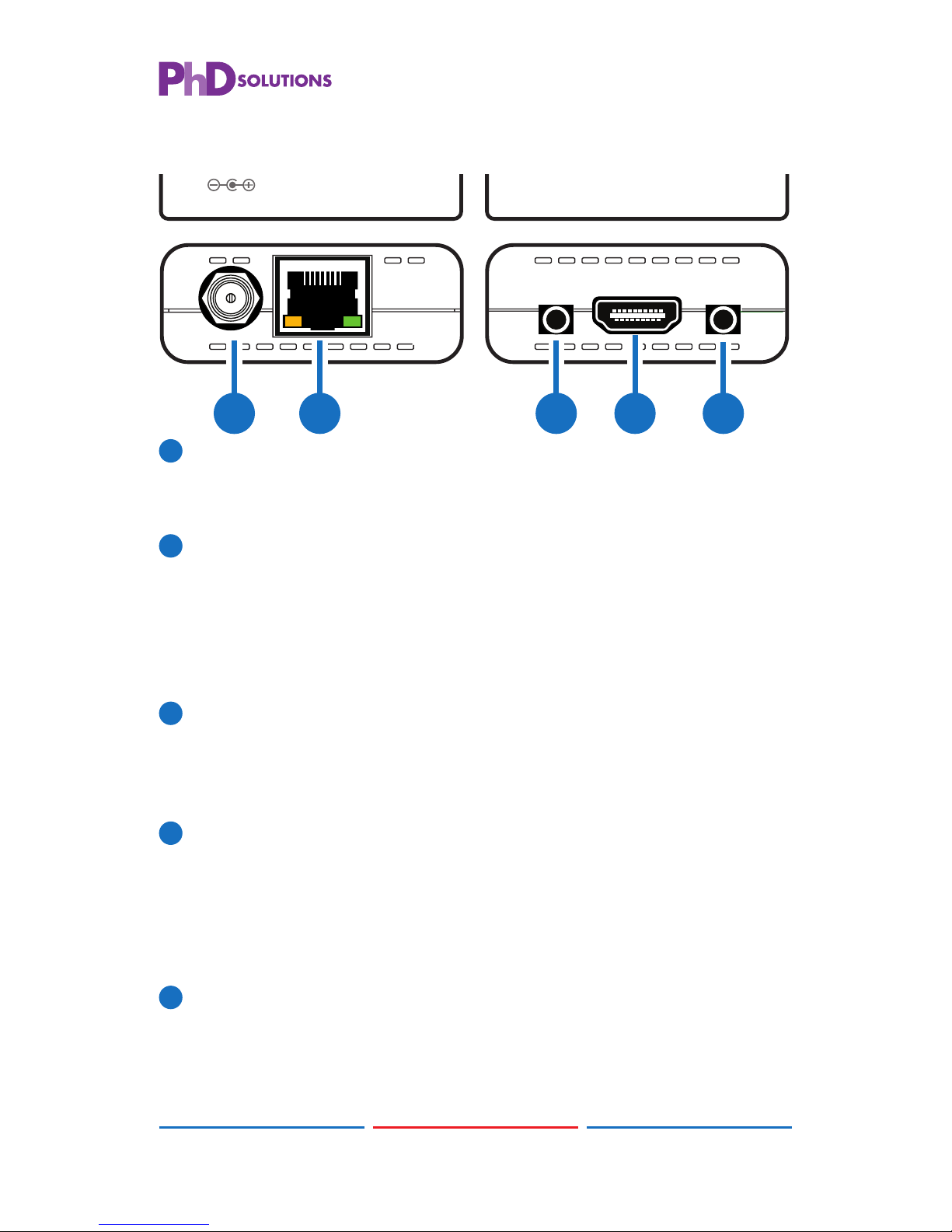

6.2 Receiver Front and Rear Panels
CAT5e/6 INDC 5V
CAT5e/6 to HDMI
with IR
HDMI OUT IR2 OUTIR1 IN
RECEIVER
CAT5e/6 INDC 5V
CAT5e/6 to HDMI
with IR
HDMI OUT IR2 OUTIR1 IN
RECEIVER
4 51 2 3
1DC 5V
Plug the 5V DC power supply into the unit and connect the
adaptor to an AC outlet.
2CAT5e/6 IN
Connect to the Transmitter unit with a single CAT5e/6/7 cable
for transmission of all data signals. The yellow LED will illuminate
when both Transmitter and Receiver are connected together with
power supply. The green LED will illuminate when the power supply is
connected to the device.
3IR1 IN/Extender
Connect to the supplied IR Extender cable for IR signal reception
and transmission to IR1 OUT. Ensure that remote being used is within
the direct line-of-sight of the IR Extender.
4HDMI OUT
Connect to a HDMI equipped TV/monitor for display of the HDMI
input source signal.
Note: If the connected TV/monitor support only 8bits but the input
source signal contain 10/12bits it may cause no signal display.
5IR2 OUT/Blaster
Connect to the supplied IR Blaster for IR signal transmission to the
display side from IR2 IN's IR signal. Place the IR Blaster in direct line-
of-sight of the equipment to be controlled.
Plug the 5V Desktop Power Supply Unit with power cord into the
unit and connect to an AC wall outlet for power.

5
5
6.3 Transmitter and Receiver Top Panels
CAT5e/6 OUT
HDMI IN IR2 INIR1 OUT
DC 5V
HDMI to CAT5e/6
with IR
TRANSMITTER
CAT5e/6 INDC 5V
CAT5e/6 to HDMI
with IR
HDMI OUTIR2 OUTIR1 IN
RECEIVER
6.4 IR Pin Assignment
3
1
3
1
2
2
Power
IR Blaster Signal
NC
IR Signal
Power
Ground
IR Extender
IR Blaster
DC 5V
HDMI OUTIR2 OUTIR1 IN
RECEIVER
CAT5e/6 to HDMI
with IR
CAT5e/6 IN
CAT5e/6 OUT
HDMI IN IR2 INIR1 OUT
DC 5V
HDMI to CAT5e/6
with IR
TRANSMITTER

6
6
7. CONNECTION DIAGRAM
7m3m 3m
60°
m
m
3m
7m3m 3m
60°
m
m
3m
1.5m
60°
1.5m
60°
RXLN
TXLN
HD Monitor
CAT5e/6
(60m)
Power
Supply
Power
Supply
Blu-ray Player
IR Blaster
IR Extender HDMI Cable
7m3m 3m
60°
m
m
3m
7m3m 3m
60°
m
m
3m
1.5m
60°
1.5m
60°
RXLN
TXLN
HD Monitor
CAT5e/6
(60m)
Power
Supply
Power
Supply
Blu-ray Player
IR Blaster
IR Extender HDMI Cable

7
7
8. SPECIFICATIONS
Video Bandwidth 340 MHz/10.2 Gbps
Transmitter
Inputs 1×HDMI, 1×IR Extender
Outputs 1×RJ45, 1×IR Blaster
Receiver
Inputs 1×RJ45, 1×IR Extender
Outputs 1×HDMI, 1×IR Blaster
ESD Protection Human Body Model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Power Supply 2×5 V/2.6 A DC (US/EU standards, CE/
FCC/UL certi ed)
Dimensions 55 mm (W)×75.5 mm(D)×22.5 mm (H)/
Jacks Excluded
55 mm (W)×82.2 mm(D)×22.5 mm (H)/
Jacks Included
Weight 60 g (TX), 66 g (RX)
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0 ˚C~40 ˚C/ 32 ˚F~104 ˚F
Storage Temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 2.8 W (TX), 5.4 W (RX)
8. SPECIFICATIONS
Video Bandwidth 340 MHz/10.2 Gbps
Transmitter
Inputs 1×HDMI, 1×IR Extender
Outputs 1×RJ45, 1×IR Blaster
Receiver
Inputs 1×RJ45, 1×IR Extender
Outputs 1×HDMI, 1×IR Blaster
ESD Protection Human Body Model:
±8kV (air-gap discharge)
±4kV (contact discharge)
Power Supply 2×5V/4A Desktop Power Supply Unit(PSU)
(US/EU standards, CE/FCC/UL certied)
2×Power Cord
Dimensions 55 mm (W)×75.5 mm(D)×22.5 mm (H)/
Jacks Excluded
55 mm (W)×82.2 mm(D)×22.5 mm (H)/
Jacks Included
Weight 60 g (TX), 66 g (RX)
Chassis Material Plastic
Silkscreen Color White
Operating Temperature 0 ˚C~40 ˚C/ 32 ˚F~104 ˚F
Storage Temperature −20 ˚C~60 ˚C/−4 ˚F~140 ˚F
Relative Humidity 20~90 % RH (non-condensing)
Power Consumption 2.8 W (TX), 5.4 W (RX)

8
8
8.1 CAT5e/6/7 Cable Specifi cation
Cable Type Range Pixel clock
rate
Video Data
Rate
Supported
Video
CAT5e/CAT6 60 m <=225 MHz <= 5.3 Gbps
(HD Video)
Up to 1080p, 60
Hz, 36-bit, 3D
(data rates
lower than 5.3
Gbps or below
225 MHz TMDS
clock).
35 m >225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz
video formats
CAT6A/7 60 m >225 MHz > 5.3 Gbps
(Ultra HD
Video)
4K2K, 30Hz
video formats

9
9
9. ACRONYMS
ACRONYM COMPLETE TERM
CAT5e Category 5 Cable
CAT6 Category 6 Cable
CAT7 Category 7 Cable
CEC Consumer Electronics Control
DVI Digital Visual Interface
HDCP High-bandwidth Digital Content Protection
HDMI High-De nition multimedia Interface
IR Infrared

10
PhD Solutions Product Warranty
Should you feel your product does not function adequately due to defects in materials or
workmanship, PhD Solutions (hereby referred to as “the warrantor”) will, for the length of the
period
indicated below:
a) Repair the product with new or
refurbished parts.
or
b) Replace it with a new or refurbished product.
Limited Warranty Period
Commencing from the original date of purchase, all PhD Solutions products are covered by a
one
year PARTS and LABOUR warranty depending on the product.
Please contact your PhD Solutions dealer for details.
During this period there will be no charge for unit repair, replacement of parts, unit
components or
replacement of product if necessary. The decision to repair or replace will be
made by the warrantor.
The purchaser must mail-in or return the product to PhD Solutions
during the warranty period.
This limited warranty only covers the product purchased as new and is extended to the
original
purchaser only. It is non-transferable to subsequent owners, even during the
warranty period.
A purchase receipt or other proof of original purchase date is required for the limited warranty
service.
IF REPAIR IS NEEDED DURING THE LIMITED WARRANTY PERIOD THE PURCHASER
WILL BE
REQUIRED TO PRODUCE A SALES RECEIPT/PROOF OF PURCHASE
INDICATING DATE OF
PURCHASE, AMOUNT PAID AND PLACE OF PURCHASE.
Please note: THE CUSTOMER WILL BE CHARGED FOR PARTS OR REPAIR
OF
ANY UNIT RECEIVED WITHOUT SUCH PROOF OF PURCHASE.
Premium high Definition Solutions
19
Product Service Provided
1. Damage requiring service
All units should be serviced by a PhD Solutions qualified service person.:
2. Servicing Personnel
Do not attempt to service the unit beyond that described in these operating instructions.
Refer all
other servicing to authorised PhD Solutions servicing personnel.
Return to Supplier
When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging)
with a
tracking number and adequate insurance. Please include a document or letter detailing
the reason for
return and include a daytime telephone number and/or email address where you
can be contacted.
If repair is required during the limited warranty period, the purchaser will be required to
provide a
sales receipt or other proof of purchase, indicating date and location of purchase as
well as the price
paid for the product. The customer will be charged for the repair or
replacement of any unit received
unless such information is provided.
Warranty Limits and Exclusions
1. This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship and
DOES NOT COVER normal wear and tear or cosmetic damage.
The limited warranty also DOES NOT COVER damage that occurs in shipment or failures
caused by
products not supplied by the warrantor.
Failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication,
alteration,
incorrect installation, set-up adjustment, implementation of/to consumer controls,
improper
maintenance, power line surge, lightening damage, Electro static discharge (ESD)
,modification,
service by anyone other than a manufacturer-approved service center or
factory-authorised
personnel, or damage attributable to acts of God.
Premium high Definition Solutions
20

11
Product Service Provided
1. Damage requiring service
All units should be serviced by a PhD Solutions qualified service person.:
2. Servicing Personnel
Do not attempt to service the unit beyond that described in these operating instructions.
Refer all
other servicing to authorised PhD Solutions servicing personnel.
Return to Supplier
When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging)
with a
tracking number and adequate insurance. Please include a document or letter detailing
the reason for
return and include a daytime telephone number and/or email address where you
can be contacted.
If repair is required during the limited warranty period, the purchaser will be required to
provide a
sales receipt or other proof of purchase, indicating date and location of purchase as
well as the price
paid for the product. The customer will be charged for the repair or
replacement of any unit received
unless such information is provided.
Warranty Limits and Exclusions
1. This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship and
DOES NOT COVER normal wear and tear or cosmetic damage.
The limited warranty also DOES NOT COVER damage that occurs in shipment or failures
caused by
products not supplied by the warrantor.
Failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication,
alteration,
incorrect installation, set-up adjustment, implementation of/to consumer controls,
improper
maintenance, power line surge, lightening damage, Electro static discharge (ESD)
,modification,
service by anyone other than a manufacturer-approved service center or
factory-authorised
personnel, or damage attributable to acts of God.
Premium high Definition Solutions
20
Product Service Provided
1. Damage requiring service
All units should be serviced by a PhD Solutions qualified service person.:
2. Servicing Personnel
Do not attempt to service the unit beyond that described in these operating instructions.
Refer all
other servicing to authorised PhD Solutions servicing personnel.
Return to Supplier
When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging)
with a
tracking number and adequate insurance. Please include a document or letter detailing
the reason for
return and include a daytime telephone number and/or email address where you
can be contacted.
If repair is required during the limited warranty period, the purchaser will be required to
provide a
sales receipt or other proof of purchase, indicating date and location of purchase as
well as the price
paid for the product. The customer will be charged for the repair or
replacement of any unit received
unless such information is provided.
Warranty Limits and Exclusions
1. This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship and
DOES NOT COVER normal wear and tear or cosmetic damage.
The limited warranty also DOES NOT COVER damage that occurs in shipment or failures
caused by
products not supplied by the warrantor.
Failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication,
alteration,
incorrect installation, set-up adjustment, implementation of/to consumer controls,
improper
maintenance, power line surge, lightening damage, Electro static discharge (ESD)
,modification,
service by anyone other than a manufacturer-approved service center or
factory-authorised
personnel, or damage attributable to acts of God.
Premium high Definition Solutions
20
Product Service Provided
1. Damage requiring service
All units should be serviced by a PhD Solutions qualified service person.:
2. Servicing Personnel
Do not attempt to service the unit beyond that described in these operating instructions.
Refer all
other servicing to authorised PhD Solutions servicing personnel.
Return to Supplier
When shipping the unit, carefully pack and send it prepaid (preferably in the original packaging)
with a
tracking number and adequate insurance. Please include a document or letter detailing
the reason for
return and include a daytime telephone number and/or email address where you
can be contacted.
If repair is required during the limited warranty period, the purchaser will be required to
provide a
sales receipt or other proof of purchase, indicating date and location of purchase as
well as the price
paid for the product. The customer will be charged for the repair or
replacement of any unit received
unless such information is provided.
Warranty Limits and Exclusions
1. This Limited Warranty ONLY COVERS failures due to defects in materials or
workmanship and
DOES NOT COVER normal wear and tear or cosmetic damage.
The limited warranty also DOES NOT COVER damage that occurs in shipment or failures
caused by
products not supplied by the warrantor.
Failures resulting from accident, misuse, abuse, neglect, mishandling, misapplication,
alteration,
incorrect installation, set-up adjustment, implementation of/to consumer controls,
improper
maintenance, power line surge, lightening damage, Electro static discharge (ESD)
,modification,
service by anyone other than a manufacturer-approved service center or
factory-authorised
personnel, or damage attributable to acts of God.
Premium high Definition Solutions
20

12
2. There are no express warranties except as listed under “limited warranty coverage.” The
warrantor
is not liable for incidental or consequential damage resulting from the use of this
product or arising out
of any breach of this warranty.
¥ For example: damage for lost time, the cost of having a person/persons remove or re-
install
previously installed equipment, travel to and from service location, loss of or
damage to
media, images, data or other recorded/stored content.
ANY PARTS AND SERVICE NOT COVERED BY THIS LIMITED WARRANTY ARE
THE RESPONSIBILITY OF THE CUSTOMER.
Premium high Definition Solutions
Website http ://www.phdsolutions.co
21
2. There are no express warranties except as listed under “limited warranty coverage.” The
warrantor
is not liable for incidental or consequential damage resulting from the use of this
product or arising out
of any breach of this warranty.
¥ For example: damage for lost time, the cost of having a person/persons remove or re-
install
previously installed equipment, travel to and from service location, loss of or
damage to
media, images, data or other recorded/stored content.
ANY PARTS AND SERVICE NOT COVERED BY THIS LIMITED WARRANTY ARE
THE RESPONSIBILITY OF THE CUSTOMER.
Premium high Definition Solutions
Website http ://www.phdsolutions.co
21

Premium High Denion Soluons
Home page: http://www.phdsolutions.co
