Phihong PoE125U and PoE240U Midspan
User Manual
Rev. A1

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
1
Disclaimer
Phihong accepts no accountability or liability arising from the use of the Midspans, as described
in this document. The handling of equipment will be users’ responsibility. Applications
described in this document are for descriptive purposes only. Phihong does not provide warranty
for modified products.
Notice
This document contains informative information about the software and hardware used on the
Midspan. The information is held to be accurate and reliable from time of print. Please be
advised that product development and revisions are still in course of action. Phihong cannot be
held responsible for involuntary error, exclusions, inaccuracies, or following changes of printed
material.
Phihong reserves the right to make changes to products and to their specifications as described in
this document, at any time, without prior notice. The contents of this document may not be
photocopied or reproduced in any form without written permission of Phihong.
NOTE: Midspans are for indoor use only!
© May 2008 Phihong USA Corp.
All Rights Reserved.
This document is subject to change without notice.

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
2
Contents
1. Safety Procedures.............................................................................................................5
2. Midspan Hardware Setup ..............................................................................................8
2.1 Physical Hardware Appearance ..................................................................................8
2.2 Power Cord Requirements ..........................................................................................9
2.3 Connecting Ethernet Cables ........................................................................................10
2.4 Connecting Power Cables............................................................................................10
2.5 Powering Up ................................................................................................................10
2.6 LED Indicators.............................................................................................................10
2.7 Rack-Mounting Installation.........................................................................................12
2.8 Technical Specifications..............................................................................................13
3. Troubleshooting...............................................................................................................14
Appendix
A Optional NIC Interface – (for –N model Only).........................................................15
A1 NIC Interface Setup .................................................................................................15
A2. Phihong GUI Installation........................................................................................24
A3 How to use the Phihong GUI with the NIC Midspan? ............................................25
A4 Midspan GUI............................................................................................................28
A5 How to update the SNMP Firmware?......................................................................33
A6 How to use the HyperTerminal to communicate with the NIC Interface? ..............36
A7 Different network domain........................................................................................42
A8 SNMP MIB..............................................................................................................44

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
3
List of Figures:
Figure 1 Front side of Midspan ............................................................................................8
Figure 2 Data & Power (top row), Data (bottom row) ........................................................8
Figure 3 NIC Connector .......................................................................................................8
Figure 4 Rear Side of Midspan.............................................................................................8
Figure 5 Rack-Mounted Midspan ........................................................................................11
Figure 6 Rack mounting bracket and screws........................................................................11
Figure 7 GUI Main Window ................................................................................................27
Figure 8 System Setup & Control ........................................................................................27
Figure 9 System Information and Port Commands ..............................................................28
Figure 10 Port Description ...................................................................................................29
Figure 11 LED Key (Port Status)..........................................................................................30
Figure 12 Parametric Information ........................................................................................31

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
4
List of Tables:
Table 1 LED Indicator .........................................................................................................11
Table 2 Electrical Specifications .........................................................................................12
Table 3 Troubleshooting.......................................................................................................13
Table 4 SNMP MIB..............................................................................................................45

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
5
1. Safety Procedures – General Precautions
General - Please read the following precautions carefully before installing and connecting the
system to a power source.
Note – Only qualified and trained service personnel (in accordance with IEC 60950 and AS/NZS
3260) should install, replace, or service the equipment. Install the system in accordance with
Country, National or to the U.S. National Electric Code if you are in the United States.
Precautions:
1. The building facilities in which the product will be used requires a fuse or circuit breaker
no larger than 15 A for 120 Vac (U.S.A.) or 10 A, 230 Vac (international). The building
facilities must protect the Midspan from over current or short-circuits.
2. Before connecting the Midspan to a power source (including power cord requirements),
read the Midspan Hardware Setup procedure in Section 2. This procedure as with all
procedures and instruction s can be found in the Midspan User Manual. To download a
copy of the Manual, visit “www. Phihong.com”.
3. To prevent the Midspan from overheating, do not operate the product in an area that
exceeds the maximum recommended ambient temperature of 40 ºC. Allow at least 3 to 4
inches of clearance around all ventilation openings.
4. In order to support the Midspan weight, do not stack the chassis on any other equipment.
Shelf mounted equipment requires a stable and durable surface. When installed, do not
push or pull on the Midspan when the equipment is installed.
5. The Midspan consists of two rows of “Data and “Data & Power” ports. The ports use
RJ-45 data sockets. Do not connect telephone cables into these ports. Only RJ-45 data
cables may be connected to these sockets.
6. Do not work on the Midspan system or connect or disconnect cables, during periods of
lightning activity.
7. The AC or DC plug/socket combination must be accessible at all times, as it serves as the
main disconnect device to the product.
8. Before servicing the product, always disconnect the product from its AC and DC source.
9. Disposal of this product should abide by all appropriate National laws and regulations.

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
6
1. Sicherheitsmaßnahmen – Allgemeine Vorsichtsmaßnahmen
Allgemein – Lesen Sie die folgenden Vorsichtsmaßnahmen sorgfältig durch, bevor Sie das
System installieren und an eine Energiequelle anschließen.
Hinweis – Das Gerät darf nur durch qualifiziertes und geschultes technisches Personal (gemäß
IEC 60950 [Vorschrift 60950 der Internationalen Elektrischen Kommission] und AS/NZS 3260
[Vorschrift für Australien und Neuseeland]) installiert, ersetzt oder repariert werden. Installieren
Sie das System auch in Übereinstimmung mit den geltenden nationalen oder europäischen
Vorschriften bzw. der NEC-Vorschrift, falls Sie sich in den Vereinigten Staaten befinden.
Vorsichtsmaßnahmen:
1. Die Gebäudeinstallationen, in denen das Produkt benutzt wird, müssen über eine
Sicherung oder einen Schutzschalter mit maximal 15 A für 120 VAC (USA) oder 10 A
für 230 VAC (international) verfügen. Die Gebäudeinstallationen müssen das Midspan-
Device vor zu starkem Strom oder Kurzschlüssen schützen.
2. Lesen Sie vor dem Anschließen des Midspan-Device an eine Energiequelle
(einschließlich der erforderlichen Anschlussleitungen) die Setup-Anleitung für Ihre
Midspan-Hardware in Kapitel 2 genau durch. Dieses Verfahren wird zusammen mit allen
weiteren Vorgängen und Anweisungen im Benutzerhandbuch für das Midspan-Device
beschrieben. Sie können das Benutzerhandbuch unter "www. Phihong.com"
herunterladen.
3. Um das Midspan-Device vor Überhitzung zu schützen, benutzen Sie das Produkt nicht in
Räumen, die die maximale empfohlene Umgebungstemperatur von 40oC überschreiten.
Lassen Sie um alle Lüftungsöffnungen herum mindestens 7,5 bis 10 cm (3-4 inches) frei.
4. Stützen Sie das Gewicht des PoE Midspan-Device nicht ab, indem Sie das Gehäuse auf
ein anderes Gerät stellen. Falls Sie das Gerät auf ein Gestell montieren, muss dieses eine
stabile und haltbare Oberfläche haben. Nach der Installation des Systems bewegen Sie
das Midspan-Device nicht mehr.
5. Das Midspan-Device enthält zwei Reihen mit "Datenports" und "Daten- und Stromports".
Die Ports verwenden RJ45-Datenanschlüsse. Schließen Sie keine Telefonkabel an diese
Ports an. Es dürfen nur RJ45-Datenkabel an diese Eingänge angeschlossen werden.
6. Führen Sie an dem Midspan-System keine Arbeiten durch, schließen Sie keine Kabel an
und trennen Sie keine Kabelverbindungen während Gewittern mit Blitzen.

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
7
7. Der Steckanschluss für Gleich- oder Wechselstrom muss jederzeit zugänglich sein, da er
als Haupttrenngerät für das Produkt dient.
8. Trennen Sie das Produkt immer erst von der Stromquelle, bevor Sie Wartungs- oder
Reparaturarbeiten daran durchführen.
9. Entsorgen Sie dieses Produkt gemäß aller geltenden Gesetze und Vorschriften Ihres
Landes und der EU (falls Sie sich in einem Land der EU befinden).

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
8
2. Midspan Hardware Setup
2.1 Physical Hardware Appearance:

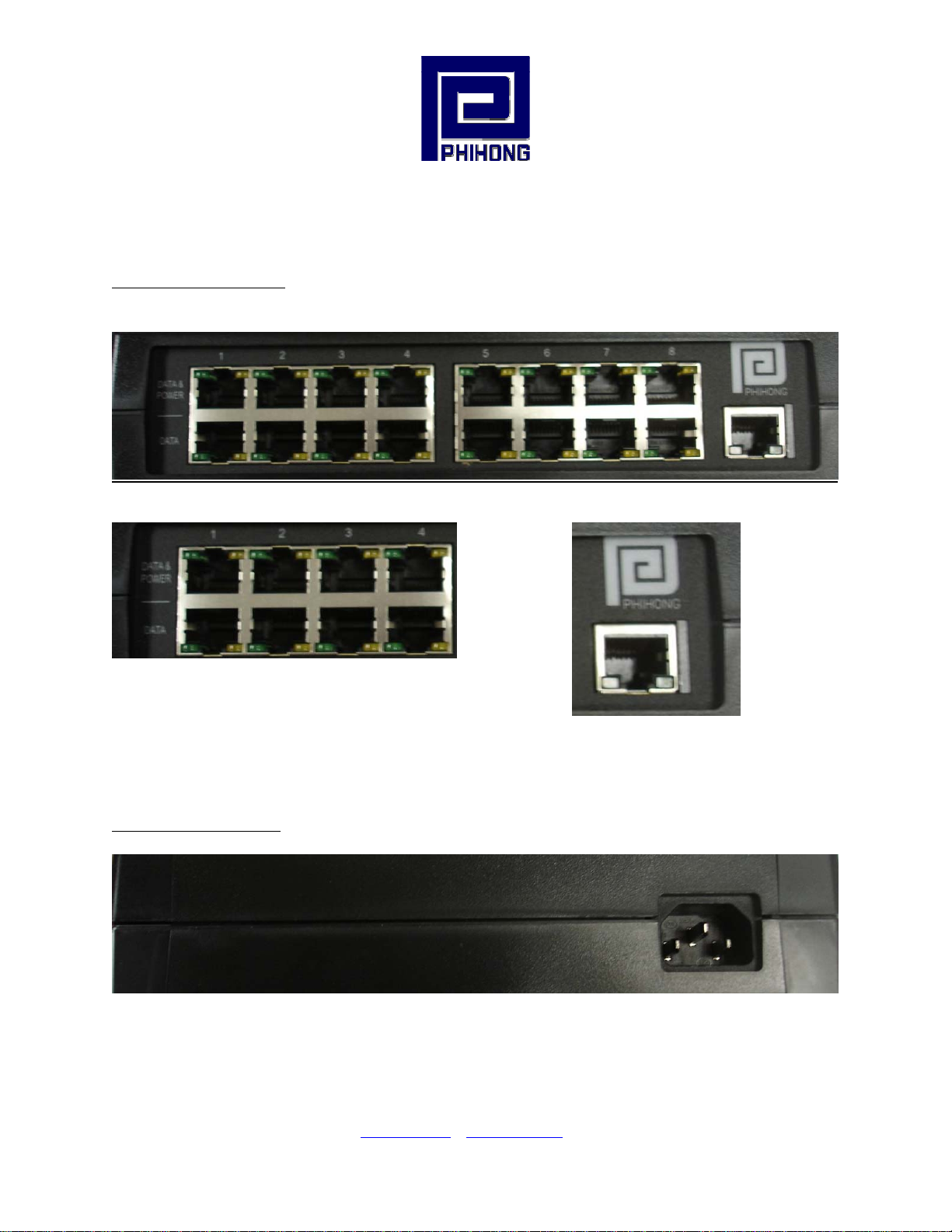

Front Side of Midspan:
Fig 1 Front side of Midspan
Fig. 2 Data & Power (top row), Data (bottom row)
Fig. 3 NIC Connector
(-N Model Only)
Rear Side of Midspan:
Figure 4 Rear side of Midspan

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
9
2.2 Power Cord Requirements:
Power cords must meet the requirements for the country it is intended to be used.
U.S.A. and
Canada
•The cord must have a minimum of 10A rated current
competence.
•The cord must be CSA or UL approved.
•The minimum requirement for the flexible cord is:
o18 AWG (10A)
oThree-conductor (Line, Neutral, Ground)
oType SV (Stranded Vacuum Rubber Jacketed) or
SJ (Stranded Junior Rubber Jacketed) or SVT
(Stranded Vacuum Rubber Jacketed Themoplastic) or
SJT (Stranded Junior Themoplastic)
•The plug must be earth-grounded with a NEMA 5-15P (15A,
125 V) or NEMA 6-15P (15A, 250 V) configuration.
Europe
Switzerland
•The supply plug must comply with SEV/ASE 1011.
Denmark
•The supply plug must comply with section 107-2-D1, standard
DK2-1a or DK2-5a.
United Kingdom
•The Midspan is covered by General Approval (section 16.16.060),
NS/G/12345/J100003, for indirect connection to a public
telecommunication system.
France and Peru
•IT equipments cannot power this device. In the case of an IT
powered device, the unit needs to be powered by 230 V through
an isolation transformer with a ratio of 1:1 and the secondary
connection (Neutral) is properly grounded.
The Midspan must have access to a nearby power outlet. By disconnecting the power
cord from the outlet, you will eliminate power from the device.
The flexible cord that connects to the Midspan must have a configuration to connect with
an EN60320/IEC320 inlet connector.
According to the EN60950/IEC 950 specifications, this device functions under SELV
(Safety Extra Low Voltage) conditions. The conditions are true if the equipment and the
connected device functions under SELV conditions.

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
10
2.3 Connecting Power Cables
AC power cord:
The AC power cable is connected to the AC power connector located in the rear side of
the Midspan and the power outlet.
2.4 Connecting Ethernet Cables
Ethernet Cable
The Ethernet cable is connected to the RJ45 connector located in the front side of the
Midspan.
*Ethernet cables are not included
** AC Power Cord may be order separately
2.5 Powering Up
Midspan is powered by the power cord. In order to apply or remove power to/from the Midspan,
connect or disconnect the AC power cable to/from the AC power connector on the rear side of
the unit.
With AC power applied, the unit starts-up and the internal fans are active. The device runs
through a quick power-on test, which takes less than 5 seconds. During this period, all ports are
initially disabled and the port indicators light up. The sequence of the port LEDs are shown in
section 2.6 LED Indicator – Cold Start. Ports are now operating under normal conditions.

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
11
2.6 LED Indicator:
Only the top row LEDs indicate the status of PoE output while the bottom row LEDs always stay
off. The detail of the LED indicator is shown in Table 1.
ConditionsLED Indicator For Models Green Orange Indication
Off N/A
(always stay off) No PoE PD connected or
Port disabled
POE125U-8-R
POE125U-8-C-R
POE125U-8-N-R On N/A
(always stay off) PoE PD connected
Off Off
No PoE PD connected
On Off
PoE PD connected
On
(blinking
periodically)
On
(blinking
periodically)
Fault condition: wrong
signature detected, or
overload or short circuit
condition etc.
Port POE LED
(Top Row LED
only) POE125U-4AT-R
POE240U-4UP-R
On
(blinking
periodically)
Off PoE PD connected, but PD
is dropped off as not
enough load current
OFF OFF
NIC card is not working
Blinking
slowly OFF Power on, no Ethernet
connection
Blinking
slowly Blinking slowly Power on, Ethernet is
connected, but data
communication not set up
NIC LED
(-N Model Only) POE125U-8-N-R
Blinking fast Blinking fast
Power on, Ethernet is
connected, data
communication is in
process
Table 1: LED Indicator

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
12
2.7 Rack-Mounting Installation

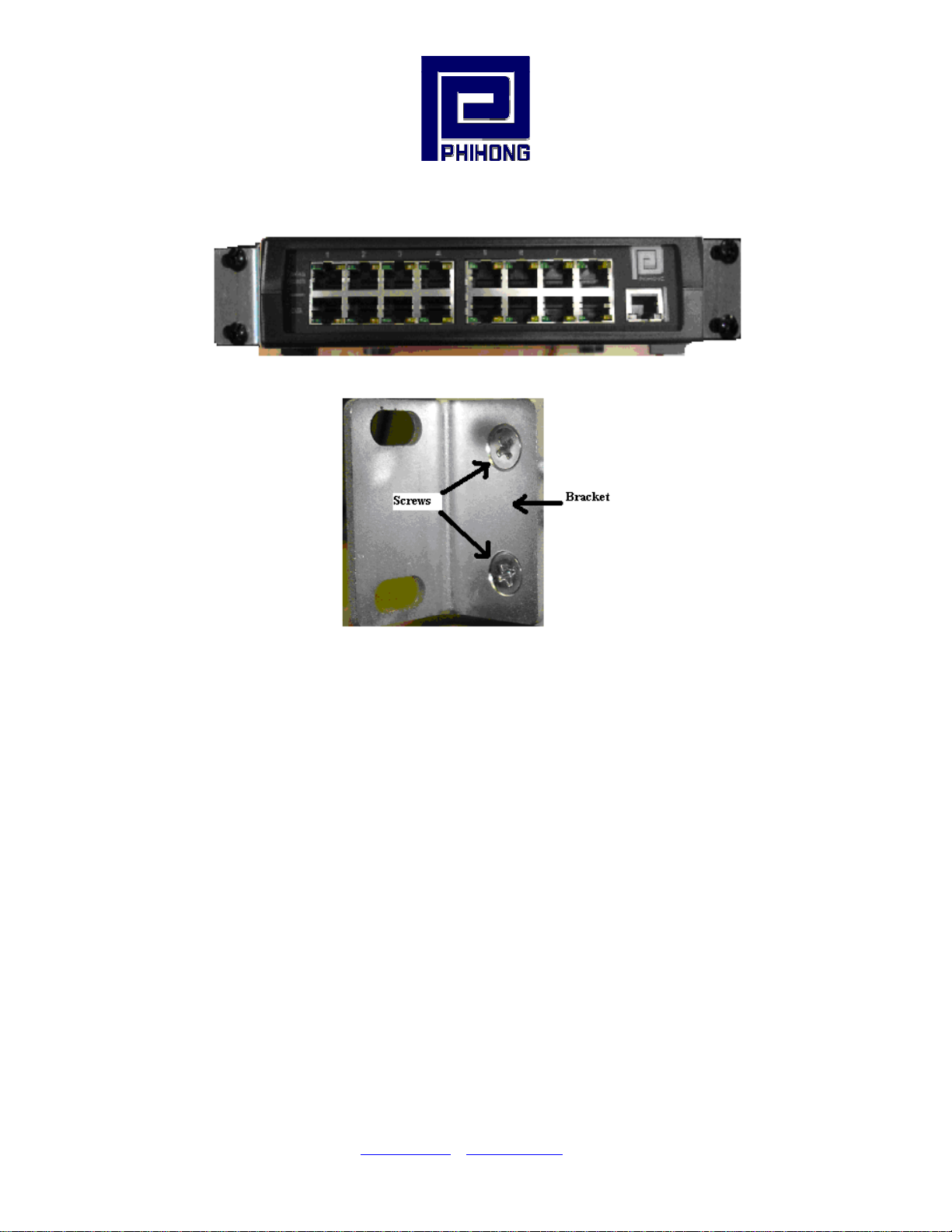

Fig. 5 Rack-Mounted Midspan (front)
Fig. 6 Rack mounting bracket and screws
Position the Midspan on the rack. Arrange the mounting bracket to the corresponding screw
holes on the Midspan. Keep the screw area visible to insert screws, and then tighten the screws.
Note: Screws and brackets can be ordered separately, please contact sales at 510-445-0100

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
13
2.8 Technical Specifications
Mechanical Specifications:
zLength: 228mm (8.9 inch)
zWidth: 198mm (7.8 inch)
zHeight: 44.5mm (1.75 inch)
zWeight: 1.0Kg(2.5lbs)
Environmental Specifications:
Temperature Relative Humidity
- Operating: 0°C to +40°C - Operating: 5% to 90%
- Non-Operating: -25°C to +65°C - Non-Operating: 5% to 90%
Electrical Specifications:
*Please contact sales at 510-445-0100 for more info.
Parameters Specifications
AC Input voltage rating 100VAC to 240VAC
AC Input voltage range 90VAC to 264VAC
AC Input current 3.0A (rms) at Max. load nominal line
AC Input frequency: 47Hz to 63Hz
Max. In-rush current 30A for 115VAC at Max. load
60A for 230VAC at Max. load
Model Output
Voltage Power per port Power Total Output Supported Functions
POE125U-8-R 50V 15.4W 125W Supports IEEE signature
POE125U-8-C-R 50V 15.4W 125W Supports IEEE/Legacy signature
POE125U-8-N-R 50V 15.4W 125W Supports IEEE/Legacy
signature, SNMP function
POE125U-4AT-R 56V 33.6W 135W Supports IEEE/Legacy signature
POE240U-4UP-R 56V 60W 240W 12.5K detection

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
14
3. Troubleshooting:
If problems occur with the Midspan, verify the following:
The troubleshooting solutions provided can only solve minor problems. If your problem is not
listed, please contact our local office for further technical assistance.
Problem Possible Solutions
Midspan does not power up 1. Assure that AC power cord is connected.
2. Assure that AC power cord is in good condition.
3. If solution 1 & 2 are true, then disconnect the AC
power cord and reconnect. Observe Port LEDs to
verify proper power up.
Port LED do not light ‘green’ 1. Port maybe disabled and needs to be enabled using the GUI. Ensure Ports are enabled, then ‘Save Flash
Parameters’
2. Assure Ports are connected to a Network.
Others. Please verify the
following:
1. Power is applied to the Midspan
2. The network Ethernet cable is connected to the Data port
3. The powered device Ethernet cable is connected to the
Data & Power port
4. Proper type of Ethernet cable is used, do not use
crossover-type Ethernet cable
5. Cable pairs are connected to corresponding ports.
Table 3: Troubleshooting

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
15
Appendix A: Optional NIC Interface (for –N model only)
A1 NIC Interface Setup:

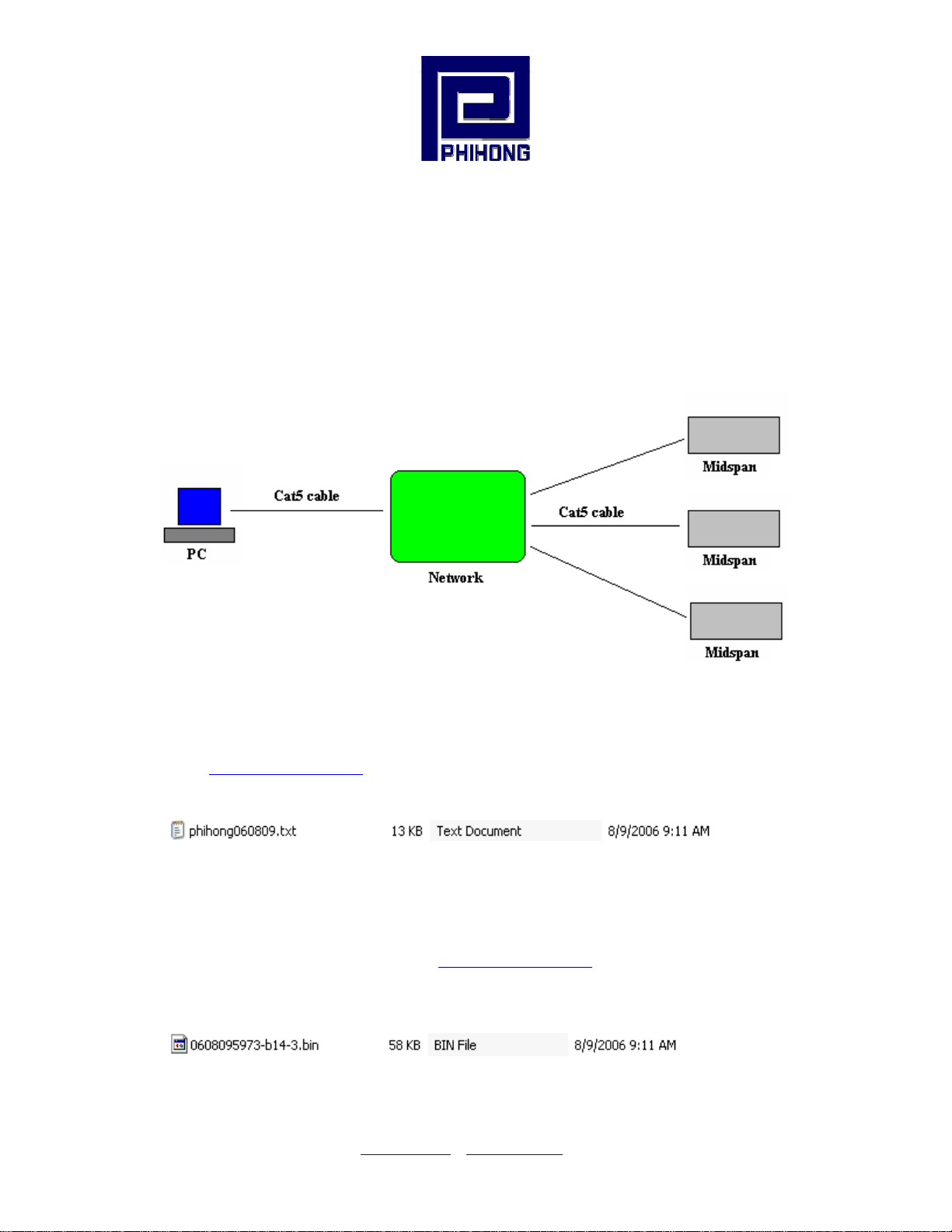

PC-to-Network-to-Midspan:
NOTE: Assure the connection path between your PC and the Midspan. Skip Step 1 if you wish
to use our Phihong GUI to communicate with the Midspan.
1. Visit www.Midspans.com to download latest SNMP MIB for the NIC interface.
Example SNMP MIB file (please check our website for updates):
If you choose to use your own SNMP console, please rename the SNMP MIB text file
to the file extension that matches your SNMP Console. Follow the instructions for
your SNMP Console to install the MIB file.
Please check the Phihong website (www.Midspans.com)occasionally for the latest
updates for the MIB and the SNMP Firmware
Example of a SNMP Firmware file (please check our website for updates):

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
16
2. Visit www.Midspans.com to download the Ethernet Manager tool (etm.exe). Etm.exe is
a Device Management Utility that runs under the Windows 32 bit environment and is
used to setup the IP address, subnet mask, and MAC address of your SNMP device. For
more advance setup settings, use Internet Explorer or another Internet Browser.
NOTE: Your IP Address may be different from the example shown below

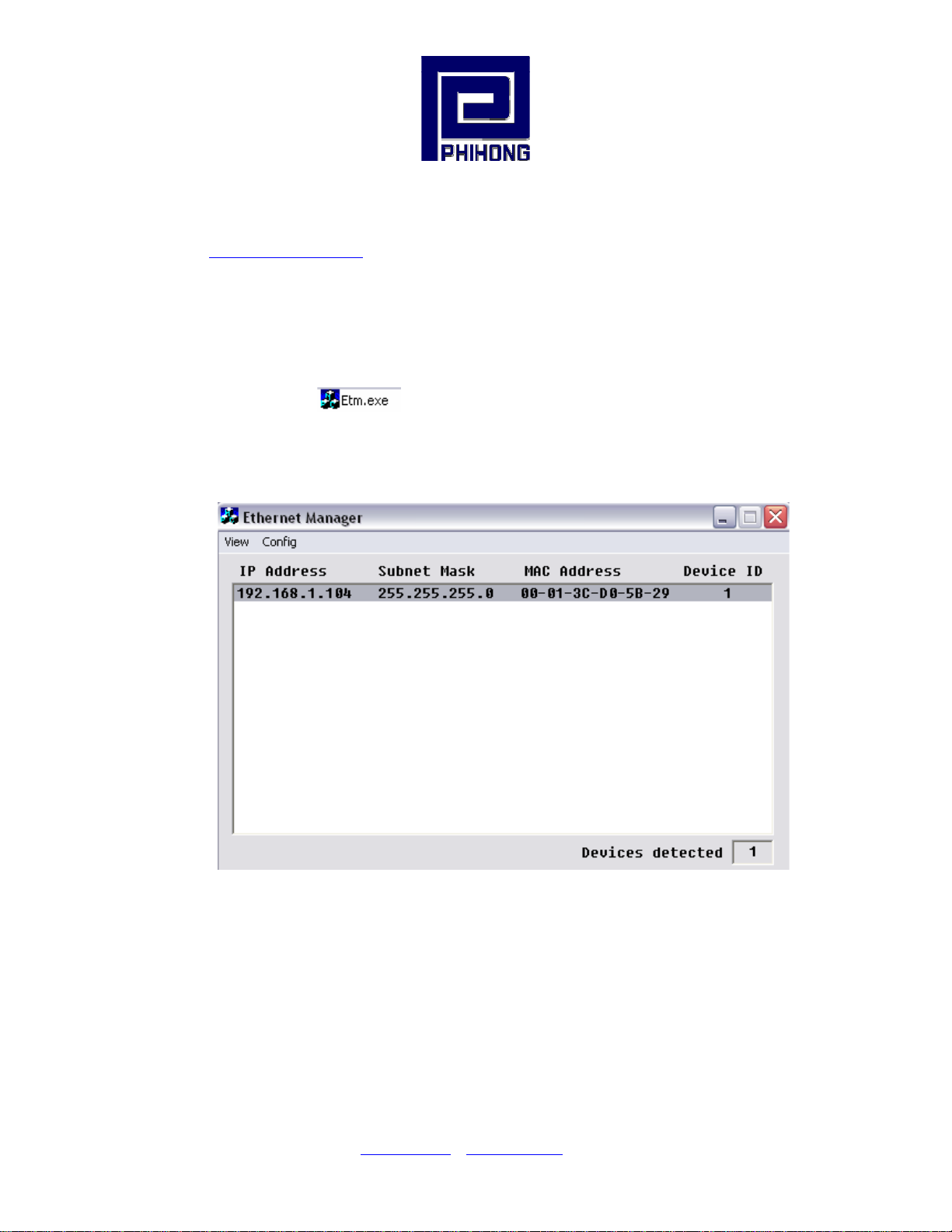

3. Execute etm.exe Ethernet Manager tool
4. Assuming the connection path between your PC and the Midspan is adequate; the
Ethernet Manager tool will detect your SNMP device.

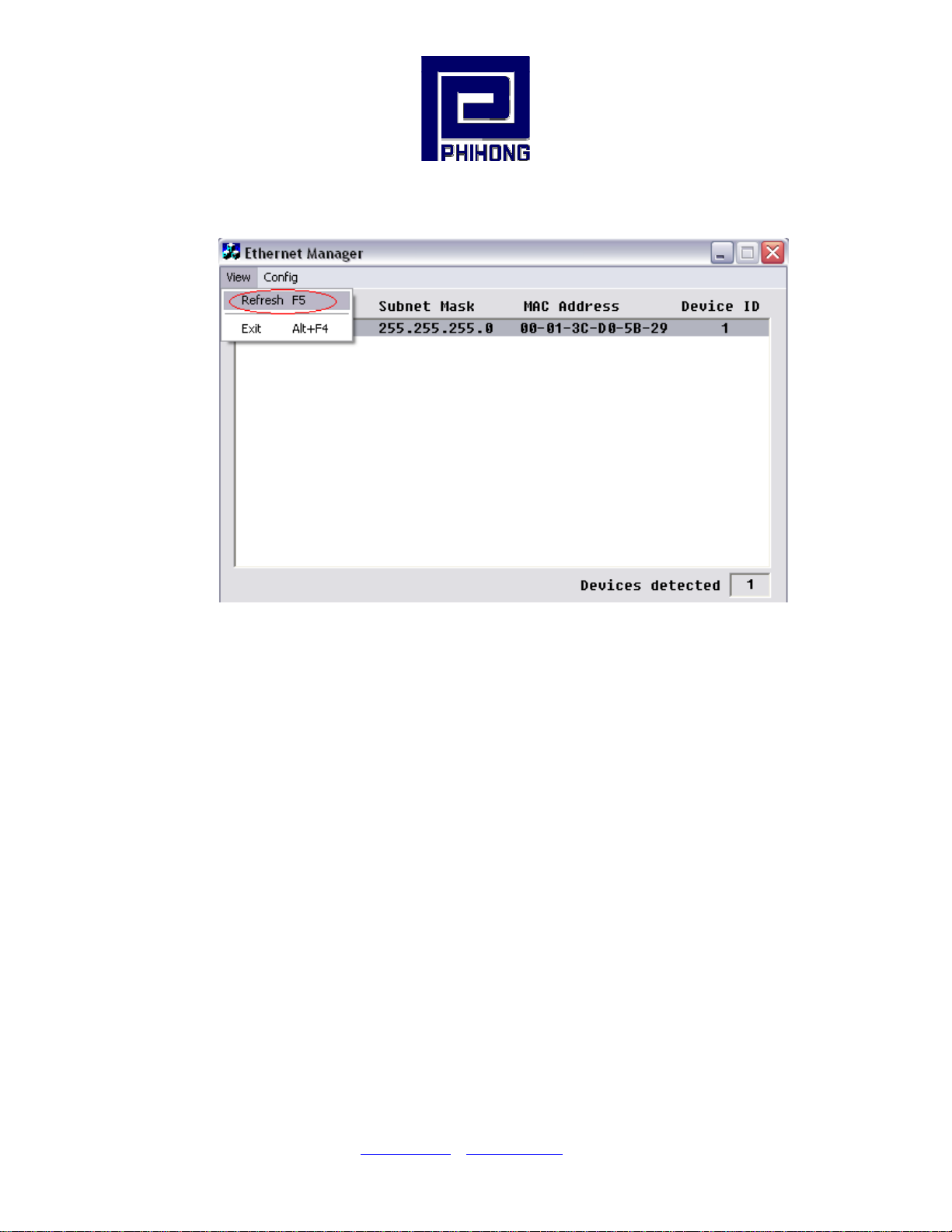

5. If your device is not found, check the connection and click View ÆRefresh

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
17
6. For Advance Setup Configuration: click Config ÆDevice Settings OR type the IP

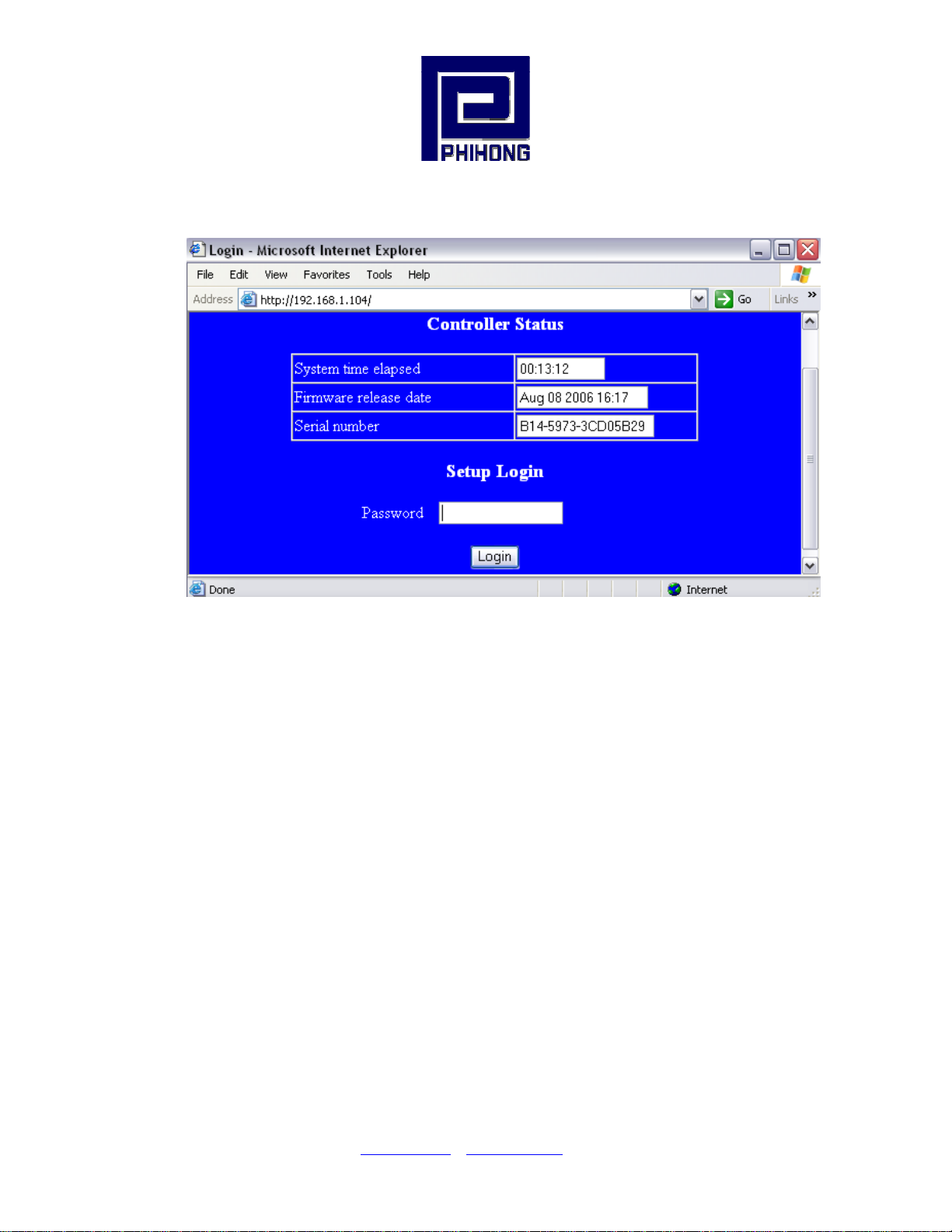

address in your Internet Browser. Your Internet Browser will open with the following
window:

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
18
The default Password: administrator
NOTE: If you forget your login password, please contact our Application Engineering
Group for further instructions.
7. Controller Setup

Phihong USA Corporation •East Coast Engineering Center •630 Johnson Ave. Suite 102, Bohemia, NY 11716 •Tel: [phone]
www.Phihong.com or www.Midspans.com
19
NOTE: If you change the Setup password, please write it down in a safe place for your
reference.
Click Update to save your configurations:
