Philco PHS 3216C User manual

GLASS CERAMIC
COOKTOP
USER'S MANUAL
PHS 3216C

Dear customer,
Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read
all the instructions in this user's manual.

EN - 1
10/2015
Copyright © 2015, Fast ČR, a. s.
CONTENTS
PART 1: IMPORTANT SAFETY INSTRUCTIONS................................................................................................ 2
PART 2: DESCRIPTION OF THE CONTROL PANEL ........................................................................................... 6
PART 3: OPERATING THE APPLIANCE ............................................................................................................. 7
 Before rst use .................................................................................................................................................................................7
 Touch controls .................................................................................................................................................................................7
 Turning the appliance on and o .............................................................................................................................................7
 Turning the hotplates on and o..............................................................................................................................................7
 Automatic cooking.........................................................................................................................................................................7
 Saving energy ..................................................................................................................................................................................7
PART 4: CLEANING AND MAINTENANCE........................................................................................................ 9
PART 5: INSTALLING THE APPLIANCE........................................................................................................... 10
 Safety precautions....................................................................................................................................................................... 10
 Selecting the installation location......................................................................................................................................... 11
 Positioning the cooktop on the workbench...................................................................................................................... 12
 Electrical connection.................................................................................................................................................................. 13
PART 6: TROUBLESHOOTING ........................................................................................................................ 14
PART 7: TECHNICAL SPECIFICATIONS........................................................................................................... 15

EN - 2
10/2015
Copyright © 2015, Fast ČR, a. s.
PART 1: IMPORTANT SAFETY INSTRUCTIONS
Recommendation:
Carefully read these instructions before installing and operating this appliance. Write down the serial number
found on the rating label of the appliance in the space below. It is essential that you store this user's manual in
a safe place so that you can use it in the future. If you intend to sell the appliance, give it to another owner, or
if you move, always make sure that the user's manual is attached to the appliance, so that the new owner can
nd out about the operation of the appliance and the relevant warnings.
SERIAL NUMBER:
Basic safety instructions
 Take the appliance out of the packaging. Check that you have
removed all advertising and promotional labels before rst use.
 After unpacking, check the appliance for damage, also check the
power cord for damage, if appropriate. Do not install a damaged
appliance or an appliance with a damaged power cord. Contact
an authorised service centre.
 We recommend that you keep the packaging materials at least
for the warranty period.
 This appliance is designed for household use in the home.
 Only use the appliance for the purpose of heating or cooking
food; do not use for other purposes than for which it is designed
(e.g. heating a room).
 The Manufacturer, importer take no responsibility for
damages caused by inappropriate, incorrect or negligent use.
 Do not use the appliance for cutting or chopping food (e.g.
bread). The glass surface of the appliance must not be used as a
work surface.
 Do not use cookware that could scratch or damage the surface of
the appliance.

EN - 3
10/2015
Copyright © 2015, Fast ČR, a. s.
 Only connect the appliance to a properly grounded circuit that
conforms to valid electrical safety codes. If you are not sure
whether the used electrical circuit is properly grounded, please
contact a qualied electrician.
 Do not subject the power cord to excessive pressure during
the installation and placement of the device, or to extreme
temperatures.
 Under no circumstances should you replace the power cord
yourself. All maintenance must be performed by a qualied
electrician with the power cord disconnected.
 Do not use adapters, multi-socket adapters or extension cords.
 Built-in appliances may only be used when installed into a suitable
unit that conforms to relevant standards.
 If you hear a cracking sound coming from the appliance, turn it
o and disconnect it from the power socket to prevent potential
injury by electrical shock.
 We recommend that you install a smoke detector and that you
locate re blankets or re extinguishers near the appliance.
 The appliance may heat up during operation, prevent small
children from coming close to the appliance.
 This appliance must not be used by any persons (including
children) with mental disabilities, weak strength or by
inexperienced persons, unless they have been properly trained
or schooled in the safe use of the product, or unless they are
properly supervised by a qualied person who is responsible for
their safety.
 Children should always be supervised so as not to play with the
appliance.

EN - 4
10/2015
Copyright © 2015, Fast ČR, a. s.
Safety instructions for use
 Do not place any metal items or ammable materials such as
knives, forks, spoons, wiping cloths or pot lids, etc. near the
cooking surfaces as they may heat up or catch on re.
 Do not place empty cookware on cooking surfaces when they are
turned on, or use the surfaces without cookware.
 Only use cookware designed for this type of appliance.
 Do not leave the appliance turned on without supervision,
especially when cooking with fat or oil. In the event of burns,
a sudden ignition could occur.
 Pay increased attention when another turned on appliance (e.g.
an iron) is used near the turned on appliance and check that the
power cord is not touching or near the cooking surfaces.
 Do not place cookware with a wet base on to hot hotplates.There
is a danger of damaging the cookware and the surface treatment
of the cooktop.
 If liquid is spilled from the cookware and comes into contact with
a hot hotplate, pressurised steam may be created. Risk of skin
burns or damage to the cooktop. Carefully wipe the liquid o the
cooktop using a dry wiping cloth.
 Check that the appliance is properly turned o if you will not be
using it.
 Only use cookware that is suitable and designed for this type of
appliance. Such cookware for induction appliances should be
clearly marked by the manufacturer.
 Do not use ammable substances (alcohol, petrol) near the
appliance when using it.
 You may hear a quiet sound when the appliance is turned on.This
is a normal event.
 If the appliance is not used according to the here provided
instructions, there is a risk of skin burns.

EN - 5
10/2015
Copyright © 2015, Fast ČR, a. s.
 The appliance is not intended to be operated by means of external
timer or separate remote control system.
 WARNING: Danger of re: do not store items on the cooking surface.
 NEVER try to extinguish a re with water, but switch o the
appliance and then cover ame e.g. with a lid or a re blanket.
IMPORTANT
Leavea ventilationopening ofat least5mm between the workbench and the frontpart of thecomponent
located underneath it.
Cleaning and repairs
 Ensure that the appliance is turned o and that it has cooled down completely before cleaning it.
 Do not use steam cleaners for cleaning.
 Do not use coarse or aggressive cleaning agents as they could damage the surface of the appliance.
 For cleaning use only special agents designed for glass ceramic cooktops.
 Keep the appliance clean to extend its lifetime.
 If the appliance needs servicing or repairs that requires the removal of the cover, please contact an
authorised service centre or another qualied person.
 Under no circumstances should you attempt to repair the appliance yourself.
 Neither the manufacturer, importer nor the distributor take any responsibility for damage resulting from
incorrect installation or connection.
Avoid the following
The base of the used cookware
A course base can scratch the cooktop. Do not turn on the cooktop with empty cookware. This could cause
damage.
Hot cookware
Never move hot pots or pans on to the control panel or the frame of the cooktop.
Salt, sugar and sand
Salt, sugar and sand can scratch the cooktop. Do not use the cooktop as a workbench or as storage space.
Hard and pointed items
Hard or pointed items can damage the cooktop.
Boiled over food
Sugar and similar foods may damage the cooktop.
Plastic and foils
Aluminium foils and plastic containers will melt on hot hotplates.
Cleaning agents
Cleaning agents that are not designed for glass ceramic cooktops may leave irremovable stains on the surface
of the cooktop

EN - 6
10/2015
Copyright © 2015, Fast ČR, a. s.
PART 2: DESCRIPTION OF THE CONTROL PANEL
Description of the control panel
Timer display
– button + button Hotplate selection button On / o button
NOTE:
Due to continuous development, the presented picture may dier from the actual model.
Shown on the display
Display Meaning Function
0 Zero Hotplate is activated.
1…9 Power level Selecting a power level
A Thermal accelerator Automatic cooking
E Error message Electronic error
H Residual heat The hotplate is still hot even after it is turned o.

EN - 7
10/2015
Copyright © 2015, Fast ČR, a. s.
PART 3: OPERATING THE APPLIANCE
Before rst use
Before rst use, wipe the cooktop with a clean wiping cloth and wipe dry using a dry wiping cloth. Do not use
any cleaning agents, there is a risk of a ne blueish coat forming on the cooktop, which is very dicult to remove.
Touch controls
The hotplate is equipped with electronic controls with touch buttons. The respective function is activated
when a button is touched. This is accompanied by an indicator light, a letter or number on the display
and a sound is made.
Turning the appliance on and o
To turn on the appliance, press the button 0/I once. "0" will appear on the display.
To turn o the appliance, press the button 0/I once. The display will turn o and "H" will appear.
Turning a hotplate on and o
Press the hotplate selection button and "0" will appear on the display.
To set the power level, use the button "+" and "-". The display will show the set power level from 1 – 9.
To nish cooking and to turn o the hotplate, use the button "-". "0" or "H" will appear on the display.
If you do not press any button for 20 seconds, the hotplates will return to the stand-by mode.
Automatic cooking
All hotplates are equipped with the automatic cooking function. The selected hotplate will start cooking at full
power for a certain time and then automatically reduce the power to a preset power level.
To set the maximum power level using the“+”button, set the power level from“1”to“9”. For automatic cooking,
press the“+”button once more.“9”and“A”will start ashing on the display. Now press the“-”button and set the
power level to“7”. Then“7”and “A”will ash.
To turn o the function, select a hotplate, the display will show “7” and “A”, then use the “+” and “-” buttons to
turn o the hotplate.
Energy savings
 Place the cookware on the hotplate before turning it on. If you turn on the hotplate before placing the
cookware on it, the hotplate will not turn on and the display will be shown.
 To reduce the cooking time use a lid.
 As soon as the liquid starts to boil, lower the temperature.
 To shorten the cooking time, reduce the amount of water and fat to a minimum.
 Select the respective temperature for the given type of food.

EN - 8
10/2015
Copyright © 2015, Fast ČR, a. s.
Examples of power settings
(only a recommendation)
1 - 2 Melting
Heating Sauces, butter, chocolate, gelatine
2 – 3 Mild heating
Defrosting
Rice, pudding, sugar syrup, dried vegetables, sh, frozen
products
3 – 4 Steam cooking Vegetables, sh, meat
4 – 5 Water For potatoes, soups, pasta, fresh vegetables
6 – 7 Medium heat Meat, eggs, smoked goods, goulash, roulades, oal
7 - 8 Cooking Potatoes, frying
9 Frying, grilling, boiling water Steaks, omelettes, fried meals, water

EN - 9
10/2015
Copyright © 2015, Fast ČR, a. s.
PART 4: CLEANING AND MAINTENANCE
Before cleaning, check that the appliance is turned o, the power cord is disconnected from the power
socket, or if appropriate the circuit breaker to which the appliance is connected is disengaged.
Clean the cooktop before every use. This will prevent food remains from baking on.
For cleaning use special cleaning agents for glass ceramic cooktops, which can be used even if the cooktop
is still warm. Rinse and wipe dry using a clean wiping cloth or paper towel.
You can use a special scraper for the removal of baked on food. Sticky food (e.g. sugar) must be removed
immediately after being spilled, before the surface cools down.
The scraper is equipped with a razor blade that is very sharp. Be careful when using the scraper. Keep out
of the reach of children.
To remove baked on food, moisten a soft sponge and remove the baked on food using the moistened soft
sponge.
Do not use abrasive sponges, steel wool, caustic cleaning agents, cleaning agents in sprays or any sharp items
to clean the surface of the cooktop.
Do not use a steam cleaner to clean away food.
Regular maintenance will extend the lifetime of your cooktop.

EN - 10
10/2015
Copyright © 2015, Fast ČR, a. s.
PART 5: INSTALLING THE APPLIANCE
Safety precautions
 The appliance MUST be installed in the correct manner from the
technical point of view and in accordance with this installation
manual and according to valid local legal codes. The person
performing the installation is responsible for any damages caused
by an inadequate installation.
 The appliance must only be connected by an authorised
technician, who must follow the provisions of the power company
in the installation location.
 With respect to protection, the appliance is a type I and may only
be put into operation if the connection is properly grounded.
 Serious injuries may result if this appliance is not correctly
connected to a grounding clamp or is put into operation without
professional installation. The manufacturer is not responsible
for incorrect use and possible damages caused by an incorrect
electrical installation.
 With respect to electrical protection, it is necessary to install type
B or C fuses.
 If the appliance is not equipped with a plug, then it is necessary
to install suitable means for disconnecting it from the electricity
grid in accordance with valid local installation codes.
 The power cord must be guided in such a way that it does not
touch the hot parts of the cooktop or a stove.
 Induction cooktops can only be installed above ovens with
ventilation from the same manufacturer.

EN - 11
10/2015
Copyright © 2015, Fast ČR, a. s.
 A refrigerator, dishwasher, stove without ventilation or
washing machine may not be installed under the cooktop.
 Ifthecooktopisinstalledaboveadrawer,metalitemslocatedinside
the drawer space could become heated to a high temperature by
the air circulation coming from the cooktop ventilation, so for this
reason we recommend the use of a partition panel.
 For a suitable partition panel you can use a wooden board or
purchase adequate accessories.
 Any tampering with the appliance, including the replacement of
the power cord may only be performed by an authorised service
centre.
 WARNING: Use only hob guards designed by the manufacturer
of the cooking appliance or indicated by the manufacturer of the
appliance in the instructions for use as suitable or hob guards
incorporated in the appliance. The use of inappropriate guards
can cause accidents.
ATTENTION:
Neither the manufacturer, importer nor the distributor take any responsibility for damage resulting from
incorrect installation or connection.
Selecting the installation location
 Do not place any other appliance in the area up to 65 cm above the appliance.
 A range hood must be installed according to the range hood manufacturer's instructions.
 The wall in the rear part of the installed cooktop must be made from an inammable material.
 The length of the power cord must not exceed 2 metres.

EN - 12
10/2015
Copyright © 2015, Fast ČR, a. s.
Requirements for the workbench
 The workbench must be straight and located horizontally. Perform the cut-outs into the
built-infurniture priorto installingthe appliance.Removeall splintersand woodshavingsotherwise
a malfunction of the electrical components could occur. At the same time ensure that after
performing the cut-out works, the stability of the furniture is not compromised.
 The surfaces of the cuts need to be treated so that they are resistant against temperature and moisture
(they could start swelling).
 Furniture intended for built-in appliances must be resistant to temperatures of up to 100°C.
 The minimum distance from the cut-out to the side wall must be: 40 mm. Do not locate the cooktop
between two side walls. If it is located in such a way, it is necessary to maintain a minimum distance of 200
mm from one of the side walls.
 The minimum thickness of the workbench into which the installation is made is:
 30 mm if the installation is above an oven;
 20 mm if the installation is without an oven or above a drawer.
 For the ventilation of the cooktop, provide an opening in the top part of the rear wall of the furniture with
a width of 45 mm and a 20mm gap between the rear wall of the furniture and the kitchen wall. If you
will be installing the cooktop above a drawer, it is necessary to maintain a minimum distance of 65 mm
between the drawer and the top part of the workbench.
Positioning the cooktop in the workbench
Take the appliance out of the packaging and remove all advertising and promotional materials to check that
the appliance is not damaged. If the appliance is damaged or the power cord is damaged, do not use the
appliance and contact an authorised service centre.
Cut-out dimensions: 280 x 490 mm. Cut out an opening with the corresponding dimensions.

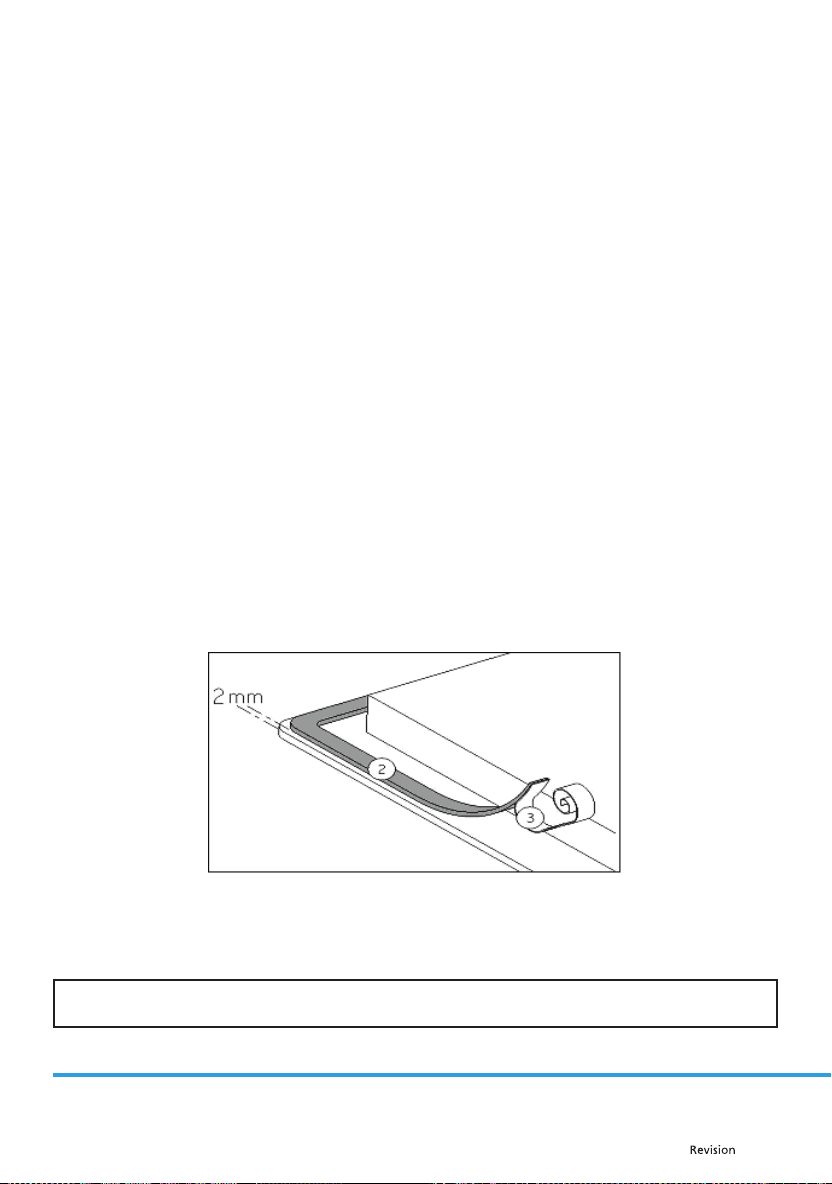

Apply single sided tape around the bottom edge of the cooktop - see picture below. Do not stretch too much.
Insert the cooktop into the cut-out hole in the workbench.
To ensure cooling, before inserting the oven, it is necessary to remove the rear kitchen panel in the location
where the oven is opened. The front part of the kitchen part must have a hole no smaller than 5 mm.
ATTENTION:
Under no condition should you glue this glass ceramic cooktop!

EN - 13
10/2015
Copyright © 2015, Fast ČR, a. s.
Electrical connection
Before connecting the electrical wiring check that:
 The voltage indicated on the rating label of the appliance (in the rear part) is the same as the voltage
in your power socket.
 The circuit into which the appliance will be connected must cover the load of the given appliance (see
rating label).
 The power supply must be grounded in accordance with stipulated valid codes and must be in good
condition.
 The circuit breaker to which the appliance is connected must remain easily accessible.
 If neither the respective electrical circuit or circuit breaker are available, it is necessary to have one installed
by a qualied electrician before installing and connecting the appliance.
The electrical wiring connection may only be performed by an authorised
service centre or by an electrical technician registered for this purpose!
An incorrect connection will lead to irreparable damage of the device, which may subsequently not be
acknowledged in a warranty claim. Before connecting, have the voltage in your grid checked to ensure that it
conforms to the voltage on the rating label.
The consumer's connecting voltage (230 V against N) must be veried by a technician using a measuring device.
The length of the power cord must be 1.5 m so that you can connect the device prior to moving it towards the wall.
Protective electrical lines must be performed according valid codes and norms.
The appliance may only be connected to a 230 V ~ 50/60 Hz power grid.
Only connect the appliance to a grounded power socket. Follow the electrical wiring instructions.
The terminal box is located under the rear part of the appliance. Use a screwdriver to open it up.
Power socket Connections Power cord diameter Power cord Protection fuse
230 V ~ 50/60 Hz 1 phase + N 3x 1.5 mm² H05 VV-F
H05 RR-F 16 A*
* calculated concurrently with the factor according to the norm EN 60335-2-6
Connecting the cooktop
Setting the conguration:
For various types of connections, use brass jumpers located in the cabinet next to the terminals.
Monophase 230V~1P+N
Attach the earth to the terminal“earth”, the neutral N to terminal N, the Phase L1 to one of the terminals L1.
Warning:
Frequent tightening and releasing of screws may damage the eectiveness of the tightening of once
tightened screws. We recommend that you handle the screws as little as possible to prevent damaging
their threads. Check that the screws are correctly inserted and tightened.

EN - 14
10/2015
Copyright © 2015, Fast ČR, a. s.
PART 6: TROUBLESHOOTING
The cooktop or a hotplate did not turn on.
- The cooktop is incorrectly connected to the power grid.
- The protective fuse is disengaged.
- The lock function is activated.
- The touch buttons are coated with a layer of grease or water.
- There is a foreign object on the buttons.
The symbol E is shown on the control panel display.
- Disconnect and reconnect the appliance.
- Contact an after-sales service centre.
One or all the hotplates are not working.
- The safety system was activated.
- You forgot to turn o the hotplates for a long time.
- One or more touch buttons are covered.
- The cookware is empty and its base is overheated.
- The cooktop is also equipped with an automatic power level reduction function and an overheating
protection fuse.
The symbol Er03 is shown on the control panel display.
- An item or liquid is covering the control buttons. The symbol will disappear as soon as the buttons are
cleared or cleaned.
The symbol ER21 is shown on the control panel display.
- The cooktop is overheated, allow it to cool down and then turn it on again.
The symbol E3 is shown on the control panel display.
- The cookware is not suitable for this cooktop, remove it.
The symbol E400, Er25 or U4 is shown on the control panel display.
- The cooktop is not connected to the electrical power grid. Check the connection and reconnect the
appliance to the el. mains.
If any of the symbols persist, please contact an authorised service centre.

EN - 15
10/2015
Copyright © 2015, Fast ČR, a. s.
PART 7: TECHNICAL SPECIFICATIONS
Type PHS 3216C
Total power 3000 W
Energy consumption for the hob EChob** 178,9 Wh/kg
Front Heating zone Ø 155 mm
Nominal power 1200 W
Standardised cookware category** A
Energy consumption ECcw** 173,8 Wh/kg
Rear Heating zone Ø 190 mm
Nominal power 1800 W
Standardised cookware category** C
Energy consumption ECcw** 183,9 Wh/kg
** Calculated according to the method of measuring performance (EN 60350-2).
NOTE:
All the here mentioned data is subject to change.
The original version is Czech.

EN - 16
10/2015
Copyright © 2015, Fast ČR, a. s.
INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED
PACKAGING MATERIALS
Dispose of packaging material at a public waste disposal site.
DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES
The meaning of the symbol on the product, its accessory or packaging indicates that this
product shall not be treated as household waste. Please, dispose of this product at your applicable
collection point for the recycling of electrical & electronic equipment waste. Alternatively in some
states of the European Union or other European states you may return your products to your local
retailer when buying an equivalent new product. The correct disposal of this product will help save
valuable natural resources and help in preventing the potential negative impact on the environment
and human health, which could be caused as a result of improper liquidation of waste. Please ask
your local authorities or the nearest waste collection centre for further details.The improper disposal
of this type of waste may fall subject to national regulations for nes.
For business entities in the European Union
If you wish to dispose of an electrical or electronic device, request the necessary information from
your seller or supplier.
Disposal in other countries outside the European Union
If you wish to dispose of this product, request the necessary information about the correct disposal
method from local government departments or from your seller.
This product meets all the basic EU regulation requirements that relate to it.
Changes to the text, design and technical specications may occur without prior notice and we reserve the
right to make these changes.
