Carefully read this manual for correct and
safe appliance use and for helpful tips on
efficient maintenance.
Only use the washing machine after
carefully reading these instructions. We
recommend you always keep this manual
on hand and in good condition for any
future owners.
Please check that the appliance is delivered
with this instruction manual, warranty
certificate, service centre address and
energy efficiency label. Also check that
plugs, drain hose support hook and liquid
detergent or bleach tray (only on some
models) are included. We recommend you
keep all these components.
Each product is identified by a unique 16-
character code, also called the “serial
number”, printed on the sticker. This can be
found inside the door opening. This code is
a unique code for your product that you will
need to register the product warranty, or if
you need to contact the Customer Service
Centre.
This appliance is marked according to
the European directive 2012/19/EU
on Waste Electrical and Electronic
Equipment (WEEE).
WEEE contains both polluting substances (which
can cause negative consequences for the
environment) and basic components (which can
be re-used). It is important to have WEEE
subjected to specific treatments, in order to
remove and dispose properly all pollutants, and
recover and recycle all materials. Individuals can
play an important role in ensuring that WEEE
does not become an environmental issue; it is
essential to follow some basic rules:
!WEEE should not be treated as household
waste;
!WEEE should be handed over to the relevant
collection points managed by the municipality or
by registered companies. In many countries, for
large WEEE, home collection could be present.
In many countries, when you buy a new
appliance, the old one may be returned to the
retailer who has to collect it free of charge on a
one-to-one basis, as long as the equipment is of
equivalent type and has the same functions as
the supplied equipment.
1. GENERAL SAFETY RULES
2. INSTALLATION
3. PRACTICAL HINTS
4. CLEANING AND MAINTENANCE
5. QUICK USER GUIDE
6. CONTROLS AND PROGRAMS
7. DRYING CYCLE
8. AUTOMATIC WASHING/DRYING CYCLE
9. TROUBLESHOOTING AND WARRANTY
Environmental conditions
Contents

!
4
1. GENERAL SAFETY
RULES
!This appliance is intended to
be used in household applications
only. IT IS NOT intended to be
used for similar or commercial
applications such as:
- staff kitchen areas in shops,
offices and other working
environments;
- farm houses;
- by clients in hotels, motels and
other residential type environments;
- bed and breakfast type environments;
- areas for communal use in
blocks of flats or in launderettes..
!If the appliance is used in a
manner inconsistent with this it
may reduce the life of the
appliance and may void the
manufacturer’s warranty. Any
damage to the appliance or
other damage or loss arising
through use that is not consistent
with domestic or household use
(even if located in a domestic or
household environment) shall not
be accepted by the manufacturer to
the fullest extent permitted by law.
!This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved.
Children shall not play with the
appliance. Cleaning and user
maintenance shall not be made
by children without supervision.
!Children should be supervised
to ensure that they do not play
with the appliance.
!Children of less than 3 years
should be kept away unless
continuously supervised.
!If the supply cord is damaged, it
must be replaced by a special
cord or assembly available from
the manufacturer or its service
agent.
!Only use the hose-sets
supplied with the appliance for
the water supply connection
(do not reuse old hose-sets).
!Water pressure must be between
0.05 MPa and 0.8 MPa.
!Make sure carpets or rugs do
not obstruct the base or any of
the ventilation openings.
!The final part of a washer dryer
cycle occurs without heat (cool
down cycle) to ensure that the
items are left at a temperature
that ensures that the items will
not be damaged.

!
EN
5
!After installation, the appliance
must be positioned so that the
plug is accessible.
!The appliance must not be
installed behind a lockable
door, a sliding door or a door
with a hinge on the opposite
side to that of the washer
dryer, in such way that a full
opening of the washer dryer
door is restricted.
!The maximum load capacity of
dry clothes depends on the
model used (see control panel).
!The appliance is not to be used
if industrial chemicals have
been used for cleaning.
!Do not dry unwashed items in
the washer dryer.
!Items that have been soiled with
substances such as cooking oil,
acetone, alcohol, petrol, kerosene,
spot removers, turpentine, waxes
and wax removers should be
washed in hot water with an extra
amount of detergent before being
dried in the washer dryer.
!Items such as foam rubber
(latex foam), shower caps,
waterproof textiles, rubber
backed articles and clothes or
pillows fitted with foam rubber
pads should not be dried in the
washer dryer.
!Fabric softeners, or similar
products, should be used as
specified by the fabric softener
instructions.
!Oil-affected items can ignite
spontaneously, especially when
exposed to heat sources such
as a washer dryer. The items
become warm, causing an
oxidation reaction in the oil,
Oxidation creates heat. If the
heat cannot escape, items can
become hot enough to catch
fire. Piling, stacking or storing
oil-effected items can prevent
heat from escaping and so
create a fire hazard.
!If it is unavoidable that fabrics
contain vegetable or cooking
oil or have been contaminated
by hair care products be
placed in a washer dryer they
should first be washed in hot
water with extra detergent -
this will reduce, but not
eliminate, the hazard.
!Remove all objects from pockets
such as lighters and matches.
WARNING:
never stop a washer dryer before
the end of the drying cycle
unless all items are quickly
removed and spread out so that
the heat is dissipated.

!
6
!To consult the product technical
specification please refer to the
manufacturer website.
!The technical details (supply
voltage and power input) are
indicated on the product rating
plate
!Make sure that the electrical
system is earthed, complies
with all applicable law and that
the (electricity) socket is
compatible with the plug of the
appliance. Otherwise, seek
qualified professional assistance.
!The use of converters, multiple
sockets or extension cords is
strongly advised against
!Before cleaning or maintaining
the washing machine, unplug
the appliance and turn off the
water tap.
!Do not pull on the power cord
or appliance to unplug the
machine.
!Make sure there is no water in
the drum before opening the
door.
!Do not expose the washing
machine to rain, direct sunlight
or other weather elements.
Protect from possible freezing.
!When moving, do not lift the
washing machine by the knobs
or detergent drawer; during
transport, never rest the door on
the trolley. We recommend two
people lift the washing machine.
!In the event of fault and/or
malfunction, turn off the
washing machine, close the
water tap and do not tamper
with the appliance.
Immediately contact the
Customer Service Centre and
only use original spare parts.
Failure to observe these
instruction may jeopardise
appliance safety.
Electrical connections and
safety instructions
WARNING:
the appliance must not be
supplied through an external
switching device, such as a
timer, or connected to a circuit
that is regularly switched on
and off by a utility.
WARNING:
water may reach very high
temperatures during the
wash cycle.

!
EN
7
2. INSTALLATION
!Remove the 2or 4transportation
screws (A) on the back and
remove the 2or 4flat washers,
rubber bungs and plastic spacer
tubes (B) as illustrated in figure 1.
!If the washing machine is built-in,
unscrew the 3or 4transportation
screws (A) and remove the 3or 4
flat washers, rubber bungs and
plastic spacer tubes (B).
! During the removal of the screws
occasionally spacer tubes fall
inside the product, these can be
remove by tilting the product forward
and recovering them from the floor or
inside the base of the machine.
!Cover the open transportation screw
holes with the 2or 4plastic caps
included in the instruction bag.
!Place the corrugated plastic sheet,
found on top of the appliance during
the unpacking process, into the base
of the appliance as shown in figure 2
(according to the model, consider
version A, Bor C).
A
A
A
A
B
B
B
B
1
3
2
1
3
1
2
A
C
B
2
WARNING:
keep packaging materials
away from children.
In some models this operation
will not be necessary, because
the corrugated plastic sheet
will be already placed on the
bottom of the appliance.

!
8

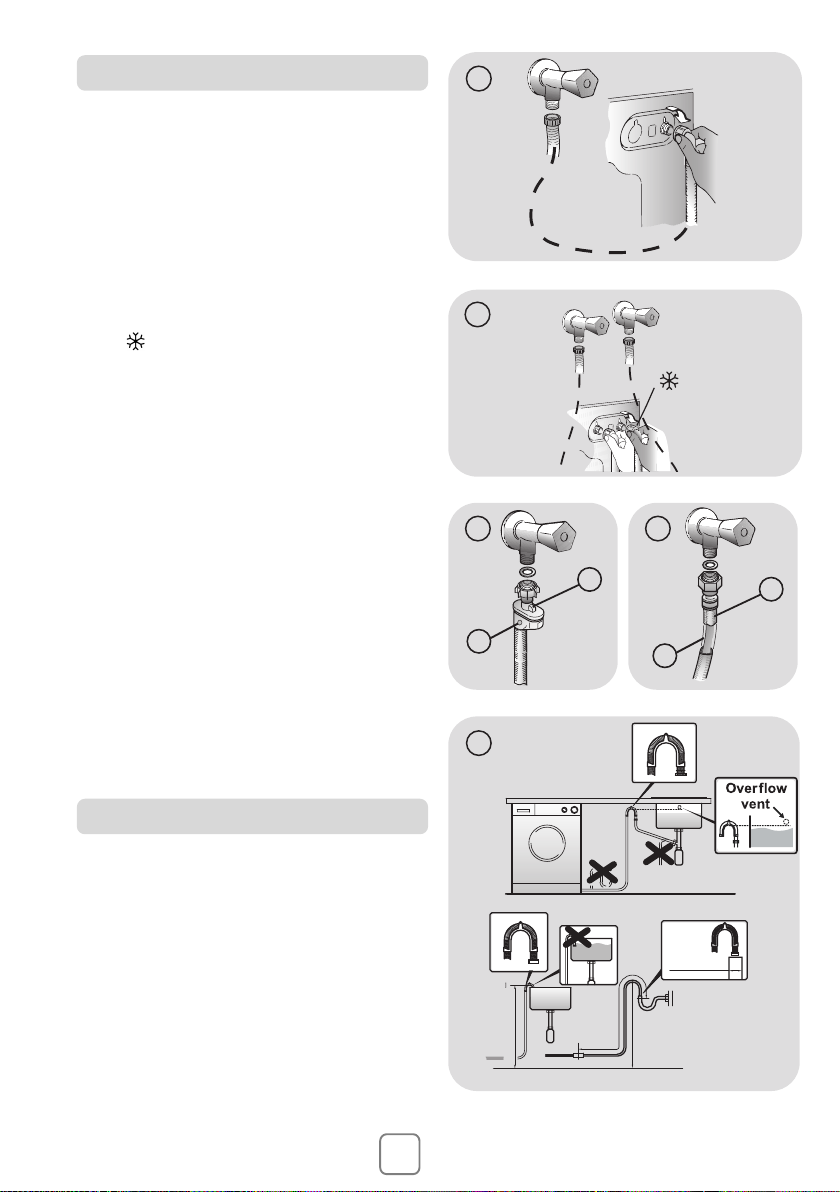

!Connect the water hose to the water
supply tap (fig. 3) only using the hose
supplied with the appliance (do not
reuse old hose-sets).
!SOME MODELS may include one or
more of the following features:
!HOT&COLD (fig. 4):
water mains connection settings with hot
and cold water for higher energy savings.
Connect the grey tube to the cold water
tap and the red one to the hot water
tap. The machine can be connected to
the cold water tap only: in this case, some
programs may start a few minutes later.
!AQUASTOP (fig. 5):
a device located on the supply tube that
stops water flow if the tube deteriorates;
in this case, a red mark will appear in the
window “A” and the tube must be
replaced. To unscrew the nut, press the
one-way lock device "B".
!AQUAPROTECT – SUPPLY TUBE WITH
GUARD (fig. 6):
Should water leak from the primary
internal tube "A", the transparent
containment sheath "B" will contain water
to permit the washing cycle to complete.
At the end of the cycle, contact the
Customer Service Centre to replace the
supply tube.
!The washing machine should be installed
in its final position such that the water fill
hose is not kinked or trapped. The
corrugated drain hose should be inserted
into suitable drain pipe of between 50 cm
and 85 cm height above the floor using
the curved drain hose support. If an under
sink connection is used the drain hose
must be routed above the sink overfill
opening to prevent back siphoning. Care
must be taken to avoid kinking or trapping
the drain hose (fig. 7).
3
1
4
B
A
5
B
A
6
min 50 cm
max 85 cm
+2,6 mt
max
max 100 cm
min 4 cm
7
Hydraulic connections
Setting

!
EN
9
!Level the appliance using the feet as
illustrated in figure 8:
a. turn the nut clockwise to release the
screw;
b. rotate the foot to raise or lower it until it
touches to the floor;
c. lock the foot, screwing in the nut, until it
tightens against to the bottom of the
washing machine.
!Plug in the appliance.
A
B
C
8
The detergent draw is split into 3
compartments as illustrated in figure 9:
!compartment "1": for prewash detergent;
!compartment “ ”: for special additives,
softeners, starch fragrances, etc.;
!compartment "2": for washing detergent.
A liquid detergent cup is also included IN
SOME MODELS (fig. 10). To use it, place it
in compartment "2". This way, liquid
detergent will only enter the drum at the
right time. The cup can also be used for
bleach when the “Rinse” program is
selected.
2
1
9
10
WARNING:
contact the Customer Service Centre
should the power cord need
replacement.
Detergent drawer
WARNING:
only use liquid products; the washing
machine is set to automatically dose
additives at each cycle during the last
rinse.
WARNING:
some detergents are not designed for
use in the dispenser drawer but are
supplied with their own dispenser that
is placed in the drum directly.
WARNING:
installation faults are not covered by
the manufacturers warranty.

!
10
3. PRACTICAL HINTS
When sorting laundry, make sure:
- have eliminated metallic objects such as
hair clips, pins, coins, from laundry;
- to have buttoned pillow cases, closed
zips, tied loose belts and long robe
ribbons;
- to have removed rollers, hooks or clips
from curtains;
- to have carefully read clothing washing
labels;
- to have removed any persistent stains
using specific detergents.
!When washing rugs, bedcovers or other
heavy clothing, we recommend you avoid
the spinning cycle.
!To wash wool, make sure the item can be
machine washed. Check the fabric label.
A guide environmentally friendly and
economic use of your appliance.
Maximise The Load Size
!Achieve the best use of energy, water,
detergent and time by using the
recommended maximum load size.
Save up to 50% energy by washing a full
load instead of 2 half loads.
Do you need to pre-wash?
!For heavily soiled laundry only!
SAVE detergent, time, water and
between 5 to 15% energy consumption
by NOT selecting Prewash for slight to
normally soiled laundry.
Is a hot wash required?
!Pretreat stains with stain remover or soak
dried in stains in water before washing to
reduce the necessity of a hot wash
programme. Save energy by using a low
temperature wash programme.
Before using a drying programme
(WASHER-DRYERS)
!SAVE energy and time by selecting a
high spin speed to reduce the water
content in laundry before using a drying
programme.
Following is a quick guide with tips and
recommendations on detergent use at the
various temperatures. In any case, always
read the instructions on the detergent for
correct use and doses.
Load tips
Helpful suggestions for the user
When washing heavily soiled whites,
we recommend using cotton
programs of 60°C or above and a
normal washing powder (heavy duty)
that contains bleaching agents that at
medium/high temperatures provide
excellent results.
For washes between 40°C and 60°C
the type of detergent used needs to be
appropriate for the type of fabric and
level of soiling.
Normal powders are suitable for “white”
or colour fast fabrics with high soiling,
while liquid detergents or “colour
protecting” powders are suitable for
coloured fabrics with light levels of
soiling.
For washing at temperatures below
40°C we recommend the use of liquid
detergents or detergents specifically
labeled as suitable for low temperature
washing.
For washing wool or silk, only use
detergents specifically formulated for
these fabrics.

!
EN
11
4. CLEANING AND
MAINTENANCE
To clean the washing machine exterior, use
a damp cloth, avoiding abrasives, alcohol
and/or solvents. To maintain a good wash
performance we recommend that the soap
drawer and pump filters are regularly
cleaned. A monthly service wash, using a
proprietary cleaner is also recommended.
!We recommend you clean the drawer to
avoid accumulating detergent and
additive residue.
!To do this, extract the drawer using slight
force, clean it with running water and
reinsert it in its housing.
!Ensure the siphon cap is correctly
refitted.
!The washing machine comes with a
special filter able to trap large residue,
such as buttons or coins, which could
clog the drain.
! ONLY AVAILABLE ON CERTAIN MODELS:
pull out the corrugated hose, remove the
stopper and drain the water into a
container.
!Ensure all the water has been emptied
from the drum.
!Before unscrewing the filter, we
recommend you place an absorbent cloth
under it to keep the floor dry. A small
amount of water will come out of the filter
as you remove it - this is normal.
!Turn the filter counter-clockwise to the
limit stop.
!Remove and clean the filter; when
finished, replace it turning it clockwise.
The filter handle will be locked when it is
not possible to turn any further and the
handle is horizontal. Smearing a small
amount of liquid soap on the filter seal will
help refitting.
!Repeat the previous steps in reverse
order to reassemble all parts.
!Should the washing machine be stored in
an unheated room for a long period of
time, drain all water from tubes.
!Unplug the washing machine.
!Detach the tube from the drainage
system and clip on the rear of the
machine and lower it, fully draining water
into a bowl.
!Secure the drain tube with the drainage
system and clip on the rear of the
machine when finished.
!Keep the door glass and gasket clean.
Drawer cleaning
Filter cleaning
Suggestions for moves or
prolonged disuse
The manufacturers warranty only
covers faults within the product of a
mechanical or electrical nature.
Faults caused by handling,
installation or miss use are not
covered and may incur a charge for
any repair visit to resolve.

!
12
5. QUICK USER GUIDE
This washing machine automatically adjusts
the level of the water to the type and
quantity of washing. This system gives a
reduction in energy consumption and a
saving in washing times.
!Turn on the washing machine and select
the required program.
!Adjust the washing temperature if
necessary and press the required "option"
buttons.
!Press the START/PAUSE button to start
washing.
!At the end of the programme, the
message "End" will appear on the display
or, on some models, all wash stage
indicator lights will turn on.
!Turn off the washing machine.
For any type of wash, see the program
table and follow the operating sequence
as indicated.
Water pressure:
min 0.05 Mpa / max 0.8 Mpa
(0.05 MPa dispenses approximately 1 litre
of water in 10 seconds)
Spin r.p.m.: See rating plate.
Power input / Power current fuse amp /
Supply voltage: See rating plate.
6. CONTROLS AND
PROGRAMS
DCEFG
B
LHI
A
PO MN
A
Programme selector with OFF
position
B
START/PAUSE button
C
DELAY START button
D
DRYING SELECTION button
E
RAPID / STAIN LEVEL button
F
TEMPERATURE SELECTION
button
G
SPIN SPEED button
F+G
KEY LOCK
H
Digital display
I
DRYING SELECTION indicator
lights
L
DOOR LOCKED indicator light
M
KG MODE indicator light
N
KEY LOCK indicator light
O
TEMPERATURE SELECTION
indicator lights
P
SPIN SPEED indicator lights
Program selection
DRYING
If you would like the drying cycle to
begin automatically after washing,
select the programme required using
the DRYING SELECTION button.
Or you can finish the wash and then
select the drying programme and
load size.
Wait until the DOOR LOCKED light has
gone out before opening the door.
Technical data

!
EN
13
!Press the START/PAUSE button to start
the selected cycle.
!Once a programme is selected the
programme selector remains stationary on
the selected programme till cycle ends.
!"End" will appear in the display at the
end of the program and the DOOR
LOCKED light will go off, it is now
possible to open the door.
!Switch off the washing machine by
turning the selector to OFF.
!Press to start the selected cycle.
ADD OR REMOVE ITEMS AFTER THE
PROGRAMMES HAS STARTED (PAUSE)
!Press and hold the START/PAUSE
button for about 2 seconds (some
indicator light and the time remaining
indicator will flash, showing that the
machine has been paused).
!Wait until the DOOR LOCKED light has
gone out before opening the door.
!After you have added or removed items,
close the door and press the
START/PAUSE button (the programme
will start from where it left off).
CANCELLING THE PROGRAMME
!To cancel the programme, set the
selector to the OFF position.
!Wait 2 minutes until the safety device
unlocks the door.
!This button allows you to pre-programme
the wash cycle to delay the start of the
cycle for up to 24 hours.
!To delay the start use the following
procedure:
- Select the required programme.
PROGRAMME selector with OFF
position
When the programme selector is turned
the display lights up to show the settings
for the programme selected.
For energy saving, at the end of the
cycle or with an inactivity period, the
display level contrast will decrease.
N.B.: To switch the machine off, turn
the programme selector to the OFF
position.
The programme selector must be
returned to the OFF position at the end
of each cycle or when starting a
subsequent wash cycle prior to the next
programme being selected and started.
START/PAUSE button
Close the door BEFORE selecting the
button START/PAUSE.
When the START/PAUSE button has
been pressed, the appliance can take
few seconds before it starts working.
Before you open the door, please
check water level is below the door
opening to avoid flooding.
DELAY START button

!
14
- Press the delay start button once to
activate it (h00 appears on the display)
and then press it again to set a 1 hour
delay (h01 appears on the display). The
pre-set delay increases by 1 hour each
time the button is pressed, until h24
appears on the display, at which point
pressing the button again will reset the
delay start to zero.
- Confirm by pressing the START/PAUSE
button. The delay countdown will begin
and when it has finished the programme
will start automatically.
!It is possible to cancel the delay start by
turning the programme selector to OFF.
If there is any break in the power supply
while the machine is operating, a special
memory stores the selected programme
and, when the power is restored, it
continues where it left OFF.
!For automatic washing/drying cycle:
after the selection of washing programme
according to laundry type, select a degree
of dryness by pressing this button. At the
end of the washing programme, the
selected drying cycle will start
automatically.
If a washing programme is not
compatible with automatic drying
selected, this function will not be
activated.
!If you want delete the selection before
the programme starts, please press
repeatedly the button until the lights go off
or reposition the programme selector to
the OFF position.
!Drying only cycle:
select via the knob the desired drying
programme in conjunction with your
fabrics, by pressing this button it is
possible to select a degree of dryness
that is different to the default one (except
for the wool drying programme).
!To cancel the cycle during the drying
phase, please press the button for about
3 seconds.
!"End" will appear in the display at the
end of the program and the DOOR
LOCKED light will go off, it is now
possible to open the door.
The option buttons should be
selected before pressing the
START/PAUSE button. If an option is
selected that is not compatible with
the selected programme then the
option indicator light first flashes and
then goes off.
DRYING SELECTION button
If you exceed the maximum dryable
load of laundry indicated in the
programme table, the laundry may not
be dried satisfactory.
WARNING:
After cancelling the drying
programme, the cool down phase will
begin and please wait for about 10/20
minutes before opening the door.
It is also possible to cancel the drying
cycle by turning the programme
selector to the OFF position. It is
necessary to wait for the cooling
phase’s end (10/20 minutes) and the
DOOR LOCKED light to go off before
opening the door.

!
EN
15
This button allows you to choose between
two different options, depending on the
selected programme.
- RAPID
The button becomes active when
you select the RAPID (14/30/44 Min.)
programme on the knob and allows you to
select one of three durations indicated.
- STAIN LEVEL button
!Once the programme has been selected
the wash time set for that programme will
be automatically shown.
!This option allows you to choose between
3 levels of wash intensity modifying the
length of the programme, depending on
how much the fabrics are soiled (can only
be used on some programmes as shown
in the table of programmes).
!This button allows you to change the
temperature of the wash cycles.
!It is not possible to raise the temperature
over the maximum allowed for the
programme, in order to protect the
fabrics.
!If you want carry out a cold wash all the
indicators must be off.
!By pressing this button, it is possible to
reduce the maximum speed, and if you
wish, the spin cycle can be cancelled.
!If the label does not indicate specific
information, it is possible to use the
maximum spin expected in the program.
!To reactivate the spin cycle press the
button until you reach the spin speed you
would like to set.
!It is possible to modify the spin speed
without pausing the machine.
!Pressing simultaneously the buttons
TEMPERATURE SELECTION and SPIN
SPEED for about 3 seconds, the
machine allows you to lock the keys. In
this way, you can avoid making
accidental or unwanted changes if a
button on the display is pressed
accidently during a cycle.
!The key lock can be simply cancelled by
pressing the two buttons simultaneously
again or turning off the appliance.
RAPID / STAIN LEVEL button
TEMPERATURE SELECTION
button
SPIN SPEED button
To prevent damage to the fabrics, it is
not possible to increase the speed
over the maximum allowed for the
programme.
An over dosing of detergent can
cause excessive foaming. If the
appliance detects the presence of
excessive foam, it may exclude the
spinning phase or extend the duration
of the program and increase water
consumption.
The machine is fitted with a special
electronic device, which prevents the
spin cycle should the load be
unbalanced. This reduces the noise
and vibration in the machine and so
prolongs the life of your machine.
KEY LOCK

!
16

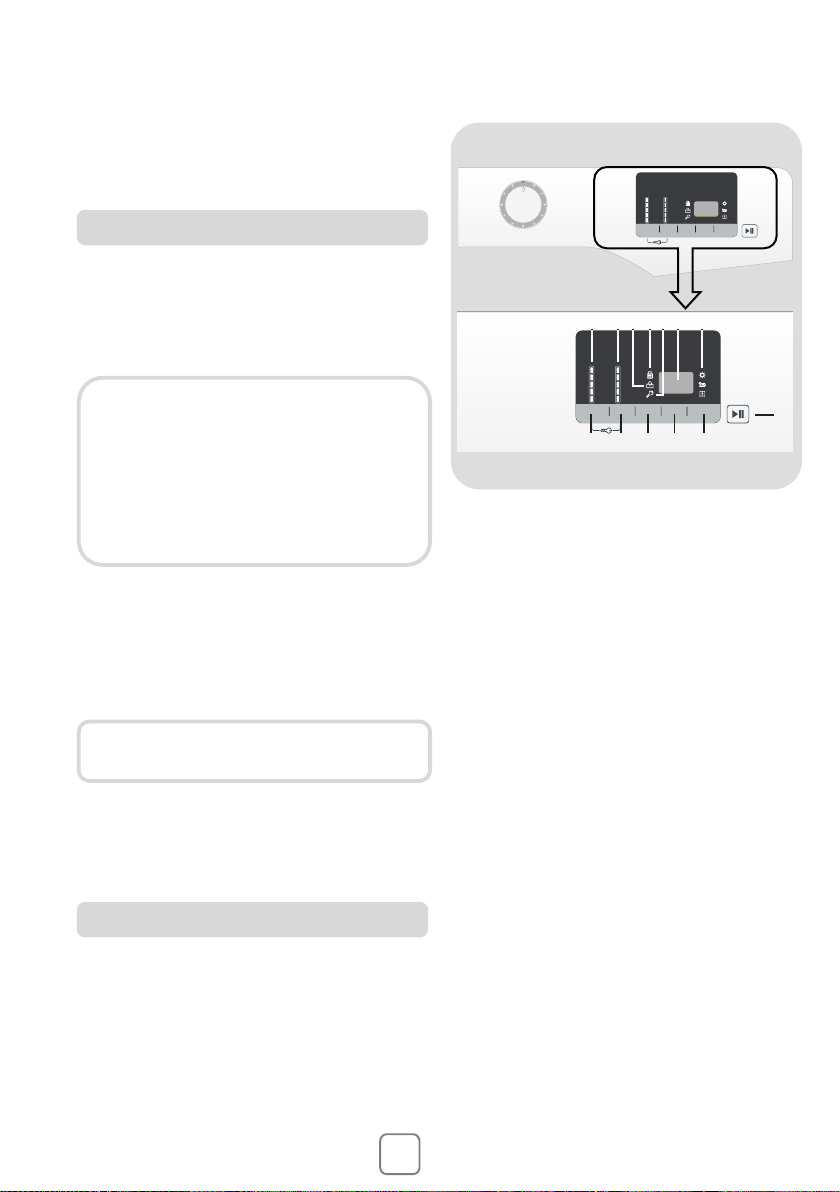

The display’s indicator system allows you to
be constantly informed about the status of
the machine.
3124
67 5
1) DRYING SELECTION INDICATOR LIGHTS
The indicators display the degrees of
dryness that can be selected by the
relevant button:
EXTRA DRY
(suitable for towels, bathrobes and
bulky loads).
IRON DRY
(that leaves the laundry ready for
ironing).
CUPBOARD DRY
(for items that will be put away
without ironing).
2) CYCLE DURATION
!When a programme is selected the
display automatically shows the typical
cycle duration, which can vary,
depending on the options selected.
!During the initial filling phase of the cycle
the machine calculates the actual cycle
time needed based on the load size,
content and options selected. The real
time of the wash will then be displayed.
This time can recaulculate during the
wash depending on detergent levels and
load balancing.
3) DOOR LOCKED INDICATOR LIGHT
!The indicator light is illuminated when the
door is fully closed.
!When START/PAUSE is pressed on
the machine with the door closed, the
indicator will flash momentarily and then
illuminate.
!Wait until the DOOR LOCKED light has
gone out before opening the door.
4) Kg Mode INDICATOR LIGHT
(function active only on certain
programmes)
!During the first minutes of the cycle, the
"Kg Mode" indicator will remain on while
the intelligent sensor will weigh the
laundry and adjust the cycle time, water
and electricity consumption accordingly.
!Through every wash phase "Kg Mode"
allows to monitor information on the wash
load in the drum and in the first minutes of
the wash it:
- adjusts the amount of water required;
- determines the length of the wash cycle;
- according to the type of fabric for
washing, system will control the rinsing
needed water amount;
Digital Display
Close the door BEFORE selecting the
START/PAUSE button.
If the door is not properly closed,
the light will continue to flash for
about 7 seconds, after which the
start command will be automatically
cancelled. In this case, close the
door in the proper way and press
the START/PAUSE button.

!
EN
17
- adjusts the rhythm of drum rotation for
the type of fabric being washed;
- recognises the presence of too much
soap suds, and if necessary, adjust the
amount of rinse water.
- adjusts the spin speed according to the
load, thus avoiding any imbalance.
5) KEY LOCK INDICATOR LIGHT
The indicator light show that the keys are
locked.
6) WASH TEMPERATURE INDICATOR
LIGHTS
This shows the washing temperature of the
selected programme that can be changed
(where allowed) by the relevant button.
If you want carry out a cold wash all the
indicators must be off.
7) SPIN SPEED INDICATOR LIGHTS
This shows the spin speed of the selected
programme, that can be reduced or omitted
by the relevant button.

!
18
PROGRAMME
(MAX.) *
1)
2
1
(see control panel)
(MAX.)
2
1
14'
1
1
1
1,5
1,5
1,5
1,5
1,5
30°
Rapid 3) 4) 30'
2
2
2,5
2,5
2,5
2,5
2,5
2,5
30°
44'
3
3
3,5
3,5
3,5
3,5
3,5
3,5
40°
Daily 59 Min.
4)
2
2
2,5
3
3
3
3,5
3,5
60°
Baby
Hygiene 60°C
2)
4)
4
4
4,5
5,5
5,5
6
6,5
6,5
60°
Mixed
2)
4)
3
3
3,5
4
4
4,5
5
5
60°
Whites +
Prewash
2)
4)
6
6
7
8
8
9
10
10
90°
Cottons **
2)
4)
6
6
7
8
8
9
10
10
60°
Delicates
2
2
2,5
2,5
2,5
2,5
2,5
2,5
40°
Rinse
-
-
-
-
-
-
-
-
-
Drain & Spin
-
-
-
-
-
-
-
-
-
Jeans
3
3
3
3
3
3
3
3
40°
Wool & Silk
1
1
1
2
2
2
2
2
30°
Dry Wool
1
1
1
1
1
1
1
1
-
Mixed
(drying)
3
3
3,5
4
4
4,5
5
5
-
Cottons
(drying)
4
5
5
5
6
6
6
7
-
Rapid W&D
59 Min.
1,5
1,5
1,5
1,5
1,5
1,5
1,5
1,5
-
Table of programmes

!
EN
19
Please read these notes:
* Maximum load capacity of dry clothes,
according to the model used (see control
panel).
(Only for models with liquid
detergent compartment)
When only a limited number of
articles have stains which require
treatment with liquid bleaching
agents, preliminary removal of
stain can be carried out in the
washing machine.
Pour the bleach into the liquid
bleach container, inserted into the
compartment marked "2" in the
detergent drawer, and set the
special programme RINSE.
When this phase has terminated,
turn the programme selector to
the OFF position, add the rest of
the fabrics and proceed with a
normal wash on the most suitable
programme.
1)
When a programme is selected,
on the display is shown the
display shows the recommended
wash temperature that can be
reduced (where allowed) by the
relevant button.
2)
For the programmes shown you
can adjust the duration and
intensity of the wash using the
STAIN LEVEL button.
3)
Selecting the RAPID program on
the knob, it will be possible to
select with the RAPID button, one
of the three rapid programs
available among 14’, 30’ and 44’.
4)
Programmes for automatic drying.
INFORMATION FOR THE TEST
LABORATORIES (Ref. EN 50229
Standards)
Washing
Use the programme ** with the maximum
degree of soiling selected, maximum spin
speed and a temperature of 60°C.
Programme recommended also for test
with a lower temperature.
Drying
First drying with Akg (a load consist:
pillowcases and hand-towels) selecting
the cotton drying programme ( )
cupboard dry ( ).
Second drying with Bkg (a load consist:
sheets and hand towels) selecting
the cotton drying programme ( )
cupboard dry ( ).
Capacity
(washing)
(kg)
A(kg)
B(kg)
First
drying
Second
drying
6
4
2
6
5
1
7
5
2
8
5
3
8
6
2
9
6
3
10
6
4
10
7
3

!
20
To clean different types of fabrics and
various levels of dirt, the washing machine
has specific programs to meet every need
of washing (see table of programmes).
WASHING
Rapid (14-30-44 Min.)
Washing cycle suggested for low loads and
slightly dirty. With this program it is
recommended to reduce the quantity of
detergent normally used, in order to avoid
unnecessary waste. Selecting the RAPID
program and acting on the button you can
choose one of three programs available.
Daily 59 Min.
This specially designed programme
maintains the high quality wash performance
whilst greatly reducing the wash time. The
programme is designed for a reduced load
(see table of programmes).
Baby Hygiene 60°C
This program allows you to wash all baby
clothes getting a perfect clean and
sanitizing effect, setting the temperature at
60°C minimum.
To optimize the result of the sanitizing effect
we recommend the use of powder detergent.
Mixed
The washing and rinsing optimise the speed
and rhythm of the drum action and water
levels. The gentle spin, ensures a reduced
formation of creases in the fabric.
Whites + Prewash
This programme has been designed to
remove the stronger stains from cotton
white clothes. The prewash guarantees the
tough dirt removal. Add into compartment
"1" a quantity of detergent equal to 20% of
that used for main wash.
Cottons
This program is suitable to clean normally
soiled cotton laundry and it is the most
efficient program in terms of combined
energy and water consumptions for
washing cotton laundry.
Delicates
This program has reduced periods of drum
rotation during the cycle and is particularly
suitable or washing delicate fabrics.
The wash cycle and rinses are carried out
with a high level of water to ensure the best
performance.
Rinse
This program performs 3 rinses with an
intermediate spin (which can be reduced or
excluded by using the appropriate button).
It is used for rinsing any type of fabric, for
example after a wash carried out by hand.
Drain & Spin
The program completes the drain and a
maximum spin. It is possible to delete or
reduce the spin with the SPIN SPEED button.
Jeans
This program has been designed to have
the highest quality cleaning of fabrics such
as denim: ideal for removing dirt without
affecting the elasticity of the fibers.
Wool & Silk
This programme allows a delicate washing
cycle, particularly suited to garments specified
as "Machine-Washable" Wool fabrics and
laundry items made from Silk or specified
as "Wash as Silk" on the fabric label.
DRYING
The drum changes direction during the
drying cycle to prevent the laundry from
tangling and producing even more drying.
Cool air is used during the last 10/20 minutes
of the drying cycle to minimize creasing.
Programmes selection
WARNING:
Dispensers used for concentrated
powders and liquid detergents must be
removed from the drum before
commencing the tumble drying
programmes.
