BGD904L
860 MHz, 20 dB gain power
doubler amplifier
b
ook, halfpage
M3D252

2001 Nov 01 2
Philips Semiconductors Product specification
860 MHz, 20 dB gain power doubler amplifier BGD904L
FEATURES
•Excellent linearity
•Extremely low noise
•Excellent return loss properties
•Silicon nitride passivation
•Rugged construction
•Gold metallization ensures excellent reliability
•Low DC current consumption.
APPLICATIONS
•CATV systems operating in the 40 to 900 MHz
frequency range.
DESCRIPTION
Hybrid amplifier module in a SOT115J package operating
with a supply voltage of 24 V.
PINNING - SOT115J
PIN DESCRIPTION
1 input
2 common
3 common
5+V
B
7 common
8 common
9 output

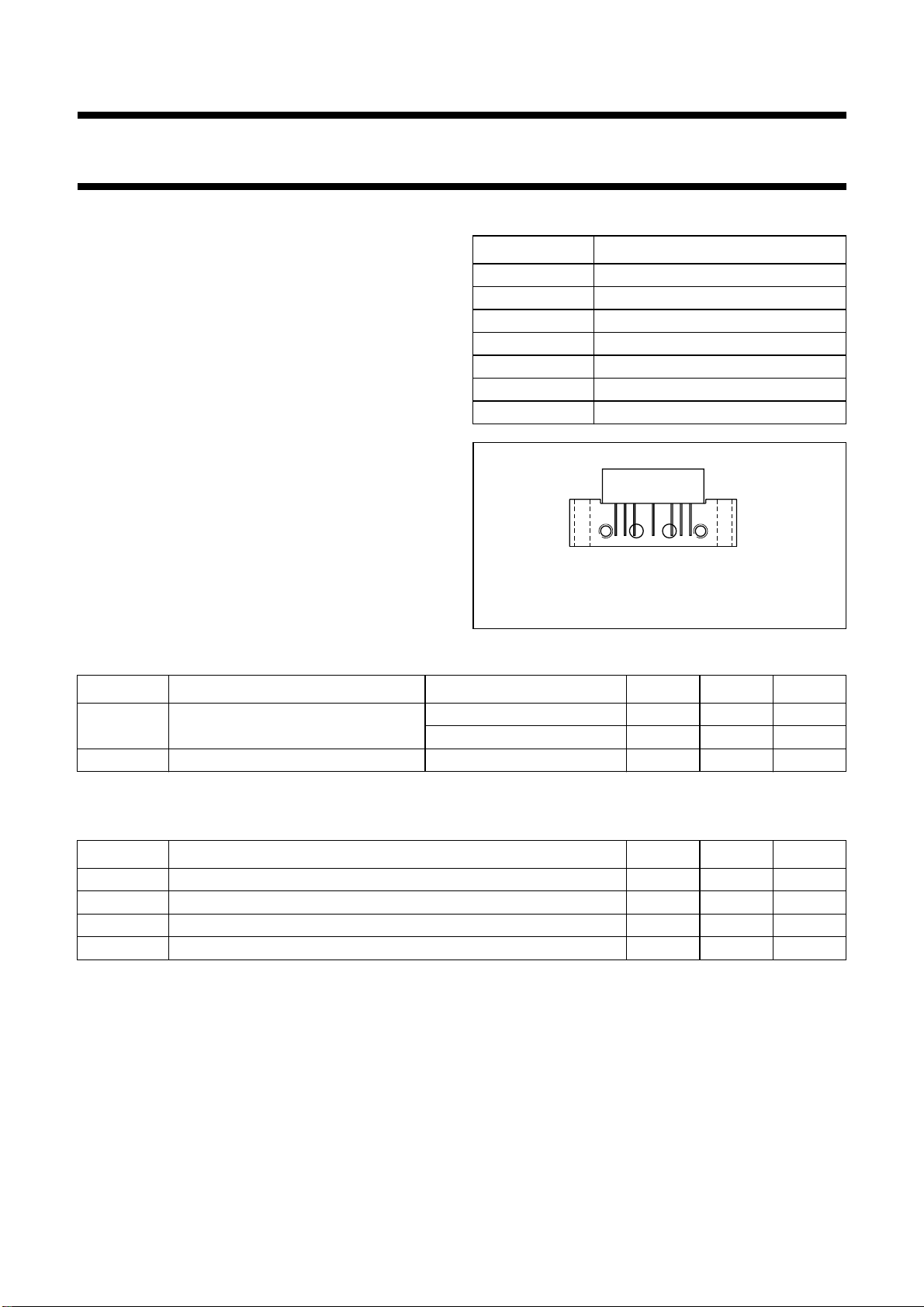

Fig.1 Simplified outline.
handbook, halfpage
789
2351
Side view
MSA319
QUICK REFERENCE DATA
LIMITING VALUES
In accordance with the Absolute Maximum Rating System (IEC 60134).
SYMBOL PARAMETER CONDITIONS MIN. MAX. UNIT
Gppower gain f = 50 MHz 19.7 20.3 dB
f = 900 MHz 20.5 21.5 dB
Itot total current consumption (DC) VB= 24 V 350 380 mA
SYMBOL PARAMETER MIN. MAX. UNIT
VBsupply voltage −30 V
ViRF input voltage −70 dBmV
Tstg storage temperature −40 +100 °C
Tmb operating mounting base temperature −20 +100 °C

2001 Nov 01 3
Philips Semiconductors Product specification
860 MHz, 20 dB gain power doubler amplifier BGD904L
CHARACTERISTICS
Bandwidth 40 to 900 MHz; VB= 24 V; Tmb =35°C; ZS=Z
L=75Ω.
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT
Gppower gain f = 50 MHz 19.7 20 20.3 dB
f = 900 MHz 20.5 21 21.5 dB
SL slope straight line f = 40 to 900 MHz 0.4 0.9 1.4 dB
FL flatness straight line f = 40 to 900 MHz −±0.15 ±0.3 dB
S11 input return losses f = 40 to 80 MHz 21 25 −dB
f = 80 to 160 MHz 22 30 −dB
f = 160 to 320 MHz 21 29 −dB
f = 320 to 550 MHz 18 24 −dB
f = 550 to 650 MHz 17 22 −dB
f = 650 to 900 MHz 16 21 −dB
S22 output return losses f = 40 to 80 MHz 25 29 −dB
f = 80 to 160 MHz 23 28 −dB
f = 160 to 320 MHz 19 25 −dB
f = 320 to 750 MHz 18 24 −dB
f = 750 to 900 MHz 17 23 −dB
S21 phase response f = 50 MHz −45 −+45 deg
CTB composite triple beat 49 channels flat; Vo= 47 dBmV;
fm= 859.25 MHz −−65.5 −64 dB
77 channels flat; Vo= 44 dBmV;
fm= 547.25 MHz −−67.5 −65.5 dB
110 channels flat; Vo= 44 dBmV;
fm= 745.25 MHz −−61 −59.5 dB
129 channels flat; Vo= 44 dBmV;
fm= 859.25 MHz −−57 −55 dB
110 channels; fm= 397.25 MHz;
Vo= 49 dBmV at 550 MHz; note 1 −−61.5 −59.5 dB
129 channels; fm= 649.25 MHz;
Vo= 49.5 dBmV at 860 MHz; note 2 −−56 −54 dB
Xmod cross modulation 49 channels flat; Vo= 47 dBmV;
fm= 55.25 MHz −−64 −61 dB
77 channels flat; Vo= 44 dBmV;
fm= 55.25 MHz −−66.5 −64 dB
110 channels flat; Vo= 44 dBmV;
fm= 55.25 MHz −−63 −60.5 dB
129 channels flat; Vo= 44 dBmV;
fm= 55.25 MHz −−61.5 −59 dB
110 channels; fm= 397.25 MHz;
Vo= 49 dBmV at 550 MHz; note 1 −−60 −57.5 dB
129 channels; fm= 859.25 MHz;
Vo= 49.5 dBmV at 860 MHz; note 2 −−56 −53.5 dB

2001 Nov 01 4
Philips Semiconductors Product specification
860 MHz, 20 dB gain power doubler amplifier BGD904L
Notes
1. Tilt = 9 dB (50 to 550 MHz); tilt = 3.5 dB at −6 dB offset (550 to 750 MHz).
2. Tilt = 12.5 dB (50 to 860 MHz).
3. fp= 55.25 MHz; Vp= 44 dBmV; fq= 805.25 MHz; Vq= 44 dBmV; measured at fp+f
q= 860.5 MHz.
4. fp= 55.25 MHz; Vp= 44 dBmV; fq= 691.25 MHz; Vq= 44 dBmV; measured at fp+f
q= 746.5 MHz.
5. fp= 55.25 MHz; Vp= 44 dBmV; fq= 493.25 MHz; Vq= 44 dBmV; measured at fp+f
q= 548.5 MHz.
6. Measured according to DIN45004B:
fp= 851.25 MHz; Vp=V
o
; fq= 858.25 MHz; Vq=V
o−6 dB;
fr= 860.25 MHz; Vr=V
o−6 dB; measured at fp+f q−f r= 849.25 MHz.
7. Measured according to DIN45004B:
fp= 740.25 MHz; Vp=V
o
; fq= 747.25 MHz; Vq=V
o−6 dB; fr= 749.25 MHz; Vr=V o−6 dB;
measured at fp+f
q−f r= 738.25 MHz.
8. Measured according to DIN45004B:
fp= 540.25 MHz; Vp=V
o
; fq= 547.25 MHz; Vq=V
o−6 dB; fr= 549.25 MHz; Vr=V o−6 dB;
measured at fp+f
q−f r= 538.25 MHz.
9. The module normally operates at VB= 24 V, but is able to withstand supply transients up to 35 V.
CSO composite second order
distortion 49 channels flat; Vo= 47 dBmV; fm= 860.5 MHz −−69 −63 dB
77 channels flat; Vo= 44 dBmV;
fm= 548.5 MHz −−73 −68 dB
110 channels flat; Vo= 44 dBmV;
fm= 746.5 MHz −−69 −63 dB
129 channels flat; Vo= 44 dBmV;
fm= 860.5 MHz −−65 −59 dB
110 channels; fm= 150 MHz;
Vo= 49 dBmV at 550 MHz; note 1 −−68 −63 dB
129 channels; fm= 150 MHz;
Vo= 49.5 dBmV at 860 MHz; note 2 −−63 −58 dB
d2second order distortion note 3 −−82 −75 dB
note 4 −−83 −76 dB
note 5 −−83 −77 dB
Vooutput voltage dim =−60 dB; note 6 62.5 64 −dBmV
dim =−60 dB; note 7 63.5 65.5 −dBmV
dim =−60 dB; note 8 65.5 67.5 −dBmV
CTB compression = 1 dB;
129 channels flat; f = 859.25 MHz 47.5 48.5 −dBmV
CSO compression=1dB;
129 channels flat; f = 860.5 MHz 50 52 −dBmV
NF noise figure f = 50 MHz −3.8 5 dB
f = 550 MHz −4.1 5.5 dB
f = 750 MHz −4.8 6.5 dB
f = 900 MHz −5.9 7.5 dB
Itot total current consumption (DC) note 9 350 365 380 mA
SYMBOL PARAMETER CONDITIONS MIN. TYP. MAX. UNIT

2001 Nov 01 5
Philips Semiconductors Product specification
860 MHz, 20 dB gain power doubler amplifier BGD904L

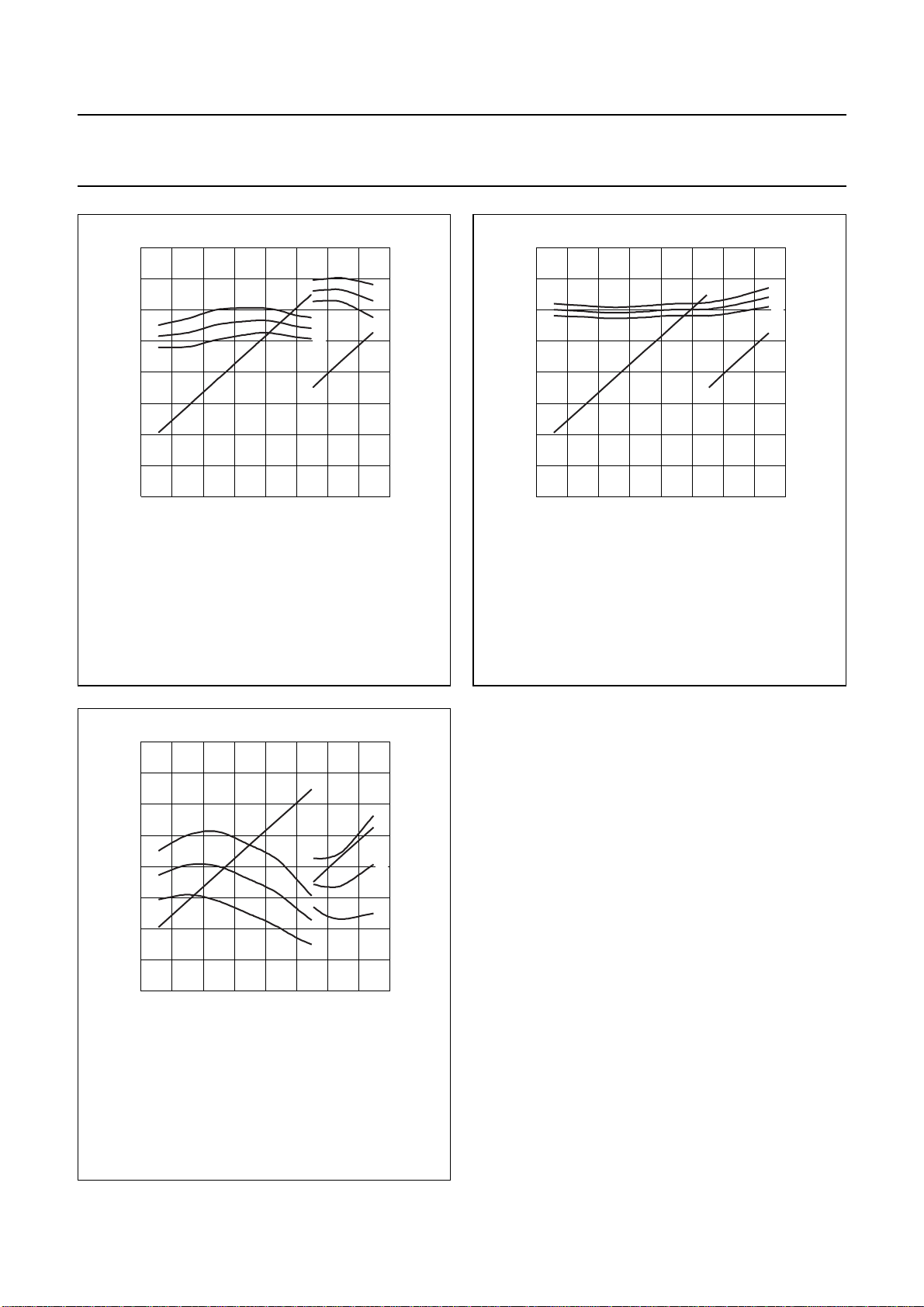

Fig.2 Composite triple beat as a function of
frequency under tilted conditions.
ZS=Z
L=75Ω; VB= 24 V; 110 chs; tilt = 9 dB (50 to 550 MHz);
tilt = 3.5 dB at −6 dB offset (550 to 750 MHz).
handbook, halfpage
0
Vo
(dBmV)
f (MHz)
CTB
(dB)
200
−50
−60
−80
−90
−70
52
48
40
36
44
400 600 800
MGS452
(1)
(1)
(2)
(3)
(4)
(2)
(3)
(4)
(1) Vo.
(2) Typ. +3 σ.(3) Typ. (4) Typ. −3σ.
Fig.3 Crossmodulationasafunctionoffrequency
under tilted conditions.
ZS=Z
L=75Ω; VB= 24 V; 110 chs; tilt = 9 dB (50 to 550 MHz);
tilt = 3.5 dB at −6 dB offset (550 to 750 MHz).
handbook, halfpage
0
Vo
(dBmV)
f (MHz)
Xmod
(dB)
200
−50
−60
−80
−90
−70
52
48
40
36
44
400 600 800
MGS453
(1)
(1)
(2)
(3)
(4)
(1) Vo.
(2) Typ. +3 σ.(3) Typ. (4) Typ. −3σ.
Fig.4 Composite second order distortion as a
function of frequency under tilted
conditions.
ZS=Z
L=75Ω; VB= 24 V; 110 chs; tilt = 9 dB (50 to 550 MHz);
tilt = 3.5 dB at −6 dB offset (550 to 750 MHz).
handbook, halfpage
0
Vo
(dBmV)
f (MHz)
CSO
(dB)
200
−50
−60
−80
−90
−70
52
48
40
36
44
400 600 800
MGS454
(1)
(1)
(2)
(2)
(3)
(4) (4)
(3)
(1) Vo.
(2) Typ. +3 σ.(3) Typ. (4) Typ. −3σ.

2001 Nov 01 6
Philips Semiconductors Product specification
860 MHz, 20 dB gain power doubler amplifier BGD904L

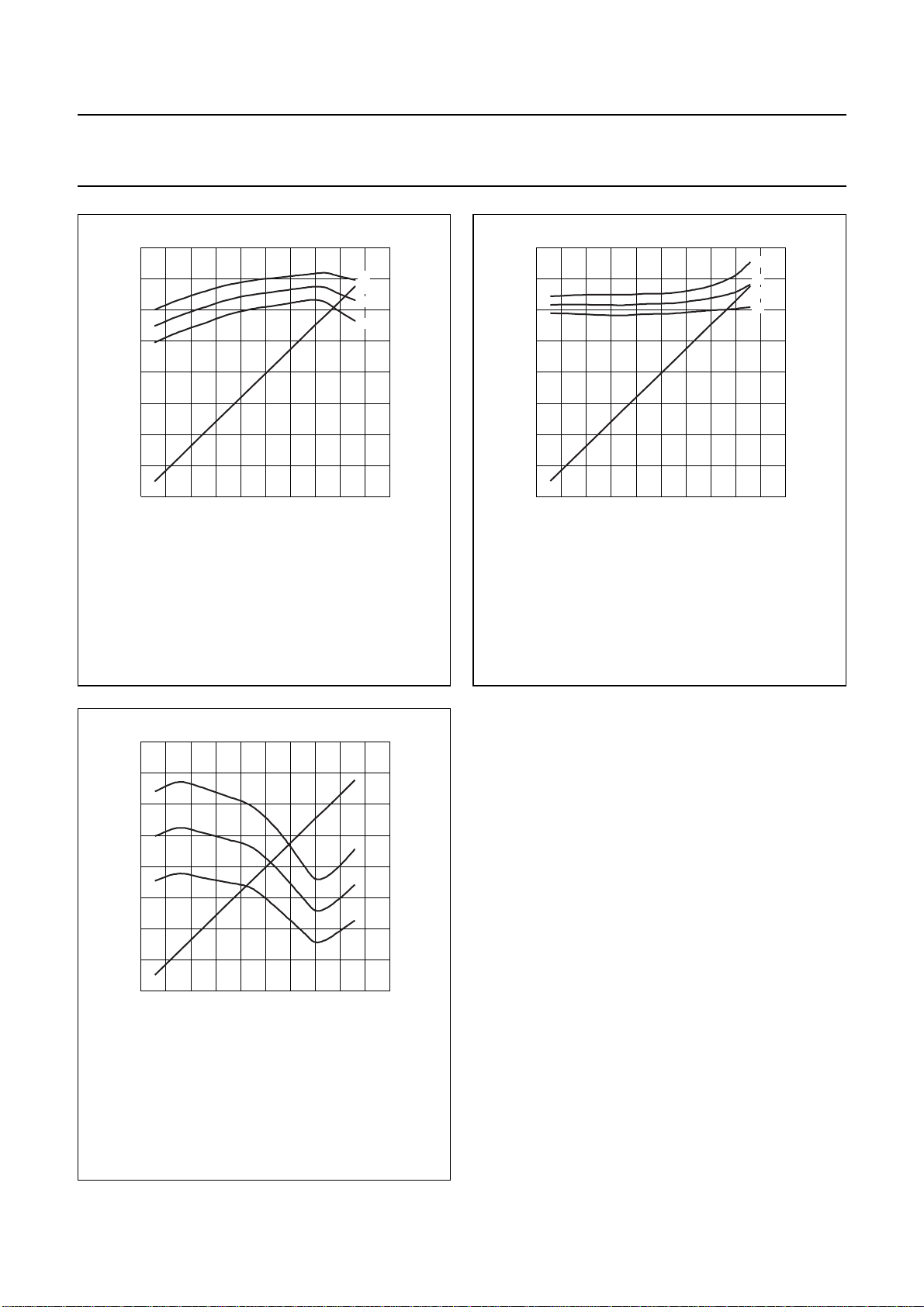

Fig.5 Composite triple beat as a function of
frequency under tilted conditions.
ZS=Z
L=75Ω; VB= 24 V; 129 chs;
tilt = 12.5 dB; (50 to 860 MHz).
(1) Vo.
(2) Typ. +3 σ.(3) Typ. (4) Typ. −3σ.
handbook, halfpage
0
Vo
(dBmV)
f (MHz)
CTB
(dB)
200 1000
−50
−60
−80
−90
−70
52
48
40
36
44
400 600 800
MGS455
(2)
(3)
(4)
(1)
Fig.6 Crossmodulationasafunctionoffrequency
under tilted conditions.
ZS=Z
L=75Ω; VB= 24 V; 129 chs;
tilt = 12.5 dB; (50 to 860 MHz).
(1) Vo.
(2) Typ. +3 σ.(3) Typ. (4) Typ. −3σ.
handbook, halfpage
0
Vo
(dBmV)
f (MHz)
Xmod
(dB)
200 1000
−50
−60
−80
−90
−70
52
48
40
36
44
400 600 800
MGS456
(2)
(3)
(4)
(1)
Fig.7 Composite second order distortion as a
function of frequency under tilted
conditions.
ZS=Z
L=75Ω; VB= 24 V; 129 chs;
tilt = 12.5 dB; (50 to 860 MHz).
(1) Vo.
(2) Typ. +3 σ.(3) Typ. (4) Typ. −3σ.
handbook, halfpage
0
Vo
(dBmV)
f (MHz)
CSO
(dB)
200 1000
−50
−60
−80
−90
−70
52
48
40
36
44
400 600 800
MGS457
(2)
(3)
(4)
(1)

2001 Nov 01 7
Philips Semiconductors Product specification
860 MHz, 20 dB gain power doubler amplifier BGD904L

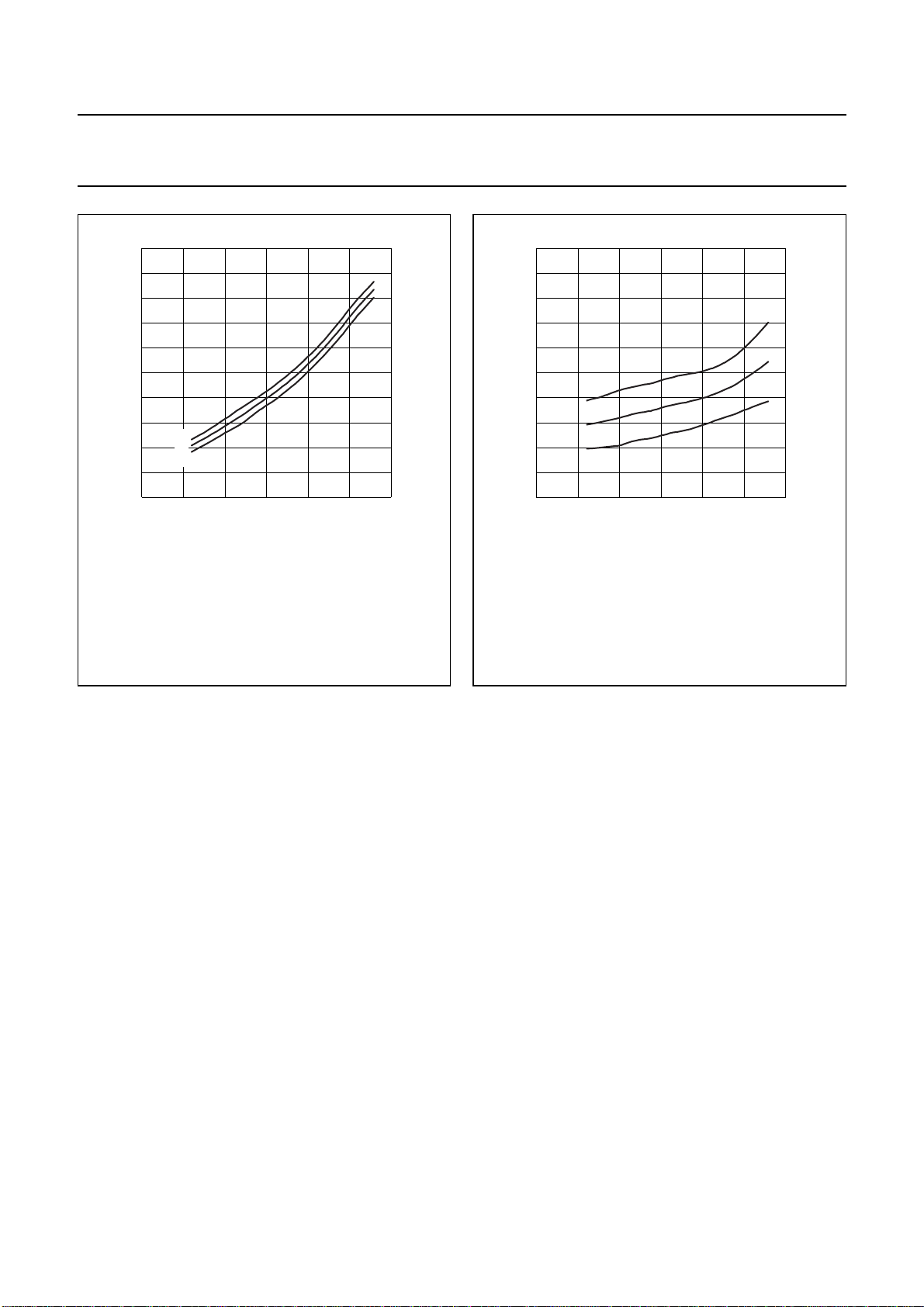

Fig.8 Compositetriplebeatasafunction ofoutput
voltage.
ZS=Z
L=75Ω; VB= 24 V; 129 chs; fm= 859.25 MHz.
(1) Typ. +3 σ.
(2) Typ.
(3) Typ. −3σ.
handbook, halfpage
40 Vo(dBmV) 45 50 55
MGS458
CTB
(dB)
−20
−30
−40
−50
−60
−70
(1)
(2)
(3)
Fig.9 Composite second order distortion as a
function of output voltage.
ZS=Z
L=75Ω; VB= 24 V; 129 chs; fm= 860.5 MHz.
(1) Typ. +3 σ.
(2) Typ.
(3) Typ. −3σ.
handbook, halfpage
40 Vo(dBmV) 45 50 55
MGS459
CSO
(dB)
−30
−40
−50
−60
−70
−80
(2)
(3)
(1)

2001 Nov 01 8
Philips Semiconductors Product specification
860 MHz, 20 dB gain power doubler amplifier BGD904L

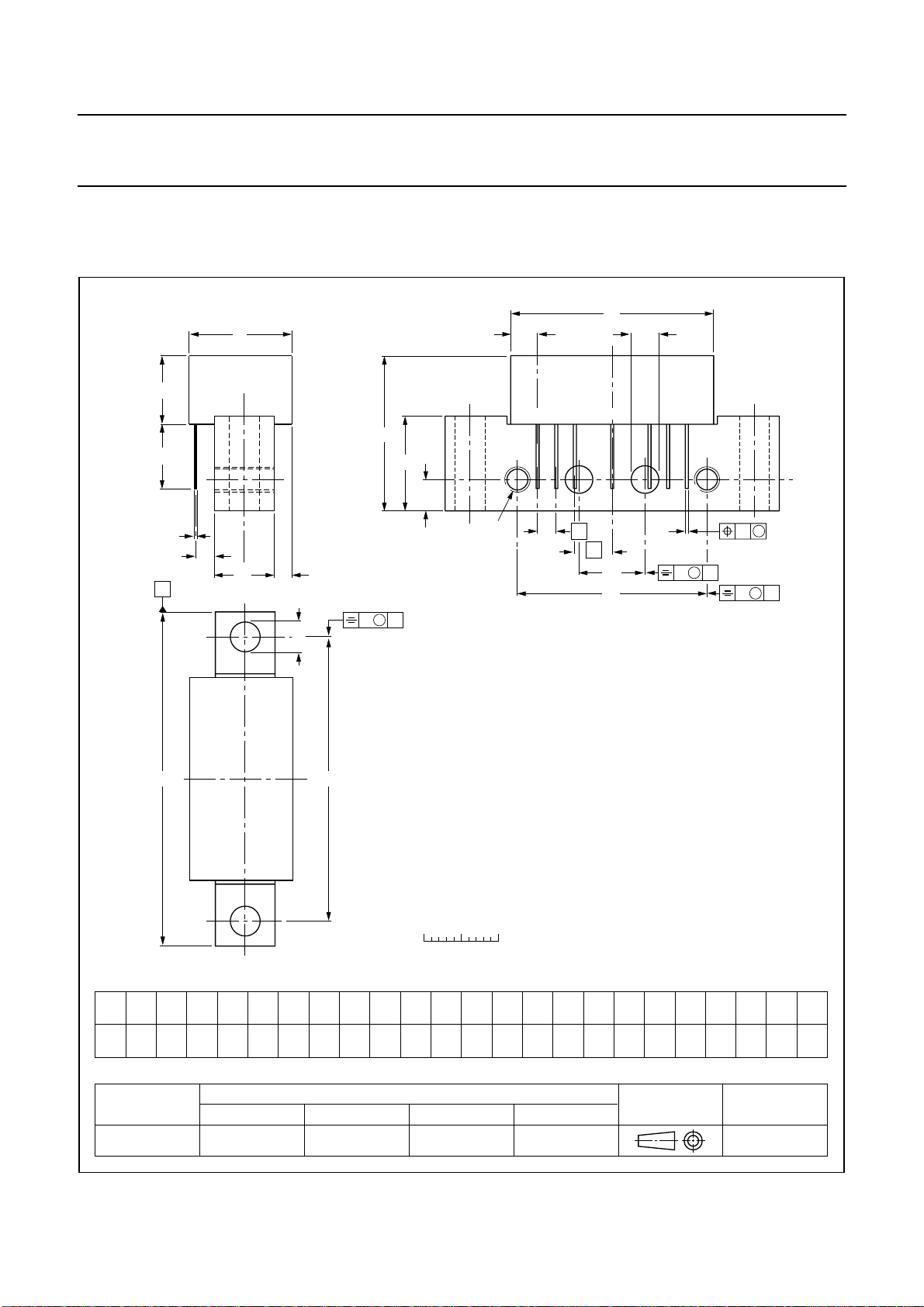

PACKAGE OUTLINE
UNIT A2
max. cee
1q
Q
max. q1q2U1
max. U2W
REFERENCES
OUTLINE
VERSION EUROPEAN
PROJECTION ISSUE DATE
IEC JEDEC EIAJ
mm 20.8 9.1 0.51
0.38 0.25 27.2 2.54 13.75 2.54 5.08 12.7 8.8 4.15
3.85 2.4 38.1 25.4 10.2 4.2 44.75 8 0.25 0.1 3.8
bF
p
6-32
UNC
yw
S
DIMENSIONS (mm are the original dimensions)
SOT115J
0 5 10 mm
scale
A
max. D max. L min.
E
max. Z
max.
Rectangular single-ended package; aluminium flange; 2 vertical mounting holes;
2 x 6-32 UNC and 2 extra horizontal mounting holes; 7 gold-plated in-line leads SOT115J
D
U1q
q2
q1
b
F
S
A
Z p
E
A2
L
c
d
Q
U2
M
w
78923
We
e
1
5
p
1
d
max.
yMB
yMB
B
99-02-06
yMB

2001 Nov 01 9
Philips Semiconductors Product specification
860 MHz, 20 dB gain power doubler amplifier BGD904L
DATA SHEET STATUS
Notes
1. Please consult the most recently issued data sheet before initiating or completing a design.
2. The product status of the device(s) described in this data sheet may have changed since this data sheet was
published. The latest information is available on the Internet at URL http://www.semiconductors.philips.com.
DATA SHEET STATUS(1) PRODUCT
STATUS(2) DEFINITIONS
Objective data Development This data sheet contains data from the objective specification for product
development. Philips Semiconductors reserves the right to change the
specification in any manner without notice.
Preliminary data Qualification This data sheet contains data from the preliminary specification.
Supplementary data will be published at a later date. Philips
Semiconductors reserves the right to change the specification without
notice, in order to improve the design and supply the best possible
product.
Product data Production This data sheet contains data from the product specification. Philips
Semiconductors reserves the right to make changes at any time in order
to improve the design, manufacturing and supply. Changes will be
communicated according to the Customer Product/Process Change
Notification (CPCN) procedure SNW-SQ-650A.
DEFINITIONS
Short-form specification The data in a short-form
specification is extracted from a full data sheet with the
same type number and title. For detailed information see
the relevant data sheet or data handbook.
Limiting values definition Limiting values given are in
accordance with the Absolute Maximum Rating System
(IEC 60134). Stress above one or more of the limiting
values may cause permanent damage to the device.
These are stress ratings only and operation of the device
atthese oratanyotherconditions abovethose givenin the
Characteristics sections of the specification is not implied.
Exposure to limiting values for extended periods may
affect device reliability.
Application information Applications that are
described herein for any of these products are for
illustrative purposes only. Philips Semiconductors make
norepresentationorwarranty thatsuchapplicationswillbe
suitable for the specified use without further testing or
modification.
DISCLAIMERS
Life support applications These products are not
designed for use in life support appliances, devices, or
systems where malfunction of these products can
reasonably be expected to result in personal injury. Philips
Semiconductorscustomersusingorselling theseproducts
for use in such applications do so at their own risk and
agree to fully indemnify Philips Semiconductors for any
damages resulting from such application.
Right to make changes Philips Semiconductors
reserves the right to make changes, without notice, in the
products, including circuits, standard cells, and/or
software, described or contained herein in order to
improve design and/or performance. Philips
Semiconductors assumes no responsibility or liability for
theuseof anyofthese products,conveysno licenceortitle
under any patent, copyright, or mask work right to these
products,and makesno representationsor warrantiesthat
these products are free from patent, copyright, or mask
work right infringement, unless otherwise specified.

2001 Nov 01 10
Philips Semiconductors Product specification
860 MHz, 20 dB gain power doubler amplifier BGD904L
NOTES

2001 Nov 01 11
Philips Semiconductors Product specification
860 MHz, 20 dB gain power doubler amplifier BGD904L
NOTES

© Koninklijke Philips Electronics N.V. 2001 SCA73
All rights are reserved. Reproduction in whole or in part is prohibited without the prior written consent of the copyright owner.
The information presented in this document does not form part of any quotation or contract, is believed to be accurate and reliable and may be changed
without notice. No liability will be accepted by the publisher for any consequence of its use. Publication thereof does not convey nor imply any license
under patent- or other industrial or intellectual property rights.
Philips Semiconductors – a worldwide company
Contact information
For additional information please visit http://www.semiconductors.philips.com. Fax: [phone]
For sales offices addresses send e-mail to: [e-mail].
Printed in The Netherlands 613518/03/pp12 Date of release: 2001 Nov 01 Document order number: 9397 750 08859
