Philips Analogue monitor SCD450 User manual

SCD450
User manual 4
Mode d’emploi 20
Instrucciones de manejo 36
Bedienungsanleitung 52
Gebruiksaanwijzing 68
Istruzione per l’uso 84
Manual de utilização 100
Od  116
Bruksanvisning 132
Vejledning 148
Bruksanvisning 164
Käyttööhje 180
Kullanım talimatları 196
TR
SU
NO
DK
SV
GR
PR
IT
NL
DE
ES
FR
EN

2

3
A. Baby unit
B. Large parent
unit
C. Small parent
unit

A. Baby unit
A-1 ON/OFF button
A-2 Nightlight
A-3 DC 9V ——<<++power supply jack
A-4 AC power adapter
A-5 Power plug
A-6 Microphone
A-7 POWER light
A-8 Microphone sensitivity switch
A-9 Channel selection switch
A-10 Battery compartment cover
B. Large parent Unit
B-1 Sound LEVEL lights
B-2 Loudspeaker
B-3 LINK light
B-4 AC power adapter
B-5 Power plug
B-6 DC 9V ——<<++power supply jack
B-7 LINK alarm switch
B-8 Channel selection switch
B-9 ON/OFF switch / VOLUME control
B-10 POWER light
B-11 Battery compartment cover
C. Small parent Unit
C-1 Sound LEVEL lights
C-2 Loudspeaker
C-3 AC power adapter
C-4 Power plug
C-5 Charging base
C-6 Charging light
C-7 DC 9V ——<<++power supply jack
C-8 Channel selection switch
C-9 LINK light
C-10 ON/OFF switch / VOLUME control
C-11 POWER light
C-12 LINK alarm switch
C-13 Battery compartment cover
C-14 Rechargeable battery pack
C-15 Belt clip
EN Legend of functions
4

EN
5
D.What else you’ll need
– Coin (to open the battery compartment of the baby unit)
– Small, flat screwdriver (to set the channel selection switches)
– 4 x 1,5V AA batteries for the baby unit
(optional, we recommend Philips Alkaline batteries)
– 4 x 1,5V AA batteries for the large parent unit
(optional, we recommend Philips Alkaline batteries)
Legend of functions

3 Illustrations
4 Legend of functions
4 Baby unit
4 Large parent unit
4 Small parent unit
5 What else you need
6 Contents
7 Welcome
7 Safety information
7 Getting your baby monitor ready
7 Baby unit
8 Large parent unit
9 Small parent unit
9 Using your baby monitor
10 Features
10 Avoiding interference (channel selection)
12 Adjusting microphone sensitivity
12 Monitoring baby silently
12 Switching the nightlight on and off
13 Switching the LINK alarm on and off
14 Connecting / disconnecting the belt clip
(small parent unit)
14 Troubleshooting
16 Frequently asked questions
17 Technical specifications
18 Important information
18 Replacing the battery pack (small parent unit)
19 Environmental information
19 Maintenance
19 Need help?
EN Contents
6

EN
7
Philips is dedicated to produce caring, reliable products to give parents the reassurance they
need.With this baby monitor you can hear your baby from where ever you are in and around
your house.With sixteen different channels options you will experience minimal interference.
Philips Baby Care, taking care together
Safety information
Please read this user manual carefully before using your baby monitor and keep it for future
reference.This baby monitor is intended as an aid. It is not a substitute for responsible and
proper adult supervision and should not be used as such.
• Make sure the baby unit and adapter cable are always out of reach of the baby
(at least 1 meter / 3 feet away).
• Never place the baby unit inside the baby’s bed or playpen.
• Never cover the baby monitor (with a towel, blanket, etc.).
• Never use the baby monitor in moist places or close to water.
• Check if the voltage indicated on the type plate of the adapters (A-4, B-4, C-3) correspond to
the local power voltage before connecting to the AC power supply.
• Do not expose the baby monitor to extreme cold, heat or light (e.g. direct sunlight).
• To prevent electric shock, do not open the inside of the baby unit and parent units
(except for the battery compartment covers)
• The antennas on all three units are fixed; do not try to extend them.
Welcome
Getting your baby monitor ready
Baby unit

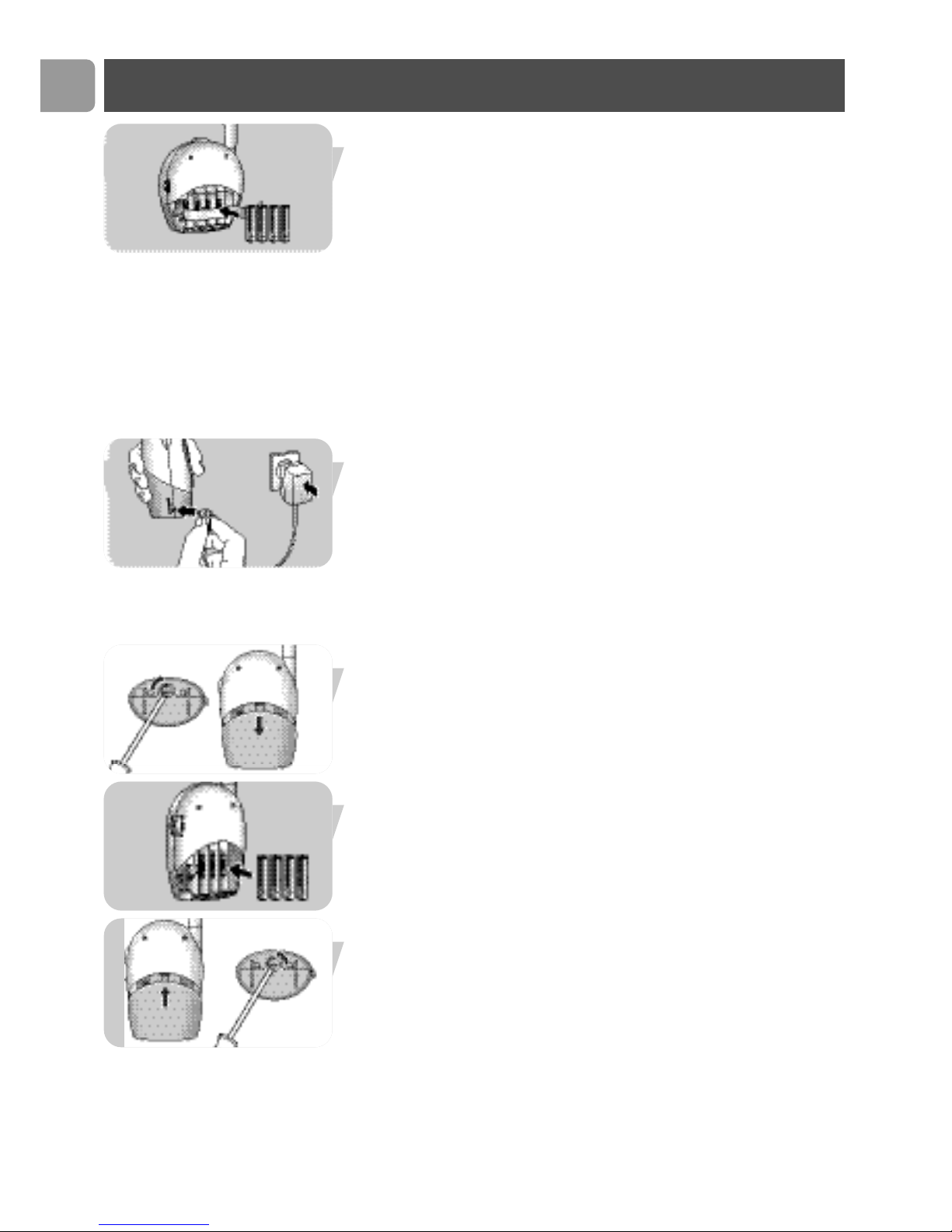

The baby unit can be mains or battery operated.
When batteries are installed, you have an automatic back up in
case of mains failure.
Mains operated use
1Connect the power adapter cord to the power supply jack
(DC 9V ——<<++- A-3) of the baby unit.
2Connect the AC power adapter (A-4) to a wall outlet.
➜The baby unit is now ready for mains operated use.
Battery operated use
1Remove the battery compartment cover (A-10) of the baby
unit, using a coin.

2Insert four 1,5V AA batteries, noting the + and –
configuration inside the battery compartment (batteries are
not supplied, we recommend Philips Alkaline batteries).
3Close the battery compartment cover (A-10), using a coin
➜The baby unit is now ready for battery operated use.
Large parent unit
The large parent unit can be mains or battery operated.When
batteries are installed, you have an automatic back up in case of
mains failure.
Mains operated use
1Connect the power adapter cord to the power supply jack
(DC 9V ——<<++- B-6) of the parent unit.
2Connect the AC power adapter (B-4) to a wall outlet.
➜The large parent unit is now ready for mains
operated use.
Battery operated use
1Open the parent unit’s battery compartment, using a
screwdriver and slide down the cover (B-11).
2Insert four 1,5V AA batteries, noting the + and –
configuration inside the battery compartment (batteries are
not supplied, we recommend Philips Alkaline batteries).
3Slide the battery compartment cover (B-11) back in place
until it clicks in position and close the compartment, using a
screwdriver.
➜The large parent unit is now ready for battery
operated use.
EN Getting your baby monitor ready
8

EN
9
Small parent unit
A rechargeable battery pack has already been installed in the
small parent unit.
1Connect the power adapter cord to the power supply jack
(DC 9V ——<<++- C-7) of the charging base (C-5).
2Connect the AC power adapter (C-3) to a wall outlet.
3Place the parent unit in the charging base (C-5).
> The charging light (C-6) lights up red.
4Leave the parent unit in the charging base (C-5) until the
batteries are fully charged (at least 14 hours).
> When the batteries are fully charged, the charging light
(C-5) will gradually dim.The parent unit can now be taken
out of the charging base and used cordlessly for up to
10 hours.
> When the POWER light (C-11) flashes red, battery power
is low. Place the parent unit in the charging base (C-5) to
recharge the batteries.
➜The small parent unit is now ready for use!
Getting your baby monitor ready
Using your baby monitor

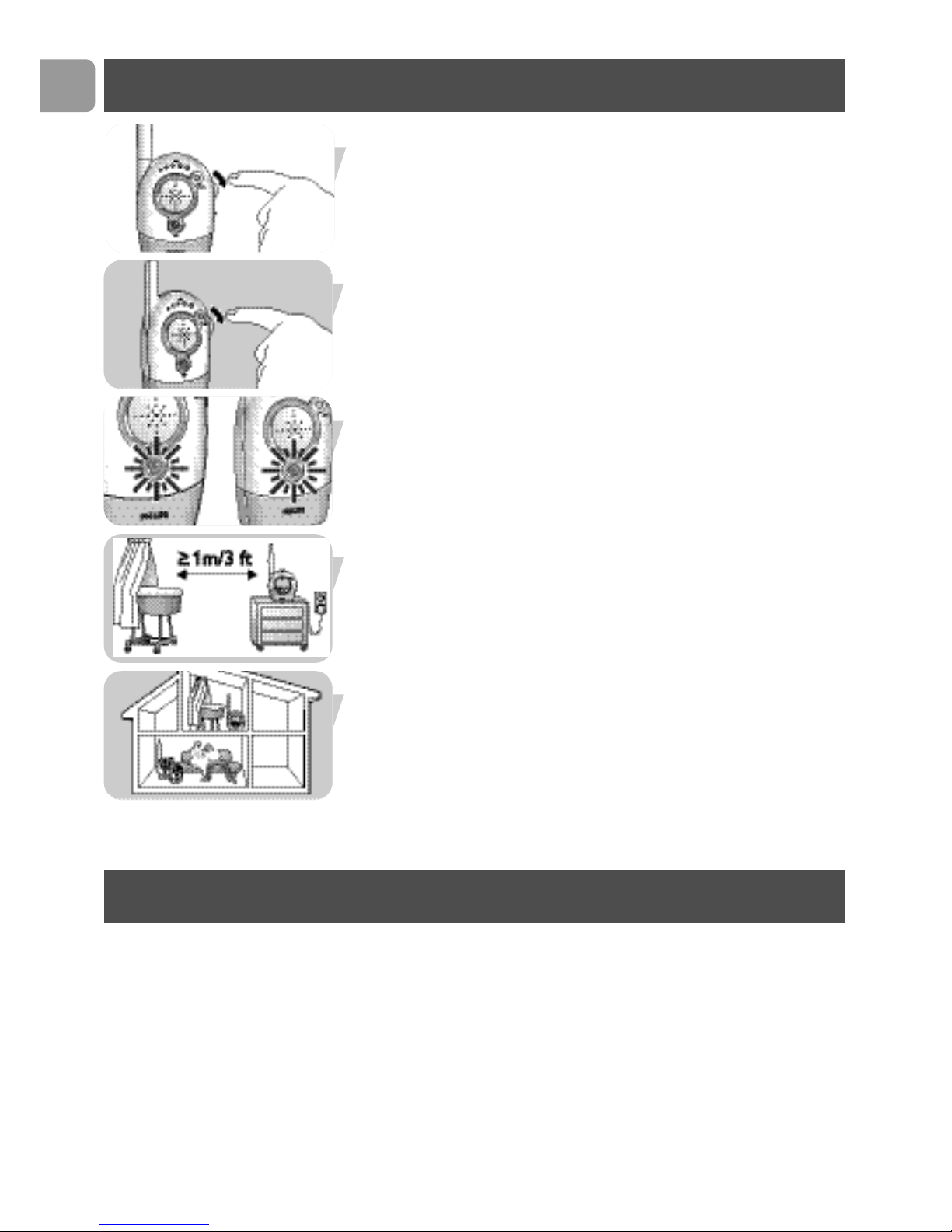

1Position all three units in the same room to test the
connection. Make sure the baby unit is at least 1 meter /
3 feet away from the parent units.
2Press the ON/OFF button (A-1) to switch on the baby unit.
> The POWER Light (A-7) lights up green.

3Switch on the parent units using the ON/OFF switches
(B-9, C-10) and adjust the volume to the level you prefer
using the VOLUME controls (B-9, C-10).
> The POWER lights (B-10, C-11) light up green.
> When connection has been established between the units,
the LINK lights (B-3, C-9) on the parent units light up
green.
4Position the baby unit at least 1 meter / 3 feet away from
your baby.
5Position the parent units at the desired place within the
operating range of the baby unit but at least 1 meter / 3 feet
away from the baby unit. For more information on the
operating range see ‘Technical specifications’.
> When your baby makes sounds, this will be heard on both
parent units.
➜Your can now monitor you baby!
EN Using your baby monitor
10
Features
Avoiding interference (channel selection)

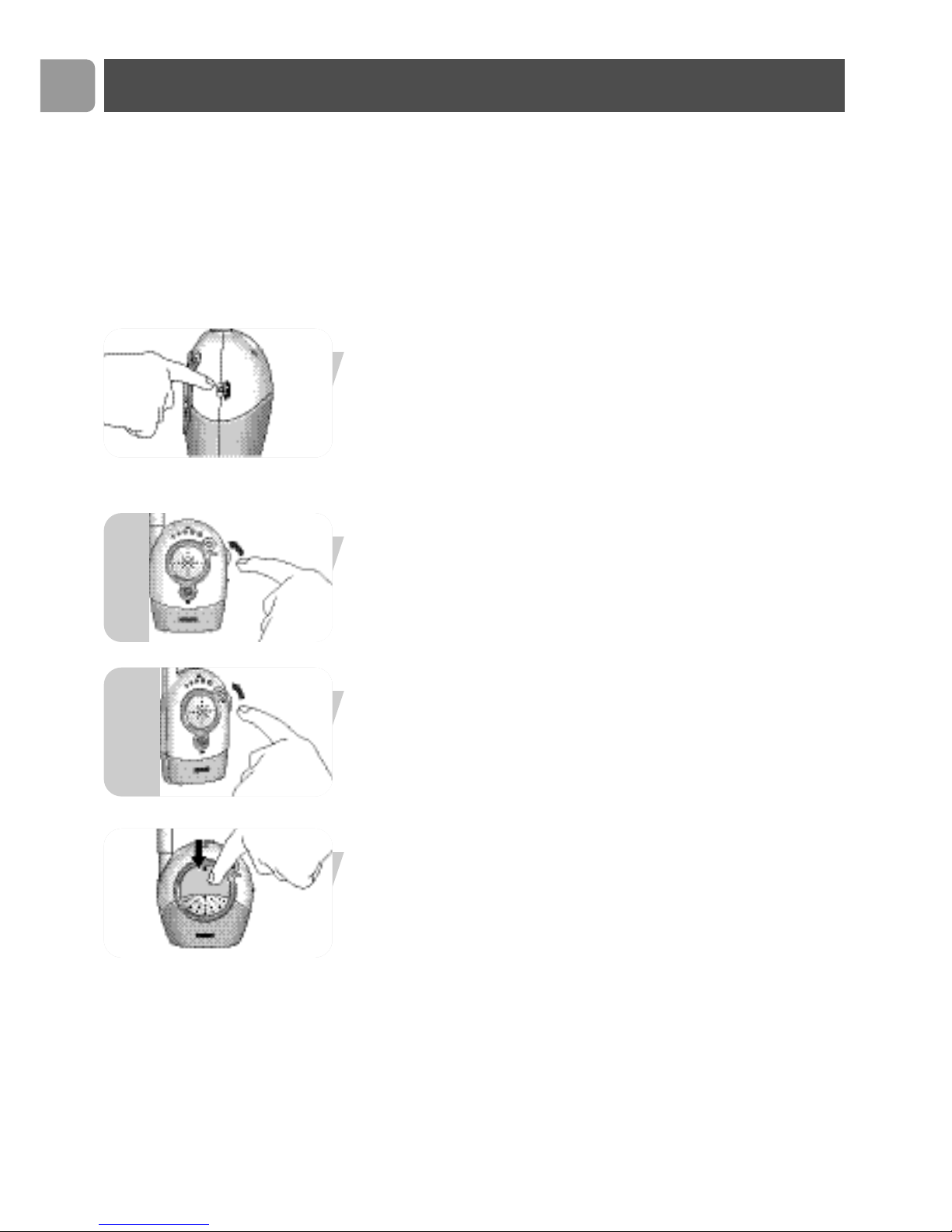

Always make sure that the CHANNEL selection switches
(A-9, B-8, C-8) inside the battery compartments on all units are
set to the same position!
With the CHANNEL selection switches (A-9, B-8, C-8) you can
select sixteen different channel positions. If you experience
interference from other baby monitors, radio devices, etc. select
a different channel.

EN
11
1Open the battery compartment covers (A-10, B-11, C-13) of
all units.
• Baby unit: use a coin.
• Large parent unit: use a screwdriver and slide down the
cover (B-11).
• Small parent unit: slide down the cover (C-13).
2Lift up the rechargeable battery pack of the small parent unit
(C-14).
If you are operating the baby unit and the large parent unit
on battery power, remove the batteries from both units.
3Use a small, flat screwdriver to rotate the inner circle of the
channel selection switches (A-9, B-8, C-8) to the desired
position. Make sure all units are set to the same channel.
4Put batteries and battery pack back in place.
5Close the battery compartment covers (A-10, B-11, C-13).
Features

Adjusting microphone sensitivity
With the microphone sensitivity switch (A-8) on the baby unit,
you can set the sound, coming from the baby unit, to the
desired level: low, mid or high.When set to the maximum level,
the baby unit monitors all sounds.You can only change the
microphone sensitivity if the connection between the baby unit
and the parent units is established (when the LINK lights (B-7,
C-9) light continuously green).
• Use the microphone sensitivity switch (A-8) to adjust the
baby unit microphone sensitivity to the desired level.You can
use your own voice as a sound reference.
> The POWER light (A-7) on the baby unit lights up yellow
when a sound is picked up.
Monitoring baby silently
• Use the ON/OFF switch / VOLUME controls (B-9, C-10) on
the parent units to set the volume to the lowest level.
Do not switch off the parent units completely!
> The sound level lights (B-1, C-1) on the parent units visually
alert you to baby’s sounds.The more sounds your baby
makes, the more lights you will see.
> When no sound is detected all sound level lights
(B-1, C-1) will be off.
Note:You can also monitor baby silently on only one of the
parent units
Switching the night-light on and off
•Press the baby unit night light (A-2) to switch it on and off.
EN Features
12

EN
13
Switching the LINK alarm on and off
You can switch on the LINK alarm on the parent units.
The LINK alarm will beep when connection between the units
is lost.
1Open the battery compartments (B-11, C-13) of the parent
units.
• Large parent unit: use a screwdriver and slide down the
cover (B-11).
• Small parent unit: slide down the cover (C-13).
2Set the switches (B-7, C-12) inside the compartment to the
ON ( ) position.
3Close the battery compartment covers (B-11, C-13).
• To switch off the alarm, set the switches (B-7, C-12) to the
OFF ( ) position.
Features

EN
14
Troubleshooting
Problem Possible cause Solution
No sound on parent units Volume off or too low. Turn VOLUME controls (B-9, C-10)
on parent units downwards.
Units out of range. Move parent units closer to
baby unit.
No connection Units are set to different Set channel selection switches
between units. channels. (A-9, B-8, C-8) to the same
position on all three units.
Parent units out of range of Move parent units closer
tansmitted signal. to baby unit.
Battery pack of Battery life at an end. Replace battery pack (C-14).
small parent unit
does not charge.
Features

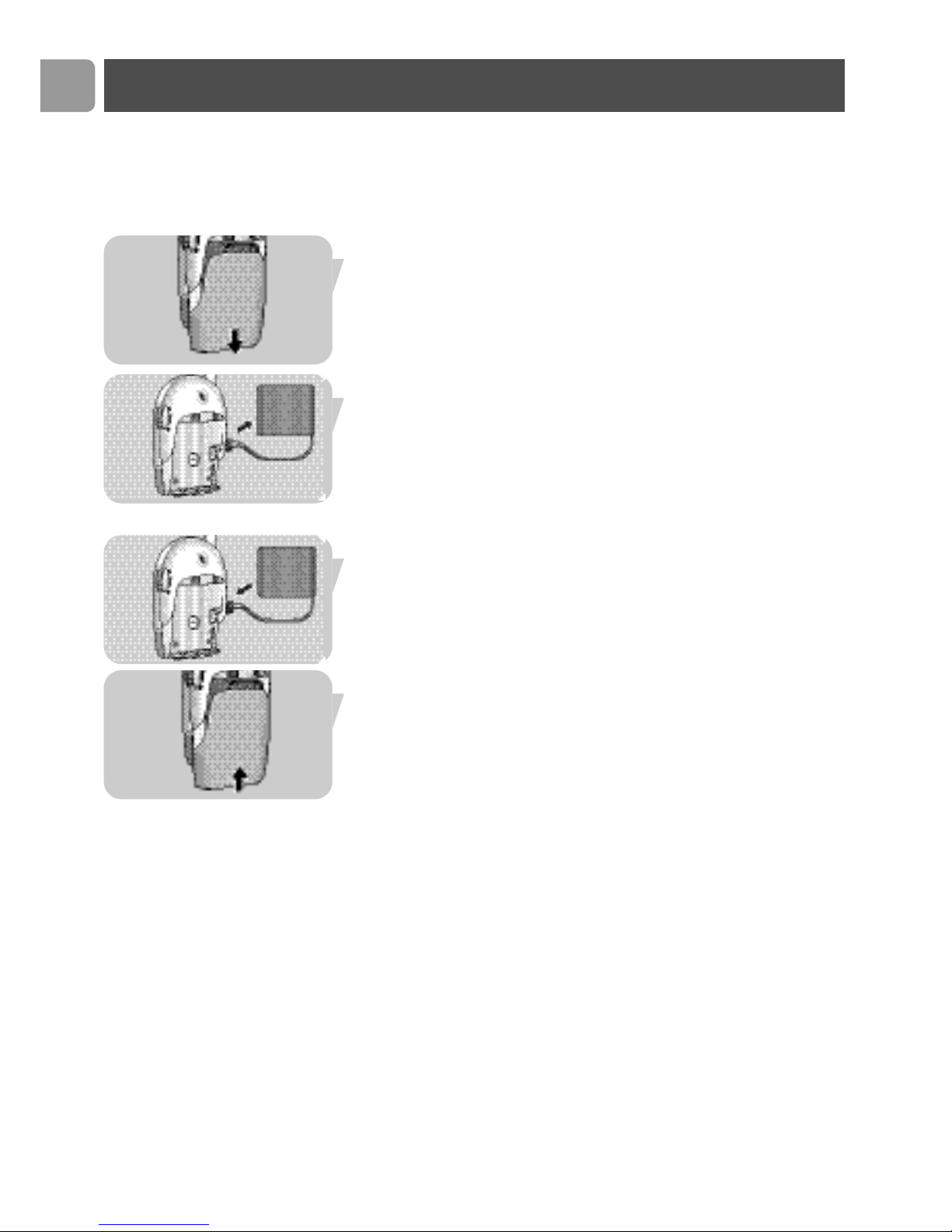

Connecting / disconnecting the belt clip
(small parent unit)
You can carry the small parent in and around your house, giving
you freedom of movement while still monitoring your baby.
Connecting the belt clip
•Insert the little spindle on the rear of the belt clip into the
recess on the rear of the parent unit.
Turn the belt clip to the left until it clicks in position.
Disconnecting the belt clip
•Turn the belt clip to the right (TURN 2) and take it off.

EN
15
Troubleshooting
Problem Possible cause Solution
Interference or poor Mobile or cordless phone(s) Move phone(s) away from
reception too close to baby monitor. baby monitor.
Interference from other Switch all units to another
baby monitors in the channel using the channel
neighborhood. selection switch (A-9, B-8, C-8).
Battery power running low. Recharge battery pack (C-14) of
small parent unit in time.
Replace batteries of large parent
unit and / or baby unit.
Transmitted signal is out of Move parent units closer
range; e.g. there are too many to baby unit.
walls and/or ceilings between
baby unit and parent units.
Parent units located too close Move parent units away
to a window and picking up from window.
interfering signals from other
appliances.
LINK lights (B-3, C-9) Units are out of range. Move units closer together.
flashing red / LINK
alarms beep. Interference from another Switch to a different channel
baby monitor. (A-9, B-8, C-8).
Interference from another Remove other FM source.
FM source.

Answer
It takes about 3 times full recharge and discharges before the
rechargeable NiMH batteries have their full capacity available.
Leaving the rechargeable battery pack continuously connected
to a charging unit can shorten it’s lifetime. If the product is not
used for some time, the charged battery pack slowly looses it’s
load.This is normal; a short recharge will bring it back to it’s full
capacity again.
The charging light (C-6) is always activated as soon as the
parent unit is installed. It gradually dims when the batteries are
fully charged but remains lit, indicating that the parent unit is
powered.
At this point your battery is probably completely empty.After
some 30 minutes of charging it will be possible to switch the
parent unit on, while installed on the charging unit.
Set microphone sensitivity on the baby unit to a higher level
and / or move the baby unit closer to the baby (keep minimal
distance of 1 meter / 3 feet).
Set microphone sensitivity on the baby unit to a lower level
and/or move the baby unit closer to the baby (keep minimal
distance of 1 meter / 3 feet).
You are probably approaching the outer boundaries of the
practical range.Try a different location or reduce the distance
slightly. Please note that it takes about 30 seconds each time
before a new link is established.
EN Frequently asked questions
16
Question
Why does a new rechargeable
battery pack has no full
operating time capacity after
the first charge?
My rechargeable battery pack
has very short duration.Why?
The charging light (C-6) on
the small parent unit charging
base (C-5) remains lit red,
even after the full charge
duration.Why?
When installed on the
charging base, the small parent
unit cannot be switched on
immediately.
Parent units react too slow /
late on baby's cry.
Parent units react too quick
on other ambient sounds.
The link is lost every now and
then, sound interruptions etc.

EN
17
Power supply
Operating range
Operating temperature
Transmission frequencies
Technical specifications
– Battery pack: rechargeable NiMH for small parent unit
(included).
– AC power adapter 230V AC, 50 Hz (three included).
Output voltage 9V DC, 200mA.
– Up to 250 meters / 750 feet in open air. Depending on the
surroundings and other disturbing factors this range may be
limited.
Dry materials Material Loss of
thickness range
Wood, plaster, < 30cm / 12” 0-10%
plaster cardboard,
glass (without metal
or wires, no lead)
Brick, plywood < 30cm / 12” 5-35%
Reinforced concrete < 30cm / 12” 30-100%
Metal grids, bars < 1cm / 0.4” 90-100%
Metal,Aluminium sheets < 1cm / 0.4” 100%
For wet and moist materials reduction can be as up to 100%.
0 °C - 40 °C
40.665 MHz, 40.680 MHz, 40.695 MHz

Replacing the battery pack (small parent unit)
If the battery pack of the small parent unit needs to be
recharged more often than usual, replace it with a new battery
pack. Only use rechargeable NiMH batteries.
1Open the battery compartment cover (C-13) of the small
parent unit by sliding down the cover.
2Disconnect the old battery pack (C-14) from it’s power plug
and remove it.
3Carefully connect the new battery pack to the power plug
and place inside the battery compartments.
4Close the battery compartment cover (C-13).
EN Important information
18

EN
19
Environmental information
Disposal of your old product
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a
product it means the product is covered by the European
Directive 2002/96/EC.
Please inform yourself about the local separate collection
system for electrical and electronic products.
Please act according to your local rules and do not dispose of
your old products with your normal household waste.The
correct disposal of your old product will help prevent potential
negative consequences for the environment and human health.
Maintenance
• Clean the baby monitor with a damp cloth
• Dispose of used batteries in an environmentally friendly
manner
• Do not mix old and new batteries or different types of
batteries.
• If the batteries are left in the unit when it is powered from
the mains, check them for leakage every six months.
Important information
Need help?
Online help: www.philips.com
For interactive help, downloads and frequently asked questions
Contact line:
If you have any questions about the SCD450, please contact our
helpline for assistance! You can find the number in the separate
Guarantee leaflet.
Before you call, please read this manual carefully.
You will be able to solve most of your problems.
You will be asked for:
• A description of the problem and when it occurs
• The type number on the label of your product
• The date of purchase

A. Unité bébé
A-1 Bouton ON/OFF
A-2 Veilleuse
A-3 Prise jack d’alimentation CC 9 V ——<<++
A-4 Adaptateur d’alimentation secteur
A-5 Prise secteur
A-6 Microphone
A-7 Voyant d’alimentation
A-8 Réglage de sensibilité du microphone
A-9 Sélecteur de canal
A-10 Couvercle du compartiment des batteries
B. Unité parents principale
B-1 Témoins de volume sonore
B-2 Haut-parleur
B-3 Témoin de connexion
B-4 Adaptateur d’alimentation secteur
B-5 Prise secteur
B-6 Prise jack d’alimentation CC 9 V ——<<++
B-7 Commutateur d’alarme de connexion
B-8 Sélecteur de canal
B-9 Commutateur ON/OFF / Réglage de volume
B-10 Témoin d’alimentation
B-11 Couvercle du compartiment des batteries
C. Unité parents secondaire
C-1 Témoins de volume sonore
C-2 Haut-parleur
C-3 Adaptateur d’alimentation secteur
C-4 Prise secteur
C-5 Chargeur
C-6 Témoin de charge
C-7 Prise jack d’alimentation CC 9 V ——<<++
C-8 Sélecteur de canal
C-9 Témoin de connexion
C-10 Commutateur ON/OFF / Réglage de volume
C-11 Témoin d’alimentation
C-12 Commutateur d’alarme de connexion
C-13 Couvercle du compartiment des batteries
C-14 Batterie rechargeable
C-15 Attache de ceinture
FR Légende des fonctions
20
