Philips CEM2220BT/55 User manual

Register your product and get support at
www.philips.com/support
Always there to help you
CEM2220BT
User manual
Question?
Contact
Philips

1
English
EN
Contents
1 Safety 2
2 Your car audio system 3
Introduction 3
What's in the box 3
Overview of the main unit 4
3 Install the car audio system 6
Connect wires 6
Mount into the dashboard 7
Attach the front panel 8
4 Get started 9
)RUWKHÀUVWWLPHXVH 
Set the time format 9
Set the clock 10
Turn on 10
Switch music listening zone 10
Mute the button beep 10
5 Listen to radio 11
Tune to a radio station 11
Store radio stations in memory 11
Tune to a preset station 11
Play with RDS 12
6 Play from hard media 14
Play a disc 14
Play from USB 14
Control play 14
Switch tracks 15
7 Use Bluetooth devices 15
Connect a device 15
Play audio from a Bluetooth device 16
Make a call 16
8 Connect external sound source 17
9 Adjust sound 18
10 Adjust system settings 18
11 Others 19
Reset 19
Replace fuse 19
12 Product information 20
6SHFLÀFDWLRQV 
USB playability information 21
13 Troubleshooting 22
General 22
About the Bluetooth device 22
14 Notice 23
Compliance 23
Disposal of your old product 23
Trademark notice 24
Copyright 24
15 Glossary 24

2EN
1 Safety
Read and understand all instructions before
you use your apparatus. If damage is caused by
failure to follow instructions, the warranty does
not apply.
 This apparatus is designed for negative
ground (earth) 12 V DC operation only.
 To ensure safe driving, adjust the volume to
a safe and comfortable level.
 Improper fuses can cause damage or
ÀUH:KHQ\RXQHHGWRFKDQJHWKHIXVH
consult a professional.
 Use only the supplied mounting hardware
for a safe and secure installation.
 To avoid short circuit, do not expose the
apparatus to rain or water.
 Never insert objects into the ventilation
slots or other openings on the apparatus.
 Clean the apparatus and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
 Never place any objects other than discs
into the apparatus.
 Never use solvents such as benzene,
thinner, cleaners available commercially, or
anti-static sprays intended for discs.
 Visible and invisible laser radiation when
open. Avoid exposure to beam.
Caution
Use of controls or adjustments or performance of
procedures other than herein may result in hazardous
radiation exposure or other unsafe operation.
 The apparatus shall not be exposed to
dripping or splashing.
 Do not place any sources of danger on the
DSSDUDWXVHJOLTXLGÀOOHGREMHFWVOLJKWHG
candles).

3
English
EN
2 Your car audio
system
Congratulations on your purchase, and
ZHOFRPHWR3KLOLSV7RIXOO\EHQHÀWIURPWKH
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the in-car audio system, you can enjoy
your drive while listening to:
 FM or AM (MW) radio
 Audio from CD or MP3 disc
 Audio from USB devices
 Audio from Bluetooth devices
 Audio from other external devices
The unit supports the following media format:
What's in the box
Check and identify the contents of your
package:
a Main unit (with a sleeve)
b Front panel
c Trim plate
d Carrying case for front panel
e ISO male connector X 2
f Rubber cushion
g Screw x 1 pc
h Disassembly tools x 2 pcs
i User manual
a
e
ih
g
f
bc d

4EN
Overview of the main unit
a /
 Tune for radio station.
 Skip/search for track.
 Fast backward/forward playback.
b
 Press to answer or redial a call.
 Press and hold to transfer call.
c /MENU
 Return to previous menu.
 Access system menu.
s
adcbe fg
npo h
r
qmlkij
d /
 Turn the unit on or off.
 &RQÀUPVHOHFWLRQ
 Mute or unmute sound.
 Rotate to adjust volume.
e ZONE /
 Select tuner band.
 Select MP3/WMA folder.
 Press and hold to switch music
listening zone.

5
English
EN
f
 Eject disc.
g
 USB socket.
h AUDIO IN
 Connect external audio device.
i
 6281'
/
 Press to enable or disable the MAX
Sound feature.
 In any mode, press and hold to view
clock.
j DBB/AS
 Press to turn on or off Dynamic Bass
Boost (DBB) sound.
 In radio mode, press and hold to
access to tuner auto store.
k /
 Start, pause, or resume the play of
tracks.
 In radio mode, press to select the
preset radio station of No. 5/6.
 In radio mode, press and hold to store
the current radio station at channel
No. 5/6.
l /
 In radio mode, press to select the
preset radio station of No. 3/4.
 In radio mode, press and hold to store
the current radio station at channel
No. 3/4.
 For .wma and .mp3 tracks, press
UHSHDWHGO\WRVHOHFWVKXIÁHSOD\UHSHDW
play.
m /
 In radio mode, press to select the
preset radio station of No. 1/2.
 In radio mode, press and hold to store
the current radio station at channel
No. 1/2.
 For .wma and .mp3 tracks on a storage
device, press to access the track/folder
list.
n SOURCE/DISPLAY
 Press repeatedly to select source.
 Display current status.
 Press and hold to select the dimmer
high or low.
o
 Press repeatedly to select a preset
equalizer (EQ).
 Press and hold to access audio setting
menu.
p
 Unlock the panel.
q
 Press to hang up a call.
 Press and hold to reject an incoming
call.
r RESET
 Restore default settings.
s Disc slot

6EN
3 Install the car
audio system
These instructions are for a typical installation.
However, if your car has different requirements,
make the adjustment accordingly. If you have
any question regarding installation kits, consult
your local retailer.
Note
This system is designed for negative ground (earth) 12V
DC operation only.
Always install this system in the car dashboard. Other
locations can be dangerous as the rear of the system
heats up during use.
To avoid short-circuit: before you connect, make sure
that the ignition is off.
Make sure that you connect the yellow and red power
supply leads after all other leads are connected.
Make sure that all loose leads are insulated with
electrical tape.
Make sure that the leads do not get caught under
screws or iron parts that will move (e.g. seat rail).
Make sure that all ground (earth) leads are run to a
common ground (earth) point.
Use only the supplied mounting hardware for a safe
and secure installation.
,PSURSHUIXVHVFDQFDXVHGDPDJHRUÀUH:KHQ\RX
need to change the fuse, consult a professional.
When you connect other devices to this system, make
sure that the rating of the car circuit is higher than the
total fuse value of all the connected devices.
Never connect speaker wires to the metal body or
chassis of the car.
Never connect speaker wires with stripes to one
another.
Connect wires
Note
Consult a professional to connect CEM2220BT as
instructed below.
1 Check the car's wiring carefully and
connect them to the the supplied male
connector.
ISO male
connectors
Connect to
a Green strip, black-
edged green strip
Left speaker (Rear)
b White strip, black-
edged white strip
Left speaker (Front)
c Gray strip, black-
edged gray strip
Right speaker (Front)
d Purple strip, black-
edged purple strip
Right speaker (Rear)
e Red Ignition key +12V
DC when ON/ACC
f Blue Motor/electric
antenna relay control
lead
g White edged blue
strip
$PSOLÀHUUHOD\
control lead
h Black Ground
i Yellow To the +12V car
battery which is
energized at all times

7
English
EN
2 &RQQHFWWKHDQWHQQDDQGDPSOLÀHUDV
illustrated, if applicable.
Connector Connect to
1 ANTENNA Antenna
2 Socket for ISO male
connectors
As indicated in
Step 1 above
3 REAR LINE OUT R
(Socket)
Rear right speaker
4 REAR LINE OUT L
(Socket)
Rear left speaker
5 OE REMOTE
(Purple)
OE Remote
Tip
The pin arrangement for the ISO connectors depends
on the type of vehicle you drive. Be sure to make
proper connections to prevent damage to the unit.
Mount into the dashboard
1 If the car does not have an on-board drive
or navigation computer, disconnect the
negative terminal of the car battery.
 If you disconnect the car battery in
a car that has an on-board drive or
navigation computer, the computer
may lose its memory.
 If the car battery is not disconnected,
to avoid short-circuit, ensure that the
bare wires do not touch each other.
2 Ensure that car dashboard opening is
within these measurements:
3 Remove the mounting sleeve with the
supplied disassembly tools.
183 mm
53mm
5mm

8EN

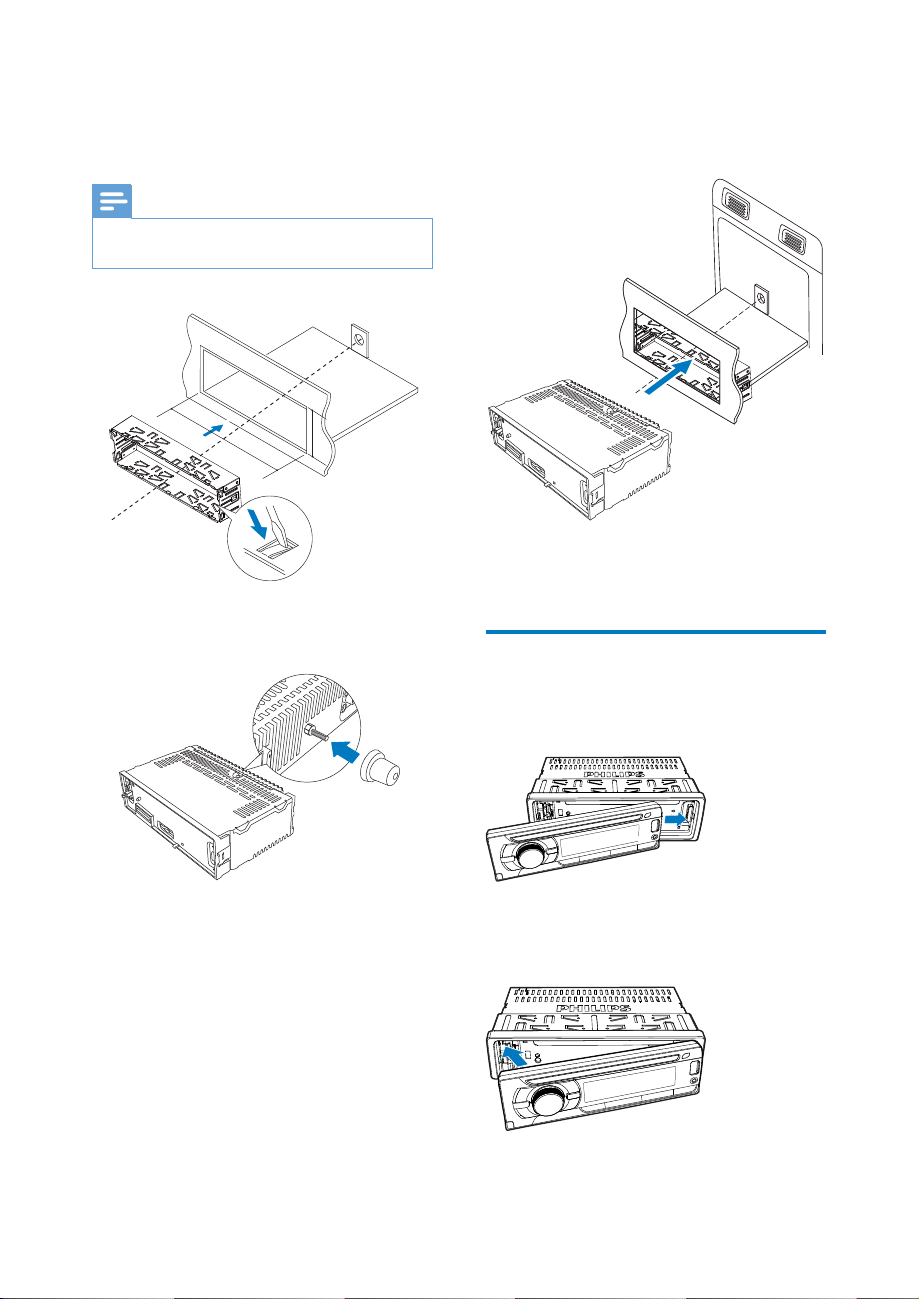

4 Install the sleeve into the dashboard and
EHQGWKHWDEVRXWZDUGWRÀ[WKHVOHHYH
Note
,IWKHXQLWLVQRWÀ[HGE\VOHHYHEXWE\WKHVXSSOLHG
screws, skip this step.
5 Place the supplied rubber cushion over the
end of the mounting bolt.
183 mm
53.5 mm
6 Slide the unit into the dashboard until you
hear a click sound.
7 Reconnect the negative terminal of the car
battery.
Attach the front panel
1 Insert the notch on the front panel to the
chassis on the main unit.
2 Press the left end of the front panel
inwards until it is securely locked with a
"click".

9
English
EN
Detach the front panel
Note
Before you detach the front panel, make sure that the
system is turned off.
1 Press to release the front panel.
2 Pull the front panel outwards to remove it.
4 Get started
Always follow the instructions in this chapter in
sequence.
If you contact the Consumer Care, you will
be asked for the model and serial number of
this apparatus.The model number and serial
number are on the bottom of the product.
Write the numbers here:
Model No. __________________________
Serial No. ___________________________
)RUWKHÀUVWWLPHXVH
Note
Select correct country/region for this unit, otherwise
the unit can not work properly.
1 Press to turn the unit on.
» [SELECT OPERATING REGION] is
displayed.
2 Rotate to select an option:
 [USA] (United States)
 [LATIN] (Latin America)
 [EUROPE] (Western Europe)
 [RUSSIA] (Russia)
 [MID-EAST] (Middle East)
 [ASIA]3DFLÀF
 [JAPAN] (Japan)
 [AUSTRLIA] (Australia)
3 Press WRFRQÀUP
Set the time format
1 Press and hold MENU.
2 Press or repeatedly until [CLOCK
FORMAT] is displayed.
3 Rotate to select a setting:
 [CLK 12H]
 [CLK 24H]

10 EN
Set the clock
1 Press and hold MENU.
2 Press or repeatedly until [CLOCK
SET] is displayed.
3 Rotate to set hour.
4 Press WRFRQÀUP
5 Rotate to set minute.
6 Press WRFRQÀUP
Display the clock
In any mode, press and hold
 6281'
/ until the
clock is displayed.
 Press any key to cancel the clock display.
Turn on
To turn on the unit,
 Press .
To turn off the unit,
 press and hold until the unit is turned
off.
Switch music listening zone
Philips’ innovative Zone technology enables
driver or passengers to enjoy music with the
best speakers balance and experience more
vivid spacial effect as the artist is intended to
create.You can switch the music listening zone
from driver to passengers for the best speaker
sound settings in car.
1 Press and hold ZONE.
» The current setting is displayed.
2 Press / to select a setting:
 [ALL]
 [FRONT] (Front)
 [RIGHT] (Right)
 [LEFT] (Left)
Mute the button beep
Each time you press a button, the unit beeps.
You can turn this beep sound on or off.
1 Press and hold MENU.
2 Press or repeatedly until [BEEP
TONE] is displayed.
3 Rotate to select a setting:
 [BEEP ON]: turn the beep sound on.
 [BEEP OFF]: turn the beep sound off.

11
English
EN
5 Listen to radio
Tune to a radio station
1 Press SOURCE repeatedly to select radio
mode.
2 Press / repeatedly to select band:
[FM1],[FM2], [FM3], [AM1], or [AM2].
3 Press and hold or until the
IUHTXHQF\GLJLWLVÁDVKHG
4 Press or to tune to a radio station
manually.
» The radio station is broadcast.
 To search for a radio station automatically,
press or .
Select tuner region
You can select suitable country/region of the
radio.
1 Press SOURCE to select radio mode.
2 Press and hold MENU.
3 Press or repeatedly until [AREA] is
displayed..
4 Rotate to select:
 [USA] (United States)
 [LATIN] (Latin America)
 [EUROPE] (Western Europe)
 [RUSSIA] (Russia)
 [MID-EAST] (Middle East)
 [ASIA]$VLD3DFLÀF
 [JAPAN] (Japan)
 [AUSTRLIA] (Australia)
5 Press WRFRQÀUP
Select tuner sensitivity
To receive more radio stations or only stations
with strong signal, you can adjust the tuner
sensitivity.
1 Press and hold MENU.
2 Press or repeatedly until [LOCAL] is
displayed.
3 Rotate to select a setting:
 [LOCAL ON] (local on): only stations
with strong signal can be broadcast.
 [LOCAL OFF] (local off): stations
with strong and weak signals can be
broadcast.
Store radio stations in
memory
You can store up to 6 stations in each band.
Store stations automatically
In Radio mode, press and hold DBB/AS until
[STORE - - -] is displayed.
» The six strongest stations of the
selected band are saved in preset
channel automatically.
Store stations manually
1 Tune to a station that you want to store.
2 Press a numeric button for 3 seconds.
» The station is saved in the selected
channel.
Tune to a preset station
Press a numeric key to select a preset station.

12 EN
Play with RDS
The RDS (Radio Data System) function
operates only in areas with FM stations
broadcasting RDS signals. If you tune to an RDS
station, the station name are displayed.
Turn on RDS
Note
The default setting for RDS is on.
1 Press and hold MENU.
2 Press or repeatedly until [RDS] is
displayed.
3 Rotate to select [RDS ON].
» The RDS function is turned on.
Select program type
Before tuning to RDS stations, you can select
program type and let the unit search only for
programs of the selected category.
1 Press and hold MENU.
2 Press or repeatedly until [PTY] is
displayed.
3 Press WRFRQÀUP
4 Rotate to select a type, then press to
FRQÀUP
Item Program type Description
1 NEWS News services
2 AFFAIRS Politics and current
affairs
3 INFO Special information
programs
4 SPORT Sports
5 EDUCATE Education and
advanced training
6 DRAMA Radio plays and
literature
7CULTURE Culture, religion and
society
8SCIENCE Science
9VARIED Entertainment
programs
10 POP M Pop music
11 ROCK M Rock music
12 EASY M Light music
13 LIGHT M Light classical music
14 CLASSICS Classical music
15 OTHER M Special music
programs
16 WEATHER Weather
17 FINANCE Finance
18 CHILDREN Children’s programs
19 SOCIAL Social Affairs
20 RELIGION Religion
21 PHONE IN Phone In
22 TRAVEL Tr ave l
23 LEISURE Leisure
24 JAZZ Jazz Music
25 COUNTRY Country Music
26 NATION M National Music
27 OLDIES Oldies Music
28 FOLK M Folk Music
29 DOCUMENT Documentary
30 TEST Alarm Test
31 ALARM Alarm
Select alternate frequencies
If the radio signal is poor, turn on AF (Alternate
Frequency) to search for another station with
stronger signal.
1 Press and hold MENU.
2 Press or repeatedly until [AF] is
displayed.
3 Rotate to select a setting:
 [AF ON]: turn AF mode on.
 [AF OFF]: turn AF mode off.

13
English
EN
Set region for AF tuning
<RXFDQGHÀQH$)WXQLQJUHJLRQ
[REG
ON]
Only stations in current region can
be tuned to automatically.
[REG
OFF]
All stations can be tuned to
automatically.
1 Press and hold MENU.
2 Press or repeatedly until [REG] is
displayed.
3 Rotate to select a setting.
5HFHLYHWUDIÀFDQQRXQFHPHQW
,I\RXGRQRWZDQWWRPLVVWUDIÀF
announcement when enjoying music, turn on
WKH7$7UDIÀF$QQRXQFHPHQWIXQFWLRQ
1 Press and hold MENU.
2 Press or repeatedly until [TA] is
displayed.
3 Rotate to select a setting:
 [TA ON]ZKHQWKHUHLVWUDIÀF
announcement, the unit switches to
the tuner mode (regardless of the
current mode) and begins to broadcast
WKHWUDIÀFFRQGLWLRQV:KHQWKHWUDIÀF
announcement is over, it returns to the
previous mode.
 [TA OFF]WUDIÀFDQQRXQFHPHQWGRHV
not cut in.
Note
If the current received TA signal remains weak for
over 120 seconds, the unit will activate TA Seek mode
automatically.The TA Seek will seek for other station
with good condition of TA signal.
Tip
:KHQDWUDIÀFDQQRXQFHPHQWFXWVLQXVHUFDQVKRUW
press WRWHUPLQDWHWKHWUDIÀFDQQRXQFHPHQWDQG
the unit will resume to previous playback mode.
Set RDS clock
You can use time signal that is broadcast
together with the RDS signal to set the clock of
the unit automatically.
1 Press and hold MENU.
2 Press or repeatedly until [CT] is
displayed.
3 Rotate to select a setting:
 [CT ON]: turn on the RDS clock.Time
shown on the unit synchronizes with
that on the RDS station.
 [CT OFF]: turn off the RDS clock.
Tip
The accuracy of the transmitted time depends on the
RDS station that transmits the time signal.

14 EN
6 Play from hard
media
You can use this system to listen to audios that
are stored on a compatible disc or USB storage
device.
Play a disc
Note
You cannot play CDs encoded with copyright
protection technologies.
You can play commercially available audio CDs
and these discs:
 CD-Recordables (CD-R)
 CD-Re-writables (CD-RW)
 MP3 CDs
 WMA CDs
Note
Ensure that the disc contains playable content.
Insert a CD with the printed side facing up.
» Play starts automatically.
 To pause CD play, press .
 To resume CD play, press again.
 To skip to the previous/next track, press
or .
 To search backward/forward rapidly within
the current track, press or for three
seconds.
Remove the CD
To take out the CD, press on the front panel.
Tip
If the disc is blocked in the disc compartment, press and
hold until the disc comes out.
Play from USB
Note
Ensure that the USB device contains playable music.
Insert the USB device
1 Slide the USB socket cover marked to
the left.
2 Insert the USB device into the USB socket.
» The unit starts playing from the USB
device automatically.
Remove the USB device
1 Press to turn off the unit.
2 Remove the USB device.
Control play
Button Function
/ Press repeatedly to select a folder.
Pause or resume play.
/ Press to play the previous or next
track.
/ Press and hold to rewind a track
or search forward fast.
DISP Press repeatedly to display
available information about the
current track.

15
English
EN
Button Function
Press repeatedly to select a
repeat mode:
 [REP TRK] (repeat one track):
play current track repeatedly.
 [REP FLD] (repeat a folder):
play all tracks in the current
folder repeatedly.
 [REP ALL] (repeat all tracks):
play all tracks repeatedly.
Press repeatedly to select a play
mode:
 [SHUF FLD]: start random
play for all tracks in the current
folder.
 [SHUF ALL]: start random play
for all tracks.
 [SHUF OFF]FDQFHOVKXIÁHSOD\
Switch tracks
During play, you can switch tracks or folders
quickly.
Switch tracks directly
1 Press to access the track list.
» 7KHÀOHQDPHRIFXUUHQWWUDFNVFUROOV
2 Rotate to toggle through tracks.
3 Press to play the selected track.
Switch folders for a track
1 Press to access the folder list.
» The name of current folder scrolls.
2 Rotate to toggle through folders.
3 Press to select the folder.
» 7KHV\VWHPVWDUWVSOD\LQJWKHÀUVWWUDFN
under the folder.
7 Use Bluetooth
devices
With this car audio system, you can listen to
audio from a player or make a call through
Bluetooth.
Connect a device
Note
WOOX Innovations does not guarantee the
compatibility with all Bluetooth devices.
Before pairing a device with this system, read its user
manual for Bluetooth compatibility.
Make sure that Bluetooth function is enabled on your
device, and your device is set as visible to all other
Bluetooth devices.
At one time, you can connect only one Bluetooth
device to this system.
The operational range between this system and a
Bluetooth device is approximately 3 meters (9 feet).
Any obstacle between this system and a Bluetooth
device can reduce the operational range.
Keep away from any other electronic device that may
cause interference.
On your device, follow the steps below.
1 Search for Bluetooth devices.
2 In the device list, select CEM2220BT.
3 Enter the default password "0000", and
WKHQFRQÀUPWKHSDVVZRUGHQWU\
» If the pairing succeeds, [PAIRED] is
displayed on the LCD screen of this
system.
4 Enable or permit the connection with
CEM2220BT.
» If the connection succeeds,
[CONNECTED] scrolls and is
displayed on the LCD screen of this
system.
» If the connection fails, [FAILED] is
displayed on the LCD screen of this
system.

16 EN
Disconnect a device
1 Press and hold MENU to access the
system menu.
2 Press / repeatedly until [DISCONN]
is displayed.
3 Press .
» [WAIT] is displayed with -, --, and
--- blinking alternately until [DISCNN
OK] scrolls.
Tip
You can also complete the disconnection on your
device.
Reconnect a device
Some Bluetooth devices support the automatic
reconnection with a paired Bluetooth device.
If your device does not support automatic
reconnection, reconnect it with this system
manually.
1 Press and hold MENU to access the
system menu.
2 Press / repeatedly until [CONNECT]
is displayed.
3 Press .
» [WAIT] is displayed with -, --,
and --- blinking alternately until
[CONNECTED] scrolls or [FAILED]
appears.
» If [CONNECTED] scrolls, this system
is reconnected to the last connected
device.
Tip
You can also complete the reconnection on your
device.
Play audio from a Bluetooth
device
If the connected Bluetooth device supports
$GYDQFHG$XGLR'LVWULEXWLRQ3URÀOH$'3
you can listen to tracks that are stored on the
device through the system. If the device also
VXSSRUWV$XGLR9LGHR5HPRWH&RQWURO3URÀOH
$95&3SURÀOH\RXFDQFRQWUROSOD\RQWKH
system.
1 Play a track on the connected device.
2 Press SOURCE repeatedly to switch the
source to [BT AUDIO].
» Play starts automatically.
 To pause or resume play, press .
 To skip to the previous or next track,
press / .
Note
If the connected device does not support the AVRCP
SURÀOHFRQWUROSOD\RQWKHFRQQHFWHGGHYLFH
Make a call
Note
Keep the Bluetooth connection active between the
system and your mobile phone.
Call a number
On your mobile phone, call a number.
» [CALLING] is displayed.
Redial the last called number
1 Press .
» [REDIAL] is displayed.
2 Press DJDLQWRFRQÀUP
» [CALLING] is displayed.

17
English
EN
Pick up an incoming call
When the system receives an incoming call, the
phone number or [PHONE IN] is displayed.
Press to answer the call.
Reject an incoming call
Press and hold until [END] is displayed.
End a call
To end an on-going call, press .
Transfer a call to mobile phone
By default, the voice comes from the
loudspeakers during a call.
1 Press and hold until [TRANSFER] is
displayed.
» The loudspeakers are muted, and the
voice comes from your mobile phone
only.
2 Take up your mobile phone for the
conversation.
8 Connect
external sound
source
1 Connect the external sound source to
AUDIO IN socket with a 3.5 mm cable.
2 Press SOURCE repeatedly until [AUDIO
IN] is displayed.
3 Operate the external component (refer to
the instructions supplied with the external
component).

18 EN
9 Adjust sound
The following operations are applicable to all
supported media.
Button Function
/ Rotate to increase or decrease the
volume level.
/ Press to mute or restore sound.
 6281'
/ Press to enable or disable the MAX
Sound feature.
DBB/AS Press to enable or disable the
Dynamic Bass Boost (DBB) effect.
Press again to select a preset EQ
setting:
 [OPTIMAL] (optimal)
 [FLAT]ÁDW
 [POP] (pop)
 [USER] (user)
 [TECHNO] (techno)
 [ROCK] (rock)
 [CLASSIC] (classic)
 [JAZZ] (jazz)
1Press and hold to activate the
setup of customized sound equal-
izer.
2Press or repeatedly to select
the item to be adjusted:
 [BASS] (bass) range: -7 to +7.
 [TREBLE] (treble) range: -7
to +7.
 [BAL] (balance) range: 12L
to 12R. (L = left speaker, R =
right speaker)
 [FADER] (fader) range: 12R
to 12F. (R = rear speaker, F =
front speaker)
3Rotate to select a value.
10 Adjust system
settings
1 Press MENU to access system settings.
2 Press or repeatedly until one of the
following settings scrolls.
 [BEEP TONE], [DIMMER], [DEMO],
[BLACK OUT], or [DANCE]
3 Rotate to change the setting.
[BEEP TONE] [BEEP ON] Enable the
beep sound of
buttons.
[BEEP OFF] Disable the
beep sound of
buttons.
[DIMMER] [DIMMER
HIGH]
Increase the
brightness level
of the screen.
[DIMMER
LOW]
Decrease the
brightness level
of the screen.
[DEMO] [DEMO
ON]
Demonstrate
all features
after the
system stays
inactive for 2
minutes.
[DEMO
OFF]
Disable the
demo mode.
