Philips AQ4010 User manual

PHILIPS
AQ. 4010 Radio Cassetterecorder

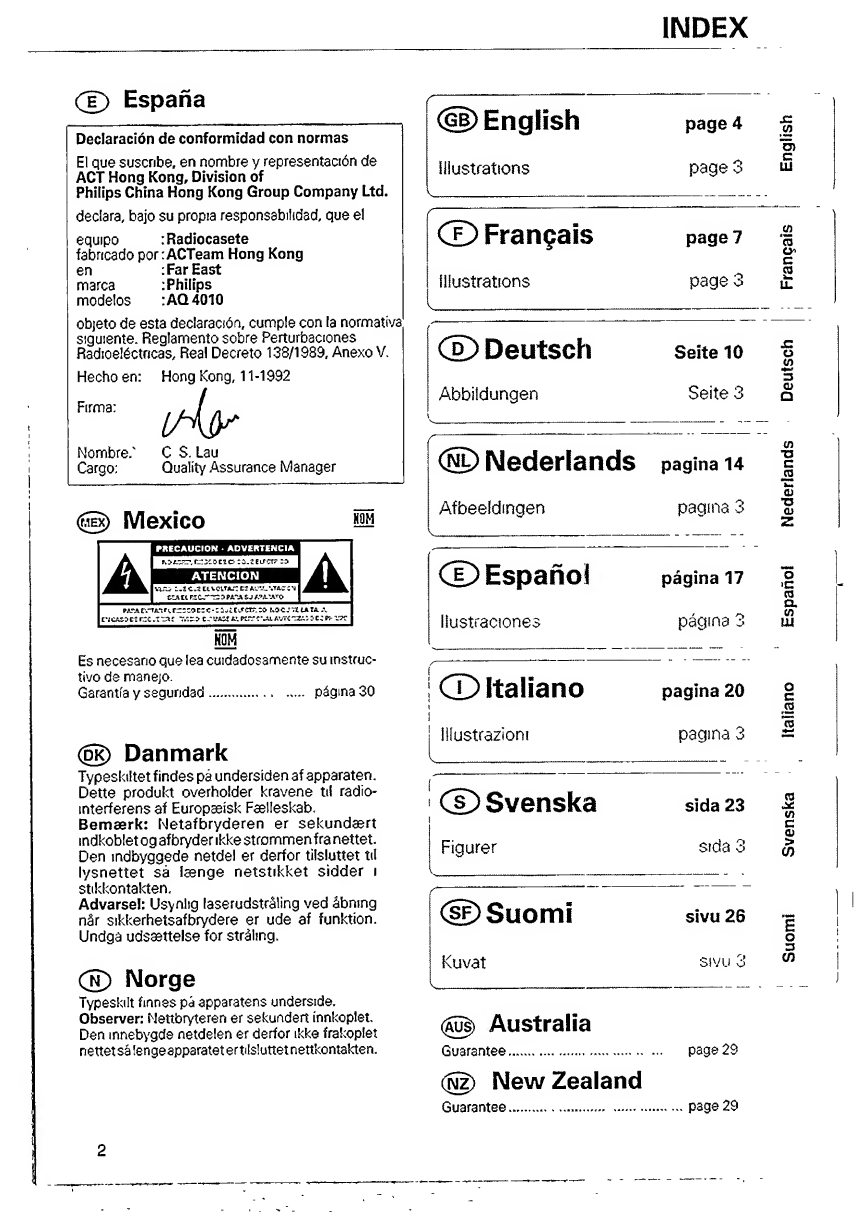

INDEX
Espana
Declaracion de conformidad con normas
El que suscnbe, en nombre y representacibn de
ACT Hong Kong, Division of
Philips China Hong Kong Group Company Ltd.
declare, bajo su propia responsabilidad, que el
equipo iRadiocasete
fabricado porrACTeam Hong Kong
en : F ar East
marca : Philips
modelos :AQ4010
objeto de esta declaracidn, cumple con la normativa
siguiente. Reglamento sobre Perturbaciones
Radioetectncas, Real Decreto 138/1989, Anexo V.
Hecho en: Hong Kong, 11-1992
iAr
Nombre.' C S. Lau
Cargo; Quality Assurance Manager
<mhx) Mexico
A
A
|r<cAsdcf nc.ttac c vaji t x a utc- rZAt: ■ c;ov?c |
NOM
Es necesano que lea cuidadosamente su instruc¬
tive de manejo.
Garantia y seguridad .. pagina 30
(dk) Danmark
Typeskiltet findes pa undersiden af apparaten.
Dette produkt overholder kravene til radio-
interferens af Europaeisk Faelleskab.
Bemaerk: Netafbryderen er sekundaert
indkoblet og afbryder ikke strommen fra nettet.
Den indbyggede netdel er derfor tilsluttet til
lysnettet sa laenge netstikket sidder i
stikkontakten.
Advarsel: Usynlig laserudstrSling ved &bmng
n3r sikkerhetsafbrydere er ude af funktion.
Undga udsaettelse for staling.
<S) Norge
Typeskilt finnes pa apparatens underside.
Observer: Nettbryteren er sekundert innkoplet.
Den innebygde netdelen er derfor ikke frakoplet
nettet sa lengeapparatet er tilsluttet nettkontakten.
<H) English page 4
Illustrations page 3
CD Frangais page 7
illustrations page 3
CD DeUtSCh Seite 10
Abbildungen Seite 3
® Nederlands pagina 14
Afbeeldmgen pagina 3
CDEspanol pagina 17
llustraciones pagina 3
| CDltaliano pagina 20
^ litustrazioni _ pagina 3
CDSvenska sida23
i
Figurer sida 3
Csf> Suomi sivu 26
Kuvat sivu 3
<@> Australia
Guarantee... page 29
(nz) New Zealand
Guarantee.....page 29
2
Suomi
Svenska
Itaiiano
Esparto!
Nederlands
Deutsch
Frangais
j
English

English

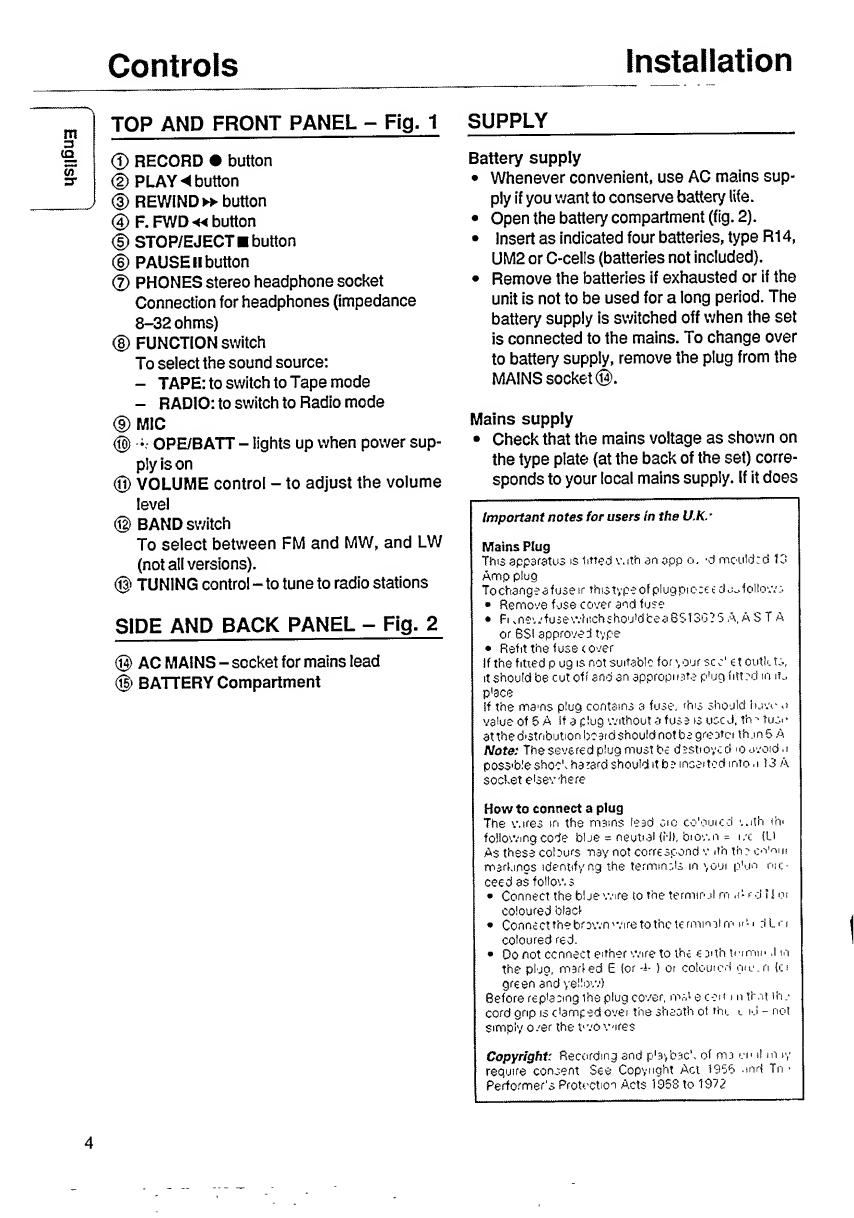

Controls
Installation
TOP AND FRONT PANEL - Fig. 1
<D RECORD • button
<D PLAY ◄ b utton
^ <D REWIND ►► b u tton
® F. FWD « button
<D STOP/EJECT ■ button
(D PAUSE II button
(7) PHONES stereo headphone socket
Connection for headphones (impedance
8-32 ohms)
(D FUNCTION switch
To select the sound source:
- TAPE: to switch to Tape mode
- RADIO: to switch to Radio mode
<D MIC
® -v OPE/BATT - lights up when power sup¬
ply is on
@ VOLUME control - to adjust the volume
level
© BAND switch
To select between FM and MW, and LW
(not all versions).
® TUNING control-to tune to radio stations
SIDE AND BACK PANEL - Fig. 2
® AC MAINS - socket for mains lead
© BATTERY Compartment
SUPPLY
Battery supply
• Whenever convenient, use AC mains sup¬
ply if you want to conserve battery life.
• Open the battery compartment (fig. 2).
• Insert as indicated four batteries, type R14,
UM2 or C-cells (batteries not included).
• Remove the batteries if exhausted or if the
unit is not to be used for a long period. The
battery supply is switched off when the set
is connected to the mains. To change over
to battery supply, remove the plug from the
MAINS socket®.
Mains supply
• Check that the mains voltage as shown on
the type plate (at the back of the set) corre¬
sponds to your local mains supply. If it does
Important notes for users in the U.Kr
Mains Plug
This apparatus is titled with an app o. ’d mould :d 13
Amp plug
To cha n ge a f us e ir this type o f pi ug p i o ;ee duffel tow :•
• Remove fuse cover and fuse
• Fi vne'..'fuse\vh:chehou t dteaSS‘i3G?5 A, AS I A
or 6$l approved type
• Refit the fuse cover
If the titled p ug is not suitable for \our see 1 et outlets,
it should be cut off end an appropriate p'ug fitted m fu,
p'ace
If the ma'ns plug contains a fuse, flua should i>u\v
value of 6 A If a plug without a fuse is use J, th tusi*
at the distribution beard should not be greater th _m 5 A
Note: The severed plug must be d ash oyc d ■ o uvoid. r
possible shock hazard should it be inserted into n 13 A
socleteisev'here
How to connect a plug
The wires in the mams lead arc coloured with ih<
following!code bUe = neutral (H), biown = i/e <U
As these colours may not correspond v ith th a c-Vmn
markings identify ng the terminals in youi p'un cuc-
ceed as follows
• Connect the blue wire to the termin.il m ,r* c d \ i or
coloured blacf
• Connect the brawn wire to the termin aim n l * din
coloured red.
• Oo not connect either wire to the earth trimm ,1 m
the plug, marled £ (or -A- ) or coloured oiu.n (ct
green and yellow)
Before replacing ihe plug cover, rnW- e cod i n 1 rut ih_*
cord grip is camped ovei the sheath of the l id - not
simply o/er the two v-rres
Copyright: Recording and payback of no en it m »y
require consent See Copyright Act 195b and Tn *
Performer’s Protection Acts 1953 to 1972
4

Radio
Cassette
not, consult your dealer or service organisa¬
tion.
• Connect the mains lead to the MAINS
socket ® and the wall socket. The mains
supply is now connected.
• To disconnect the set from the mains, with¬
draw the mains plug from the wall socket.
RADIO RECEPTION
• Set the FUNCTION switch ® to RADIO.
• Adjust the sound with the VOLUME control
©. You may connect headphones with 3.5
mm plug to the socket 0 PHONES ®.
• Select the wave band using BAND selector
® (LW not all versions).
• Tune to a desired radio station using TUN¬
ING control knob ®.
- For FM, pull out the telescopic aerial. To
improve FM-reception, incline and turn
the aerial. Reduce its length if the FM-
signal is too strong (very close to a
transmitter).
- For AM/MW and LW (LW not on all ver¬
sions), the set is provided with a built-in
aerial, so there is no need to use the tel¬
escopic aerial. The aerial can be di¬
rected by turning the whole set.
• The set is switched off if FUNCTION switch
® is in the TAPE position and no buttons
are pressed.
CASSETTE PLAYBACK
• Set FUNCTION switch® to TAPE.
• Press STOP/EJECT ■ ® and insert a cas¬
sette. For playback, any cassette type can ^
be inserted (fig. 3). f
• Adjust the sound with the VOLUME control
© knob.
• Press PLAY ◄ © and playback will start.
- Playback stops when the tape in the
deck reaches the end. ^
• To interrupt playback, press PAUSE II ®.
• To continue playback, press PAUSE II ©
again.
• Press STOP/EJECT ■ © if you want to
stop the playback before the end of the v
tape.
- When the end of the tape is reached,
PLAY ◄ © buttons are released.
• The set is switched off if FUNCTION switch
® is in the TAPE position and no buttons
are pressed. v
Winding the tape
• Press F.FWD ◄◄ button @ to fast-forward
the tape.
• Press REWIND ►► button ® to fast-rewind
the tape.
• Press STOP/EJECT ■ © to stop fast-for¬
ward or fast rewind, or before the end of the
tape..
RECORDING
Copyright
Recording is permissible insofar as copyright
or other rights of third parties are not infringed.
For U.K. only L
Recording and Playback of material may re- r
quire consent. See Copyright Act 1956 and
The Performer’s Protection Acts 1958 to 1972.
Safeguarding a cassette against erasure
Accidental erasure can be prevented by break¬
ing the small tab in the top left-hand corner of
the back of the cassette. (See fig, 4). This pro¬
tection can be reversed with a piece of adhe¬
sive tape placed over the same corner.
5
Suomi
Svenska
Italiano
Espariol
Nederlands
Deutsch
Frangals
English

English

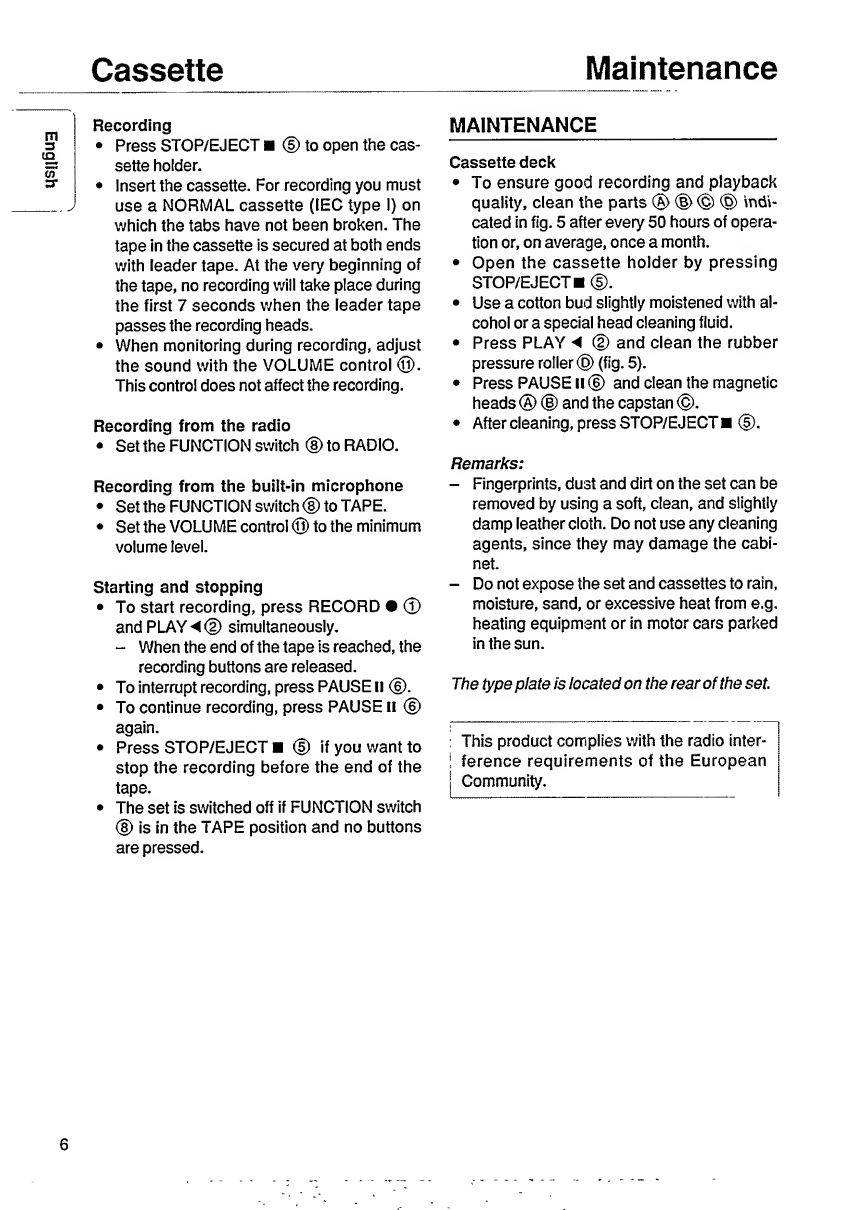

Cassette
Maintenance
Recording
• Press STOP/EJECT ■ <D to open the cas¬
sette holder.
• Insert the cassette. For recording you must
use a NORMAL cassette (IEC type 1) on
which the tabs have not been broken. The
tape in the cassette is secured at both ends
with leader tape. At the very beginning of
the tape, no recording will take place during
the first 7 seconds when the leader tape
passes the recording heads.
• When monitoring during recording, adjust
the sound with the VOLUME control ©.
This control does not affect the recording.
Recording from the radio
• Set the FUNCTION switch ® to RADIO.
Recording from the built-in microphone
• Set the FUNCTION switch ® to TAPE.
• Set the VOLUME control @ to the minimum
volume level.
Starting and stopping
• To start recording, press RECORD • ©
and PLAY ◄ © simultaneously.
- When the end of the tape is reached, the
recording buttons are released.
• To interrupt recording, press PAUSE II ®.
• To continue recording, press PAUSE II ®
again.
• Press STOP/EJECT ■ ® if you want to
stop the recording before the end of the
tape.
• The set is switched off if FUNCTION switch
® is in the TAPE position and no buttons
are pressed.
MAINTENANCE
Cassette deck
• To ensure good recording and playback
quality, clean the parts (§> <§> © ® indi-
cated in fig. 5 after every 50 hours of opera¬
tion or, on average, once a month.
• Open the cassette holder by pressing
STOP/EJECT ■ <D.
• Use a cotton bud slightly moistened with al¬
cohol or a special head cleaning fluid.
• Press PLAY ◄ ® and clean the rubber
pressure roller® (fig. 5).
• Press PAUSE ll ® and clean the magnetic
heads ® ® and the capstan ©.
• After cleaning, press STOP/EJECT ■ ®.
Remarks:
- Fingerprints, dust and dirt on the set can be
removed by using a soft, clean, and slightly
damp leather cloth. Do not use any cleaning
agents, since they may damage the cabi¬
net.
- Do not expose the set and cassettes to rain,
moisture, sand, or excessive heat from e.g.
heating equipment or in motor cars parked
in the sun.
The type plate is located on the rear of the set.
This product complies with the radio inter¬
ference requirements of the European
Community.
6

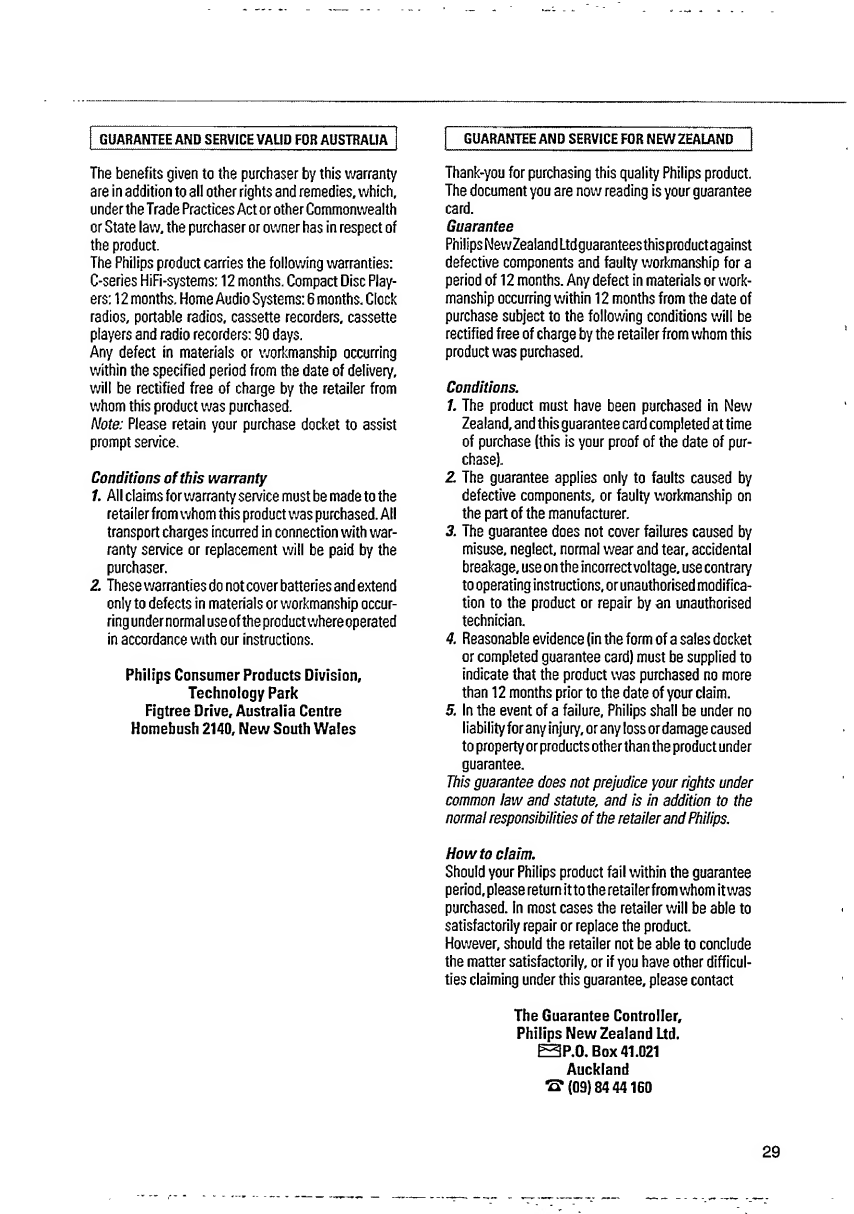

GUARANTEE AND SERVICE VALID FOR AUSTRALIA
The benefits given to the purchaser by this warranty
are in addition to all other rights and remedies, which,
under the Trade Practices Act or other Commonwealth
or State law, the purchaser or owner has in respect of
the product.
The Philips product carries the following warranties:
C-series HiFi-systems: 12 months. Compact Disc Play¬
ers: 12 months. Home Audio Systems: 6 months. Clock
radios, portable radios, cassette recorders, cassette
players and radio recorders: 90 days.
Any defect in materials or workmanship occurring
within the specified period from the date of delivery,
will be rectified free of charge by the retailer from
whom this product was purchased.
Note: Please retain your purchase docket to assist
prompt service.
Conditions of this warranty
1. All claims for warranty service must be made to the
retailer from whom this product was purchased. All
transport charges incurred in connection with war¬
ranty service or replacement will be paid by the
purchaser
Z. These warranties do not cover batteries and extend
only to defects in materials or workmanship occur¬
ring under normal use of the product where operated
in accordance with our instructions.
Philips Consumer Products Division,
Technology Park
Figtree Drive, Australia Centre
Homebush 2140, New South Wales
GUARANTEE AND SERVICE FOR NEW ZEALAND
Thank-you for purchasing this quality Philips product.
The document you are now reading is your guarantee
card.
Guarantee
PhilipsNewZealandLtdguaranteesthisproductagainst
defective components and faulty workmanship for a
period of 12 months. Any defect in materials or work¬
manship occurring within 12 months from the date of
purchase subject to the following conditions will be
rectified free of charge by the retailer from whom this
product was purchased.
Conditions.
7. The product must have been purchased in New
Zealand, and this guarantee card completed at time
of purchase (this is your proof of the date of pur¬
chase).
Z The guarantee applies only to faults caused by
defective components, or faulty workmanship on
the part of the manufacturer.
3. The guarantee does not cover failures caused by
misuse, neglect, normal wear and tear, accidental
breakage, use on the incorrect voltage, use contrary
to operating instructions, or unauthorised modifica¬
tion to the product or repair by an unauthorised
technician.
4. Reasonable evidence (in the form of a sales docket
or completed guarantee card) must be supplied to
indicate that the product was purchased no more
than 12 months prior to the date of your claim.
5. In the event of a failure. Philips shall be under no
liability for any injury, or any loss or damage caused
to property or products other than the product under
guarantee.
This guarantee does not prejudice your rights under
common iaw and statute , and is in addition to the
normal responsibilities of the retailer and Philips .
Howto claim.
Should your Philips product fail within the guarantee
period, please return ittotheretailerfrom whom itwas
purchased. In most cases the retailer will be able to
satisfactorily repair or replace the product.
However, should the retailer not be able to conclude
the matter satisfactorily, or if you have other difficul¬
ties claiming under this guarantee, please contact
The Guarantee Controller,
Philips New Zealand Ltd.
BP.O. Box 41.021
Auckland
ET (09) 84 44 160
29

GARANTIA PARA MEXICO
Este aparato esta fabricado con materiales de
alta calidad y ha sido cuidadosamente verificado.
Philips, por lo tanto, da a listed una garantia de 12
meses a partir de su fecha de compra.
La garantia ampara la reposition de las piezas
defectuosas debidas a fallas en su montaje o en
los materiales, incluyendo la mano de obra
necesaria para su reemplazo en nuestras
Sucursales o talleres autorizados.
En caso de fallas en su aparato le rogamos se
sirva poner en contacto con su distribution
Esta garantia no cubrird las averias que resulten
como consecuencia de una instalacion incorrecta
del aparato, manifiesto maltrato o uso
inadecuado del mismo.
Philips se obliga a reparar y devolver a usted su
aparato en un plazo no mayor de 30 dfas hdbiles
contados a partir de la fecha de haber ingresado
su aparato a uno de nuestros talleres.
Para que esta garantia sea vaiida, es necesario
que el certificado que figura en la parte posterior
de est£ instructivo haya sido debidamente
llenado en el momento de la compra del aparato.
En caso de extravfo del certificado con la
presentation de la factura o remision de su
aparato podrS hacer efectiva la garantia
correspondiente.
Si usted tiene alguna duda o pregunta que no le
pueda solucionar su distribuidor, por favor
ponerse en contacto con
Oficinas Centrales de Servicio,
Av. Coyoacan No. 1051, Col. del Valle,
03100 MEXICO, D.F.
® 5-75-20-22 o 5-75-01-00
This $ gn on the packaging
is only meant for Germany
D.essaZeiChenauf derVorpackunq
giltnurlof Oeotsch'and
Le symbol sur I'embo^-ga
na que d 1 sens en Ai'emogn©
Oit symboot op d© verpnkt mg
is alfaan van tcapassmg m Duits r and
Esta scrtal en el paquatc
es vaiid3 $6’o para A’eman'a
Questo smnboto suH'imba' 1 ©
©‘ dastmato so'o al'a Germania
Dette msarke ph mdpaknmgen
g3efda. kun for Tysk^nd
Datta m e rke p$ emba"3.qet or
endast avsett for Tysk%nd
Tama pakkauksessa oleva me rkmtd on
tarkoitettu amoastaan saksaa vorten
30
