Philips AW7790 User manual

_
PHILIPS
CONSUMER ELECTRONICS
AW 7790 AW 7791 AW 7792 |
|
MIN
i
cepa iin
000 Ri tas b a
GB Stereo Radio Cassette Recorder 3 |
Radiocassette Stéréo 6 |
© Stereo Radio-Cassetten-Recorder 9 |
QD Stereo Radio-Cassetterecorder 13 |
CE) Radiocasete Estereo 16 |
CD Radioregistratore Stereo 19 |
Stereo Kassettradio 22
GF) Stereo Radionauhuri 24
m al nn ee A AAA Un u nn e nn A seren o e ni ne Y E he gt ee
,

English da page 3
illustrations 2::=::5:8s1uss rte cea page 28
Guarantee and service ............ pages 27-29-30
CF) Francais ............. . page 6
llustrations ŞAM AN sa page 28
Garantie et service aprés-vente ..... pages 27-29-30
(D) Deutsch ............... Seite 9
Abbildungen sah ee Seite 28
Garantieleistung und Service ....... Seiten 27-29-30
Amtsblatt e 223555: Seiten 2 und 12
Die Deutsche Bundespost informiert
Sehr geehrter Rundfunkteilnehmer!
Dieses Gerät ist von der Deutschen Bundespost als Ton- bzw.
Fernseh-Rundfunkempfänger bzw. als Komponente einer sol-
chen Anlage (Tuner, Verstärker, aktive Lautsprecherbox, Fern-
seh-Monitor u. dol.) zugelassen. Es entspricht den zur Zeit
geltenden Technischen Vorschriften der Deutschen Bundespost
und ist zum Nachweis dafür mit dem Zulassungszeichen der
Deutschen Bundespost gekennzeichnet. Bitte überzeugen Sie
sich selbst.
Dieses Gerät darf im Rahmen der auf Seite 12 abgedruckten
"Allgemeine Genehmigung für Ton und Fernseh-Rundfunkempfän-
ger’ in der Bundesrepublik Deutschland betrieben werden.
Beachten Sie aber bitte, daß aufgrund dieser Allgemeinen
Genehmigung nur Sendungen des Rundfunks empfangen werden
dürfen *). Wer unbefugt andere Sendungen (z.B. des Polizeifunks,
des Seefunks, der öffentlichen beweglichen Landfunkdienste)
empfängt, verstößt gegen die Genehmigungsauflagen und macht
sichdahernach$ 15 Absatz 2a des Gesetzes über Fernmeldean-
lagen strafbar.
Die Kennzeichnung mit dem Zulassungszeichen bietet Ihnen die
Gewähr, da8 dieses Gerät keine anderen Fernmeldeanlagen
einschließlich Funkanlagen stört.
Der Zusatzbuchstabe S **) beim Zulassungszeichen besagt
außerdem, daß das Gerät gegen störende Beeinflussungen durch
andere Funkanlagen (z.B. des Amateurfunks, des CB-Funks)
weitgehend unempfindlich ist.
Geräte ohne den Zusatz S sind nicht besonders störfest.
Sollten bei Geräten mit dem Zusatz S ausnahmsweise trotzdem
Störungen auftreten, oderwenn Sie Fragen haben, so wenden Sie
sich bitte an die örtlıch zuständige Funkstörungsmeßstelle.
*} Zum Empfang anderer Sendungen darf dieses Gerät nur mit
Genehmigung der Deutschen Bundespost benutzt werden.
Allgemein genehmigt ist zur Zeit der Empfang der Aussen-
dungen von Amateurfunkstellen und der Normalfrequenz-
und Zeitzeichensendungen.
Weitere Zusätze haben in Bezug auf die Störfestigkeit keine
Bedeutung. Sie geben bei Empfängern vielmehr Aufschluß
über Empfangsmöglichkeiten. .................. 03-1987
++)
(NL) Nederlands ....... pagina 13
Albeeldingen! „nasser pagina 28
Garantie en service pagina’s 27-29-30
oO = oe m E = =D TS ~ —
CE) Español ............ pagina 16
Ilustraciones página 28
Garantia páginas 27-29-30
w Es necesario que lea cuidadosamente su instructivo
de manejo.
nennen un dank a a am
PRECAUCION - ADVERTENCIA
NO ABRIR, RIESGO DE CHOQUE ELECTRICO
ATENCION
VERFIQUE QUE EL VOLTAJE DE ALIMENTACIÓN
PARA EVITAR EL RIESGO DE CHOQUE ELECTRICO NO QUITE LA TAPA,
EN CASO DE REQUERIR SERVICIO, DIRNASE AL PERSONAL AUTORIZADO DE PHILIPS.
(1) Italiano .............. pagina 19
Illustrazioni abonadas tos a pagina 28
Garanzia e servizio ......... e. .... pagine 27-29-30
Cs) Svenska .............. sida 22
PIQUER A Be gs sida 28
Garanti och service .............. sidorna 27-29-30
(SF) Suomi ................. sivu24
Kuvat sivu 28
Takuu ja huolto
Dansk
Typeskiltet findes på undersiden af apparaten.
Dette produktoverholder kravene til radio-interferens af
Europæisk Feellesmarked.
Bemærk: Netafbryderen er sekundært indkoblet og
afbryder ikke strømmen fra nettet. Den indbyggede
netdel er derfor tilsluttet til lysnettet så længe netstikket
sidder i stikkontakten.
Garanti og service
(n) Norsk
Typeskilt finnes pá apparatens underside.
Observer: Nettbryteren er sekundert innkoplet. Den
innebygde netdelen er derfor ikke frakoplet nettet sä
lenge apparatet er tilsluttet nettkontakten.
Garanti og service sider 27-29-30
e ERA Us aaa nc... au
Eur ur ve vr Bu u Br Br ze ur ze ze eee zu ze zes
sider 27-29-30
= —— = - - —--—— --

English
For the illustrations, keep page 28 open
CONTROLS - figs. 1-2
®© built-in mono microphone MIC *
© BAND selector
© ON/OFF-MODE selector
(4) RADIO ON indicator
© VOLUME control
© FM STEREO indicator
© GRAPHIC EQUALIZER tone controls
100 Hz - bass
“1 KHz (1 000 Hz) - mid-range
10 kHz (10 000 Hz) - treble
TUNING knob
4) socket for stereo headphones
deck A keyboard, recording and playback
m STOP/EJECT
e RECORD - record
44 REWIND - fast rewind
>> F.FWD - fast forward wind
» PLAY
ı PAUSE
(y deck B keyboard, for playback only
m STOP/EJECT
A«B CONTINUOUS play
44 REWIND - fast rewind
>> F.FWD - fast forward wind
» PLAY
Ii PAUSE
43 MAINS - socket for mains lead
(3 VOLTAGE selector (not on all versions)
43
Th
SOS
loudspeaker sockets SPEAKERS
e type plate is located on the base of the set
SUPPLY
Battery supply
e Open the battery compartment (fig. 2) and insert as
indicated six batteries, type R20, UM1 or D-cells.
e Remove the batteries if exhausted or if they will not be
used again for a long period.
Note: The battery supply is automatically switched off
when the setis connected to the mains. When changing
over to battery supply, pull out the plug from the MAINS
socket (3.
Mains supply
e Check if the mains voltage as shown on the type plate
corresponds to your local mains supply. If it does not,
consult your dealer or service organisation.
if the set is equipped with a VOLTAGE selector 43, set
this selector to the local mains voltage.
e Connect the mains lead to the MAINS socket (3 and
the wall socket. The mains supply is now switched on.
e To disconnect the set from the mains completely,
withdraw the mains plug from the wall socket. *
Important note for users in U.K-
When fitting a mains plug to the mains lead proceed as follows:
The wires in the mains lead are coloured in accordance with the
following code: Blue = Neutral, Brown = Live.
These colours may not correspond with the colour markings
identifying the terminals in your plug, so proceed as follows:
Connect the Brownwire to the terminal marked Lorcoloured Red.
Connect the Blue wire to the terminal marked Norcoloured Black.
No connection is necessary to the earth terminal.
Note: This apparatus must be protected by a 3 Amp Fuse if a
13 Amp plugis used or, ifany other type of plugis used, bya 5 Amp
Fuse either in the plug or adapter or at the distribution board. if in
doubt consult a qualified electrician.
CONNECTIONS
Stereo headphone socket © 4)
For stereo headphones with 3.5 mm plug. Inserting the
plug will disconnect the loudspeakers.
Loudspeaker sockets (3 SPEAKERS
For the supplied loudspeakers (or others with an
impedance of 4-8 Ohms). See fig.3 for removing and
fixing the supplied loudspeakers.
OPERATION
ON/OFF-MODE selector &
The desired sound source for reproduction orrecording
is selected using ON/OFF-MODE selector ©.
The setis switched off when ON/OFF-MODE selector G)
is in position RADIO OFF/TAPE (3), [2] or (1) and the
recorder buttons are released.
Radio and cassette playback
Set the ON/OFF-MODE selector (3) to:
[4]RADIO ON for switching on the radio;
(3], [2] or [1] RADIO OFF for switching off the radio;
[2]or [1] TAPE for cassette playback:
- playback on deck B or deck A (or both);
- CONTINUOUS play A«B: playback of deck B, at the
end of the cassette automatically followed by play-
back of deck A.
Recording and dubbing
Set the ON/OFF-MODE selector (3) to:
[s]RADIO ON for a radio recording on deck A;
[8] MIC (=RADIO OFF) for a mono recording on deck
A from the built-in microphone MIC (© (set the
VOLUME control (5 to zero);
[2] NORMAL SPEED DUBBING for normal speed
copying from deck B to A;
[1] HIGH SPEED DUBBING for high speed copying from
deck B to A.
RADIO RECEPTION
e Set the ON/OFF-MODE selector © to [4] RADIO ON.
` e Adjust the sound with the controls VOLUME © and
GRAPHIC EQUALIZER ©.
e Select the wave band using BAND selector ©.

e Tune to a radio station using TUNING knob (8).
(SW and LW not on all versions).
- For FM, pull out the telescopic aerial. To improve
FM-reception, incline and turn the aerial. Reduce its
length if the FM-signal is too strong (very close to a
transmitter).
- For AM/MW and LW (Medium and Long Wave), the set
is provided with a built-in aerial, so there is no need to
use the telescopic aerial. The aerial can be directed
by turning the whole set.
- For Short Wave (SW), the telescopic aerial must be
pulled out and placed in the vertical position. To
improve SW-reception, vary the length of the aerial.
e When the BAND selector Oisin position FM STEREO
and the FM STEREO indicator © lights up, you are
receiving a FM-stereo transmitter. A disturbing noise,
due to a weak FM-stereo signal, can be suppressed by
setting the BAND selector (2) to FM MONO. The FM
STEREO indicator © will then go out and you will hear
(and record) the FM programme in mono.
e The setis switched off if ON/OFF-MODE selector ©
is in position RADIO OFF/TAPE (31), [2] or (1) and the
recorder buttons are released.
CASSETTE RECORDER
Compact cassettes
For recording, use only NORMAL cassettes (ferric
oxide, IEC type J).
For playback, any cassette type can be inserted.
Copyright
Recording is permissible insofar as copyright or other
rights of third parties are not infringed.
For U.K. only: Recording and Playback of material may require
consent. See Copyright Act 1956 and The Performer’s Protection
Acts 1958 to 1972.
Fast winding and rewinding
Press fast forward wind F.FWD » or REWIND 44 button.
To stop fast winding, press STOP button m.
Safeguarding a cassette against erasure
Keep the cassette side to be safequarded in front of you
(fig. 5) and break out the left tab. Now, recording on this
side is no longer possible.
Youcan render this safeguard ineffective by covering the
aperture with a piece of adhesive tape.
RECORDING (on deck A only)
Preparation
- During recording, the deck B buttons should not be
pressed (except for PLAY p during dubbing).
-When copying, it is recommended to use fresh
batteries or to connect the set to the mains.
e Press EJECT m to open the cassette holder.
e Insert the cassette into deck A (fig. 4). For recording
you must use a cassette on which the tabs on the back
(fig. 5) are not broken out.
For recording, use only NORMAL cassettes (ferric
oxide, IEC type J).
At the very beginning of the tape, no recording will take
place during the first 7 seconds when the leader tape
passes the recorder heads.
e When monitoring during recording, adjust the sound
with the controls VOLUME 6) and GRAPHIC EQUAL-
IZER ©. These controls do not affect the recording.
Recording from the radio
e Set the ON/OFF-MODE selector © to [4] RADIO ON.
e Incase of FM radio recordings, setthe BAND selector
(2) to the desired position (FM MONO or FM STEREO).
Mono recording from the microphone MIC @)
e Set the ON/OFF-MODE selector © to [3] MIC
(=RADIO OFF).
e Set the VOLUME control © to zero (during micro-
phone recordings, monitoring is not possible.)
Starting and stopping
e Start recording by pressing RECORD 6; in doing so,
PLAY > is automatically pressed too.
e For brief interruptions, press PAUSE u. To restart
recording, press this button once more.
e Tostoprecording, press STOP m. On pressing again,
the cassette holder will open.
e The setis switched off if ON/OFF-MODE selector (3)
is in position RADIO OFF/TAPE (3], [2] or (1) and the
recorder buttons are released.
DUBBING - Copying from deck B to deck A
e Set ON/OFF-MODE selector (3) to:
[2]NORMAL SPEED DUBBING for normal speed
copying;
[1]HIGH SPEED DUBBING for high speed copying.
Do not switch this selector during dubbing.
e Press both EJECT buttons m and insert a recorded
cassette into deck B and a cassette which is suited for
recording into deck A (fig. 4).
For recording, use only NORMAL cassettes (ferric
oxide, IEC type J).
e Dubbing will start by pressing at the same time on deck
B PLAY > and on deck A RECORD e.
e By pressing PAUSE m on deck A, you can omit
undesired passages while deck B continues, or you can
insert another cassette in deck B and search for a
particular passage on it. To restart copying, press
PAUSE Il once more.
e Using PAUSE #1 of deck B, deck A will record a blank
part.
e Tostop dubbing, press both STOP buttons m. The set
is then switched off.

CASSETTE PLAYBACK
Playback on deck B or A
During playback, the tape in the other deck should not
be fast forward wound or rewound, otherwise the actual
cassette playback is affected.
e Set ON/OFF-MODE selector © to TAPE (2) or [1].
e Press EJECT m and insert a recorded cassette
(fig. 4).
e Adjust the sound with the controls VOLUME (5 and
GRAPHIC EQUALIZER ©.
e Press PLAY b and playback will start.
e To stop playback, press STOP m. The set is then
switched off.
Continuous play - A«B
e Set ON/OFF-MODE selector (3) to TAPE (2) or [1).
e Press both EJECT buttons m and insert a recorded
cassette into both decks (fig. 4).
e Adjust the sound with the controls VOLUME © and
GRAPHIC EQUALIZER ©.
e Press on deck B CONTINUOUS A«B (in doing so,
PLAY bis pressed too) and on deck A PLAY >: deck B
will now play and deck A stands still.
As soon as deck B stops (at the end of the cassette or -
when its STOP bution m is pressed), deck A will start
playing back.
e When deck Bis started again by pressing CONTINU-
OUS A<B, deck A will come to a standstill and deck B will
be reproduced again.
e To stop playback, press STOP m. The set is then
switched off.
MAINTENANCE
Cassette decks
Clean the parts indicated in fig. 5 after every 50 hours of
operation or, on average, once a month.
e Open the cassette holder by pressing EJECT m.
e Use a cotton bud slightly moistened with alcohol or a
special head cleaning fluid.
e Press PLAY) and clean the rubber pressure roller ©
(fig. 6).
e Then press PAUSE 11 and clean the capstan ©,
recording/playback head @) and erase head (A.
e After cleaning, press STOP m.
Cleaning of the heads (A) and & can also be done by
playing the cleaning cassette SBC 114 through once as
an ordinary cassette.
- The recorder-mechanisms are fitted with self-lubrica-
ting bearings and therefore mustnotbe oiled or greased.
- Do not expose the set, batteries or cassettes to rain
or moisture, or, for any great length of time, to excessive
heat from heating equipment or direct sunshine, e.g. in
motor cars parked in the sun.
- Keep the set and the cassettes away from sand and do
not store the cassettes too close to magnets, loud-
speakers or transformers.
- Fingerprints, dust and dirt on the apparatus can be
removed using a soft and clean, slightly damp leather
cloth. Do not use any cleaning agents which contain
abrasives or solvents such as benzine thinner, alcohol,
refined petrol or ammonia, since they may affect and
harm the cabinet.
- This product complies with the radio interference
requirements of the European Community.
1
- — fe. AA A — — AAA ee eee

GUARANTEE AND SERVICE FOR UNITED KINGDOM
Philips sell this product subjectto the understanding that if any defect
in manufacture or material shall appear in it within 12 months from the
date of consumer sale, the dealer from whom the product was
purchased will arrange for such defect to be rectified without charge,
provided:
7. Reasonable evidence ıs supplied that the product was purchased
within 12 months prior to the date of claim.
2. The defect ts not due to use of the product for other than domestic
purposes, or on an incorrect voltage, or contrary to the Company's
Operating instructions, or to accidental damage (whether in transit
or otherwise), misuse, neglect or inexpert repair.
Products sent for service should be adequately packed as no liability
can be accepted for damage or loss in transit, and name and address
must be enclosed.
Facts about free service
When service is required, apply to the dealer from whom the product
was purchased. Should any difficulty be experienced in obtaining
Service, e.g. inthe event of the dealer having ceased to trade, you are
advised to contact Philips Service.
These statements do not affect the statutory rights of a
consumer
If you have any questions which your dealer cannot answer, please
write to Philips Consumer Relations,
E P.O. Box 298, 420 London Road, CROYDON CR9 3QR,
or & [phone] Consumer Advice.
Please retain this card. Produce if service is required.
GUARANTEE AND SERVICE VALID FOR IRELAND
This apparatus is made of high quality material and great care has
been taken in its manufacture.
Philips, therefore, give you a guarantee on parts against failures
ansing from faulty workmanship or material for 12 months after date
of purchase. This guarantee is valid on the condition that this
certificate is completed and signed immediately on delivery of the
apparatus. In case of failure ask your dealer for further information.
If you have any questions which your dealer cannot answer, you may
apply to Philips Electrical (Ireland) Ltd., Service Department,
Newstead, Clonskeagh, DUBLIN 14 -& 693355
GUARANTEE AND SERVICE VALID FOR AUSTRALIA
(Audio other than Car Radio)
The benefits given to the purchaser by this warranty are in addition
to all other rights and remedies, which, under the Trade Practices Act
or other Commonwealth or State law, the purchaser or owner has in
respect of the product.
The Philips product cames the following warranties:
Compact Dise Players: 12 months.
Home Audio Systems: 6 months.
Clock radios, portable radios, cassette recorders, cassette players
and radio recorders: 90 days.
Any defect inmatenals or workmanship occuring within the specified
period from the date of delivery, will be rectified free of charge by the
retailer from whom this product was purchased.
Note: Please retain your purchase docket to assist prompt service.
Conditions of this warranty
1. All claims for warranty service must be made to the retailer from
whom this product was purchased. All transport charges incurred
in connection with warranty service or replacement will be paid by
the purchaser.
2. These warranties do not cover battenes and extend only to defects
in materials or workmanship occurnng under normal use of the
product where operated in accordance with our instructions.
Philips Consumer Products Division, Technology Park, Figtree
Drive, Austraila Centre, HOMEBUSH 2140, New South Wales
GUARANTEE AND SERVICE FOR NEW ZEALAND
Thank-you for purchasing this quality Philips product. The document
you are now reading ts your guarantee card,
Guarantee.
Phiips New Zealand Ltd guarantees this product against defective
components and faulty workmanship for a penod of 12 months from
the date you bought it. If the product breaks down during the
guarantee period, Philips shall - subject to the following conditions
- repair or replace the product at no charge to you. This includes
costs for labour, parts, and cartage.
Conditlons
1. The product must have been purchased in New Zealand, and this
guarantee card completed at time of purchase (this is your proof
of the date of purchase).
2. The guarantee applies only to faults caused by defective compo-
nents, or faulty workmanship on the part of the manufacturer.
3. The guarantee does not cover failures caused by misuse, neglect,
norma! wear and tear, accidental breakage, use on the incorrect
AAA A AP ———
voltage, use contrary to operating instructions, or unauthorised
modification to the product or repair by an unauthorised technician.
4. Reasonable evidence (in the form of a sales docket or completed
guarantee card) must be supplied to indicate that the product was
purchased no more than 12 months prior to the date of your claim.
5. In the event of a failure, Philips shall be under no liability for any
injury, or any loss or damage caused to property or products other
than the product under guarantee.
This guarantee does not prejudice your rights under common law
and statute, and Is In addition to the normal responsibilities of
the retaller and Philips.
How to clalm.
Should your Philips product fail within the guarantee period, please
return it to the retailer from whom ıt was purchased. In most cases the
retailer will be able to satisfactonly repair or replace the product.
However, should the retailer not be able to conclude the matter
satisfactorily, or if you have other difficulties claiming under this
guarantee, please contact:
The Guarantee Controller, Philips New Zealand Ltd,
ES P.O. Box 1041, AUCKLAND -& [phone]
GARANTIE ET SERVICE APRES-VENTE EN FRANCE
Cet appareil a été fabriqué avec le souci de vous donner entiére
Satisfaction. PHILIPS foumira gratuitement au vendeur les pieces
détachées nécessaires a sa réparation pendant les périodes
suivantes, chacune prenant effet à compter de la date de vente:
- 6mois pour les magnétophones a cassettes portatifs, les récep-
teurs radio portatifs, les radiocassettes, les radio-réveils et les
électrophones;
- 12 mois pour les radiocassettes équipés de la fonction Compact
Disc et les baladeurs Compact Disc;
- 12 mois pourles récepteurs radio destinés â étre installés â poste
fixe dans un véhicule automobile;
- 12 mois pour les appareils entrant dans la composition d'une
chaine électro-acoustique, y compris les chaines compactes
Stationnares équipés d'au moins deux sources sonores;
sauf sı la détérioration résulte d'une cause étrangère a l'appareil ou
du non respect des prescriptions d'utilisation.
Vous bénéficierez en tout état de cause des dispositions des
art. 1641 et suivants du Code Civil relatıfs â la garantie légale.
Pour tout conseil ou intervention, adressez-vous á votre vendeur.
Pour tout renseignement complémentaire, vous pouvez vous adres-
ser á la succursale Philips la plus proche.
Soucieux d'améliorer continuellement la qualité de nos produits,
nous nous réservons le droit d'en modifier á tout moment les
caractéristiques.
PHILIPS Electronique Domestique - Société en nom collectif
RCS NANTERRE B 333 760 833
64, Rue Camot - ES B.P. 306
92 156 SURESNES Cédex
Informations Consommateurs: & (1) 42 04 25 60
GARANTIE EN BELGIQUE ET LUXEMBOURG
Pour les conditions de garantie en Belgique et Luxembourg veuillez
vous référer ala carte de garantie que le revendeur doit vous remettre
au moment de l'achat.
e Pour la Belgique
Si après l'achat de lun ou Fautre apparel Philips vous avez des
problémes concemant par exemple la garantie, le fonctionnement ou
rutilisation de ces appareils et que le dıstnbuteur qui vous a vendu
ces appareıls éprouve des difficultes pour les résoudre, prenez
contact, soit par téléphone, soit par écnt avec notre service
"Contact Clientèle’, Place de Brouckère 2, 1000 - BRUXELLES
& 02/211 91 11
GARANTIE EN SERVICE IN BELGIE EN LUXEMBURG
In Belgie en Luxemburg gelden unsluitend de garantıebepalıngen
zoals die in het vauwhandelaar apart verstrekte garantiebewijs staan
aangegeven.
e Voor België
Indien una de aankoop van een of ander Philips apparaat problemen
heeft met bijv. de waarborg, de werking, of het gebruik ervan, en
indien de verdeler die u deze apparaten verkocht heeft moeilijkheden
ondervindt om deze problemen op te lossen, stelt u zıch dan
telefonisch of schriftelijk in verbinding met onze dienst
‘Klanten Kontakt", de Brouckéreplein 2, 1000 - BRUSSEL
& 02/211 91 11
GARANTIE EN SERVICE IN NEDERLAND
e Wat wordt gegarandeerd?
Philips Nederland garandeert dat dit apparaat kosteloos wordt
hersteld indien - bj normaal particulier gebruik volgens de ge-
bruiksaanwijzing - binnen zes maanden na aankoopdatum fabricage-
en/of materiaalfouten optreden.
27
©
r
— ee nn m nn en mn

EEE
A Del Ti.
: A a
VOLUME (E
RADIO ON (E!
ON OFF
MODE
DECK A (us
ex | D-celts
UL11
(53 FIA STEREO
VA GRAPHIC EQUALIZER
SB TUNING
28

— a 2

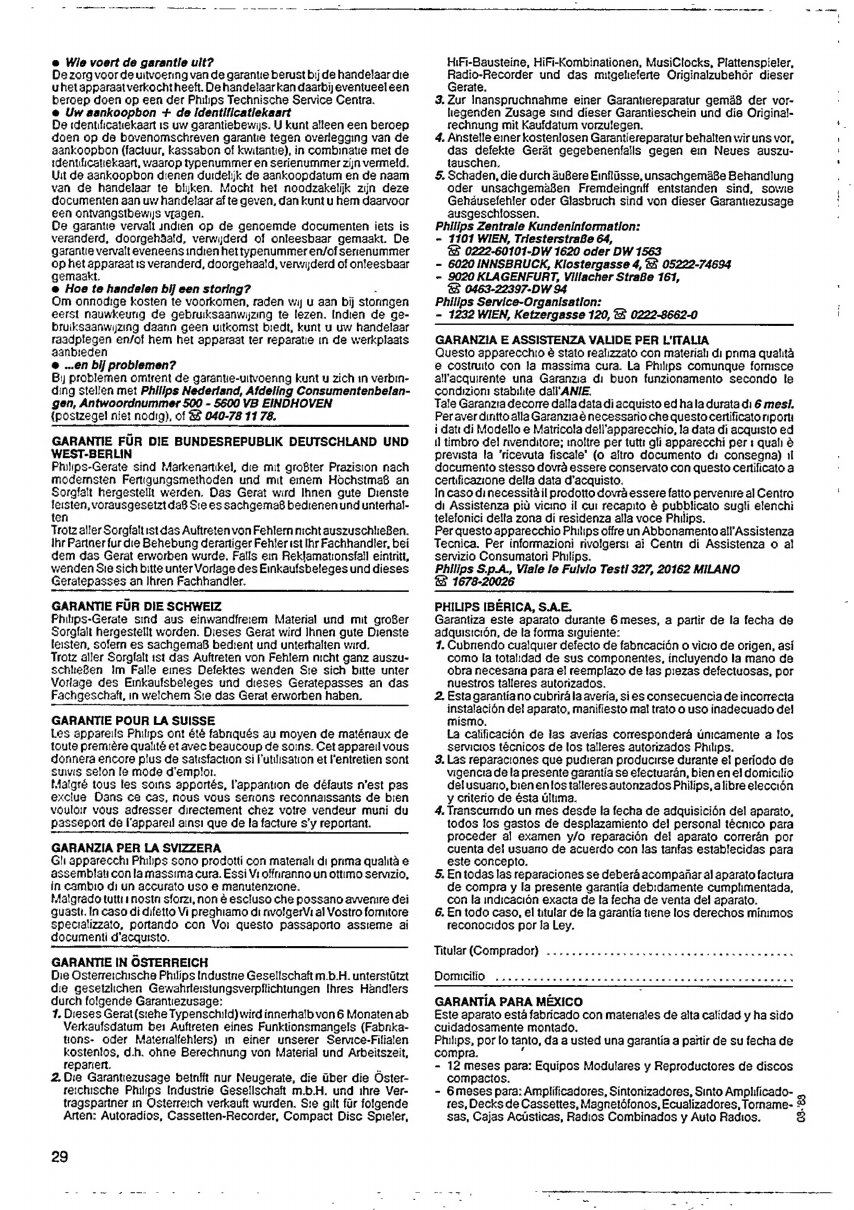

e Wie voert de garantie ult?
De zorg voor de uitvoering van de garantie berust by de handelaar die
uhetapparaatverkochthesft. De handelaar kan daarbijeventueeleen
beroep doen op een der Philips Technische Service Centra.
e Uw aankoopbon + de identificatiekaart
De ıdentificatiekaart is uw garantiebewijs. U kunt alleen een beroep
doen op de bovenomschreven garantie tegen overlegging van de
aankoopbon (factuur, kassabon of kwitantie), in combinatie met de
identdicakekaart, waarop typenummer en serienummer zijn vermeld.
Ust de aankoopbon dienen duideljk de aankoopdatum en de naam
van de handelaar te blijken. Mocht het noodzakelijk zin deze
documenten san uw handelaar af te geven, dan kunt u hem daarvoor
een ontvangstbewijs vragen.
De garantte vervalt indien op de genoemde documenten iets is
veranderd, doorgehâald, verwyderd of onleesbaar gemaakt. De
garantie vervalt eveneens indien hettypenummer en/of serrenummer
op het apparaat is veranderd, doorgehaald, verwijderd of onleesbaar
gemaakt.
e Hoe te handelen bij een storing? il
Om onnodige kosten te voorkomen, raden wy u aan bij storngen
eerst nauwkeurig de gebruiksaanwijzing te lezen. Indien de ge-
bruiksaanwijzing daarın geen utkomst biedt, kunt u uw handelaar
raadplegen en/of hem het apparaat ter reparatie ın de werkplaats
aanbieden
e ..en bij problemen?
By problemen omtrent de garantie-uitvoenng kunt u zich in verbin-
ding stellen met Philips Nederland, Afdeling Consumentenbelan-
gen, Antwoordnummer 500 - 5600 VB EINDHOVEN
(postzegel niet nodig), of @ 040-78 11 78.
GARANTIE FUR DIE BUNDESREPUBLIK DEUTSCHLAND UND
WEST-BERLIN
Philips-Gerate sind Markenartikel, die mit großter Prazision nach
modemsten Fertaunasmethoden und mit emem Höchstmaß an
Sorgfalt hergestellt werden. Das Gerat wird Ihnen gute Dienste
leisten, vorausgesetzt daß Sie es sachgemaß bedienen und unterhal-
ten
Trotz aller Sorgfalt ist das Auftreten von Fehlern nicht auszuschließen.
Ihr Partner fur die Behebung derartiger Fehler ist Ihr Fachhandler, bei
dem das Gerat erworben wurde. Falls em Reklamationsfall eintritt,
wenden Ste sich bitte unter Vorlage des Einkaufsbeleges und dieses
Geratepasses an Ihren Fachhandler.
GARANTIE FUR DIE SCHWEIZ
Phiips-Gerate sind aus einwandfreiem Material und mit großer
Sorgfalt hergestellt worden. Dieses Gerat wird Ihnen gute Dienste
lesten, sofern es sachgemaß bedient und unterhalten wird.
Trotz aller Sorgfalt ıst das Auftreten von Fehlem nicht ganz auszu-
schließen Im Falle eines Defektes wenden Sie sich bitte unter
Vorlage des Eınkaufsbeleges und dieses Geratepasses an das
Fachgeschäft, ın welchem Sie das Gerat erworben haben.
GARANTIE POUR LA SUISSE
Les appareils Philips ont été fabriqués au moyen de maténaux de
toute premiére qualité et avec beaucoup de soins. Cet appareil vous
donnera encore plus de satisfaction si utilisation et l'entretien sont
suvis selon le mode d'emplor.
Malgré tous les soms apportés, l’appantıon de défauts n'est pas
exclue Dans ce cas, nous vous serons reconnaissants de bien
vouloır vous adresser directement chez votre vendeur muni du
passeport de l'appareil ainsi que de la facture s'y reportant.
GARANZIA PER LA SVIZZERA
Gl apparecchi Philips sono prodotti con materal di prıma qualita e
assemblat con la massima cura. Essi Vi offrıranno un ottimo servizio,
in cambio di un accurato uso e manutenzione.
Matgrado tutti ı nostni sforzi, non è escluso che possano avvenire dei
guastı. In caso di difetto Vi preghiamo dı rivolgervi al Vostro fomitore
specializzato, portando con Vo questo passaporto assieme ai
documenti d'acquisto.
GARANTIE IN OSTERREICH
Die Österreichische Philips Industrie Gesellschaft m.b.H. unterstützt
die gesetzlichen Gewahrleistungsverpflichtungen Ihres Handlers
durch folgende Garantiezusage:
1. Dieses Gerät (siehe Typenschild) wird innerhalb von 6 Monaten ab
Verkaufsdatum beı Auftreten eines Funktionsmangels (Fabnka-
tons- oder Materalfehlers) in einer unserer Service-Filialen
kostentos, d.h. ohne Berechnung von Material und Arbeitszeit,
repanert, )
2.Dıe Garantiezusage betrifit nur Neugerate, die über die Oster-
reichische Philips Industrie Gesellschaft m.b.H. und ihre Ver-
tragspartner ın Osterreich verkauft wurden. Ste gilt für folgende
Arten: Autoradios, Cassetten-Recorder, Compact Disc Spieler,
29
a die o mim _
HiFi-Bausteine, HiFi-Kombinationen, MusiClocks, Plattenspieler,
Be ee und das mitgelieferte Originalzubehör dieser
erate.
3. Zur Inanspruchnahme einer Garantiereparatur gemäß der vor-
legenden Zusage sind dieser Garantieschein und die Original-
rechnung mit Kaufdatum vorzulegen.
4. Anstelle eıner kostenlosen Garantiereparatur behalten vir uns vor,
das defekte Gerät gegebenenfalls gegen eın Neues auszu-
tauschen.
5. Schaden, die durch äußere Einflüsse, unsachgemäßs Behandlung
oder unsachgema8en Fremdeingnff entstanden sind, sowie
Gehäusefehler oder Glasbruch sind von dieser Garantiezusage
ausgeschlossen.
Philips Zentrale Kundeninformatlon:
- 1101 WIEN, Triesterstraße 64,
¿3 0222-60101-DW 1620 oder DW 1563
- 6020 INNSBRUCK, Klostergasse 4, 3 05222-74694
- 9020 KLAGENFURT, Villacher StraBe 161,
= 0463-22397-DW 94
Philips Service-Organisation:
- 1232 WIEN, Ketzergasse 120, (à 0222-8662-0
GARANZIA E ASSISTENZA VALIDE PER L'ITALIA
Questo apparecchio é stato realızzato con material di pnma qualita
e costruito con la massima cura. La Philips comunque fomısce
all'acquirente una Garanzia di buon funzionamento secondo le
condiziom stabılıte dali ANTE.
Tale Garanzia decorre dalla data di acquisto ed hala durata di 6 mesi.
Per aver dintto alla Garanzia é necessario che questo certificate nporti
i datt di Modello e Matricola dell'apparecchio, la data di acquisto ed
ıl timbro del nvenditore; inoltre per tutti gli apparecchi per + qual è
prevista la ‘ricevuta fiscale' (o altro documento dı consegna) il
documento stesso dovra essere conservato con questo certificato a
certficazıone della data d'acquisto.
In caso d: necessità il prodotto dovrà essere fatto pervenire al Centro
dı Assistenza più vicino il cur recapito é pubblicato sugli elenchi
telefonici della zona di residenza alla voce Philips.
Per questo apparecchio Philips offre un Abbonamento al Assistenza
Tecnica. Per informazioni rivolgersi ai Centn di Assistenza o al
servizio Consumatori Philips.
Philips S.p.A., Viale le Fulvlo Testi 327, 20162 MILANO
& 1678-20026
PHILIPS IBERICA, S.A.E.
Garantiza este aparato durante 6 meses, a partir de la fecha de
adquisición, de la forma siguiente:
7. Cubnendo cualquier defecto de fabncaciön o vicio de origen, así
como la totalidad de sus componentes, incluyendo la mano de
obra necesana para el reemplazo de las piezas defectuosas, por
nuestros talleres autorizados.
2. Esta garantía no cubrirá la avería, si es consecuencia de incorrecta
instalación del aparato, manifiesto mal trato o uso inadecuado del
mismo.
La calificación de las averías corresponderá únicamente a los
servicios técnicos de los talleres autorizados Philips.
3. Las reparaciones que pudieran producirse durante el periodo de
vigencia de la presente garantía se efectuarán, bienen el domicilio
delusuano, bienentos talleres autonzados Philips, alibre elección
y criterio de ésta última.
4. Transcumdo un mes desde la fecha de adquisición del aparato,
todos los gastos de desplazamiento del personal técnico para
proceder al examen y/o reparación del aparato correrán por
cuenta del usuano de acuerdo con las tantas establecidas para
este concepto.
5. En todas las reparaciones se deberá acompañar al aparato factura
de compra y la presente garantía debidamente cumplimentada,
con la indicación exacta de la fecha de venta del aparato,
6. En todo caso, el titular de la garantía tene los derechos mínimos
reconocidos por la Ley.
Titular (Comprador)
ATA AO A A AAA
e eş Çe ai a a eS
GARANTÍA PARA MEXICO
Este aparato está fabricado con materiales de alta calidad y ha sido
cuidadosamente montado.
Philips, por lo tanto, da a usted una garantía a partir de su fecha de
compra. á
- 12 meses para: Equipos Modulares y Reproductores de discos
compactos.
- 6meses para: Amplificadores, Sintonizadores, Sinto Amphficado-
res, Decks de Cassettes, Magnetófonos, Ecualizadores, Torname-
sas, Cajas Acústicas, Radios Combinados y Auto Radios.
3
3

- 3 meses para: Radio Portátil y de mesa, Radio Reloj, Altavoces,
Deck de Cassette portatu. Teléfono y Radio Teléfono.
La garantiá ampara la reposición de las piezas defectuosas debidas
a un fallo en su montaje o en los materiales, incluyendo la mano de
obra necesana para su reemplazo en nuestras sucursales o talleres
autonzados, rogamos se ponga usted en contacto con su dis-
trıbu:dor.
Esta garantía no cubrıra la avería, si es consecuencia de una
instalación incorrecta del aparato, manifiesto mal trato y uso
inadecuado del mismo.
Philips se obliga a reparar y debolver a usted su aparato en un plazo
no mayor de 30 días hábiles cıntados a partir de la fecha de haber
ingresado su aparato a uno de nuestros talleres.
Para que est a garantía sea valida, ed necesano que el certificado en
la parte posterior de este libro le dea debidamente llenado en el
momento de la compra del aparato.
En caso de extravio de la garantia, con la presentacion de su factura
o remisión podrá hacer efectiva la garantía correspondiente.
Sı usted tiene alguna duda o pregunta que no le pueda solucionar
, Su distribuidor, por favor ponerse en contacto con:
Oficina Central de Servicio
Av. Coyoacán No. 1051 Col. del Valle
03100 MÉXICO, D.F. - && 575-2022 o 575-0100
CONDICOES VALIDAS PARA PORTUGAL
A Philips Portuguesa, SA, assegura ao comprador deste aparelho
garantia contra qualquer defeito de material ou fabrico, pelo prazo de
6 meses, contado a partir da data de aquisição. As agulhas de
fonocaptores não tém qualquer garantia.
A Philips Portuguesa, SA, anula a garantia ao aparelho desde que se
venfique ser a deficiência motivada por acidente, utilização incorrec-
ta, causas externas, ou nos casos em que apresente vestigios de ter
sido violado, ajustado ou reparado por entidade não autonzada.
Também será considerada nula a garantia se este certificado
apresentar rasuras ou alterações.
A Philips Portuguesa, SA, obriga-se a prestar a garantia referida
somente nos seus Serviços Técnicos ou nos Concessionários de
Serviço autonzados. As despesas e riscos de transporte de e para
as oficinas seráo sempre da responsabilidade do comprador.
Nota: Para que o aparelho seja assistido ao abrigo da garantia, é
indıspensävel que seja apresentado este certificado, devidamente
preenchido e autenticado, por vendedor autorizado, aquando da sua
aquisição,
Se sobre esta garantia necessitar algum esclarecimento que O
vendedor não lhe possa dar, deve dingir-se a:
Philips Portuguesa, SA,
- Outurela - Camaxide - 2795 LINDA A VELHA - 35 218 0071/9
- R. Eng. Ezequiel de Campos, 182 - 4100 PORTO -& 67 26 13
GARANTI OG SERVICE FOR DANMARK
De er nu ejer af et apparat, hvis konstruktion er baseret pá erfarıng og
lang tids forskning.
Philips garanterer for kvaliteten, og hvert led 1 fabnkatonen er
underkastet stadig kontrol. Alle henvendelser om fejl under garanten
skal rettes til den forhandler, der har udleveret og underskrevet
garantıbeviset, hvorpå de gældende garantibestemmelser tillige er
anfen. Garantien er kun gældende 1 kobslandet,
GARANTI | NORGE
= er ná eıer av et apparat som er basert pá lang tids forskning og
erfarıng.
Philips garanterer for kvalıteten, men hvis en feil skulle oppstå bes De
ta kontakt med den forhandler som har utlevert og underskrevet
garantıbeviset. Garantien gjelderkun ıkjopstandethvor de gjeldende
garantibestemmelser má folges.
Hvis De trenger ytterligere opplysninger utover de forhandleren kan
gı Dem, kan De henvende Dem td: Norsk A/S Philips,
Avd. Audio/Video, Sandstuvelen 70, OSLO 6 - #& 02 - 68 02 00.
F
GARANTI I SVERIGE
Garantı lamnas på denna Philipsapparat i enlighet med den garan-
tifdrbindelse som ullhandahälles av äterförsäljaren. I garantifórbindel-
sen ges anvısnıngar om reklamatıon. Garantın galler endast 1
inkopslandet.
TAKUU JA HUOLTO
Taman tuotteen rakenne on pitkaaıkaısen, kokemuksella tehdyn
tutkimustyon tulos. Jatkuvan en tuotantovaiheissa tehtavan laatutark-
kalun vuoksi Philips takaa tuotteensa laadun.
Tarkemmat tiedot takuuehdoista saat Philips-myyjaltá tai alla olevasta
osoitteesta.
Oy Philips AB, Sinikalliontie 3, 02630 ESPOO -& (358-0)-50261
Oy Philips AB, P.O. Box 75, 02631 ESPOO
3139 116 12331
ps rn -r ee
TAHPOOOPIES TIA SERVICE KAIETTTHEHZTHNEAAAAA
H ovoxzenh Ya ddl apodo, y Aetroupytx ms elvas dpt um
léyos avtmatactksshs tag Sov mebrermas oc Yayyık meçintos vx
moniter. Av ópos, map dx auth, zéro ehiptyuz Sev Zerronpyhoc, TO
eğkomun avt vai y epyuola extexenhs machyovrat Sageky and res
Exatcela. H apoco bue yix extazenh mare nesne anıçalmız vx
amvodcórras and to ração buns uroyeypruubs vas agpi and To
vatéemus noy ayockomps y ovoxevh zat ys Tu nussa ayoz ke.
H eroro unge yiz 1 Ero; arh mye qucmpydz ayoziz. H ernan 824
LYÓL OTG mapavkte NEŞET:
a) Tex anyada by arh Lim 17,5 000% 5, alk and q 002k h Shy, nan
meovahinne ars telrovg 4 and petabodh tms rácios TOU nicarpu)
A
m
god A
O Tix avoyallı Ayo charrapztnhs eyzatacthases Tg ouzoh g.
4) Orey o ag dub; vatagasaths ms mn Eya addan,
5) Tex vegas mi hr vos ph por.
H epyaslı emoxevts lutas ota Epyaotásia ms Erxgelız, Ör o
mekke noino vz peraptca m auszeuh ye Such tov Barton.
Kavivzg avergtoomos Bev Eyes vo Subo ur az ro ore hna
Merk m Atin mu zehou eppotsces, pra 2403 ee OU APIO,
enzeg h oppbovkts, axe ovwstobys vz anotelvcals atx zati tones
Service m; Eratçelağ.
Atelye Kevtexztsv SERVICE PHILIPS.
2572 Maprton 15, 177 78 Taüçoz - & 4894911
Toya 62, 546 93 Ozanlar - S 260 621
Guarantee certificate Certificat de garantle
Garantieschein identificatlekaart
Certificado de garantia Certificato di garanzia
Certificado de garantia Garantibeviset
Takuutodistus Erno
Type no. of product Tipono del producto:
Date of purchase - Date d'achat < Kaufdatum
Koopdatum - Fecha de compra 5 Data da compra
Data di acquisto > Kobsdato - Kjopedato
Inkopsdato - Ostopawa - Huccopyvin ayooks
19
Dealer's name, address and signature
Nom, adresse et signature du revendeur
Name, Anschnft und Unterschnft des Handlers
Naam, adres en handtekening van de handelaar
Nombre, dirección y firma del distribuidor
Nome, ındınzzo e fırma del fornıtore
Nome, morada e assinatura do vendedor
Forhandlerens navn, adresse 09 underskrift
Aterfórsaljarens namn, adress och namnteckning
Myyjän mimi, osoite ja allekirjoitus
'Ovoua/ Exdbvvuo Avrirgosórov
1188/1
03-23
