Philips 3000 V2 User manual

All parts of this document are the property of Philips.
All rights reserved. is document and all the information herein is provided without liability deriving from any errors or omissions. Furthermore, no part may be reproduced, used or
collected, except where express authorisation has been provided in writing or through a contractual agreement.
Published by Philips Subject to modication EN 4219 400 00040
Service
Coee Machine
06-DECEMBER-2018
ServiceManual
Rev. 02 - DEC 2018
TYPE 12NC DESCRIPTION
HD8827/01 882882701010 HD8827/01 PHI 3000 V2 CMF BK 230 WE
HD8827/09 882882709300 HD8827/09 PHI 3000 V2 CMF BK 230 CEE
HD8827/09 882882709870 HD8827/09 PHI 3000 V2 CMF BK 230 RU
HD8829/01 882882901010 HD8829/01 PHI 3000 V2 EASYCAP. BK 230 WE
HD8829/09 882882909300 HD8829/09 PHI 3000 V2 EASYCAP. BK 230 CE
HD8829/09 882882909870 HD8829/09 PHI 3000 V2 EASYCAP. BK 230 RU
HD8829/11 882882911010 HD8829/11 PHI 3000 V2 EASYCAP. SIL 230/5
HD8829/11 882882911300 HD8829/11 PHI 3000 V2 EASYCAP. SL 230 EU
HD8829/15 882882915470 HD8829/15 PHI 3000 V2 EASYCAP. SL 220/60
HD8830/10 882883010220 HD8830/10 PHI 3000 V2 EASYCAP. GBK 230/50
HD8830/12 882883012220 HD8830/12 PHI 3000 V2 EASYCAP. GWH 230/50
MODIFICATIONS TO SERVICE MANUAL
From Rev. To Rev. Chapter Inserted Modied
Rev01 Rev02 Updated index of involved models
Rev01 Rev02 1.1 Updated CRP list
Philips 3000 V2

PHILIPS 3000 V2
Technical specication
Power supply and output: 240 V~ 50 Hz 1850 W - 230 V~ 50/60 Hz 1850 W - 120 V~ 60 Hz 1500 W
Power consumption: During heating phase- approx. 5.6 A
Boiler: Stainless steel (230 V~) 1900 W - (120 V~) 1300 W - (100 V~) 1100 W for coee, hot water and steam dispensing
Safety system: 2 thermostats at 190°C one shot
Temperature monitoring: (NTC) variable resistor sensor - transmits the value to the electronic card
Automatic dosage: Dose adjustment controlled by the electronic system
Gear motor: 2 rotation directions; power supply 24VC
Coee grinder: Direct current motor with at ceramic grinder blades
Pump: Ulka Type EP5/S GW approx. 13-15 bar with reciprocating piston and thermal switch 100°C 48 W, 230V, 50
Hz, 120V, 60Hz 100V, 50/60 Hz
Overpressure valve: Opening at approx. 16-18 bar
Water circuit lling time: Approx. 15 sec Max. on rst lling cycle
Heating time: Approx. 45 sec.
Grinding time: Approx. 8-10 sec.
Housing material ermoplastic material
Size (w x h x d) 215 x 330 x 429 mm (data may vary depending on the model)
Weight 7 Kg
Power Cord length 0,8 -1,2 m
Cup size Up to 152 mm
Water tank 1800 ml
Water lter In tank
Coee bean hopper capacity 250g
Coee grounds drawer capacity 15 pucks
Energy Eciency Label A
Energy saving mode consumption < 1 Wh
Pump pressure 15 bar
Boiler Stainless steel type
Safety devices ermal fuse
Nominal voltage - Power rating –
Power supply Data stored on the below label placed inside the service door
Serial Number TW901616236813 TW90= product + production location - 1616 = year & production week - 236813 = unique following
number

PHILIPS 3000 V2
Table of contents Page
1. Introduction
1.1. Consumer Replaceable Parts (CRP) List 1
1.2. Material 2
1.3 Specic tools and equipment 2
1.4. Safety warnings 3
1.5. Water circuit diagram 3
1.6. Electrical diagram 4
1.7. Service POLICY grid as used for coee machine 5
1.8. External machine parts Philips 3000 V2 CMF 5
1.9. External machine parts Philips 3000 V2 EASY CAPPUC-
CINO
6
1.10. Internal machine parts 7
1.11. Customer menu in the Philips 3000 V2 CMF 8
1.12. Customer menu in the Philips 3000 V2 EASY CAPPUC-
CINO
9
1.13. Troubleshooting 10
1.14. Brew Unit mainteinance: Where to grease 13
1.15. Position of the Brew Unit 13
2. Technical specications
2.1. Specication for the measurement of the coee products
temperature.
1
2.2. Specication for the measurement of the Milk products
temperature.
2
2.3. Machine parameters and performance 4
3. Operating logic
3.1. Single microswitch 1
3.2. Temperature sensor (adjustment) 1
3.3. Coee cycle 2
3.4. Coee grinder Philips 3000 V2 3
3.5. Low bean level detection, dose quantity adjustment,
coee grinder blocked
3
3.6. Dose self-learning (SAS) 4
3.7. Water level detection (water tank) 5
3.8. Descaling request 5
3.9. Water lter 6
3.10. Milk Solution 6
Table of contents Page
4. Service mode
4.1. Test Mode Philips 3000 V2 1
4.2. SteamOut 8
5. Espresso Philips Service Center
5.1. Espresso Philips Service Center (EPSC) 1
6. Service and maintenance
6.1. Repair Flow 1
7. Disassembly
7.1. Outer Shell 1
7.2. Coee grinder 2
7.3. Grinder blades 2
7.4. Coee grinder adjustment 3
7.5. Carafe connection and hot/steam water dispenser 3
7.6. Central plate 4
7.7. Pin boiler 4
7.8. Gear motor 4
7.9. Pump 5
7.10. Flow-meter 5
7.11. Boiler 5
7.12. CPU board 6
7.13 Programming access for EPSC (Espresso Philips Service
Center)
6
7.14. KYB interface and display 6
7.15. Fitting and removing Oetiker clamps 7

PHILIPS 3000 V2
CHAPTER 1
INTRODUCTION

PHILIPS 3000 V2 01 INTRODUCTION
1/13
Consumer Replaceable Parts are parts which we encourage consumers to replace themselves (as required);
these parts can be removed without help of a screwdriver
1.1. Consumer Replaceable Parts (CRP) List
CRP CTN 12NC Description Compatible for Picture (assembled)
CP0165/01 421941308111 Dip tray
All black
models(exept
glossy black)
CP0507/01 421941310521 Dip tray Silver models
CP0150/01 996530073476 Water container All models
CP0166/01 421941308121 Dump box All models
CP0151/01 421944034471 Drip tray grate All models
CP0739/01 421944092331 Brew group All models
CP0504/01 421944070662
BEAN
COF.CONTAINER
LID (from
S.N:FROM S/N.
TW901645704032)
All models

PHILIPS 3000 V2 01 INTRODUCTION
2/13
1.2. Material
Material Code and Description
Thermal paste Heat resistance > 200°C
Descaler 21001901 “ACC SAE DECALCIFIER 5 L 1 UNIT”
Grease solvent 132253695601 “PARALIQ GB 363”
Silicone grease 14-INTGR22004 “ACC TUBE FIN FOOD GREASE 2 400 ML”
 1.3.Specictoolsandequipment
As well as the standard equipment, the following is required:
12NC Description Notes
-Flathead screwdriver # 0, # 2
-Torx screwdriver (T10-T20)
-Cutter
-Cable tie tightening tool
-Pliers for Oetiker clamps
- Digital ermometer Type K (accuracy for temperature of 0,05 % or ± 0,3°C)
- Temperature probe 80PK-22 (80AK-A ermocouple adapter required)
- Scale KERN EMB 500-1 or comparable device with a base
accuracy of 0,05 % or ± 0,5 g
- Power meter Voltcra EnergyCheck 3000 or comparable device with
a base accuracy of 1 % or ± 5W
-Stopwatch Basic model
996530009845 Serkit Tool needed for programming with our service tool
-EPSC (Espresso Philips Service
Center)
Tool used to ash the SW on the machines (for SW
upgrade and diagnostics mode). Refer to SDA_114585.
CP0159/01 421941306191 Black water
dispenser Easycap only
CP0158/01 996530068626 Black milk intake
tube connector Easycap only
CP0332/01 421944066941 Cappuccinatore Easycap only
CP0377/01 421944068711 Complete milk
carafe Easycap only

PHILIPS 3000 V2 01 INTRODUCTION
3/13
1.4. Safety warnings
Please, read the Service manual of the machine before starting any maintenance.
Operation, maintenance and/or repair of this device has to be carried out only by qualied persons, trained
for work at or with electric devices.
During the machine disassembly the operator has to pay attention to hot and under pressure parts.
All parts involved can be nd in the hydraulic circuit below schema.
e machine hydraulic circuit can reach maximum pressure of 16/18 bar.
When the machine arrives at the Service Center in descaling mode interrupted, or making Descaling , take
EXTREME CARE to avoid any unintentional contacts with the descaler.
Aer the product has been repaired, it should function properly and has to meet the safety requirements and
legal regulations as ocially laid down at this moment.
e technicians to operate under safety conditions, needs to:
1. Use personal safety devices;
2. Disconnect the appliance from the power mains before repairing;
3. Before and aer repair, it is recommended to perform dielectric strength tests (is domestic
appliance is rated as insulation class 1).
Pump
Safety valve
Water
discharge
Steam pipe
Wa
ter tank
Two-way solenoid valve
Brewing Unit
Flowmeter
Boiler
Water
Hot water /steam
From this point circuit
High temperaure
From this point circuit
in pressure
Flowmeter
Steam and hot water
Two-way solenoid valve
Pump
Brewing Unit
Boiler
Safety valve
Water
discharge
Water tank
Image 1
1.5. Water circuit diagram

PHILIPS 3000 V2 01 INTRODUCTION
4/13
1.6. Electrical diagram

PHILIPS 3000 V2 01 INTRODUCTION
5/13
1.7. ServicePOLICYgridasusedforcoeemachines
During the repair is always recommended to use, if possible, single parts rather than the correspondent as-
sembly.

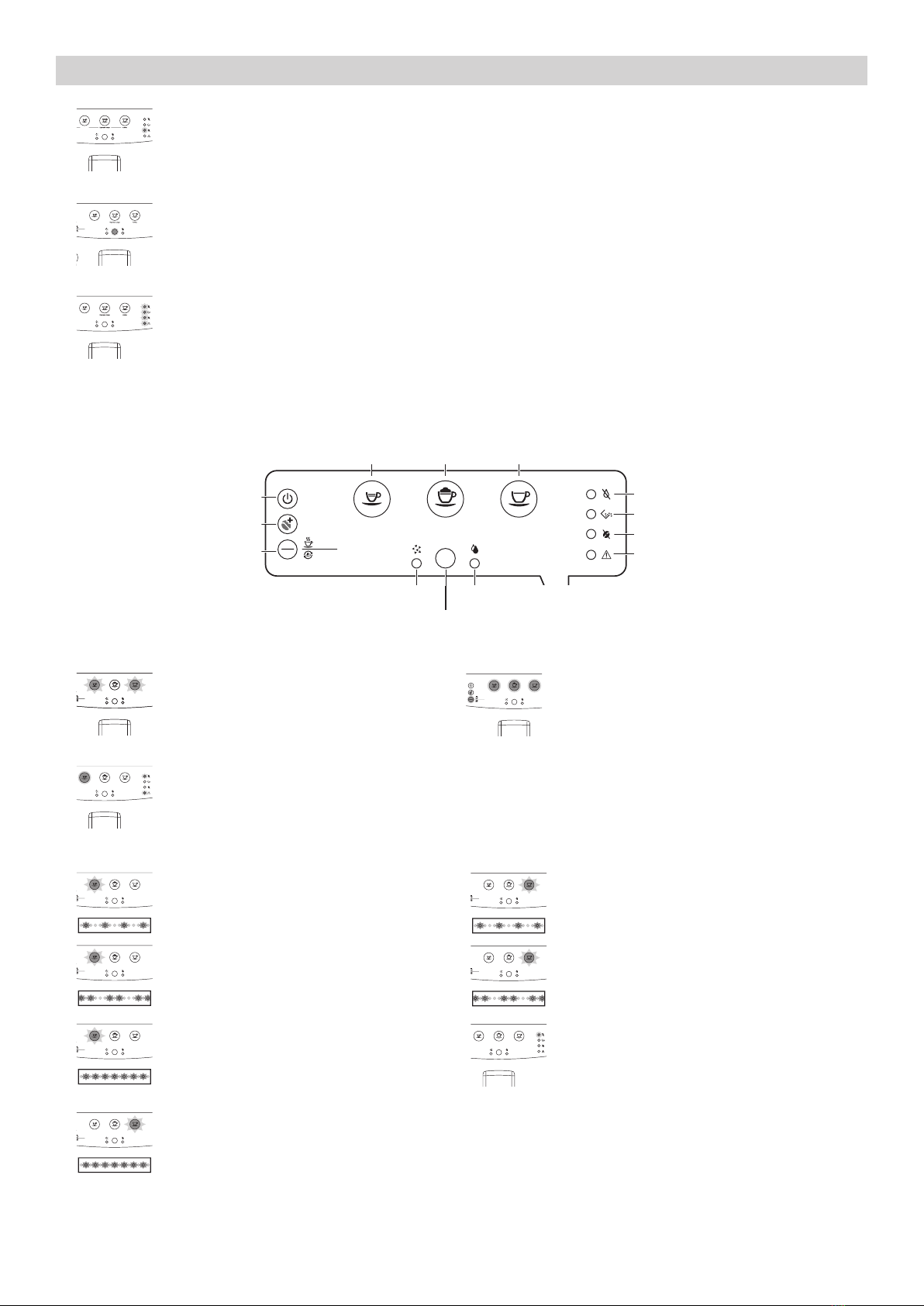

 1.8. ExternalmachinepartsPhilips3000V2CMF
2
1
X
X
Aroma plus
Hot water
Steam
Espresso
Memo Memo Memo
Calc
clean
Espresso lungo Coee
14
15
4
5
6
1 2 3
13
11
12
10
26
24
20
34
33
32
35
28
17
16
27
25
22
7 8 9
2930
31
19 18
23
21
1ESPRESSO button
2 ESPRESSO LUNGO button
3 COFFEE button
4 ON/OFF button
5 AROMA STRENGTH button
6 HOT WATER/ STEAM button
7 Descaling cycle light
8 CALC CLEAN button
9 Rinse cycle light
10 General warning light
11 No coee light
12 Empty coee grounds container light
13 No water light
14 Coee dispensing spout
15 Classic milk frother
16 Lid of the water tank
17 Lid of the bean hopper
18 Main switch
19 Socket for cord
20 Service door
21 Grinder adjustment knob
22 Water tank
23 Brew group
24 Inside of maintenance door with clean-
ing instructions
25 Coee exit duct
26 Coee residues drawer
27 Drip tray full indicator
28 Coee grounds container
29 Drip tray
30 Drip tray cover
31 Cord
32 Cleaning brush
33 Grease
34 Water hardness tester
35 Multifunctional tool (grinder adjust-
ment key and coee duct cleaning
tool)

PHILIPS 3000 V2 01 INTRODUCTION
6/13
 1.9.ExternalmachinepartsPhilips3000V2EASYCAPPUCCINO
2
1
X
X
Aroma plus
Hot water
Espresso
Memo Memo Memo
Calc
clean
Coee
Cappuccino
Milk clean
19
20
4
5
6
1 2 3
13
11
12
10
31
33
18
21
22
23
29
15
14
30
32
7 8 9
2827
17 16
34
37
38
36
35
39
24
25
26
40
1ESPRESSO button
2 CAPPUCCINO button
3 COFFEE button
4 ON/OFF button
5 AROMA STRENGTH button
6 HOT WATER/ MILK CLEAN button
7 Descaling cycle light
8 CALC CLEAN button
9 Rinse cycle light
10 General warning light
11 No coee light
12 Empty coee grounds container light
13 No water light
14 Lid of the water tank
15 Lid of the bean hopper
16 Main switch
17 Socket for cord
18 Service door
19 Coee dispensing spout
20 Hot water dispensing spout
21 Automatic milk frother
22 Suction tube
23 Top of the milk carafe
24 Pin on top of the milk carafe
25 Milk carafe
26 Water tank
27 Drip tray cover
28 Drip tray
29 Coee grounds container
30 Drip tray full indicator
31 Coee residues drawer
32 Coee exit duct
33 Inside of service door with cleaning
instructions
34 Brew group
35 Cleaning brush
36 Grease
37 Water hardness tester
38 Multifunctional tool
39 Cord
40 Grinder adjustment knob
