Philips ADR810 User manual
EN Driving video recorder
DE Fahrzeug-Videokamera
ES Grabador de conducción para automoción
FR Caméra enregistreur de conduite
IT Videocamera per auto
PL Samochodowy rejestrator jazdy
PT Gravador de condução para automóvel
RU Видеорегистратор
Driving Video Recorder
ADR810
1 Product Overview..............................................................................5
2 Quick Start .............................................................................................6
2.1 Insert the Memory Card........................................................6
2.2 Installing inVehicles....................................................................6
2.3 Automatic Power On/Off .....................................................8
2.4 Manual Power On/Off.............................................................8
2.5 Manual Record Start/Stop.....................................................9
2.6 ManualVoice Recording Off/On........................................9
2.7 Remove the Memory Card...............................................10
2.8 About Micro SD Card..........................................................10
3 User Interface Overview.............................................................11
4 System Setting....................................................................................12
4.1 Set Date andTime..................................................................12
4.2 Function Settings......................................................................12
5 Operating Instructions..................................................................14
5.1 RecordingVideos.....................................................................14
5.2 PlaybackVideos.........................................................................14
5.3 DeletingVideos.........................................................................15
5.4 ProtectingVideos.....................................................................16
6 Add-on Functions............................................................................17
6.1 Driver Fatigue Alert...............................................................17
6.2 EasyCapture Function...........................................................17
7 TechnicalSpecications.................................................................19
Table of Contents
5
11
12
Product Overview
1. Bracket Holder
2. Lens
3. Micro SD card Slot
4. Slide Switch (ON/OFF)
5. Enter Button (OK)
6. UpButton/REC(▲)
7. EasyCapture Button/
Return( )
8. Micro USB Port
9. 3-color LED Indicator
10. HDMI Port
11. Down Button/Voice
RecordingOn/Off(▼)
12. Speaker
13. Cigarette Lighter with
EasyCapture Button
1
8
10
29
3
7
6
5
4
EN Driving video recorder
DE Fahrzeug-Videokamera
ES Grabador de conducción para automoción
FR Caméraenregistreur de conduite
IT Videocamera per auto
PL Samochodowy rejestrator jazdy
PT Gravador de condução para automóvel
RU Видеорегистратор
Driving Video Recorder
ADR810
13
6
Quick Start
2.1 Insert the Memory Card
1. Insert the memory card with the gold contacts facing to
the front of the device.
2. Push the memory card until it clicks into place, and slide
the switch to ON.
2.2 Installing inVehicles
Attach the bracket to the device. Slide it into the bracket
holder until you hear a click.
7

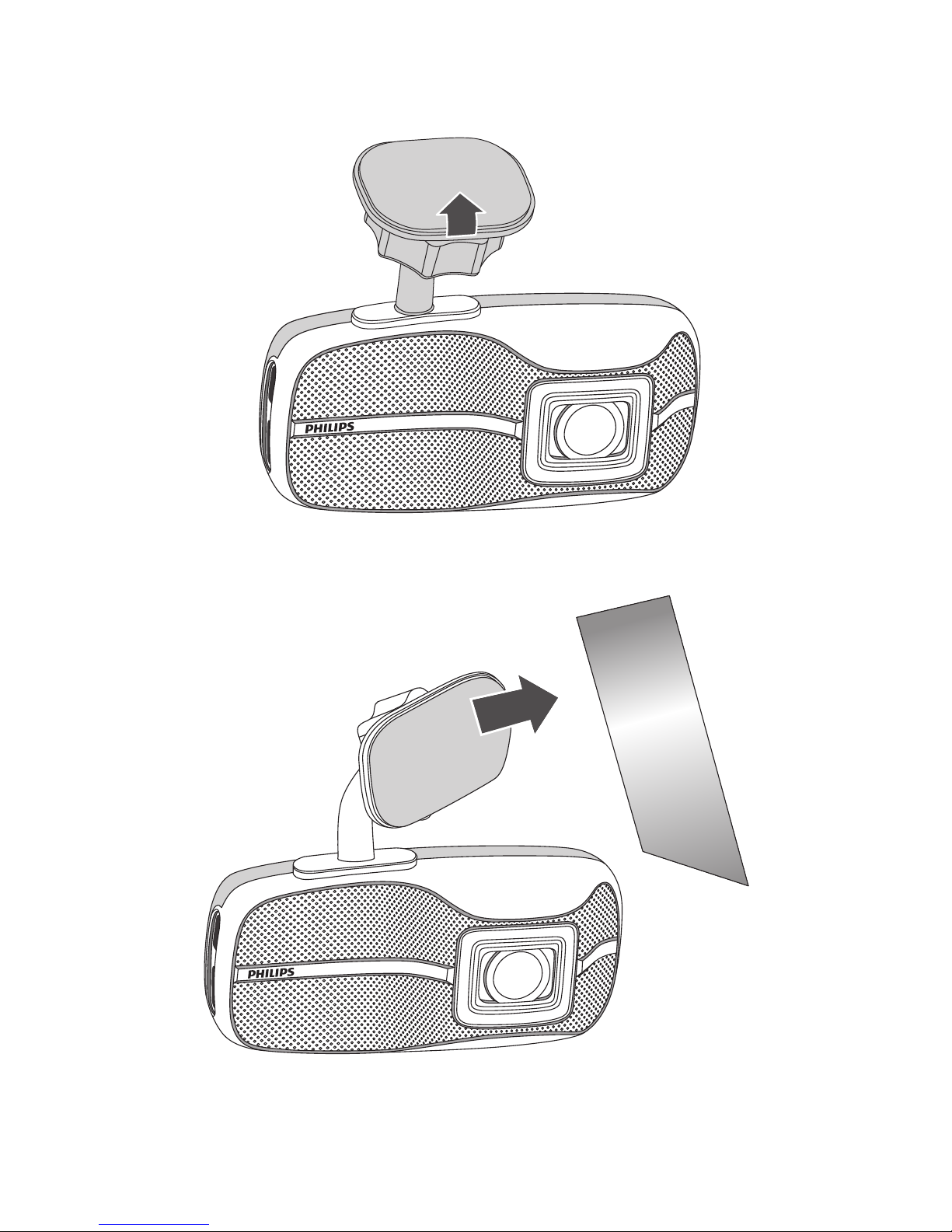

1. Peel off the protective plastic sheet from the adhesive
bracket and Lens.
2.Placeandpressdownthebracketrmlyonto
your windshield.
3. Adjust the device position. Loose the knob to swivel
the device to proper position.Then tighten the knob to
make sure the device is securely locked in place.
8
4. Connect the Micro USB interface of the car charger to
the Micro USB port of the device.
5. Plug the car charger to the cigarette lighter socket of
your vehicle.
2.3 Automatic Power On/Off
1. Once the power of the vehicle is on, the device auto-
matically turns on.
2. If you disconnect the car charger, the device automati-
cally turns off.
2.4 Manual Power On/Off
1.To turn on the device, slide the switch to ON.
2.To turn off the device, slide the switch to OFF.
9
2.5 Manual Record Start/Stop
1. When device in automatic
recordingstatus,press▲
to stop recording.
2. When device in stop record-
ingstatus,press▲tostart
recording video again.
2.6 ManualVoice Recording Off/On
1. When device set voice record-
ing on in system setting, press
▼ to switch voice recording
to Off.
2. When device set voice record-
ing Off in system setting, press
▼ to switch voice recording
to On.
10
2.7 Remove the Memory Card
Slide the switch to Off, and push to eject the memory card
out of the slot.
2.8 About Micro SD Card
1. Please use Micro SD card with the size/memory at least
8GB, Class6(up to 32GB)
2. Be sure to format Micro SD card using the device before
the initial usage.
3. The following information is the card capacity and Re-
cording time:
Notes:
1. If car power supply doesn’t stop automatically, it is recom-
mended to disconnect the car charger manually to avoid
car battery power lost.
2. Please use our dedicated car charger to avoid non-com-
pliance with the device.
3. Once connected to a PC through USB, the device only
allows data transfer.
Micro
SD Card
Capacity
Video Resolution
(720P/30FPS)(720P/60FPS) (1080P/30FPS)
16GB 260 minutes 170 minutes 160 minutes
32GB 520 minutes 340 minutes 320 minutes
11
User Interface Overview
No. Description
1Emergency recording indicator
2Voice recording ON/OFF switch
3WDR(Wide dynamic range) indicator
4Resolution indicator
5Recording/stop indicator
6Driver fatigue alert icon
7Fatigue index
8ISO value
9Date/Time stamp
10
3-color LED indicator
Blue: Recording status
Red: Emergency recording status
Green: non-recording status( in start-up, menu
operation or other abnormal status)
87
1
2
5
7
3
4
6
8
9
10
12
System Setting
Press on OK to show the menu list, and set different func-
tions of the device.
4.1 Set Date and Time
1. Press OK to open the on screen
display menu.
2.Press▲/▼toselectDate/Time
and press OK to enter date and
time setting Menu.
3.Toadjustdateandtimeeld,
press OKtoselecttheeld.
4.Press▲/▼toselectthevalue.
5.Repeatsteps3-4toadjustotherelds.
6. Press to save your changes.
4.2 Function Settings
No. Function Menu
Icon
Description
1 Video Operatenormalandemergencyvideole,userscanplay,
pause,delete,lock,andunlockthevideoles.
2 Resolution Set the video resolution to Full HD 1080P(FHD), HD Premi-
um(60FPSHD+) and HD Premium(HD+).
3WDR (Wide
Dynamic
Range)
Switch on/off WDR function.
13
4 Collision
Detection
Select the level of event detection sensitivity to high sensitivity/
middle sensitivity/low sensitivity/off.
The Collison Detection function will automatically detect
any collision events, and create an emergency video clip.The
emergency video clip will show 30 seconds before and after
theeventdetection.Thevideolewillbesavedintothe
Emergency Record folder.
5 Date/Time Set date and time for the device
6LCD Auto
Off
Set the time before the monitor is turned off automatically, or
set the monitor always on.
7 Format Format yourTF card(Micro SD). Please format your card using
thedevicebeforeyouuseitforthersttime.
8 Language English, French, German, Italian, Spanish, Portuguese, Polish
and Russian.
9 Voice
Recording
Switch on/off voice recording function.
10 EVValue Manually adjust the exposure level.
11 Date Stamp Switch on/off date and time marking on the video.
12 Motion
Detection
Switches to ON to trigger Motion Detection mode.
thefunctionwilldetectmovementsintheeldoffrontview.
When any movement is detected, continuous 20 seconds
recording starts immediately. if any movement is detected in
the 20 seconds, recording will last additional 20 seconds from
the trigger time.
13 Driver
Fatigue
Alert
Switch on/off driver fatigue alert function.
14 Default Reset all device settings to factory default settings.
15 About Firmware version, and related product information.
14
Operating Instructions
5.1 RecordingVideos
5.1.1Video Recording
When the power of the
vehicle is on, the device auto-
matically turns on and starts
recording. Recording will
automatically stop when the
power of the vehicles is off.
Or,press▲tostoprecord-
ing manually at any time.
5.1.2 Emergency Recording
1.When the Collision Detection function is activated, the
device will automatically detect any collision events, and
createanemergencyvideole.Theemergencyvideo
clip will show 30 seconds before and after the event de-
tection.ThevideolewillbesavedintotheEmergency
Records folder.
2. During video recording, you can manually create an Emer-
gencyRecording,tosecureavideoleofanyeventthat
might happen, with the EasyCapture buttons located
on the device or on the cigarette-lighter adaptor.
3.Press to start the manual Emergency Recording.
4. icon appears on the top right side of the screen, indi-
cating Emergency Recording is ongoing.
5.The system automatically creates emergency video
files.The video files are saved into the Emergency
Records folder.
5.2 PlaybackVideos
1. Press OK to enter Menu.
5
15
2.Press▲/▼toselectVideo
and press OK.
3.Press▲/▼toselectNormal
Recording and press OK.
4.Press▲/▼tobrowseforthe
desiredvideoleandpressOK,
and then select Play to play the
desired video.
5.During playing video, press OKtopause.Press▲to
fastforward,press▼tofastbackward,pressemergency
button to return.
5.3 DeletingVideos
1.Press▲/▼tobrowsefor
deletingthedesiredvideole
and press OK, and then select
Delete toremovevideole.
16
2. Select Delete All to delete all
unlockedvideoles.
3.Aconrmationmessageappearsonthescreen,press
▲/▼toselectYES and press OKtoconrmdeletion.
5.4 ProtectingVideos
To secure videos against being overwritten.
1.Press▲/▼tobrowseforthe
videolesandpressOK.
2.Press▲/▼toselectLock and
press OK.
3. Return to video list automati-
cally, and selected video
is protected.
4.Usesamemethodtounlockvideoles.
17
Add-on Functions
6
6.1 Driver Fatigue Alert
To help car drivers manage the evolution of their fatigue,
a fatigue index displays the evolution of driver’s fatigue,
taking into account physiological and journey related
parameters such as time of the day and time spent driving.
The device will alert the driver when fatigue index reaches
80, and also every two hours of driving.
When switch on, fatigue index will be displayed on the
screen.When fatigue index is less than 60, the value in
green color is displayed on screen. Before fatigue index
reaches 80, yellow value is displayed on screen with an
alert sound.When fatigue index is above 80, red value is
displayed on screen with 3 alert sounds and an fatigue
icon pop up to alert user.(System time need set correctly
when user switch on driver fatigue alert function ).
6.2 EasyCapture Function
Philips EasyCapture ensures you always have an emergen-
cy recording button to hand, to capture and save every-
thingthathappensontheroad:oneclearlyidentiedon
the device, and one on the cigarette lighter adaptor. Simply
press the EasyCapture button (nr 13, product overview),
87
18
to create and protect up to 6 minutes video clip before
and after you pressed the emergency button.The record-
inglewillbeprotectedandcannotbedeletedunless
youunlocktheleinEmergencylefolderbymanual
operationorEmergencylefolderisfull.Thenumberof
recordinglesisdependingonthesizeoftheSD-card.
19
Functions
Automatic recording
Collisiondetection&emergencyle
protection
Seamless loop recording
Auto exposure
Auto white balance
Date and time stamp
Auto LCD off
Driver fatigue alert with fatigue index
EasyCapture emergency recording
buttons
Wide angle
Advanced night view
Image Sensor 2.1 Mega-pixels CMOS
Video Resolution
Full HD(1920x1080p) @30fps
HD Premium(1280x720p)@60fps
HD Premium(1280x720p)@30fps
Display 2.7” LCD
Aperture Range F/#2.0
Fixed Lens 7G wide angle lens, FOV 156 (Diagonal)
File Format
.MOV
PCM audio compression /H.264 video
compression
Random Access Memory 64Mx16bit (1Gbits) DDR3 SDRAM
Internal Memory 32Mb SPI Flash
Recording Media (external
memory) Micro SD card (class 6 or higher, up to
32GB)
Recording Time 160min @16GB for full HD
320min @32GB for full HD
RTC 5days
Operating Temperature -10℃~ 65℃
Storage Temperature -20℃~ 70℃
Accessories Micro USB Car Charger, 3M Mount
Bracket, Quick Guide
Interface Micro USB 2.0, HDMI, Micro SD Slot,
Microphone, Speaker
Languages English, French, German, Italian, Spanish,
Portuguese, Polish and Russian
Power 12-24V/5V 1A car adapter with
EasyCapture record button
Dimensions (LxWxH) 106.7 x 50.0 x 32.5mm
TechnicalSpecications
7
Other manuals for ADR810
1
Table of contents
Languages:
Other Philips Dashcam manuals
Philips
Philips GoSure ADR830 User manual
Philips
Philips GoSure ADR900s User manual
Philips
Philips ADR810 User manual
Philips
Philips CVR300 User manual
Philips
Philips CVR500 User manual
Philips
Philips ADR610 User manual
Philips
Philips CVR308 Product information sheet
Philips
Philips CVR600 User manual
Philips
Philips ADR900 User manual
Philips
Philips CVR700 User manual
