Contents
1 Important 2
Safety 2
Notice 2
2 Your car driving recorder 4
Introduction 4
What's in the box 4
Overview of the main unit 5
3 Get started 6
Install the driving recorder 6
Insert Micro SD card 7
Turn on the driving recorder 7
For the rst time use 7
Mode switch 7
4 Video Recording 8
Loop recording 8
Secure record 8
5 Photo capture 9
6 Playback 9
Video playback 9
Photo playback 10
7 Settings 10
Video/Photo Settings 10
Other settings 11
Connect the driving recorder to a
computer 11
8 Product information 12
General 12

2EN
1 Important
Safety
• Read and understand all instructions
before you use your apparatus. If damage is
caused by failure to follow instructions, the
warranty does not apply.
• Use only the supplied mounting hardware
for a safe and secure installation.
• Only use attachments/accessories specied
by the manufacturer.
• To avoid short circuit, do not expose the
apparatus to rain or water.
• Never insert objects into the ventilation
slots or other openings on the apparatus.
• Clean the apparatus and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
• Risk of damage to the apparatus screen!
Never touch, push, rub or strike the screen
with any object.
• Batteries (battery pack or batteries
installed) shall not be exposed to excessive
heat such as sunshine, re or the like.
• Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
• For your own safety, do not operate the
device while driving.
• Do not install the device in the position
that blocks the driver's sight or affects the
work of the airbags.
• To void accident caused by exhaust of car
battery, disconnect the car charger before
leaving the car for the users whose car
cigarette lighter keeps power supplying
after the engine is stopped.
• When the car engine is stopped or the
power is shut down, the device still can
save the recording les with its built-in
battery power,do not remove the micro
SD card during the period to prevent data
loss.
• The apparatus shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on the
apparatus (e.g. liquid lled objects, lighted
candles).
Notice
Any changes or modications made to this
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Disposal of your old product and
batteries
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries.The correct

3
English
EN
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.
Always bring your product to a professional to
remove the built-in battery.
2013 © WOOX Innovations Limited.All rights
reserved.
Specications are subject to change without
notice.WOOX reserves the right to change
products at any time without being obliged to
adjust earlier supplies accordingly.

4EN
2 Your car driving
recorder
Congratulations on your purchase, and
welcome to Philips! To fully benet from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car driving recorder, you can:
• Record videos automatically when you are
driving
• Take photos
• Play back videos/photos
What's in the box
Check and identify the contents of your
package:
a Driving recorder
b Suction bracket
c Car charger
d mini USB cable
e User Manual

5
English
EN
Overview of the main unit
a LCD touch screen
b Secure Record
c mini HDMI socket
d Camera Lens
e DC socket
f Micro SD card slot
g
• Power key
h Mini USB socket
abcdefg
h

6EN
3 Get started
Install the driving recorder
Caution
•Do not place the driving recorder in locations where
it may block the driver's view or affect the operation
of airbags.
Note
•In order to get clear images,if there is any smudginess
on the windshield, please clean it before installing.
1 Connect the driving recorder with the
suction bracket as below:
2 Wipe clean the windshield.
3 Remove the protective cover of the
suction bracket and rotate the x button
of suction.
4 Connect the USB cable to:
• The mini USB socket of the driving
recorder
• The cigarette lighter socket of the car
A
B

7
English
EN
Insert Micro SD card
Caution
•Insert the micro SD card before using the driving
recorder.
•Insert the micro SD card with the right direction.
Wrong direction may damage the driving recorder and
the card.
Note
•When using for the rst time, please format the micro
SD card by tapping "Settings" - "Format" to ensure
videos are recorded normally.
Insert a micro SD card into the card slot until
you hear a "click".
• To remove the micro SD card
Push the card inwards until you hear a "click".
» The card is disengaged.
Turn on the driving recorder
Press to turn on the driving recorder.
• To turn off the driving recorder, press and
hold for more than 3 seconds.
Note
•When using for the rst time, please set the date/time
by tapping Settings - Clock.
For the rst time use
After the driving recorder is turned on, set the
language and format the micro SD card.
Select language
1 Tap [Settings] to enter the setting menu.
2 Tap / to select the language setting
menu.
3 Tap OK to enter the menu.
Format SD card
1 Tap [Settings] to enter the setting menu.
2 Tap / to select the format SD card
menu.
3 Tap OK to enter the menu, and tap YES to
format the micro SD card.
Mode switch
Tap to switch mode:Video recording mode
and photo capture mode.

8EN
4 Video Recording
When the driving recording is turned on, video
recording starts automatically.

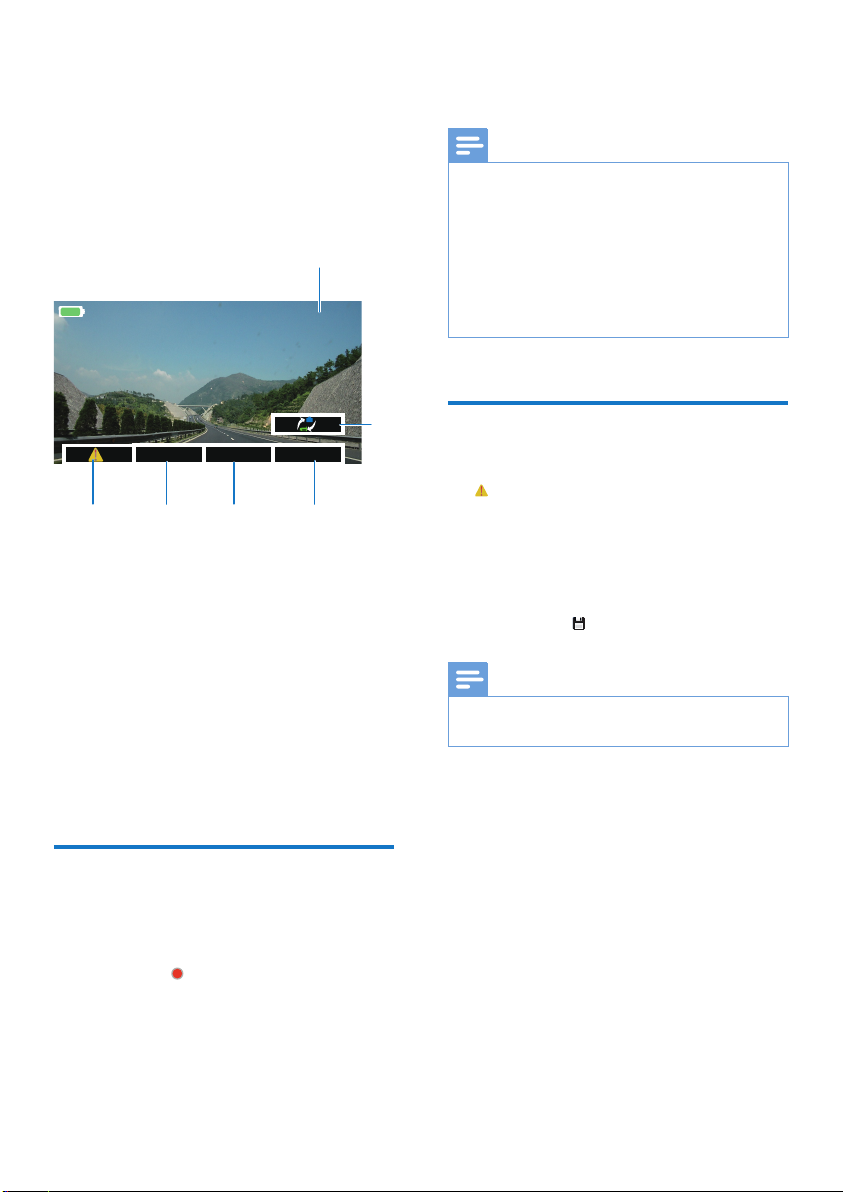

Video recording screen:
a Secure Record
b Playback mode:view emergency record,
view last record, view photos
c System settings
d Turn off the LCD screen
e Switch between video recording mode
and photo capture mode
f Recorded emergency video numbers/
total emergency video numbers
Loop recording
When the driving recorder is powered on or
you enter the video recording mode, video
recording starts automatically.When the
recording starts, blinks and recording time is
displayed on screen.
The driving recorder can record video les in
a specied time frame (You can set the record
time by tapping [Settings] -[Record Time]).The
number of les is dependant on the size of the
3OD\6HWWLQJ /&'RII

abc d
e
f
memory card. The rst recorded video will be
overwritten when the micro SD card is full.
Note
•The driving recorder will continue running for a while
after the engine is shut down to protect last recorded
le.
•When recording videos, you can turn the sound record
on or off in [Settings] - [Voice Recorder].
•For safety reasons the built-in battery will stop charging
if the device remains at a high-temperature for period
of time. If the built-in battery runs out of power you
will need to reset the date and time.
Secure record
When there is an important le to be recorded,
tap to enter secure recording mode to
prevent le from being overwritten.
» The present le and the previous le
are recorded to the secure recording
le.
» When saving the le, on the screen will
become .
Note
•You can save a maximum of ve groups (ten les) in
the secure recording les.

9
English
EN
5 Photo capture
In photo capture mode, tap or press to
take photos.
6 Playback
Tap [Play] to enter playback mode.
Video playback

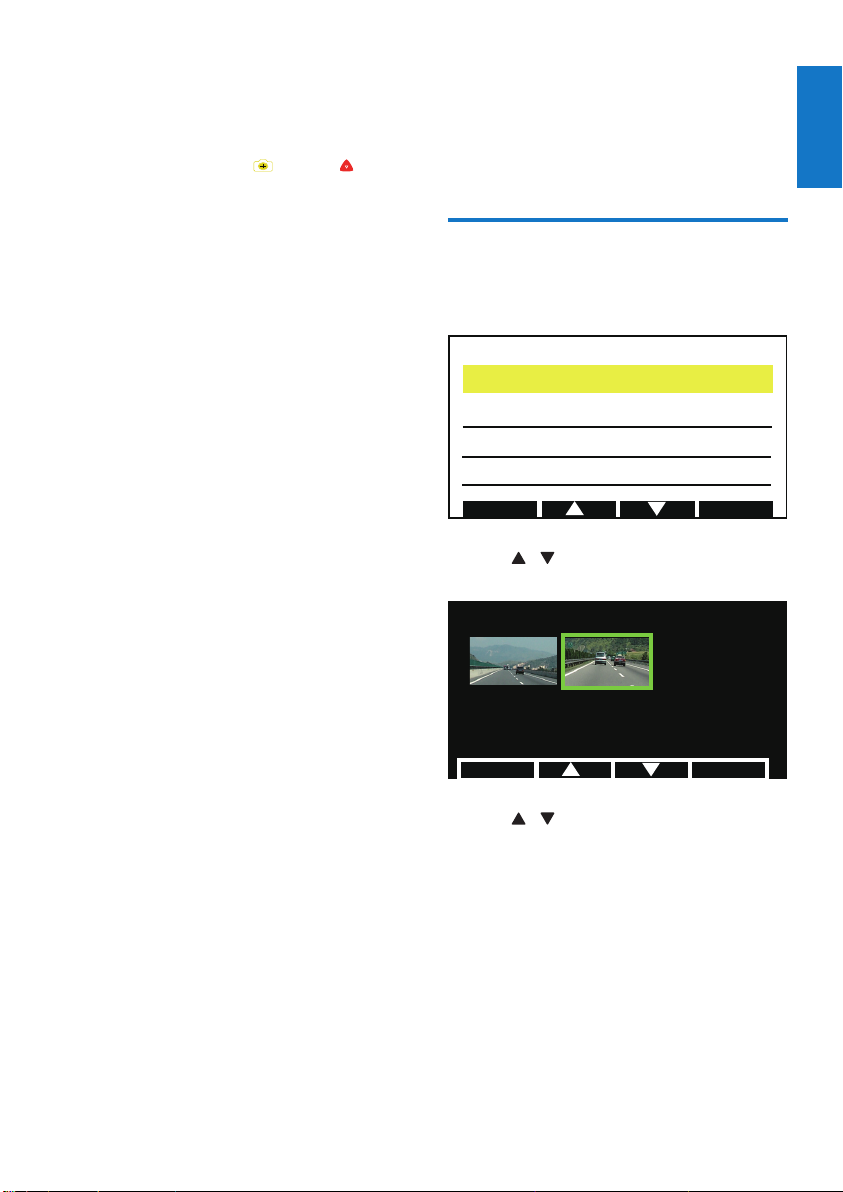

1 In video recording mode or photo capture
mode, tap [Play].
2 Tap / to select [Emergency Record]
or [Last Record].
3 Tap / to select a video and tap [OK]
to start video playback.
• Tap [REC] to return to the video
recording mode.
• During playback, you can pause/restart
the video, or delete the video.
2.
3OD\
5HF
(PHUJHQF\5HFRUG
/DVW5HFRUG
,PDJH
5HWXUQ
(PHUJHQF\5HFRUG 
2.
5HF

10 EN
Photo playback
1 In video recording mode or photo capture
mode, tap [Play].
2 Tap / to select [Image].
3 Tap / to select a photo and tap [OK]
to view the photo.
• Tap to return to photo capture
mode.
• During photo playback, you can view
the photo, or delete the photo.
2.
3OD\
5HF
(PHUJHQF\5HFRUG
/DVW5HFRUG
,PDJH
5HWXUQ
,PDJH 
2.

3OD\'HOHWH 5HWXUQ
0
7 Settings
1 In video recording mode for photo capture
mode, tap [Settings] to enter the system
setting menu.
2 Tap / to select the menu you want
to set.
3 Tap [OK] to enter the menu.
Video/Photo Settings
In video recording mode:
• [Video Resolution]
• [FHD 1080P (30FPS)]
• [HD 720P (60fps)]
• [Record Time]
• [Off]
• [3 Min]
• [5 Min]
• [10 Min]
• [Motion Detection]
• [Enable]
• [Disable]
In photo capture mode:
• [Video Resolution]
• [16M (4608X3456)]
• [12M (4032X3024)]
• [8M (3264X2448)]
• [5M (2560X1920)]
• [3M (2048X1536)]

11
English
EN
Other settings
Trough the system setting menu, you can adjust
language ,date/time, and other settings.
[Date Stamp]
• [On]
• [Off]
[Clock]
[Voice Recorder]
• [On]
• [Off]
[LCD Off]
• [1 Min]
• [3 Min]
• [5 Min]
• [Always ON]
[Warning Beep]
• [On]
• [Off]
[Language]
• [English]
• [Simplied Chinese]
• [Traditional Chinese]
[Volume]
• [Off]
• [20%]
• [40%]
• [60%]
• [80%]
• [100%]
[Default]
• [Yes]
• [No]
[Format]
• [Yes]
• [No]
[FW Upgrade]
• [Yes]
• [No]
Connect the driving recorder
to a computer

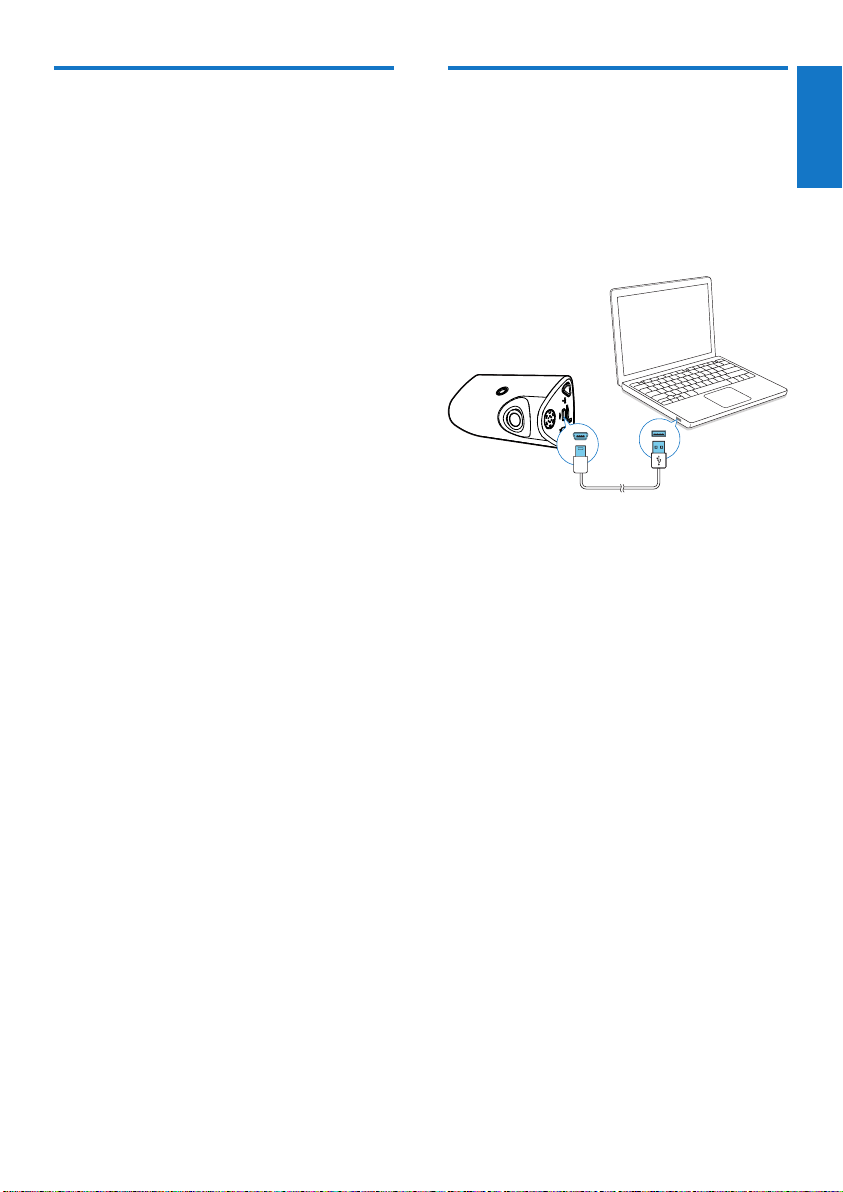

When the driving recorder is connected
to a computer, the micro SD card will be
automatically recognized.You can then copy
videos or photos from the micro SD card to
your computer.

12 EN
8 Product information
Note
•Product information is subject to change without prior notice.
General
Battery Rechargeable lithium battery (Designed for last data
backup purpose only, not for normally video recording)
Power supply Car charger (input: DC 12V - 24V, output: DC 5.5V)
LCD screen 3.0 inch touch screen
Lens 115° wide angle
Video Full HD (1920 x 1080p) 30FPS
HD (1280 x 720p) 60FPS
Video format MP4 (H.264)
External memory Micro SD card class 6, or higher (up to 32GB)
Connection socket USB 2.0/mini HDMI
Microphone/Speaker Built-in
Storage humidity 20 % - 85%
Storage temperature -20 °C - 70 °C
Working temperature -20 °C - 60 °C
Dimensions
- Driving recorder (W x H x D)
- Suction bracket (Diameter x Height)
88.8 x 54.0 x 46.0 mm
70.0 x 86.0 mm
Weight
- Driving recorder (W x H x D)
- Suction bracket (Diameter x Height)
111.0 g
73.0 g

Specifications are subject to change without notice
2013 © WOOX Innovations Limited.All rights reserved.
This product was brought to the market by WOOX Innovations Limited or one of its affiliates, further referred
to in this document as WOOX Innovations, and is the manufacturer of the product.WOOX Innovations is the
warrantor in relation to the product with which this booklet was packaged. Philips and the Philips Shield Emblem
are registered trademarks of Koninklijke Philips N.V.”
CVR500_93_UM_V1.0
