用户手册 15User manual 1
使用手冊 29
CVR700
Question?
Contact
Philips

1
English
EN
Contents
1 Important 2
Safety 2
Notice 2
2 Your car driving recorder 4
Introduction 4
What's in the box 4
Overview of the main unit 5
3 Get started 6
Install the driving recorder 6
Insert Micro SD card 7
Turn on the driving recorder 7
For the rst time use 7
Mode switch 7
4 Video Recording 8
Loop recording 8
Secure Record 8
G-sensor data protection 8
GPS logger 8
Video settings 9
5 Photo capture 9
Photo settings 9
6 Playback 10
Video Playback 10
Photo Playback 11
File management 11
7 System settings 12
8 Product information 13
General 13

2EN
1 Important
Safety
• Read and understand all instructions
before you use your apparatus. If damage is
caused by failure to follow instructions, the
warranty does not apply.
• Use only the supplied mounting hardware
for a safe and secure installation.
• Only use attachments/accessories specied
by the manufacturer.
• To avoid short circuit, do not expose the
apparatus to rain or water.
• Never insert objects into the ventilation
slots or other openings on the apparatus.
• Clean the apparatus and frame with a soft,
damp cloth. Never use substances such as
alcohol, chemicals or household cleaners
on the apparatus.
• Risk of damage to the apparatus screen!
Never touch, push, rub or strike the screen
with any object.
• Batteries (battery pack or batteries
installed) shall not be exposed to excessive
heat such as sunshine, re or the like.
• Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
• For your own safety, do not operate the
device while driving.
• Do not install the device in the position
that blocks the driver's sight or affects the
work of the airbags.
• To void accident caused by exhaust of car
battery, disconnect the car charger before
leaving the car for the users whose car
cigarette lighter keeps power supplying
after the engine is stopped.
• When the car engine is stopped or the
power is shut down, the device still can
save the recording les with its built-in
battery power,do not remove the micro
SD card during the period to prevent data
loss.
• The apparatus shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on the
apparatus (e.g. liquid lled objects, lighted
candles).
Notice
Any changes or modications made to this
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Disposal of your old product and
batteries
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps
prevent potentially negative consequences on
the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries.The correct

3
English
EN
disposal of batteries helps prevent potentially
negative consequences on the environment and
human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.
Always bring your product to a professional to
remove the built-in battery.
2013 © WOOX Innovations Limited. All rights
reserved.
Specications are subject to change without
notice.WOOX reserves the right to change
products at any time without being obliged to
adjust earlier supplies accordingly.

4EN
2 Your car driving
recorder
Congratulations on your purchase, and
welcome to Philips! To fully benet from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With the car driving recorder, you can:
• Record videos automatically when you are
driving
• Take Photos
• Play back videos/photos
• Protect les with the built-in
G-sensor(CVR700 only)
• Record your driving paths built-in GPS data
logger (CVR700 only)
What's in the box
Check and identify the contents of your
package:
a Driving recorder
b Suction bracket
c Car charger
d mini USB cable
e mini HDMI cable (for CVR700 only)
f User Manual

5
English
EN
Overview of the main unit
a DC IN
• Connect to a car charger.
b
c OK
• Conrm a selection.
• Start/pause video recording.
• Capture photos.
d /
• Select an option.
e Power indicator
f LCD screen
g Microphone
h MENU
• menu settings.
i
M
• Press repeatedly to select a mode:
video recording mode, photo capture
mode, video playback mode and photo
playback mode.
abcde
fghijkl m n
op
j Secure Record
k Reset
• Reset to default settings.
l Micro SD card slot
m Speaker
n Camera lens
o Mini HDMI socket
p Mini USB socket

6EN
3 Get started
Install the driving recorder
Caution
•Do not install in any way which may distract the driver
or block their line of sight!
Note
•In order to get clear images,if there is any smudginess
on the windshield, please clean it before installing.
1 Connect the driving recorder with the
suction bracket as below:
2 Wipe clean the windshield.
3 Remove the protective cover of the
suction bracket and rotate the x button
to secure the suction bracket.
4 Connect the USB cable to:
• The mini USB socket of the driving
recorder
• The cigarette lighter socket of the car
A
B

7
English
EN
Insert Micro SD card
Caution
•Insert the micro SD card before using the driving
recorder.
•Insert the micro SD card with the right direction.
Wrong direction may damage the driving recorder and
the card.
Note
•The driving recorder can support the capacity of the
card up to 32GB.
•When using for rst time, please format the micro SD
card by pressing ( General Settings - Format SD
card) to ensure videos are recorded normally.
Insert a micro SD card into the card slot until
you hear a "click".
• To remove the micro SD card
Push the card inwards until you hear a "click".
» The card is disengaged.
Turn on the driving recorder
Press to turn on the driving recorder.
• To turn off the driving recorder, press and
hold for more than 3 seconds.
Note
•When using for the rst time, please set the date/time
by pressing (General Settings - Clock Settings).
For the rst time use
After the driving recorder is turned on, set the
language and format the micro SD card.
Select language
1 Press to enter the main menu.
2 Select language settings menu and press
OK to conrm.
3 Press / to select the language and
press OK to conrm.
Format SD card
1 Press to enter the main menu.
2 Select General Settings and press OK to
conrm.
3 Select SD card formatting to format the
micro SD card.
Mode switch
Press
M
repeatedly to select a mode: video
recording mode, photo capture mode, video
playback, photo playback.

8EN
4 Video Recording
When the driving recording is turned on, video
recording starts automatically. Press OK to stop
or restart recording.
Video recording screen:
a Movie resolution
b GPS information
c The remaining recording time
d Exposure value
e White balance
f Scene
Loop recording
Caution
•The driving recorder will continue running for a while
after the engine is shut down to protect last recorded
le.
•For safety reasons the built-in battery will stop charging
if the device remains at a high-temperature for period
of time. If the built-in battery runs out of power you
will need to reset the date and time.
FHD
30P
'=(
  
+< 
-69
2': >>>>
254 >>>>
f
ab
c
d
e
When the driving recorder is powered on,
video recording starts automatically.When the
recording starts, blinks.
The driving recorder can record video les in
a specied time frame (You can set the record
time in [Movie Mode] - [Movie Clip Time]).
The number of les is dependant on the size of
the memory card. The rst recorded video will
be overwritten when the micro SD card is full.
Note
•When recording videos, you can turn the sound record
on or off in [Movie Mode] - [Sound Record].
Secure Record
During video recording, press to protect the
present le and the previous le from being
overwritten.
G-sensor data protection
When the G-sensor is triggered, the driving
recorder will protect the present video le and
the previous le automatically to ensure they
won't be overwritten by loop recording (for
CVR700 only).
You can set the [Protect Level] in [General
Settings].
GPS logger
The driving recorder receives a GPS signal and
records the date, time and driving path.

9
English
EN
Video settings
1 Press to access system menus.
2 Select [Movie Mode] and press to OK enter
video settings.
Through video settings menu, you can adjust
below settings.
• [Movie Mode]
• [Movie Quality]
• [Movie Clip Time]
• [Sound Record]
• [MIC Sensitivity]
• [Scene]
• [Exposure]
• [White Balance]
图像参数
0RYLH0RGH
6(/(&7 2.
0RYLH0RGH
0RYLH4XDOLW\
0RYLH&OLS7LPH
6RXQG5HFRUG
5 Photo capture
In photo capture mode, press OK to take photos,
press / to zoom in/zoom out.
Photo capture screen:
a Photo resolution
b Zoom in/zoom out
c The remaining photos
d Exposure value
e White balance
f Scene
Photo settings
1 Press to access system menus.
a
b
c
d
e
3M
'=(
+< 
0RYLH0RGH

10 EN
2 Select [Still Capture] and press to OK enter
video settings.
Through video settings menu, you can adjust
below settings.
• [Still Image Size]
• [Still Quality]
• [Scene]
• [Exposure]
• [White Balance]
• [ISO Sensitivity]
• [Color]
• [Effect]
图像参数
6WLOO,PDJH6L]H
6(/(&7 2.
6WLOO&DSWXUH
6WLOO4XDOLW\
6FHQH
([SRVXUH
6 Playback
Press
M
repeatedly to enter video playback
mode or photo playback mode.
Video Playback
1 In video playback mode, press / to
select a video.
2 Press OK to start video playback.
• Press
M
to return to the video list.
• During playback, press / to fast-
forward or fast-reverse the video.
• Press OK to pause or restart the
playback.

B'6&6$9,
>@


029B6$9,


11
English
EN
Photo Playback
1 In photo playback mode, press / to
select a photo.
2 Press OK to view the photo.
• Press
M
to return to the photo list.

B'6&3-3*



029B6$9,

File management
1 In the video/photo playback mode, press
to access or exit the le management
menu.
2 Press / to select an option.
3 Press OK to conrm an option.
• Adjust volume
• Adjust from 0-9
• Delete les
• : Delete a single le
• : Delete all les
• Protect Files
• : Protect a single le
• : Protect all les
• : Remove protection from a single
le
• : Remove protection from all les
图像参数
9ROXPH
6(/(&7 2.
3OD\EDFN
'HOHWH
3URWHFW

12 EN
7 System settings

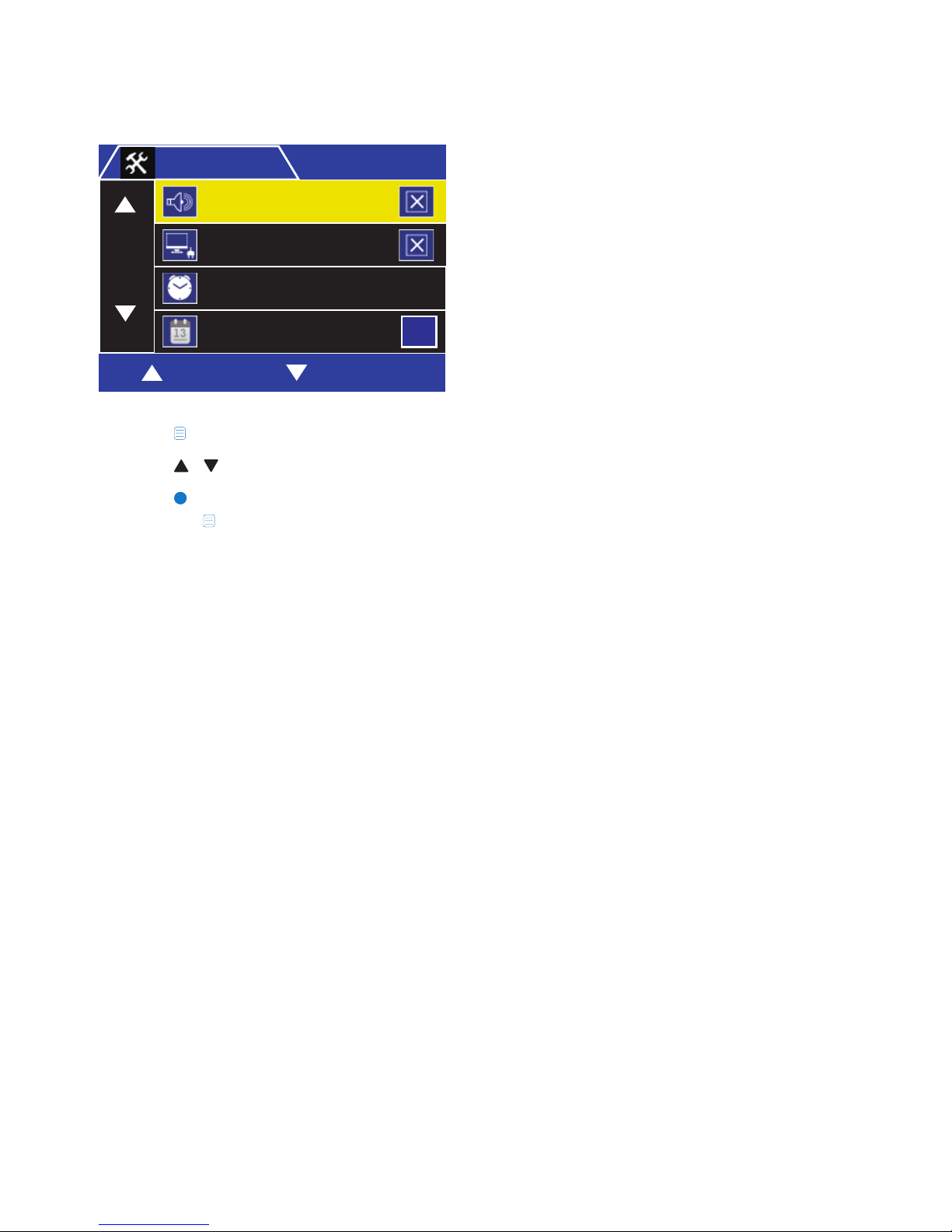

1 Press and select [General Settings].
2 Press / to select the menu.
3 Press OK to enter the menu.
• Press to exit the current menu.
You can adjust the below settings:
• [Beep]
• [Power Off]
• [Clock Settings]
• [Date Format]
• [TV System]
• [HDMI Output]
• [Flicker]
• [USB Function]
• [LCD Rotate]
• [LCD Power Save]
• [Protect Level]
• [GPS Status]
• [Time Zone Select]
• [Reset Setup]
• [Format SD-Card]
• [SD-Card INFO]
• [FW Version]
图像参数
%HHS
6(/(&7 2.
*HQHUDO6HWWLQJV
3RZHU2II
&ORFN6HWWLQJV
'DWH)RUPDW
00
''
<<<<

13
English
EN
8 Product information
Note
•Product information is subject to change without prior notice.
General
Battery Rechargeable lithium battery (Designed for last data
backup purpose only, not for normally video recording)
Power supply Car charger (input DC 12 - 24 V, output: DC 5.5 V)
LCD screen 1.5 inch color TFT
Lens 95° wide angle
Video Full HD(1920 x 1080p) 30FPS
HD (1280 x 720p) 30/60FPS
VGA (640 x 480p) 30 FPS
Video format AVI (H.264)
Digital zoom 4X digital zoom (photo capture mode)
External memory Micro SD card class 6 or higher (up to 32GB)
Connection socket USB 2.0/mini HDMI
Microphone/Speaker Built-in
GPS built-in GPS module (CVR700 only)
G-sensor built-in (CVR 700 only)
System requirement Windows2000/XP/Vista/Windows7/Windows 8, Mac OS
X 10.3.6 or higher
Storage humidity 20 % - 85%
Storage temperature -20 °C - 70 °C
Working temperature -20 °C - 60 °C
Dimensions
- Driving recorder (W x H x D)
- Suction bracket (Diameter x Height)
98.0 x 62.070 x 36.0 mm
70.0 x 45.0 mm
Weight
- Driving recorder (W x H x D)
- Suction bracket (Diameter x Height)
82.0 g (CVR200), 93.0 g (CVR700)
51.0g

14 EN

Specifications are subject to change without notice
2013 © WOOX Innovations Limited.All rights reserved.
This product was brought to the market by WOOX Innovations Limited or one of its affiliates, further referred
to in this document as WOOX Innovations, and is the manufacturer of the product.WOOX Innovations is the
warrantor in relation to the product with which this booklet was packaged. Philips and the Philips Shield Emblem
are registered trademarks of Koninklijke Philips N.V.”
CVR200_CVR700_93_UM_V1.0
