3EN
1 Important
Safety
Know these safety symbols
This 'bolt of lightning' indicates uninsulated
material within your unit may cause an electrical
shock. For the safety of everyone in your
household, please do not remove product
covering.
The 'exclamation mark' calls attention to
features for which you should read the enclosed
literature closely to prevent operating and
maintenance problems.

shock, this apparatus should not be exposed to

such as vases, should not be placed on this
apparatus.
CAUTION:To prevent electric shock, fully
insert the plug. (For regions with polarized
plugs:To prevent electric shock, match wide
blade to wide slot.)
Important Safety Instructions
a Read these instructions.
b Keep these instructions.
c Heed all warnings.
d Follow all instructions.
e Do not use this apparatus near water.
f Clean only with dry cloth.
g Do not block any ventilation openings.
Install in accordance with the
manufacturer's instructions.
h Do not install near any heat sources such
as radiators, heat registers, stoves, or

produce heat.
i Do not defeat the safety purpose of
the polarized or grounding-type plug.
A polarized plug has two blades with
one wider than the other.A grounding
type plug has two blades and a third
grounding prong.The wide blade or the
third prong are provided for your safety.

your outlet, consult an electrician for
replacement of the obsolete outlet.
j Protect the power cord from being
walked on or pinched, particularly at
plugs, convenience receptacles, and the
point where they exit from the apparatus.
k Only use attachments/accessories

l Use only with the cart, stand, tripod,
!"
manufacturer or sold with the apparatus.
When a cart is used, use caution when
moving the cart/apparatus combination to
avoid injury from tip-over.
m Unplug this apparatus during lightning
storms or when unused for long periods
of time.
n #$
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power-supply cord or plug
is damaged, liquid has been spilled or

4EN
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or
has been dropped.
o Battery usage CAUTION – To prevent
battery leakage which may result in bodily
injury, property damage, or damage to
the unit:
 Install all batteries correctly, + and - as
marked on the unit.
 Do not mix batteries (old and new or
carbon and alkaline, etc.).
 Remove batteries when the unit is not
used for a long time.
pApparatus shall not be exposed to
dripping or splashing.
q Do not place any sources of danger on
$%"

r This product may contain lead and
mercury. Disposal of these materials
may be regulated due to environmental
considerations. For disposal or recycling
information, please contact your local
authorities or the Electronic Industries
Alliance: www.eiae.org.
sWhere the plug of the Direct Plug-in
Adapter is used as the disconnect device,
the disconnect device shall remain readily
operable.
Note
 The USB socket is for data transmission only.
 The batteries shall not be exposed to excessive heat

2 Your Docking
Speaker
Congratulations on your purchase, and

support that Philips offers, register your product
at www.philips.com/welcome.
If you contact Philips, you will be asked for the
model and serial number of this apparatus.The
model number and serial number are on the
bottom of the apparatus.Write the numbers
here:
Model No. __________________________
Serial No. ___________________________
Introduction
With this docking speaker, you can
 enjoy audio from the iPod/iPhone, and
other external audio devices; and
 synchronize the iPod/iPhone with your
computer through USB socket.
What's in the box
Check and identify the contents of your
package:
 Main unit
 AC power adaptor
 Quick start guide

5EN
Overview of the main unit
a Dock for the iPod/iPhone
b /
 Adjust volume.
 As LED indicators, show system status.
c
 Turn the docking speaker on.
 Switch the docking speaker to standby
mode.
d Power supply socket
 Connect AC power.
e
 Sync with PC through a USB cable.
f MP3-LINK
 Connect an external audio device.
a
b
c
d
e
f
3 Get started
Always follow the instructions in this chapter in

Connect power
This docking speaker can be powered by either
AC power or batteries.
Option 1:AC power
Caution
 Risk of product damage! Make sure that the power
supply voltage matches the voltage printed on the
bottom of the unit.
 Risk of electric shock! When you unplug the AC
adaptor, always pull the plug from the socket. Never
pull the cord.
Connect the AC power adaptor to:
 the power socket at the back of the
docking speaker.
 the wall socket.

6EN
Option 2: Battery power
Caution
 Risk of explosion! Keep batteries away from heat,

 Remove batteries if they are exhausted or will not be
used for a long time.
 Batteries contain chemical substances, so they should
be disposed of properly.
1 Open the battery compartment.
2 Insert 4 x 1.5V AA batteries with correct
polarity (+/-) as indicated.
3 Close the battery compartment.
Turn on
Press to turn the docking speaker on.
» The / LED indicators light up.
Switch to standby mode
The docking speaker switches to standby mode
in the following situation:
 Press again;
 he speaker is
idle for 15minutes
 he iPod/iPhone or
external audio deviceis disconnected
.
» The / LED indicators light off.

7EN
4 Play
Play from iPod/iPhone
You can enjoy audio from your iPod/iPhone
through this docking speaker.
Compatible iPod/iPhone
The docking speaker supports the following
iPod and iPhone models:
Made for.
 iPod touch (1st, 2nd, 3rd, and 4th
generation)
 iPod classic
 iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th
generation)
 iPhone 4S
 iPhone 4
 iPhone 3GS
 iPhone 3G
 iPhone
Listen to the iPod/iPhone

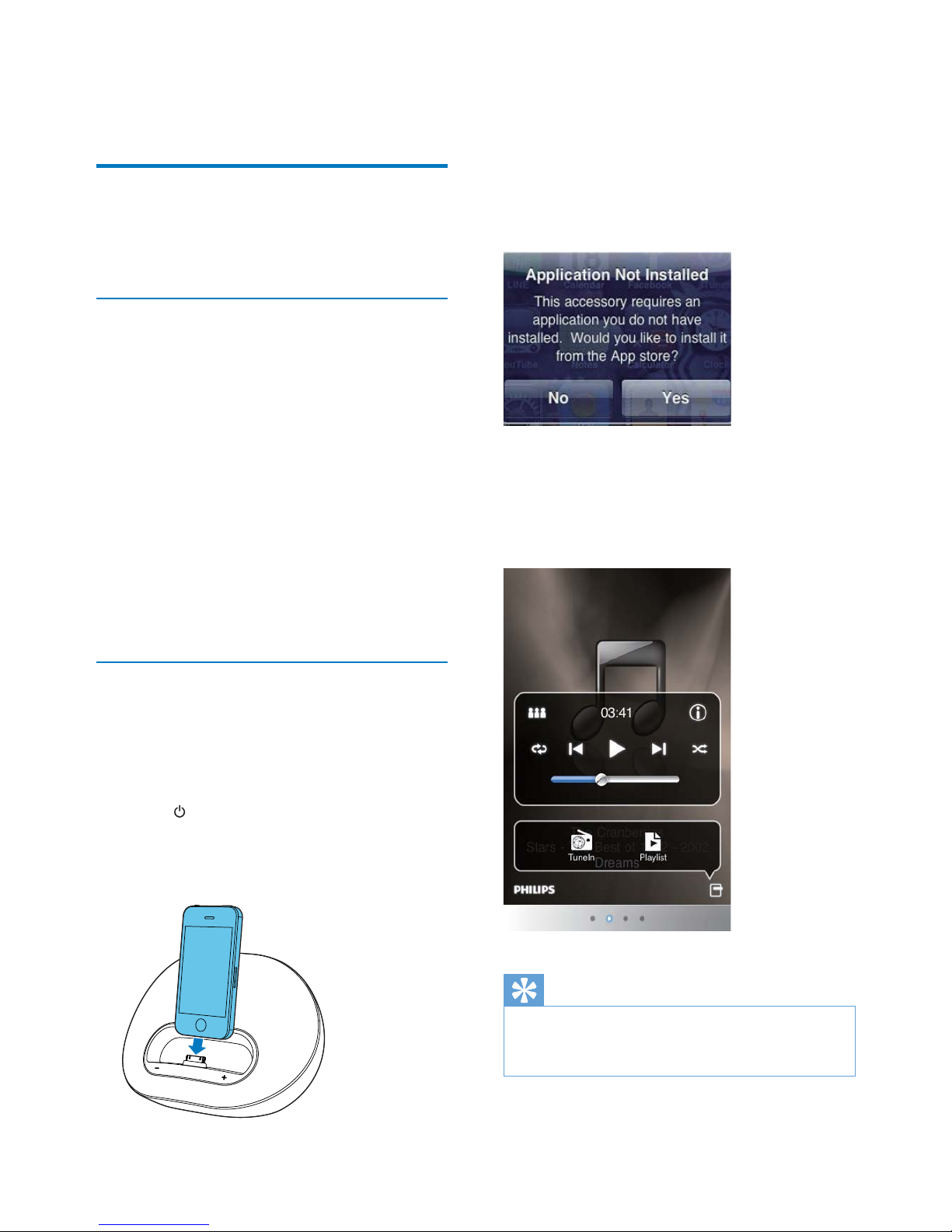

Philips DockStudio app brings a suite of new
features to your docking speaker.To enjoy more
features, you are recommended to install the
free DockStudio app.
1 Press to turn the docking speaker on.
» The LED indicators light up.
2 Insert the iPod/iPhone into the dock.
3 
install DockStudio app on your iPod/
iPhone.
4 Tap [Yes] (yes) to accept the installation

5 Follow the on-screen instructions to
complete the installation.
6 Launch the app after the installation.
7 Play audio on your iPod/iPhone.
» Audio comes out through this docking
speaker.
Tip
 With the DockStudio app, you can enjoy music, set
clock and alarm, adjust sound settings, and update


8EN
&(
DockStudio
app will search for it automatically and ask you
to download it.
Note
 Make sure that your iPod/iPhone is inserted in the
docking speaker and connected to the Internet.
1 OK.
2 Follow the on-screen instructions to

Note
 Do not disconnect power or undock the iPod/iPhone
during the updating process.
Charge the iPod/iPhone
Note
 If the docking speaker is operated on the batteries, you
cannot charge your iPod/iPhone.
When the docking speaker is connected to
AC power, the docked iPod/iPhone begins to
charge.
Tip
 For certain iPod models, it may take up to a minute
before the charging indication appears.

9EN
Sync iPod/iPhone with PC
Note
 
your PC.
1 Insert the iPod/iPhone in the dock.
2 Press to switch to standby mode.
» The LED indicators light off.
3 Connect your docking speaker and PC
with a USB cable.
4 Launch iTunes to synchronize your docking
speaker with PC.
» The docked iPod/iPhone is
synchronized with PC successfully
through the iTunes.
Note
 
some USB cables may not work with this device.
Play from an external device
With this docking speaker, you can also enjoy
audio from an external device such as an MP3
player.
Note
 Make sure that no iPod/iPhone is docked in the speaker.
1 Press to turn the docking speaker on.
2 Connect the MP3 link cable (not supplied) to:
 the MP3-LINK socket at the back of
the docking speaker.
 the headphone socket on an external
device.
» The docking speaker switches to MP3
link mode automatically.
3 Play audio on the device (see the device's
user manual).
Adjust volume
To adjust volume:
 Press +/- on your docking speaker; or
 Adjust the volume control of your iPod/
iPhone or external device.
Tip
 If the docking speaker is powered by batteries, the
volume is lower than that by AC supply.

10EN
5 Troubleshooting
Warning
 Never remove the casing of this apparatus.
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before

unsolved, go to the Philips web site
(www.philips.com/welcome).When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
)Make sure that the AC power adaptor of
the device is connected properly.
)Make sure that there is power at the AC
outlet.
)Make sure that the batteries have been
installed correctly.
No sound or poor sound
)Adjust the volume of your docking speaker.
)Adjust the volume of your iPod/iPhone or
external audio device.
No response from the unit
)Disconnect and reconnect the AC power
plug, and then switch on the device again.
Cannot sync with PC
)Switch the docking speaker to standby
mode.
)Try another USB cable.
)Install iTunes in PC properly.
6 Specifications
*
Rated Output Power 2 X 5 W RMS
General information
Power supply
- AC Power
- Battery
Model: AS190-090-
AA190 (Philips);
Input: 100-240 V ~,
50/60Hz, 0.7A;
Output: 9 V 1.9 A;
4 x AA batteries
Operation Power
Consumption <10 W
Standby Power
Consumption <0.5 W
Max. load for iPod/
iPhone 5 V 1 A
Dimensions
- Main Unit
(W x H x D) 224 x 162 x 120 mm
Weight
- Main Unit
- With Packing
1.1 kg
1.6 kg

11 EN
7 Notice

device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s

This Class B digital apparatus complies with
Canadian ICES-003.
This device complies with Industry Canada
license-exempt RSS standard(s).
The device complies with the FCC-Rules, Part-
15. Operation is subject to the following two
conditions:
 This device may not cause harmful
interference, and
 This device must accept any interference
received, including interference that may
cause undesired operation.
Disposal of your old product
and batteries
Your product is designed and manufactured

which can be recycled and reused.
Never dispose of your product with other
household waste. Please inform yourself about
the local rules on the separate collection of
electrical and electronic products and batteries.
The correct disposal of these products helps

the environment and human health.
Your product contains batteries, which cannot
be disposed of with normal household waste.
Please inform yourself about the local rules on
separate collection of batteries.The correct
disposal of batteries helps prevent potentially

human health.
Please visit www.recycle.philips.com for
additional information on a recycling center in
your area.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old

“Made for iPod” and “Made for iPhone”
mean that an electronic accessory has been


the developer to meet Apple performance
standards. Apple is not responsible for the
operation of this device or its compliance with
safety and regulatory standards. Please note that
the use of this accessory with iPod or iPhone
may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc.,
registered in the U.S. and other countries.
Note
 The type plate is located on the bottom of the
apparatus.

Specifications are subject to change without notice
© 2012 Koninklijke Philips Electronics N.V.
All rights reserved.
DS3100_37_UM_V1.0
