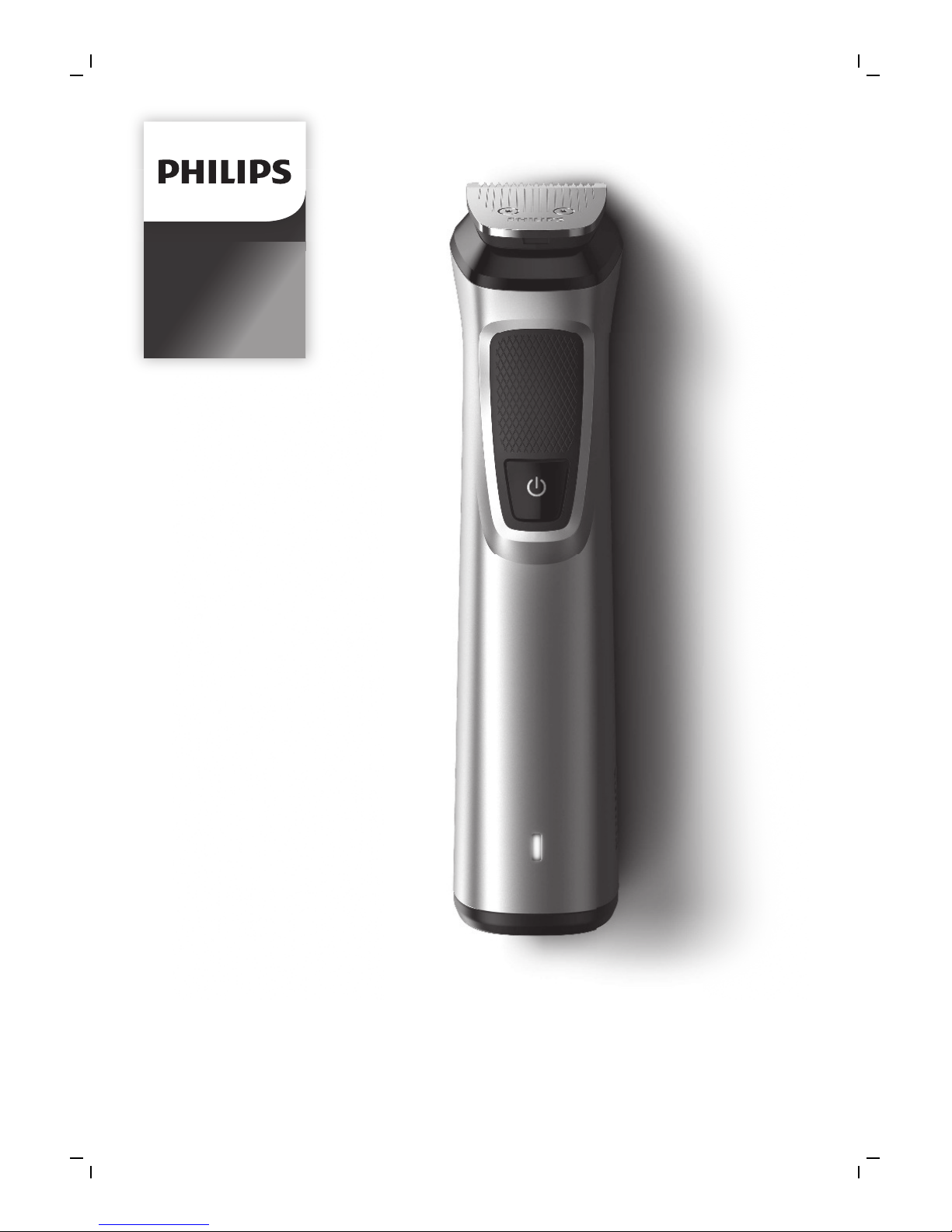

Philips MG7730 User manual

MG7730
MG7720
MG77 1 5
MG77 1 0

MG77 1 5
MG7720
MG7730
MG77 1 0
MG7720
MG7730
MG7710
MG7715
MG7720
MG7730
MG7710 / MG7715 / MG7720
MG77 1 0
MG77 1 5
MG7720
MG7730
3-7 mm
1 mm 2 mm
5 mm
3 mm
MG7730 12 mm 16 mm
4 mm 9 mm
12 mm 16 mm
9 mm
1
2
3
10
7 8 9
5
6
4
13
1918
16 171514
21 2220
23
24
26
25
1211

empty page before TOC

English 6
Bahasa Indonesia 23
Bahasa Melayu 42
Português do Brasil 61
Tiếng Việt 80
ภาษาไทย 97
简体中文 115
繁體中文 130
한국어 144
ﺔﻴﺑﺮﻌﻟﺍ 160
ﯽﺳرﺎﻓ 176

English
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benefit from the support that
Philips offers, register your product at
www.philips.com/welcome.
General description (Fig. 1)
1 Full-size hair trimmer
2 On/off button
3 Battery status indicator
4 Socket for small plug
5 Body shaver (MG7730, MG7720, MG7715 only)
6 Skin protector (MG7730, MG7720, MG7715 only)
7 Precision trimmer (MG7730, MG7720, MG7715,
MG7710 only)
8 Precision shaver (MG7730, MG7720, MG7710
only)
9 Nose trimmer
10 Extra-wide hair trimmer (MG7730 only)
11 Hair comb regular 3/8in. (9mm) (MG7720,
MG7715, MG7710 only)
12 Hair comb regular 15/32in. (12mm) (MG7720,
MG7715, MG7710 only)
13 Hair comb regular 21/32in. (16mm) (MG7720,
MG7715, MG7710 only)
14 Hair comb wide 5/32in. (4mm) (MG7730 only)
15 Hair comb wide 3/8in. (9mm) (MG7730 only)
16 Hair comb wide 15/32in. (12mm) (MG7730 only)
17 Hair comb wide 21/32in. (16mm) (MG7730 only)
18 Body comb 1/8in. (3mm)
19 Body comb 3/16in. (5mm)
20 Stubble comb 3/64in. (1mm)
21 Stubble comb 5/64in. (2mm)
22 Adjustable comb (3-7mm)
23 Supply unit
24 Small plug
25 Cleaning brush
26 Pouch
6English

Note: The accessories supplied may vary for
different products. The box shows the accessories
that have been supplied with your appliance.
Important safety information
Read this important information carefully before
you use the appliance and its accessories and save
it for future reference. The accessories supplied
may vary for different products.
Danger
- Keep the supply unit dry.
Warning
- To charge the battery, only use the detachable
supply unit (HQ8505) provided with the
appliance.
- The supply unit contains a transformer. Do not
cut off the supply unit to replace it with another
plug, as this causes a hazardous situation.
- This appliance can be used by children aged
from 8 years and above and persons with
reduced physical, sensory or mental capabilities
or lack of experience and knowledge if they
have been given supervision or instruction
concerning use of the appliance in a safe way
and understand the hazards involved. Children
shall not play with the appliance. Cleaning and
user maintenance shall not be made by
children without supervision.
- Always unplug the appliance before you clean it
under the tap.
7
English

- Always check the appliance before you use it.
Do not use the appliance if it is damaged, as
this may cause injury. Always replace a
damaged part with one of the original type.
- Do not open the appliance to replace the
rechargeable battery.
Caution
- Never immerse the charging stand in water and
do not rinse it under the tap.
- Never immerse the appliance in water. Do not
use the appliance in the bath or shower.
- Never use water hotter than 60°C to rinse the
appliance.
- Only use this appliance for its intended purpose
as shown in the user manual.
- For hygienic reasons, the appliance should only
be used by one person.
- Do not use the supply unit in or near wall
sockets that contain an electric air freshener to
prevent irreparable damage to the supply unit.
- Never use compressed air, scouring pads,
abrasive cleaning agents or aggressive liquids
such as petrol or acetone to clean the
appliance.
Electromagnetic fields (EMF)
This Philips appliance complies with all applicable
standards and regulations regarding exposure to
electromagnetic fields.
8English

General
- This appliance can be safely cleaned under the
tap.
- The supply unit is suitable for mains voltages
ranging from 100 to 240 volts.
- The supply unit transforms 100-240 volts to a
safe low voltage of less than 24 volts.
Charging
Battery status indications
- When the battery is almost empty, the battery
status indicator flashes orange.
- When the appliance is charging, the battery
status indicator flashes white slowly.
- During quick charge, the battery status indicator
flashes white. After approx. 5 minutes of
charging, the appliance contains enough power
for one cordless trimming session.
- When the battery is fully charged, the battery
status indicator lights up white continuously.
Note: After approx. 30 minutes, the light goes out
automatically.
Charging
Charge the appliance before you use it for the first
time and when the display indicates that the
battery is almost empty. When the appliance has
charged for 1 hours, it has a cordless operating
time of up to 2 hours.
9
English

1Make sure the appliance is switched off.
2
1
2Insert the small plug into the appliance and put
the supply unit in the wall socket.
3After charging, remove the supply unit from the
wall outlet and pull the small plug out of the
appliance.
Quick charge
After approx. 5 minutes charging, the appliance
contains enough power for one cordless trimming
session.
Using the appliance
Note: This appliance can only be used without
cord.
Note: Switch off and clean the appliance after each
use.
Detaching and attaching cutting elements
1To detach a cutting element, push upwards
against the teeth of the cutting element and
take it off the handle.
1
2
2To attach a cutting element, insert the lug of the
cutting element into the guiding slot at the front
and push the back of the cutting element onto
the appliance ('click').
10 English

Detaching the precision shaver and nose
trimmer
1Place your finger on the arrow at the back of
the attachment and push it off the handle in the
direction of the arrow.
Attaching and detaching combs
1
2
1To attach any type of guard onto a cutting
element, slide the front part of the guard onto
the teeth of the cutting element. Then push
down the center of the guard with your fingers
or the palm of your hand ('click').
2To detach any type of comb from the cutting
element, carefully pull its back part off the
appliance and then slide it off the cutting
element.
Note: When trimming for the first time, start by
using the comb with the maximum trimming
length setting to familiarize yourself with the
appliance.
Switching the appliance on and off
Press the on/off button once to turn the appliance
on or off.
Attachments for use on beard
Full-size hair trimmer
Use the full-size hair trimmer without a comb to
trim hair close to the skin (to a length of 1/32in
11
English

(0.5mm) or to create clean lines around your
beard, neck and sideburns.
1To trim hair close to the skin, place the flat side
of the cutting element against your skin and
make strokes against the direction of hair
growth.
2For contouring, hold the cutting element
perpendicular to the skin and move it upwards
or downwards with gentle pressure.
Beard combs
Attach a beard comb to the full-size hair trimmer
to trim your beard and moustache evenly. The
appliance comes with 5 beard combs. The hair
length settings are indicated on the combs. The
settings correspond to the remaining hair length
after trimming.
Comb inch mm
Stubble comb 3/64in. 1mm
Stubble comb 5/64in. 2mm
Adjustable beard
comb 1/8in.- 9/32in. 3mm-7mm
1Attach the comb to the full-size hair trimmer.
= mm
2Adjustable comb: Push the length selector to
the left or right to select the desired hair length
setting.
12 English

3To trim the most effective way, move the comb
against the direction of hair growth. Make sure
the surface of the comb always stays in contact
with the skin.
Attachments for use on body
- Use the green body combs to trim body hair.
- When you trim for the first time, use the
5mm/3/16in. body comb to familiarize yourself
with the appliance.
- Make sure hair is clean and dry as wet hair
tends to stick to the body.
- When trimming sensitive areas, always use a
body comb.
- Since all hairs do not grow in the same
direction, you may want to try different
trimming positions (i.e. upwards, downwards, or
across). Practice is best for optimum results.
- Always make smooth and gentle movements
and be sure the surface of the comb always
stays in contact with your skin.
- When too many hairs have accumulated on the
appliance, blow the hairs out before use, for
best trimming results.
Body combs
Attach a body comb to the full-size hair trimmer to
trim hairs below the neckline. The appliance comes
with 2 body combs. The hair length settings are
indicated on the combs. The settings correspond
to the remaining hair length after trimming.
Comb inch mm
Body comb (green) 1/8in. 3mm
Body comb (green) 3/16in. 5mm
13
English

1Attach a body comb to the full-size hair
trimmer.
2To trim in the most effective way, stretch the
skin with your free hand and move the comb
against the direction of hair growth. Make sure
the surface of the comb always stays in contact
with the skin.
Body shaver
Attach the body shaver to the appliance, to shave
hairs below the neckline such as your armpits and
chest. Only use the body shaver with the skin
protector.
1Attach the body shaver to the appliance.
2Attach the skin protector to the full-size hair
trimmer.
3To shave in the most effective way, stretch the
skin with your free hand and move the shaver
against the direction of hair growth. Make sure
the surface of the shaver always stays in full
contact with the skin.
Attachments for use on head
Extra-wide hair trimmer
Use the extra-wide hair trimmer without a comb to
clip the hair on your head very close to the skin
(1/32in (0.5mm) or to contour the neckline and
area around the ears.
1To contour the hairline around the ears, comb
the hair ends over the ears.
14 English

2Tilt the appliance in such a way that only one
edge of the cutter blades touches the hair ends
when you shape the contours around the ears.
3To contour the nape of the neck or sideburns,
turn the appliance and make downward
strokes.
4Move the appliance slowly and smoothly
following the natural hairline.
Hair combs wide
Attach a wide hair comb to the extra-wide hair
trimmer to evenly trim the hairs on your head. The
appliance comes with 4 wide hair combs. The hair
length settings are indicated on the combs. The
settings correspond to the remaining hair length
after trimming.
Comb inch mm
Hair comb 5/32in. 4mm
Hair comb 3/8in. 9mm
Hair comb 15/32in. 12mm
Hair comb 21/32in. 16mm
1Attach a comb to the extra-wide hair trimmer.
2Move the trimmer slowly over the crown from
different directions to achieve an even result.
Make sure the surface of the comb always stays
in contact with the skin.
-Always move the trimmer against the
direction of hair growth. Press lightly.
-Make overlapping passes over the head to
ensure that all hair that should be cut has
been cut.
15
English

Full-size hair trimmer
Use the full-size hair trimmer without a comb to
clip the hair on your head very close to the skin
(1/32in (0.5mm) or to contour the neckline and
area around the ears.
1To contour the hairline around the ears, comb
the hair ends over the ears.
2Tilt the appliance in such a way that only one
edge of the cutter blades touches the hair ends
when you shape the contours around the ears.
3To contour the nape of the neck or sideburns,
turn the appliance and make downward
strokes.
4Move the appliance slowly and smoothly
following the natural hairline.
Hair combs regular
Attach a regular hair comb to the full size hair
trimmer to evenly trim the hairs on your head. The
appliance comes with 3 hair combs. The hair
length settings are indicated on the combs. The
settings correspond to the remaining hair length
after trimming.
Comb inch mm
Hair comb 3/8in. 9mm
Hair comb 15/32in. 12mm
Hair comb 21/32in. 16mm
1Attach a comb to the full size hair trimmer.
16 English

2Move the trimmer slowly over the crown from
different directions to achieve an even result.
Make sure the surface of the comb always stays
in contact with the skin.
-Always move the trimmer against the
direction of hair growth. Press lightly.
-Make overlapping passes over the head to
ensure that all hair that should be cut has
been cut.
Precision attachments for use on face
Precision trimmer
Use the precision trimmer to create fine lines and
contours around your facial style, close to the skin
(to a length of 1/32in./0.5mm).
1Hold the precision trimming head perpendicular
to the skin and move the trimming head
upwards or downwards with gentle pressure.
Nose trimmer
Use the nose trimmer to trim your nose hair and
ear hair.
- Make sure nasal passages are clean. Make sure
outer ear channels are clean and free from wax.
- Do not insert the tip more than 3/16in./5mm.
- Always clean the attachment after each use.
Trimming nose hair
1Gently move the tip in and out of nose while
turning it around to remove unwanted hairs.
17
English

Trimming ear hair
1Slowly move the tip round the ear to remove
hairs that stick out beyond the rim of the ear.
2Gently move the tip in and out of the outer ear
channel to remove unwanted hairs.
Precision shaver
Use the precision shaver after trimming, to shave
unwanted hairs on cheeks, chin and along the
beard with precision. Make sure to pre-trim your
beard first, with the full-size hair trimmer without
comb, to obtain the best result.
Note: Use the precision shaver to remove
remaining hairs and detailing your beard style. It is
not suitable for a full face shave.
1Gently press the precision shaver onto the skin
and shave along contoured edges to remove
any unwanted hairs.
Cleaning
Never use scouring pads, abrasive cleaning
agents or aggressive liquids such as gasoline or
acetone to clean the product.
Never dry the trimmer teeth with a towel or
tissue, as this may damage the trimmer teeth.
After every use: cleaning under the tap
1Turn off the appliance and disconnect from the
wall socket.
2Remove any comb or cutting element from the
appliance.
3Rinse the hair chamber under a warm tap.
18 English

4Clean the cutting element and comb under a
warm tap.
5Carefully shake off excess water and let all parts
air dry completely.
Thorough cleaning
1Turn off the appliance and disconnect from the
wall socket.
2Wipe the handle of the appliance with a dry
cloth.
3Remove any comb or cutting element from the
appliance.
4Remove any hairs that have accumulated in the
hair chamber with the cleaning brush supplied.
5Remove any hairs that have accumulated in the
cutting elements and/or combs with the
cleaning brush supplied.
6Clean the cutting elements under a warm tap.
7Clean the combs under a warm tap.
8Carefully shake off excess water and let all parts
air dry completely.
Cleaning the nose trimmer
Clean the nose trimmer immediately after use and
when a lot of hair or dirt has accumulated on the
nose trimmer head.
1Rinse the nose trimmer head with hot water.
2Turn on the appliance and rinse the nose
trimmer head once more to remove any
remaining hairs. Then turn off the appliance
again.
For a thorough clean, immerse the nose trimmer
head in a bowl with warm water for a few minutes
19
English

and then turn on the appliance to remove
stubborn hair/debris.
3Carefully shake off excess water and let all parts
air dry completely.
Cleaning the precision shaver
1Hold the precision shaver at the grooves on
each side and pull the top part off the bottom
part.
2Blow and/or shake out any hair that has
accumulated inside the precision shaver.
Do not use the cleaning brush to remove hairs
from the shaving foil.
3Clean the top part of the precision shaver under
a warm tap.
4Carefully shake off excess water and let all parts
air dry completely.
5Reattach the top part onto the bottom part of
the precision shaver.
Cleaning the body shaver
1Remove the skin protector upwards off the
shaver.
20 English
