Philips S7310 User manual

Question?
有疑问?
Contact Philips
请联系飞利浦
S7370
S7310

1

S7370, S7310
ENGLISH 6
简体中文 23

6
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benet from the support that Philips
offers, register your product at www.philips.com/
welcome.
Please read this user manual, as it contains information
about the features of this shaver as well as some tips
to make shaving easier and more enjoyable.

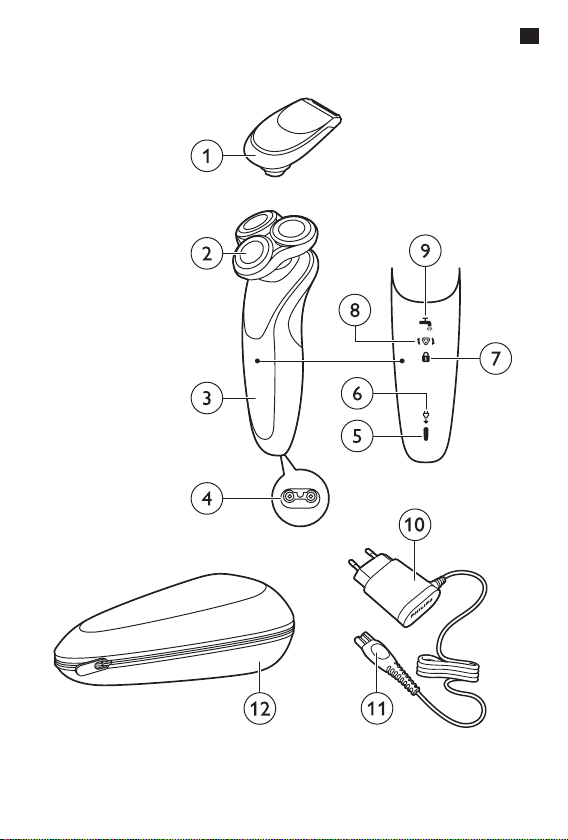

General description (Fig. 1)
1 Click-on trimmer attachment
2 Click-on shaving unit
3 Handle
4 Socket for small plug
5 Battery charge indicator
6 ’Unplug for use’ symbol
7 Travel lock symbol
8 Replacement reminder
9 Cleaning reminder
10 Adapter
11 Small plug
12 Pouch
Important
Read this important information carefully before
you use the appliance and save this leaet for future
reference.
Danger
- Keep the adapter dry.
Warning
- The adapter contains a transformer. Do not cut
off the adapter to replace it with another plug,
as this causes a hazardous situation.
ENGLISH

- This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience
and knowledge, unless they have been given
supervision or instruction concerning use of the
appliance by a person responsible for their safety.
- Children should be supervised to ensure that they
do not play with the appliance.
- Always unplug the shaver before you clean it
under the tap.
Caution
- Never use water hotter than 80°C to rinse
the shaver.
- Do not use the appliance, adapter or any other
part if it is damaged, as this may cause injury.
Always replace a damaged adapter, charging
stand or part with one of the original type.
- Never use compressed air, scouring pads,
abrasive cleaning agents or aggressive liquids such
as petrol or acetone to clean the appliance.
- Water may leak from the socket at the bottom
of the shaver when you rinse it.This is normal
and not dangerous because all electronics are
enclosed in a sealed power unit inside the shaver.
Compliance with standards
- This shaver is waterproof and complies with the
internationally approved safety regulations.
It is suitable for use in the bath or shower and for
cleaning under the tap. For safety reasons,
the shaver can therefore only be used cordlessly.
- This Philips appliance complies with all applicable
standards and regulations regarding exposure to
electromagnetic elds.
ENGLISH 7

General
- The adapter is equipped with an automatic
voltage selector and is suitable for mains voltages
ranging from 100 to 240 volts.
- The adapter transforms 100-240 volts to a safe
low voltage of less than 24 volts.
The display
Charging
Note:This appliance can only be used cordlessly.
- Charging takes approx. 1 hour.
- Quick charge:When the shaver does not contain
enough energy for one shave, the battery charge
indicator ashes fast. When the battery charge
indicator starts to ash slowly, the shaver contains
enough energy for one shave.
- If you leave the appliance connected to the mains,
the charging process continues.To indicate that
the appliance is charging, the battery charge
indicator ashes white slowly.
Battery fully charged
Note:This appliance can only be used cordlessly.
Note:When the battery is full, the display switches
off automatically after 30 minutes.When you press
the on/off button during charging, the ‘unplug for use’
symbol ashes white to remind you that you have to
disconnect the appliance from the mains.
ENGLISH8

- When the battery is fully charged, the battery
charge indicator lights up white continuously.
Battery low
- When the battery is almost empty, the battery
charge indicator ashes orange.
Cleaning reminder
For optimal shaving performance, we advise you to
clean the shaver after every use.
- When you switch off the shaver, the cleaning
reminder ashes to remind you to clean the
shaver.
Travel lock
You can lock the shaver when you are going to
travel.The travel lock prevents the shaver from being
switched on by accident.
Activating the travel lock
1 Press the on/off button for 3 seconds to enter
the travel lock mode.
ENGLISH 9

,While you activate the travel lock, the travel lock
symbol lights up white continuously.When the
travel lock is activated, the travel lock symbol
ashes.
Deactivating the travel lock
1 Press the on/off button for 3 seconds.
,The travel lock symbol ashes and then lights up
continuously.
The shaver is now ready for use again.
Replacing shaving heads
For maximum shaving performance, we advise you
to replace the shaving heads every two years.
- The appliance is equipped with a replacement
reminder which reminds you to replace the
shaving heads.The replacement reminder lights up
white continuously.
Note: After replacing the shaving heads, you need to
reset the shaver by pressing the on/off button for
7 seconds.
’Unplug for use’ reminder
- The appliance is equipped with an ‘unplug for use’
reminder. The ‘unplug for use’ symbol ashes white
to remind you that you have to disconnect the
appliance from the mains.
ENGLISH10

Charging
Charging takes approx. 1 hour.
A fully charged shaver has a shaving time of up to
50 minutes.
Note:This appliance can only be used cordlessly.
Charge the shaver before you use it for the rst
time and when the display indicates that the battery
is almost empty .
Charging with the adapter
1 Make sure that the appliance is switched off.
2 Insert the small plug into the appliance (1)
and put the adapter in the wall socket (2).
Using the shaver
Shaving
Skin adaptation period
Your rst shaves may not bring you the result you
expect and your skin may even become slightly
irritated.This is normal.Your skin and beard need
time to adapt to any new shaving system.
We advise you to shave regularly (at least 3 times
a week) with this shaver for a period of 3 weeks to
allow your skin to adapt to the new shaver.
Note:This appliance can only be used cordlessly.
1 Press the on/off button once to switch on
the shaver.
,The display lights up for a few seconds.
ENGLISH 11

2 Move the shaving heads over your skin in
circular movements.
Note: Do not make straight movements.
3 Press the on/off button once to switch off
the shaver.
,The display lights up for a few seconds to show
the remaining battery charge.
Wet shaving
You can also use this shaver on a wet face with
shaving foam or shaving gel.
To shave with shaving foam or shaving gel,
follow the steps below:
1 Apply some water to your skin.
2 Apply shaving foam or shaving gel to your skin.
3 Rinse the shaving unit under the tap to ensure
that the shaving unit glides smoothly over your
skin.
4 Press the on/off button once to switch on
the shaver.
5 Move the shaving heads over your skin in
circular movements.
Note: Rinse the shaver under the tap regularly to ensure
that it continues to glide smoothly over your skin.
ENGLISH12

6 Dry your face and thoroughly clean the
shaver after use (see chapter ‘Cleaning and
maintenance’).
Note: Make sure you rinse all foam or shaving gel off
the shaver.
Using the trimmer attachment
You can use the trimmer attachment to groom
your sideburns and moustache.
1 Make sure the appliance is switched off.
2 Pull the shaving unit straight off the appliance.
Note: Do not twist the shaving unit while you pull it off
the appliance.
3 Insert the lug of the trimmer attachment into
the slot in the top of the shaver.Then press
down the trimmer attachment to attach it to
the appliance (‘click’).
4 Press the on/off button once to switch on the
appliance.
,The display lights up for a few seconds.
5 You can now start trimming.
6 Press the on/off button once to switch off
the appliance.
,The display lights up for a few seconds to show
the remaining battery charge.
7 Pull the trimmer attachment straight off the
appliance.
Note: Do not twist the trimmer attachment while you
pull it off the appliance.
ENGLISH 13

8 Insert the lug of the shaving unit into the slot
in the top of the appliance.Then press down
the shaving unit to attach it to the appliance
(‘click’).
Cleaning and maintenance
Cleaning the shaver under the tap
Clean the shaver after every shave for optimal
shaving performance.
Be careful with hot water.Always check if the
water is not too hot, to prevent your hands from
getting burnt.
Never dry the shaving unit with a towel or tissue,
as this may damage the shaving heads.
1 Switch off the shaver.
2 Rinse the shaving unit under a warm tap for
some time.
3 Pull the shaving head holder off the bottom
part of the shaving unit.
4 Rinse the shaving head holder under a warm
tap for 30 seconds.
5 Carefully shake off excess water and let
the shaving head holder dry.
6 Reattach the shaving head holder to the
bottom part of the shaving unit (‘click’).
ENGLISH14

Thorough cleaning method
Make sure the appliance is switched off.
1 Pull the shaving head holder off the bottom
part of the shaving unit.
2 Turn the retaining rings anticlockwise (1)
and remove them (2).
3 Remove the shaving heads from the shaving
head holder. Each shaving head consists of a
cutter and guard.
Note: Do not clean more than one cutter and guard
at a time, since they are all matching sets. If you
accidentally put a cutter in the wrong shaving guard,
it may take several weeks before optimal shaving
performance is restored.
4 Clean the cutter and guard under the tap.
5 After cleaning, place the cutter back into
the guard.
ENGLISH 15

6 Put the shaving heads back into the shaving
head holder.
Note: Make sure the notches on both sides of the
shaving heads t exactly onto the projections in the
shaving-head holder.
7 Place the retaining rings back onto the shaving
head holder (1) and turn them clockwise (2).
Note: Hold the shaving head holder in your hand
when you reinsert the shaving heads and reattach the
retaining rings. Do not place the shaving head holder on
a surface when you do this, as this may cause damage.
8 Reattach the shaving head holder to the
bottom part of the shaving unit.
Cleaning the trimmer attachment
Clean the trimmer attachment every time you have
used it.
1 Switch on the appliance with the trimmer
attachment attached.
2 Rinse the trimmer attachment under a hot tap
for some time.
3 After cleaning, switch off the appliance.
Tip: For optimal trimmer performance, lubricate
the trimmer teeth with a drop of sewing machine oil
every six months.
4 Carefully shake off excess water and let
the trimmer attachment dry.
ENGLISH16

Storage
1 Store the shaver in the pouch supplied.
Note: We advise you to let the shaver dry before you
store it in the pouch.
Replacement
Replacing the shaving heads
For maximum shaving performance, we advise you
to replace the shaving heads every two years.
Replacement reminder
The shaving unit symbol will light up to indicate
that the shaving heads need to be replaced.
Replace damaged shaving heads right away.
Only replace the shaving heads with original
SH70 Philips shaving heads.
1 The shaving unit symbol lights up continuously
when you switch off the shaver.
2 Pull the shaving head holder off the bottom
part of the shaving unit.
3 Turn the retaining rings anticlockwise (1)
and remove them (2).
ENGLISH 17

4 Remove the shaving heads from the shaving
head holder and throw them away.
5 Place new shaving heads in the holder.
Note: Make sure the notches on both sides of the
shaving heads t exactly onto the projections in the
shaving-head holder.
6 Place the retaining rings back onto the shaving
heads (1) and turn them clockwise (2).
Note: Hold the shaving head holder in your hand
when you reinsert the shaving heads and reattach the
retaining rings. Do not place the shaving head holder
on a surface when you do this, as this may cause
damage.
7 Reattach the shaving head holder to the
bottom part of the shaving unit.
8 To reset the shaver, press and hold the on/off
button for approx. 7 seconds.
ENGLISH18

Ordering accessories
To buy accessories or spare parts,
visit www.shop.philips.com/service. or go to
your Philips dealer.You can also contact the Philips
Consumer Care Centre in your country (see the
worldwide guarantee leaet for contact details).
The following parts are available:
- HQ8505 adapter
- SH70 Philips shaving heads
- HQ110 Philips Shaving Head Cleaning Spray
Shaving heads
- We advise you to replace your shaving heads
every two years. Always replace the shaving heads
with original SH70 Philips shaving heads.
Recycling
Do not throw away the appliance with the normal
household waste at the end of its life, but hand it in
at an ofcial collection point for recycling. By doing
this, you help preserve the environment.
Removing the rechargeable shaver battery
Only remove the rechargeable battery when
you discard the shaver. Make sure the battery is
completely empty when you remove it.
Be careful, the battery strips are sharp.
1 Remove the screw in the backpanel with a
screwdriver.Then remove the back panel.
ENGLISH 19

2 Bend the hooks aside and remove the power
unit.
3 Break the snap hooks and remove the front
panel of the power unit.
4 Take out the battery holder and cut the
battery tags with a pair of cutting pliers.
Guarantee and support
If you need information or support, please visit
www.philips.com/support or read the separate
worldwide guarantee leaet.
Guarantee restrictions
The shaving heads (cutters and guards) are not
covered by the terms of the international guarantee
because they are subject to wear.
ENGLISH20
