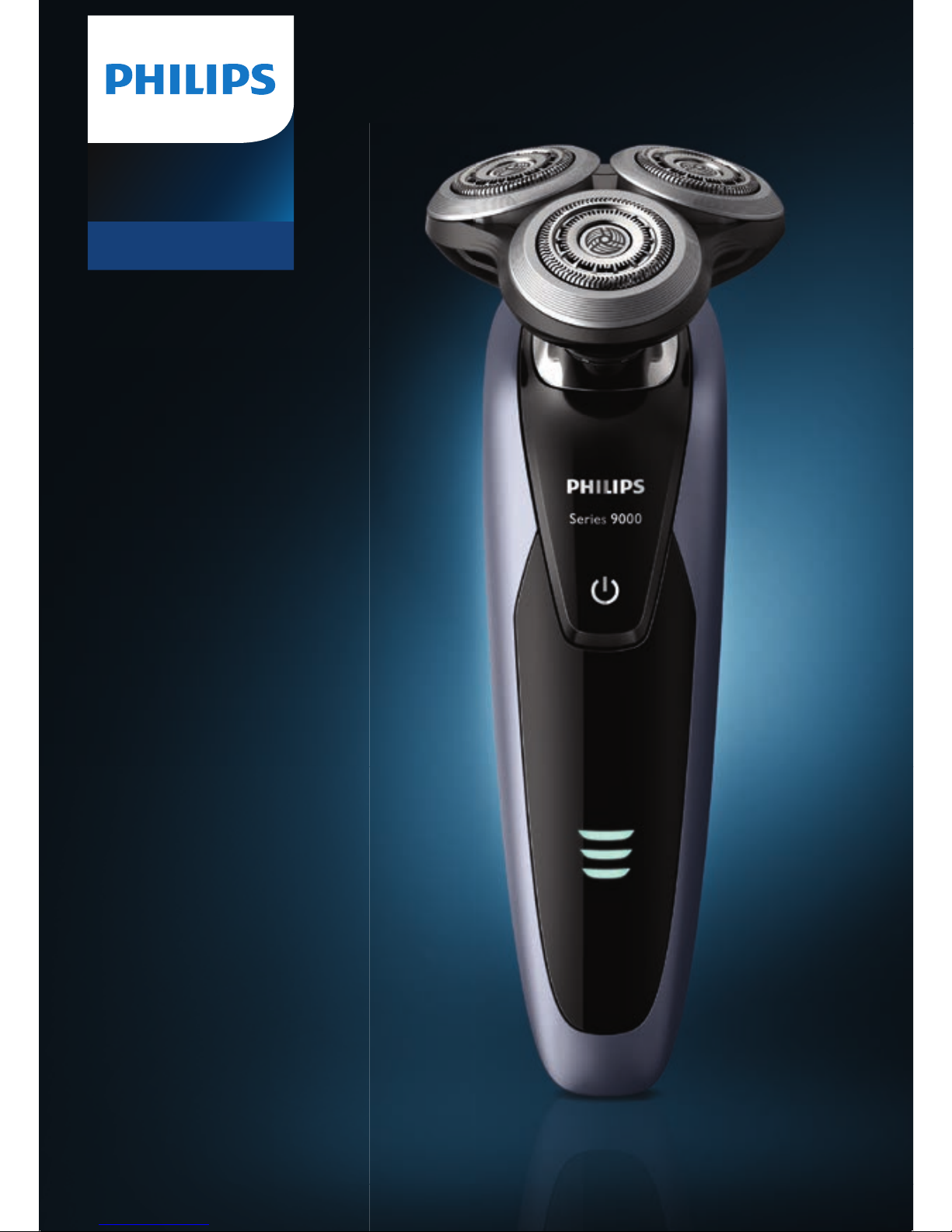

Philips S91 series User manual

9000 series
S91XX / S90XX
4222.002.5864.1 S91XX,S90XX COVER A6 FC_cHR.indd 1 10-03-16 10:29

9000 series
S91XX / S90XX
4222.002.5864.1 S91XX,S90XX COVER A6 FC_cHR.indd 1 10-03-16 10:29

3
4
5
6
7
8
14
15
17
16
18
19 20
21
22
23
24
25
1
2
9
11
12
13
10
1

2 3 4 5
6 7 8 9
10 11 12 13
19 20 2118
22 23 24 25
1
2
14 15 16
1
2
3
17

26 27
2
1
28 29
30 31 32 33
34
20 sec.
35
20 sec.
36
20 sec.
37
43 44 45
2
1
42
46 47 48 49
38 39 40 41

50 51 52 53
54 55 56 57
58 59 2yrs 60
1
3
2
61
67
2
1
66
62 63
3
1
2
64 65

English 10
简体中文 31
繁體中文 54
한국의 70

English
10
Introduction
Congratulations on your purchase and welcome to Philips! To fully
benet from the support that Philips oers, register your product at
www.philips.com/welcome.
Please read this user manual, as it contains information about the
features of this shaver as well as some tips to make shaving easier
and more enjoyable.
General description (Fig.1)
1 Protection cap for cleansing brush attachment
2 Click-on cleansing brush attachment
3 Comb for beard styler attachment
4 Click-on beard styler attachment
5 Click-on trimmer attachment
6 Click-on shaving unit
7 On/o button
8 Socket for small plug
9 Exclamation mark
10 Replacement reminder
11 Battery charge indicator
12 Travel lock symbol
13 Cleaning reminder
14 SmartClean system
15 Cap of SmartClean system
16 On/o button
17 Replacement symbol
18 Cleaning symbol
19 Ready symbol
20 Charge symbol
21 Cleaning cartridge for SmartClean system
22 Supply unit
23 Small plug
24 Retaining ring holder
25 Pouch
The accessories supplied may vary for dierent products. The box
shows the accessories that have been supplied with your appliance.

English 11
Important safety information
Read this important information carefully before you use the
appliance and its accessories and save it for future reference.
The accessories supplied may vary for dierent products.
Danger
-Keep the supply unit dry (Fig. 2).
Warning
-To charge the battery, only use the detachable supply unit
(type HQ8505) provided with the appliance.
-The supply unit contains a transformer. Do not cut o the supply
unit to replace it with another plug, as this causes a hazardous
situation.
-This appliance can be used by children aged from 8 years and
above and persons with reduced physical, sensory or mental
capabilities or lack of experience and knowledge if they have been
given supervision or instruction concerning use of the appliance
in a safe way and understand the hazards involved. Children shall
not play with the appliance. Cleaning and user maintenance shall
not be made by children without supervision.
-Always unplug the shaver before you clean it under the tap.
-Always check the appliance before you use it. Do not use the
appliance if it is damaged, as this may cause injury. Always replace
a damaged part with one of the original type.
-Do not open the appliance to replace the rechargeable battery.
Caution
-Never immerse the cleaning system or the charging stand in water
and do not rinse it under the tap (Fig. 2).
-Never use water hotter than 80°C to rinse the shaver.
-Only use this appliance for its intended purpose as shown in
the user manual.
-For hygienic reasons, the appliance should only be used by
one person.

English
-Never use compressed air, scouring pads, abrasive cleaning agents
or aggressive liquids such as petrol or acetone to clean
the appliance.
-If your shaver comes with a cleaning system, always use the
original Philips cleaning uid (cartridge or bottle, depending on
the type of cleaning system).
-Always place the cleaning system on a stable, level and horizontal
surface to prevent leakage.
-If your cleaning system uses a cleaning cartridge, always make sure
the cartridge compartment is closed before you use the cleaning
system to clean or charge the shaver.
-When the cleaning system is ready for use, do not move it to
prevent leakage of cleaning uid.
-Water may drip from the socket at the bottom of the shaver
when you rinse it. This is normal and not dangerous because all
electronics are enclosed in a sealed power unit inside the shaver.
-Do not use the supply unit in or near wall sockets that contain an
electric air freshener to prevent irreparable damage to the supply unit.
Electromagnetic elds (EMF)
-This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic elds.
General
-This shaver is waterproof (Fig. 3). It is suitable for use in the bath
or shower and for cleaning under the tap. For safety reasons, the
shaver can therefore only be used without cord.
-The appliance is suitable for mains voltages ranging from 100 to
240 volts.
-The supply unit transforms 100-240 volts to a safe low voltage of
less than 24 volts.
12

English
The display
Note: Before you use the shaver for the rst time, remove the
protective foil from the display (Fig. 4).
Charging
Quick charge: When you connect the shaver to the wall socket,
the lights of the battery charge indicator light up one after another
repeatedly. When the shaver contains enough energy for one shave,
the bottom light of the battery charge indicator starts to ash slowly.
While the shaver continues to charge, rst the bottom light of the battery
charge indicator ashes and then lights up continuously (Fig. 5).
Then the second light ashes and lights up continuously, and so on
until the shaver is fully charged.
Battery fully charged
When the battery is fully charged, all lights of the battery charge
indicator light up white continuously (Fig. 6).
Note: This appliance can only be used without cord.When you press
the on/o button during or after charging, you hear a sound to
indicate that the shaver is still connected to the wall socket.
Note: When the battery is full, the display switches o automatically
after 30 minutes.
Battery low
When the battery is almost empty, the bottom light of the battery
charge indicator ashes orange and you hear a sound (Fig. 7).
Remaining battery charge
The remaining battery charge is shown by the lights of the battery
charge indicator that light up continuously.
Cleaning reminder
Clean the shaver after every shave for optimal performance. When
you switch o the appliance, the cleaning reminder ashes to remind
you to clean the appliance (Fig. 8).
13

English
Travel lock
You can lock the appliance when you are going to travel. The travel
lock prevents the appliance from being switched on by accident.
Activating the travel lock
1 Press the on/o button for 3 seconds to enter the travel lock mode
(Fig. 9).
While you activate the travel lock, the travel lock symbol lights
up white continuously. When the travel lock is activated, the
appliance produces a sound and the travel lock symbol ashes
(Fig. 10).
Deactivating the travel lock
1 Press the on/o button for 3 seconds.
The travel lock symbol ashes and then lights up continuously
(Fig. 10). The appliance is now ready for use again.
Note: You can also deactivate the travel lock by connecting the
appliance to the wall socket.
Replacement reminder
For maximum shaving performance, we advise you to replace the
shaving heads every two years (Fig. 60).
The appliance is equipped with a replacement reminder which reminds
you to replace the shaving heads. The shaving unit symbol lights up
white continuously, the arrows ash white and the appliance beeps to
indicate that you have to replace the shaving heads (Fig. 11).
Note: After replacing the shaving heads, you need to reset the
replacement reminder by pressing the on/o button for 7 seconds.
Exclamation mark
Overheating
If the appliance overheats during charging, the exclamation mark
ashes orange (Fig. 12).When this happens, the shaver switches
o automatically. Charging continues once the temperature of the
appliance has decreased to the normal level.
14

English
Blocked shaving heads
If the shaving heads are blocked, the exclamation mark lights up
orange continuously (Fig. 13).The replacement reminder and the
cleaning reminder ash white alternately and you hear a sound.
In this case, the motor cannot run because the shaving heads are
soiled or damaged.
If the shaving heads are soiled, you have to clean them. If the shaving
heads are damaged, you have to replace them.
Charging
Charge the shaver before you use it for the rst time and when the
display indicates that the battery is almost empty. The battery charge
is indicated by the lights of the battery charge indicator on the display.
When you connect the shaver to the wall socket, you hear a sound.
Charging takes approx. 1 hour. A fully charged shaver has a shaving
time of up to 50 minutes.
Note: You cannot use the appliance while it is charging.
Charging with the supply unit
1 Make sure the appliance is switched o.
2 Put the supply unit in the wall socket and put the small plug in the
appliance (Fig. 14).
3 After charging, remove the supply unit from the wall socket and
pull the small plug out of the appliance.
Charging in the SmartClean system (specic types only)
1 Put the small plug in the back of the SmartClean system.
2 Put the supply unit in the wall socket.
3 Press the top cap to be able to place the shaver in the holder
('click') (Fig. 15).
4 Hold the shaver upside down above the holder. Make sure the
front of the shaver points towards the SmartClean system (Fig. 16).
5 Place the shaver in the holder (1), tilt the shaver backwards (2) and
press down the top cap to connect the shaver (‘click’) (3) (Fig. 17).
15

English
Note: The battery symbol starts to ash to indicate that the appliance
is charging. When the battery is fully charged, the battery symbol
lights up continuously.
Using the appliance
Note: This appliance can only be used without cord.
Switching the appliance on and o
-To switch on the appliance, press the on/o button once (Fig. 18).
The display lights up for a few seconds.
-To switch o the appliance, press the on/o button once.
The display lights up for a few seconds and shows the remaining
battery charge.
Shaving
Skin adaptation period
Your rst shaves may not bring you the result you expect and your
skin may even become slightly irritated. This is normal. Your skin and
beard need time to adapt to any new shaving system. To allow your
skin to adapt to this new appliance, we advise you to shave regularly
(at least 3 times a week) and exclusively with this appliance for a
period of 3 weeks.
Shaving tips
-To ensure the best result, we advise you to pre-trim your beard if
you have not shaved for 3 days or longer.
-Move the shaving heads over your skin in circular movements.
Dry shaving
1 Switch on the appliance.
2 Move the shaving heads over your skin in circular movements (Fig. 19).
Note: Circular movements provide better shaving results than
straight movements.
3 Clean the appliance after use (see 'Cleaning and maintenance').
16

English
Wet shaving
You can also use this appliance on a wet face with shaving foam or
shaving gel.
To shave with shaving foam or shaving gel, follow the steps below:
1 Apply some water to your skin (Fig. 20).
2 Apply shaving foam or shaving gel to your skin (Fig. 21).
3 Rinse the shaving unit under the tap to ensure that the shaving unit
glides smoothly over your skin (Fig. 22).
4 Switch on the appliance.
5
Move the shaving heads over your skin in circular movements (Fig. 19).
Note: Rinse the shaving unit regularly to ensure that it continues to
glide smoothly over your skin.
6 Dry your face.
7 Clean the appliance after use (see 'Cleaning and maintenance').
Note: Make sure you rinse all foam or shaving gel o the appliance.
Using the click-on attachments
Note: The accessories supplied may vary for dierent products.
The box shows the accessories that have been supplied with your
appliance.
Removing or attaching the click-on attachments
1 Make sure the appliance is switched o.
2 Pull the attachment straight o the appliance (Fig. 23).
Note: Do not twist the attachment while you pull it o the
appliance.
3 Insert the lug of the attachment into the slot in the top of the
appliance. Then press down the attachment to attach it to the
appliance (‘click’) (Fig. 24).
17

English

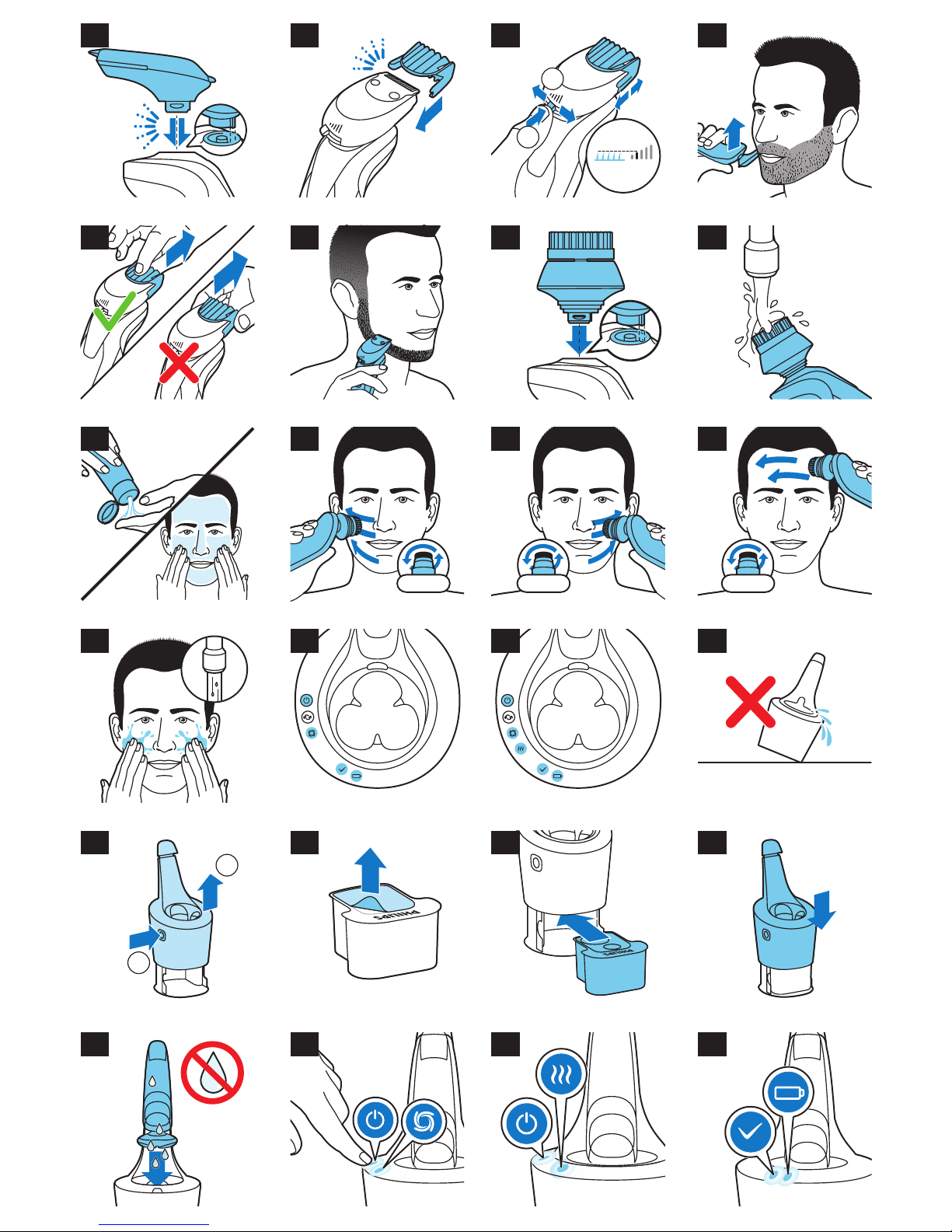

Using the trimmer attachment
You can use the trimmer attachment to groom your sideburns and
moustache.
1 Attach the attachment to the appliance (‘click’) (Fig. 24).
2 Switch on the appliance.
The display lights up for a few seconds.
3 Hold the trimmer attachment perpendicular to the skin and move
the appliance downwards while you exert gentle pressure (Fig. 25).
4 Clean the attachment after use (see 'Cleaning and maintenance').
Using the beard styler attachment with comb
You can use the beard styler attachment with the comb attached
to style your beard at one xed setting, but also at dierent length
settings. You can also use it to pre-trim any long hairs before shaving
for a more comfortable shave.
The length settings on the beard styler attachment correspond to the
remaining hair length after cutting and range from 1 to 5mm.
1 Attach the attachment to the appliance ('click') (Fig. 26).
2 Slide the comb straight into the guiding grooves on both sides of
the beard styler attachment (‘click’) (Fig. 27).
3 Press the length selector and then push it to the left or right to
select the desired hair length setting (Fig. 28).
4 Switch on the appliance.
5 Move the appliance upwards while you exert gentle pressure. Make
sure the front of the comb is in full contact with the skin (Fig. 29).
6 Clean the attachment after use (see 'Cleaning and maintenance').
Using the beard styler attachment without comb
You can use the beard styler attachment without the comb to contour
your beard, moustache, sideburns or neckline to a length of 0.5mm.
1 Pull the comb o the beard styler attachment.
Note: Grab the comb in the center to pull it o the beard styler
attachment. Do not pull at the sides of the comb (Fig. 30).
18

English
2 Switch on the appliance.
3 Hold the beard styler attachment perpendicular to the skin and
move the appliance downwards while you exert gentle pressure
(Fig. 31).
4 Clean the attachment after use (see 'Cleaning and maintenance').
Using the cleansing brush attachment
Use the rotating cleansing brush attachment with your daily cleansing
cream. The cleansing brush attachment removes oil and dirt,
contributing to a healthy and oil-free skin.
1 Attach the attachment to the appliance ('click') (Fig. 32).
2 Moisten the attachment with water (Fig. 33).
Note: Do not use the appliance with a dry brush attachment, as
this can irritate the skin.
3 Moisten your face with water and apply a cleanser to your face
(Fig. 34).
4 Place the attachment on your cheek.
5 Switch on the appliance.
6 Gently move the attachment across your skin from the nose
towards the ear (Fig. 35).Do not push the attachment too hard
onto the skin to make sure the treatment remains comfortable.
Do not cleanse the sensitive area around your eyes.
7 After approx. 20 seconds move the appliance to your other cheek
and start cleansing this part of your face (Fig. 36).
8 After approx. 20 seconds move the appliance to your forehead
and start cleansing this part of your face. Gently move the brush
head from left to right (Fig. 37).
Note: We advise you to not overdo the cleansing and to not
cleanse any zone longer than 20 seconds.
9 After the treatment, rinse and dry your face (Fig. 38).Your face is
now ready for the next step of your daily skincare routine.
10 Clean the attachment after use (see 'Cleaning and maintenance').
19

English

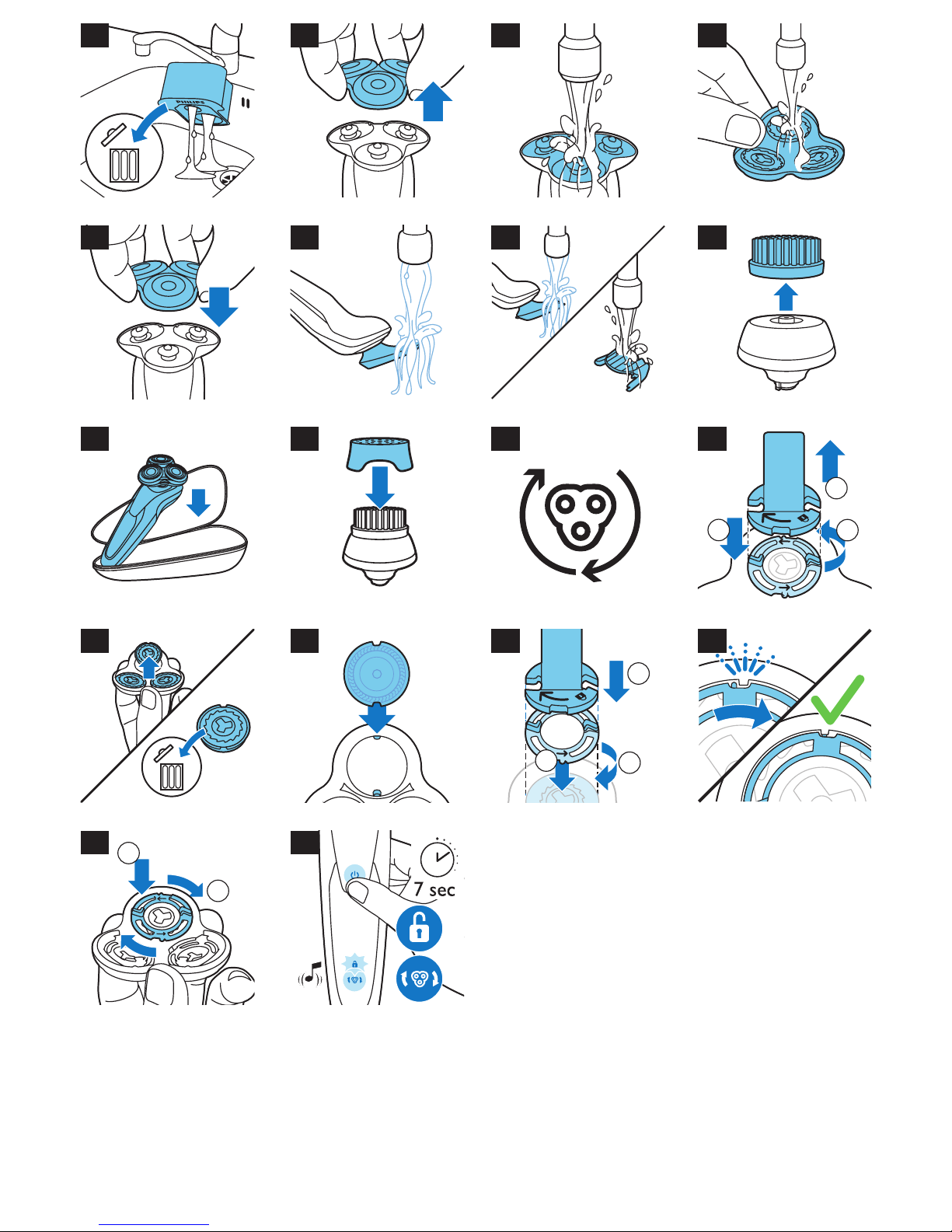

Cleaning and maintenance
The accessories supplied may vary for dierent products. The box
shows the accessories that have been supplied with your appliance.
Cleaning the shaver in the SmartClean system
The SmartClean system comes in two types. The features available
on your SmartClean system dier per type:
-SmartClean system Basic has one phase: the rinsing phase (Fig. 39).
-SmartClean system Plus has two phases: the rinsing phase and the
drying phase (Fig. 40).
Preparing the SmartClean system for use
Caution: Do not tilt the SmartClean system to prevent leakage (Fig. 41).
Note: Hold the SmartClean system while you prepare it for use.
Note: If you clean the shaver in the SmartClean system once a week,
the SmartClean cartridge lasts approximately three months.
1 Put the small plug in the back of the SmartClean system.
2 Put the supply unit in the wall socket.
3 Press the button on the side of the SmartClean system (1) and lift
the top part of the SmartClean system (2) (Fig. 42).
4 Pull the seal o the cleaning cartridge (Fig. 43).
5 Place the cleaning cartridge in the SmartClean system (Fig. 44).
6 Push the top part of the SmartClean system back down (‘click’)
(Fig. 45).
Using the SmartClean system
Caution: Always shake excess water o the shaver before you place
it in the SmartClean system (Fig. 46).
1 Press the top cap to be able to place the shaver in the holder
('click') (Fig. 15).
2 Hold the shaver upside down above the holder. Make sure the
front of the shaver points towards the SmartClean system (Fig. 16).
20
