Philips ReActiv 4.0 U User manual

Please read this entire manual carefully
before operating your new upright bike
and save it for future use.
User manual
Register your product and get support at
www.philips.com/welcome
PTE4000CU
ReActiv
Upright bike
4.0 U

Thank you for your recent purchase of the Philips physical rehabilitation
upright bike 4.0 U.
Philips physical therapy and exercise solutions provide simple, reliable
products that oer the most relevant feedback to caregivers and
users to achieve best-in-class outcomes and empower individuals to
build condence in rebuilding and maintaining healthy lifestyles and
keep in touch with their communities.
Your new product has been manufactured by one of the world’s leading
medical product manufactures. It is backed by one of the most
comprehensive warranties in the industry. Through our dealers,
distributors and manufacturer’s representatives, we will do all we
can to provide many years of successful and prosperous ownership.
Your warranty and service needs will be addressed either through your
regional sales representative or our highly trained service technicians.
It is their responsibility to provide you with both the technical
knowledge and access to service personnel to make your ownership
experience more informed, and resolve any issues quickly.
Product registration
Register your product and get support at:
www.philips.com/welcome
This will ensure we have all your details quickly at hand in dealing with
any after sales support. For fastest support visit us and self service
solution at :
www.philips.com/support
Philips therapy solutions
Delivering better outcomes

Contents
Important safety instructions 4
Important electrical information
Important operation instructions 7
Features 8
Assembly instructions 9
Console operation 14
6
Using a heart rate transmitter 34
Maintenance 37

4
Attention
Read all instructions in this manual before using this device.
Warning
• Before beginning exercise on this product, or any exercise program,
consult a physician. This is especially important for persons over the
age of 35 or persons with preexisting health conditions.
• There are obvious pinch points and other caution areas that can
cause harm.
• Children under the age of 13 should be supervised to ensure that they
do not play with the device.
• Keep hands away from all moving parts.
• Never drop or insert any object into any openings.
• Do not use outdoors.
• Do not operate this product on deeply padded, plush or shag
carpet. Damage to both carpet and product may result.
• Do not attempt to use this product for any purpose other than for
the purpose it is intended.
• The hand pulse sensors are not medical devices. Various factors,
including the user’s movement, may aect the accuracy of heart rate
readings. The pulse sensors are intended only as an exercise aids in
determining heart rate trends in general.
Important
safety
instructions

5
• Heart rate monitoring systems may be inaccurate. Over exercising
may result in serious injury or death. If you feel faint stop exercising
immediately.
• Wear proper shoes. High heels, dress shoes, sandals or bare feet are
not suitable for use on your bike. Quality athletic shoes are
recommended to avoid leg fatigue.
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have been given
supervision or instruction concerning use of the appliance by a
person responsible for their safety.
• Maximum User Weight: 450 lbs.
• Save these instructions - think safety!

6
Warning
• Be aware that the generator is producing A.C. power while the bike
is being used. Do not service the bike while the generator is
spinning; serious electric shock could occur.
• Never expose this product to rain or moisture. This product is not
designed for use outdoors, near a pool or spa, or in any other high
humidity environment. The operating temperature specication is 5
to 48 degrees Celsius (40 to 120 degrees Fahrenheit), and humidity
is 95% non-condensing (no water drops forming on surfaces).
Important
electrical
information

7
• Never operate this product without reading and completely
understanding the results of any operational change you request
from the console.
• Understand that changes in resistance do not occur immediately.
Set your desired resistance level on the console and release the
adjustment key. The console will obey the command gradually.
• Use caution while participating in other activities while pedaling
on your product; such as watching television, reading, etc. These
distractions may cause you to lose balance which may result in
serious injury.
• Do not use excessive pressure on console control keys. They are
precision set to function properly with little nger pressure.
Important
operation
instructions

8
4.0 U-Upright bike
Parts and adjustments
1. Console
2. Hand pulse grips
3. Fore / aft seat adjustment
4. Vertical seat adjustment
5. Pedal
6. Leveling glides
Optional parts (not shown)
2.1 Adjustable crank set
Features
5
6
6
2
3
4
1

9
Unpacking
• Cut the straps, then along the dotted line on the bottom of the box; lift
the box over the unit and unpack.
• Locate the hardware package. The hardware is separated into four
steps. Remove the tools rst. Remove the hardware for each step as
needed to avoid confusion. The numbers in the instructions that are in
parenthesis (#) are the item number from the assembly drawing for
reference.
Tools included
• 13/15mm wrench
• 12/14mm wrench
• 6 mm L allen wrench
• Phillips screwdriver

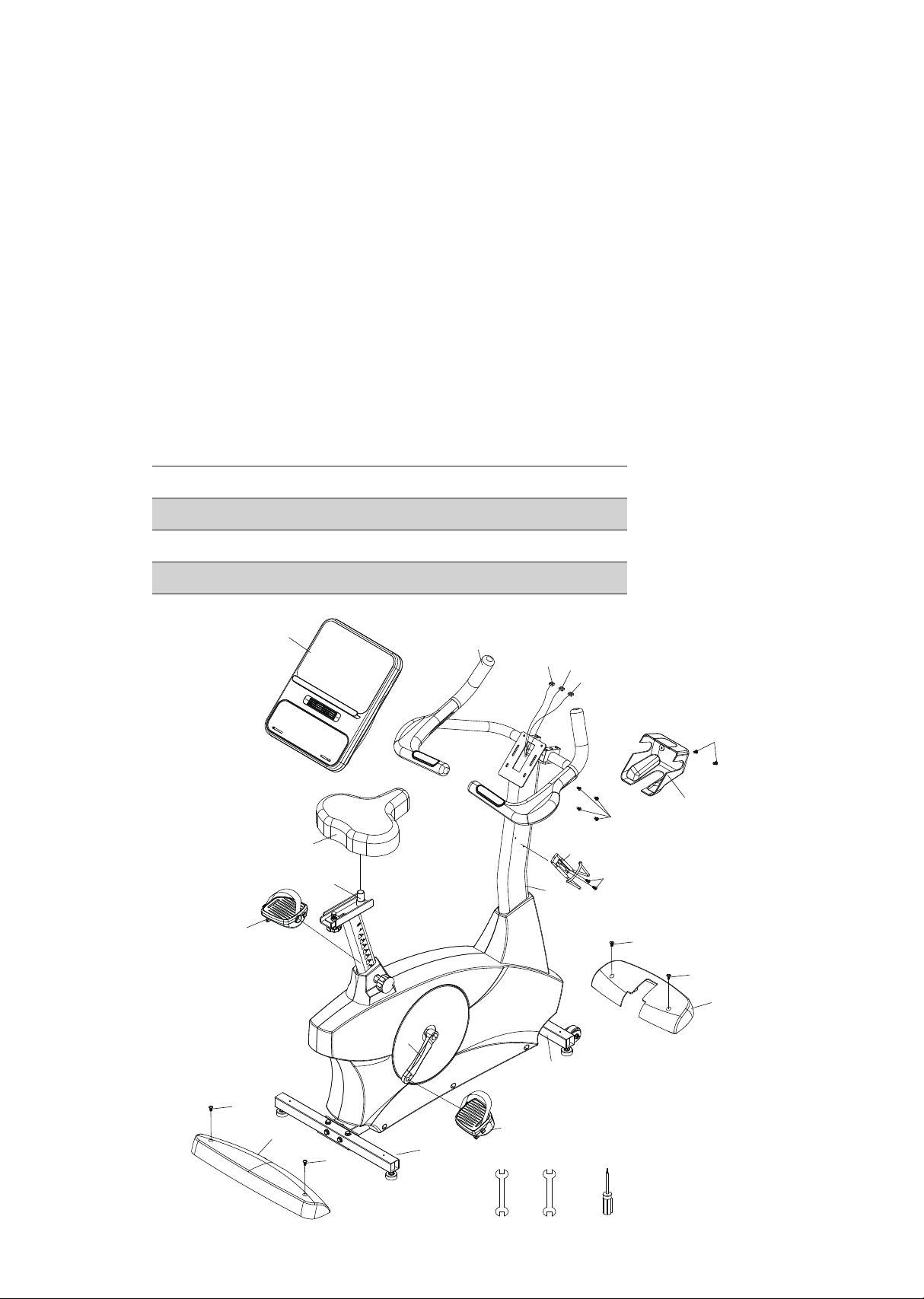

Assembly
instructions
Parts included
• 1 main frame
• 1 rear stabilizer
• 1 console mast
• 1 handle bar
• 1 console mast cover
• 1 front stabilizer cover
• 1 rear stabilizer cover
• 1 console
• 1 drink bottle holder
• 2 pedals
• 1 hardware kit

10
• 1 rear stabilizer cover
• 1 console
• 1 drink bottle holder
• 2 pedals
• 1 hardware kit
Assembly
Read each step’s instructions and study the drawing carefully to become
familiar with all the parts and procedures before beginning each step.
Step 1.
• Install the rear stabilizer (5) onto the main frame (1) with the four hex
head bolts (50) and four at washers (71).
• Install the seat mount slide(7) onto the track on top of the seat tube
with the seat post facing forward with the seat adjustment knob (86),
at washers (71), xing plate (8) and nut (78).
Part Type Description
Hardware for step 1
Qty
50
71
78
Hex head bolt
Flat washer
Cap nut
3/8" × 2-1/4"
Ø3/8"
3/8" × 7T
4
5
1
50
50
71
71
5
1
100
86
7
8
78
71
117

11

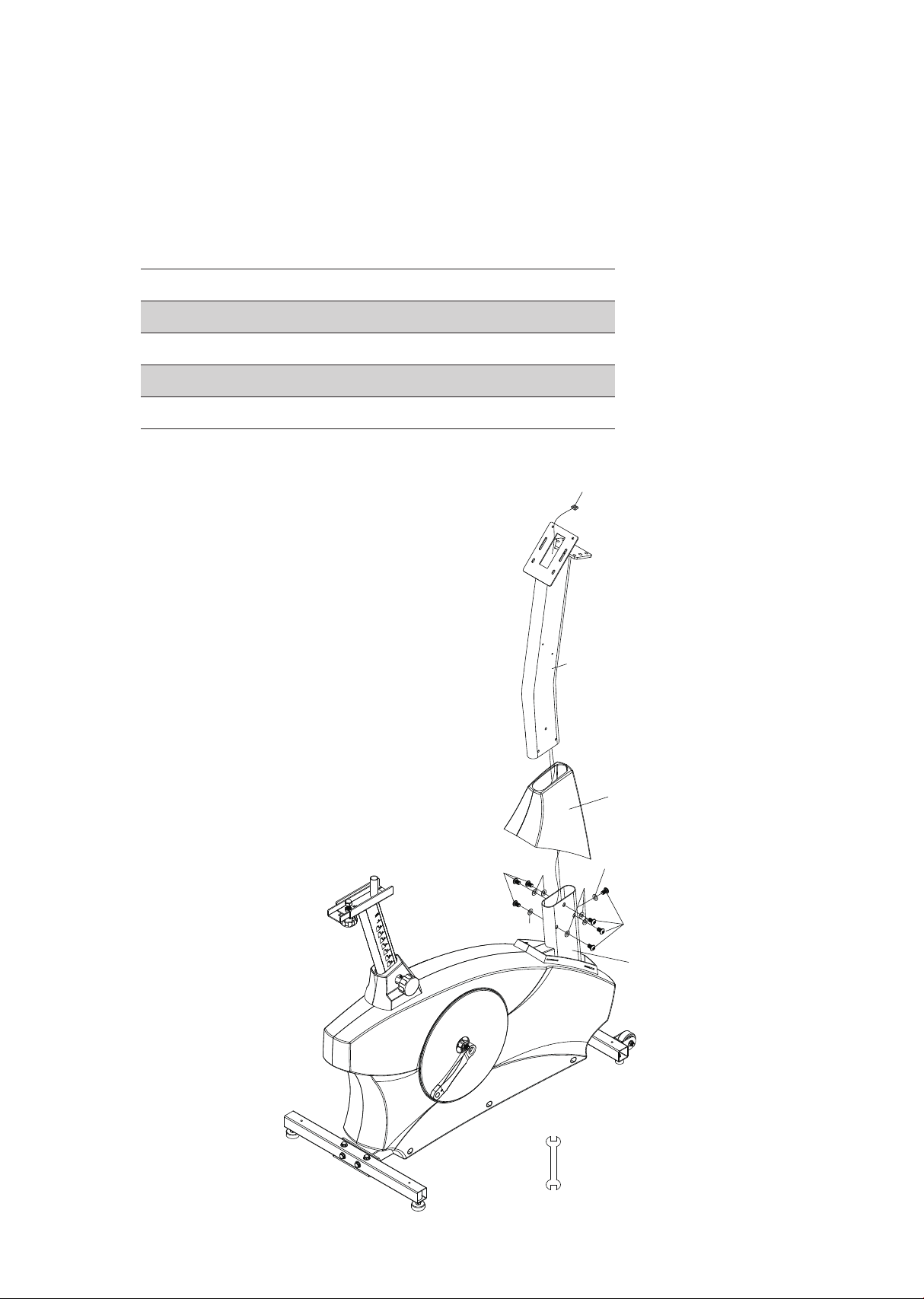

Step 2.
• Run the wiring harness (29) through the console mast (2) and console
mast cover (38) and out the top.
• Assemble console mast (2) to main frame (1) with 6 bolts (51) and 6
washers (72) on the both side screws, 1 bolt (51) and 1 curved washer
(99) on the front screw. Do not pinch any wires.
Part Type Description
Hardware for step 2
Qty
51
72
99
Hex head bolt
Flat washer
Curved washer
5/16" × 5/8"
Ø5/16"
Ø5/16"
7
6
1
2
38
72
72
51
51
99
72
29
1
100

12

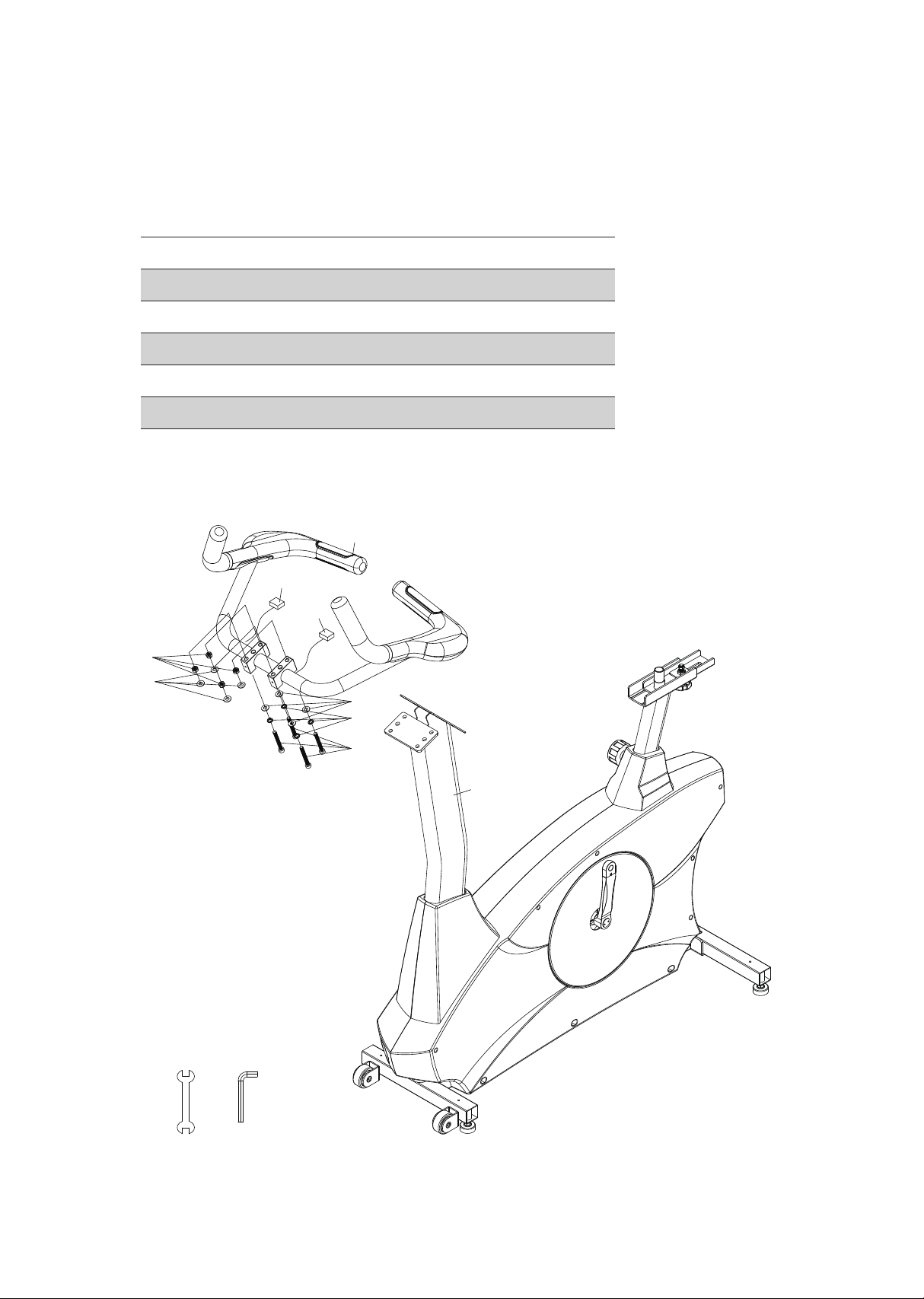

Step 3.
• Install the handlebars (3) to console mast (2) with 4 bolts (60), 4 lock
washers (64), 8 washers (57), and 4 nuts (84).
• Run the 2 hand pulse wires (26 & 28) into the hole in the handle bar
mounting plate and out through the hole in the console plate.
Part Type Description
Hardware for step 3
Qty
57
60
64
84
Flat washer
Socket head cap bolt
Split washer
Nyloc nut
Ø8.5
M8 × 65L
Ø8 × 1.5T
M8 × 7T
8
4
4
4
117 81
84
57
57
64
60
28
26
3
2

13
Step 4.
• Connect wiring harness (26 & 28 & 29) to console (34). Attach console
(34) to console mast (2) using 4 screws (75). Be careful not to pinch any
wires.
• Attach console bracket cover (42) to handlebars (3) using 2 screws (74).
• Install the front stabilizer cover (40) and the rear stabilizer cover (41)
onto the main frame (1) with 4 screws (75).
• Attach cup holder (116) to console mast (2) using 2 screws (75).
• Install the left and right pedals (45 & 46) onto the left and right crank
arms (16 l & 16 r). The left pedal has a reverse thread and will be
screwed in with the opposite rotation. Make sure to tighten the pedals
as much as possible.
• Install the seat (19) onto the seat post (7).
Part Type Description
Hardware for step 4
Qty
74
75
Phillips head screw
Phillips head screw
M5 × 6L
M5 × 12L
2
10
41
40
46
45
19
72
1
5
93117
16R
100
42
29
26
28
75
74
34
75
75
75
75
75
116
3

14
Parts included
• 1 main frame
• 1 rear stabilizer
• 1 console mast
• 1 handle bar
• 1 console mast cover
• 1 front stabilizer cover
• 1 rear stabilizer cover
• 1 console
• 1 drink bottle holder
• 2 pedals
• 1 hardware kit
4.0 U Console
Power on
The 4.0 U has a built-in generator for power and does not need to be
plugged into an AC outlet. To power up the bike simply start to pedal,
the console will turn on automatically.
The console will go to the start up display, also known as Idle mode.
The message window will be scrolling the start up message. You may
now begin to use the 4.0 U.
Console
operation
Program keys
2Dot matrix window
3
Function keys
4
Message window
1
Fan
5
Resistance level
or adjustment
up / down keys
6

15
• 1 rear stabilizer cover
• 1 console
• 1 drink bottle holder
• 2 pedals
• 1 hardware kit
CSAFE feature
Your console is equipped with a CSAFE feature. The power (POWER)
port can be used for powering a remote controlled audio-visual system
by connecting a cable from the remote to the power port at the back of
the console. The Communication port (COMM) can be used to interact
with software applications.
Quick start
This is the quickest way to start a workout. After the console powers up
you just press the start key to begin. This will initiate the quick start
mode. In quick start, the time will count up from zero, all workout data
will start to accrue and the workload may be adjusted manually by
pressing the Plus and Minus keys. As you increase the workload more
rows will light indicating a harder workout. The bike will get harder to
pedal as the rows increase.
There are 40 levels of resistance available for plenty of variety. The rst
10 levels are very easy workloads, and the changes between levels are
set to a good progression for de-conditioned users. Levels 10-20 are
more challenging but the increases from one level to the next remain
small. Levels 20-30 start getting tough as the levels jump more
dramatically. Levels 30-40 are extremely hard and are good for short
interval peaks and higher performance training.

16
Basic information
When you begin a program the dot matrix will display the workout
prole.
The message window will initially be displaying distance, calories, pulse
and time information. On the bottom left of the key pad is a key labeled
display. Each time this display key is pressed the next set of information
will appear. If the display key is pressed during the second set of
information display the scan mode will come on and the message
window will show each set of data for four seconds then switch to the
next set of data in a continuous loop. Pressing the display button again
will bring you back to the rst set of information as beginning.
The product has a built in heart rate monitoring system. Simply grasping
the hand pulse sensors, or wearing a heart rate chest belt transmitter
will start the heart rate detection, The message window will display your
heart rate, or pulse, in beats per minute (this may take a few seconds).
NOTE: You must enter your correct age during program setup for heart
rate control program to be accurate. Refer to using a heart rate
transmitter section for details about these features and how they can
help you work out more eciently.
The stop key actually has several functions. Pressing the stop key once
during a program will pause the program for 5 minutes. If you need to
get a drink, answer the phone, or any of the many things that could
interrupt your workout, this is a great feature. To resume your workout
during pause just press the start key or start pedaling. If the stop key is
pressed twice during a workout the program will end and a summary of
information of the exercise session will be displayed, and then the
console will return to the start up screen. If the stop key is held down
for 3 seconds the console will perform a complete reset. During data
entry for a program the stop key performs a previous screen function.
This allows you to go back one step in the programming each time you
press the stop key.

17
The program keys may be used to preview each program when in the
idle mode. When you rst turn the console on you may press each
program key to preview what the program prole looks like. If you
decide that you want to try a program, press the corresponding
program key and then press the conrm key to select the program and
enter into the data-setup mode.
The console includes a built-in fan to help keep you cool.
Programmable features
Each of the programs can be customized with your personal
information and changed to suit your needs. Some of the information
asked for is necessary to ensure the readouts are correct. You will be
asked for your age and weight. Entering your age ensures that the heart
rate window shows the correct number. Your age is also necessary
during the heart rate control program to ensure the correct settings are
in the program for your age. Otherwise the work settings could be too
high or low for you; entering your weight aides in calculating a more
correct calorie reading. Although we cannot provide an exact calorie
count we do want to be as close as possible.
Calorie note: Calorie readings on every piece of exercise equipment,
whether it is in a facility or at home, are not accurate and tend to vary
widely. They are meant only as a guide to monitor your progress from
workout to workout. The only way to measure your calorie burn
accurately is in a clinical setting connected to a host of machines.
This is because every person is dierent and burns calories at a
dierent rate. Some good news is that you will continue to burn
calories at an accelerated rate for at least an hour after you have
nished exercising!

18
Entering a program and changing settings
When you enter a program (by pressing a program key, then conrm
key) you have the option of modifying the settings. If you want to
begin without entering new settings just press the start key. This will
bypass the programming of data and take you directly to the start of
the program. If you want to change the settings just follow the
instructions in the message window. If you start a program without
changing the settings the default or pre-saved setting will be used.
Manual
The manual program works as the name implies, manually. This
means that you control the workload yourself, not the computer. To
start the manual program follow the instructions below or just press
the manual key then the conrm key and follow the directions in the
message window.
• Press the manual key then press the conrm key.
• The message window will ask you to enter your age. You may enter
your age, using the Plus and Minus keys, then press the conrm button
to accept the new number and proceed on to the next screen.
• You are now asked to enter your weight. You may adjust the weight
number using the Plus and Minus keys, then press conrm to continue.
• The next setting is time. You may adjust the Time and press conrm
key to continue.
• Now you are nished editing the settings and can begin your workout
by pressing the start key. You can also go back and modify your
settings by pressing the conrm key.
• Note: At any time during the editing of data you can press the stop
key to go back one level, or screen.
• The program automatically starts you at level one. This is the easiest
level and it is a good idea to stay at level one for a while to warm up. If
you want to increase the work load at any time press the Plus key; the
Minus key will decrease the workload.
• During the manual program you will be able to scroll through the data
in the message window by pressing the display key.
• When the program ends you may press start to begin the same
program again or stop to exit the program.

19
Preset programs
The bike has three dierent programs that have been designed for a
variety of workout goals. These programs factory preset work level
proles for achieving dierent goals. The initial built-in level of diculty
for each program is set to a relatively easy level. You may adjust the
level of diculty (max level) for each program before beginning.
Programming preset programs
• Select the desired program by pressing tness key then press conrm
key.
• The message window will ask you to enter your age. You may adjust
the age setting, using the Plus and Minus keys, then press conrm key
to accept the new number and proceed on to the next screen.
• You are now asked to enter your weight. You may adjust the weight
number using the Plus and Minus keys, then press conrm to continue.
• Next is time. You may adjust the Time and press conrm to continue.
• Now you are asked to adjust the max level. This is the peak exertion
level you will experience during the program (at the top of the hill).
Adjust the level and then press conrm.
• Now you are nished editing the settings and can begin your workout
by pressing the start button. You can also go back and modify your
settings by pressing the stop key to go back one level, or screen.
• If you want to increase or decrease the workload at any time during
the program press the Plus and Minus key. This will change the
workload settings of the entire prole, although the prole picture on
the screen will not change. The reason for this is so that you can see
the entire prole at all times. If the prole picture is changed it will
look distorted and not a true representation of the actual prole.
When you make a change to the workload, the message window will
show the current column, and program maximum, levels of work.
• During the program you will be able to scroll through the data in the
message window by pressing the display key
• When the program ends the message window will show a summary of
your workout. The summary will be displayed for a short time then the
console will return to the start-up display.

20
Hill
The Hill program simulates going up and down a hill. The resistance
in the pedals will steadily increase and then decrease during the
program.
Plateau
The Plateau program provides a steady state exercise with warm up
and cool down periods.
Interval
The Interval program takes you through high levels of intensity
followed by periods of low intensity. This program increases your
endurance by depleting your oxygen level followed by periods of
recovery to replenish oxygen. Your cardio vascular system gets
programmed to use oxygen more eciently this way.
