Philips GC3331 User manual

ServiceManual
Philips Domestic Appliances and Personal Care
Published by Philips Domestic Appliances and Personal Care Printed in the Netherlands © Copyright reserved Subject to modification
Steam Iron Elance
GC3331
06/12
PRODUCT INFORMATION
Features
- Extra large water inlet for fast filling
- Extra long cord length (3 m) for easy reach
- Extra clear indicator for high visibility of water level
- Careeza soleplate
- Tank capacity 300 ml
- Spray feature
- Steam rate 35 g/min
- Shot Of Steam & Vertical steam 95 g/min
- Double Active Calc System
- 360° ball swivel
- Integrated cord winder
- Drip Stop
Safety Information
- This product meets the requirements regarding
interference suppression on radio and TV.
- After the product has been repaired, it should function
properly and has to meet the safety requirements and
legal regulations as officially laid down at this moment.
TECHNICAL INFORMATION
Voltage : 120 V, 230 V
Frequency : 50 - 60 Hz
Power : 1300 W, 2200 W
Dimension (Iron) : 303 x 120 x 152 mm (L x W x H)
Weight (Iron) : 1.34 kg
Fast Filling
With the extra large water inlet, adding water to the iron is
quick, easy & spill-free.
Easy Reach
With the extra long cord length of 3m, you can easily reach
right up to the edge of your ironing board.
More Control
With the extra clear indicator, water level is highly visible and
you know if you have enough water for that last garment.
Careeza Soleplate
This is a multi-layer ceramic that glides smoothly over all
types of fabric, keeping your clothes in perfect condition.
Vertical Steam
This offers the Shot Of Steam in vertical position to remove
wrinkles on hanging garment.
Double Active Calc System
The automatic anti-calc pill in the water tank, in combination
with the Integrated Calc-clean function minimise calcification
& ensure long life for the iron.
Drip Stop System
Prevents staining on fabric due to hot droplets leaking from
the soleplate at too low temperatures.

GC3331
2-5
THERMOSTAT DIAL 1
BACKPLATE 2
CORDSET 3
BALL SWIVEL 4
Remove Screw A (1x)
Remove BACKPLATE 2
Remove Screw B (2x)
Remove Cord clamp
INLAY 5
SUB-INLAY PRINTED 6
FILLING DOOR ASSY 7
STEAM SLIDER 8
LAMP ASSY 9
SOS KNOB 11
SPRAY KNOB 12
TANK TOP SEAL 13
Remove Screw A (1x)
Remove BACKPLATE 2
Remove FILLING DOOR ASSY 7
Remove Screw C (1x)
Remove SUB-INLAY 6
Remove INLAY 5
DISASSEMBLY ADVICE
CLAMP BRACKET 14
DOSING CAM 15
STEAM SHAFT ASSY 16
SHAFT BELLOW 17
Remove Screw A (1x)
Remove BACKPLATE 2
Remove FILLING DOOR ASSY 7
Remove Screw C (1x)
Remove SUB-INLAY 6
Remove INLAY 5
Remove SOS KNOB 11
Remove SPRAY KNOB 12
Remove Screw D (2x)
Remove CLAMP BRACKET 14
HOUSING PRINTED 18
PLASTIC RATTLE SPRING 19
PUMP ASSY 20
WATER TANK ASSY 21
ORIFICE 22
THERMOSTAT BUSH 23
VALVE BELLOW ASSY 29
Remove Screw A (1x)
Remove BACKPLATE 2
Remove Screw B (2x)
Remove Cord clamp
Remove FILLING DOOR ASSY 7
Remove Screw C (1x)
Remove SUB-INLAY 6
Remove INLAY 5
Remove Screw E (2x)
Remove THERMOSTAT DIAL 1
Remove HOUSING PRINTED 18
Remove Screw F (2x)
Remove WATER TANK ASSY 21
HEAT SHIELD 24
COVER 25
SOS SEAL 26
DOSING SEAL 27
SOLEPLATE ASSY 28
Remove Screw A (1x)
Remove BACKPLATE 2
Remove Screw B (2x)
Remove Cord clamp
Remove FILLING DOOR ASSY 7
Remove Screw C (1x)
Remove SUB-INLAY 6
Remove INLAY 5
Remove Screw E (2x)
Remove Screw F (2x)
Remove WATER TANK ASSY 21
Remove Screw G (3x)
Remove HEAT SHIELD 24
Remove COVER 25

GC3331
3-5
REPAIR INSTRUCTIONS
- Due to the high wattage of the iron, only the specified cord set must be used.
- Should damage be observed on the CORDSET 3, it must be replaced.
Continued usage is not allowed.
- For standardization reason, the COVER 25 is provided without type plate information eg. type number, voltage etc. When
replacing the cover, engrave the type number & voltage on the type plate with a sharp object.
- After the product has been repaired, it should function properly and has to meet the safety requirements & legal regulations as
laid down & officially established at this moment.
- The following tests are common checks that are conducted on a repaired product before it is returned to the consumer.
1. Soleplate temperature
Check that soleplate temperature is within IEC requirement.
Measure the temperature of the soleplate after the iron has reached steady state i.e connected to the mains for at least 15 minutes.

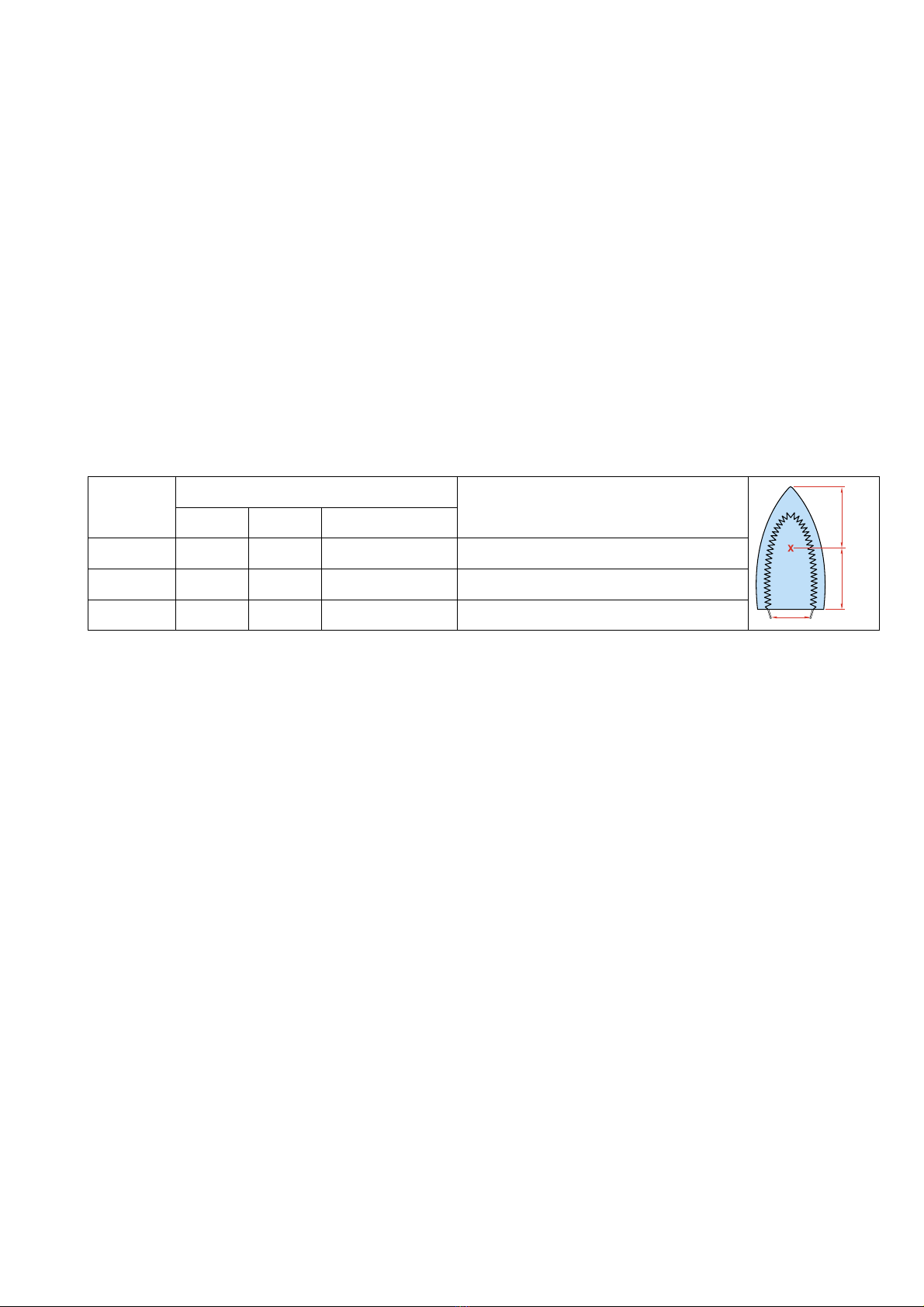

The table below shows the temperature requirement.
Marking
Soleplate temperature (Deg C)
Material, for example
Test-
point
==
Minimum Maximum Nominal + Tolerance
•(1 dot) 70 120 95 ± 25 Acetate, elastane, polyamide, polyproylene
•• (2 dots) 100 160 130 ± 30 Cupro, polyester, silk, triacetate, viscose, wool
••• (3 dots) 140 210 175 ± 35 Cotton, linen
2. Leakage current
Check that leakage current is within IEC requirement.
Measure leakage current between LIVE/NEUTRAL & EARTH.
IEC requirement is that at 230 V supply, the EARTH leakage current must be less than 0.75 mA.
3. Water leakage / Functionality
Check that there is no water leakage from any part of the product during operation.
Check that the functionality of the product (product dependent) eg. steaming, variable steam, SOS, ASO etc is working properly.
4. Loose part
Check that there are no loose parts eg. extra screw in the product that can cause short-circuit or product malfunction.

GC3331
4-5
PARTS LIST
RESISTOR
LAMP
FUSE
N
L
E
HEATING
UNIT
INPUT
THERMOSTAT
Pos Service code Description
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
4239 021 40530
4239 021 41530
4239 021 41570
4239 026 27110
4239 000 07760
4239 000 09650
4239 026 27160
4239 026 26810
4239 021 40700
4239 021 40980
4239 026 27020
4239 021 32500
4239 026 01220
4239 026 26830
4239 026 26840
4239 015 55800
4239 026 19450
4239 026 19440
4239 021 33170
4239 021 35680
4239 015 53170
4239 026 27060
4239 026 27230
4239 020 90560
4239 021 41520
4239 021 40790
4239 025 99230
4239 026 13220
4239 010 09170
4239 026 20330
4239 015 54410
4239 015 55920
4239 021 39860
4239 021 41390
4239 021 22540
4239 026 10270
Thermostat dial printed (Ger/Swe text)
Thermostat dial printed (Eng text)
Thermostat dial printed (Ita/Spa/Por text)
Backplate
Cordset EU
Cordset Taiwan
Ball swivel
Inlay
Sub-inlay printed
Filling door assy
Steam slider
Lamp assy
Lamp holder
SOS knob
Spray knob
Tank top seal
Clamp bracket
Dosing cam
Steam shaft assy 230 V
Steam shaft assy 120 V
Shaft bellow
Housing printed
Plastic rattle spring
Pump assy
Water tank assy (Anti-calc, Drip stop) Taiwan
Water tank assy (Anti-calc, Drip stop)
Orifice
Thermostat bush
Heat shield
Cover (Drip stop)
SOS seal
Dosing seal
Soleplate assy 230 V / 2200 W
Soleplate assy 120 V / 1300 W
Valve bellow assy
Filling cup

GC3331
5-5
EXPLODED VIEW
G2
G3
E2
E1
F1
F2
C
A
B1 B2
D2
D1
7
8
6
5
13
24
25
27
28
26
22
20
11
12
14
15
16
17
2
23
3
4
10
18
21
9
1
19
Clamping plate
G1
29
