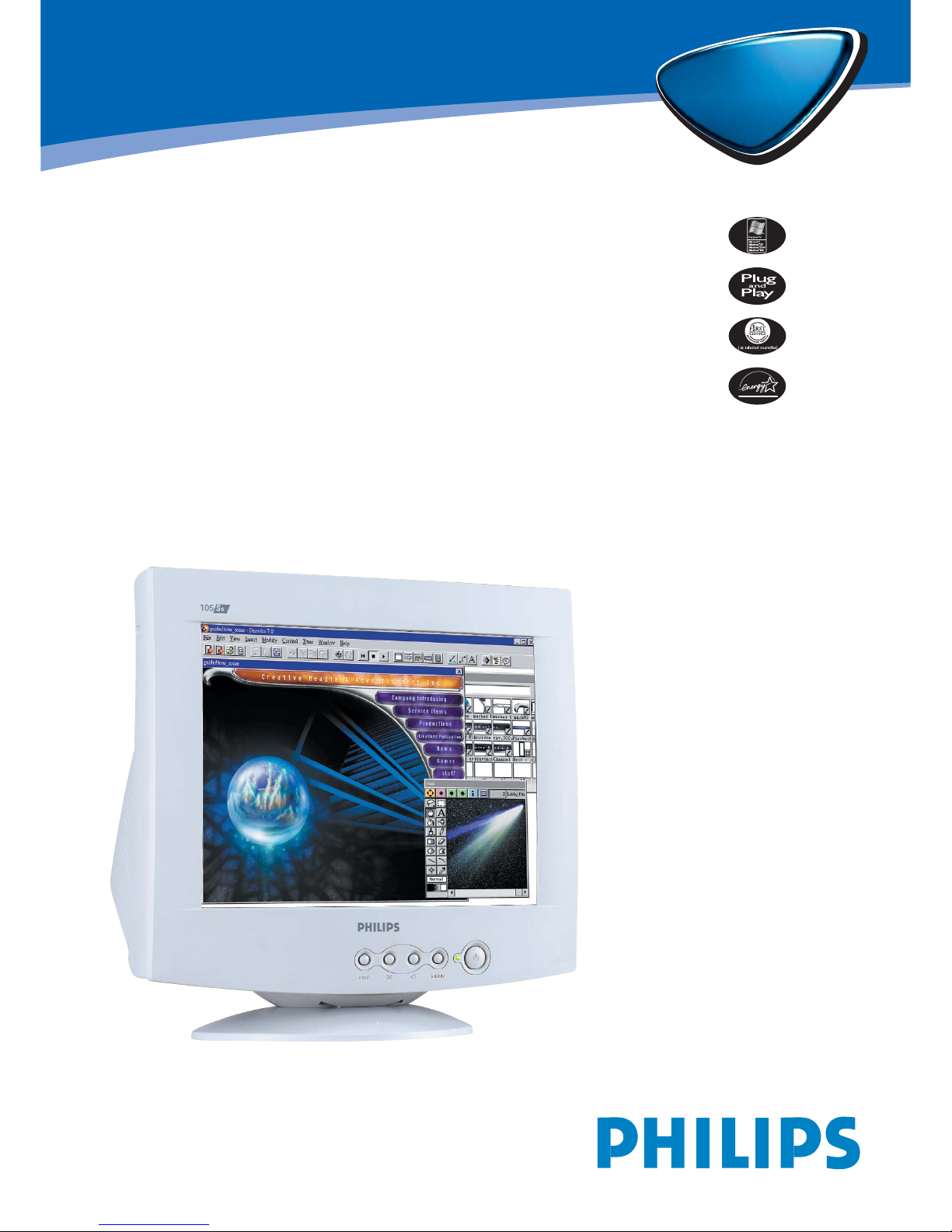

Philips 105S51 User manual

15" (14.0" VIS) color monitor
• 15-inch (14.0" VIS) color monitor with excellent front of
screen performance for use with MACs and PCs
• Autoscan covers horizontal frequencies up to 54 kHz
offering a maximum resolution of 1024 x 768 with
flicker free display of 800 x 600 at up to 87 Hz
• Flat square CRT with 0.28 mm dot pitch (0.24 hdp)
105S51
105S51

Technical Specifications
CRT panel
• Size (inch/cm) 15"/ 36 cm
• Deflection angle (degrees) 90°
• Dot pitch/ Grille pitch 0.28 mm
• Horizontal pitch 0.24 mm
• Tube type Shadow mask, Flat Square,Anti-Glare,
Anti-Static, Light Transmission 57%
• Phosphor P22
• Recom. display area(mm) 270 x 202 mm
• Recom. display area(inch) 10.6" x 8.0"
• Max. display area(mm) 284 x 213 mm
• Max. display area(inch) 11.2" x 8.4"
Scanning
• Horizontal scanning 30 - 54 kHz
• Vertical scanning 50 - 120 Hz
Video
• Video dot rate 72 MHz
• Input impedance
-Video 75 Ohm
-Sync 2.2k Ohm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
• Sync polarities Positive and negative
White color temperature
Chromaticity CIE coordinates:
• at 9300 K: x=0.283, y=0.297
• at 6500 K: x=0.313, y=0.018
Resolution and preset modes
• Max. resolution 1024 x 768
• Recom. resolution 800 x 600
• 9 user definable modes
• 6 factory preset modes: H.freq (KHz) V.freq (Hz)
640 x 480 31.5K 60
640 x 480 37.5K 75
720 x 400 31.5K 70
800 x 600 46.9K 75
800 x 600 53.7K 85
1024 x 768 48.4K 60
Plug and play compatibility
• Display Data Channel DDC 2B (VESA)
• Microsoft® Windows®95/98/Me & 2000/NT/XP compatible
Power management
Complies with EPA Energy Star and NUTEK specifications
• Operation 75 W (typical)
• Off mode/Deep Sleep < 8 W
Low-emission characteristics
• Complies with MPR-II specifications
Monitor controls and functions
• Front Power on/off
Contrast
Brightness
• On Screen Display Language (English, Spanish, French,
German, Italian, Russian), Contrast,
Brightness, H-center. H-size,
V- center,V-size, Zoom,
Pincushion,Trapezoid, Pin balance,
Parallelogram, Rotation,
Color temperature
Connections and Cables
• Connections
-Video 15-pin D-sub
• Cables D-Sub Video cable(fixed),
power cord
Regulatory approvals
• MPR-II Low Emission
• TÜV/GS,TÜV/Ergo
• FCC-B, UL, CSA, DHHS
• SEMKO, Poland-B sign, EZU
•CE
• NUTEK, Energy Star
Physical specifications
• Dim. incl. base (WxHxD)(mm) 360 x 360 x 389
• Dim. incl. base (WxHxD)(inch) 14.2" x 14.2" x 15.3"
• Dim. excl. base (WxHxD)(mm) 360 x 321 x 389
• Dim. excl. base (WxHxD)(inch) 14.2" x 12.6" x 15.3"
• Weight (kg) 11.5 kg
• Power supply 100- 240 VAC, 50/60Hz
• Temperature (operational) 0°C to 40°C/ 32°F to 104°F
• Temperature (storage) -25°C to 70°C/ -13°F to 158°F
• Relative humidity 10% to 95%
• MTBF > 100,000 H
As an Energy Star partner, Philips has determined that this product meets the
Energy Star guidelines for energy efficiency.
Microsoft and Windows are registered trademarks of Microsoft Corporation
All trademark acknowledged. Copyright 2001 Koninklijke Philips Electronics N.V.
All data subject to change without notice
Release date: July 2003
www.philips.com
