Philips 107B User manual

electronic user's manual
file:///D|/EDFU/crt_17_6/edoc/english/107B/manual.html2005-05-19 ¤W¤È 10:16:07

Safety & Troubleshooting
Safety and Troubleshooting Information
Safety Precautions and Maintenance • Troubleshooting • Regulatory Information • Other
Related Information
Safety precautions and maintenance
●
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_17_6/edoc/english/107B/SAFETY/SAFETY.HTM2005-05-19 ¤W¤È 10:16:20
When using the monitor,please make sure to install the swivel base for safety concern.
WARNING: Use of controls, adjustments, or procedures other than those
specified in this documentation may result in exposure to shock, electrical
hazards, and/or mechanical hazards.
Read and follow these instructions when connecting and using your computer monitor:
●Disconnect the monitor from the power supply if the monitor is not to be used for an
extended period of time.
●Do not attempt to remove the back cover, as you will be exposed to a shock hazard. The
back cover should only be removed by qualified service personnel.
●Do not place objects on top of the monitor cabinet, objects could fall into vents or cover them
and prevent proper cooling of the monitor's electronic devices.
●To avoid the risk of shock or permanent damage to the set, do not expose the monitor to rain
or excessive moisture.
●Do not use alcohol or ammonia-based liquid to clean the monitor. If necessary, clean with a
slightly damp cloth. Disconnect the monitor from the power supply before cleaning.
●When positioning the monitor, make sure the power plug and outlet are easily accessible.
Consult a service technician if the monitor does not operate normally when operating instructions of
this manual are followed.

About This Electronic User's Manual
About This Electronic User's Manual
About This Guide • Other Documents You May Need • Notational Descriptions
About This Guide
This electronic user's guide is intended for anyone who uses the Philips Color Monitor. It describes
the monitor's features, setup, operation and all other information, which is the same exact
information described in our printed version.
The sections are as follows:
●Safety and Troubleshooting Information provides tips and solutions for common problems,
and other related information you may need.
●About This Electronic User's Manual gives overview of what information are included as well
as notation icon descriptions and other documentation you can refer to.
●Product Information gives an overview of the monitor's features and as well as the technical
specifications for this monitor.
●Installing Your Monitor describes the initial setup process and gives an overview of how to
use the monitor.
●On Screen Display provides information on adjusting the settings on your monitor.
●Customer Care and Warranty is a list of worldwide Philips consumer information centers
along with the help desk phone numbers and information on the applicable warranty of your
product..
●Glossary provides more information for technical terms.
●Download allows users to install the entire manual on their hard drive.
●Frequently Asked Questions provides answers to commonly asked questions.
RETURN TO TOP OF THE PAGE
Other Documents You May Need
In addition to this Electronic User's Guide, you may need to refer to the following documentation:
file:///D|/EDFU/crt_17_6/edoc/english/107B/ABOUT/ABOUT.HTM (1 of 3)2005-05-19 ¤W¤È 10:16:21

About This Electronic User's Manual
●Philips Color Monitor Quick Start Guide which summarizes the steps for setting up the
monitor. This is included with this product.
RETURN TO TOP OF THE PAGE
Notational Descriptions
The following subsections describe notational conventions used in this document.

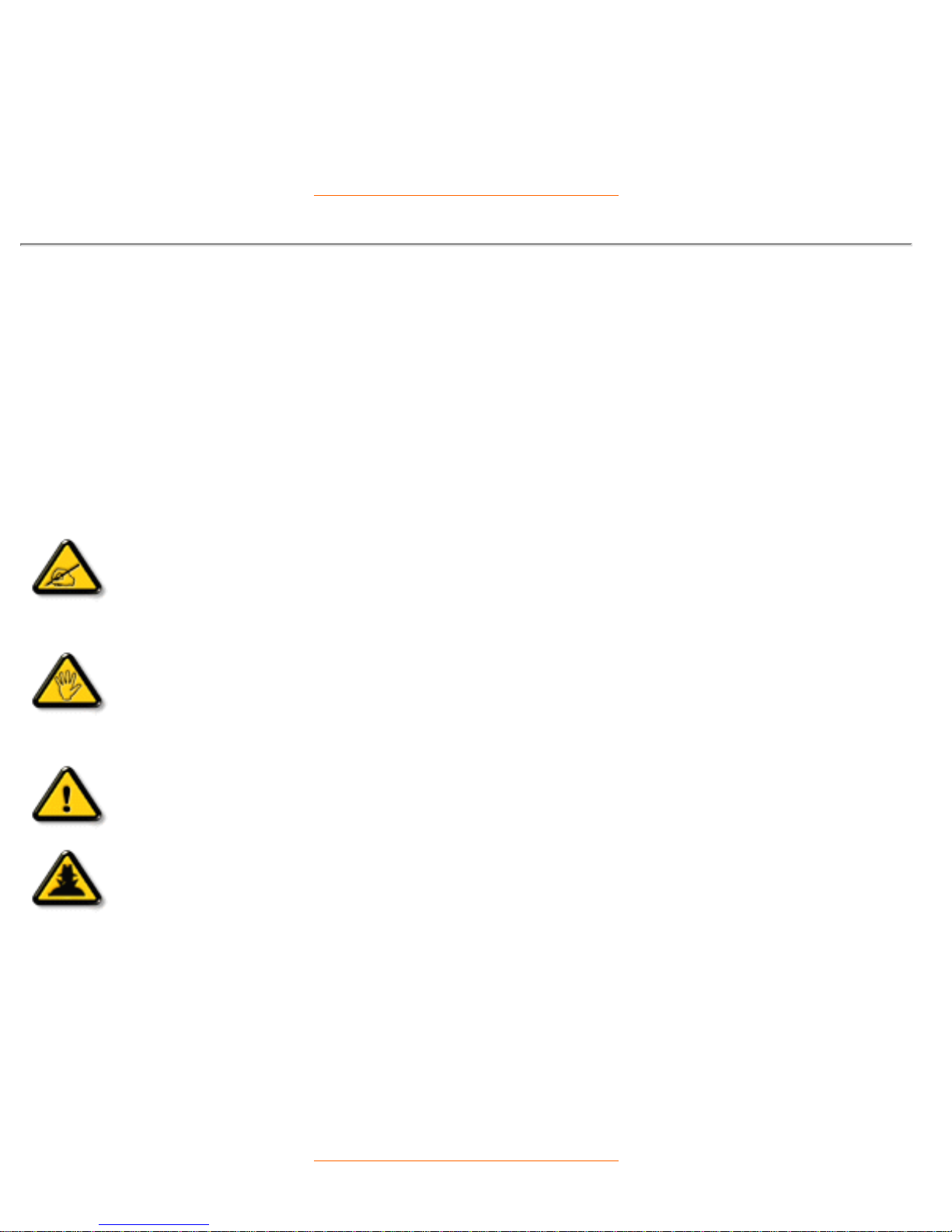

Notes, Cautions, and Warnings
Throughout this guide, blocks of text may be accompanied by an icon and printed in bold type or in
italic type. These blocks are notes, cautions, and warnings, and they are used as follows:
NOTE: This icon indicates important information and tips that help you make
better use of your computer system.
CAUTION: This icon indicates information that tells you how to avoid either
potential damage to hardware or loss of data.
WARNING: This icon indicates the potential for bodily harm and tells you how
to avoid the problem.
SMART HELP: This icon indicates helpful information when adjusting the On
Screen Display of your monitor.
Some warnings may appear in alternate formats and may be unaccompanied by an icon. In such
cases, the specific presentation of the warning is mandated by regulatory authority.
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_17_6/edoc/english/107B/ABOUT/ABOUT.HTM (2 of 3)2005-05-19 ¤W¤È 10:16:21

About This Electronic User's Manual
©2006 Koninklijke Philips Electronics N.V.
All rights reserved. Reproduction, copying, usage, modifying, hiring, renting, public performance, transmission and/or
broadcasting in whole or in part is prohibited without written consent of Philips Electronics N.V.
file:///D|/EDFU/crt_17_6/edoc/english/107B/ABOUT/ABOUT.HTM (3 of 3)2005-05-19 ¤W¤È 10:16:21

Product Information
Product Features • Lead-free product •Technical Specifications • Automatic Power Saving •
Specification • Pin Assignment • Product Views
Product Features
107B7
z17" -inch (16.0" VIS) color monitor with excellent front of screen performance for use with MACs and P
C
zAutoscan covers horizontal frequencies up to 86kHz offering a maximum resolution of 1600 x 1200
zReal Flat High Contrast CRT with high-resolution 0.25 mm dot pitch (0.21 hdp)
zLarge screen display in a small footprint: 17-inch conventional monitor with maximum depth of only 42
4
zsRGB for true on screen color representation.
zFCC, CE (in selected countries only) and ISO9241, ISO14001 certified
zHigh Bright hot key delivers 4 suitable brightness instantly for text, internet, game and multimedia.
RETURN TO TOP OF THE PAGE
Lead-free product
Philips eliminated toxic substances like lead from its displays. Lead-free display helps protect your health and
environmentally sound recovery and disposal of waste from electrical and electronic equipment. Philips compl
Community stringent RoHS Directive mandating restrictions on
hazardous substances in electrical and electronic equipment. With Philips, you can be confident that your dis
p
harm the environment.
Technical Specifications*
Model Regulation Color
107B70 TCO'03Grey
107B75 TCO'03 Black
CRT
• Size and deflection 17 inch / 41 cm ; 90° deflection angle
• Dot pitch 0.25 mm
• Horizontal dot pitch 0.21 mm
• Tube type Shadow mask, Real Flat, high contrast, anti-glare,
anti-static, anti reflection
• Phosphor P22
• Recommended display area 12.0" x 9.0" / 306 x 230 mm
• Maximum display area 12.8" x 9.6" / 325 x 244 mm

* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
Automatic Power Saving
SCANNING
• Horizontal scanning 30 - 86KHz
• Vertical scanning 50 - 160 Hz
VIDEO
• Video dot rate 180 MHz
• Input impedance
- Video 75 Ohm
- Sync 1.8 kOhm
• Input signal levels 0.7 Vpp
• Sync input signal Separate sync
• Sync polarities Positive and negative
WHITE COLOR TEMPERATURE
Chromaticity CIE coordinates:
• at 9300 degrees K x = 0.283 / y = 0.297
• at 6500 degrees K x = 0.313 / y = 0.329
• at 5500 degrees K x = 0.332 / y = 0.347
sRGB x = 0.313 / y = 0.329
sRGB
sRGB is a standard for ensuring correct exchange of colors between different devices (e.g.
digital cameras, monitors, printers, scanners, etc.)
Using a standard unified color space, sRGB will help represent pictures taken by an sRGB
compatible device correctly on your sRGB enabled Philips monitors. In that way, the colors
are calibrated and you can rely on the correctness of the colors shown on your screen.
Important with the use of sRGB is that the brightness and contrast of your monitor is fixed to
a predefined setting as well as the color gamut. Therefore it is important to select the sRGB
setting in the monitor's OSD.
To do so, open the OSD by pressing the MENU button on the front of your monitor. Use the
down button to go to Color temperature and press MENU again. Then move the down button
to go to sRGB and press MENU again.
Exit this OSD.
After this, please don't change the brightness or contrast setting of your monitor. If you
change either of these, the monitor will exit the sRGB mode and go to a color temperature
setting of 6500K.

If you have VESA's DPMS compliance display card or software installed in your PC, the monitor can automati
c
reduce its power consumption when not in use. And if an input from a keyboard, mouse or other input device i
the monitor will automatically "wake up". The following table shows the power consumption and signaling of t
h
saving features:
RETURN TO TOP OF THE PAGE
Physical Specifications
* These information are subject to change without notice.
RETURN TO TOP OF THE PAGE
Pin Assignment
Power Management Definition
VESA's Mode Video H-sync V-sync Power Used Power
Saving (%) LED color
Active ON Yes Yes < 75W 0 % Green
Sleep OFF No No < 2W 99% Flashing
Green
Switch Off OFF -- -- < 2W 99% Off
• Dimensions 15.6" x 15.0" x 16.7" / 397 x 382 x 423.5 mm (including base)
15.6" x 13.1" x 16.7" / 397 x 333.5 x 423.5 mm (excluding base)
• Weight 13.5 kg
• Power supply 100-240 VAC, 60-50Hz
• Temperature (operating) 0° to 40°C / 32° to 104°F
• Temperature (storage) -25° to +65°C / -13° to +149°F
• Relative humidity (storage) 5% to 95%
* Resolution 1280 x 1024, standard size, contrast max., brightness 50%, 9300°, full white pattern.

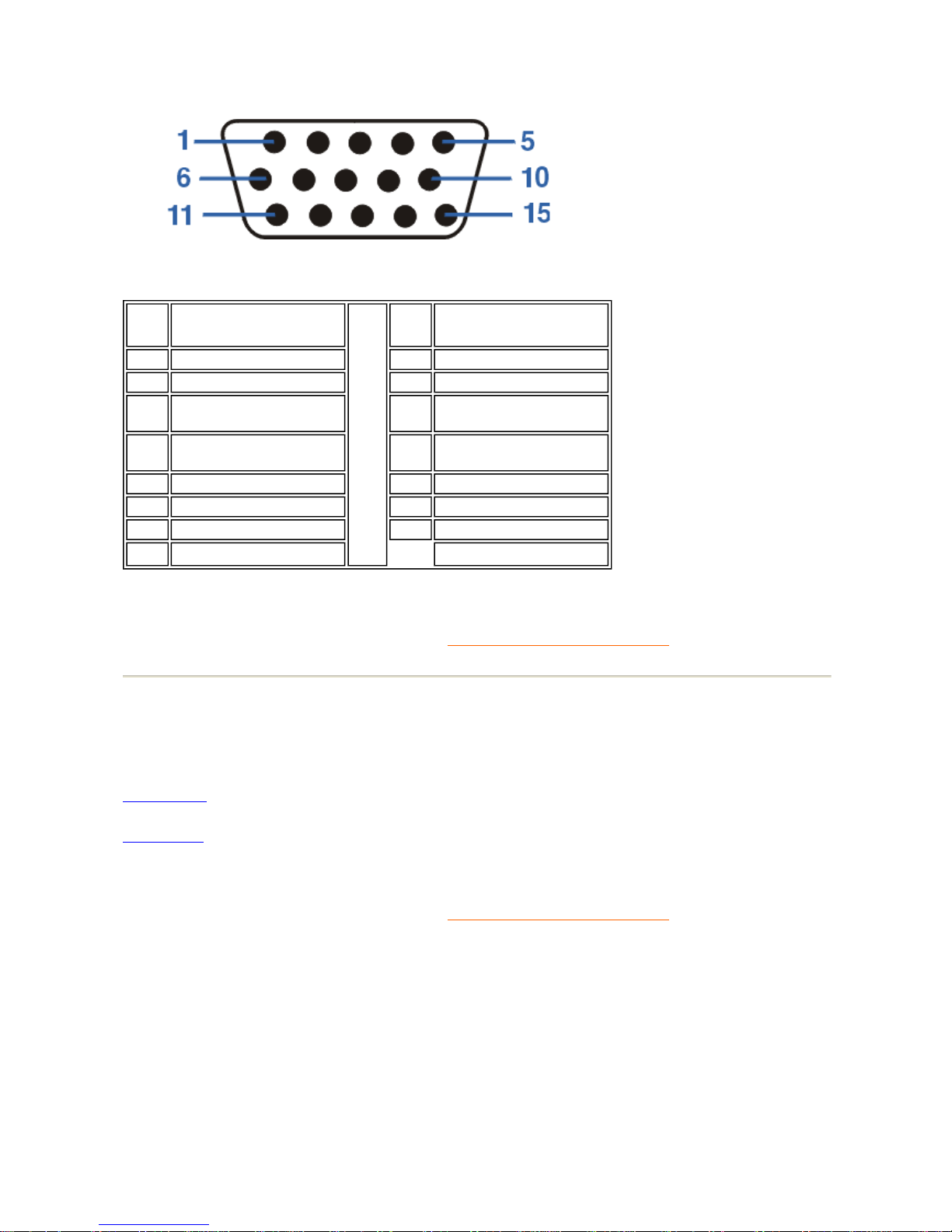

The 15-pin D-sub connector (male) of the signal cable (IBM systems):
RETURN TO TOP OF THE PAGE
Views
Follow the links to see various views of the monitor and its components.
Front View
Rear View
RETURN TO TOP OF THE PAGE
Pin
No. Assignment
Pin
No. Assignment
1Red video input 9+5V DDC supply
2Green video input 10 Logic ground
3Blue video input 11 Identical output -
connected to pin 10
4Identical output -
connected to pin 10 12 Serial data line (SDA)
5Self-test 13 H. Sync / H+V
6Red video ground 14 V. Sync (VCLK for DDC)
7Green video ground 15 Data clock line (SCL)
8Blue video ground

Installing your Monitor
Front View • Rear View

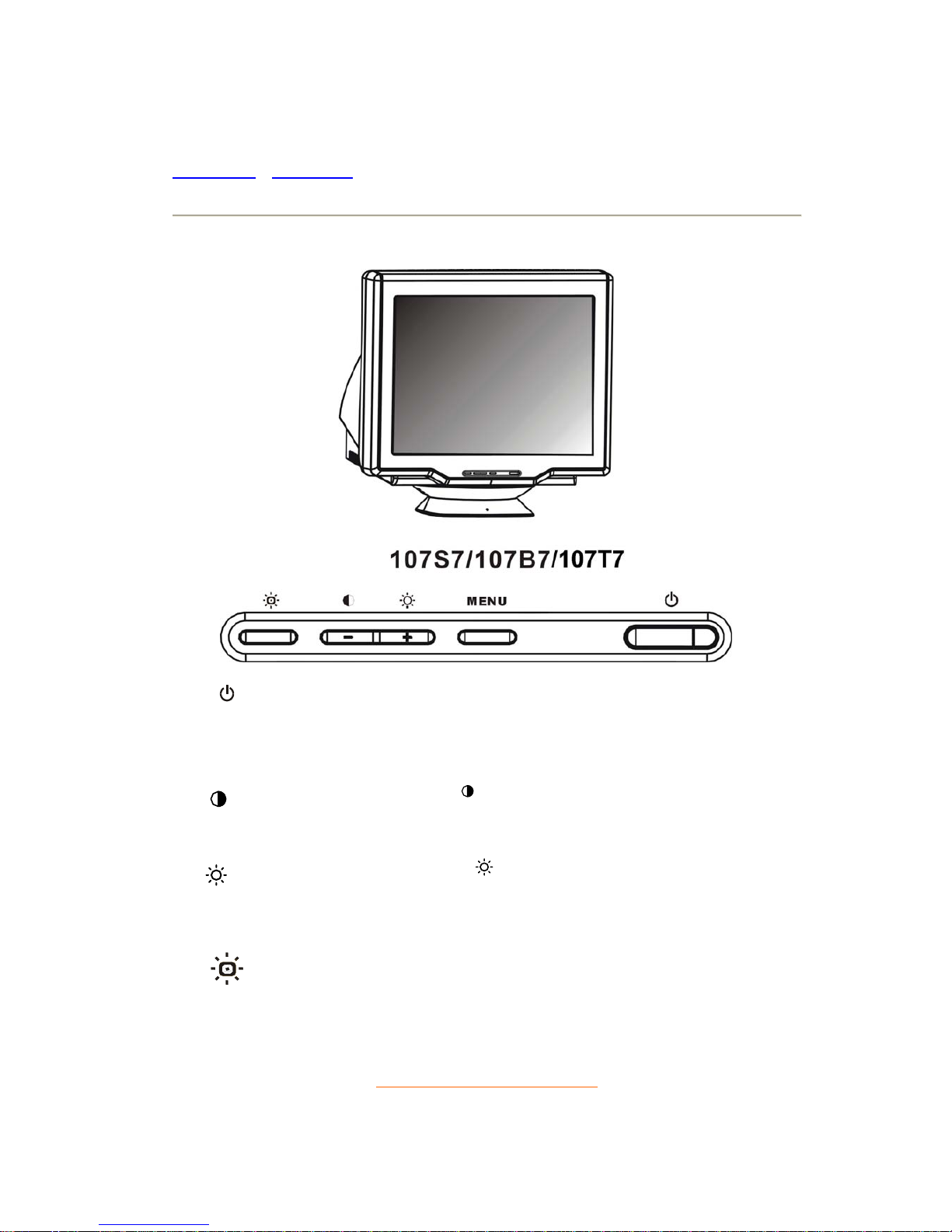

Front View
Power button switches your monitor on.
MENU MENU button which when pressed will take you to the OSD
controls
(-) Contrast hotkey. When the "(-)" button is pressed, the
adjustment controls for the CONTRAST will show up.
(+) Brightness hotkey. When the "(+)" button is pressed, the
adjustment controls for BRIGHTNESS will show up.
High Bright hot key delivers 4 suitable brightness instantly for text,
internet, game and multimedia.
RETURN TO TOP OF THE PAGE

Rear View
1. Power in - attach power cable here.
2. Video In - this is a cable which is already attached to your monitor.
Connect the other end of the cable to your PC.
RETURN TO TOP OF THE PAGE

On-Screen Display
Description of the On-Screen Display • The OSD Tree • The OSD Controls

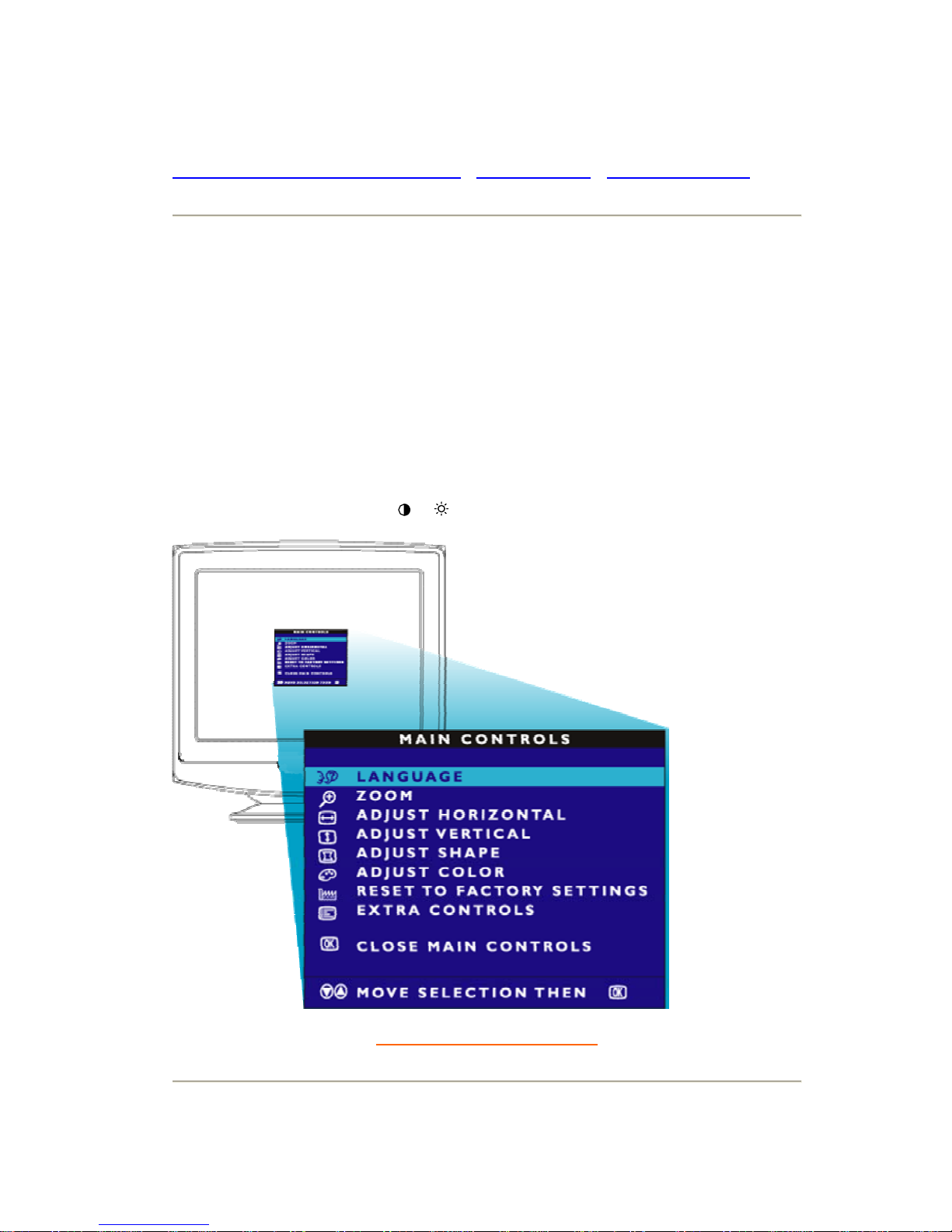

Description of the On Screen Display
What is the On-Screen Display?
This is a feature in all Philips monitors which allows an end-user to adjust screen performance of
monitors directly through an on-screen instruction window. The user interface provides user-
friendliness and ease-of-use when operating the monitor.
Basic and simple instruction on the control keys.
On the front controls of your monitor, once you press the MENU button, the On Screen Display
(OSD) Main Controls window will pop up and you can now start making adjustments to your
monitor's various features. Use the (-) (+) to make your adjustments within.
RETURN TO TOP OF THE PAGE

On-Screen Display
The OSD Tree
Below is an overall view of the structure of the On-Screen Display. You can use this as reference
when you want to later on work your way around the different adjustments.
Your monitor may not include all the items in the OSD tree shown below.
file:///D|/EDFU/crt_17_6/edoc/english/OSD_3/OSDDESC.HTM (2 of 4)2005-05-19 ¤W¤È 10:16:24

On-Screen Display
file:///D|/EDFU/crt_17_6/edoc/english/OSD_3/OSDDESC.HTM (3 of 4)2005-05-19 ¤W¤È 10:16:24

On-Screen Display
RETURN TO TOP OF THE PAGE
file:///D|/EDFU/crt_17_6/edoc/english/OSD_3/OSDDESC.HTM (4 of 4)2005-05-19 ¤W¤È 10:16:24

Customer Care and Warranty
Customer Care & Warranty
PLEASE SELECT YOUR COUNTRY/AREA TO READ THE WARRANTY COVERED:
WESTERN EUROPE: Austria • Belgium • Cyprus • Denmark • France • Germany • Greece •
Finland • Ireland • Italy • Luxembourg • the Netherlands • Norway • Portugal • Sweden •
Switzerland • Spain • United Kingdom
EASTERN EUROPE: Czech Republic • Hungary • Poland • Russia • Turkey • Bulgaria •
Slovakia • Slovenia
LATIN AMERICA: Antilles • Argentina • Brazil • Chile • Colombia • Mexico • Paraguay •
Peru • Uruguay • Venezuela
NORTH AMERICA: USA & Canada
PACIFIC: Australia • New Zealand
ASIA: Bangladesh • China • Hong Kong • India • Indonesia • Japan • Korea • Malaysia •
Pakistan • Philippines • Singapore • Taiwan • Thailand
AFRICA: Morocco • South Africa
MIDDLE EAST: Dubai • Egypt
file:///D|/EDFU/crt_17_6/edoc/english/WARRANTY/WARRANTY.HTM2005-05-19 ¤W¤È 10:16:24

Frequently Asked Questions
Frequently Asked Questions
1. What does the "Designed for Windows" logo signify?
The "Designed for Windows" logo means your Philips monitor fulfills the requirements and
recommendations of the PC9x (97, 98, or 99, 2000, XP) System Design Guide and passes stringent
WHQL tests.
2. What models are Mac compatible?
All listed Philips monitors are Mac compatible. BUT, you may need an adapter to connect the monitor to
your Mac system. Please contact your dealer/reseller for details.
3. What is TCO?
TCO is a Swedish abbreviation for the Swedish Confederation of Professional Employees.
4. What is MPR?
MPR is a Swedish abbreviation for the Swedish National Board of Measurement and Testing.
5. What are the differences between MPRII, TCO92, TCO95, TCO99 and TCO'03?
In the general hierarchy of standards, TCO'03/TCO99 is the highest level of certification. Next is TCO95,
which is "better" than TCO92, which, in turn, is better than MPRII. Below, we compare the standards in
each category.
-TCO 92 Phase out: June 30, 2000
-TCO 95 Phase out: December 31, 2003
Emissions:
MPRII: Set low emission rules for visual displays.
file:///D|/EDFU/crt_17_6/edoc/english/FAQ.HTM (1 of 13)2005-05-19 ¤W¤È 10:16:26

Frequently Asked Questions
TCO92: Imposed more stringent standards than MPRII.
TCO95: Further toughened TCO92 rules.
TCO99: Delineated even more severe standards and test procedures than TCO95.
TCO'03: Same as TCO99 standard + Testing uncertainty.
Safety:
MPRII: No requirement.
TCO92/95/99/03: All set requirements.
Energy Saving:
MPRII: No requirement.
TCO92: Standby mode < 30W, Off mode < 8W
TCO95: Standby mode < 30W, Off mode < 8W
TCO99: Standby mode < 15W, Off mode < 5W
TCO'03:Standby mode < 15W, Off mode < 5W
Visual Ergonomics:
MPRII: No requirement.
TCO92: No requirement.
TCO95: Set ergonomic rules including minimum contrast level, flicker and jitter.
TCO99: Tightened TCO95 rules.
TCO'03: Tighten TCO99 rule for CRT and new requirement of screen color for TFT LCD Monitors.
Ecology:
MPRII: No requirement.
TCO92: No requirement.
TCO95: Set general ecological standards including recycling preparation, environmental policy and
environmental certification.
TCO99: Further tightened TCO95 norms.
TCO'03:Require the recycling information to users.
6. How do I enable the energy saving function?
file:///D|/EDFU/crt_17_6/edoc/english/FAQ.HTM (2 of 13)2005-05-19 ¤W¤È 10:16:26

Frequently Asked Questions
Go to 'My Computer' and select 'Control Panel' followed by "Monitor Control". Select "All default
selection" and choose your Philips monitor model from the default driver list. Plug and Play will
automatically enable the EPA tick box for you. In DOS or Windows 3.1, you must first make sure your
PC supports power saving.
7. What is refresh rate?
"Refresh rate" describes the number of times an entire screen is vertically scanned each second. In
other words: If a monitor's refresh rate is 85 Hz, its screen is refreshed - or vertically scanned - 85 times
per second. A higher refresh rate means better image stability and less flicker. A high refresh rate helps
users who work long hours in front of a monitor avoid eye fatigue and stress. To change the refresh
rate, go into "Start/Settings / Control Pannel / Display / Properties / Setting/Advance/Adaptor" Windows
settings of the computer, the monitor will automatically adjust itself to the video card.
8. Why does the picture on the screen appear to flicker?
A low refresh rate or electrical interference typically causes flickering in the picture. Possible solutions
include the following:
●Verify that the proper drivers are installed for your video card
●Make sure that all electrical devices (such as mobile phones) are at least 1m from the monitor
●Place the monitor in another physical location away from electrical interference
●Adjust the refresh rate to 75hz or higher.
9. How do I adjust my monitor's resolution?
Available resolutions are determined by the capabilities of your video card and graphic driver. Under
Windows '95, you may select the desired available resolution through the 'Display properties/Settings'
menu.
file:///D|/EDFU/crt_17_6/edoc/english/FAQ.HTM (3 of 13)2005-05-19 ¤W¤È 10:16:26

Frequently Asked Questions
10. How can I adjust the size, position and rotation of my screen?
Depending on the model you own, you can use your CustoMax Software, On Screen Display (OSD) or
control knobs located on the monitor.
11. What if I get lost when making monitor adjustments?
Simply press OK button then select "Reset to factory settings" to restore all settings.
file:///D|/EDFU/crt_17_6/edoc/english/FAQ.HTM (4 of 13)2005-05-19 ¤W¤È 10:16:26
