INSTALLATION INSTRUCTIONS
BL25 BOLLARD SERIES
, and
equipment.
ELECTRICAL SHOCK HAZARD
READ, UNDERSTAND, and FOLLOW
these instructions before installing
equipment.
Disconnect the electrical supply power at the service panel (fuse or circuit breaker box).
Failure to do so could result in serious injury or death. Only qualified electricians should install
this fixture and the installation MUST conform with the National Electrical Code and all
applicable local codes and ordinances. Ensure that only proper tools, materials, and
equipment are used during installation.
WARNING
SAFETY
Proper grounding is required to ensure personal safety.
Do not use this equipment for anything other than its intended purpose.
Servicing this equipment should be performed by qualified service personnel.
Installer must assure installation including integrity of anchor bolts,foundation
and tightening of anchor nuts.
Make sure all four set screws supplied to attach bollard to the base plate are
installed and completely tight.
Save these instructions
Concrete
Foundation
(3) Anchor J-Bolts
Wiring Conduit
(By Others)
(3) Sets of Leveling
Washers & Nuts
3”[76.2mm]
6”[152.4mm]
Base plate
(3) Sets of Locking
Washers & Nuts

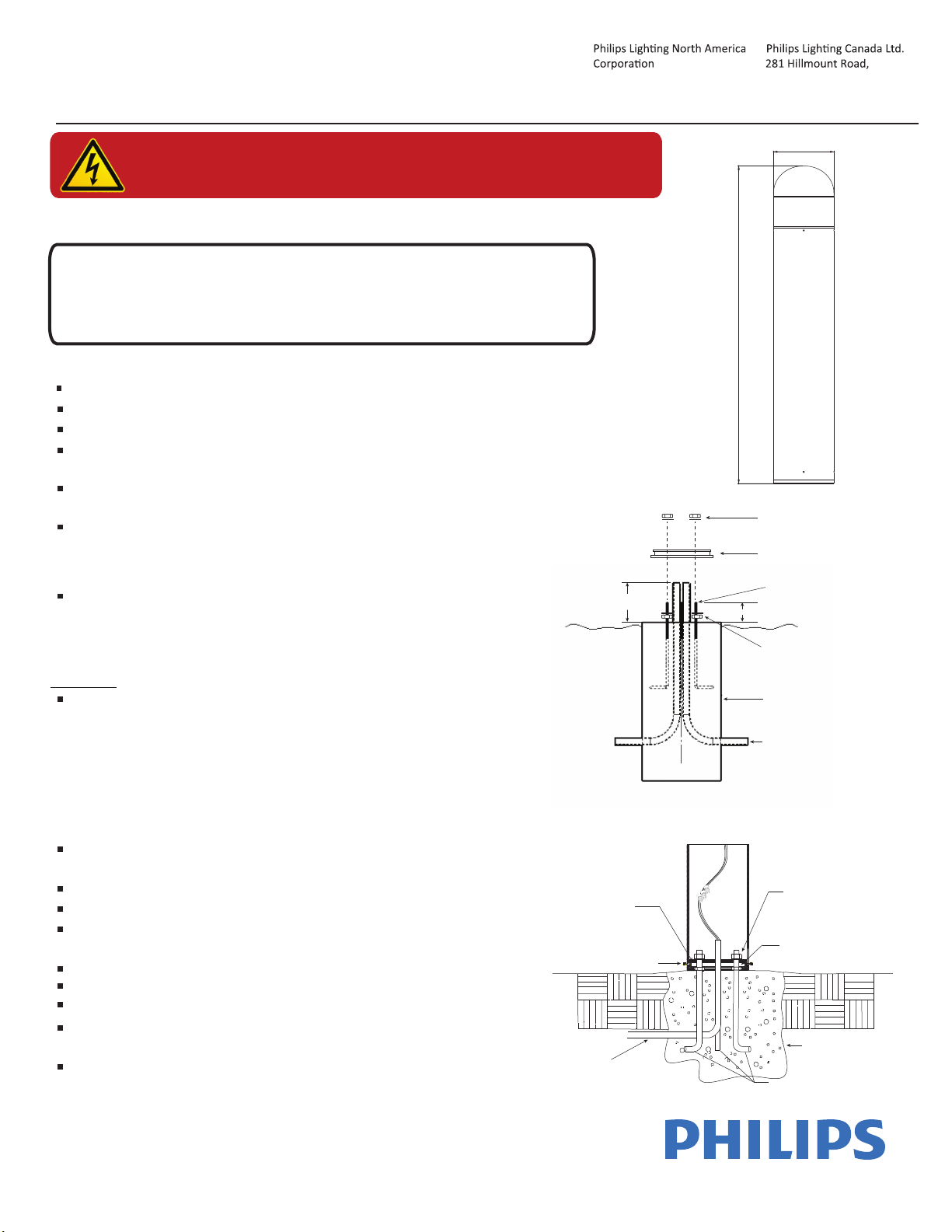

ANCHOR BOLT INSTALLATION
CAUTION: Install according to all applicable local codes.
Install three (3) Anchor J-Bolts in concrete foundation (by
others) using the template provided. Bollard Base may also
be used as the template. Bolt threads should protrude at least
3” from concrete.
BOLLARD INSTALLATION
To allow for base plate leveling, before inserting base plate,
place one nut followed by a washer onto each Anchor J-Bolt.
Place Base Plate over anchor J-bolts and leveling nuts.
Loosely tighten flat washers and nuts onto J-bolts.
Level base plate by adjusting the leveling nuts under the base
plate.Then tighten the upper nuts on top of the base plate.
Secure wires above ground level.
Make appropriate wiring connections as per instructions below.
Place fixture over the base plate.
Secure bollard onto the base plate by progressively tightening
the four set screws at the bottom of the column.
(3) Anchor J-Bolts
Concrete
Foundation
Wiring
Conduit
(By Others)
(4)
Set Screws
(3) Sets of Locking
Washers & Nuts
(3) Sets of
Leveling Washers
Base Plate
1FIXTURE IS SUITABLE FOR WET LOCATIONS
ø8" [ø203.2 mm]
42’’[1066.8mm]
Installer must assure that all gaskets provided to seal the optical
section of the bollard are in place and not damaged during assembly.
The gaskets keep out insects and keep moisture from entering and
collecting on the lens.
200 Franklin Square Drive, Markham ON, Canada L6C 2S3
Somerset, NJ 08873, USA
If required, retighten the four set screws that assembles the
bollard head to shaft and secure appropriately.

2
INSTALLATION INSTRUCTIONS
BL25 BOLLARD SERIES
ELECTRICAL WIRING
Make wiring connections (as stated below) and secure above the ground.
Check that the line voltage is correct.
Connect fixture GROUND (green) wire to power supply GROUND (green) wire.
Connect fixture WHITE wire to power supply (-) NEUTRAL COMMON wire.
Connect fixture BLACK wire to power supply (+) HOT LINE wire
CLEANING & MAINTENANCE
CAUTION: Ensure fixture temperature is cool enough to touch.
Do not clean or maintain while fixture is powered.
Clean lens with non-abrasive cleaning solution.
Do NOT open fixture to clean the LEDs.
TROUBLESHOOTING
If fixture does not turn on, check that the line voltage at fixture is correct. Check wiring diagram.
Ensure fixture is grounded.
If fixture is flickering, ensure fixture is compatible with the input power and is not wired to a dimming switch.
If fixture is not level, use the leveling nuts under the base plate to adjust bollard level.
ANCHOR BOLT TEMPLATE FOR BL25 BOLLARD
Drawing not to scale. Use provided template or actual base plate as your template.
FIXTURE IS SUITABLE FOR WET LOCATIONS
ø6.693’’ [ø170mm]
ø0.374" [ø9.5 mm]
ø5.748’’ [ø146mm]
120
120
ø3’’[ø76.2mm]
