Philips PD7030/51 User manual

Register your product and get support at
www.philips.com/welcome
EN User manual
RU Руководство пользователя
UK Посібник користувача
PD7030

3
English
EN
Contents
1 Important 4
Important Safety Instructions 4
Hearing safety 5
Notice 6
2 Your portable DVD player 9
Introduction 9
What’s in the box 9
Overview of the main unit 10
3 Get started 12
Charge the battery 12
Connect additional equipment 13
4 Use your player 15
Turn on 15
Select OSD language 15
Play discs 15
Play from USB 16
Play options 16
5 Adjust settings 17
6 Product information 18
7 Troubleshooting 19

4
1 Important
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including amplifiers) that
produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
jOnly use attachments/accessories specified by the manufacturer.
kUse only with the cart, stand, tripod, bracket, or table specified by
the manufacturer or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.
lUnplug this apparatus during lightning storms or when unused for
long periods of time.
mRefer all servicing to qualified service personnel. Servicing is
required when the apparatus has been damaged in any way, such
as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
EN

5
nBattery usage CAUTION – To prevent battery leakage which may
result in bodily injury, property damage, or damage to the unit:
Install all batteries correctly, + and - as marked on the unit.•
Do not mix batteries (old and new or carbon and alkaline, etc.).•
Remove batteries when the unit is not used for a long time.•
oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g. liquid
filled objects, lighted candles).
Caution
Use of controls or adjustments or performance of procedures other than herein•
may result in hazardous radiation exposure or other unsafe operation.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked flames or heat.•
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or adaptor to•
disconnect this apparatus from the power.
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing. This•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute. The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’•
adapts to higher volumes of sound. So after prolonged listening, what
sounds ‘normal’ can actually be loud and harmful to your hearing. To
guard against this, set your volume to a safe level before your hearing
adapts and leave it there.
English
EN

6
To establish a safe volume level:
Set your volume control at a low setting.•
Slowly increase the sound until you can hear it comfortably and•
clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate•
breaks.
Be sure to observe the following guidelines when using your headphones.
Listen at reasonable volumes for reasonable periods of time.•
Be careful not to adjust the volume as your hearing adapts.•
Do not turn up the volume so high that you can’t hear what’s around•
you.
You should use caution or temporarily discontinue use in potentially•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic
hazard and is illegal in many areas.
Notice
This product complies with the radio interference requirements of the
European Community.
Any changes or modifications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
EN

7

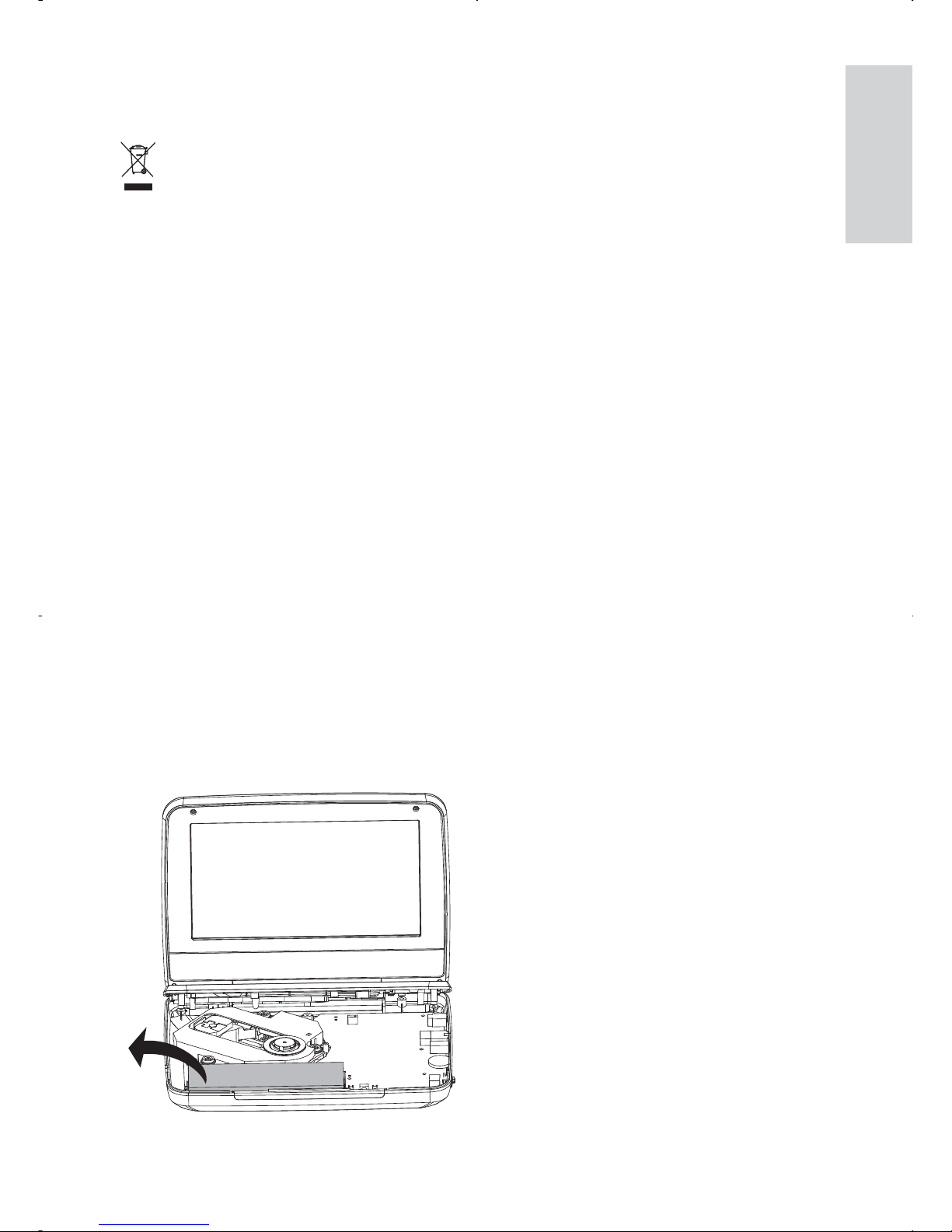

When you see the crossed-out wheel bin symbol attached to a product, it
means the product is covered by the European Directive 2002/96/EC:
Never dispose of your product with other household waste. Please inform
yourself about the local rules on the separate collection of electrical
and electronic products. The correct disposal of your old product helps
prevent potentially negative consequences on the environment and human
health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household waste.
Please inform yourself about the local rules on separate collection of
batteries. The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
Always bring your product to a professional to remove the built-in battery.
English
EN

8
The making of unauthorized copies of copy-protected material, including
computer programs, files, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence. This
equipment should not be used for such purposes.
Recording and playback of material might require consent. See Copyright
Act 1956 and The Performer’s Protection Acts 1958 to 1972.
This item incorporates copy protection technology that is protected by
U.S. patents and other intellectual property rights of Rovi Corporation.
Reverse engineering and disassembly are prohibited.
Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of Dolby Laboratories.
DivX®, DivX Certified®and associated logos are trademarks of DivX, Inc.
and are used under license.
ABOUT DIVX VIDEO: DivX®is a digital video format created by DivX,
Inc. This is an official DivX Certified®device that plays DivX video. Visit
divx.com for more information and software tools to convert your files
into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified®device must
be registered in order to play purchased DivX Video-on-Demand (VOD)
movies. To obtain your registration code, locate the DivX VOD section
in your device setup menu. Go to vod.divx.com for more information on
how to complete your registration.
Covered by one or more of the following U.S. patents: 7,295,673;
7,460,668; 7,515,710; 7,519,274
This apparatus includes this label:
EN

9
2 Your portable DVD player
Congratulations on your purchase, and welcome to Philips!To fully benefit
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
Your portable DVD player plays digital video discs that conform to the
universal DVD Video standard.With it, you can play movies with true cinema
picture quality and stereo or multi-channel sound (depending on disc and
playback set-up).
You can also select sound track, subtitle languages, and different angle of view
(again depending on DVD disc). Besides, you can restrict the play of discs that
are not suitable for children.
You can play the following discs on the DVD player (including CD-R, CD-
RW, DVD±R and DVD±RW):
DVD-Video•
Video CD•
Audio CD•
MP3 CD•
DivX•
Discs with JPEG files•
What’s in the box
Check and identify the contents of your package:
Portable DVD player•
AC power adaptor, ASUC12E-090080 (Philips)•
Car adaptor•
User manual•
English
EN

10
Overview of the main unit
aDisplay panel
bSOURCE
Switches between DVD and USB.•
cDISC MENU
For DVD, accesses or exits disc menu.•
For VCD, turns on or off PBC (Playback Control) mode.•
For VCD version 2.0 or SVCD with PBC turned on, returns to•
the menu.
dDC IN
Power supply socket.•
e
Headphone jack.•
fAV OUT
Audio/video output jack.•
g
Connects a USB storage device.•
m
n
o
p
j
k
qa
c
b
d
e
f
g
h
i
l
EN

11
hVOLUME
Increases or decreases volume.•
i(CHR)OFF•POWER•ON
Turns on/off DVD player.•
j, , ,
Navigates menus.•
,
Searches backward/forward at different speeds.•
/OK
Confirms an entry or selection.•
Starts, pauses or resumes disc play.•
kCHR/
Charging indicator/Power indicator.•
l,
Skips to the previous or next title, chapter, or track.•
m
Accesses options relating to the current activity or selection.•
Accesses or exits the setup menu.•
n
Stops disc play.•
oAUDIO
For DVD, selects an audio language.•
For VCD, selects an audio mode.•
pSUBTITLE
Selects DVD subtitle language.•
qOPEN
Opens the disc compartment.•
English
EN

12
3 Get started
Caution
Use the controls only as stated in this user manual.•
Always follow the instructions in this chapter in sequence.•
If you contact Philips, you will be asked for the model and serial number of
your player.The model number and serial number are on the bottom of your
player.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Charge the battery
Caution
Risk of product damage. Ensure that the power supply voltage corresponds to the•
voltage printed on the bottom of the player.
Use only the supplied AC adaptor to charge the battery.
•
Note
The type plate is located on the bottom of the player.•
To fast charge the battery,

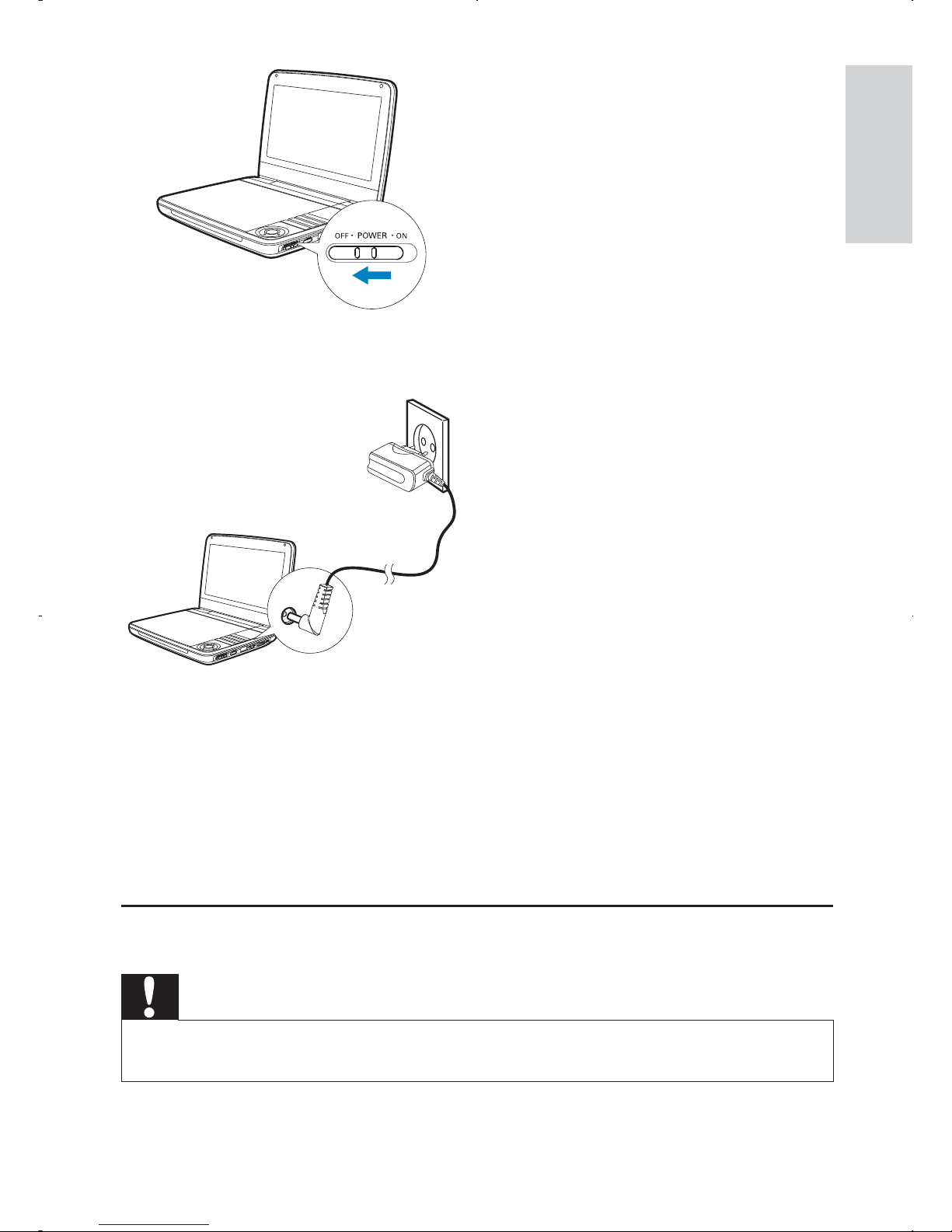

1Slide the OFF•POWER•ON switch to OFF position.
EN

13
2Connect the supplied AC adaptor to the player and to the AC outlet.
The»CHR indicator turns on (red).
When the battery is fully charged, the»CHR indicator turns off.
You can also charge the battery during playback.
1To charge the battery, connect the supplied AC adaptor to the player
and to the AC outlet.
Connect additional equipment
Caution
Turn off your player before connecting to any additional equipment.•
English
EN

14
You can connect the player to a TV or an amplifier to enjoy DVDs.
Match the color of the AV cables (the AV cable connected to TV is not
supplied) with the jacks:
the yellow cable is for the yellow video jack•
the red/white cable is for the red/white audio jacks.•
L
R
VIDEO IN
EN

15
4 Use your player
Turn on
Slide the OFF•POWER•ON switch to the ON position.
The»indicator turns on (green).
Select OSD language
You can choose a different language for the on-screen display text.
1Press OPTIONS .
The options menu is displayed.»
2Select [Setup] > [General] > [Language].
3Press /to select an option.
4Press /OK to confirm.
5Press OPTIONS to exit.
Play discs
1Slide OPEN on the player.
2Insert the disc with label side facing up.
3Push down to close the disc compartment.
Play starts automatically. If not, press»/OK.
English
EN

16
If a menu is displayed, select an item, then press• /OK to
start play.
To pause, press• /OK. Press again to resume play.
To stop, press• STOP twice.
To select the previous/next item, press• or .
To start search within video/audio, press• or once or more.
Play from USB
You can play DivX,VOB, MP3, or JPEG files that are stored on a USB storage
device.
1Connect the USB device to the player.
The content menu is displayed.»
2Press SOURCE to switch to USB mode.
3Select a file, then press .
Play starts.»
4To stop play, press .
Play options
1During play, press to select some play options.
2Follow the on-screen instructions.
EN

17
5 Adjust settings
To maximize your play experience, use the setup menu to fine tune your
settings.
1Press .
The options menu is displayed.»
2Select [Setup].
The setup menu is displayed.»
3Use navigation keys to select an option and press /OK to
confirm.
[General]
[Language] Select on-screen display language
[PBC settings] Set playback control function on/off.
[DivX (VOD)] Get DivX registration code.
[DivX subtitles] Select DivX subtitle language.
[Parental(DVD)] Select parental options.
[Set password] Change existing password (3308 by
default).
[Factory settings] Restore factory settings.
[Video]
[LCD Display] Set screen display aspect ratio.
[TV standard] Set video output format to TV
system.
[Brightness] Adjust screen brightness.
[Contrast] Adjust screen contrast.
[ Audio]
[Dolby] Set Dolby output.
[Version] Check the version information.
4Press to go back to the previous menu.
5Press to exit.
English
EN

18
6 Product information
Note
Product information is subject to change without prior notice.•
Dimensions 195 x 154 x 37 mm
Weight 0.675 kg
Power supply Input: 100-240V~ 50/60Hz
Output: DC 9V 0.8A
Power consumption 7.2 W
Operating temperature range 0-45°C
Laser wavelength 650 nm
Video output
Format PAL & NTSC
Output level 1Vp - p ± 20%
Load impedance 75
Audio line out
Audio out (analog audio) Output level: 2V ± 10%
Load impedance 10 K
Audio distortion + noise -80 (1KHz)
Frequency response 20Hz-20KHz ± 1dB
Signal/noise ratio 80 dB
Channel separation 80 dB
Dynamic range 80 dB
EN

19
7 Troubleshooting
Warning
Risk of electric shock. Never remove the casing of the player.•
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using the player, check the following points
before requesting service. If the problem remains unsolved, register your
player and get support at www.philips.com/welcome.
No power
Ensure that both plugs of the mains cord are properly connected.•
Ensure that there is power at the AC outlet.•
Check if the built-in battery is drained.•
No sound
Ensure that the AV cable is connected correctly.•
Distorted picture
Clean the disc. With a clean, soft, lint-free cloth, wipe the disc•
outwards from the center.
Make sure that the video output format of the disc is compatible with•
the TV.
Change the video output format to match your TV or program.•
The LCD is manufactured using high precision technology. You may,•
however, see tiny black points and/or bright points(red, blue, green)
that continuously appear on the LCD. This is a normal result of the
manufacturing process and does not indicate a malfunction.
Cannot play disc
Ensure the disc label is upwards.•
Clean the disc. With a clean, soft, lint-free cloth, wipe the disc•
outwards from the center.
Check if the disc is defective by trying another disc.•
English
EN

20
The player feels warm
When the player is in use for a long period of time, its surface will be•
heated. This is normal.
EN

© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
PD7030_51_UM_V1.0
