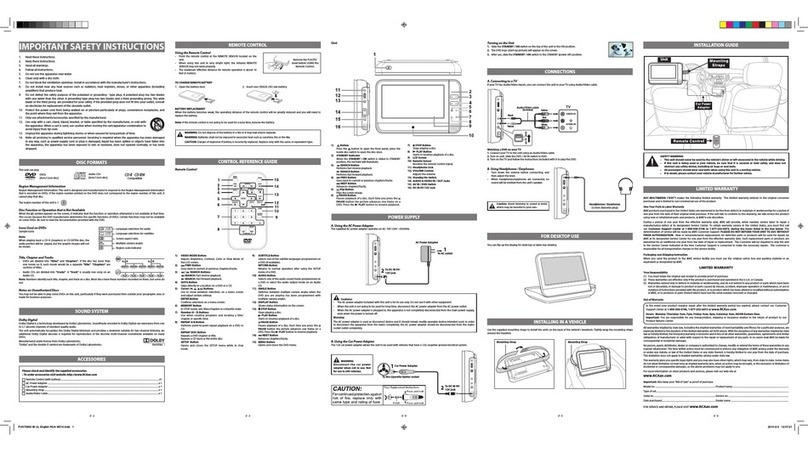

RCA DRC97283 User manual

Turning on the Unit
1. Slide the STANDBY/ ON switch on the top of the unit to the ON position.
2. The DVD logo (start-up picture) will appear on the screen.
3. After use, slide the STANDBY / ON switch to the STANDBY (powero ) position.
CONNECTIONS
This unit can play
Region Management Information
Region Management Information: This unit is designed and manufactured to respond to the Region Management Information
that is encoded on DVDs. If the region number printed on the DVD does not correspond to the region number of this unit, it
cannot play that disc.
The region number of this unit is 1.
DISC FORMATS
Notes on Unauthorized Discs
You may not be able to play some DVDs on this unit, particularly if they were purchased fromoutside your geographic area or
made for business purposes.
IMPORTANT SAFETY INSTRUCTIONS
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not block the ventilation openings. Install in accordance with the manufacturer's instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including
ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding - type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and
the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Use only with a cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with
the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into
the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been
dropped.
DVDs
[8cm/12cm disc] Compatible
Audio CDs
[8cm/12cm disc]
CONTROL REFERENCE GUIDE
1) Button
Press the button to open the front panel, press the
inside disc switch to open the disc door.
2) STANDBYIndicator
When the STANDBY / ON switch is slided to STANDBY
position, the red light will illuminate.
3) SEARCH Button
Performs fast reverse playback.
SEARCH Button
Performs fast forward playback.
4) PREV Button
Goes back to current or previous chapters/tracks.
NEXT Button
Advances chapters/tracks.
5) Flip Button
Flips the screen image.
6) PAUSEButton
Pauses playback of a disc. Each time you press the
Disc Function or Operation that is Not Available
When the symbol appears on the screen, it indicates that the function or operation attempted is not available at that time.
This occurs because the DVD manufacturer determines the specic functions of DVDs. Certain functions may not be available
on some DVDs. Be sure to read the documentation provided with the DVD.
Using the Remote Control
• Point the remote control at the REMOTE SENSOR located on the
unit. The remote controls are color-coded. Use the remote control
with the pl ayer that has the col or mark correspon ding to the
button color of the remote control.
• When using this unit in very bright light , the infrared REMOTE
SENSOR may not work properly.
• Themaximum eectivedistancefor remoteoperationis about16
feet (5 meters).
BATTERYREPL ACEMENT
When the battery becomes weak, the operating distance of the remote control will be greatly reduced and you will need to
replace the battery.
2. Insert one CR2025 (3V) size battery.
TO CHANGE REMOTE BATTERY
1. Open the battery door.
REMOTE CONTROL
Remove the PLASTIC
sheet before USING the
Remote Control.
Remote Control
Unit
B. Using the Car Power Adapter
The 12V car power adapter allows the unit to be used with vehicles that have a 12V, negative ground electrical system.
WARNING: Do not dispose of the battery in a re or it may leak and/or explode.
WARNING: Batteries shall not be exposed to excessiveheat such as sunshine, re or the like.
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type.
Note: If the remote control is not going to be used for a long time, remove the battery.
PAUSE button the picture advances one frame on a
DVD. Press the PLAY button to resume playback.
7) STOP Button
Stops playing a disc.
8) PLAYButton
Starts or resumes playback of a disc.
9) LCD Screen
10) Remote Sensor
Receives the remote control signal.
11) Headphone Jack
12) VOLUME Control
Adjusts the volume.
13) Standby/On Switch
14) AUDIO &VIDEO IN / OUT Jacks
15) AVIN / DVD Switch
16) DC IN 9V-12V Jack
Title, Chapter and Tracks
• DVDsare divided into “titles” and “chapters”. If the disc has more than
one movie on it, each movie would be a separate “title”. “Chapters” are
sections of titles.
• AudioCDs aredivided into“tracks”. A “track” is usually one song on an
Audio CD.
Note: Numbers identify each title, chapter, and track on a disc.Most discs have these numbers recorded on them, but some do
not.
Chapter1
Title1 Title2
Chapter2 Chapter3 Chapter1 Chapter2
Track1 Track2 Track3 Track4 Track5
Manufactured under license from Dolby Laboratories.
"Dolby" and the double-D symbol are trademarks of Dolby Laboratories.
Dolby Digital
Dolby Digital is a technology developed by Dolby Laboratories. Soundtracks encoded in Dolby Digital can reproducefrom one
to 5.1 discrete channels of excellent quality audio.
The unit automatically recognizes the Dolby Digital bitstream and provides a downmix suitable for two-channel listening. An
additional Dolby Digital decoder is required for reproduction of the discrete multi-channel soundtracks available on many
DVDs.
SOUND SYSTEM
Cautions:
• Usetheprovided12Vcarpoweradapter/splitteronly.Usewithothercarpoweradapters/splitterscoulddamagetheunit.
• The12Vcarpoweradapter/splitterincludedwiththisunitareforitsuseonly.Donotusethemwithotherequipment.
• Intheinterestoftracsafety,donotoperatethisunitorviewvideoswhiledrivingavehicle.
• Makesuretheunitissecurelyfastenedtopreventitfromfallingoryingthroughtheairintheeventofanaccident.
• Ifthe insideofthe cigarettelightersocket isdirtywith ashesordust, theplugsection maybecomehot duetopoor
contact. Be sure to clean the cigarette lighter socket before use.
• Afteruse,disconnectthe12Vcarpoweradapter/splitterfromboththeunitandcigarettelightersocket.
C. Using the Car Power Splitter
The 12V car power splitter allows the units to be used with vehicles that have a 12V, negative ground electrical system.
IMPORTANT NOTE:
The included remote controls have dierentcolor keys to identify which unit they operate.
The remote control with GREEN keysop eratesthe unit which has GREEN mark on the front of the unit.
The remote control with BLUE keysoperates the unit which has BLUE mark on the front of the unit.
ACCESSORIES
Please check and identify the supplied accessories.
• To order accessories visit website http://www.RC Aav.com
Remote Control (with battery)..........................................................................................................................................................................x 2
AC Power Adapter.................................................................................................................................................................................................x 2
Car Power Adapter................................................................................................................................................................................................ x 1
Car Power Splitter..................................................................................................................................................................................................x 1
Mounting Strap...................................................................................................................................................................................................... x 2
Audio/Video Cable................................................................................................................................................................................................ x 1
POWER SUPPLY
A. Using the AC Power Adapter
The supplied AC power adapter operates on AC 100-120V ~50/60Hz.
Cautions:
• TheACpoweradapterincludedwiththisunitisforitsuseonly.Donotuseitwithotherequipment.
• Whentheunitisnotgoingtobeusedforlongtime,disconnecttheACpoweradapterfromtheACpoweroutlet.
• WhentheACpoweradapterispluggedin,theapparatusis notcompletelydisconnectedfromthemainpowersupply,
even when the power is turned o.
Warning:
The AC power adapter is used as disconnect device and it should remain readily operable during intended used. In order
to disconnect the apparatus from the mains completely, the AC power adapter should be disconnected from the mains
socket outlet completely.
E - 6E - 3 E - 4E - 2 E - 5
B. Using Headphones / Earphones
• Turn down the volume before connecting, and then
adjust the level.
• Whenheadphones/earphonesareconnected,nosound
will be emitted from the unit's speaker.
Caution: Avoid l isten ing to sou nd at lev els
which may be harmful to your ears.
Icons Used on DVDs
Sample lcons
Note:
When playing back a CD-G (Graphics) or CD EXTRA disc, the
audio portion will be played, but the graphic images will not
be shown.
Language selections for audio
Language selections for subtitles
Screen aspect ratio
Multiple camera angles
Region code indicator
1) VIDEO MODE Button
Adjusts Brigntness, Contrast, Color or View Mode of
the LCD screen.
2) PREV Button
Goes back to current or previous chapters/tracks.
3) / SEARCH Buttons
SEARCH: Fast reverse playback.
SEARCH: Fast forward playback.
4) GOTO Button
Skips direc tly toa location on a DVD or a CD.
5) Cursor ( , , , ) Buttons
Use to move between selections on a menu screen
and adjust certain settings.
ENTER Button
Conrms selections on a menu screen.
6) MEMORY Button
In STOP mode, sets titles/chapters in a favorite order.
7) Number (0 - 9) Buttons
Use when creating programs and locating a title/
chapter or specic time.
8) REPEAT A-BButton
Performs point-to-point repeat playback on a DVD or
CD.
REPEAT DISC Button
Repeats a DVD chapter or title.
Repeats a CD track or the entire disc.
SETUP Button
Opens and closes the SETUP menu while in stop
mode.
9) SUBTITLE Button
Selec ts one of the subtitle languages programmed on
a DVD (if available).
RETURN Button
Returns to norma l operation after using the SETUP
menu of a DVD.
10) AUDIO Button
Selects one of the audio sound tracks programmed on
a DVD or select the audio output mode on an Audio
CD.
11) ANGLE Button
Switches between multiple camera angles when the
DVD you are playing has been programmed with
multiple camera angles.
12) DISPLAYButton
Shows status information on the screen.
13) STOP Button
Stops playing a disc.
PLAY Button
Star ts or resumesplayback of a disc.
PAUSEButton
Pauses playback of a disc. Each time you press the
PAUSE button the picture advances one frame on a
DVD. Press the PLAYbutton to resume playback.
14) NEXT Button
Advances chapters/tracks.
15) MENU Button
Opens and closes the DVD menu.
WARNING:
Di sco nne ct t he ca r pow er
adapter when not in use. Not
for use in 24V vehicles.
SAFETY WARNING!
• This unit should never be used by the vehicle's driver or left unsecured in the vehicle while driving.
• If this unit is being used in your vehicle, be sure that it is secured or held safely, and does not
obstruct any safety device, including air bags or seat belts.
• All passengers should wear seat belts when using this unit in a moving vehicle.
• If in doubt, please contact your vehicle manufacturer for further advice.
INSTALLATION GUIDE
4
3
12
13
14
15
16
INSTALLING IN A VEHICLE
Use the supplied mounting straps to install the units on the back of the vehicle's headrests. Tightly wrap the mounting straps
around the headrest.
Mounting Strap Mounting Strap
To the cigarettelighter socket
Car Power Splitter
1
To DC IN 9V-
12V jack
2To DC IN 9V-
12V jack
2
To the cigarettelighter socket
To DC IN 9V-
12V jack
2
1Car Power Adapter
To DC IN 9V-
12V jack
2
To ACoutlet
1
AC Power Adapter
Headphones / Earphones
(3.5mm diameter plug)
Watching the same DVD on both units
1. Turn on the units. Slide the AV IN / DVD switch on the unit in which the DVD disc is loaded to DVD position. (Control DVD
playback with this unit and its remote control.)
2. Slide the AV IN / DVD switch on the other unit to AV IN position.
A. Connecting both Units to Watch one DVD
You can watch the same DVD on the both units atthe same time.
Yellow Black
Yellow Black
Audio/Video Cable
(included)
FOR DESKTOP USE
Youcanipupthedisplayfordesk-toportable-topviewing.
AVC MULTIMEDIA (“AVC”) makes the following limited warranty. This limited warranty extends to the original consumer
purchaser and is limited to non-commercial use of the product.
One Year Parts & Labor Warranty
AVC products purchased in the United States are warranted to be free from defects in materials or workmanship for a period of
one year from the date of their original retail purchase. If the unit fails to conform to this warranty, we will service the product
using new or refurbished parts and products, at AVC’s sole discretion.
During a period of one year from the eective warranty date, AVC will provide, when needed, service labor to repair a
manufacturing defect at its designated Service Center. To obtain warranty service in the United States, you must rst call
our Customer Support Center at 1-800-506-5746 or 1-877-252-6873, during the hours listed in the box below. The
determination of service will be made by AVC Customer Support. PLEASE DO NOT RETURN YOUR UNIT TO AVC WITHOUT
PRIOR AUTHORIZATION. New or remanufactured replacements for defective parts or products will be used for repairs by
AVC at its designated Service Center for one year from the eective warranty date. Such replacement parts or products are
warranted for an additional one year from the date of repair or replacement. The Customer will be required to ship the unit
to the Service Center indicated at the time Customer Support is contacted to make the necessary repairs. The customer is
responsible for all transportation charges to the service facility.
Packaging and Shipping Instruction
When you send the product to the AVC service facility you must use the original carton box and packing material or an
equivalent as designated by AVC.
LIMITED WARRANTY
Your Responsibility
(1) You must retain the original sale receipt to provide proof of purchase.
(2) These warranties are eective only if the product is purchased and operated in the U.S.A. or Canada.
(3) Warranties extend only to defects in material or workmanship, and do not extend to any product or parts which have been
lost or discarded, or damage to product or parts caused by misuse, accident, improper operation or maintenance, or use in
violation of instructions provided with the product, or to product which has been altered or modied without authorization
of AVC, or to products or parts thereof which have had the serial number removed or changed.
Out of Warranty
In the event your product requires repair after the limited warranty period has expired, please contact our Customer
Support Center at 1-800-506-5746, 1-877-252-6873 or www.RCAav.com
Hours: Monday–Thursday: 9am–7pm, Friday: 9am–5pm, Saturday: 9am–NOON Eastern time.
Important: You are responsible for any transportation, shipping or insurance relative to the return of product to our
Product Returns Center.
All warranties implied by state law, including the implied warranties of merchantability and tness for a particular purpose, are
expressly limited to the duration of the limited warranties set forth above. With the exception of any warranties implied by state
law as hereby limited, the foregoing warranty is exclusive and in lieu of all other warranties, guarantees, agreements and similar
obligations of manufacturer or seller with respect to the repair or replacement of any parts. In no event shall AVC be liable for
consequential or incidental damages.
No person, agent, distributor, dealer or company is authorized to change, modify or extend the terms of these warranties in any
manner whatsoever. The time within action must be commenced to enforce any obligation of AVC arising under the warranty
or under any statute, or law of the United States or any state thereof, is hereby limited to one year from the date of purchase.
This limitation does not apply to implied warranties arising under state law.
This warranty gives you specic legal rights and you may also have other rights, which may vary, from state to state. Some states
do not allow limitation on how long an implied warranty lasts, when an action may be brought, or the exclusion or limitation of
incidental or consequential damages, so the above provisions may not apply to you.
For more information on other products and services, please visit our web site at
www.RCAav.com
Important: Also keep your “Bill of Sale” as proof of purchase.
Model no. ........................................................................................................Product name..................................................................................................
Type of set......................................................................................................................................................................................................................................
Serial no. ..........................................................................................................Invoice no. ........................................................................................................
Date purchased............................................................................................. Dealer name....................................................................................................
FOR SERVICE AND REPAIR, PLEASE VISIT www.RCAav.com
LIMITED WARRANTY
PVS72830 IB UL English RCA W011.indd 1 2010-2-2 17:47:25

E - 1E - 8 E - 9
Specications and external appearance are subject to change without notice.
Printed in China 811-728391W011
Need More Help?
Please visit online help at
http://www.RCAav.com
DO NOT RETURN THIS PRODUCTTOTHE STORE
user manual
E - 7
This owner’s manual explains the basic instructions for operating this unit. Some DVDs are produced in a manner
that allows specic or limited operation during playback. Therefore, this unit may not respond to all operating
commands. THIS IS NOT A DEFECT. Please refer to the instructions accompanying the specic DVD in question for
more information about the options available on that DVD.
“ ” may appear on the screen during operation. A“ ”means that the desired operation is not permitted by the
unit or disc.
Pausing Playback (Still Mode)
Press the PAUSE button. To resume normal playback, press the PLAY button.
Each time you press the PAUSE button, the picture advances one frame on a DVD.
Skip (Forward / Reverse)
• Pressthe NEXT button to advance chapters/tracks.
• Pressthe PREV button to go back to current or previous chapters/tracks.
• ForAudioCDs,usethenumberbuttonsontheremotecontroltojumpdirectlytothedesiredtrack.
PLAYING A DISC Basic playback
Stopping Playback
Press the STOP button at the location where you want to interrupt playback. To resume playback at the position where the
disc was stopped, press the PLAY button.
If you press the STOP button twice, the unit’s memory will be cleared and pressing the PLAY button will reset the disc to
the beginning.
DV D
Playing a Disc
1. Slide the STANDBY/ ON switch on the top of the unit to the ON position.
See CUSTOMIZING THE FUNCTION SETTINGS before proceeding to step 2.
2. Press the button to open the front panel, press the inside disc switch to open the disc door.
3. Hold the disc by its sides and carefully place it onto the spindle with the label side facing up, pushing gently until you hear
a “click”.
4. Gently push the disc door closed. It takes a short while for your unit to load the disc. After loading, for most DVDs, the unit
will automatically start playing or take you to the main menu.
5. If the unit does not automatically start playing the DVD, press the PLAY button.
Adjust the LCD Screen
You can adjust the Brigntness, Contrast,Color or View Mode of the LCD screen.
1. Press the VIDEO MODE button.
2. Press the / button to select Brightness, Contrast, Color or View Mode.
3. Then press the / button to change the setting.
(For View Mode, press the ENTER buttonto change the setting.)
4. Press the VIDEO MODE button to exit the menu.
Angle Selection
Some DVDs contain scenes which have been shot from a number of dierent angles. For these discs, the same scene can be
viewed from each of these dierent angles.
1. While you are playing a DVD with dierent angles recorded, press the
ANGLE button to view the number of current angles available.
2. Press the ANGLE button repeatedly to change the scene to the next
recorded angle.
• Afterapprox.two seconds,playbackwillcontinuefrom thenewangle
selected.
• Ifnobutton ispressedwithin10 seconds,playbackcontinueswithout
changing the current angle.
Notes:
• Thisfunctioncanonlybeusedfordiscsonwhichscenesshotfrommultipleangleshavebeenrecorded.
• Ifonlyoneangleisrecorded,“
1/1
” is displayed.
1/3
Sequence of angle shots
(Example)
Fast Forward / Fast Reverse
1. Pres s the SEARCH or SEARCH butt on when a di sc is play ing. Each t ime you pr ess the SEARCH or
SEARCH button, the playback speed changes in the following sequence:
2. Press the PLAY button when you reach the desired pointto resume normal playback.
Notes:
• TheDVDplayermutessoundandsubtitlesduringreverseandforwardscanofDVDs.
• Thefastplaybackspeedmaydierdependingonthedisc.
x2 x4 x8 x16
x2 x4 x8 x16
Audio Selection
On some DVDs, the sound is recorded in two or more formats. Follow the directions below to select the preferred language
and sound system.
1. While a disc is playing, press the AUDIO button to show the currentaudio format number.
2. Press the AUDIO button repeatedly to select the desired audio format.
Notes:
• IfonlyoneaudioformatisrecordedontheDVD,thenumberdoesnotchange.
• SomeDVDs allowyouto changeaudioselections viathedisc menuonly.If thisisthe case,pressthe MENU button and
choose the appropriate language on the disc menu.
• Youcanselectdierentaudiochannels(Stereo,LeftorRight)onanAudioCDbypressingtheAUDIO button repeatedly.
Subtitle Selection
1. While a DVD is playing, press the SUBTITLE button to display the current language setting,as shown in
the example.
2. Press the SUBTITLE button repeatedly to select the desired subtitle language. You can turn subtitles o by pressing the
SUBTITLE button repeatedly until“
Off
” is displayed.
Notes:
• SomeDVDsaresetto displaysubtitlesautomatically,andyoucannotturnthemoeven ifyousetthesubtitlefunctionto
o.
• Duringsomescenes,thesubtitlesmaynotappearimmediatelyafteryouselectyourdesiredscene.
• Thenumberof subtitlelanguagesrecordeddiersdependingon thedisc.Ifonly onelanguageisrecorded,thelanguage
does not change.
• Thisfunctioncanonlybeusedfordiscsonwhichsubtitleshavebeenrecordedinmultiplelanguages.
• SomeDVDsallowyoutochangesubtitlesviathediscmenuonly.Ifthisisthecase,presstheMENU button and choose the
appropriate subtitle on the disc menu.
1/4
Elapsed Time 00:05:18
Remain Time 00:30:28
Title 1/3 Chapter 1/5
Audio
Subtitle 1/4 Eng
Angle 1/3
Sequence of DISPLAY (Example)
DV D
Display Function
While the disc is playing, press the DISPLAYbutton repeatedly to display information
on operation status.
Elapsed Time: Elapsed time from the beginning of the title which is currently playing.
Remain Time: Remaining time of the title which is currently playing.
DV D
DV D
You can play a specic title or chapter repeatedly. ( Title repeat,chapter repeat, A-B repeat)
Repeating a Chapter
1. While the DVD is playing, press the REPEAT DISC button until the “
Repeat Chapter
” indicator displays on the screen. The
current chapter is played repeatedly.
Repeating a Title
2. While the DVD is playing, press the REPEAT DISC button until the “
Repeat Title
” indicator displays on the screen. The
current title is played repeatedly.
To ResumeNormal Playback
3. While the DVD is playing, press the REPEAT DISC button until the “
Repeat Off
” indicatordisplays on the screen.
Repeating a Single Track
1. While the CD disc is playing, press the REPEAT DISC button until the “
Repeat single
” indicator displayson the screen. The
current track is played repeatedly.
Repeating a Whole Disc
2. While the CD disc is playing, press the REPEAT DISC button until the “
Repeat all
” indicator displays on the screen. The
whole disc is played repeatedly.
To ResumeNormal Playback
3. Press the REPEATDISC button until the “
Repeat off
” indicatordisplays on the screen.
Repeating a Specic Section
You can play a specic section repeatedly.
1. While the disc is playing, press the REPEAT A-B button at the beginning of the section (“
Rep A-
” is displayed)you want to
play repeatedly.
2. Press the REPEATA-B button again at the end of the section (“
Rep A-B
” is displayed).
3. The Unit will immediately begin replaying your selection.
To ResumeNormal Playback
4. While the disc is playing, press the REPEAT A-B button until the “
RepAB Off
” indicatordisplays on the screen.
Notes:
• SomediscsmaynotpermitA-Brepeatoperation.
• YoucannotsettheA-Brepeatfunctionforasegmentthatincludesmultiplecameraangles.
• Youcanspecifyasegmentonlywithinthecurrenttitleortrack.
• TheremaybeaslightdierencebetweenpointAandthelocationwhereplaybackactuallyresumesdependingonthedisc.
REPEAT PLAYBACK
DV D
Locating a Specic Title
If a DVD contains title numbers, you can locate a specic title by directly selecting its title number.
1. Press the GOTO button.
2. Press the corresponding number button(s) for the title you want.
3. Press the ENTER button to conrm. Playback starts from the selected section.
Locating a Specic Chapter
If you know the chapter number for the chapter that you want to play, youcan locate it by directly selecting that number.
1. Press the GOTO button.
2. Press or button to display Chapter and press the corresponding number
button(s) for the chapter you want.
3. Press the ENTER button to conrm. Playback starts from the selected section.
Locating a Specic Time
You can move toa specic location by entering its corresponding time (hours, minutes, seconds).
1. Press the GOTO button.
2. Press or button to display Time and press the corresponding number buttons for
the setting point you want.
3. Press the ENTER button to conrm. Playback starts from the selected section.
Notes:
• Ifthe numbersyou enteredis notpermited bytheDVD, afteryou pressthe ENTER button, it will restore to “- - -”. You
should re-enter correct numbers.
• Somediscsmaynotrespondtothisprocess.
• Somescenesmaynotbelocatedaspreciselyasyouspecied.
• ThismethodforaccessingspeciclocationsisavailableonlywithinthecurrenttitleoftheDVD.
Title ---
Chapter ---
Time --:--:--
LOCATING A DESIRED SECTION
DV D
DV D
Playing Titles/Chapters in a Favorite Order
You can combine your favoritetitles/chapters and play them in the order you determine.
1. When a DVD is stopped, press the MEMORY button, the right display appears.
2. Select the items in the order you want by pressing the number buttons.
Each time you press the Cursor buttons ( , , , ), the space is highlighted. Highlight
where you want to enter,then press the corresponding number buttons.
3. Press the Cursor buttons ( , , , ) to move the highlighted bar to Play Memory, then
press the ENTER button.
The DVD player starts memory playback.
4. To resume normal playback frommemor y playback
1). When a DVD is stopped, press the MEMORY button.
2). Press the Cursor buttons ( , , , ) to move the highlighted bar to “Clear All”, then press the ENTER button. All the
input programs will be cleared.
3). Press the PLAY button to resume normal playback.
Notes:
• IfthetitleorchapternumbersyouenteredisnotpermitedbytheDVD,afteryoupresstheENTERbutton, it will restore to “-
- -”. You should re -enter the correct numbers.
• Somediscsmaynotpermitmemoryplaybackoperation.
• Ifyouselectrepeatduringmemoryplayback,theDVDplayerrepeatsthecurrentmemoryplayback.
• IfyoupresstheMEMORY buttonwhile the display appears on the TV screen, the display disappears.
• TheprogrammedselectionswillbeclearedwhenyouopenthedisctrayorturnotheDVDplayer.
DVD PROGRAMMABLE MEMORY
This unit can play JPG les recorded on a CD-R or CD-ROM disc (CD-RW is not recommended).
Viewing JPG Files
1. Press the button to open the front panel, press the inside disc switch to open
the disc door.
2. Hold the disc by its edges and gently push it onto the spindle with label side
facing towards you until you hear a“click”.
3. Close the disc door. A list of folders/les will appear on the screen.
4. Press the or button to select your desired le. The selected picture will
appear in the lower right corner. Press the PLAY button to start playback.
Press the STOP button to display a folder list.
VIEWING JPG FILES
Notes:
• Youcanpressthe PAUSE button to freeze the picture, and press the PLAY button to resume slide show.
• Youcanpressthe STOP button to quit playback.
• Youcan pressthe PREV or NEX T button to change the pic ture. Press the PREV button to view the previous
picture. Press the NEXT button to view the next picture.
• YoucanpresstheANGLE buttonon on the remote control to rotatethe direction of the pic tureby 90o.
• Somediscsmaynotpermitthisoperation.
Aspect Ratio
1. Press the SETUP button in stop mode.
2. Press the / button to select Video.
3. Press the button, then the / button to select Aspect R atio.
4. Press the ENTER button, then the / button to shift and change the
aspect ratio.
5. Press the ENTER button.
6. Press the SETUP or RETURN button to exit the menu.
Notes:
• Thedisplayable picturesizeispreset ontheDVD.Therefore,the playbackpictureof someDVDsmay notconformtothe
picture size selected.
• When you play DVDs recorded in the 4:3 picture size only, the playback picture always appears in the 4:3 picture size
regardless of the Aspect Ratio setting.
• Select16:9 toconformtothe LCD screenontheunit. Alwaysbesurethat yourAspectRatioconforms totheactualT Vin
use if you connect the unit to a TV.
Video
Aspect Ratio
DVD Menu
1. Press the SETUP button in stop mode.
2. Press the button, then the / button to select DVD Menu.
3. Press the ENTER button, then the / button until your preferred DVD
Menu language is displayed.
4. Press the ENTER button.
5. Press the SETUP or RETURN button to exit the menu.
Note: Some DVDs are programmed with a specic language. You may not be
able to change this feature.
Audio
1. Press the SETUP button in stop mode.
2. Press the button, then the / button to select Audio.
3. Press the ENTER button, then the / button until your preferred Audio
is displayed.
4. Press the ENTER button.
5. Press the SETUP or RETURN button to exit the menu.
Note: Some DVDs are programmed with a specic language. You may not be
able to change this feature.
Subtitle
1. Press the SETUP button in stop mode.
2. Press the button, then the / button to select Subtitle.
3. Press the ENTER button, then the / button to shift and change the
Language.
4. Press the ENTER button.
5. Press the SETUP or RETURN button to exit the menu.
Notes:
• Some DVDsareprogrammed witha speciclanguage. You maynot be
able to change this feature.
• Some DVDs allow you to change subtitle selections via the disc menu
only. If this is the case, press the MENU button and choose the appropriate subtitle language from the selection on the
disc menu.
View Mode
1. Press the SETUP button in stop mode.
2. Press the / button to select Video.
3. Press the button, then the / button to select View Mode.
4. Press the ENTER button, then the / button to shift and change the
View Mode.
5. Press the ENTER button.
6. Press the SETUP or RETURN button to exit the menu.
Fill Fill the screen with decoded image.
Original Display image as its original size.
Auto Fit Automatically fit the decoded image on screen without
distortion. Black bars will be present on top/bottom or left/right of screen.
Pan Scan Select when a standard 4:3 TV is connected. Displays pictures cropped to ll your TV screen. Sides of the picture
are cut o.
Note: Depending on the DVD, you may not be able to view the mode as selected.
When play CD / JPG discs, you can modify the Play Modes through the Toolkit which appears on the right of below picture on
the screen. Press the / button to navigate between the windows and the / button to select les/tracks or play mode
items. Then press the ENTER button.
1. In Stop mode, press the Cursor buttons ( , , , ) to select "Edit mode" then press the ENTER button.
2. Use the Cursor buttons ( , , , ) to select tracks/les shown on the left hand side of the window. Press the ENTER
button to conrm the selected tracks/les. " " will appear in front of the selected tracks/les.
3. Select "Add to program" then press the ENTER button. " " will disappear from the screen. It means that the tracks/les
you have selected are added into the "Program view".
4. Select "Program view" to view programmed les.To add more les by "Browser view" repeat the above steps.
5. Press the PLAY button to start the program playback.
The Toolkit has the following play mode items:
• Repeat (O/Single/All):
O: Resumes normal playback.
Single: Repeats the current track/le.
All: Repeats all les on the current folder or all tracks on the disc.
• Mode (Normal / Shue / Music intro):
Normal: Resumes normal playback.
Shue: Playbacks track/le in random order.
Music intro (for Audio CD only): Only playbacks the rst 10 seconds of all the
tracks on the current folder/disc.
• Edit mode: Program operation works only when "Edit mode" is selected.
• Program view: To view tracks/les in the "Programview" list. It is disabled when the "Program view" list is empty.
• Add to program: Add les/tracks to the "Programview" list. It is disabled if the "Edit mode" is not selec ted.
• Browser view: To view les/tracks in the original view list.
• Clear program: Delete the les/tracks in the "Program view" list.
Select a le/track or more you want to delete in complete stop mode (press the STOP button twice). " " will appear
besides the deleted le/track. Select "Clear program" and then press the ENTER button. It is disabled if the "Edit mode" is
not selected.
Note:
The program will be deleted if disc door is opened or selected les are deleted by selecting "Clear program" in "Edit mode".
PLAY MODES FOR CD OR JPG DISC
CUSTOMIZING THE FUNCTION SETTINGS
OSD Language
1. Press the SETUP button in stop mode.
2. Press the button to select OSD Language.
3. Press the ENTER button, then the / button to shift and change the
Language.
4. Press the ENTER button.
5. Press the SETUP or RETURN button toexit the menu.
Language
Use Default Settings
1. Press the SETUP button in stop mode.
2. Press the / button to select Misc.
3. Press the button, then press the / button to select Use Default
Settings dialogue box.
4. Press the ENTER followed by the / button to select “Yes”, then press
the ENTER button. The original setting will be restored.The unit will exit
the menu automatically and re-load the disc in the disc tray.
Note: It will take 3-5 seconds to reset the DVD player to the factory default.
Misc
SAFETY PRECAUTIONS
* SEE BOTTOM OF UNIT FOR GRAPHIC SYMBOLS *
This product
contains a low
power laser device.
THIS CLASS B DIGITALAPPARATUS COMPLIES
WITH CANADIAN ICES-003.
WARNING: TO RE DUCE T HE RIS K OF
ELECTRIC SHOCK, DO NOT REMOVE COVER (OR
BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL.
WARNING: TO PR EV ENT F IR E OR SH OC K
HAZARD, DO NOT EXPOSE THIS APPLIANCE TO
RAIN OR MOISTURE. DO NOT PLACE OBJECTS
FILLED WITH LIQUIDS ON OR NEAR THIS UNIT.
CAUTION: USE OF CONTROLS OR ADJUSTMENTS
OR PERFORMANCE OF PROCEDURES OTHER
THAN THOSE SPECIFIED MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
CAUTION: DANGER OF EXPLOSION IF BAT TERY
IS INCORRECTLY REPLACED. REPLACE ONLY
WITH THE SAME OR EQUIVALENTTYPE.
CAUTION
INVISIBLE LASER RADIATIONWHEN
OPEN.
AVOID EXPOSURETO BEAM.
Thelightningashwithan arrowheadsymbol,withinthe
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product'senclosure thatmay beofsucient magnitude
to cause an electric shock.
The exclamation point within the equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in this
owner’s manual.
WARNING: Should any trouble occur, disconnect the AC power adapter and refer servicing to a qualied
technician.
Notes on Copyright
It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material
without permission.
Apparatus Claims of U.S. Patent Nos. 6,836,549; 6,381,747; 7,050,698; 6,516,132 and 5,583,936 licensed for limited
viewing uses only.
This product incorporates copyright protection technology that is protected by U.S. patents and other intellec tual
property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended
for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or
disassembly is prohibited.
On Placement
• Donotusetheunitinplacesthatareextremelyhot,cold,dustyorhumid.
• Placetheunitonaatandevensurface.
• Donotrestrict theairowoftheunit byplacingitinaplace withpoorairow,bycoveringitwith acloth,orby
placing it on carpeting.
• Toavoidmagnetized,donotplacetheunitnearspeakerormagnet.
• Donot usethisunit indirectsunlightor leavetheunit inaclosed automobile(oryacht,etc) whereitwould be
exposed to high temperatures above 104°F (40°C).
• NonakedamesourcessuchaslightedcandlesshouldbeplacedontheACpoweradapterandmainunit.
• Theapparatusshallnotbeexposedtodripping orsplashingandthatnoobjectslledwithliquids,suchasvases,
shall be placed on apparatus.
On Safety
• Whenconnectingor disconnectingtheACpower adapter, griptheplugand notthecorditself.Pulling thecord
may damage it and create a hazard.
• Whenyouarenotgoingtousetheunitforalongperiodoftime,disconnecttheACpoweradapter.
On Condensation
• Whenleft inaheatedroom whereitis warmanddamp,water dropletsorcondensationmay forminsidetheunit.
When there is condensation inside the unit, the unit may not function normally. Let the unit stand for 1 to 2 hours
before turning the power on, or gradually heat the room and allow the unit to dry before use.
Ventilation Warning
• Donotblock theventilationopeningsorholes.(Iftheventilationopeningsorholesareblocked byanewspaper
or cloth, etc., the heat may not be able to get out.)
• Donotoperatethe unitinaconnedspace,suchasabookcaseorbuilt-in cabinet,allowabout4inch(10cm)of
free space all around the unit for adequate ventilation.
Rating Plate Location
• Theratingplateislocatedonthebottomofunit.
FCC Statements
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in
a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio communications. However,
there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning the equipment o and on, the user
is encouraged to try to correct the interference by one or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment and receiver.
– Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
– Consult the dealer or an experienced radio/TV technician for help.
WARNING: Changes or modications to this unit not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
TROUBLESHOOTING GUIDE
SYMPTOM CAUSE (AND REMEDY)
• EnsuretheACpoweradapterisconnected.
• Theunitisnotturnedon.
• Makesuretheinfraredremotesensorisnotblocked.
• Makesuretheplasticsheethasbeenremovedfromtheremotecontrol.
• Pointtheremotedirectlyattheinfraredremotesensorontheunit.
• Replacethebatteryintheremotecontrolwithanewone.
• UseremotecontrolwithGREENkeyswiththeunitwhichhasGREENmark.
Use remote control with BLUE keys with the unit which has BLUEmark .
• MakesureONmodewasselected.
• Thevolumecontrolislocatedonthesideoftheunit–pleasetryadjustingthis.
• Thesystemisinpausemode.Pressthe PLAY button to return to normal play mode.
• Theunit isinfast-forward orfast-reversemode. Press the PLAY button to return to normal
play mode.
• MakesuretheAUDIO/VIDEOoutputconnectionsarecorrect.
• TheDTSDVDcannotbedecodedtohavespeakeroutput.
• Theunitistoohot;shutotheunitfor30minutestocoolitdown.
• Theregionnumberofthediscdoesn'tmatchtheregionnumberofthisunit.
• Cleanthedisc.
• Thediscisscratched.
• Adjustthe LCD's brightness,contrastand colorusingtheVIDEO MODE button on the remote
control.
• Theplugsandjacksaredirty.Wipethemwithaclothslightlymoistenedwithalcohol.
• Cleanthedisc.
• Thereisnodiscinside(“NoDisc”appearsonthescreen).
• Insertthedisccorrectlywiththeplaybacksidefacingdown.
• Cleanthedisc.
• Anon-NTSCdischasbeeninserted.Theunitanddiscregionnumberareincompatible.
• Condensationmay haveformedinside theunit duetoa suddenchange intemperature.Wait
about an hour for it to clear and try again.
• Pressthe button located on front of player.
No power.
The remote control does
not function.
No sound or only a very
low-level sound is heard.
No picture
The picture is not clear
Severe hum or noise is
heard.
The disc does not play.
The picture is up-side-
down
Cleaning the Disc
A defective or soiled disc inserted into the unit can cause sound to drop out during playback.
Handle the disc by holding its inner and outer edges.
• DoNOTtouchthesurfaceoftheunlabeledsideofthedisc.
• DoNOTstickpaperortapeonthesurface.
• DoNOTexposethedisctodirectsunlightorexcessiveheat.
• Cleanthediscbeforeplayback.Wipethediscfromthecenteroutwardwithacleaningcloth.
• NEVERusesolventssuchasbenzineoralcoholtocleanthedisc.
• DoNOTuseirregularshapeddiscs(example:heartshaped,octagonal,etc.).Theymaycausemalfunctions.
Cleaning the Unit
• BesuretoturntheunitoanddisconnecttheACpoweradapterbeforemaintainingtheunit.
• Wipethe unitwitha drysoftcloth. Ifthesur facesareextremelydir ty, wipecleanwith acloththat hasbeendipped ina
weak soap-and-water solution and wrung out thoroughly, then wipe with a dry cloth.
• Neverusealcohol,benzine,thinner,cleaninguidorotherchemicals.DoNOTusecompressedairtoremovedust.
Important Note
• Beforetransportingtheunit,removeanydiscfromthedisccompartment.
MAINTENANCE
Screen Saver
1. Press the SETUP button in stop mode.
2. Press the / button to select Misc.
3. Press the button, then press the / button to select Screen Saver.
4. Press the ENTER button, then press the / button to change the On/
O mode.
5. Press the ENTER button.
6. Press the SETUP or RETURN button toexit the menu.
Title Chapter
Read these instructions before using your new product for the rst time.
DRC97283
AVC Multimedia
Markham, Ontario L3R 1E3
http: //www.RCAav.com
Press here to open
PVS72830 IB UL English RCA W011.indd 2 2010-2-2 17:47:30
