Philips AE5200/05 User manual

Register your product and get support at
www.philips.com/welcome
AE5200/05
EN User manual
AE5200_05_UM_V1.1.indd 1 10/14/2009 10:35:15 AM

3
English
EN
Contents
1 Important 4
Safety 4
Notice 5
2 Your FM/DAB radio 7
Introduction 7
What’s in the box 7
Overview of the main unit 8
3 Get started 10
Place the radio 10
Prepare FM/DAB antenna 10
Connect power 10
Turn on 12
Adjust the volume level 12
4 Listen to FM radio 13
Tune to FM radio 13
Store FM stations manually 13
Select a preset FM radio station 13
5 Listen to DAB radio 14
Tune to DAB radio 14
Change DAB station 14
Scan DAB radio stations 14
Display station information 15
Store DAB stations manually 15
Select a preset DAB radio station 16
Use DAB menu 16
6 Product information 18
Tuner (FM) 18
General information 18
7 Troubleshooting 19
8 About DAB 20
AE5200_05_UM_V1.1.indd 3 10/14/2009 10:35:16 AM

4
1 Important
Safety
Hearing safety
Listen at a moderate volume.
Using headphones at a high volume can impair your hearing.This
•
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute.The
higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’ adapts
•
to higher volumes of sound. So after prolonged listening, what sounds
‘normal’ can actually be loud and harmful to your hearing.To guard
against this, set your volume to a safe level before your hearing adapts
and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.
•
Slowly increase the sound until you can hear it comfortably and clearly,
•
without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also
•
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate breaks.
•
Be sure to observe the following guidelines when using your headphones.
Listen at reasonable volumes for reasonable periods of time.
•
Be careful not to adjust the volume as your hearing adapts.
•
Do not turn up the volume so high that you can’t hear
•
what’s around you.
You should use caution or temporarily discontinue use in potentially
•
hazardous situations. Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a trafc
hazard and is illegal in many areas.
Where the mains plug or an appliance coupler is used as the disconnect
device, the disconnect device shall remain readily operable.
EN
AE5200_05_UM_V1.1.indd 4 10/14/2009 10:35:16 AM

5
Warning
Never remove the casing of this unit.
•
Never lubricate any part of this unit.
•
Place this unit on a at, hard and stable surface.
•
Never place this unit on other electrical equipment.
•
Only use this unit indoors. Keep this unit away from water, moisture and liquid-lled objects.
•
Keep this unit away from direct sunlight, naked ames or heat.
•
Copyright in the U.K.
Recording and playback of material may require consent. see Copyright Act
1956 and The performer’s Protection Acts 1958 to 1972.
Notice
Any changes or modications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
This product complies with the radio interference requirements of the
European Community.
This product complies with the requirements of the following directives and
guidelines: 2004/108/EC + 2006/95/EC
Recycling
Your product is designed and manufactured with high quality materials and
components, which can be recycled and reused.
English
EN
AE5200_05_UM_V1.1.indd 5 10/14/2009 10:35:16 AM

6
When this crossed-out wheeled bin symbol is attached to a product it means
that the product is covered by the European Directive 2002/96/EC.
Please inform yourself about the local separate collection system for electrical
and electronic products.
Please act according to your local rules and do not dispose of your old
products with your normal household waste. Correct disposal of your
old product helps to prevent potential negative consequences for the
environment and human health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed with normal household waste.
Please inform yourself about the local rules on separate collection of batteries
because correct disposal helps to prevent negative consequences for the
environmental and human health.
Environmental information
All unnecessary packaging has been omitted.We have tried to make the
packaging easy to separate into three materials: cardboard (box), polystyrene
foam (buffer) and polyethylene (bags, protective foam sheet.)
Your system consists of materials which can be recycled and reused if disassembled
by a specialized company. Please observe the local regulations regarding the
disposal of packaging materials, exhausted batteries and old equipment.
EN
AE5200_05_UM_V1.1.indd 6 10/14/2009 10:35:17 AM

7
2 Your FM/DAB radio
Congratulations on your purchase, and welcome to Philips! To fully benet
from the support that Philips offers, register your product at www.philips.
com/welcome.
Introduction
With this unit, you can enjoy both FM radio and Digital Audio Broadcasting
(DAB) radio.
Digital Audio Broadcasting (DAB), is a way of broadcasting radio digitally
through a network of transmitters. It provides you with more choice, better
sound quality and more information.
What’s in the box
Check and identify the contents of your package:
Main unit
•
AC adaptor
•
User manual
•
English
EN
AE5200_05_UM_V1.1.indd 7 10/14/2009 10:35:17 AM

8

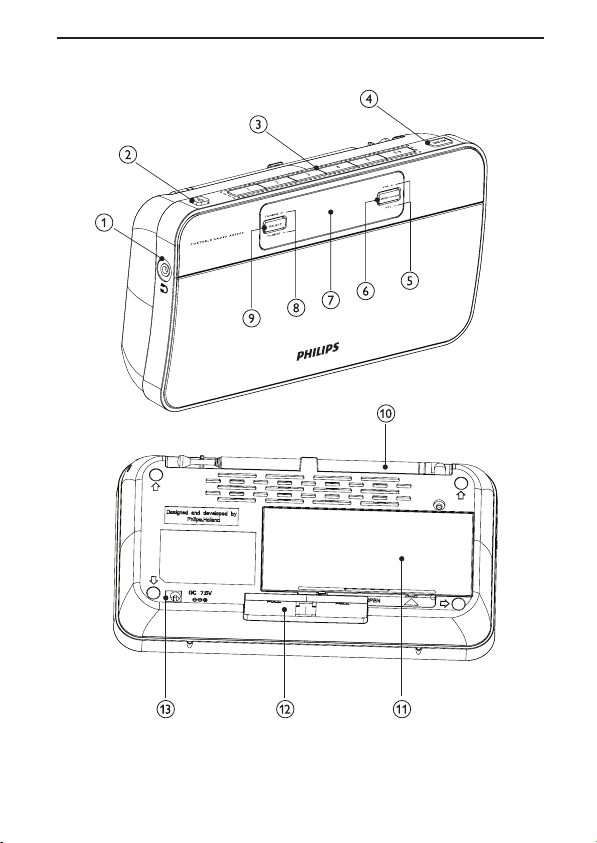

Overview of the main unit
EN
AE5200_05_UM_V1.1.indd 8 10/14/2009 10:35:17 AM

9
a
Jack for the headphone.
•
b
Turn on or off the unit.
•
c1 - 5+
Numeric keypads: Set/select a preset radio station.
•
dDAB/FM
Select DAB or FM radio.
•
eVOL+/-
Adjust volume.
•
fMENU/SCAN
Select DAB menu option.
•
Scan DAB radio stations.
•
gDisplay panel
Display current status.
•
hTUNING +/-
FM mode:Tune to a radio station.
•
DAB mode: Navigate DAB station list/menu.
•
iSELECT
Display DAB station information.
•
Conrm DAB station/menu selection.
•
jFM/DAB antenna
Improve FM/DAB reception.
•
kBattery compartment door
lRetractable stand
Provide stand support.
•
mDC
Jack for the AC adaptor(supplied).
•
English
EN
AE5200_05_UM_V1.1.indd 9 10/14/2009 10:35:18 AM

10
3 Get started
Caution
Use of controls or adjustments or performance of procedures other than herein may
•
result in hazardous radiation exposure or other unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number of
this apparatus.The model number and serial number are on the back of the
apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Place the radio
To place the unit on a at, stable surface, pull out the retractable stand from
bottom of the unit at back-side.
Prepare FM/DAB antenna
For optimal reception, fully extend and adjust the position of the FM/DAM
antenna.
Tip
Position the antenna as far away as possible from your TV,VCR or other radiation source
•
to prevent interference.
Connect power
You can use this radio player on AC power or battery power.
Battery Life (Approx. hours)
When using FM DAB
alkaline R6 (size AA) 9 9
EN
AE5200_05_UM_V1.1.indd 10 10/14/2009 10:35:18 AM

11

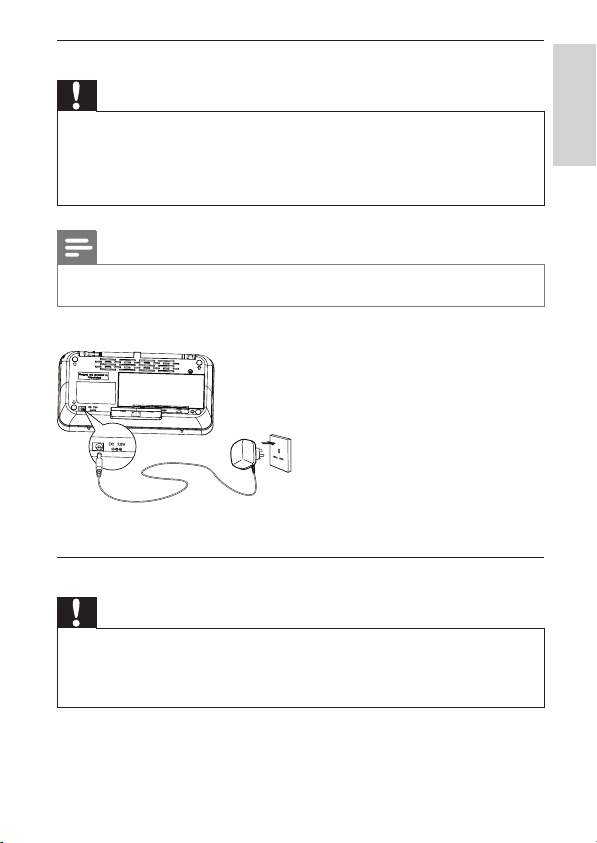

Option 1: AC power
Caution
Risk of product damage! Ensure that the power supply voltage corresponds to the
•
voltage printed on the back or the underside of the product.
Risk of electric shock! When you unplug the AC adaptor, always pull the plug from the
•
socket. Never pull the cord.
Use only the AC adaptor specied by the manufacturer or sold with this unit.
•
Note
The type plate is located on the back of the apparatus.
•
1Connect one end of the AC adaptor to the DC socket on the main unit.
2Connect the other end of the AC adaptor to the wall outlet.
Option 2: Battery power
Caution
Risk of explosion! Keep batteries away from heat, sunshine or re. Never discard
•
batteries in re.
Do not mix batteries (old and new or carbon and alkaline, etc.).
•
Remove batteries if they are exhausted or if the unit is not to be used for a long time.
•
English
EN
AE5200_05_UM_V1.1.indd 11 10/14/2009 10:35:19 AM

12
1Open the battery compartment at the back of the unit.
2Insert 6 R6/UM-3/AA size batteries (not supplied) with correct polarity
(+/-) as indicated, then close the battery compartment.
3The unit is ready to operate.
Tip
“Battery low’ message is shown when the battery power is low. Change batteries to
•
ensure normal operation.
Note
Batteries contain chemical substances, so they should be disposed of properly.
•
Turn on
1Press .
The unit switches to the last selected source.
»
To turn off the unit:
1Press again.
Adjust the volume level
1During play, press VOL+/-to increase/decrease the volume level.
EN
AE5200_05_UM_V1.1.indd 12 10/14/2009 10:35:20 AM

13
4 Listen to FM radio
Tune to FM radio
1Press DAB/FMrepeatedly to select FM radio.
2Press TUNING +/- to tune to a radio station.
Search FM radio stations
1Tune to FM radio.
2Press and hold TUNING +/- for more than two seconds to start
searching stations.
The FM tuner tunes to a station with strong reception automatically.
»
3 Repeat step 1 if necessary until you nd the desired station.
Store FM stations manually
You can program a maximum of 10 preset FM radio stations.
1Tune to your desired FM station.
2To preset number 1 - 5, press and hold the numeric keypad 1 - 5 for
two seconds;
To select the preset number 6 - 10, press and hold the numeric keypads
5+ simultaneously with other keypad (e.g. 5+ with 1 for 6; 5+ with 5 for
10) for two seconds.
The preset number of the saved station appears.
»
Note
To overwrite a preset station, store another station in its place.
•
Select a preset FM radio station
1Press DAB/FMrepeatedly to select FM radio.
2Press numeric keypads to select a preset number.
English
EN
AE5200_05_UM_V1.1.indd 13 10/14/2009 10:35:20 AM

14
5 Listen to DAB radio
Tune to DAB radio
When you enter the DAB mode for the rst time, the radio player
automatically scans DAB radio stations.Then station list is retained in memory
so the next time the radio player is switched on, the station scan does not
take place.
1Press DAB/FMrepeatedly to select DAB radio.

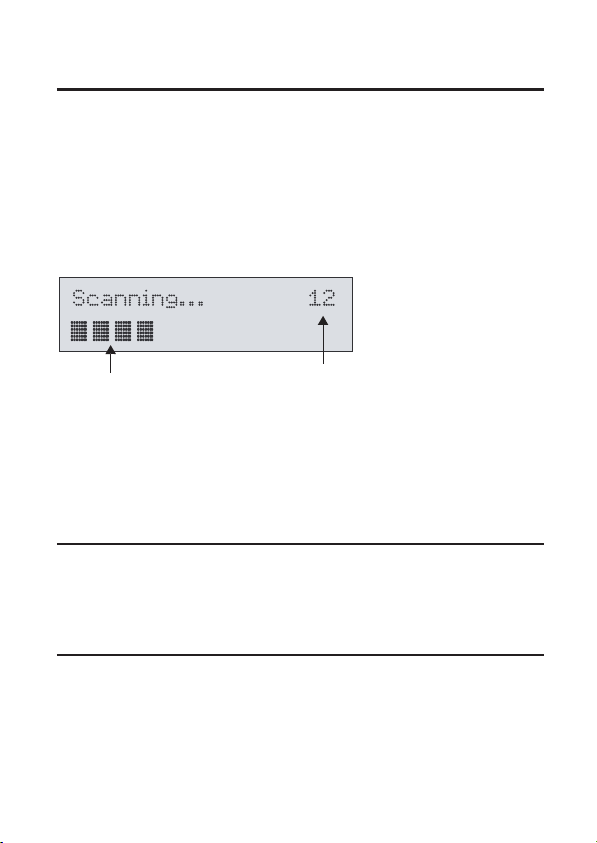

A bar graph indicates the progress of the search and the number of
»
stations found increase as the scan progresses.
AWhen scan is completed, the stations are listed in numerical then
alphabetic order.
First available station is played.
»
BIf there is no DAB coverage currently available
“Station list” is displayed.
»
Change DAB station
1Tune to a DAB station.
2Use TUNING +/- to navigate through available stations.
3Press SELECT to choose a station.
Scan DAB radio stations
1When playing a DAB station, or the current station is not available, press
and hold MENU/SCAN for more than two seconds.
The radio player scans all available DAB radio stations and
»
broadcasts the current station.
Number of
Stations found
Progress bar
EN
AE5200_05_UM_V1.1.indd 14 10/14/2009 10:35:20 AM

15
Tip
New stations and services will be added in the DAB broadcast. To make new DAB
•
stations and services available on your radio player, do scan on a regular base.
Display station information
1Tune to a DAB radio station.
2Press SELECT repeatedly to scroll through the following information (if
available):
Dynamic label segment (DLS)
•
Program type (PTY)
•
Ensemble Name
•
Channel and frequency
•
Signal error rate
•
Bit rate and audio status
•
Time
•
Date
•
Store DAB stations manually
You can store a maximum of 10 preset DAB radio stations.
1Tune to your desired DAB station.
2To preset number 1 - 5, press and hold the numeric keypad 1 - 5 for
two seconds;
To select the preset number 6 - 10, press and hold the numeric keypads
5+ simultaneously with other keypad (e.g. 5+ with 1 for 6; 5+ with 5 for
10) for two seconds.
The preset number of the saved station appears.
»
Note
To overwrite a preset station, store another station in its place.
•
English
EN
AE5200_05_UM_V1.1.indd 15 10/14/2009 10:35:21 AM

16
Select a preset DAB radio station
1Press DAB/FMrepeatedly to select DAB radio.
2Press numeric keypads to select a preset number.
Use DAB menu
1In DAB mode, press MENU/SCAN to enter the DAB menu.
2Press TUNING +/- to scroll the menu options:
•[Station list]
•[System]
•[DRC] (dynamic range control)
•[Manual tune]
•[Full scan]
•[Local scan]
3To select an option, press SELECT.
4Repeat step 2-3 if sub-option is available under one option.
[System]
•[SW version] (Software version of the radio player is shown.)
•[Factory reset] (Resets all the settings of this radio player to
factory default.)
Press ‘SELECT” to conrm rest.
•
[Manual tune]
It is possible to manually tune to a specic channel/frequency and add this to
the station list.
This function can be used to obtain the optimum reception for a specic
channel/frequency, taking into account the position of the aerial.
A rectangle will be displayed on rst line of the display. The position
»of this rectangle indicates the signal strength (the further towards
the right, the greater the signal strength).
The second line of the display shows the selected channel and its
»frequency.The rst line of the display shows a rectangle.
Tip
Adjust the position of the antenna to obtain the optimum signal strength.
•
EN
AE5200_05_UM_V1.1.indd 16 10/14/2009 10:35:21 AM

17
[DRC]
Dynamic range control (DRC) adds or removes a degree of compensation
for the differences in the dynamic range between radio stations.
•[DRC high] (DRC is switched on; the default setting
recommended for noisy environment.)
•[DRC low] (DRC is set to half normal level.)
•[DRC off] (DRC is switched off.)
[Full scan] and [Local scan]
Local scan is used to perform a small range of DAB radio search (in UK). Full
scan is used to perform a wide range of DAB radio search (outside UK).
Note
If no button is pressed within seven seconds, the menu exits.
•
English
EN
AE5200_05_UM_V1.1.indd 17 10/14/2009 10:35:21 AM

18
6 Product information
Note
Product information is subject to change without prior notice.
•
Tuner (FM)
Tuning Range 87.5 - 108MHz
Tuning grid 50KHz
General information
AC/DC adaptor
- Model
- Input
- Output
OH-075V0500T
230-240V~50Hz 35mA
7.5V 500mA
Operation Power Consumption 5W
Standby Power Consumption <1W
Power output 0.3W (10% THD)
Battery power input 1.5V x 6
Headphone output power 12mW x 2 (32 ohm)
Dimensions
- Main Unit (W x H x D) 317 x 133 x 90 mm
Weight
- Main Unit 0.884kg
EN
AE5200_05_UM_V1.1.indd 18 10/14/2009 10:35:21 AM

19
7 Troubleshooting
Warning
Never remove the casing of this apparatus.
•
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the following
points before requesting service. If the problem remains unsolved, go to the
Philips web site www.philips.com/welcome.When you contact Philips, ensure
that the apparatus is nearby and the model number and serial number are
available.
No power
Ensure that the AC power plug of the unit is connected properly.•
Ensure that there is power at the AC outlet.•
Insert the batteries with their polarities (+/– signs) aligned as indicated.•
Replace the battery.•
No sound
Adjust the volume.•
Poor radio reception
Increase the distance between the unit and your TV or VCR.•
Fully extend the antenna.•
English
EN
AE5200_05_UM_V1.1.indd 19 10/14/2009 10:35:21 AM

20
8 About DAB
About Digital Audio Broadcasting (DAB)
DAB digital radio is a new way of broadcasting radio via a network of
terrestrial transmitters. It provides listeners with more choice and information
delivered in crystal clear, crackle-free sound quality.
– The technology allows the receiver to lock on to the strongest signal it can nd.
– With DAB digital stations there are no frequencies to remember, and sets
are tuned by station name, so there’s no returning on the move.
What is a multiplex?
Digital radio operation is made up of a single block of frequencies called a
multiplex. Each multiplex works within a frequency spectrum, such as Band III
for DAB broadcasts.
DAB BROADCASTERS AND DLS
Each DAB broadcaster (or multiplex operator) also provides text and audio
data services. Some programmes are supported by Dynamic Label Segments
(DLS).This is data which you can read as scrolling text on your DAB radio
display. Some stations transmit the latest news, travel, and weather, what’s on
now and next, website addresses and phone numbers.
For more information on digital radio coverage and services, please visit:
www.drdb.org.
EN
AE5200_05_UM_V1.1.indd 20 10/14/2009 10:35:21 AM

© 2009 Koninklijke Philips Electronics N.V.
All rights reserved.
AE5200_05_UM_V1.1
AE5200_05_UM_V1.1.indd 22 10/14/2009 10:35:22 AM
