Philips AZ3856 s User manual

CD Soundmachine
Register your product and get support at
www.philips.com/welcome AZ3856
EN User manual

1
2
a
b
c
d
e
f
g
h
d
e
f
m
l
n
o
p
ijk
a
g
h
j
c
k
l
m
b
c
d
e
f
i

3
4
5

EN
1 Important
Safety
Important Safety Instructions
aRead these instructions.
bKeep these instructions.
cHeed all warnings.
dFollow all instructions.
eDo not use this apparatus near water.
fClean only with dry cloth.
gDo not block any ventilation openings. Install in accordance with
the manufacturer’s instructions.
hDo not install near any heat sources such as radiators, heat
registers, stoves, or other apparatus (including ampliers) that
produce heat.
iProtect the power cord from being walked on or pinched,
particularly at plugs, convenience receptacles, and the point where
they exit from the apparatus.
j Only use attachments/accessories specied by the manufacturer.
kUse only with the cart, stand, tripod, bracket, or table
specied by the manufacturer or sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to avoid injury from tip-over.
lUnplug this apparatus during lightning storms or when unused for
long periods of time.
m Refer all servicing to qualied service personnel. Servicing is
required when the apparatus has been damaged in any way, such

as power-supply cord or plug is damaged, liquid has been spilled
or objects have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate normally, or has
been dropped.
nBattery usage CAUTION – To prevent battery leakage which may
result in bodily injury, property damage, or damage to the unit:
Install all batteries correctly, + and - as marked on the unit.
•Do not mix batteries (old and new or carbon and alkaline, etc.).
•Remove batteries when the unit is not used for a long time.
•The batteries shall not be exposed to excessive heat such as
•sunshine, re or the like.
oApparatus shall not be exposed to dripping or splashing.
pDo not place any sources of danger on the apparatus (e.g. liquid
lled objects, lighted candles).
qThis product may contain lead and mercury. Disposal of these
materials may be regulated due to environmental considerations.
For disposal or recycling information, please contact your local
authorities or the Electronic Industries Alliance: www.eiae.org.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical equipment.•
Keep this apparatus away from direct sunlight, naked ames or heat. •
Never look into the laser beam inside this apparatus.•
Ensure that you always have easy access to the power cord, plug or•
adaptor to disconnect this apparatus from the power.
Hearing Safety
Listen at a moderate volume:
Using headphones at a high volume can impair your hearing.This
product can produce sounds in decibel ranges that may cause hearing
loss for a normal person, even for exposure less than a minute.The

higher decibel ranges are offered for those that may have already
experienced some hearing loss.
Sound can be deceiving. Over time your hearing ‘comfort level’ adapts
to higher volumes of sound. So after prolonged listening, what sounds
‘normal’ can actually be loud and harmful to your hearing.To guard
against this, set your volume to a safe level before your hearing adapts
and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.
Slowly increase the sound until you can hear it comfortably and clearly,
without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally ‘safe’ levels, can also
cause hearing loss.
Be sure to use your equipment reasonably and take appropriate breaks.
Be sure to observe the following guidelines when using your
headphones.
Listen at reasonable volumes for reasonable periods of time.
Be careful not to adjust the volume as your hearing adapts.
Do not turn up the volume so high that you can’t hear what’s around
you.
You should use caution or temporarily discontinue use in potentially
hazardous situations.
Do not use headphones while operating a motorized vehicle, cycling,
skateboarding, etc.; it may create a trafc hazard and is illegal in many
areas.
Where the MAINS plug or an appliance coupler is used as the
•disconnect device, the disconnect device shall remain readily
operable.
Caution
Use of controls or adjustments or performance of procedures•
other than herein may result in hazardous radiation exposure or
other unsafe operation.

Notice
This product complies with the radio interference requirements
of the European Community.
This product complies with the requirements of the following directives
and guidelines: 2004/108/EC + 2006/95/EC
Any changes or modications made to this device that are not expressly
approved by Philips Consumer Lifestyle may void the user’s authority to
operate the equipment.
Recycling
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When you see the crossed-out wheel bin symbol attached to
a product, it means the product is covered by the European
Directive 2002/96/EC:
Never dispose of your product with other household waste. Please
inform yourself about the local rules on the separate collection of
electrical and electronic products.The correct disposal of your old
product helps prevent potentially negative consequences on the
environment and human health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed of with normal household
waste.
When you see the crossed-out wheel bin symbol with the
chemical symbol ‘Pb’, it means that the batteries comply with the
requirement set by the directive for lead:
Please inform yourself about the local rules on separate collection of
batteries.The correct disposal of batteries helps prevent potentially
negative consequences on the environment and human health.
Recording and playback of material might require consent. See
Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.
Environmental information
All unnecessary packaging has been omitted.We have tried to make the
packaging easy to separate into three materials: cardboard (box), paper
pulp (buffer) and polyethylene (bags, protective foam sheet.)

Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
The making of unauthorized copies of copy-protected material, including
computer programs, les, broadcasts and sound recordings, may be
an infringement of copyrights and constitute a criminal offence.This
equipment should not be used for such purposes.
This apparatus includes this label:
Windows Media and the Windows logo are trademarks, or registered
trademarks of Microsoft Corporation in the United States and/or other
countries.
2 Your CD Soundmachine
Introduction
With this apparatus, you can enjoy music from audio discs, tapes,
external devices, and listen to radio stations.
The apparatus offers you multiple sound effect settings that enrich
sound with Digital Sound Control (DSC) and Dynamic Bass Boost
(DBB).
When you activate record from disc to tape, this apparatus starts disc
play automatically.
The apparatus supports the following media formats:

Note
The type plate is located on the back of the apparatus.•
What’s in the box
Check and identify the contents of the package:
Main unit
•AC power adaptor
•Remote control
•User Manual
•Quick Start Guide
•

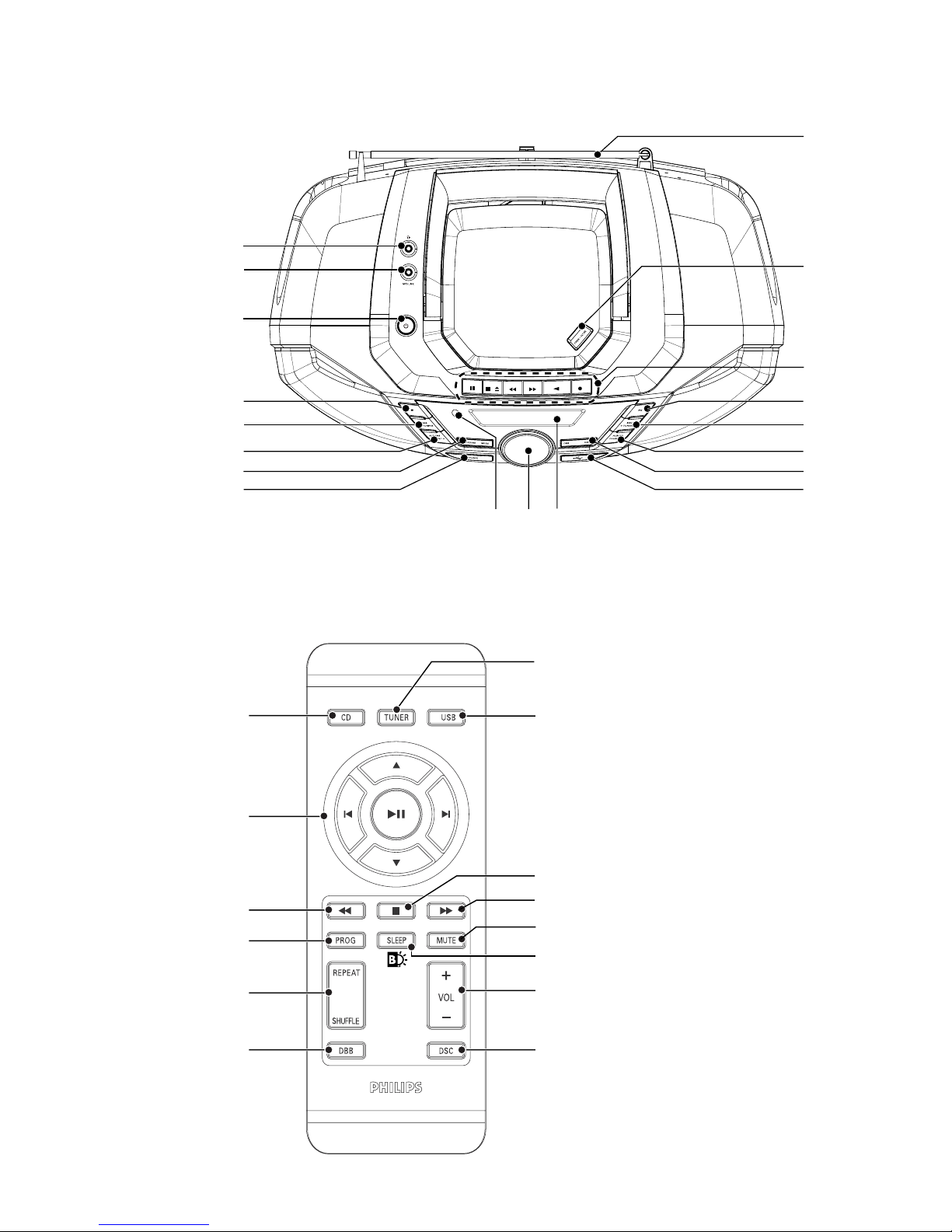

Overview of the main unit (See 1)
1
Headphone socket.
•
2MP3 LINK
Jack for an external audio device.
•
3
Turn on/off the unit.
•
4
Stop play.
•Erase a program.
•
Start or pause play.
•
5/
Skip to the previous/next track.
•Tune to a radio station.
•Search within a track.
•
6ALBUM/PRESET -/+

Select a preset radio station.
•Skip to the previous/next album.
•
7PROGRAM
Program tracks and browse the program.
•MODE
Select a play mode: REPEAT or SHUFFLE.
•
8SOURCE
Select a source.
•
9IR
Remote control sensor.
•
10 - VOLUME +
Adjust volume.
•
11 Display panel
Display current status.
•
12
USB socket.
•
13 DBB
Turn on/off dynamic bass boost.
•DSC
Select a preset sound setting.
•
14 Tape controls
•Start to record.
•Start tape play.
•/
Fast rewind/wind the tape.
•Stop the tape play or open the tape door.
•Pause tape play or pause recording.
15 OPEN•CLOSE
Open/close the disc compartment.
•
16 Antenna

Overview of the remote control (See 2)
1CD
Select disc source.
•
2/
Skip to the previous/next album.
•Select a preset radio station.
•
/
Tune to a radio station.
•Skip to the previous/next track.
•
Start or pause play.
•
3/
Search within a track.
•
4PROGRAM
Program radio stations.
•Program tracks.
•
5REPEAT
Select repeat play modes.
•SHUFFLE
Select shufe play modes.
•
6DBB
Turn on/off dynamic bass boost.
•
7DSC
Select a preset sound setting.
•
8VOL +/-
Adjust volume.
•
9SLEEP/
Set the sleep timer.
•Turn on/off the screen backlight of main unit.
•
10 MUTE
Mute or restore volume.
•
11
Stop play.
•Erase a program.
•

12 USB
Select USB source.
•
13 TUNER
Select tuner source.
•
3 Get started
Caution
Use of controls or adjustments or performance of procedures•
other than herein may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in sequence.
If you contact Philips, you will be asked for the model and serial number
of your apparatus.The model number and serial number are on the
bottom of your apparatus.Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Install batteries
Note
You can use both batteries and AC power as power supply of•
this apparatus.
Batteries are not supplied with the accessories.
•
1Open the battery compartment.
2Insert 6 batteries (type: R-20, UM-1 or D-cells) with correct polarity
(+/-) as indicated.
3Close the battery compartment. (See 3)

Install remote control batteries
Caution
Risk of explosion! Keep batteries away from heat, sunshine or•
re. Never discard batteries in re.
Risk of decreased battery life! Never mix different brands or
•
types of batteries.
Risk of product damage! When the remote control is not used
•
for long periods, remove the batteries.
For rst-time use:
1Remove the protective tab to activate the remote control batteries.
To replace the remote control batteries:
1Open the battery compartment.
2Insert 1 CR2025 batterie with correct polarity (+/-) as indicated.
3Close the battery compartment. (See 4)
Connect power
Warning
Risk of product damage! Ensure that the power supply voltage•
corresponds to the voltage printed on the back or the underside of the
apparatus.
Risk of electric shock! When you disconnect the AC power, always pull
•
the plug from the socket. Never pull the cord.
Note
Install the apparatus near the power supply socket and where•
the power plug can be easily reached.

1Connect the power adaptor to the DC input jack on the apparatus
and to the power supply socket.
To switch the apparatus off completely, disconnect the power
•adaptor from the power supply socket. (See 5)
Note
To save energy: after use, turn off the apparatus.•
Turn on
1Press .
The unit switches to the last selected source.
»
4 Play
Play CD
1Press CD to select the disc source.
2Press OPEN•CLOSE to open the disc tray.
3Insert a disc with the printed side facing up, then close the disc tray.
Play starts automatically.
»
To pause/resume play, press
•.
To stop play, press
•.
For MP3/WMA les: to select an album, press
•/ .
To skip to a track, press
•/ .
To search within a track, press and hold
•/ . Release to
resume normal play.

Play tape
Note
When you play or record a tape, the sound source cannot be•
changed.
1Press SOURCE to select the tape source.
2Open the tape button cover.
3Press to open the tape door.
4Load the tape with the open side upward and the full spool to the
left.
5Press to start play.
To pause/resume play, press
•.
To rewind or fast-forwared, press
•/ .
To stop play, press
•.
Play from USB devices
Note
Ensure that the USB device contains playable audio contents for•
supported formats.
1Insert the USB connector on the device into the socket.
2Select USB source.
3Press / unit to select a folder.
4Press / to select a le.
5Press to start play.
To stop play, press
•.
To pause or resume play, press
•.

Listen to an external device
You can listen to an MP3 player through this apparatus.
1Use a cable with 3.5mm plugs on both ends (not supplied) to
connect MP3 LINK jack (3.5mm) on this apparatus and the
headphone jack on an MP3 player.
5 Play options
Adjust volume level
1During play, press VOL +/- to increase/decrease the volume level.
Select a preset sound effect
1During play, press DSC repeatedly to select:
[POP] (pop)
•[JAZZ] (jazz)
•[CLASSIC] (classic)
•[ROCK] (rock)
•
Enhance bass
1During play, press DBB to turn on or off dynamic bass enhancement.
If DBB is activated, DBB is displayed.
»
Mute sound
1During play, press MUTE to mute/unmute sound.
Select play modes
1Press MODE repeatedly to select a play mode:
•[ ] (repeat) – repeat a track
•[ ALL] (repeat all) - repeat an entire CD/program
•[ ] (shufe) - play tracks randomly
•[ ] (shufe repeat all) - repeat all tracks randomly.

2To return to normal play, press MODE repeatedly until play mode
icons are no longer displayed.
Tip
Only•and can be selected when you play
programmed tracks.
Program tracks
You can program a maximum of 20 tracks.
1In CD/USB mode, at the stop position, press PROG to activate the
program mode.
[PROG] (program) starts to blinks.
»
2For MP3/WMA tracks, press ALBUM/PRESET +/- to select an album.
3Press / to select a track number, then press PROG to conrm.
4Repeat steps 2 to 3 to program more tracks.
5Press to play the programmed tracks.
During play, [PROG] (program) is displayed.
»
To erase the program, in the stop position, press
•.
To review the program, in the stop position, press and hold
•PROG for more than 2 seconds.
6 Listen to the radio
Tune to a radio station
Note
For optimal reception, fully extend and adjust the position of•
the FM antenna.
1Press TUNER to select FM or MW.

2Press and hold / for more than 2 seconds.
[SEARCH] (search) is displayed.
»The radio tunes to a station with strong reception automatically.
»
3Repeat step 2 to tune to more stations.
To tune to a weak station, press
•/ repeatedly until you nd
optimal reception.
Program radio stations automatically
Note
You can program a maximum of 20 FM radio stations and 20•
MW radio stations.
1In tuner mode, press and hold PROG for 2 seconds to activate
automatic program mode.
[AUTO STORE] (auto store) is displayed.
»All available stations are programmed in the order of waveband
»reception strength.
The rst programmed radio station is broadcast automatically.
»
Program radio stations manually
Note
You can program a maximum of 20 FM radio stations and•
20 MW radio stations.
1Tune to a radio station.
2Press PROG to activate program mode.
[PROG] (program) blinks on the display.
»
3Press to allocate a number (1 to 20) to this radio station, then
press PROG to conrm.

The preset number and the frequency of the preset station are
»displayed.
4Repeat the above steps to program other stations.
Note
To overwrite a programmed station, store another station in•
its place.
Select a preset radio station
1In tuner mode, press to select a preset number.
7 Other features
Record
Note
To record, use only “Normal” (IEC type I) tapes on which the•
write-protect notches (tabs) are not broken.
Tip
When you play or record a tape, the sound source cannot be•
changed.
The best recording level is set automatically. Change of volume
•
and sound effect does not affect recording.

Note
The quality of recorded sound can differ depending on the•
source and the tape used.
Record from CD to tape
1Press CD to select disc source.
2Load a disc.
3Stop disc playback.
4Press to open the tape door.
5Load a tape.
6Press to start recording.
Disc play starts automatically from the beginning of the disc.
»
To pause/resume recording, press
•.
To stop recording, press
•.
Record a section of a disc to tape
1During disc play, press and hold / to search, then release the
button.
To select a track, press
•/ .
2Press to pause disc play.
3Press to start recording.
Disc play resumes automatically.
»
To pause recording, press
•.To resume, press this button again.
To stop recording, press
•.
Record from radio to tape
1Tune to the desired radio station.
2Open the tape button cover.
3Press to open the tape door.
4Load a tape.
5Press to start recording.
