Philips FM-V535/21M User manual

GB
CLASS 1
LASER PRODUCT

FW-V535/21M
TABLE OF CONTENTS Page
Location of pc boards & Version variations................1-2
Technical Specifications .............................................1-3
Measurement setup....................................................1-4
Service Aids, Safety Instruction, etc.................. 1-5...1-6
Connections & Controls..................................... 1-7...1-9
Disassembly Instructions & Service positions ...........2-1
Service Test Programs ...............................................3-1
Set Block diagram ......................................................4-1
Set Wiring diagram .....................................................4-2
Front Control Board .......................................................5
Front Display Board....................................................... 6
ECO6 Tuner Board : Systems Non-Cenelec.............. 7A
VCD-MPEG-01B Module............................................... 8
ETF7 ND Tape Module ..................................................9
3CDC-LC-VCD Module ...............................................10
Power 2001 Module (30-70W Version) ....................... 11
AF9 Board....................................................................12
VCD GND Isolator Board ............................................13
Set Mechanical Exploded view & parts list .................14
©Copyright 2001 Philips Consumer Electronics B.V. Eindhoven, The Netherlands
All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or
transmitted,in anyform or byany means, electronic,mechanical, photocopying, orotherwise without
the prior permission of Philips.
Published by SL 0243 Service Audio Printed in The Netherlands Subject to modification
Mini System
3140 785 32230
Version 1.0
VIDEO CD

1-2
LOCATION OF PRINTED CIRCUIT BOARDS
/21M
Aux in /CDR in x
Line Out
Surround Out
Subwoofer Out
Digital Out
Video Out x
Matrix Surround
CD Text
Dolby B
RDS
News
Dolby Pro Logic (DPL)
Incredible Surround x
Karaoke Features x
Voltage Selector x
ECO Power Standby (Clock Display Off)
ECO6 Tuner Board - Systems Non-Cenelec x
ECO6 Tuner Board - Systems Cenelec
Center/Surround Channel
VERSION VARIATIONS:
Type /Versions: FW-V535
Features &
Board in used:
HEADPHONE
BOARD
ETF7
BOARD
MAINS
BOARD
POWER
BOARD
MAINS SOCKET
BOARD
TUNER
BOARD
VIDEO OUT
CINCH BOARD
KEY-CDC BOARD
KARAOKE
BOARD
FRONT
DISPLAY
BOARD
IR-EYE
BOARD
VU
METER
BOARD
FRONT
CONTROL
BOARD
VCD GND
ISOLATOR BOARD
AF9
BOARD
CD
BOARD

1-3
SPECIFICATIONS
GENERAL:
Mains voltage : 110-127V / 220-240V Switchable
Mains frequency : 50/60Hz
Power consumption : 15W at Standby
: 120W at Active
Clock accuracy : < 4 seconds per day
Dimension centre unit : 265 x 310 x 390mm
TUNER:
FM
Tuning range : 87.5-108MHz
Grid : 50kHz
IF frequency : 10.7MHz ±25kHz
Aerial input : 75Ωcoaxial
Sensitivity at 26dB S/N : < 7µV
Selectivity at 600kHz bandwidth : > 25dB
Image rejection : > 25dB
Distortion at RF=1mV, dev. 75kHz : < 3%
-3dB Limiting point : < 8µV
Crosstalk at RF=1mV, dev. 40kHz : > 18dB
MW
Tuning range : 531-1602kHz/530-1700kHz
Grid : 9kHz / 10kHz
IF frequency : 450kHz ±1kHz
Aerial input : Frame aerial
Sensitivity at 26dB S/N : < 4.0mV/M
Selectivity at 18kHz bandwidth : > 18dB
IF rejection : > 45dB
Image rejection : > 28dB
Distortion at RF=50mV, m=80% : < 5%
AMPLIFIER:
Output power (6Ω, 1kHz, 10% THD)
L & R : 2 x 55W RMS
Frequency response within -3dB : 50Hz-20kHz
Digital Sound Control (DSC) : Digital, Rock, Pop,
Newage,Classic,Electric
Virtual Ambience Control (VAC) : Hall, Concert, Cinema,
Disco, Arcade, Cyber
Dynamic Bass Boost (DBB) : BEAT, PUNCH, BLAST,
DBB OFF
Incredible Surround (IS) : ON/OFF
MAX Sound : ON/OFF
Input sensitivity
Aux in : 500mV ±3dB at 1kHz
CDR in : 1V ±3dB at 1kHz
Microphone : 3.5mV
Output sensitivity
Headphone output at 32Ω: 15mW
CASSETTE RECORDER:
Number of track : 2 x 2 stereo
Tape speed : 4.76 cm/sec ±2%
Wow and flutter : < 0.4% DIN
Fast-wind/Rewind time C60 : 130 sec
Bias system : 78kHz ±10kHz
Rec/Pb frequency response within 8dB: 80Hz - 10kHz
Signal to Noise Ratio (Type I) : > 48dBA
VIDEO CD
Audio Performance:
Measurement done at output conn. of the CDC module.
Frequency response within ±3dB : 20Hz - 20kHz
Output level (in Vrms) : 500mV, Zout = 100Ω
Signal/Noise ratio (A-weighted) : > 80dBA
Distortion at 1kHz : < 0.02%
Channel unbalance at 1kHz : < 1dB
Channel separation at 1kHz : > 60dB
De-emphasis : 0 or 15/50 mS (Switched
by subcode on the disc)
MP3-CD bit rate : 32 - 256kbps
Sampling Frequencies : 48kHz, 44.1kHz, 32kHz
Video Performance:
Video output level : 1 ±0.2Vp-p
Luminance non-linear distortion : 0 ±5%
Luminance S/N ratio : > 50dB

1-4
LF Generator
e.g. PM5110
Recorder
Use Universal Test Cassette CrO2 SBC419 4822 397 30069
LEVEL METER
e.g. Sennheiser UPM550
with FF-filter
S/N and distortion meter
e.g. Sound Technology ST1700B
L
R
DUT
or Universal Test Cassette Fe SBC420 4822 397 30071
LEVEL METER
e.g. Sennheiser UPM550
with FF-filter
S/N and distortion meter
e.g. Sound Technology ST1700B
L
R
DUT
CD
Use Audio Signal Disc
(replaces test disc 3)
SBC429 4822 397 30184
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
DUT
S/N and distortion meter
e.g. Sound Technology ST1700B
Frame aerial
e.g. 7122 707 89001
Tuner AM (MW,LW)
To avoid atmospheric interference all AM-measurements have to be carried out in a Faraday´s cage.
Use a bandpass filter (or at least a high pass filter with 250Hz) to eliminate hum (50Hz, 100Hz).
RF Generator
e.g. PM5326
Ri=50Ω
Bandpass
250Hz-15kHz
e.g. 7122 707 48001
LF Voltmeter
e.g. PM2534
DUT
RF Generator
e.g. PM5326
S/N and distortion meter
e.g. Sound Technology ST1700B
Use a bandpass filter to eliminate hum (50Hz, 100Hz) and disturbance from the pilottone (19kHz, 38kHz).
Ri=50Ω
Tuner FM

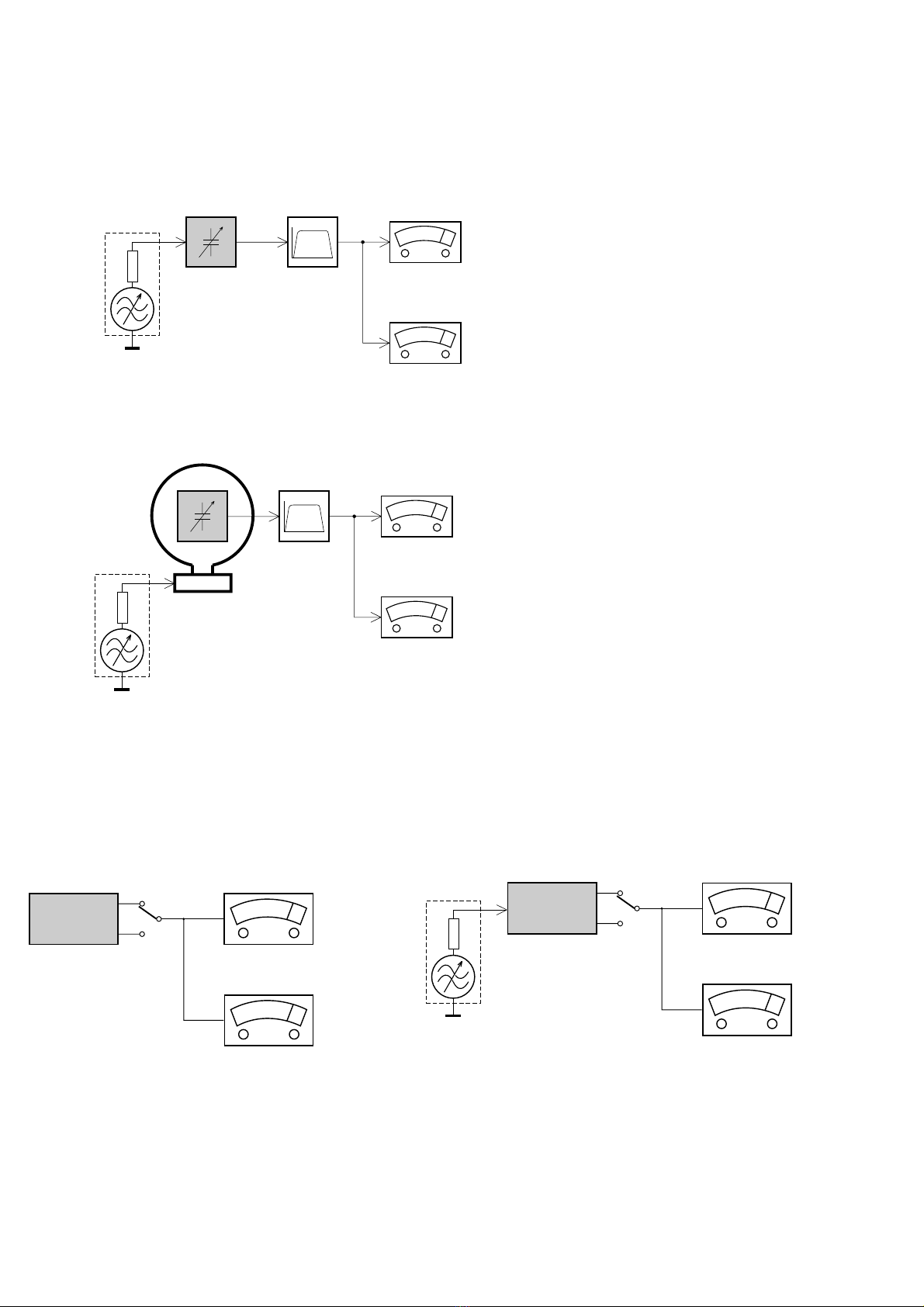

MEASUREMENT SETUP

SERVICE AIDS
Service Tools:
Universal Torx driver holder .................................. 4822 395 91019
Torx bit T10 150mm ............................................. 4822 395 50456
Torx driver set T6 - T20 ......................................... 4822 395 50145
Torx driver T10 extended ...................................... 4822 395 50423
Cassette:
SBC419 Test cassette CrO2 ................................. 4822 397 30069
SBC420 Test cassette Fe ..................................... 4822 397 30071
MTT150 Dolby level 200nWb/M ............................ 4822 397 30271
Compact Disc:
SBC426/426A Test disc 5 + 5A ............................ 4822 397 30096
SBC442 Audio Burn-in Test disc 1kHz ................. 4822 397 30155
SBC429 Audio Signals disc .................................. 4822 397 30184
Dolby Pro-logic Test Disc ...................................... 4822 395 10216
ESD Equipment:
Anti-static table mat - large 1200x650x1.25mm ... 4822 466 10953
Anti-static table mat - small 600x650x1.25mm ..... 4822 466 10958
Anti-static wristband .............................................. 4822 395 10223
Connector box (1MΩ) ............................................ 4822 320 11307
Extension cable
(to connect wristband to conn. box) .................. 4822 320 11305
Connecting cable
(to connect table mat to conn. box) .................. 4822 320 11306
Earth cable (to connect product to mat or box) .... 4822 320 11308
Complete kit ESD3
(combining all above products) ......................... 4822 320 10671
Wristband tester .................................................... 4822 344 13999
1-5
HANDLING CHIP COMPONENTS

GB
WARNING
All ICs and many other semi-conductors are
susceptible to electrostatic discharges (ESD).
Careless handling during repair can reduce life
drastically.
When repairing, make sure that you are
connected with the same potential as the mass
of the set via a wrist wrap with resistance.
Keep components and tools also at this
potential.
F
ATTENTION
Tous les IC et beaucoup d’autres
semi-conducteurs sont sensibles aux
décharges statiques (ESD).
Leur longévité pourrait être considérablement
écourtée par le fait qu’aucune précaution n’est
prise à leur manipulation.
Lors de réparations, s’assurer de bien être relié
au même potentiel que la masse de l’appareil et
enfiler le bracelet serti d’une résistance de
sécurité.
Veiller à ce que les composants ainsi que les
outils que l’on utilise soient également à ce
potentiel.
ESD
D
WARNUNG
Alle ICs und viele andere Halbleiter sind
empfindlich gegenüber elektrostatischen
Entladungen (ESD).
Unsorgfältige Behandlung im Reparaturfall kan
die Lebensdauer drastisch reduzieren.
Veranlassen Sie, dass Sie im Reparaturfall über
ein Pulsarmband mit Widerstand verbunden
sind mit dem gleichen Potential wie die Masse
des Gerätes.
Bauteile und Hilfsmittel auch auf dieses gleiche
Potential halten.
NL
WAARSCHUWING
Alle IC’s en vele andere halfgeleiders zijn
gevoelig voor electrostatische ontladingen
(ESD).
Onzorgvuldig behandelen tijdens reparatie kan
de levensduur drastisch doen verminderen.
Zorg ervoor dat u tijdens reparatie via een
polsband met weerstand verbonden bent met
hetzelfde potentiaal als de massa van het
apparaat.
Houd componenten en hulpmiddelen ook op
ditzelfde potentiaal.
I
AVVERTIMENTO
Tutti IC e parecchi semi-conduttori sono
sensibili alle scariche statiche (ESD).
La loro longevità potrebbe essere fortemente
ridatta in caso di non osservazione della più
grande cauzione alla loro manipolazione.
Durante le riparazioni occorre quindi essere
collegato allo stesso potenziale che quello della
massa dell’apparecchio tramite un braccialetto
a resistenza.
Assicurarsi che i componenti e anche gli utensili
con quali si lavora siano anche a questo
potenziale.
“Pour votre sécurité, ces documents
doivent être utilisés par des spécia-
listes agréés, seuls habilités à réparer
votre appareil en panne”.
GB
Safety regulations require that the set be restored to its original
condition and that parts which are identical with those specified,
be used.
NL
Veiligheidsbepalingen vereisen, dat het apparaat bij reparatie in
zijn oorspronkelijke toestand wordt teruggebracht en dat onderdelen,
identiek aan de gespecificeerde, worden toegepast.
F
Les normes de sécurité exigent que l’appareil soit remis à l’état
d’origine et que soient utiliséés les piéces de rechange identiques
à celles spécifiées.
D
Bei jeder Reparatur sind die geltenden Sicherheitsvorschriften zu
beachten. Der Original zustand des Geräts darf nicht verändert werden;
für Reparaturen sind Original-Ersatzteile zu verwenden.
I
Le norme di sicurezza esigono che l’apparecchio venga rimesso
nelle condizioni originali e che siano utilizzati i pezzi di ricambio
identici a quelli specificati.
"After servicing and before returning set to customer perform a
leakage current measurement test from all exposed metal parts to
earth ground to assure no shock hazard exist. The leakage current
must not exceed 0.5mA."
CLASS 1
LASER PRODUCT
3122 110 03420
GB
Warning !
Invisible laser radiation when open.
Avoid direct exposure to beam.
S
Varning !
Osynlig laserstrålning när apparaten är öppnad och spärren
är urkopplad. Betrakta ej strålen.
SF
Varoitus !
Avatussa laitteessa ja suojalukituksen ohitettaessa olet alttiina
näkymättömälle laserisäteilylle. Älä katso säteeseen!
DK Advarse !
Usynlig laserstråling ved åbning når sikkerhedsafbrydere er
ude af funktion. Undgå udsaettelse for stråling.
1-6

Controls
Controls on the system and
remote control
1
STANDBY ON y
–to switch the system on or to Standby mode .
2
DISPLAY SCREEN
–to view the current status of the system.
3
DISC TRAYS
4
DISC CHANGE
–to change disc(s).
5
DISC 1 / DISC 2 / DISC 3
–to select a disc tray for playback.
6
OPEN•CLOSE
–to open or close the disc tray.
7
INTERACTIVE VU METER
–to sho w the VU (volume unit) meter in music or
volume mode depending on the display mode
selected.
8
VOLUME
–to increase or decrease the volume .
9
Ta pe Deck Operation
AUTO REPLAY
–to select continuous playback in either AUTO
PLA Y or ONCE mode only .
DUBBING
–to dub a tape .
REC
–to start recording on tape deck 2.
0
SOUND NAVIGATION
–to select the desired sound feature : DSC , VAC,
or DBB .
!
JOG CONTROL
–to select the desired sound effect for the
selected sound feature .
DSC .................. DIGIT AL, ROCK, POP, NEWAGE,
CLASSIC or ELECTRIC .
VAC .................. HALL, CONCER T, CINEMA,
DISCO , ARCADE or CYBER.
DBB .................. BEA T, PUNCH or BLAST.
@
INCREDIBLE SURROUND (IS)
–to activate or deactivate the sur round sound
eff ect.
#
MAX SOUND (MAX)
–to activate or deactivate the optimal mix of
var ious sound features.
13
2
46
5
79
8
VOLUME
0
2
TAPE 1/2
OSD
VCD 123 AUX TUNER
REPEATPROG
á
à
ë
í
Ç
VAC
DSC
MAXECHO
RETURN
PBC DIGEST
É
Å
TITLE
_
TITLE
+
ALBUM
_
ALBUM
+
TITLE/
ALBUM
NAME
A-B
RESUME
ZOOM SLOW VOCAL
KEY CONTROL IS
+-
*
§
≤
8
(
≥
!
™
¡
•
ª
º#
@
⁄
¤
‹
›
!
8
fi
fl
‡
MP3 123
Ö
DBB
0
Notes for remote control:
– First, select the source you wish to
control by pressing one of the source select
keys on the remote control (VCD 123 or
TUNER, for example).
–Then select the desired function (
É
,
í
,
ë
, for example).
CONNECTION AND CONTROLS
1-7
FW-
VCD MINI HIFI SYSTEM
DISC
CHANGE
OPEN• CLOSE
CD 1•2•3 BAND
CDR / DVD
TAPE 1•2
PROG DUBBING REC
CLOCK•
TIMER AUTO
REPLAY
ST
ANDBY-ON
3
D ISC D IRECT PLAY
DISC
3
CD SYNCHRO RECORDING
CD / CD-R/CD
-RW C O MPATIBL E
INTERACTIVE VU METER
VOLUME
P
R
E
V
P
R
E
S
E
T
N
E
X
T
DEMO STOP/ CLEAR
PLAY•
PAUSE
S
E
A
R
C
H
•
T
U
N
I
N
G
DISC
2
DISC
1
VCD PA L /
NTSC
TUNER
TAPE AUX
SOURCE
DISPLAY
PBC
RETURN
MP3-CD
TITLE/
ALBUM
NAME
T
I
T
L
E
A
L
B
U
M
MIC/
LEVE L
S
U
R R O
U
N
D
V
A
C
D
S
C
D
B
B
I
N
C R
E
D
I
B
L
E
•
MAX BASS DYNAMIC AMPLIFICATION
CONTROL (DAC)
∞
1
2
3
45
6
7
8
9
#
%
^
&
%
*
)
¡
™
£
≤
0
!
@
(
$

Controls
$
MIC/LEVEL
–to connect microphone jack.
–to adjust the mixing level for karaoke or
microphone recording.
%
ç
–to open the tape deck door.
^
TAPE DECK 2
&
TAPE DECK 1
*
SOURCE – to select the following:
VCD PAL/NTSC / (CD 1•2•3)
–to select disc tray 1, 2 or 3 (this system can
playback normal CD/VCD/MP3-CD format
disc).
–(on the system only) to select corresponding
video output for NTSC or PAL system of your
TV set (except Multi-system TV).
TUNER / (BAND)
–to select waveband : FM or MW.
TAPE / (TAPE 1• 2)
–to select tape deck 1 or 2.
AUX / (CDR/DVD)
–to select a connected exter nal source :
CDR/DVD or AUX (auxiliary) mode.
(
Mode Selection
PLAY PAUSE ÉÅ
for CD/VCD/MP3-CD…to star t or interrupt
playback.
for TAPE .............. to star t playback.
for PLUG & PLAY… (on the system only) to
initiate and star t plug & play
mode.
SEARCH• TUNING àá
(ALBUM --
--
-/++
++
+)
for MP3-CD only…to select previous/next
Album
for VCD only…to move the zoomed picture to
the left or right.
for CD/VCD .... to search backward/forward.
for TUNER ........ to tune to a lower or higher
radio frequency.
for TAPE .............. to rewind or fast forward.
for CLOCK.......(on the system only) to set the
hour.
DEMO STOP/CLEAR Ç
for CD/VCD/MP3-CD…to stop playback or to
clear a programme .
for TUNER ........(on the system only) to stop
programming.
................................. (on the system only) to delete
the preset radio station.
for TAPE.............. to stop playback or recording.
.................................to reset tape counter number .
for DEMO ......... (on the system only) to activate/
deactivate the demonstration.
for CLOCK ....... (on the system only) to exit clock
setting or cancel timer.
for PLUG & PLAY…(on the system only) to exit
plug & play mode .
PREV / PRESET / NEXT íë
(TITLE --
--
-/++
++
+)
for MP3-CD only…to select previous/next Title .
for VCD only…to move the zoomed picture
down or up.
................................. to select next or previous
MENU or VCD track dur ing
playback (for VCD with PBC
switched on).
for CD/VCD .... to skip to the previous or next
track.
for TUNER ........ to select a preset radio station.
for CLOCK .......(on the system only) to set the
minute .
)
n
–to connect headphones.
¡
VCD Operation (for VCD version 2.0 only)
PBC (PLAYBACK CONTROL)
–to switch on or off PBC mode.
RETURN
–to return to the previous MENU level during
playback (for VCD with PBC switched on).
™
TITLE/ALBUM NAME
–to display the title or album name for
MP3-CD.
£
DISPLAY
–to select different screen display mode :
NORMAL, MODE 1, MODE 2, or MODE 3.
.
CLOCK•TIMER
–to view the clock, set the clock or set the timer.
§
OSD (ON SCREEN DISPLAY)
–to switch on or off the on screen display on the
TV.
ZOOM
–to enlarge a still picture of the VCD on the TV
screen.
•
RESUME
–to continue playback again from where you have
stopped (for VCD with PBC switched off).
ª
KEY CONTROL ( I È i )
–to change the VCD key tone level to suit your
vocal range.
I........................... to decrease the key tone level.
È.............................. to restore the key tone level to
original setting.
i............................. to increase the key tone level.
º
ECHO -/+
– to adjust the VCD echo level for karaoke after
inser ted the microphone.
⁄
SLOWÖ
–to watch the VCD at a slower speed.
¤
VOCAL
–to fade out the or iginal vocal from a Karaoke
VCD or to switch betw een mono or stereo
mode during audio disc playback.
‹
A - B
–to playback a cer tain scene or passage of a CD/
VCD repeatedly.
›
DIGEST
–to scan through a VCD or a specific track.
fi
REPEAT
–to playback track/disc/programme repeatedly.
fl
DIGIT 0 – 9
(numbers consisting more than two figures must be
keyed in within 2 seconds
–to select a track number for CD/VCD/MP3-CD
‡
B
– to switch the system to Standby mode.
Controls
25
27
.
PROG
for CD/VCD/MP3-CD… to programme disc
tracks.
for TUNER ........ to programme preset radio
stations.
for CLOCK.......(on the system only) to select 12-
or 24-hour clock mode.
24
CONNECTION AND CONTROLS
1-8

Preparations
Rear Connections
The type plate is located at the rear of the
system.
A
Power
Before connecting the AC power cord to the
wall outlet, ensure that the following are done;
-If your system is equipped with a
Voltage Selector, set the VOLTAGE
SELECTOR to the local power line
voltage.
- All other connections have been made.
WARNING!
-For optimal performance, use only the
original power cable.
-Never ma keor change any connections
with the power switched on.
To avoid overheating of the system, a safety
circuit has been built in. Therefore,your
system may switch to Standby mode
automatically under extreme conditions.
If
this happens, let the system cool down
before reusing it (not available for all versions).
B
Antennas Connection
Connect the supplied AM loop antenna and FM
antenna to the respective terminals. Adjust the
position of the antenna for optimal reception.
AM Antenna
Position the antenna as far as possible from a TV,
VCR or other radiation source.
FM Antenna
For better FM stereo reception, connect an
outdoor FM antenna to the FM ANTENNA
terminal.
SPEAKERS 6Ω
R
+
ñ
L
ñ
+
SUBWOOFER
OUT
AUX/
CDR
IN
AM ANTENNA
AC
MAINS
speaker
(right)
speaker
(left)
AC power cord
FM wire
antenna
A
B
C
FM ANTENNA
VOLTAGE
SELECTOR
110V- 127V 220V- 240V
VIDEO
IN
Television
L
R
AUDIO
OUT
AM loop
antenna
VIDEO OUT
(CVBS)
D
E
VOLTAGE
SELECTOR
110V- 127V 220V- 240V
Preparations
C
Speakers Connection
Front Speakers
Connect the speaker wires to the SPEAKERS
(FRONT) terminals, right speaker to "R" and left
speaker to "L", coloured (marked) wire to "+"
and black (unmarked) wire to "-".
1
2
Fully insert the stripped portion of the speaker
wire into the terminal as shown.
Notes:
–For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of
+
/
-
speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
D
Video Out Connection
Connect the VIDEO OUT (CVBS) terminal
at the rear of the system to the TV or VCR
VIDEO IN for viewing or recording.
Note:
–To avoid magnetic interference with the picture
on your TV, do not position the front speakers too
close to the TV.
E
Connecting other equipment to your
system
Connect the audio left and right OUT terminals
of a TV, VCR, Laser Disc player, DVD player or
CD Recorder to the AUX/CDR IN terminals.
Note:
–If you ar e connecting equipment with a mono
output (a single audio out terminal), connect it to
the AUX/CDR IN left terminal. Alternatively, you
can use a "single to double" cinch cable (still be
mono sound).
Inserting batteries into the
Remote Control
Insert two batteries (Type R06 or AA) into the
remote control with the correct polarity as
indicated by the +and -symbols inside the
battery compartment.
CAUTION!
– Remove batteries if they are exhausted
or not to be used for a long time..
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances, s o
they should be disposed off properly.
CONNECTION AND CONTROLS
1-9

P
M
C3
3. Lift up and out
1. Place screw driver
(flat side) between
the cassette cover
& cassette door
2. Twist screw driver
DISMANTLING INSTRUCTIONS
Dismantling of the Cassette Cover
1) Loosen 4 screws to remove the Cover Top (pos 255) of the
set.
2) Loosen 3 screws to remove the Panel Left (pos 253) and
3 screws to remove the Panel Right (pos 254) of the set.
3) Slide out the CDCTray as shown in the diagram below with
the help of a flat head screw driver.
Cassette Cover
Remove Cassette Cover
Dismantling of the CDC Module and Front Panel
Remove CDC Module
4) Remove the Cover Tray VCD (pos 106) as indicated.
Front View CDC
Remove Cover Tray VCD
Dismantling of the CDC Module and Front Panel
Sliding out the CDC Tray
5) Loosen 2 screws A and 2 screws B to remove the CDC
Module (pos 1105) as indicated.
6) Remove 2 screws (pos 226) at the bottom to separate the
Front Panel Assembly from the Plate Bottom (pos 265).
2-1 2-1
Separating the MPEG and the CDC Module
1) Remove 4 screws P to remove the MPEG shield & MPEG
Board.
2) Remove 2 screws M and uncatch C3 with a flat screw-
driver in the direction as shown to loosen the Plate
Insulator.

2-2 2-2
Dismantling of the ETF Tape Module
1) Remove 6 screws G as indicated to loosen the ETF Tape
Module (pos 1104).
Dismantling of Rear PortionDismantling of the Front Display Board and Front Control Board
1) Remove 1 screw C as indicated to loosen the VCD GND
Isolator Board (pos 1109).
2) Remove1screw C1asindicated toloosenthe Headphone
Board (pos 1101-B).
3) Remove 5 screws D as indicated to loosen the Front
Display Board (pos 1101-A).
4) Remove 9 screws E as indicated to loosen the Front
Control Board (pos 1107-A).
5) Remove 1 screw F as indicated to loosen the IR-Eye
Board (pos 1107-D).
6) Remove 3 screws N as indicated to loosen the VU Meter
Board (pos 1107-C).
1) The Knob Volume Rotary (pos 117) can be remove by
inserting a strong string into the slot and pull it out in the
direction as indicated. See picture 1.
2) The Knob Jog Rotary (pos 140) can be remove by
inserting a strong string into the slot and pull it out in the
direction as indicated. See picture 2.
Picture 1
Picture 2
Repair Hints
1) Remove 1 screw J and uncatch M1 as indicated to loosen
the AF Board (pos 1102-A).
2) Remove 1 screw R as indicated to loosen the Video Out
Cinch Board (pos V1102-B).
3) Remove 3 screws K and uncatch M2 as indicated to
loosen the Tuner Board (pos 1103).
4) Remove 4 screws L as indicated to loosen the Panel
Rear (pos 256).
Remove AF Board
Remove VU Meter Board
Remove VCD GND Isolator Board, Headphone Board
and Front Display Board
Remove Front Control Board and IR-Eye Board

2-3 2-3
Service pos D
Service pos A
Service pos C
Repair Hints
3) During repair it is possible to disconnect the Tuner Board
(pos 1103) and CDC & MPEG Module (pos 1105) unless
the fault is suspected to be in that area. This will not affect
the performance of the rest of the set.
4) Due to the short flex cable wires in the ETF Module, the
pc board should be disconnected and reconnected on
the reverse side of the tape mechanism to keep it
electrically connected during repair. See picture 3.
Note: The flex cables are very fragile, care should be taken
not to damage them during repair. After repair, be
very sure that the flex cables are inserted properly
into the flex sockets before encasing, otherwise faults
may occurs.
Picture 3
Service pos B

3-1 3-1
Various
other Tests
Activated with ACTION TEST
QEEPROM FORMAT
TEST Load default data. Display shows "NEW"
for 1 second.
Caution!
All presets from the customer will be lost!!
Disconnect
mains cord
LEAVE SERVICE
TEST PROGRAM
R
9to Exit
EEPROM TEST A test pattern will be sent to the EEPROM.
"PASS" is displayed if the uProcessor read
back the test pattern correctly, otherwise
"FAIL" will be displayed.
Rotary Volume Knob
or
Jog Shuttle
ROTARY
ENCODER TEST Display shows value for 2 seconds.
Values increases or decreases in steps of 1
until 0 (Min.) or 40 (Max.) is reached.
DSC
DEMO TOGGLE Pressing this button will toggle between
DEMO ON and DEMO OFF. The DEMO
status will scroll once across the Display.
VCD Button
pressed?
Y
N
VCD
TEST
LEVEL
1
2
3
4
5
6
DISPLAY MESSAGE
VCD Vxx
DSA OK
SLD OK
FOC OK
RAD OK
JMP OK
Note: During this test only the standard OSD & Display message are shown on the TV screen.
The Display message takes a few seconds to appear.
-
DSA ER
SLD ER
FOC ER
RAD ER
JMP ER
ACTION
Where xx is the MPEG software version.
Check DSA_Data, DSA_Str & DSA_Ack lines.
CDC Sledge Motor test.
Focus Servo Test, a disc is required in the Tray.
Radial Servo Test.
Disc Servo Test - jumping of 16 tracks.
Press 9to exit
OKAY ERROR
VCD VER
VCD DSA
VCD SLD
VCD FOC
VCD RAD
VCD JMP
INITIAL
DISPLAY
Choose level
by pressing
Q
R
O
Button pressed?
Y
Y
Y
N
N
N
O
Button pressed?
9
Button pressed?
Display shows
12M
Output at (Front Display Board)
pin 19 of uP = 2,929.6875Hz
Display shows
32K
Output at (Front Display Board)
pin 19 of uP = 2048Hz
QUARTZ
TEST
TUNER
Button pressed?
Disconnect
Mains cord ?
Y
N
N
Y
Display Tuner Version
"ccc"
Service frequencies are
copied to the RAM (see Table 1)
Tuner works normally except:
PROGRAM button
Service Mode left
TUNER
TEST
TUNER
Button pressed?
N
PRESET
1
2
3
4
5
6
7
8
9
10
11
Oversea
"OSE"
87.5MHz
108MHz
531 / 530kHz*
1602 / 1700kHz*
558 / 560kHz*
1494 / 1500kHz*
87.5 / 98MHz*
87.5MHz
87.5MHz
87.5MHz
98 / 87.5MHz*
Table 1
* Depending on the selected grid frequency (9 or 10kHz)
Note:
a) By holding the TUNER and R buttons depressed while switching
on the Mains supply, the tuning grid frequency is toggled between
9kHz and 10kHz for the Oversea (/21) version.
b) This Tuner information is also applicable for /12 and /28 versions.
Y
N
Y
N
Y
N
2
Button pressed?
2
Button pressed?
9
Button pressed?
DISPLAY
TEST
Display shows Figure 1 and
switch all LEDs on (except VU
Volume & ECO POWER LEDs),
and full VU deflection.
Display shows Figure 2
and switch alternate LEDs on
(see Table 2),
and partial VU deflection.
Figure 1
Figure 2
LEDs
DISC 1
DISC 3
TUNER
TAPE
VAC
VU BACK LIGHT
VU VOLUME
FW-V520 , FW-V720
FW-V780 , FW-V785
FW-V795
On
On
On
On
On
On
On
Table 2
To start service test program
hold ™& Aux
depressed while
plugging in the mains cord
Display shows the
ROM version
"S-Vyy"
(Main menu)
S refers to Service Mode
V refers to Version
yy refers to Software version number of the uProcessor
(counting up from 01 to 99)
SERVICE TEST PROGRAM
Mini2001/Mini2002 VCD_Series Service Test Program (dd wk0141)

From other
CDC
Mute1
A
AD
REG.
CCT
CCT
CCT
LOW_PW_SPLY
Proc.
Mute
SSL
A
VREF
-VKK
A
A
Mute_SW_FR
From other
Chan.
Chan.
A
250mV
500mV
76dBA
16dB
1.90V
67dBA
3dB
A
A
A
Mute_SW
2.1V
AUX 500mV
CDR 1V
75 ohm
Vpp 0.5V
-9V
+5V
A
REG. +5V6
A
775mV
Signal
S/N AT 500mW
HEADROOM (1% THD) WRT TO LEVEL AT MAX VOL
500mV
SSL
SA_OUT
DPL
DPL
D
Mute_SW_FR
H/P Amp
2.50V
85dBA
3dB
-Vkk
M
D
REG.
+12V_A
-CMOS
125mV
26mV
125mV
-CMOS
SUBWOOFER
CCT A
A
A
MIC
A
AUX
Line Out
LEVELS AT MAX VOL
COAX1 (FROM CDC)
DIG
D
FIS or
D
+9V1
A
-8.5 dB
A
IS
Interface
Audio
Mute
(Blue Strip)
(wOOx)
(BassTreble)
NOTE :
MAIN SIGNAL PATH
MEASUREMENTS ARE IN AUX MODE :
XX mV
YY dBA
ZZ dB
OUT
SIS Filter
TAPE
650mV
78dBA
3.2dB
1.25V
86dBA
3.5dBA
A
A
M
Attn
Mute2
-Vkk
TUNER
S/W OUT H/P
A
A
DIG
DIG
CON
DIG
A
H/P
DPL/
Block_Diagram (3139 119 33780) dd wk0138
4-1 4-1

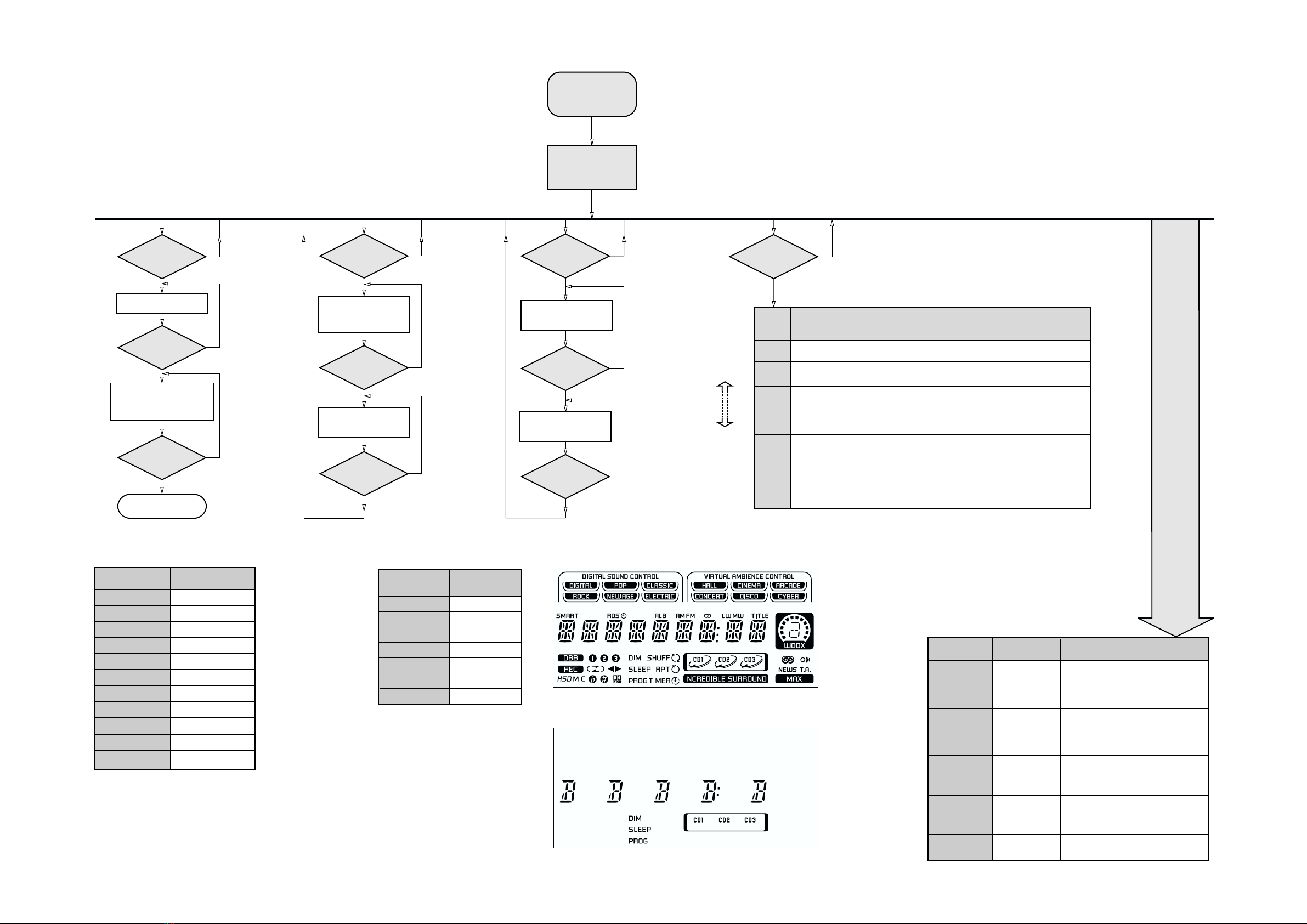

SET BLOCK DIAGRAM

+11V_A
Power Booster Module
Bit1
#1300
#1301
*1204
1705
CTR
1
1601
TU_STEREO
TU_CLK
TP_SH_DATA TP_SH_STR
GND_D
A1
or
1203 1205
( For C5xx & P750 )
or
( For C5xx & C7xx only )
( For P750 only )
AF10 for Mini 2002 Power Booster Model only
1603 1
1507 PROVISIONP
1702
GND_M
+11V_M
GND_A
+11V_A
+D2
F1
VCD_ON
23
Power Booster Out
1550
Power Booster In
5
1
L_PWR_S
F1
F2
CVBS
F2
DSA_ACK
1
SURR
Aux Led
1501
AMP_RIGHT
TU_DATA
GND__D
NTC
PWR_DN
-VKK
DPL_STR
+11V_A
1
B1
1
HR 06p/340/06p OE
MOTOR
Version only )
1201
8906
GND_D
13
1407
FFC AD 14p 220
( 1106 )
16
1525
MIC_DET
LOW_PWR_SPLY
VU Meter
FFC AD 12p 120 (For C7xx High pwr only)
+5V6 VUmeter
1
11
MATRIX SURR
1803
FFC BD 19p 180
or
or
( Only for FW-C720 )
( For C780/33 & VCD
1204 1202
GND_D
F1
1
ETF7
AF9
SILD
TP_REC_RIGHT
COAX1
COAX2
GND_D_VCD
DSA_STR
SHR_DATA
FFC AD 5p 180
NTC
( For VCD only )
*HR 08p/220/08p HR
( For C5xx & C7xx )
( For VCD only )
CONTROL/KEYS
GND_D_VCD
DISPLAY/u-P
FRONT
+11V
1404 1402
Bit0
SW_INFO
1
DPL_RIGHT
DSA_DATA
DSA_ACK
1
1
112
JOG A
5GND_D
1
14
1
uP_CLK
1
SILD
HP_DET
FFC AD 06p 140
1502
ECO6
TU_DATA
TU_ENAB
FRONT
uP_CLK
1
GND-B
Tape Led
FFC BD 04p 400
1
1506
1531
+11V_A
( For C7xx only )
TP_REC_RIGHT
GND_A_TP
1
EH SIDE ENTRY
EH TOP ENTRY
GND_D
+5V6
CVBS
Cdc3Lit
wOOx A
Key_Con
GND_D
SRDT
FFC AD 10p 120 (For C 5xx, 7xx Low pwr)
( For C 5xx & 7xx )
FFC AD 12p 220
PWR_DN
*FFC AD 13p 220
CD_Right
1503
TP_RIGHT
-CMOS
GND_D_CD
CDC KEYS
FFC TOP ENTRY
LEGEND
FFC AD 08p 120
GND_C GND_S
1202
CD_SH_CLK
SS_LEFT
FFC AD 19p 180
IR Receiver
1408
HR 3p/100/3p OE
HR 06p/400/06p HR
4
4
DSA_ACK
GND_AA
AMP_LEFT
DPL_DATA
SW_INFO
+11V_M
HR 09p/340/09p OE
and
8909
9
GND_A
CD_SH_CLK
CD_SH_STR
CD_Left
CD_PORE
F2
CD Led
GND_D
+5V6_CON
GND
+5V6
-Vkk
FFC AD 12p 120 (For P750 only)
15211522 1523
TP_SH_CLK
MIC_DET
( 1106 )
( 1103 )
1
1403 1401 1405
DIGITAL OUT
AUX IN
L_PWR_CTRL
+11V_M
GND_M
1
Cdc1Lit
uP_CLK
GND_D_CDTEXT
F1
F2
( For P750 only )
+5V_CD
GND_A
1603
1520
1542 1541
4
1
12
1405
DPL_DATA
+5V6_Con
FFC BD 04p 180
IS Led / LedShData
FFC AD 11p 220
CD_SH_STR
1305
HR 04p/280/04p OE
*1200
HR 04p/340/04p HR
1509
HR 2P/280/2P
DQSY
A2
+D
GND
+D2
DQSY
GND_D
DQSY
3CDC-LC / 3CDC-L2C
MPEG01B
For 100 W version
SICL
HR 02p/180/02p HR
1503
FFC BD 15p 180
1801
Key2
I2CCLOCK
RC5
JOG B
1
+11V_A
Max / wOOx / LedShClk
CD_PORE
1401
20
1402
FFC AD 11p 180
or
FFC AD 15p 180
1406
FFC AD 07p 180
1702
LINE OUT COAX
(CVBS)
1
C/S AMP
AMP_CS_DC
AMP_CS_DC
Key1
8
GND_M
MIC
7
7
8
4
TP_ADC1
7
1
+D
CLIPPING
GND_D
GND_D_CD
+11V_M
DBB / LedShStr GND_D VAC Led DSC Led wOOx B
GND-B
DSA_STR
SHR_DATA
DSA_DATA
NTC
DPL_DATA
GND_D_DPL
L_PWR_CTRL
1
GND_A
GND_D_CDTEXT
11
CD_SH_DATA
1701
SICL
1
8
PWR_DN
GND_D
GND_B
A2
DPL_CLK
GND_D
1
GND_A
SUBWOOFER
CD_Left
GND_D_CD
CD_Right
+5V_CD
DSA_STR
SHR_DATA
DSA_DATA
GND_D
B2
GND_D_COAX
SHIELD
GND_D_I2C
I2C_DATA
1
DPL
AMP_ON
19
15 +11V_A
11
SICL
CD_SH_DATA
SILD
GND_D_VCD
LS
GND
+11V_A
DPL_STR
DPL_VOL_CLK
HP_RIGHT
DPL_VOL_CLK
TU_STEREO GND_M
GND_A_CD
GND_D
8
GND_M
+11V_M
SW_INFO
+11V_A
1
CD-CHANGER
DVD_ON
14
SRDT
TP_ADC2
+FAN
TAPE DD
CLIPPING
LOW_PWR_CTRL
SA_IN
CD_SH_CLK
15
LOW_PWR_CTRL
+11V_M
TP_REC_LEFT
DPL_RIGHT
B2
12511250
1259/60/61 (11p/12p/13p )
SPARE
VCD OUT
TUNER
TU_STEREO
+5V6
TU_DATA
TU_ENAB
A1
B1
GND_D
19
23
DVD_ON
5V_VCD
TU_LEFT
GND_A_TU
1
NTC
MIC_DET
+11V_A
MIC
FFC AD 07p 220
TU_RIGHT
CD_SH_DATA
MAINS BOARD
L/R+SUP/POWER-BOARD
DPL_CLK
GND_D
SS_RIGHT
1201
GND_D_CDTEXT
*1205
23
DIPMATE
( 1101 )
TU_CLK
TU_CLK
TU_ENAB
GND_A_TU
DPL_LEFT
SS_LEFT
GND_A
PWR_DN
COAX1
1206
TP_SH_DATA
TP_SH_STR
1
AMP_CS_DC
AMP_ON
1407
1405
1411
CD_SH_STR
1600 (12p)
GND_D
B1
FRONT
FRONT
TP_ADC1
1321
GND_A
GND_A_CD
COAX2
HP_DET H/P
TP_LEFT
FRONT
FRONT
HEADPHONE
MIC-AMP.
TU_LEFT
GND_A_TU
TU_RIGHT
MIC
1
HP_DET
-CMOS
SS_RIGHT
GND_A_TP
SHIELD
GND_D_COAX
SRDT
14
TP_REC_LEFT
DPL_CLK
+KARA
VCD_IN1
AGND
VCD_IN2
MIC_DET
GND_D
VCD_IN2
MIC_DET
1
1330
1203
FFC AD 07p 340
( 1107 )
FFC SIDE ENTRY
( 1107 )
( 1107 )
( 1101 )
( 1102 )
( 1102 )
1691 1801
TP_SH_CLK
FAN
1700
11
1
GND_D
AMP_ON
TP_LEFT
A1
1406
GND_D
1
( 1107 ) ( 1104 )
1706
HP_LEFT
VCD GND ISOLATOR
1120
1300
1701
HP_LEFT
1504
1914
1
1508
HR 3P/280/3P
1701 1700
AF9/AF10
TP_ADC2
+F
TP_RIGHT
ECHO I/P
1
MIC_DET
MPEG GND
ECHO I/P
1
A2
B2
1
A2 B2
1911
MIC_DET
+KARA
VCD_IN1
AGND
L_PWR_CTRL
FFC AD 08p 220
1501
( 1108 )
*1306 (13p)
*1310 (8p)
+5V6
( 1107 )
1
LS SL/SR
1
1800
1840 1602
1912
AMP_RIGHT
1603 (10p)
1403
1
19p
OUT
1402 1404
1412
B1
GND_D
20
1913
1902
SMF 1P/090/1P STO-8
1901
SMF 1P/180/1P SRA
STO-5 1P/280/1P STO-8
1510
Cdc2Lit
5V_VCD
1703
1805
+F
1602
LS SL/SRLS C
NTC
LOW_PWR_SPLY
10
1404
1
MPEG GND
1850
1304
HR 04p/280/04p OE
1314
P
-VKK
AMP_MUTE
Tuner Led
1
SMF 1P/180/1P STO-8
GND_A
F2
1-VKK
CLIP
HR 07p/220/07p HR
( 1108 )
1315
( 1106 )
*1308
1809
CBLE STO-8 1P/280/1P OE
+11V_A
1
*1302
*1304 *1209
*1203
*1201
* For POWER 2001 Module (30-70W Version) Only.
# For VCD Only.
Note : Some values may varies, see respective parts list for correct value.
*1307
1601 (8p) 1
GND_A
HP_RIGHT
1409
1400
GND_M
DPL_LEFT
GND_A
GND_D_CD AMP_CS_DC
-VKK
PWR_DN
1
GND
1403
FFC AD 06p 180
F1
L_PWR_S
1408
A1
VCD_ON/CDR_ON
GND
48
1252
1262/3 (7p/8p)
( 1105 )
(1109)
1851
DPL_VOL_CLK
GND_D_CD
14
AMP_LEFT
GND_AA
For Mini 2002 FW-C798, FW-V795 Only
1504
STO-5 1P/280/1P STO-8
1903
Wiring_Diagram (3139 119 33780) dd wk0138
4-2
SET WIRING DIAGRAM
4-2

FRONT CONTROL BOARD
TABLE OF CONTENTS
Front Control Board - Component & Chip layout ............ 5-2
Front Control Board - Circuit diagram .............................5-3
IR-Eye Part - Layout & Circuit diagram ........................... 5-3
Key-CDC Part - Layout & Circuit diagram....................... 5-4
VU Meter Part - Layout & Circuit diagram....................... 5-4
Karaoke Part - Layout & Circuit diagram ........................ 5-5
Electrical parts list............................................................ 5-5
5-1 5-1
REMARKS :

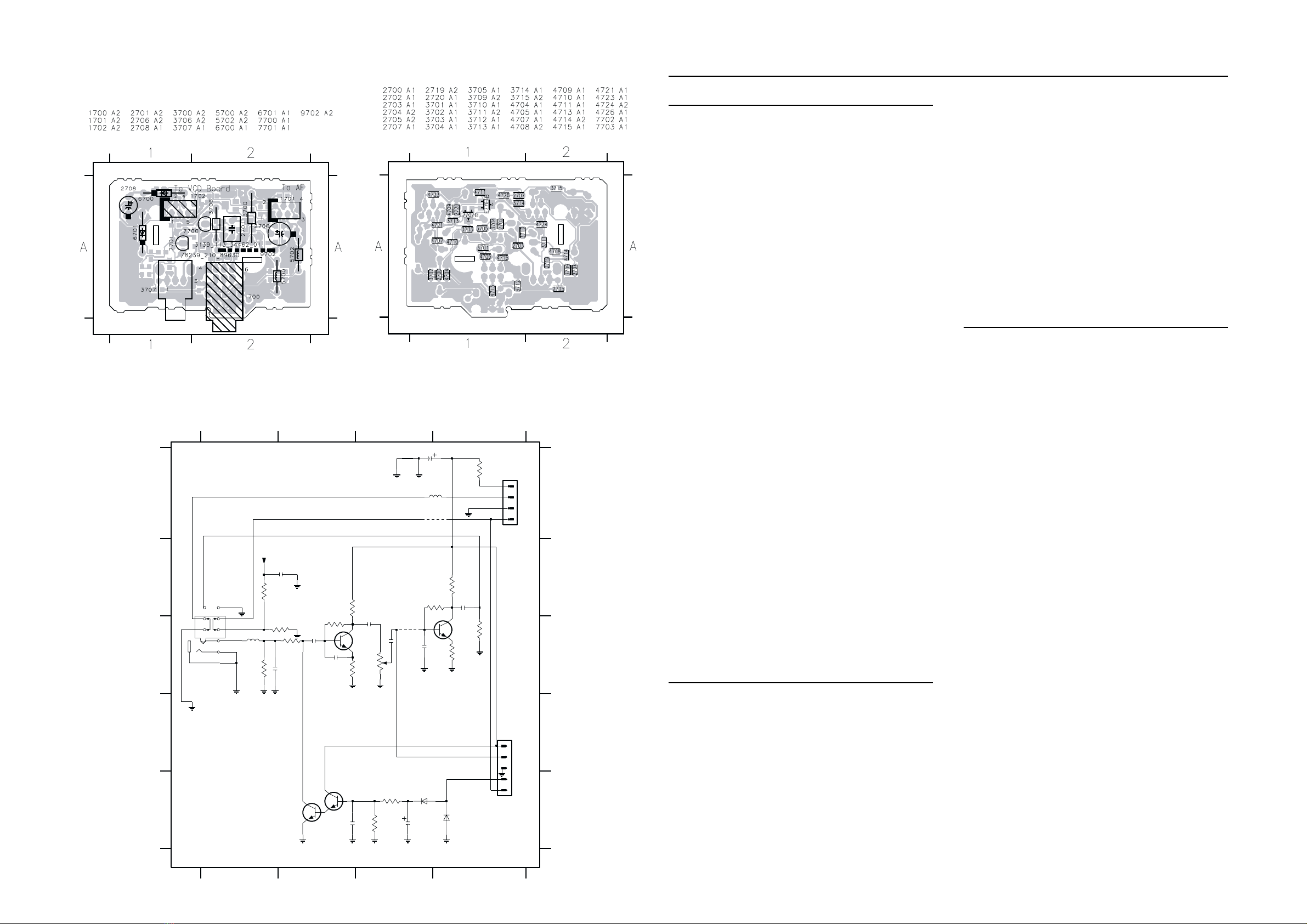

FRONT CONTROL BOARD - COMPONENT LAYOUT
FRONT CONTROL BOARD - CHIP LAYOUT
5-2 5-2
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3446 pt2 dd wk0116
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3446 pt2 dd wk0116

5-3
FRONT CONTROL BOARD - CIRCUIT DIAGRAM
5-3
IR-EYE BOARD - CIRCUIT DIAGRAM
IR-EYE BOARD - COMPONENT LAYOUT IR-EYE BOARD - CHIP LAYOUT
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3446 pt2 dd wk0116
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3446 pt2 dd wk0116
STB
D1
EN1
SRG8
Gnd
Dubbing
Max/DPL
DISPLAY
NEXT
PROG
D
E
F
G
H
1600 F1
1601 H2
1602 D1
1603 H1
PLAY
Tape
WOOX_A
RDS
Dpl_surr_C
1234567
1234567
A
B
C
D
E
F
G
H
A
B
C
NEWS
REC
Dolby NR
TAPE
CD
Dpl_left
CLK
AUX
1650 D2
1651 C2
1652 C3
1653 C3
1654 C3
1655 C2
1656 D3
1657 D3
1658 D3
1659 D2
1660 D5
1661 D4
1662 C5
1663 C6
1664 C6
1665 C7
1666 C5
1667 C4
1668 C4
1669 C4
1670 C6
1671 D6
1672 D6
S_back
PREV
S_fwd
CD
TUNER
Aux
1673 D5
1674 D5
1675 D4
1690 B1
1691 A3
2600 G5
2603 G5
2604 B4
2605 B4
2606 B2
2607 B2
2608 C7
2613 D6
2615 A4
2620 F3
2622 F6
2623 F7
2624 G4
2625 G4
3600 G2
3604 A4
3605 A4
3606 A2
DSC
WOOX_B
Dpl_surr_R
Dpl_right
STOP
IS
VAC
3607 A2
3608 G5
3609 G4
3610 C2
3611 C3
3612 C3
3613 C3
3614 C4
3615 C4
3616 C5
3617 C5
3618 C6
3619 C6
3620 C7
3621 E4
3622 E4
3623 E4
3624 E4
3630 D2
3631 D3
3632 D3
3633 D3
3634 D4
Tuner
AUTO REV
DBB
3635 D4
3636 D4
3637 D5
3638 D5
3639 D6
3640 D6
3643 G6
3644 G6
3645 G6
3646 H7
3647 H6
3648 G3
3649 F3
3650 F3
3651 H3
3652 H3
3653 H3
3654 H3
3655 H6
4600 G2
4605 H5
4606 H6
5601 F5
6602 A4
6603 E4
6604 E4
Dpl_surr_L
Green-Led
Max_Led(Amber)
Green-Led
6605 E4
6606 E4
6610 H3
6611 H3
6612 H3
6613 H3
6620 G7
6621 G7
6622 G7
6623 H7
6624 H7
7601 F5
7602 H7
7650 F3
9610 G2
9618 G2
Gnd
1653
1K
3655
GND-B
1666
GND-B
2613
2605
10n
EC12 1
1691
4K7
Gnd Gnd
GND-B
1664
GND-B
Gnd
3618
GND-B
220R
3631
GND-B
2
3
MT1
4
MT2
5
GND-B
6605
4606
1656
GND-B
GND-B
6606
2604
1663
150R
3630
GND-B
GND-B
3610 3612
270R
3644
GND-B
1658
1670
180R
9610
560R
3634
4600
270R3653
1601
FE-ST-VK-N
1
2
3
4
5
6
7
8
3648
10K
2620
10u
GND-B
10K
3604
Gnd
Gnd
390R
3613
220p 2624
1667
3643 180R
120R
3621
3614
120R
3622
560R
220p
2603
6620
1K8
3617
Gnd
1657
2622
1651
100n
6612
GND-B
4K7
3619
100p
220p 2625
Gnd
1N4148
6602
6603
2607
10n
120R
3624
1675
3635
1K2
3636
6623
820R
1671
1672
GND-B
1661
6621
1668
220R3652
1669
2608
100p
6622
Gnd
Gnd
6610
GND-B
1654
390R
3633
GND-B
9
10
1
16
8
10K
3620
74HC4094D
7601
3
2
15
4
5
6
7
14
13
12
11
10K
3606
10n
3605
10K
3647
180R
1655
3640
Gnd
2K7
6604
3654 120R
Gnd
1
2
3
4
5
6
7
8
6613
1602
FE-ST-VK-N
4605
1K2
3616
GND-B
Gnd
Gnd
GND-B
3623
120R
Gnd
10n
GND-B
3646180R
2606
150R
GND-B
220R3651 Gnd
1673
GND-B
1
10
11
12
2
3
4
5
6
7
8
9
7
8
9
FE-ST-VK-N
1600
1603
FE-ST-VK-N
1
10
2
3
4
5
6
GND-B GND-B
GND-B
4K7
3639
3615
820R
Gnd
2K7
3638
3
2
MT1
4
MT2
5
6624
Gnd
10K
3609
Gnd
2600 220p
9618
10K
3608
470R
# 3600
7650
1665
BC847B
1K8
1690
EC16
1
GND-B
Gnd
3637
1652
1659
3632
270R
4K7
3650
BC847B
7602
1662
2u2
5601
Gnd
1660
GND-B GND-B
1674
100n
2615
47u
10K
3607
180R3645
2623
1650
Gnd
220R
3611
10K
3649
6611
GND-B
+5V6
IS_ShData
Max_Woox_LedShClk
IS_ShData
JOG_A
VacJOG_B
DSC
DBB_Led
+5V6
IS_Led
DSC
Max_Woox_LedShClk
Vac
+5V6
DBB_ShStr
DSC
DBB_Led
TunerAux
CD
Tape
+5V6
Woox_A
Woox_B
DBB_ShStr
+5V6
Vac
Key2
Key1
Tap eCD
Aux
Tuner
JOG_B
+5V6
Woox_A
Woox_B
JOG_A
3139 118 54530...for 89600...3446 pt2 dd wk0116
# : Provision
Note : Some values may varies, see respective
parts list for correct value.
DEM BAND
PASS
CTRL
CIRCUIT
AGC
INP
PIN
123
123
A
B
A
B
20 A1 2860 A2 2861 B1 2862 A1 3860 A1 3861 A2 3862 B2 7800 A2
2860
47u
Gnd
Gnd
7800
TSOP2236
GND3
OUT1
VS2
Gnd
Gnd
20
DIPMATE
1
2
3
47n2n2
2861
3860
100R
2862
3861
1K
3862
Gnd
10K
3139 118 54530...for 89660...3446 pt2 dd wk0116
Note : Some values may varies, see respective parts list for correct value.

KEY-CDC BOARD - CIRCUIT DIAGRAMKEY-CDC BOARD - COMPONENT LAYOUT
KEY-CDC BOARD - CHIP LAYOUT
5-4 5-4
VU METER BOARD - CIRCUIT DIAGRAM
VU METER BOARD - COMPONENT LAYOUT VU METER BOARD - CHIP LAYOUT
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3446 pt2 dd wk0116
This assembly drawing shows a summary of all possible versions. For components used in a specific version see schematic diagram and respective parts list. 3139 113 3446 pt2 dd wk0116
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3446 pt2 dd wk0116
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3446 pt2 dd wk0116
23
A
B
A
B
1800 A3
1801 B2
1802 B2
1803 B2
1804 B1
1805 B1
2800 B1
3800 A1
3801 A1
3802 A2
3803 A1
3804 A1
3805 A2
3806 A2
3807 A2
6802 A1
6803 A1
6804 A2
6804
GND-B
123
1
3801
220R
6803 6802
3802
220R
3800
220R
1803
270R
3805
GND-B GND-B GND-B GND-B
1
2
3
4
5
6
GND-B GND-B
FE-ST-VK-N
1800
1804 1805
390R
3804
560R
3803
150R
3807
100p 2800
1801
220R
GND
1802
3806
3139 118 54530...for 89610...3446 pt2 dd wk0116
Note : Some values may varies, see respective parts list for correct value.
Vu-meter
1234
1234
A
B
C
D
A
B
C
D
1840 C1
2840 A2
2841 A2
2842 D2
2843 D3
2844 D4
3841 A2
3842 A2
3843 A2
3844 A3
3845 D2
3846 D3
3847 D4
To Front
Vu-backlight
3848 C3
3849 C3
3850 C4
3851 A3
4842 A2
4843 A2
5600 A4
6840 A1
6841 A3
6842 A4
6843 D4
6844 D3
7841 A2
7842 C3
7843 D3
7844 D3
7845 D4
3841
47K
180R
3851
4K7
3846
1K2
BC857B
7842
7843
BC847B
Gnd
3845
470R
3848
6843
390R
3850
BC847B
7844
Gnd
3847
220R
6844 3849
150R
Gnd
5600
12
Gnd
6842
LB3333
7845
BC857B
FE-BT-VK-N
1840
1
2
3
4
5
6
4843
100p
2844
# 4842
100p
2842 2843
100p
2840
100p
3844
8K2
1N4148
6841
1K
2841
1u
3842
100K
3843
Gnd
BC847B
7841
6840
1N4148
Bit0
Bit1
+5V6
VUMeter
+Vu
+5V6
+5V6
+Vu
3139 118 54530...for 89650...3446 pt2 dd wk0116
# : Provision
Note : Some values may varies, see respective parts list for correct value.

5-5 5-5
ELECTRICAL PARTS LIST - FRONT CONTROL BOARD
MISCELLANEOUS
KARAOKE BOARD - CIRCUIT DIAGRAM
KARAOKE BOARD - COMPONENT LAYOUT KARAOKE BOARD - CHIP LAYOUT
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3446 pt2 dd wk0116
This assembly drawing shows a summary of all possible versions.
For components used in a specific version see schematic diagram and respective parts list.
3139 113 3446 pt2 dd wk0116
SIMPLE KARAOKE
123 4
123 4
A
B
C
D
E
A
B
C
D
E
1700 C1
1701 A4
1702 D4
2700 C1
2701 C2
2702 C2
2703 C3
2704 C3
2705 B4
2706 A3
2707 E2
2708 E3
2719 C3
(FOR /21 VERSION ONLY)
2720 B2
3700 B1
3701 C2
3702 C1
3703 C2
3704 C2
3705 B2
3706 C2
3707 C3
3709 B4
3710 C4
3711 B4
3712 C4
3713 A4
3714 E3
3715 E3
4708 C3
5700 C1
5702 A4
6700 E3
6701 E4
7700 C2
7701 C4
7702 E2
7703 E2
9702 A4
FOR VIDEO CD ONLY
1M
3704
3703
10K
agnd
agnd
mic_gnd
BC550C
7701
mic_gnd
9702
2u2
5702
mic_gnd
agnd
2708
10u
3712
3700
1K5
agnd
470n
2703
100K
agnd
33R
3706
BC847B
7703
7702
BC847B
2K7
3705
agnd
2706
100u
2701
100n
680p 2704
mic_gnd
4708
agnd
3713
470R
agnd
BC550C
7700
agnd
agnd
1702
FE-BT-VK-N
1
2
3
4
5
3711
680R
agnd
5700
10K
3702
2705
1u
150K
3715
agnd
470n
2719
9
8
7
1
2
3
4
5
6
1M
3714
TC38
1700
FE-BT-VK-N
1701
1
2
3
4
6700
1N4148
agnd
20K
3707
2
13
agnd
1M
3709
agnd
agnd
2700
4n7
100n
# 2720
330R
3710
2702
1n
6701
1N4148
2707 100n
mic_gnd
330R
# 3701
VCD_IN1
agnd
MIC_DET
MIC_DET
agnd
MIC
+12A
VCD_IN2
+Kara
+12A
3139 118 54530...for 89630...3446 pt2 dd wk0140
Note : Some values may varies, see respective parts list for correct value.
# : Provision
22u
1602 4822 265 11535 Flex Connector 8P
1603 4822 265 11208 Flex Connector 10P
1650 4822 276 13775 Tact Switch
1651 4822 276 13775 Tact Switch
1652 4822 276 13775 Tact Switch
1653 4822 276 13775 Tact Switch
1654 4822 276 13775 Tact Switch
1655 4822 276 13775 Tact Switch
1656 4822 276 13775 Tact Switch
1657 4822 276 13775 Tact Switch
1658 4822 276 13775 Tact Switch
1659 4822 276 13775 Tact Switch
1660 4822 276 13775 Tact Switch
1661 4822 276 13775 Tact Switch
1662 4822 276 13775 Tact Switch
1663 4822 276 13775 Tact Switch
1664 4822 276 13775 Tact Switch
1665 4822 276 13775 Tact Switch
1666 4822 276 13775 Tact Switch
1668 4822 276 13775 Tact Switch
1670 4822 276 13775 Tact Switch
1671 4822 276 13775 Tact Switch
1672 4822 276 13775 Tact Switch
1673 4822 276 13775 Tact Switch
1674 4822 276 13775 Tact Switch
1675 4822 276 13775 Tact Switch
1690 2422 129 16385 Rotary Encoder 12P
1700 4822 265 11529 Microphone Socket
1701 4822 267 10733 Flex Connector 4P
1702 4822 267 10954 Flex Connector 5P
1800 4822 265 11207 Flex Connector 6P
1801 4822 276 13775 Tact Switch
1802 4822 276 13775 Tact Switch
1803 4822 276 13775 Tact Switch
1804 4822 276 13775 Tact Switch
1805 4822 276 13775 Tact Switch
1840 4822 267 10731 Flex Connector 6P
CAPACITORS
2606 5322 126 11583 10nF 10% 50V
2607 5322 126 11583 10nF 10% 50V
2608 4822 122 31765 100pF 2% 63V
2613 4822 122 31765 100pF 2% 63V
2615 4822 124 12233 47uF 20% 25V
2622 4822 126 14305 100nF 10% 16V
2623 4822 126 14305 100nF 10% 16V
2700 4822 126 13193 4,7nF 10% 63V
2701 5322 121 42386 100nF 5% 63V
2702 3198 016 31020 1nF 25V
2703 3198 017 44740 470nF 10V
2704 4822 126 13909 680pF 10% 50V
2705 3198 017 41050 1uF 10V
2706 4822 124 41643 100uF 20% 16V
2707 4822 126 14305 100nF 10% 16V
2708 4822 124 21732 10uF 20% 25V
2719 3198 017 44740 470nF 10V
2800 4822 122 31765 100pF 2% 63V
2840 4822 122 31765 100pF 2% 63V
2841 4822 124 22651 1uF 20% 50V
2842 4822 122 31765 100pF 2% 63V
2843 4822 122 31765 100pF 2% 63V
2844 4822 122 31765 100pF 2% 63V
2860 4822 124 81286 47uF 20% 16V
2861 4822 126 14238 2,2nF 50V
2862 3198 017 34730 47nF 16V
RESISTORS
3606 4822 051 30103 10k 5% 0,062W
3607 4822 051 30103 10k 5% 0,062W
3610 4822 051 30151 150R 5% 0,062W
3611 4822 051 30221 220R 5% 0,062W
3612 4822 051 30271 270R 5% 0,062W
3613 4822 051 30391 390R 5% 0,062W
3614 4822 051 30561 560R 5% 0,062W
3615 4822 117 12968 820R 5% 0,62W
3616 4822 117 11817 1k2 1% 1/16W
3617 4822 117 12903 1k8 1% 0,063W
3618 4822 116 52263 2k7 5% 0,5W
3619 4822 051 30472 4k7 5% 0,062W
3620 4822 051 30103 10k 5% 0,062W
3621 4822 051 30121 120R 5% 0,062W
3622 4822 051 30121 120R 5% 0,062W
3623 4822 051 30121 120R 5% 0,062W
3624 4822 051 30121 120R 5% 0,062W
3630 4822 051 30151 150R 5% 0,062W
3631 4822 051 30221 220R 5% 0,062W
3632 4822 051 30271 270R 5% 0,062W
3633 4822 051 30391 390R 5% 0,062W
3634 4822 051 30561 560R 5% 0,062W
3635 4822 117 12968 820R 5% 0,62W
3636 4822 117 11817 1k2 1% 1/16W
3637 4822 117 12903 1k8 1% 0,063W
3638 4822 051 30272 2k7 5% 0,062W
3639 4822 051 30472 4k7 5% 0,062W
3640 4822 051 30103 10k 5% 0,062W
3647 4822 051 30181 180R 5% 0,062W
3651 4822 051 30221 220R 5% 0,062W
3652 4822 051 30221 220R 5% 0,062W
3653 4822 051 30271 270R 5% 0,062W
3654 4822 051 30121 120R 5% 0,062W
3700 4822 116 52243 1k5 5% 0,5W
3702 4822 051 30103 10k 5% 0,062W
3703 4822 051 30103 10k 5% 0,062W
3704 4822 051 30105 1M 5% 0,062W
