Philips FWM210/78 User manual

FWM210/78
www.philips.com/welcome
Register your product and get support at
EN User manual

1
English
EN
8 Product information 14
Specifications 14
USB playability information 15
Supported MP3 disc formats 15
Maintenance 15
9 Troubleshooting 16
10 Notice 17
Contents
1 Important 2
Safety 2
2 Your Mini Hi-Fi System 4
Introduction 4
What’s in the box 4
Overview of the main unit 5
Overview of the remote control 6
3 Get started 8
Connect MW (AM) antenna 8
Connect speakers 8
Prepare the remote control 9
Connect power 9
Turn on 9
Set clock 9
4 Play 10
Basic play operations 10
Play disc 10
Play from USB 10
Play audio from an external device 10
5 Play options 11
Adjust sound 11
Repeat and shuffle play 11
Program tracks 11
Display different information 11
6 Listen to radio 12
Tune to radio stations 12
Store radio stations automatically 12
Store radio stations manually 12
Select a preset radio station 12
7 Other features 13
Set alarm timer 13
Set sleep timer 13

2EN
Do not install near any heat sources•
such as radiators, heat registers,
stoves, or other unit (including
amplifiers) that produce heat.
Protect the power cord from being•
walked on or pinched, particularly at
plugs, convenience receptacles, and
the point where they exit from the
clock radio.
Only use attachments/accessories•
specified by the manufacturer.
Use only with the cart, stand, tripod,•
bracket, or table specified by the
manufacturer or sold with the Hi-Fi
system. When a cart is used, use
caution when moving the cart/unit
combination to avoid injury from
tip-over.
Unplug this Hi-Fi system during•
lightning storms or when unused for
long periods of time.
Refer all servicing to qualified service•
personnel. Servicing is required
when the Hi-Fi system has been
damaged in any way, such as power-
supply cord or plug is damaged, liquid
has been spilled or objects have
fallen into the Hi-Fi system, the Hi-Fi
system has been exposed to rain or
moisture, does not operate normally,
or has been dropped.
This Hi-Fi system shall not be•
exposed to dripping or splashing.
Do not place any sources of danger•
on the Hi-Fi system (e.g. liquid filled
objects, lighted candles).
Battery usage CAUTION – To•
prevent battery leakage which may
result in bodily injury, property
1 Important
Safety

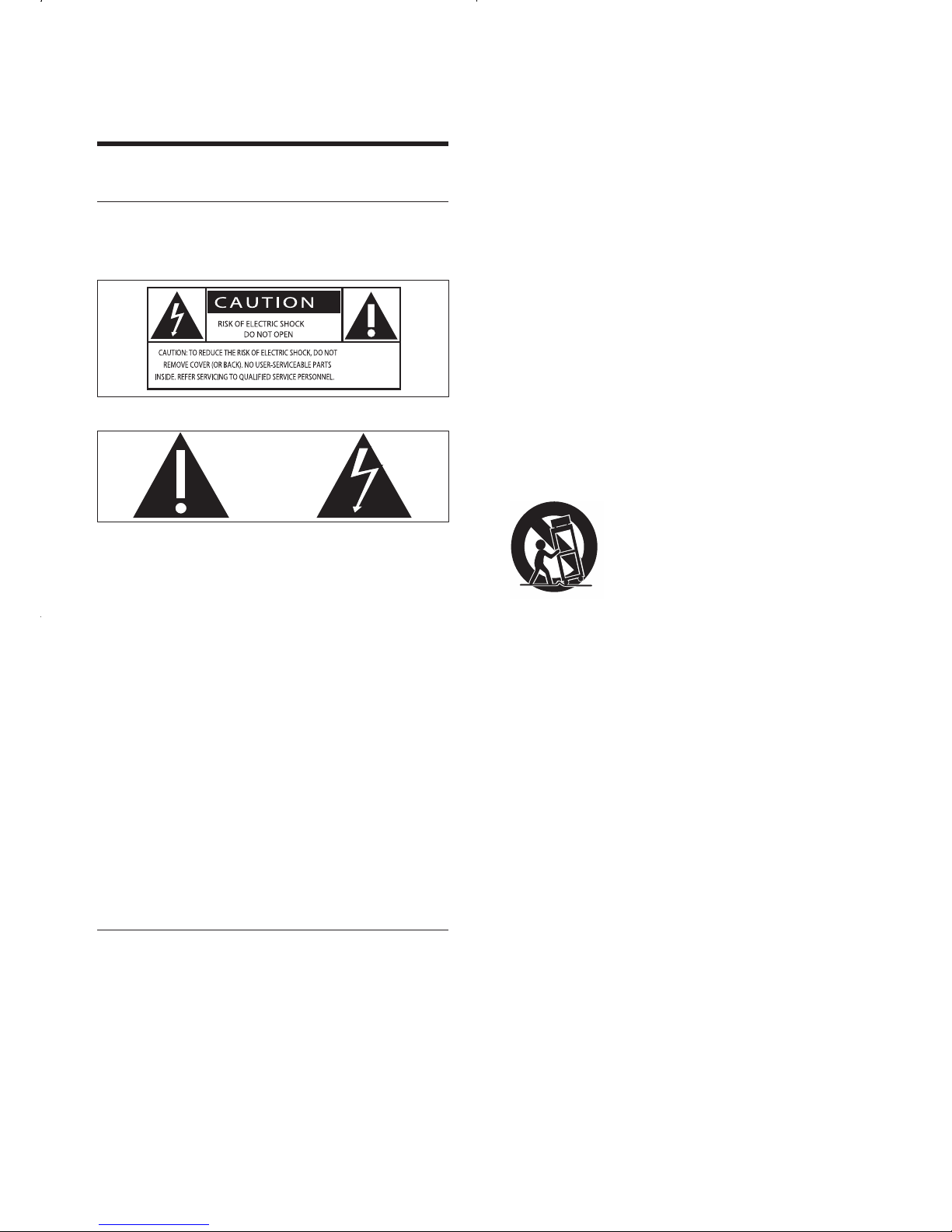

Know these safety symbols
Know these safety symbols
This ‘bolt of lightning’ indicates uninsulated
material within your unit may cause an
electrical shock. For the safety of everyone
in your household, please do not remove
product covering.
The ‘exclamation point’ calls attention to
features for which you should read the
enclosed literature closely to prevent
operating and maintenance problems.
WARNING: To reduce the risk of fire or
electric shock, this apparatus should not be
exposed to rain or moisture and objects filled
with liquids, such as vases, should not be
placed on this apparatus.
CAUTION: To prevent electric shock, match
wide blade of plug to wide slot, fully insert.
Important Safety Instructions
Read these instructions.•
Heed all warnings.•
Follow all instructions.•
Do not block any ventilation•
openings. Install in accordance with
the manufacturer’s instructions.

3
English
EN
amage, or damage to the remote
control:
Install all batteries correctly, + and -•
as marked on the remote control.
Remove batteries when the remote•
control is not used for a long time.
Where the MAINS plug or an•
appliance coupler is used as the
disconnect device, the disconnect
device shall remain readily operable.
Warning
Never remove the casing of this apparatus.•
Never lubricate any part of this apparatus.•
Never place this apparatus on other electrical•
equipment.
Keep this apparatus away from direct sunlight,•
naked flames or heat.
Never look into the laser beam inside this•
apparatus.
Ensure that you always have easy access to the•
power cord, plug or adaptor to disconnect this
apparatus from the power.

4EN
Speaker box (x 2)•
AM loop antenna•
MP3 link cable•
User manual•
Quick start guide•
2 Your Mini Hi-Fi
System
Congratulations on your purchase, and
welcome to Philips!To fully benefit from the
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this Hi-Fi system, you can:
enjoy audio from discs, USB device,•
or other external devices; and
listen to FM/AM radio stations•
To enrich sound, this Hi-Fi system offers you
these sound effects:
Digital Sound Control (DSC)•
Dynamic Bass Boost (DBB)•
Max Sound for instant power boost•
The Hi-Fi system supports these media
formats:
What’s in the box
Check and identify the contents of your
package:
Main unit•
Remote control (with batteries)•

5
English
EN
c/
Stop play or erase a program.•
Start or pause play.•
dDISC
Select disc source.•
Overview of the main unit
a
Turn on the Hi-Fi system.•
Switch to standby mode.•
bALBUM/PRESET +/-
Select a preset radio station.•
Skip to previous/next album.•
m
n
k
l
j
i
o
p
c
d
e
f
h
g
b
a

6EN
Overview of the remote
control
a
Turn on the Hi-Fi system.•
Switch to standby mode.•
bOPEN/CLOSE
Open/close the disc tray.•
MP3 LINK
AUX
a
b
c
e
d
m
l
n
o
p
r
s
q
h
g
f
j
i
k
eUSB
Select USB source.•
fVolume controller
Adjust volume.•
gMAX SOUND
Turn on/off instant power boost.•
hDBB
Turn on/off dynamic bass•
enhancement.
iMP3 LINK
Connect external audio device.•
jUSB DIRECT
Connect USB device.•
kDSC
Select a preset sound setting.•
lMP3 LINK/AUX
Select MP3 link/AUX source.•
mTUNER
Select tuner source.•
n/
Skip to previous/next track.•
Search within a track/disc.•
Tune to a radio station.•
Adjust time.•
o
Open/close the disc tray.•
pDisplay panel
Show current status.•

7
English
EN
sTUNER
Select tuner source.•
cCD
Select disk source.•
dUSB
Select USB source.•
eDISP/MUTE
Mute/unmute sound.•
Display clock and play information.•
fNumeric keypad
Select a track from a disc directly.•
gPROG/CLOCK SET
Set time.•
Program tracks and radio stations.•
hSLEEP/TIMER
Set alarm/sleep timer.•
iDSC
Select a preset sound setting.•
jDBB
Turn on/off dynamic bass•
enhancement.
kREPEAT/SHUFFLE
Play tracks repeatedly/randomly.•
lVOL +/-
Adjust volume.•
mMAX
Turn on/off instant power boost.•
n
Stop play.•
Erase a program.•
oMP3 LINK/AUX
Select MP3 Link/AUX source.•
p/
Search within a track/disc.•
Tune to a radio station.•
Skip to the previous/next track.•
Adjust time.•
q
Start or pause play.•
rPRESET/ALBUM
Select a preset radio station.•
Skip to previous/next album.•

8EN
Connect speakers
Note
For better sound effect, use the supplied•
speakers only.
Connect only speakers with impedance that is
•
the same or higher than the supplied speakers.
Refer to the Specifications section of this
manual.
Insert speaker wires completely into the
speaker sockets at the back of the Hi-Fi system.
L
R
3 Get started
Caution
Use of controls or adjustments or•
performance of procedures other than herein
may result in hazardous radiation exposure or
other unsafe operation.
Always follow the instructions in this chapter in
sequence.
Connect MW (AM) antenna
1Assemble the MW (AM) loop antenna.
2Connect the MW (AM) loop antenna to
the AM ANT socket at the back of the
Hi-Fi system.
AM ANT

9
English
EN
(For illustration only)
Turn on
Press .
The Hi-Fi system switches to the last»
selected source.
Switch to standby mode
Press to switch the Hi-Fi system to standby
mode.
The clock (if set) appears on th display»
panel.
Set clock
1In standby mode, press and holdCLOCK
SET for two seconds.
»[SET CLOCK] (set clock) scrolls on the
display, then [24H] or [12H] appears.
2Press /to select 12/24 hour format.
3Press CLOCK SET to confirm.
The hour digits begin to blink.»
4Repeat Steps 2 to 3 to set the hour and
minute.
Note
To exit clock setting mode, press• .

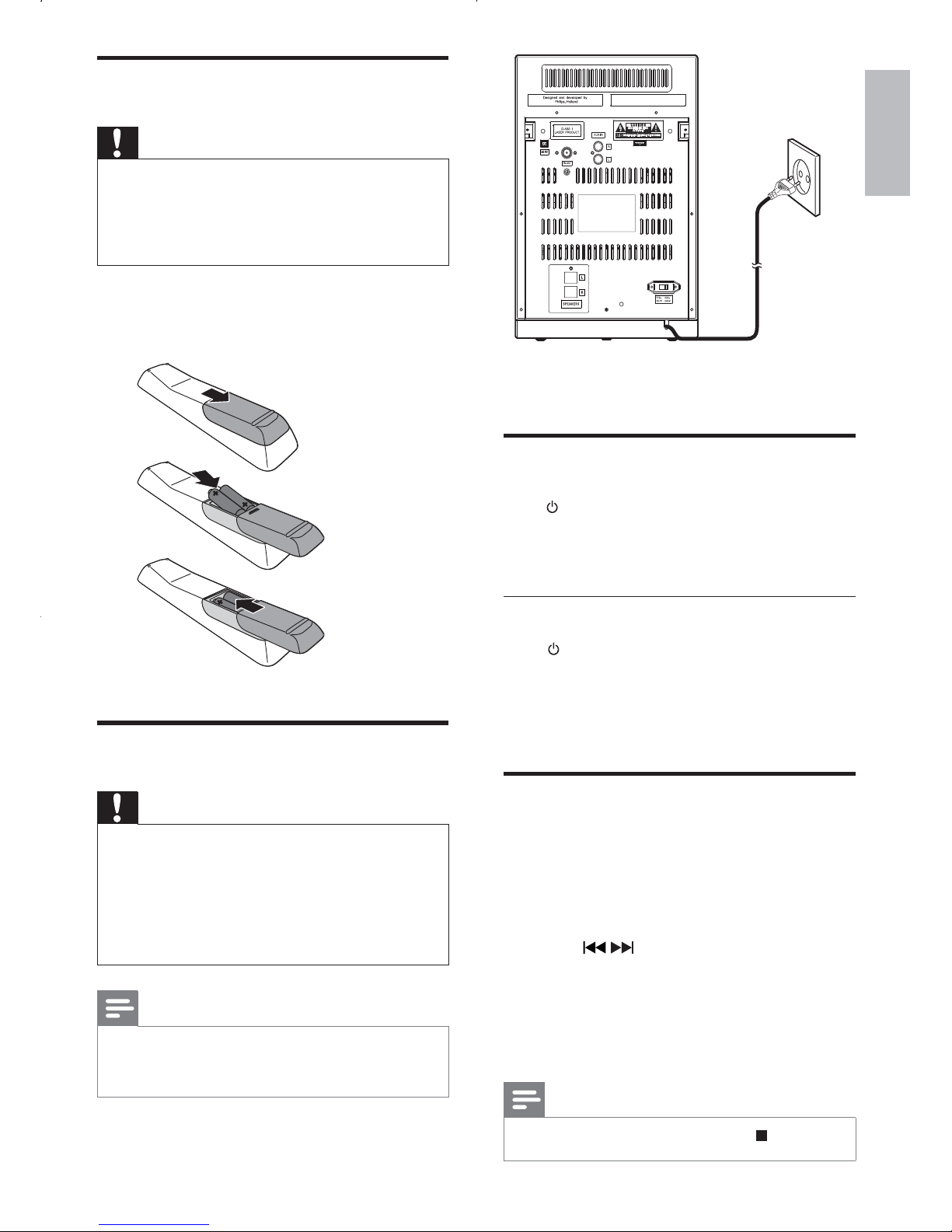

Prepare the remote control
Caution
Risk of explosion! Keep batteries away from•
heat, sunshine or fire. Never discard batteries
in fire.
Risk of decreased battery life! Never mix
•
different brands or types of batteries.
Before using the remote control, install two
AAA batteries with correct polarity (+/-) as
indicated.
Connect power
Caution
Risk of product damage! Make sure that the•
power supply voltage corresponds to the
voltage printed on the head of the AC power
cord.
Risk of electric shock! When you unplug the•
power cord, always pull the plug from the
socket. Never pull the cord.
Note
Before connecting the AC power cord,•
make sure that you have completed all other
connections.
a
c
b

10 EN
Play from USB
Note
Make sure that the USB device contains•
playable audio content.
1Insert the USB device into the socket.
2Press USB to select the USB source.
Play starts automatically.»
Play audio from an external
device
With this Hi-Fi system, you can play audio from
an external audio device.
For audio device with headphone sockets:
1Press MP3 LINK/AUX to select MP3 link
source.
2Connect the supplied MP3 Link cable to
the• MP3 LINK socket.
the headphone socket on an•
external device.
3Play the external device (see the user
manual of this device).
For other audio devices:
1Press MP3 LINK/AUX repeatedly to
select AUX source.
2Connect the audio cables to:
the• AUX IN sockets.
the AUDIO OUT sockets on an•
external device.
3Play the device (see the user manual of
this device).
4 Play
Basic play operations
You can control play through following
operations.
Function Action
To stop play press .
To pause/resume
play
press .
To skip to a track press / .
To search during
play
press and hold / ,
then release to resume
normal play.
To select an album
(for MP3/WMA)
press / .
To select a track
directly
press the numeric
buttons.
Play disc
Note
Make sure that the disk contains playable audio•
content.
1Press CD to select the disk source.
2Press .
The disc tray opens.»
3Insert a disc with the printed side facing
up, then press to close the disc tray.
»[Read] (read) blinks for about 10
seconds, then play starts automatically.

11
English
EN
»[PROG] (program) and the preset
number blinks on the display panel.
2For MP3/WMA tracks, press /to
select an album.
3Press / to select a track number,
then press PROG to confirm.
4Repeat steps 2 to 3 to program more
tracks.
5Press to play the programmed tracks.
During play,»[PROG] (program) is
displayed.
To erase the program, in the stop•
position, press .
Display different information
During play, press DISPLAY repeatedly to view
time and different play information.
5 Play options
Adjust sound
During play, you can adjust volume and select
sound effects:
Function Action
To increase/decrease volume Press VOL
+/-.
To mute/unmute sound Press and
hold MUTE
for two
seconds.
To turn on/off instant power
boost
Press MAX.
To turn on/off dynamic bass
enhancement
Press DBB.
To select a preset sound effect
(FLAT, OPTIMAL, JAZZ,
ROCK, and TECHNO)
Press DSC
repeatedly.
Repeat and shuffle play
1Press REPEAT repeatedly to select:
• : play current track repeatedly.
• (repeat all): play all tracks
repeatedly.
• (for MP3/WMA only): play
current album repeatedly.
• : play all tracks randomly.
2To return to normal play, press REPEAT
repeatedly until [TRK] (track) is
displayed.
Program tracks
You can program a maximum of 20 tracks.
1In CD/USB mode, when no track is
played, press PROG.

12 EN
4Press PROG again to confirm.
5Repeat Steps 1 to 4 to store other
stations.
Note
To remove a pre-stored station, store another•
station in its place.
Select a preset radio station
In tuner mode, press / repeatedly to select a
preset radio station.
6 Listen to radio
Tune to radio stations
Note
To improve FM reception, fully extend and•
adjust the position of FM antenna.
1Press TUNER repeatedly to select FM/
MW(AM) tuner source.
2Press and hold / for 2 seconds.
The Hi-Fi system tunes to a station»
with strong reception automatically.
3Repeat step 2 to tune to more stations.
To tune to a weak station:
1Press /repeatedly until you find
optimal reception.
Store radio stations
automatically
Note
You can store a maximum of 30 FM radio•
stations and 10 MW(AM) radio stations.
In tuner mode, press and hold PROG for 2
seconds.
»[AUTO] (auto) is displayed.
The system stores all the available»
stations and broadcasts the first
available station automatically.
Store radio stations manually
1Tune to a FM/MW(AM) radio station.
2Press PROG.
The preset number begins to blink.»
3Press /repeatedly to select a number.

13
English
EN
7 Other features
Set alarm timer
This Hi-Fi system can be used as an alarm clock.
For alarm source, you can select disc, tuner, or
USB.
Note
Make sure that you have set the clock•
correctly.
1In standby mode, press and hold TIMER
until [SET TIMER] (set timer) appears.
Then [SELECT SOURCE] (select source)
scrolls on the display.
2Press source selection keys to select an
alarm source: DISC, TUNER, or USB.
3Press TIMER to confirm.
The hour digits begin to blink.»
4Press / to set hour.
5Press TIMER to confirm.
The minute digits begin to blink.»
6Repeat steps 4-5 to set minute.
The alarm icon appears.»
Set sleep timer
This Hi-Fi system can switch to standby mode
automatically after a preset time period.
Press SLEEP repeatedly to select a period (in
minutes).
When sleep timer is activated,»
appears.
To deactivate sleep timer:
Press SLEEP repeatedly until [SLP OFF] (sleep
off) is displayed.
»disappears.

14 EN
Tuner
Tuning Range FM:87.5 - 108 MHz
MW: 531 - 1602
kHz
Tuning grid FM: 50 KHz
MW: 9KHz
Sensitivity
- Mono, 26dB S/N
Ratio
- Stereo, 46dB S/N
Ratio
<22 dBu
<45 dBu
Search Selectivity <28 dBu
Total Harmonic
Distortion
<3%
Signal to Noise Ratio >45 dB
Speakers
Speaker Impedance 4ohm
General information
AC power 110 - 127V/220 -
240V ~,
50/60Hz
Operation power
consumption
45 W
Standby power
consumption
<10 W
USB direct Version 2.0/1.1
Dimensions
- Main Unit (W x H x D)
- Speaker Box
(W x H x D)
220 x 312 x 248
mm
195 x 310 x 207
mm
Weight
- With Packing
- Main Unit
- Speaker Box
9.5 kg
3.4 kg
2 x 2.1 kg
8 Product
information
Note
Product information is subject to change•
without prior notice.
Specifications
Amplifier
Rated Output Power 2X60W RMS
Frequency Response 63 - 16000 Hz, ±3dB
Signal to Noise Ratio >55dB
Disc
Laser Type Semiconductor
Disc Diameter 12cm/8cm
Support Disc CD-DA, CD-R,
CD-RW, MP3-CD,
WMA-CD
Audio DAC 24Bits / 44.1kHz
Total Harmonic
Distortion
<1%
Frequency Response 63Hz - 16kHz
S/N Ratio >65dBA

15
English
EN
Supported sampling frequencies: 32 kHz,•
44.1kHz, 48 kHz
Supported Bit-rates: 32~320 (kbps),•
variable bit rates
ID3 tag v2.0 or later•
Maintenance
Clean the cabinet
Use a soft cloth slightly moistened with•
a mild detergent solution. Do not use
a solution containing alcohol, spirits,
ammonia or abrasives.

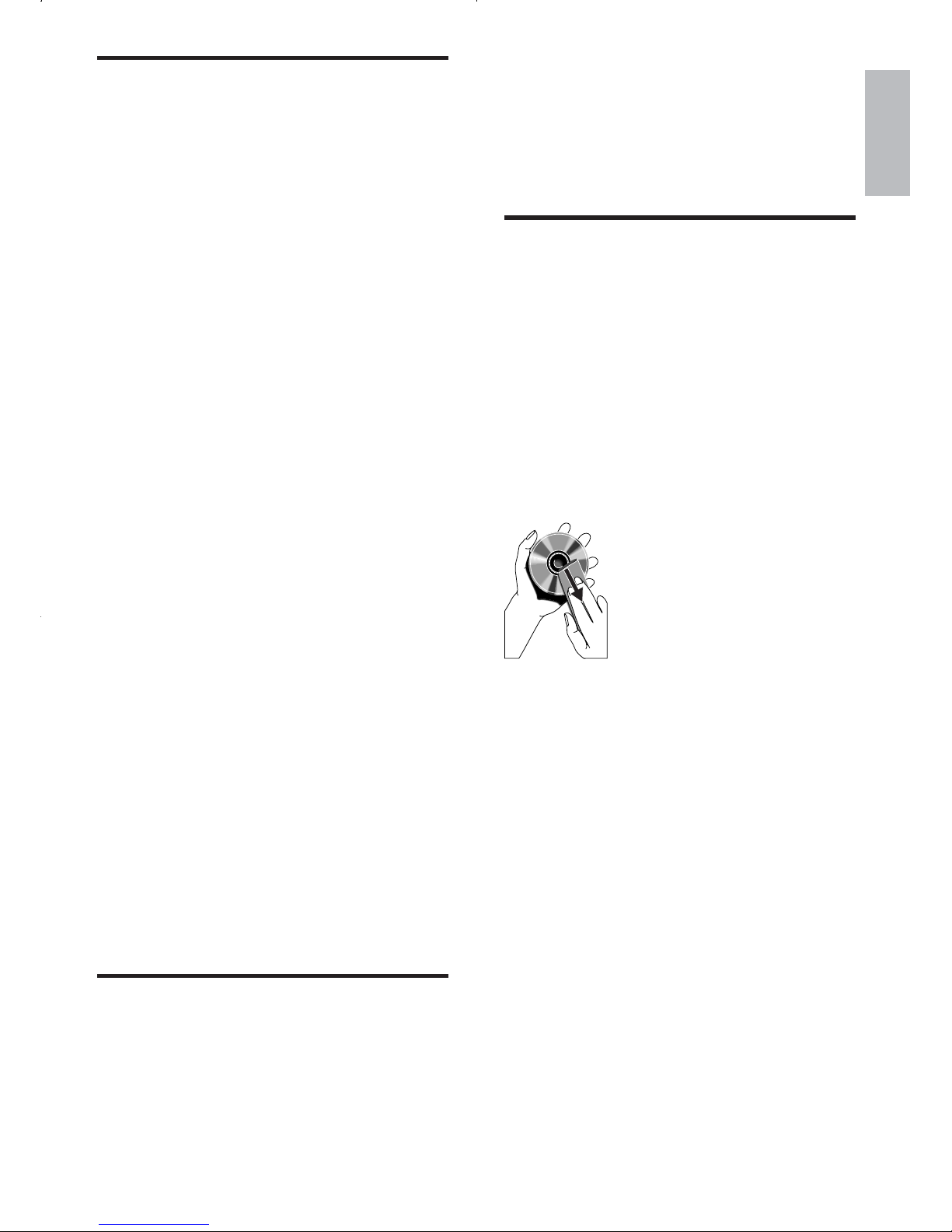

Clean discs
When a disc becomes dirty, clean it with•
a cleaning cloth. Wipe the disc from the
centre out.
Do not use solvents such as benzene,•
thinner, commercially available cleaners,
or antistatic spray intended for analogue
records.
Clean the disc lens
After prolonged use, dirt or dust may•
accumulate at the disc lens. To ensure
good play quality, clean the disc lens
with Philips CD lens cleaner or any
commercially available cleaner. Follow the
instructions supplied with cleaner.
USB playability information
Compatible USB devices:
USB flash memory (USB 2.0 or•
USB1.1)
USB flash players (USB 2.0 or•
USB1.1)
memory cards (requires an additional•
card reader to work with this unit)
Supported formats:
USB or memory file format FAT16,•
FAT32 (sector size: 512 bytes)
MP3 bit rate (data rate): 32-320 Kbps•
and variable bit rate
WMA v9 or earlier•
Directory nesting up to a maximum•
of 8 levels
Number of albums/ folders:•
maximum 99
Number of tracks/titles: maximum•
999
ID3 tag v2.0 or later•
File name in Unicode UTF8•
(maximum length: 128 bytes)
Unsupported formats:
Empty albums: an empty album is an•
album that does not contain MP3/
WMA files, and will not be shown in
the display.
Unsupported file formats are•
skipped. For example, Word
documents (.doc) or MP3 files with
extension .dlf are ignored and not
played.
AAC, WAV, PCM audio files•
DRM protected WMA files (.wav,•
.m4a, .m4p, .mp4, .aac)
WMA files in Lossless format•
Supported MP3 disc formats
ISO9660, Joliet•
Maximum title number: 511 (depending•
on file name length)
Maximum album number: 511•

16 EN
Insert the battery with its polarities (+/–•
signs) aligned as indicated.
Replace the battery.•
Aim the remote control directly at the•
sensor on the front of the unit.
No disc detected
Insert a disc.•
Check if the disc is inserted upside down.•
Wait until the moisture condensation at•
the lens has cleared.
Replace or clean the disc.•
Use a finalized CD or correct format disc.•
Poor radio reception
Increase the distance between the unit•
and your TV or VCR.
Fully extend the FM antenna.•
Alarm does not work
Set the clock/alarm correctly.•
Clock/alarm setting erased
Power has been interrupted or the power•
plug has been disconnected.
Reset the clock/alarm.•
USB device not supported
The USB device is incompatible with the•
unit. Try another one.
9 Troubleshooting
Warning
Never remove the casing of this apparatus.•
To keep the warranty valid, never try to repair
the system yourself.
If you encounter problems when using this
apparatus, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips web site (www.
philips.com/welcome).When you contact
Philips, ensure that the apparatus is nearby
and the model number and serial number are
available.
No power
Ensure that the AC power plug of the•
unit is connected properly.
Ensure that there is power at the AC•
outlet.
To save power, the system switches•
off automatically 15 minutes after track
play reaches the end and no control is
operated.
No sound or poor sound
Adjust the volume.•
Check that the speakers are connected•
correctly.
Check if the stripped speaker wires are•
clamped.
No response from the Hi-Fi system
Disconnect and reconnect the AC power•
plug, then turn on the system again.
As a power-saving feature, the unit•
switches off automatically 15 minutes
after track play reaches the end and no
control is operated.
Remote control does not work
Before you press any function button,•
first select the correct source with the
remote control instead of the main unit.
Reduce the distance between the remote•
control and the unit.

17
English
EN
negative consequences for the environment and
human health.
Your product contains batteries covered by
the European Directive 2006/66/EC, which
cannot be disposed with normal household
waste.Please inform yourself about the local
rules on separate collection of batteries
because correct disposal helps to prevent
negative consequences for the environmental
and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene
(bags, protective foam sheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Windows Media and the Windows logo
are trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
This apparatus includes this label:
2011 © Koninklijke Philips Electronics N.V. All
rights reserved.
Specifications are subject to change without
notice.Trademarks are the property of
Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right
10 Notice
Any changes or modifications made to this
device that are not expressly approved by
Philips Consumer Lifestyle may void the user’s
authority to operate the equipment.
Note
The type plate is located on the bottom of the•
apparatus.
The making of unauthorized copies of copy-
protected material, including computer
programs, files, broadcasts and sound
recordings, may be an infringement of
copyrights and constitute a criminal offence.
This equipment should not be used for such
purposes.
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC.
Please inform yourself about the local separate
collection system for electrical and electronic
products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential

18 EN
to change products at any time without being
obliged to adjust earlier supplies accordingly.

© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
FWM210_78_UM_ V1.0
