Philips SmartPro Active User manual

FC8820, FC8810

FC8820
FC8820
Wheels stuck
ݓઁሂTopcover or dust containernot placed properly
רۆࠋࠦӧ๥໇٦ݾBumperstuck
ߓԎሑᇆሂRobot liftedup from floor
՚ֽϴุఓᇊୃስײᆋ༏ӧచColourof floor too dark
ֽϴဂ೨ขτBatterynot inserted properly / Charging error(switch is off)
׌ԁ໇ሑݾԍ׌մ༆IJܵၜܵтij5
6
4
3
2
1
7
8
9
1516
13
12
14
11
10
17
18
19
21
20
22
24
25
26
23
2928
27
30

English 6
Hrvatski 31
Latviešu 57
Slovensky 83
Srpski 109
Български 135

English
Introduction
Congratulations on your purchase and welcome to Philips! To fully benefit
from the support that Philips offers, register your product at
www.philips.com/welcome.
General description
1 Handle of dust container lid
2 Dust container lid
3 Filter
4 Dust container
5 Top cover
6 Error codes table
7 Fan
8 Bumper
9 Docking station sensor
10 Power switch (to switch the robot on or off)
11 Front wheel
12 Side brush shafts
13 Drop-off sensors
14 Wheels
15 Battery cavity
16 Suction opening
17 Side brushes
18 Rechargeable battery
19 Battery cavity cover
20 Fixation blocks for dry wipes
21 Dry wipe holder
22 Dry wipes
23 Battery holder
24 Remote control
25 Charging cord
26 Pointer
27 Virtual wall unit (FC8820)
28 Docking station
29 Adapter
30 Small plug

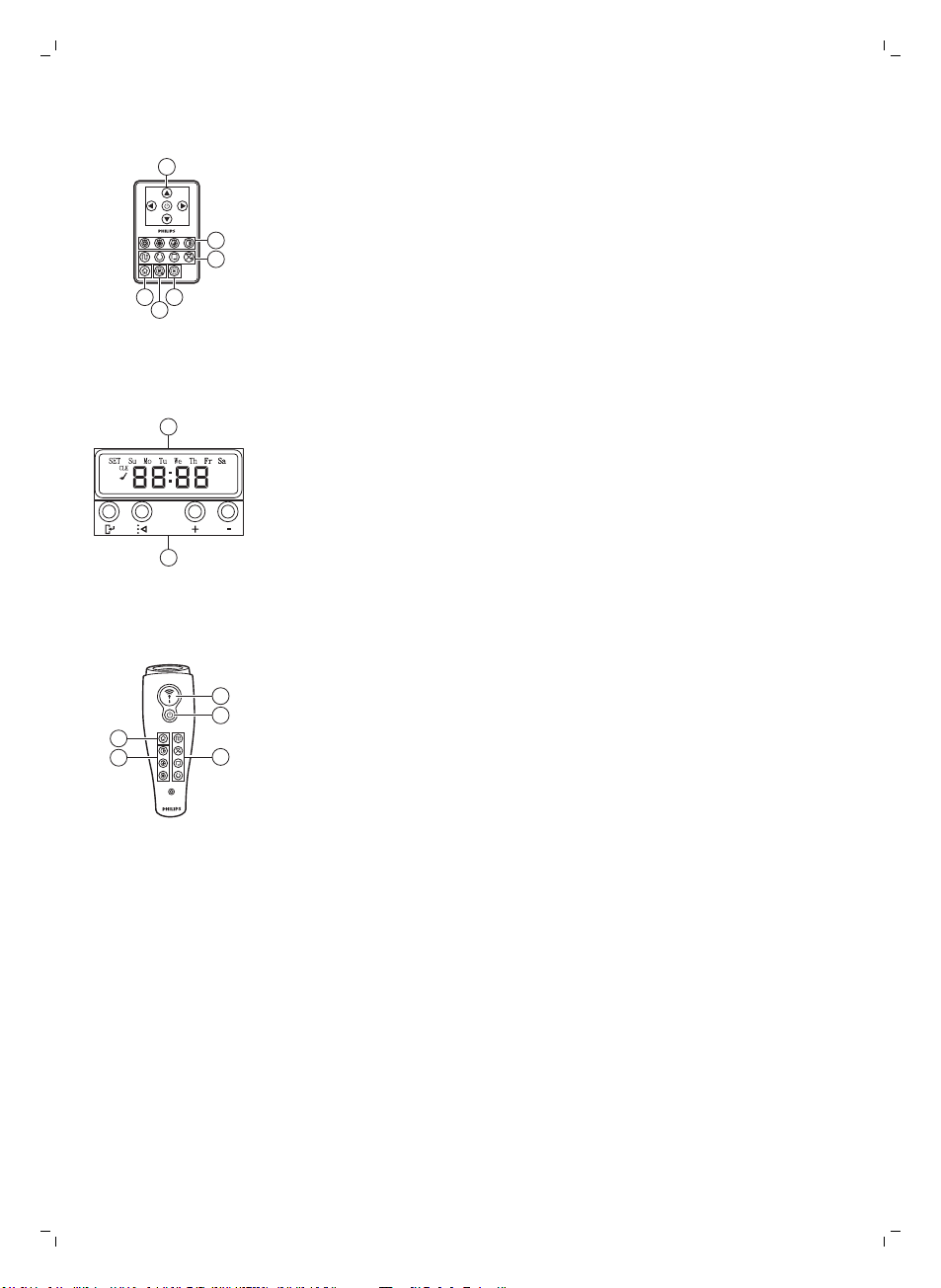

Display and remote control
Remote control (FC8820)
2
1
3
45
1 Navigation buttons and start/stop
2 Cleaning time buttons
3 Cleaning mode buttons
4 Fan speed buttons
5 Docking button
6English

Remote control (FC8810)
1
2
3
46
5
1 Navigation buttons and start/stop
2 Cleaning time buttons
3 Cleaning mode buttons
4 Fan off button
5 Fan on button
6 Docking button
Control panel of docking station
1
2
1 Display with time, day and programming indications
2 Adjusting and setting buttons
Pointer (FC8820)
5
43
2
1
1 Pointer button
2 On/off button
3 Cleaning mode buttons
4 Cleaning time buttons
5 Docking button
How your robot works
What your robot cleans
This robot is equipped with features that make it a suitable cleaner to help
you clean the floors in your home.
The robot is especially suitable for cleaning hard floors, such as wooden,
tiled or linoleum floors. It may experience problems cleaning soft floors,
such as carpet or rugs. If you use the robot on a carpet or rug, please stay
close by the first time to see if the robot can deal with this type of floor. The
robot also needs supervision when you use it on very dark or shiny hard
floors.
7
English

How your robot cleans
Cleaning system

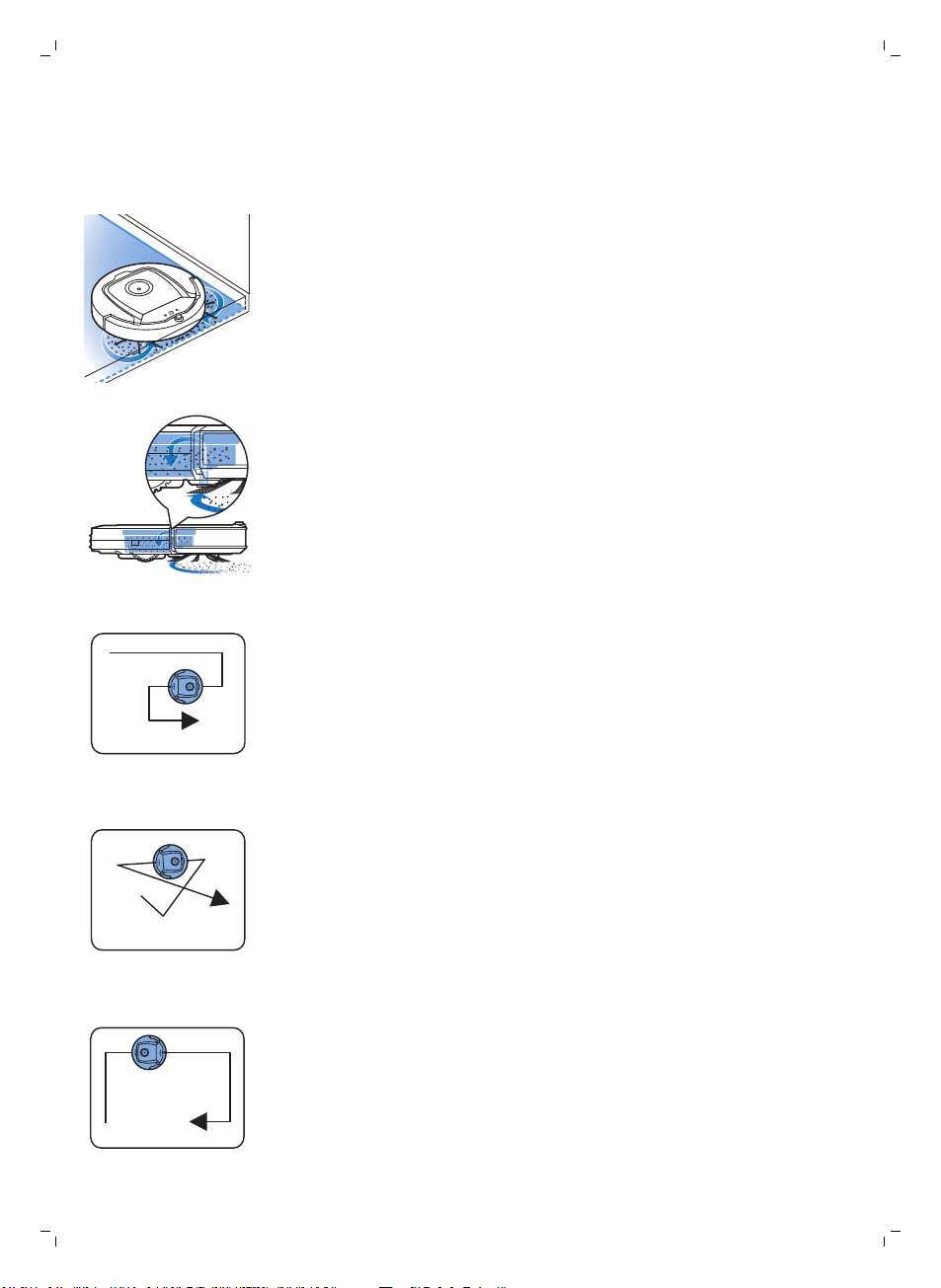

The robot has a 3-stage cleaning system to clean your floors efficiently.
-The two side brushes help the robot clean in corners and along walls.
They also help to remove dirt from the floor and move it towards the
suction opening.
-The suction power of the robot picks up loose dirt and transports it
through the suction opening into the dust container.
-The robot comes with a dry wipe holder that allows you to clean your
hard floor even more thoroughly with dry wipes.
Cleaning patterns
In its auto cleaning mode, the robot uses an automatic sequence of cleaning
patterns to clean each area of the room optimally. The cleaning patterns it
uses are:
1 Z-pattern or zigzag pattern
2 Random pattern
3 Wall-following pattern
8English

4 Spiral pattern
In its auto cleaning mode, the robot uses these patterns in a fixed
sequence:z-pattern, random pattern, wall-following pattern, and spiral
pattern.
When the robot has completed this sequence of patterns, it starts moving in
Z-pattern again. The robot continues to use this sequence of patterns to
clean the room until the rechargeable battery runs low, or until it is switched
off manually.
If the robot detects a particularly dirty area during its cleaning run, it
switches to spiral mode and switches to turbo fan speed (FC8820 only) to
ensure thorough dirt removal.
Note: You can also select each mode individually by pressing the
appropriate button on the remote control or the pointer (FC8820 only). The
manually selected modes are only active for a couple of minutes. After that,
the robot switches back to auto-cleaning mode.
For more details, see chapter 'Using your robot', section 'Cleaning modes'.
How your robot avoids height differences
The robot has three drop-off sensors in its bottom. It uses these drop-off
sensors to detect and avoid height differences such as staircases.
Note: It is normal for the robot to move slightly over the edge of a height
difference, as its front drop-off sensor is located behind the bumper.
Caution: In some cases, the drop-off sensors may not detect a staircase or
other height difference in time. Therefore monitor the robot carefully the
first few times you use it, and when you operate it near a staircase or
another height difference. It is important that you clean the drop-off
sensors regularly to ensure the robot continues to detect height
differences properly (see chapter ' Cleaning and maintenance' for
instructions).
Before first use
Mounting the side brushes
1Unpack the side brushes and place the robot upside down on a table or
on the floor.
2Push the side brushes onto the shafts on the bottom of the robot.
Note: Make sure you attach the side brushes properly. Press them onto
the shaft until you hear them lock into position with a click.
9
English

Inserting the rechargeable battery
You have to insert te rechargeable battery before use.
Note: Please handle the rechargeable battery with care. Avoid dropping the
battery. This will ensure maximum lifetime for your battery.
1Press the ribbed sections on the battery cavity cover to unlock it.
1
2
2Slide te battery cavity cover off the robot.
3Remove the plastic from the rechargeable battery.
this side up
4Insert the rechargeable battery into the battery cavity.
Note: Make sure that the print on the battery points upwards and that the
connectors point in the right direction.
5Slide the battery cavity cover back onto the robot.
Removing the tag from the remote control
The remote control works on a CR2025 coin-shaped battery. This battery is
protected with a protection tag that has to be removed before use.
1Pull the battery protection tag out of the battery compartment of the
remote control. Now the remote control is ready for use.
10 English

Preparing for use

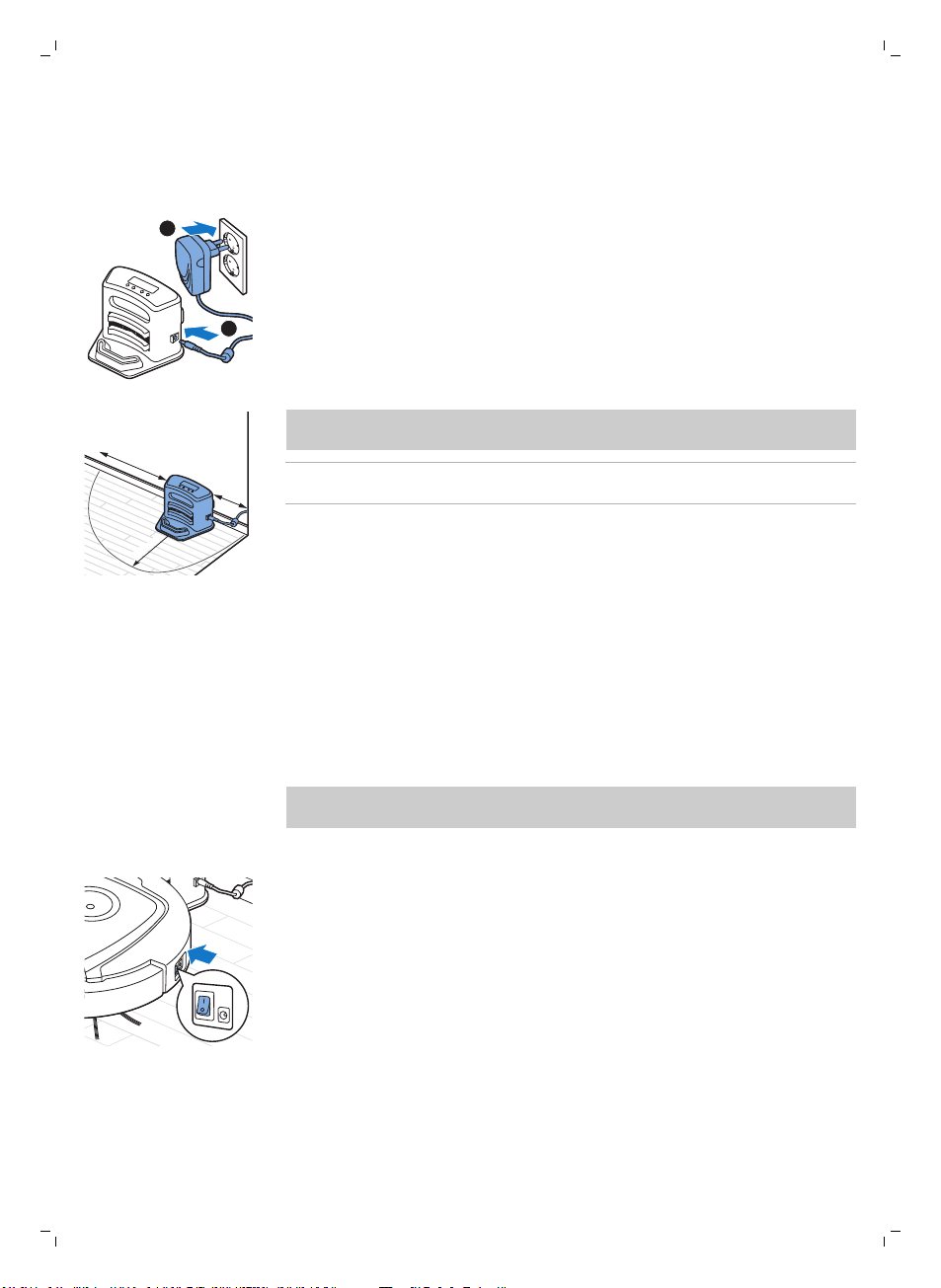

Installing the docking station
1
2
1Insert the small plug of the adapter into the socket on the docking station
(1) and insert the adapter into the wall socket (2).
-The display of the docking station comes on.
2Place the docking station on a horizontal, level floor against the wall.
100 cm 30 cm
80 cm
Note: Make sure that there are no obstacles or height differences 80 cm
in front, 30 cm to the right and 100 cm to the left of the docking station.
Tip: To ensure the docking station stays firmly in the selected spot, fasten
it to the wall with screws or with two strips of double-sided tape.
Charging
When charging for the first time and when the rechargeable battery of the
robot is empty, the charging time is four hours.
Your robot can be charged in two ways:
-On the docking station, either manually or automatically during use;
-By connecting the robot directly to the mains.
Note: When the rechargeable battery is fully charged, your robot can clean
for up to 120 minutes

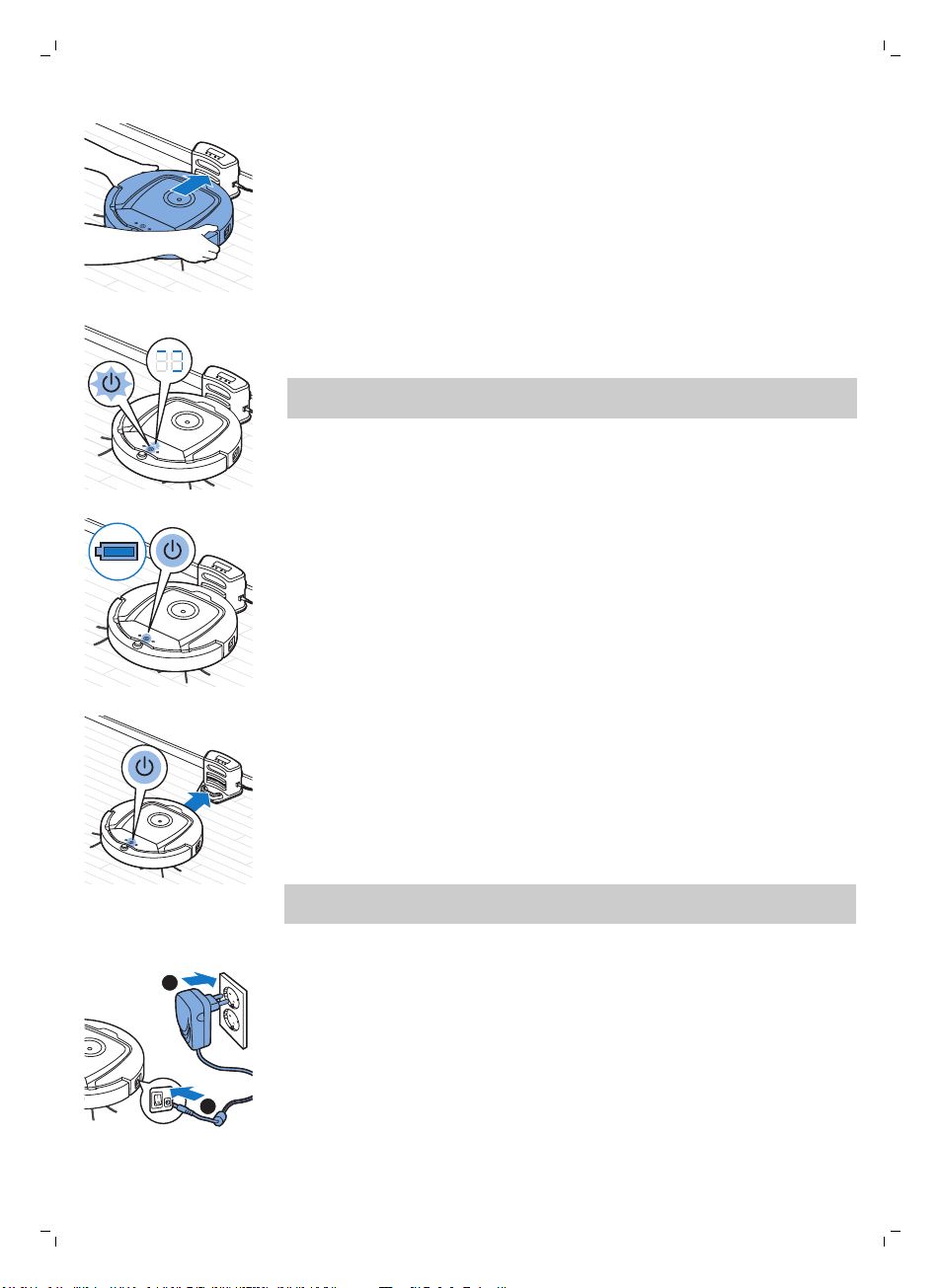

Charging on the docking station
1Press the power switch to switch on the robot.
11
English

2Place the robot on the plugged-in docking station.
3The start/stop button starts flashing.
Note: Because this is the first time you charge the robot, the display of
the robot shows the booting indicator.
4When the rechargeable battery is fully charged, the start/stop button
lights up continuously.
1When the robot has finished cleaning or when only 15% of the battery
power remains, it automatically searches for the docking station to
recharge. When the robot searches for the docking station, the light in the
start/stop button turns orange.
2When the rechargeable battery is fully charged, the start/stop button
lights up continuously.
Note: The robot only searches for the docking station automatically when it
started cleaning from the docking station.
Charging directly from the mains
1Press the power switch to switch on the robot.
1
2
2Insert the small plug of the adapter into the socket on the robot (1). Insert
the adapter into a wall socket (2).
3When the robot is connected to the mains correctly, the start/stop button
starts flashing slowly. This indicates that the robot is charging.
4When the rechargeable battery is fully charged, the start/stop button
lights up continuously.
12 English
Charging automatically during use

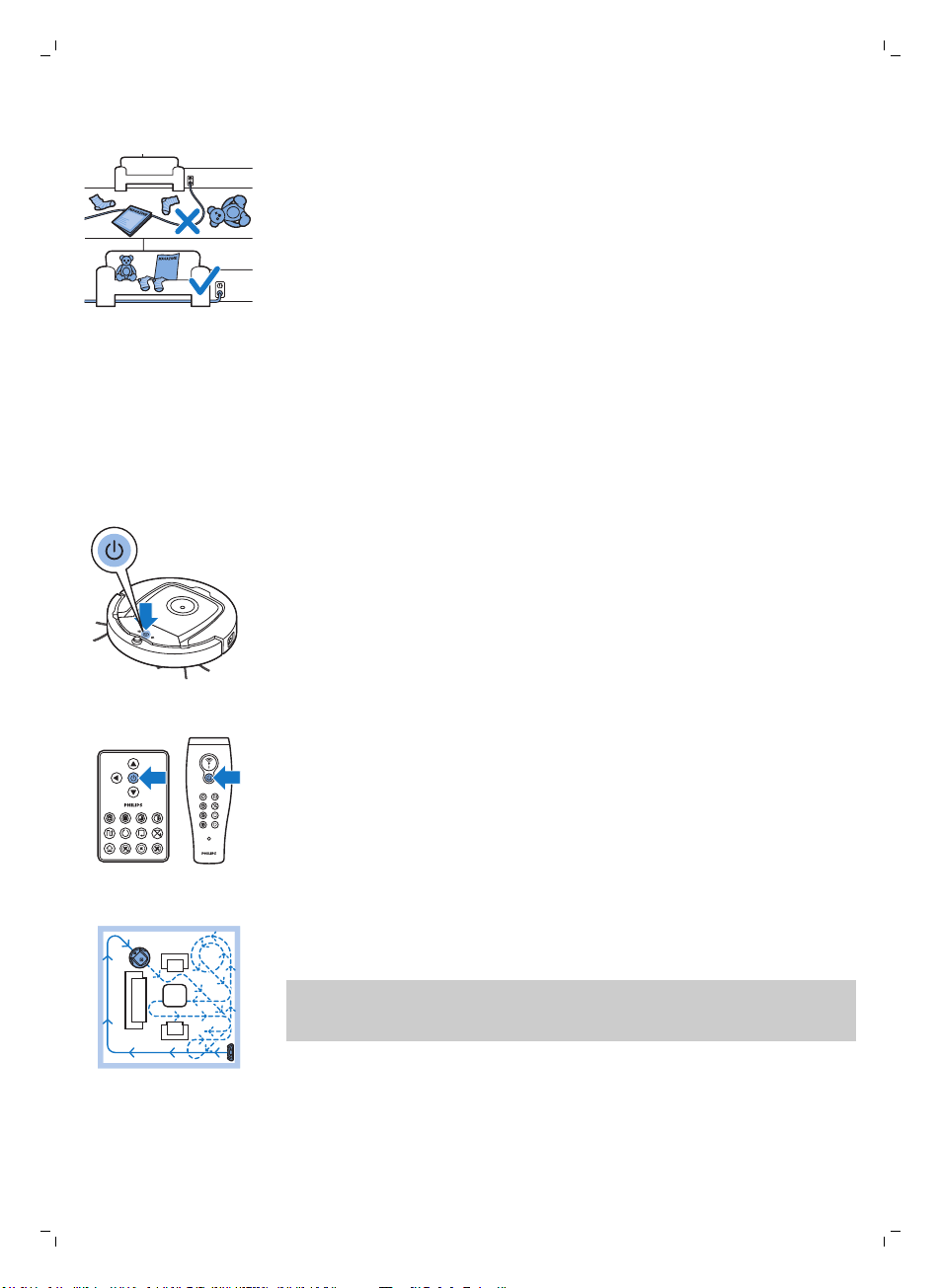

Preparing the room for a cleaning run
Before you start the robot on its cleaning run, make sure that you remove all
loose and fragile objects from the floor. Also remove all cables, wires and
cords from the floor.
Using your robot
Starting and stopping
1Set the power switch on the side of the robot to the 'on' position.
2Press the start/stop button.
-You can press the start/stop button on the robot.
-You can also press the start/stop button on the remote control or the
pointer (FC8820 only)
3The start/stop button is continuously on and the robot starts cleaning.
4The robot cleans in the auto-cleaning mode until its battery runs low. In
the auto-cleaning mode, it follows repeated sequences of Z-pattern,
random, wall-following and spiral patterns.
Note: To select an individual mode, press one of the mode buttons on
the remote control. See section 'Cleaning mode selection' for more
details.
13
English

5When the battery runs low, the start/stop button turns orange and the
robot searches for the docking station to recharge.
6You can also press the start/stop button to interrupt or stop the cleaning
run. If you press the start/stop button again and there is still enough
energy in the rechargeable battery, the robot continues cleaning in the
auto-cleaning mode.
7To make the robot return to the docking station before the rechargeable
battery runs low, press the docking button on the remote control or on
the pointer (FC8820 only). The docking indicator on the display of the
robot comes on and the robot returns to the docking station.
Note: If you did not start the robot from the docking station, it does not
search for the docking station automatically when the rechargeable
battery runs low. If there is still enough energy in the rechargeable
battery, you can press the docking button on the remote control or on
the pointer (FC8820 only) to make the robot return to the docking
station. If the rechargeable battery is completely empty, you have to
place the robot on the docking station manually.
Cleaning mode selection
Next to the auto-cleaning mode, this robot has four individual cleaning
modes that can each be activated by pressing the appropriate button on the
remote control.
Note: The manually selected modes are only active for a couple of minutes.
After that, the robot switches back to auto-cleaning mode.
Z-pattern mode
In Z-pattern mode, the robot cleans by making Z-shaped loops through the
room to clean large areas.
Random mode
In this mode, the robot cleans the room in a mixed pattern of straight and
crisscross movements.
14 English

In this mode, the robot follows the walls of the room to give the area
alongside the walls an extra clean.
In this mode, the robot moves in a spiral pattern to clean a small dirty area
thoroughly. In spiral mode, the fan operates at turbo speed (FC8820 only).
Manual driving
1Use the arrow buttons above and below and to the left and right of the
start/stop button on the remote control to navigate the robot through the
room.
Note: Be careful when you drive the robot manually close to height
differences and staircases.
Note: The vacuuming function and the side brushes only work when the
robot is driven forward. The left, right or back buttons are only for
maneuvering the robot.
Using the cleaning time button
-Press the maximum cleaning time button to make the robot clean in auto
cleaning mode until its rechargeable battery runs low.
When the robot has finished cleaning, it returns to the docking station
automatically if it started from the docking station. If the robot started
from another point in the room, press the docking button to send it back
to the docking station.
15
English
Spiral mode
Wall-following mode

Operating the docking station
Setting clock time and day
If you want to use cleaning programs, you have to set the clock time and the
day of the week on the display of the docking station first.
Note: For the pictures that belong to the steps below, see the pages at the
back of this manual.
1Press the set button. The set mode indicator and the clock time indicator
start flashing.
2Press the select button once. The hour indication starts flashing.
3Use the + and - buttons on the docking station to set the hour.The set
hour appears on the display.
4Press the select button to confirm the hour set. The minutes indication
starts flashing.
5Use the + and - buttons on the docking station to set the minutes. The set
minutes appear on the display.
6Press the select button to confirm the minutes set. The indication 'Su’ for
Sunday starts flashing.
7Use the + and - buttons on the docking station to set the current day of
the week.
8Press the select button to confirm the day of the week.
9Press the set button to confirm the clock time and day of the week
setting. Both the set mode indicator and the clock time indicator stop
flashing and turn solid.
Programming cleaning times
If you have set the time and the day of the week on the display of the
docking station, you can program cleaning times for your robot.
Note: For the pictures that belong to the steps below, see the pages at the
back of this manual.
The programming options available are:
Program Indications on display
Cleaning every day All day indications are on
Cleaning on weekdays Mo to Fri indications are on
Cleaning on 2 consecutive days Indications of 2 days are on, e.g. Fri and Sa
16 English
-The other cleaning time buttons allow you to let the robot operate for 60,
45 and 30 minutes respectively. When the cleaning time is finished, the
robot automatically returns to the docking station when it started from
the docking station. If the robot started from another point in the room,
press the docking button to send it back to the docking station.

Program Indications on display
Cleaning 1 day a week Indication of selected day is on
1Press the set button. The set mode indicator and the cleaning program
indicator start flashing.
2Press the select button once. The hour indication starts flashing.
3Use the + and - buttons on the docking station to set the hour. The set
hour appears on the display.
4Press the select button to confirm the hour set. The minutes indication
starts flashing.
5Use the + and - buttons on the docking stationl to set the minutes. The
set minutes appear on the display.
6Press the select button to confirm the minutes set. The indication ‘Su’ for
Sunday starts flashing.
7Use the + and - buttons on the docking station to toggle between
cleaning programs (see the table above for the programming options
available).
8Press the select button to confirm the program selected.
9Press the set button to confirm the programming. Both the set mode
indicator and the cleaning program indicator stop flashing and turn solid.
10 When you have set a cleaning program, the display shows the cleaning
program indicator and the day or days selected. If you leave the robot on
standby and its rechargeable battery is fully charged, it will start cleaning
at the programmed time on the programmed day or days.
Fan speed buttons
You can use the fan speed buttons to increase the fan speed to turbo or to
switch off the fan. The default setting is normal fan speed.
1
2
3
1 Press this button to switch off the fan
2 Press this button to switch on the fan at normal speed.
3 The turbo fan button increases the fan speed (FC8820 only).
Clap response
The clap response is enabled when the robot enters sleep mode in the
following situations:
-when it stops cleaning due to an error
-when it cannot find its docking station in 20 minutes
If you do not see the robot, you can locate it by clapping your hands once.
The robot will respond by beeping and by lighting up all icons on its display.

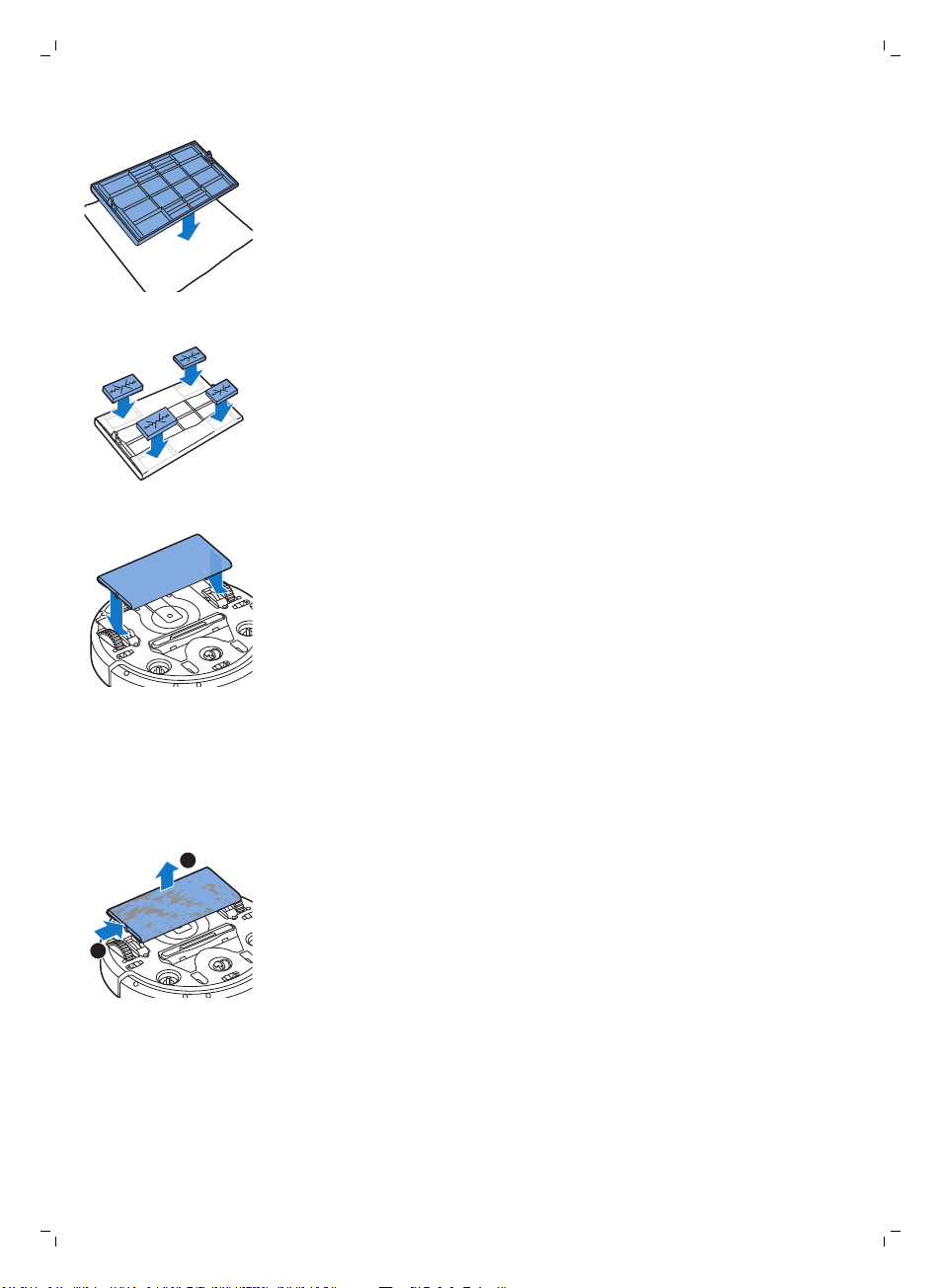

Using the dry wipe attachment
The dry wipe attachment is a feature that allows you to clean hard floors
with dry wipes.
Note: If you use the dry wipe attachment, the robot may have trouble
crossing thresholds or climbing onto rugs.
17
English

2Place the dry wipe on a table and place the dry wipe attachment on the
wipe with its fixation lugs pointing towards you.
3 Fold both ends of the dry wipe around the dry wipe attachment and
fasten the dry wipe onto the attachment by pushing the fixation blocks
into the recesses.
4Insert the fixation lug of the dry wipe attachment into the opening just
behind the wheel on one side of the robot and push until you hear it lock
into place with a click. Then repeat these actions on the other side.
5Turn the robot and place it on the floor on its wheels with the dry wipe
attachment touching the floor.
Using the robot with the dry wipe attachment
When the dry wipe attachment is attached, you can use the robot in any
mode and on all hard floors. Do not use the dry wipe attachment on carpet
or rugs.
Removing the dry wipe attachment
1Remove the dry wipe attachment as soon as you have finished wiping
the floor.
2Turn the robot upside down and place it on the floor or on a table.
1
2
3Push one end of the dry wipe attachment towards the wheel on the
other side of the robot to release it. Then pull the attachment off the
robot.

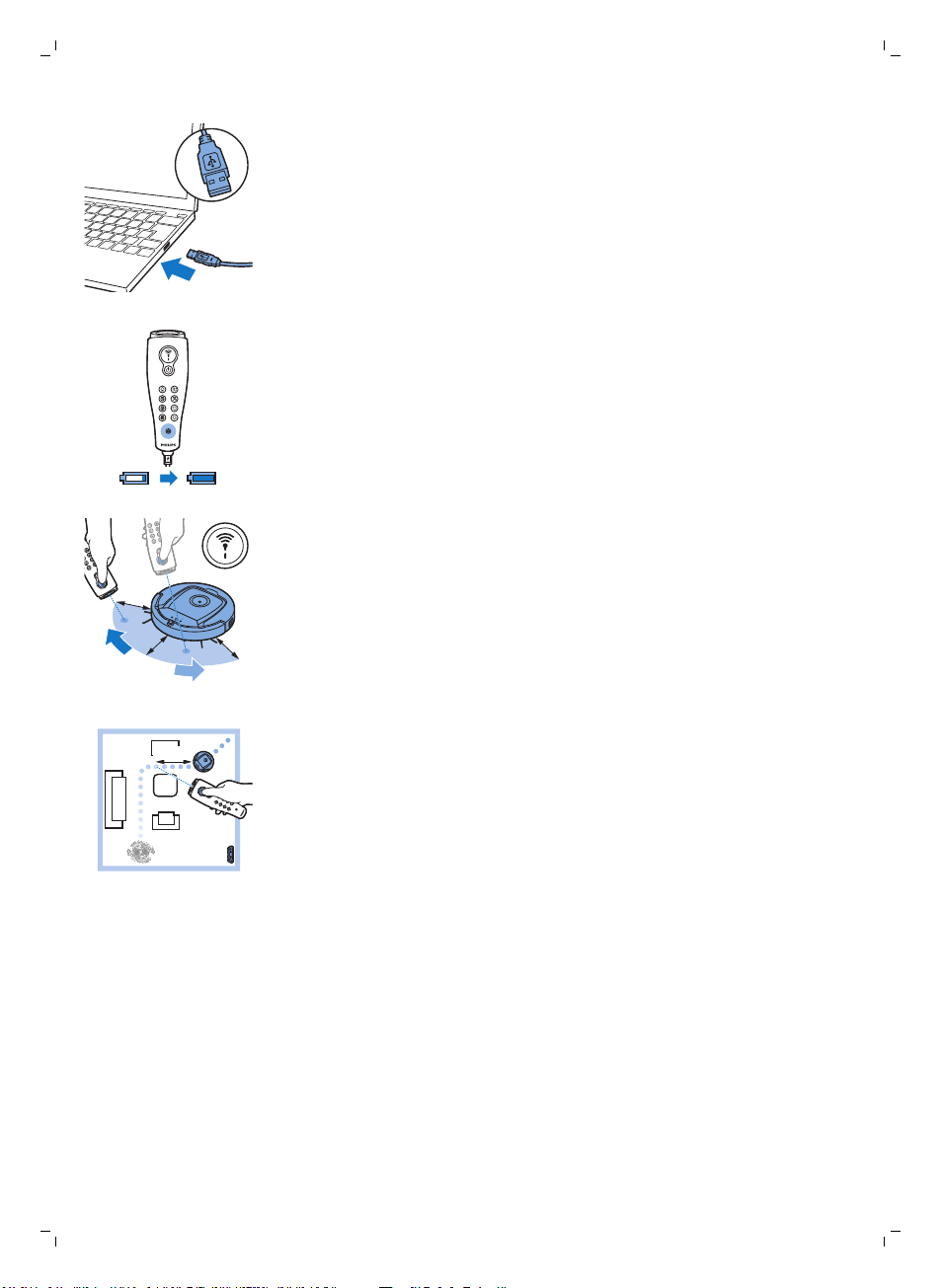

Using the pointer (FC8820)
Charging the pointer
The pointer has a rechargeable battery that can be charged with the USB
cable supplied.
1Insert the micro-USB plug into the socket in the bottom of the pointer.
18 English
Preparing the dry wipe attachment for use
1Turn the robot upside down and place it on the floor or on a table.

2Insert the USB plug into a USB charger or a USB port on your laptop.
3The charging light on the pointer lights up solid. Charging takes 30
minutes. When the charging light goes off, the rechargeable battery is
fully charged.
Navigating the robot with the pointer
50-70 cm
50-70 cm
-When you press and hold the pointer button, the pointer emits a beam of
infrared light. With this beam you can drag the robot in a particular
direction. As long as you keep the button pressed and keep pointing in
the direction you want the robot to move, it continues to move in that
direction. When you release the pointer button, the robot starts cleaning
in auto cleaning mode.
50-70 cm
-With the pointer you can send the robot to a specific area in the room to
give this area an extra-thorough clean.

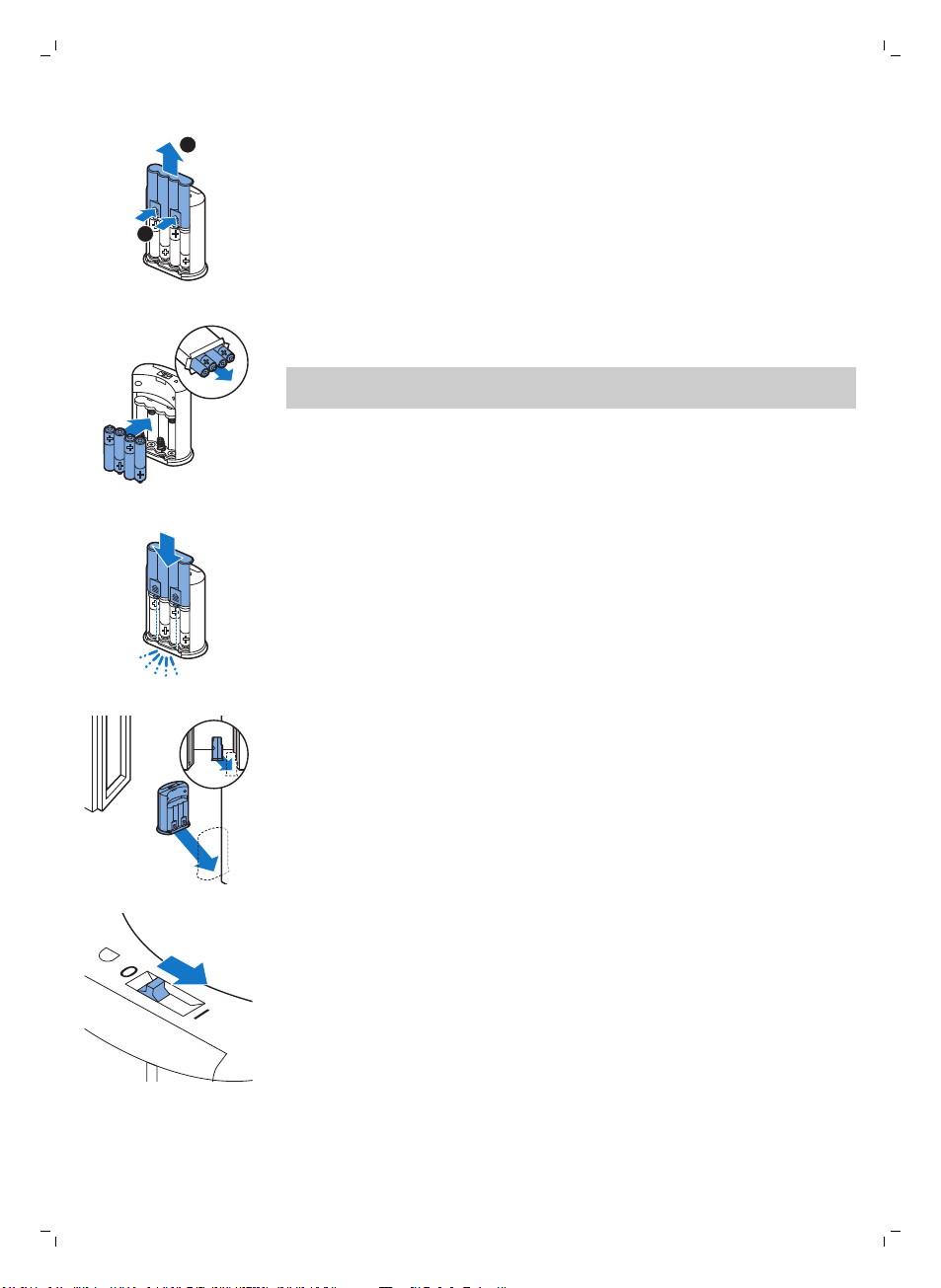

Using the virtual wall unit (FC8820)
Placing the batteries in the invisible wall
The invisible wall operates on four AA batteries.
19
English

1
2
2Take four new AA batteries from the pack and insert them into the
battery compartment of the invisible wall.
Note: Make sure the + and - poles of the batteries point in the right
direction.
3Slide the back cover onto the invisible wall again.
Positioning the invisible wall to stop the robot
You can use the invisible wall to prevent the robot from entering a room or
area that you want to keep it out of.
1Place the unit at a point you do not want the robot to cross, e.g at an
open door to a room that is off-limits to the robot.
2Switch on the invisible wall with the on/off slide on top of the unit.
3Start the robot.
20 English
1 Push the two release tabs at the bottom of the back cover (1) and slide
the back cover upwards and off the invisible wall (2).
