Phoenix Gold 303 User manual

USER MANUAL
QUATTRO 3 CONFERENCE SPEAKERPHONE
MODEL 303

L1 Function
L2 Function
Power/Mute
Volume Down
Volume Up
4 Microphone
Array
The Q3 utilizes multiple microphones, a uniquely designed speaker, and a powerful DSP
to achieve commanding performance.
The Q3 can easily be paired with an interface module to enable it to communicate with
different types of infrastructures.
This guide will help you learn how to use your speakerphone and will reveal all the
features that come with it.
The Quattro3 (Q3) is a high-quality conference speakerphone that will turn any room into
a professionally sounding conference room. It has an exceptionally large pickup and
broadcasting range, yet is small in size and discrete in design.

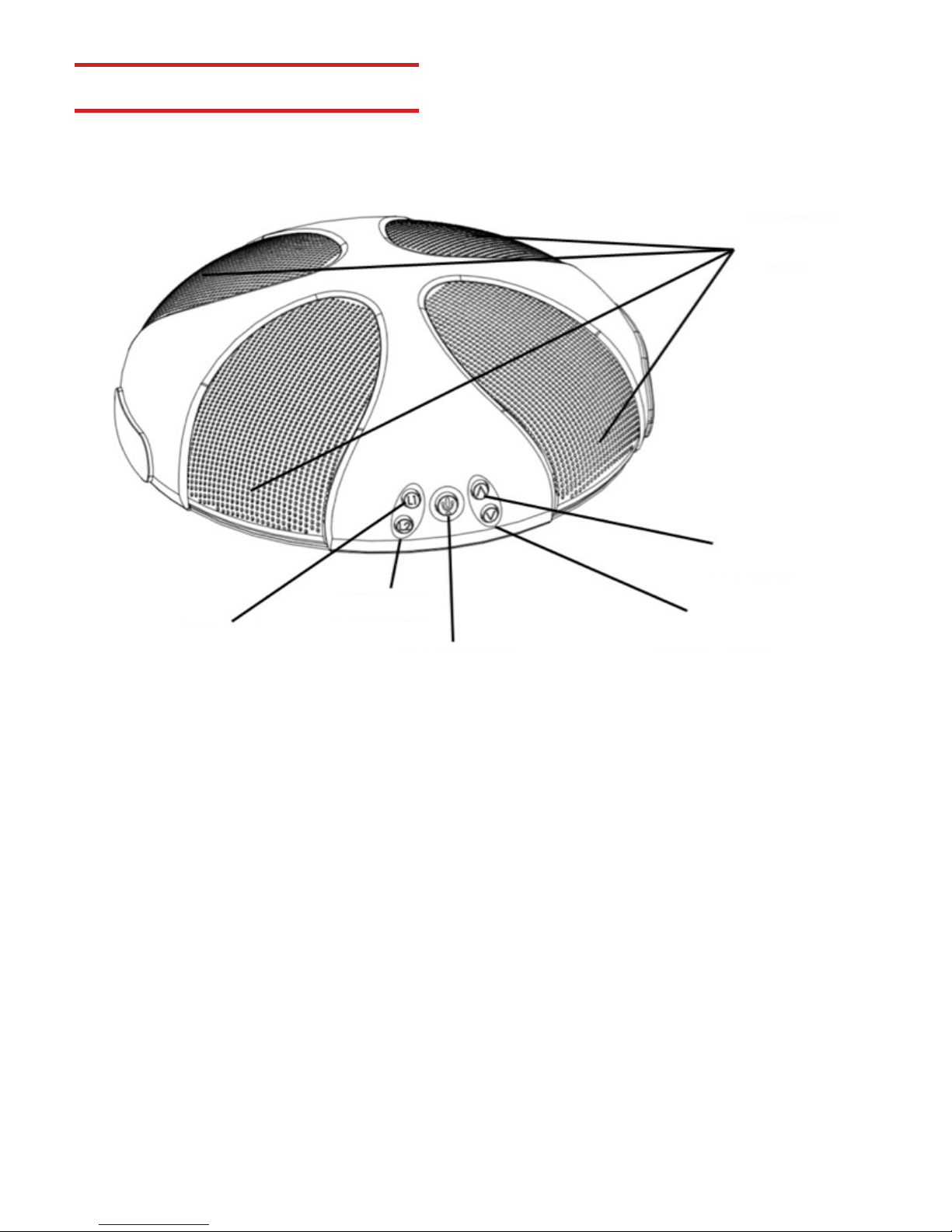

QUATTRO3 OVERVIEW

CONNECTING YOUR Q3
CONNECT TO A COMPUTER
This connection is for any session using your computer, such as Voice Over IP applications
(Skype, Vidyo, etc.)
1Using the USB cable provided, plug the mini USB side of the cable into
the Q3 (located on the connector panel below the unit).
2Plug the USB end of the cable into any USB port on your computer.
Your Quattro3 is ready to use.
No additional drivers or steps are needed. However we do recommend downloading and using
our “Phoenix Audio Setup Utility” for optimal audio control and performance. This utility can
be found on our website: www.phnxaudio.com
CONNECT TO A SMART DEVICE
This connection is for any session using a smart phone, tablet, or any device that requires an
analog audio signal (Video Codec Systems, recorders, etc.).
1 Using the provided audio cable or any custom made cable, plug the 2.5mm 3-pin connector
side into the Q3’s “Audio Out” jack (located on the connector panel below the unit).
2 Plug the other end of the provided cable (3.5mm 4pin connector) into your smart phone
or table’s headphone/headset jack.
3If applicable, make sure to select the use of the “headset” on your device. Your Quattro3
is ready to use.
quatte03-301-8-31
WEIGHT:
A4
SHEET 1 OF 1
SCALE:1:1
DWG NO.
TITLE:
REVISION
DO NOT SCALE DRAWING
MATERIAL:
DATE
SIGNATURE
NAME
DEBUR AND
BREAK SHARP
EDGES
FINISH:
UNLESS OTHERWISE SPECIFIED:
DIMENSIONS ARE IN MILLIMETERS
SURFACE FINISH:
TOLERANCES:
LINEAR:
ANGULAR:
Q.A
MFG
APPV'D
CHK'D
DRAWN

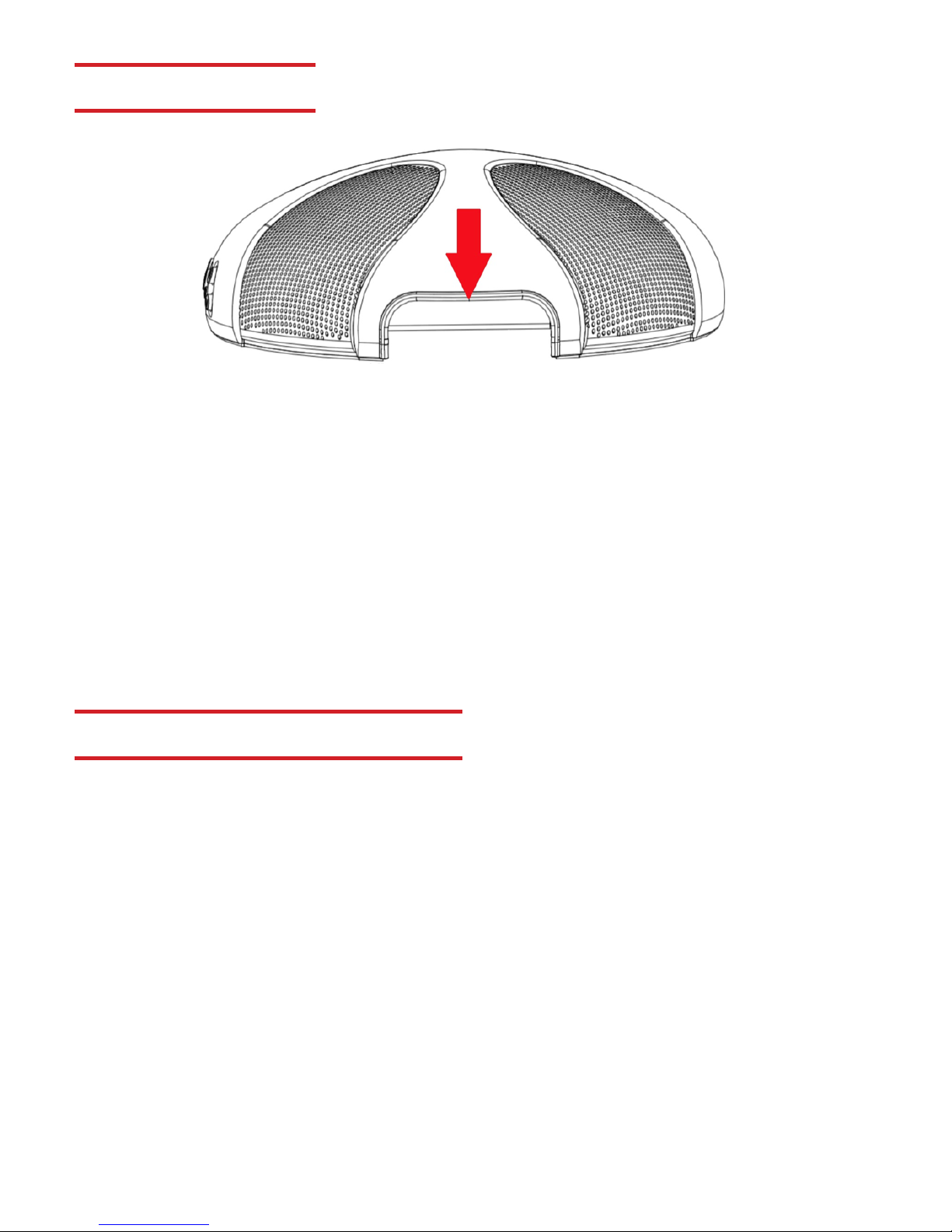

2.5mm Analog
Audio Out
Interface Module
3.5mm External
Speaker/Microphone
Mini USB
Connector Panel
DC Power
Connector
Daisy Chain Connectors
Down (right)
Up (left)

USING THE QUATTRO3

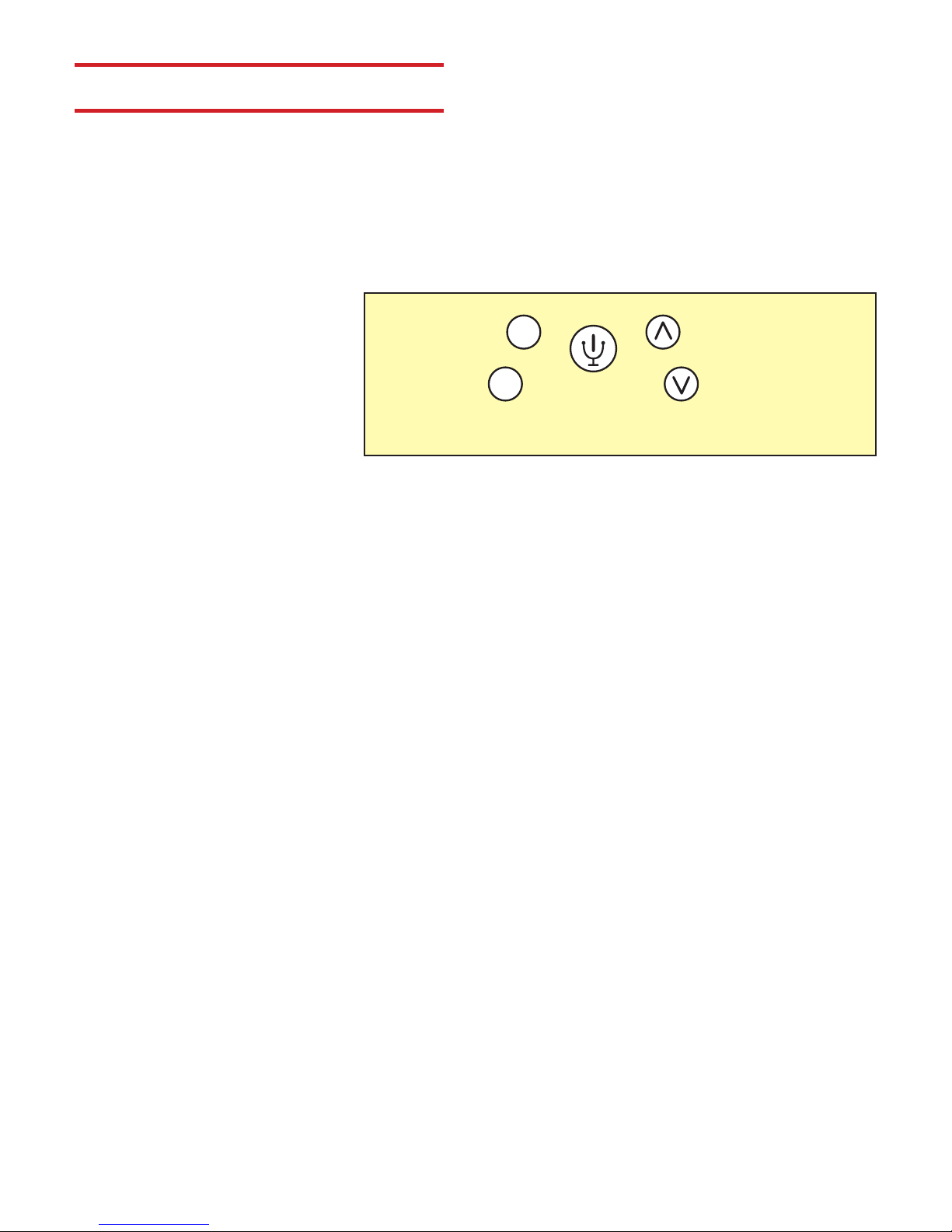

The Quattro3’s control panel has 5 buttons:
• Power / Mute button (in the middle) – see details of operation below.
• Volume Up and Volume Down.
•Interface Control buttons
(noted as L1 and L2) - These 2
buttons serve different
functions depending on the
Quattro3 model you have
LIGHT INDICATIONS:
• Power / Mute button light off – unit is off.
• Solid Power / Mute light – unit is on.
• Blinking Power / Mute light – unit is on and the microphones are muted.
BASIC UNIT OPERATIONS:
• Turn unit ON: push the Power / Mute button. The light will turn on.
• Turn unit OFF: push the Power / Mute button and hold for 3 seconds. The unit will beep
4 times and turn off. The light will turn off.
• Mute microphones: push the Power / Mute button once (for less than three seconds).
The light will start blinking.
• Unmute microphones: push the Power / Mute button once (for less than three seconds).
The light will stop blinking and will stay on.
NOTE: The unit can be turned off from both the “ON” and “MUTE” positions. In both cases,
turning off requires pushing and holding the button for about 3 seconds.
Power/
Mute
Interface
Controls
Volume Up
Volume Down
L1
L2
control panel

DAISY CHAINING
Every Quattro3 comes with the built-in ability to connect to other Quattro3s (up to 15 units).
This feature enables you to provide coverage for larger spaces using a chain of Q3s.
MAKING THE CONNECTION:
Choose the unit you wish to act as the master unit. This unit will be the one interfacing for
the entire chain (i.e. telephone interface). The master unit will be the only unit connected to
an external device, while the other units will connect only to each other.
Using either the provided daisy chain cable or any other Ethernet cable, connect one of the
cable ends to the master unit’s daisy chain DOWN connector (the RJ45 connector marked
DOWN). Take the other end of the cable and connect it to the next Quattro3’s daisy chain UP
connector (the RJ45 connector marked UP). Repeat the process in order to connect a third
unit to unit number 2. This process can be repeated with up to 15 units regardless of their
interface type. All units in the chain must be Quattro3s.
POWERING THE DAISY CHAIN:
Every unit in the chain must be powered. In order to do this, there are two available options:
• Power each unit separately, using its own provided USB cable, DC power supply, or internal
battery (if applicable).
• Power only the master unit using the “Daisy Chain Power Kit”. This setup will require you
to connect only the first unit to a power source and will allow the rest of the units to feed
off the master unit via the Ethernet daisy chain cables.
NOTE: The “Daisy Chain Power Kit” utilizes a 48V power supply not included with the
Quattro3 and must be purchased separately. While any Quattro3 can be daisy-chained
(regardless of interface) the daisy chain power method requires all units in the chain to have
some type of secondary interface card (Quattro3 301 will not work). The daisy chain power
method will work with up to 8 consecutive units before requiring another power source.

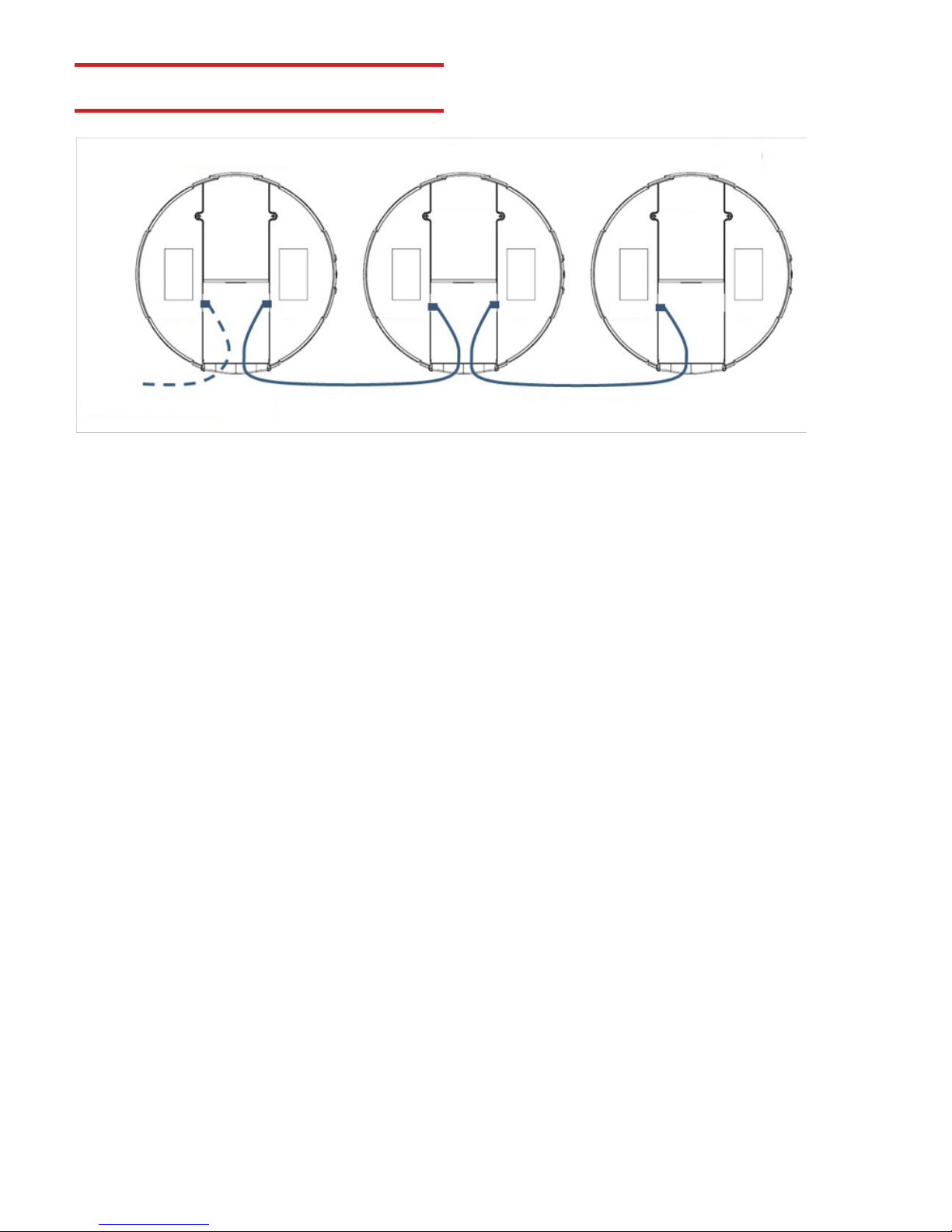

Connector Panel
Satellite Unit 3 Satellite Unit 2 Master Unit (Unit 1)
Daisy Chain Cable
Connector Panel
Connect to next unit
Interface
Module
Interface
Module
Interface
Module
DOWNDOWNDOWN UPUPUP
