HE-300 SMPS POWER SUPPLY
Installation Instructions
(Translation of the original installation instructions)

HE-300 SMPS POWER SUPPLY Foreword
79825(-) 3
Foreword
Disclaimer and exclusion of liability
DewertOkin is not responsible for damage resulting from:
failure to observe these instructions,
changes made to this product which have not been approved by DewertOkin, or
the use of replacement parts which have not been approved or manufactured by DewertOkin.
We reserve the right to make unannounced technical changes in the course of our continual
product improvement process!
Creation of a complete operating instruction manual for the entire end product
These instructions are only intended to be used by the end-product manufacturer. They should not
be given to the operator of the end product. The factual information contained within may be used
as a basis when creating the end-product manual.
The warning and danger notices are best suited for use in the end product's manual. However it is
not sufficient to simply follow these notices. You should also carry out an internal risk assessment
for your end product. This can then be used as the basis for the safety notices in your manual.
These installation instructions do not contain all information required to safely operate the end
product. They only describe the installation and operation of the product as partially completed ma-
chinery.
The instructions are intended for the technicians responsible for manufacturing an end product and
not for the operators of the end product.

Table of contents HE-300 SMPS POWER SUPPLY
4 79825(-)
Table of contents
Foreword 3
Disclaimer and exclusion of liability 3
Creation of a complete operating instruction manual for the entire end product 3
Table of contents 4
1.General Information 5
1.1Conventions used 5
2.Safety notices 6
2.1Proper and intended usage 6
2.2Selection and qualification of personnel 7
2.3Ratings plate 8
3.Description 9
3.1Components 9
4.Technical specifications 12
4.1POWER SUPPLY 12
5.Installation 14
5.1Safety notices to observe during installation 14
5.2Installation procedure 15
6.Information about creating your Operating Manual 22
6.1General information 22
6.2battery-operated reset function 24
7.Troubleshooting 25
8.Maintenance and cleaning 26
8.1Maintenance 26
8.2Cleaning and care 26
9.Disposal 27
9.1Packaging material 27
9.2Components of the external power supply unit 27
EU Declaration of Conformity 28
Additional information 29


HE-300 SMPS POWER SUPPLY General Information
79825(-) 5
1. General Information
These installation instructions must be followed closely in order to install the HE-300 SMPS POW-
ER SUPPLY successfully and safely in the end product. These instructions are not an operating
manual for the end product.
These instructions will help you to minimize danger. They will also help you to maximize the relia-
bility and lifespan of the end product.
CAUTION
The notices in these instructions must be followed! Follow the guidelines during installation and
connection procedures to minimize:
the risk of accident and injury, and
damage to the HE-300 SMPS POWER SUPPLY or to the end product.
These installation instructions have been written with due care and attention. However, we cannot
guarantee that the data, images and drawings are complete and correct nor do we accept any lia-
bility for the information contained therein, unless required by law.
1.1 Conventions used
Notices which do not relate to safety are indicated in these instructions with a symbol:
Triangular notice symbol
Safety notice explanations
CAUTION
CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moder-
ate injury.
NOTICE
NOTICE is used to address practices which are not related to personal injury but may result in
damage to the product or surroundings.

Safety notices HE-300 SMPS POWER SUPPLY
6 79825(-)
2. Safety notices
2.1 Proper and intended usage
The HE-300 SMPS POWER SUPPLY is intended for use:
as a power supply unit for suitable DewertOkin drive systems,
CAUTION
Risk of accident
This HE-300 SMPS POWER SUPPLY should only be used for the applications described above.
Any other use is forbidden. Improper usage can lead to accidents or destruction of the unit. Such
non-approved applications will lead immediately to the expiration of all guarantee and warranty
claims on the part of the end-product manufacturer against the manufacturer.
2.1.1 Improper usage
Be sure to follow the notices below concerning improper usage. You should include them in your
product manual in order to inform the users of your end product.
The HE-300 SMPS POWER SUPPLY may not be used:
in any environment where combustible or explosive gases or vapours (e.g., anaesthesiology)
may be present,
in the proximity of open fires or other heat sources (such as furnaces, ovens or direct sunlight),
as a power source for toys or games,
in any application that will be cleaned with an automated washing system,
in a moist environment, or
outdoors.
The HE-300 SMPS POWER SUPPLY can be used by children of 8 years and older, persons with
reduced physical, sensory or mental capabilities, or persons with lack of experience or knowledge
when they are supervised or instructed concerning the safe use of the device and when they un-
derstand the resulting risks. Do not allow children to play with this device. The cleaning and user
maintenance must not be carried out by children without supervision.
You should only use spare parts which have been manufactured or approved by DewertOkin.
Only these parts will guarantee a sufficient level of safety.

HE-300 SMPS POWER SUPPLY Safety notices
79825(-) 7
Optional: battery-operated reset function
NOTICE
The battery-operated reset function is not a safety system and does not avert danger.
DewertOkin does not guarantee that the drive will function in the event of a power outage.
If the end-product manufacturer chooses to guarantee the functionality of the end product during a
power outage, then the end-product manufacturer is responsible for arranging a mechanism to en-
sure this functionality.
2.2 Selection and qualification of personnel
This HE-300 SMPS POWER SUPPLY should only be installed into the end product by someone
who has completed training in electronic motor assembly or has equivalent qualifications.
You should only install the HE-300 SMPS POWER SUPPLY when you are qualified to do so. Oth-
erwise, a properly qualified person should be found for this task.

Safety notices HE-300 SMPS POWER SUPPLY
8 79825(-)

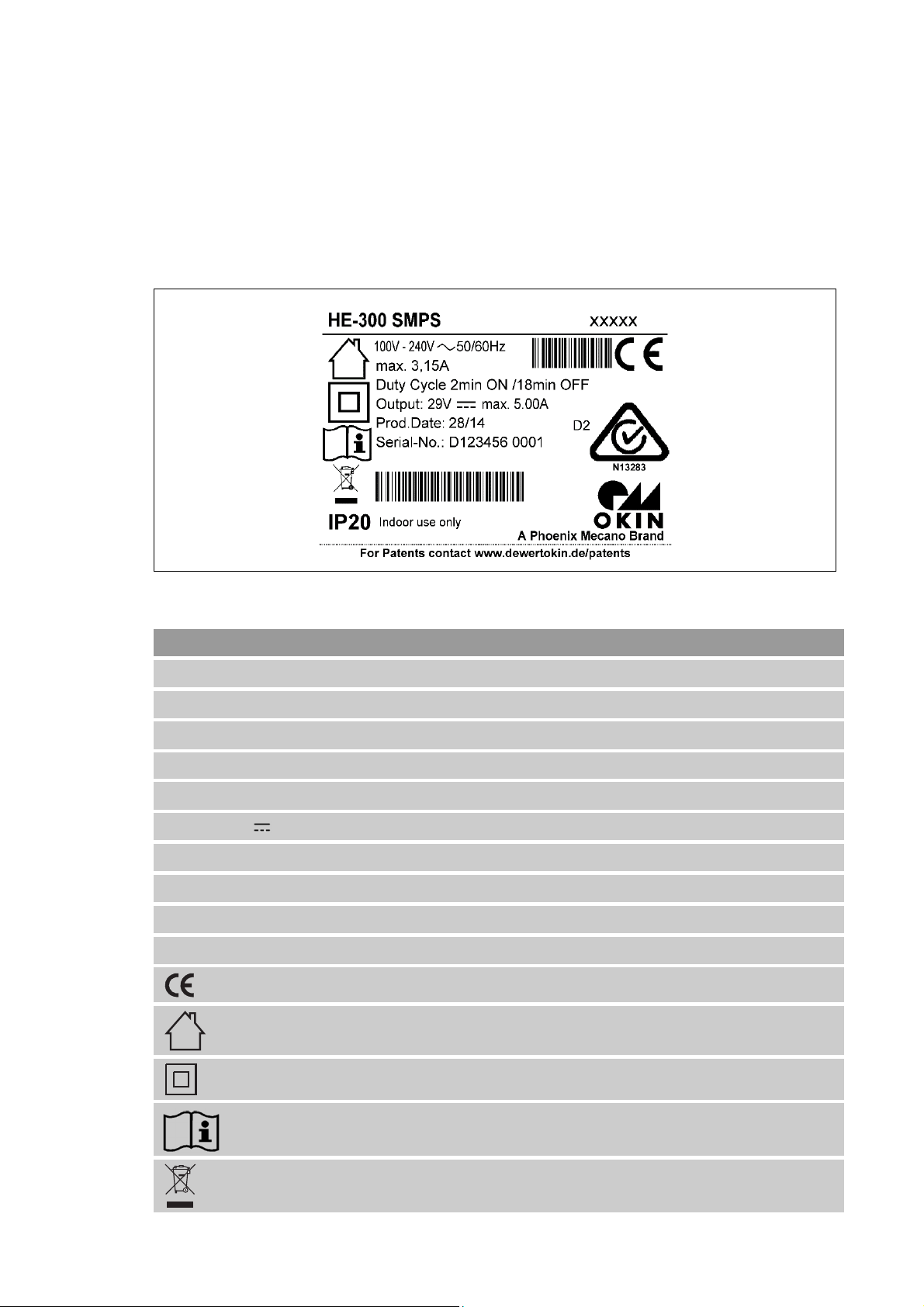

2.3 Ratings plate
The ratings plate shown is an example; the specifications for your HE-300 SMPS POWER
SUPPLY may differ from this illustration.
Figure 1 Ratings plate for the HE-300 SMPS POWER SUPPLY (example)
HE-300 SMPS Model name
xxxxx Model ID number
100V - 240V ~Input voltage AC
50/60Hz Frequency
max. 3,15A Current consumption
Duty Cycle 2min ON /18min OFF Intermittent operations: 2 minutes on / 18 minutes OFF
Output: 29V Output voltage DC
max. 5.00A Amperage
Prod.Date Calendar week / year
Serial-No. Serial number of the HE-300 SMPS POWER SUPPLY
IP20 Protection degree
Compliance
Use in dry rooms only!
Protection class II
Always follow the instructions in the manual!
Follow all special disposal instructions!

HE-300 SMPS POWER SUPPLY Description
79825(-) 9
3. Description
The HE-300 SMPS POWER SUPPLY is an external power supply unit intended to supply power to
drives and controllers from DewertOkin. The HE-300 SMPS POWER SUPPLY is connected to the
mains power by using a mains power cord. The HE-300 SMPS POWER SUPPLY has a non-
referenced (unearthed) circuit which is separated from the supply voltage by means of doubled re-
inforced insulation.
A pluggable cable is used for connecting a double drive or drive control unit to the HE-300 SMPS
POWER SUPPLY.
The function key is used for:
operating the electrical reset function,
optionally, programming the hand-held remote control.
There are two mounting plates included in the delivery; these can be used when bolting the HE-300
SMPS POWER SUPPLY onto the end product.
3.1 Components

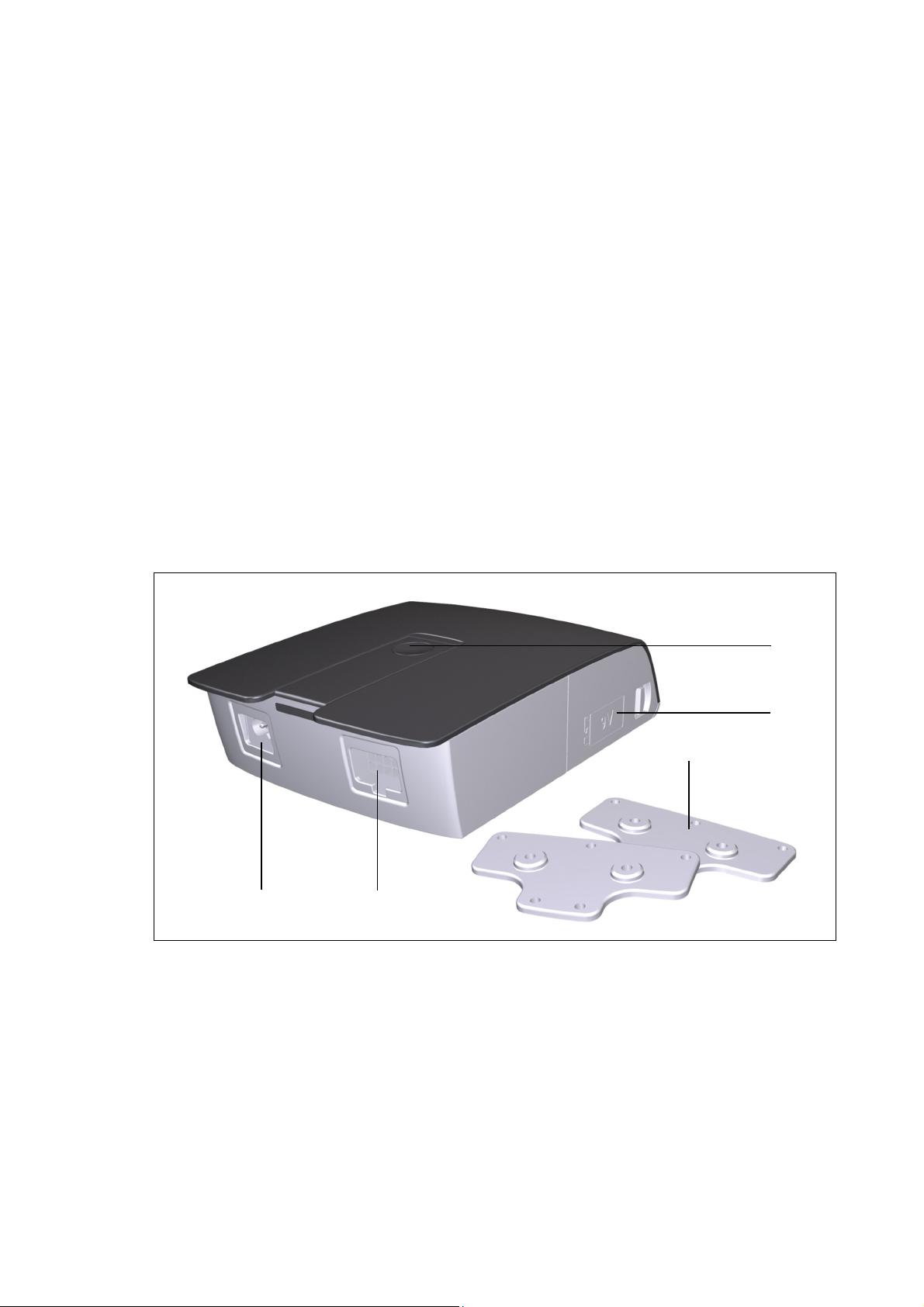

Figure 2 Components of the HE-300 SMPS POWER SUPPLY
A HE-300 SMPS POWER SUPPLY B Button
C Battery compartment D Mounting plates
E Socket for the connecting cable
(e.g., to the HE-300 CONTROL UNIT)
F Power socket
A
C
F E
D
B

Description HE-300 SMPS POWER SUPPLY
10 79825(-)
3.1.1 Mains power supply connection
CAUTION
Electric shock
Please follow these operating instructions carefully. You could be injured by fire or electrical
shock if you do not follow these assembly instructions.
Optional: Power cord
The optional power cord is included for your region (either EURO continental Europe, the UK or
Australia).
CAUTION
Only use the proper power cord that is permitted in your country. Be sure to use the correct plug
adapter, as described in Figure 3.
More information about the intended power supply cord can be found in the "Additional Infor-
mation" section.

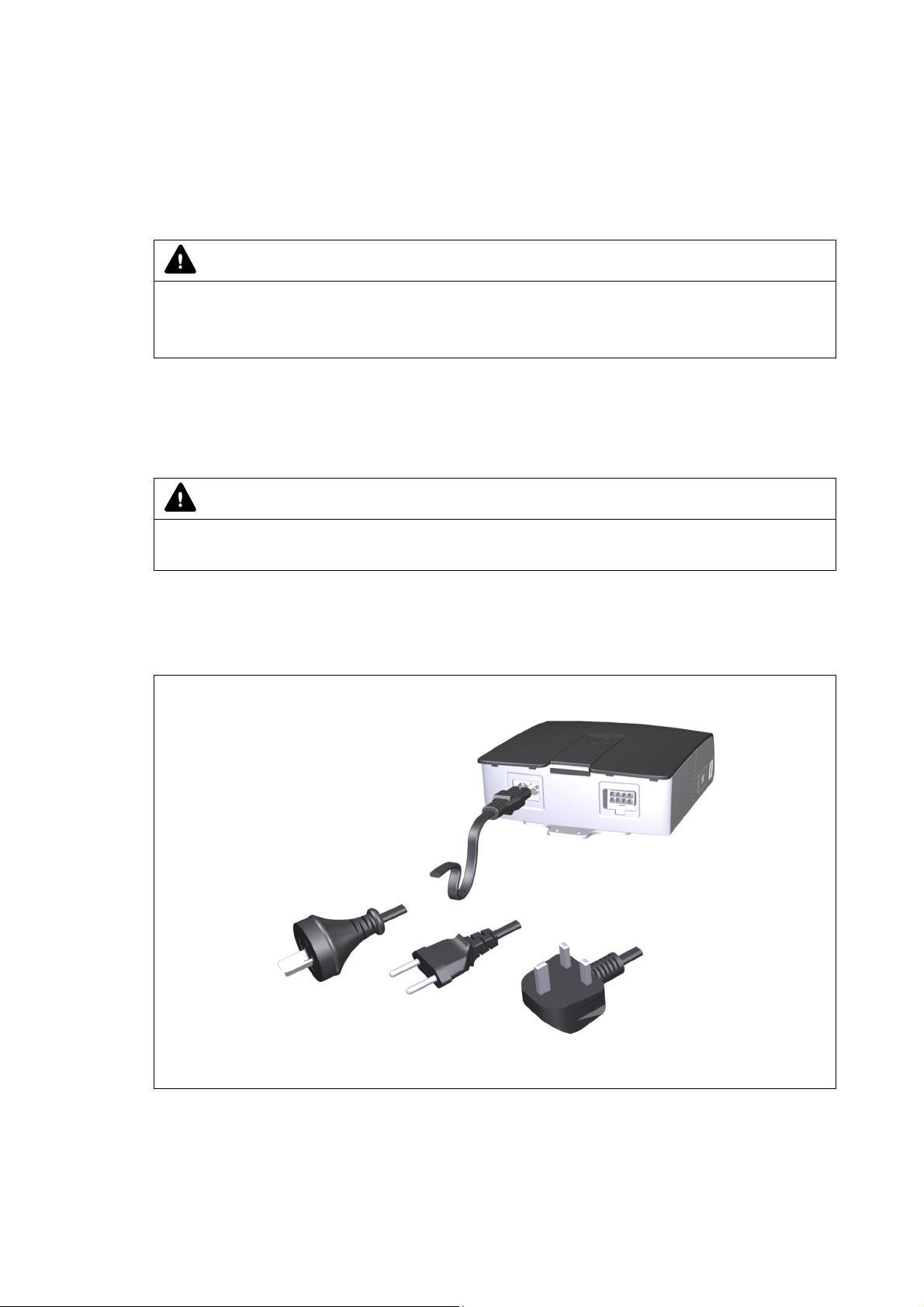

Figure 3 Power cord, regional variants
A HE-300 SMPS POWER SUPPLY B Power plug (Australia)
C Power plug (EURO) D Power plug (UK)
A
B
D
C

HE-300 SMPS POWER SUPPLY Description
79825(-) 11

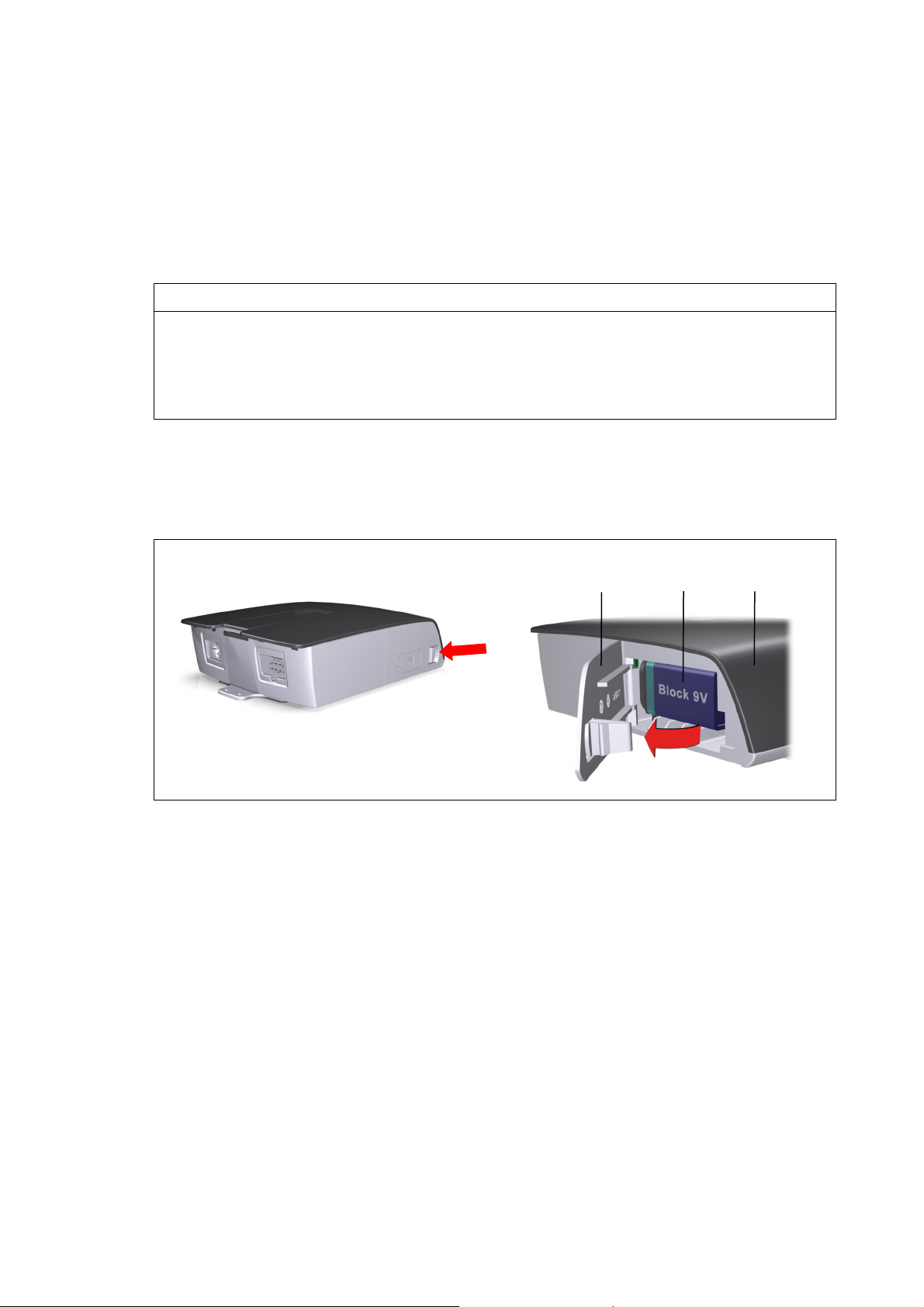

3.1.2 Nine-volt batteries for reset function independent of mains power supply
The battery compartment in the HE-300 SMPS POWER SUPPLY holds two nine-volt batteries. The
batteries are required if you need to use the battery-operated drive reset function (not dependent
on the mains).
CAUTION
The battery-operated reset function is not a safety system and does not avert danger.
DewertOkin does not guarantee that the drive will function in the event of a power outage.
If the end-product manufacturer chooses to guarantee the functionality of the end product during a
power outage, then the end-product manufacturer is responsible for arranging a mechanism to en-
sure this functionality.

Technical specifications HE-300 SMPS POWER SUPPLY
12 79825(-)
4. Technical specifications
4.1 POWER SUPPLY
Mains power supply connection 100 – 240 V AC 50/60 Hz
Output voltage Max. 29 V DC
Output current Max. 5.00 A for intermittent duty of 2 min / 18 min
Primary fuse 4 A
Standby (no load) ≤0.5 W
Mode of operations1Intermittent duty 2 min./18 min.
Continuous operations
Protection class II
Protection degree IP20
Colours Black
Length of power cord2approx. 1200 mm
battery-operated reset function
Voltage Two nine-volt batteries (6LR61)
Dimensions and weight
Length x width x height Approx. 193 mm x 140 mm x 53 mm
Weight Approx. 660 g
Ambient conditions for operation, storage and transport
Transport / storage temperature From -20 °C to +50 °C
From -4 °F to +122 °F
Operating temperature From +10 °C to +40 °C
From +50 °F to +104 °F
Relative humidity From 30% to 75%
Air pressure From 800 hPa to 1060 hPa
Height < 2000 m
1Mode of operation: intermittent duty 2 min./18 min. This means that after the unit is operated with its rated
load for up to two minutes it must then be paused for 18 minutes. The system can malfunction if this pause
is not observed!
2Versions with a power cord shorter than 2 meters are only suitable for outlets near the floor.

HE-300 SMPS POWER SUPPLY Technical specifications
79825(-) 13

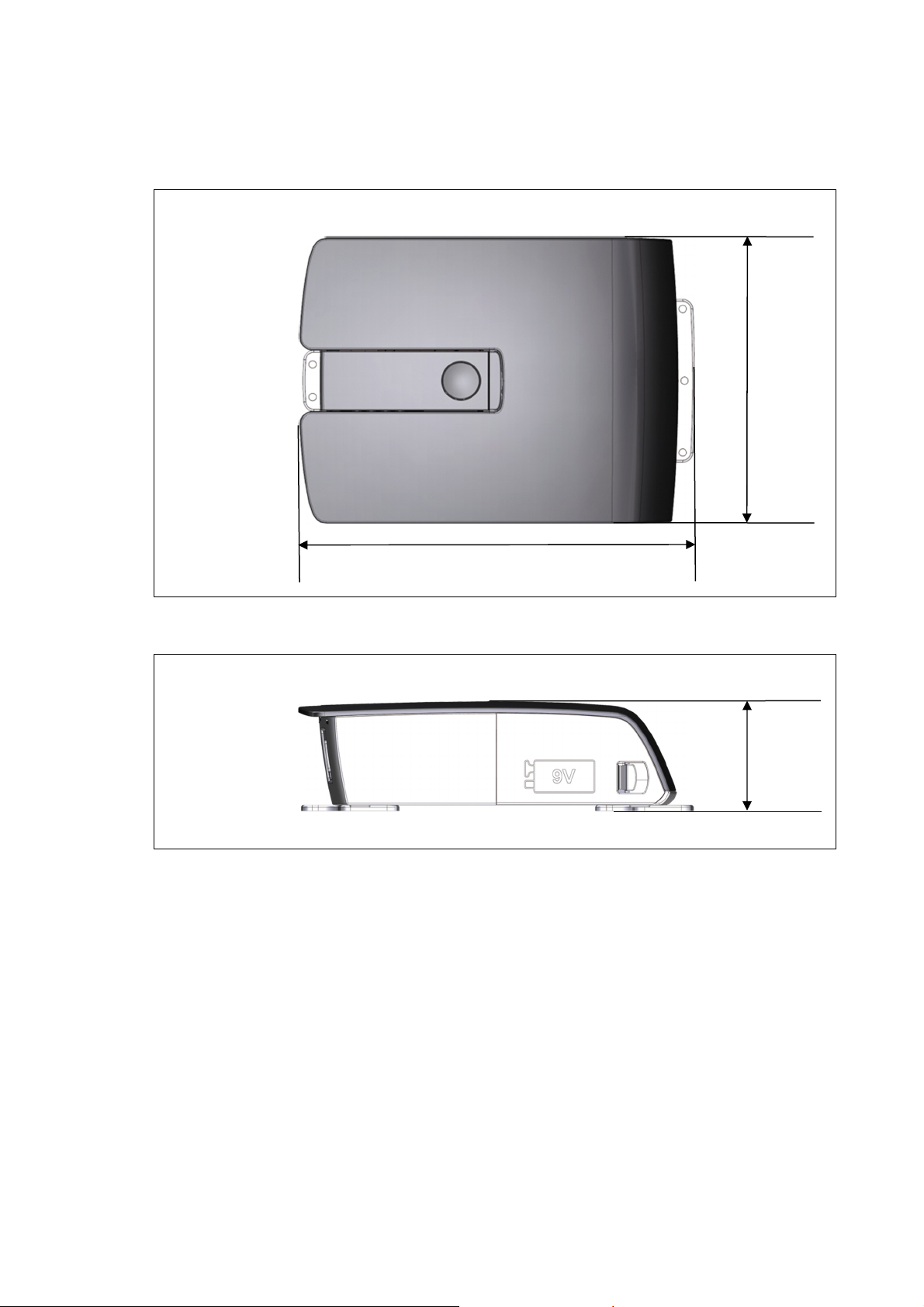

Figure 4 Dimensions of the HE-300 SMPS POWER SUPPLY, in mm, top view
Figure 5 Dimensions of the HE-300 SMPS POWER SUPPLY, in mm, side view
53
193
140

Installation HE-300 SMPS POWER SUPPLY
14 79825(-)
5. Installation
5.1 Safety notices to observe during installation
Basic safety rules must be followed in order to ensure that the end product can be continually op-
erated in a safe manner. These rules must be observed while using the end product and while in-
stalling the HE-300 SMPS POWER SUPPLY in the end product.
Avoiding electrical faults
Be sure to consider the length of the power cord when designing the dimensions for your end
product in order to minimize the associated risks.
Overheating
A thermal circuit breaker in the HE-300 SMPS POWER SUPPLY switches the unit off when it over-
heats.
CAUTION
Risk of accident
The HE-300 SMPS POWER SUPPLY is equipped with a thermal fuse that triggers when the unit
overheats. If the temperature control has triggered, remove the HE-300 SMPS POWER SUP-
PLY from the power supply, allow it to rest for 20 to 30 minutes and try again. If the unit still does
not function, please contact your supplier or dealer.

HE-300 SMPS POWER SUPPLY Installation
79825(-) 15

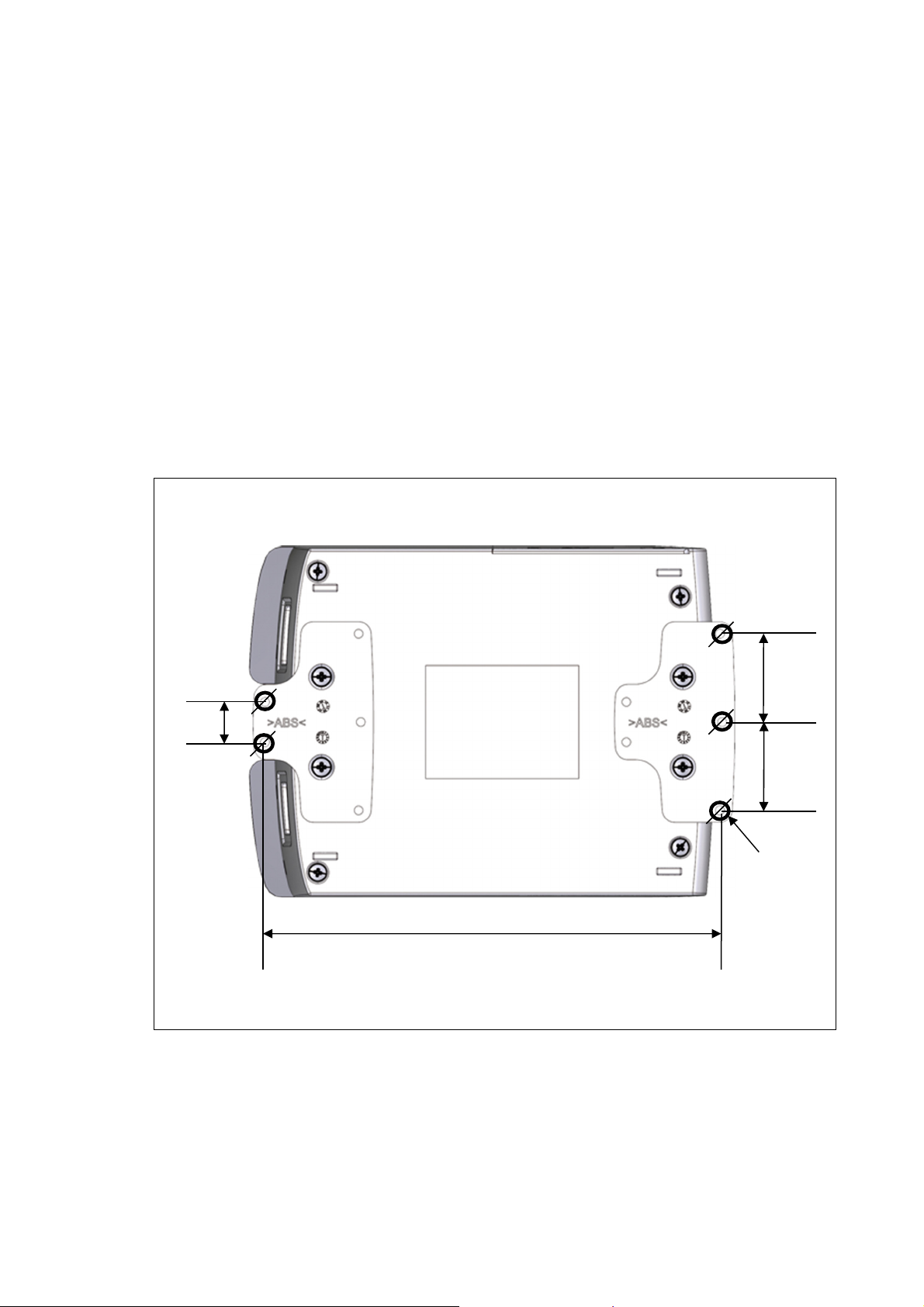

5.2 Installation procedure
Before installing and connecting the HE-300 SMPS POWER SUPPLY, make sure that you are ob-
serving all of the safety notices found in the "Safety notices to observe during installation" section.
5.2.1 Attaching the mounting plates
Screws should be screwed into the five mounting points on the two mounting plates for attaching
the HE-300 SMPS POWER SUPPLY to the end product. Two screws are used for each of the two
delivered mounting plates to attach them to the HE-300 POWER SUPPLY.
The drilling dimensions shown in Figure 6 only illustrate an example and are not necessarily au-
thoritative for all applications.
Figure 6 Example: Mounting points on the HE-300 SMPS power supply (in mm)
181
16

3.5
35
35

Installation HE-300 SMPS POWER SUPPLY
16 79825(-)
1 Screw the mounting plates firmly onto the HE-300 SMPS POWER SUPPLY SMPS (as shown in
Figure 7). Use at least two screws for each of the two mounting plates.
Figure 7 Attaching the mounting plates
A Mounting plates B Screws
A
B
A
A
A
B

HE-300 SMPS POWER SUPPLY Installation
79825(-) 17
2 Tighten the screws on both mounting plates so the plates are firmly attached to the end product
(as shown in Figure 8).
Figure 8 Mounting the HE-300 SMPS POWER SUPPLY to the end product
A Mounting plates B Screws
B
A
B
A

Installation HE-300 SMPS POWER SUPPLY
18 79825(-)
5.2.2 Electrical connection
CAUTION
Electric shock
Electrical components should be connected or disconnected only when the power supply cord is
unplugged.
There is a delay after the supply voltage is applied before the device actually turns on. Wait at
least seven seconds before beginning the commissioning.
Routing the electrical cables
When routing the cables, be sure that:
the cables cannot get jammed,
no mechanical load (such as pulling, pushing or bending) will be put on the cables, and
the cables cannot be damaged in any way.
Fasten all cables (especially the connecting cables) to the end product using sufficient kink preven-
tion methods. Be sure that the design of the end product prevents the connecting cables from com-
ing into contact with the floor during transport.

HE-300 SMPS POWER SUPPLY Installation
79825(-) 19
Changing the batteries
The batteries are already connected when the unit is delivered. Replace the batteries after the re-
set function has been executed once. Both batteries should be replaced at the same time.
NOTICE
Both batteries should be replaced/inserted at the same time. Use batteries of similar:
age,
type and
manufacturer.
1 Open the battery case cover on the side of the HE-300 SMPS POWER SUPPLY (press down
on the catch clip, as shown in Figure 9).
Figure 9 Opening the battery case cover
A Battery case cover B Two nine-volt batteries (type 6LR61)
C HE-300 SMPS POWER SUPPLY
1
B C
A

Installation HE-300 SMPS POWER SUPPLY
20 79825(-)
2 Remove both batteries and unplug the battery terminal clips.
3 Connect the two new batteries to the battery clips. Be sure not to reverse the polarity.
4 Insert the connected batteries into the battery compartment.
5 Close the battery cover; push on until it clicks into place.
Figure 10 Connecting the batteries
A Battery case cover B 9-V battery (type 6LR61)
C HE-300 SMPS POWER SUPPLY D Battery clip
CAUTION
The battery-operated reset function is not a safety system and does not avert danger.
3
B
D
4
2
5
B D A
