Phoenix RS-LS5 User manual

Analog Linear Shaker & Orbital Shaker
User Manual
RS-LS-5 Analog Linear Shaker
RS-OS-5 Analog Orbital Shaker
Please read carefully before use, and follow all
operating and safety instructions!
The design and specifications are subject to
change without prior notice.
www.phoenix-instrument.de
All manuals and user guides at all-guides.com

Contents
Preface................................................................................. 1
Service................................................................................. 1
Warranty.............................................................................. 1
1 . Safety Instructions....................................................... 2
2 . Proper Use................................................................... 3
3 . Inspection.................................................................... 3
3.1 Receiving Inspection............................................. 3
3.2 Listing of Items..................................................... 3
4 . Control ........................................................................ 4
5 . Operation..................................................................... 4
6 . Faults........................................................................... 5
7 . Maintenance and Cleaning.......................................... 5
8 . Associated standards and regulations.......................... 6
9 . Specification................................................................ 7
10 . Order Information ....................................................... 8
All manuals and user guides at all-guides.com

Please provide the customer care representative with the
following information:
• Serial number ( on the rear panel )
• Certification
• Description of problem ( i.e., hardware or software )
• Methods and procedures adopted to resolve the
problems
Your contact information
Warranty
This instrument is warranted to be free from defects in
materials and workmanship under normal use and service,
for a period of 24 months from the date of invoice. The
warranty is extended only to the original purchaser. It shall
not apply to any product or parts which have been damaged
on account of improper installation, improper connections,
misuse, accident or abnormal conditions of operation.
For claims under the warranty please contact your local
supplier. You may also send the instrument directly to
manufacturer, enclosing the invoice copy and by giving
reasons for the claim.
Preface
Welcome to the “Analog Linear Shaker & Orbital Shaker
User Manual”. Users should read this manual carefully,
follow the instructions and procedures, and beware of all
the cautions when using this instrument.
•
Service
When help needed, you can always contact the service
department of manufacturer for technical support in the
following ways:
Phoenix-Instrument GmbH
Heinkelstraße 10
30827 Garbsen/Germany
Tel: [phone]
Fax: [phone]
E-mail: [e-mail]
Http://www.phoenix-isntrument.de
1
All manuals and user guides at all-guides.com

If the instrument does not run smoothly, please
decrease the motor speed.
Firmly secure the accessories and vessels in place to
avoid damage or risk.
Preparation of samples may lead to dangerous
flammable. Only process samples that will not react
dangerous.
Use the standard accessories listed in the “ accessories ”
section, and follow the instructions to use accessories
to ensure safety. Please switch off the power before
assembly of accessories, confirm the instrument and
accessories are intact before switch on each time.
Splashing liquids
- Broken glass containers
Follow the safety instructions, guidelines and accident
prevention regulations.
Do not touch the running parts, moving instrument
care not rolling your fingers.
Set up the instrument in a spacious area on a stable,
clean, non-slip, dry and fireproof surface. Do not
operate the instrument in explosive atmospheres, with
hazardous substances or under water.
2
1.
•
•
•
•
Safety Instructions
Warning!
• Read the operating
Protective ground contact ！
• Ensure the socket must be grounded
(protective ground contact) before use.
When working wear personal safety guards to avoid
the risk of:
-
before use.
• Ensure that only trained staff works with the
instrument.
•
• The instrument only be opened by expert，please
switch off before use.
• The voltage stated on the nameplate must correspond
to the mains voltage.
• Do not cover the instrument during running. Prevent
the collision and extrusion to instrument and
accessories.
• Keep away from high magnetic field.
•
•
instructions carefully
•
All manuals and user guides at all-guides.com

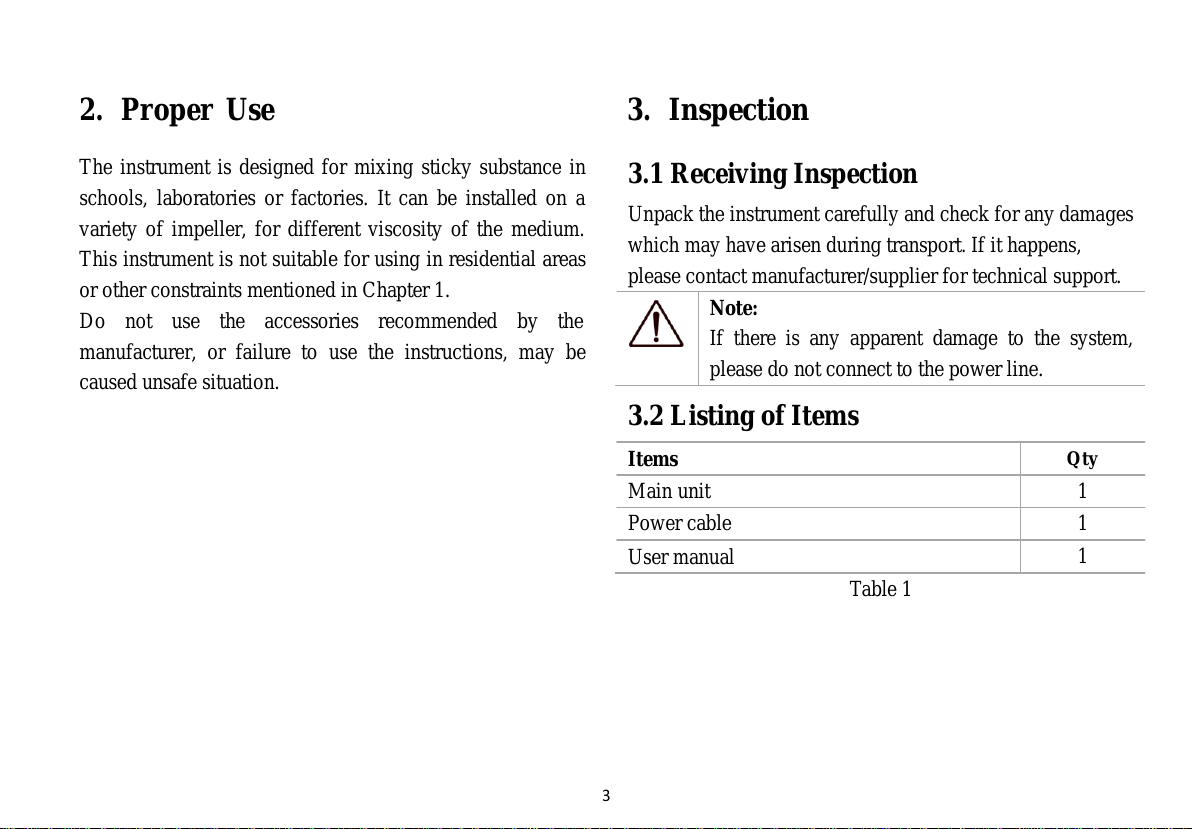

2. Proper Use 3. Inspection
The instrument is designed for mixing sticky substance in
schools, laboratories or factories. It can be installed on a
variety of impeller, for different viscosity of the medium.
This instrument is not suitable for using in residential areas
or other constraints mentioned in Chapter 1.
Do not use the accessories recommended by the
manufacturer, or failure to use the instructions, may be
caused unsafe situation. 3.2 Listing of Items
Items
Main unit
Power cable
User manual
Table 1
3
3.1 Receiving Inspection
Unpack the instrument carefully and check for any damages
which may have arisen during transport . If it happens,
please contact manufacturer/supplier for technical support.
Note:
If there is any apparent damage to the system,
please do not connect to the power line.
Qty
1
1
1
All manuals and user guides at all-guides.com

Descriptions
Set target speed.
Switch ON/OFF instrument.
Connect the power cable
Green LED display light
Table 2
5.
Operation
• Place the instrument in safe and stable surface, ensure
the required operating voltage and power supply
voltage matched.
• Connect the power cable.
• Install the platform.
• Switch ON the instrument.
• Rotate the speed control knob clockwise to set target
speed, and the shaking function will be switched on.
• Rotate the speed control knob to the left-most position
to switch off the shaking function .
• Switch OFF the instrument.
If these operations above are normal, the instrument is
ready to operate. If not, the instrument may be damaged

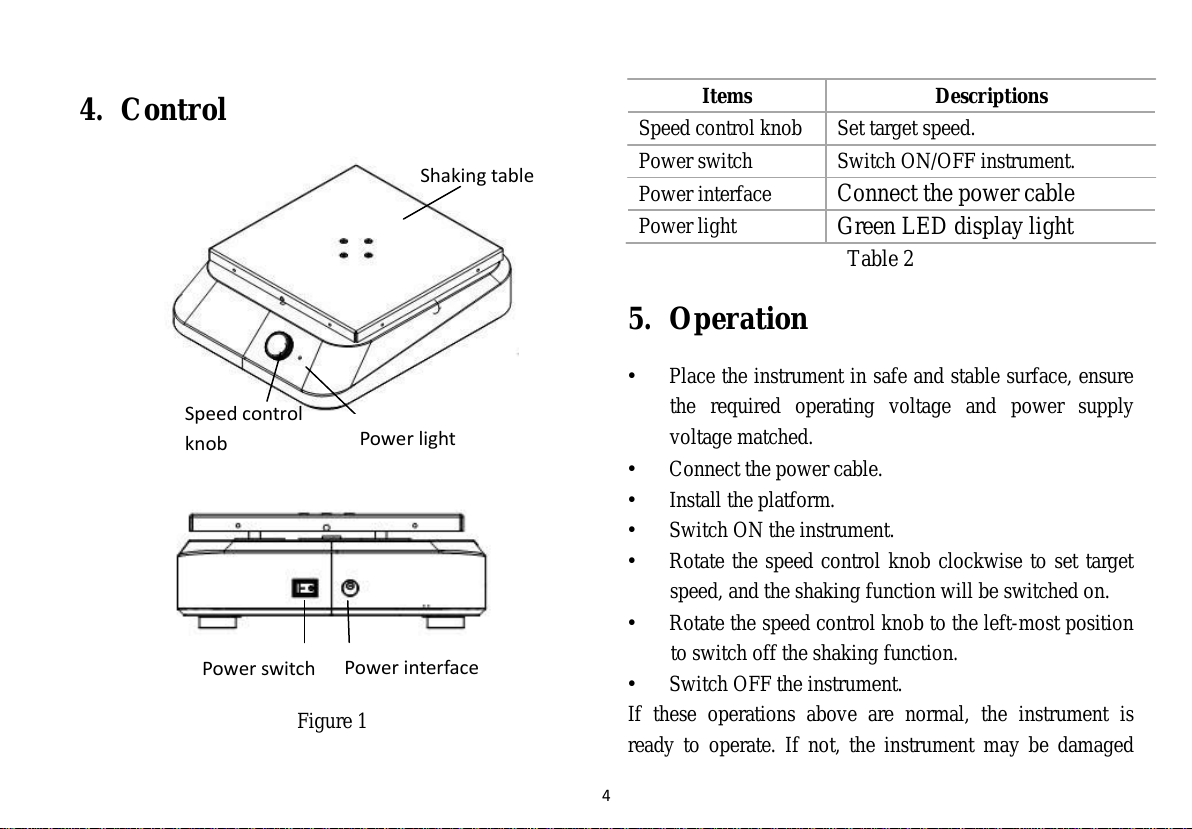

4. Control
Speed control
knob
Power switch
Items
Speed control knob
Power switch
Power interface
Power light
Shaking table
Power light
Power interface
Figure 1
4
All manuals and user guides at all-guides.com

during transportation, please contact technical support of
manufacturer/supplier.
Note:
The speed value can be altered during shaking.

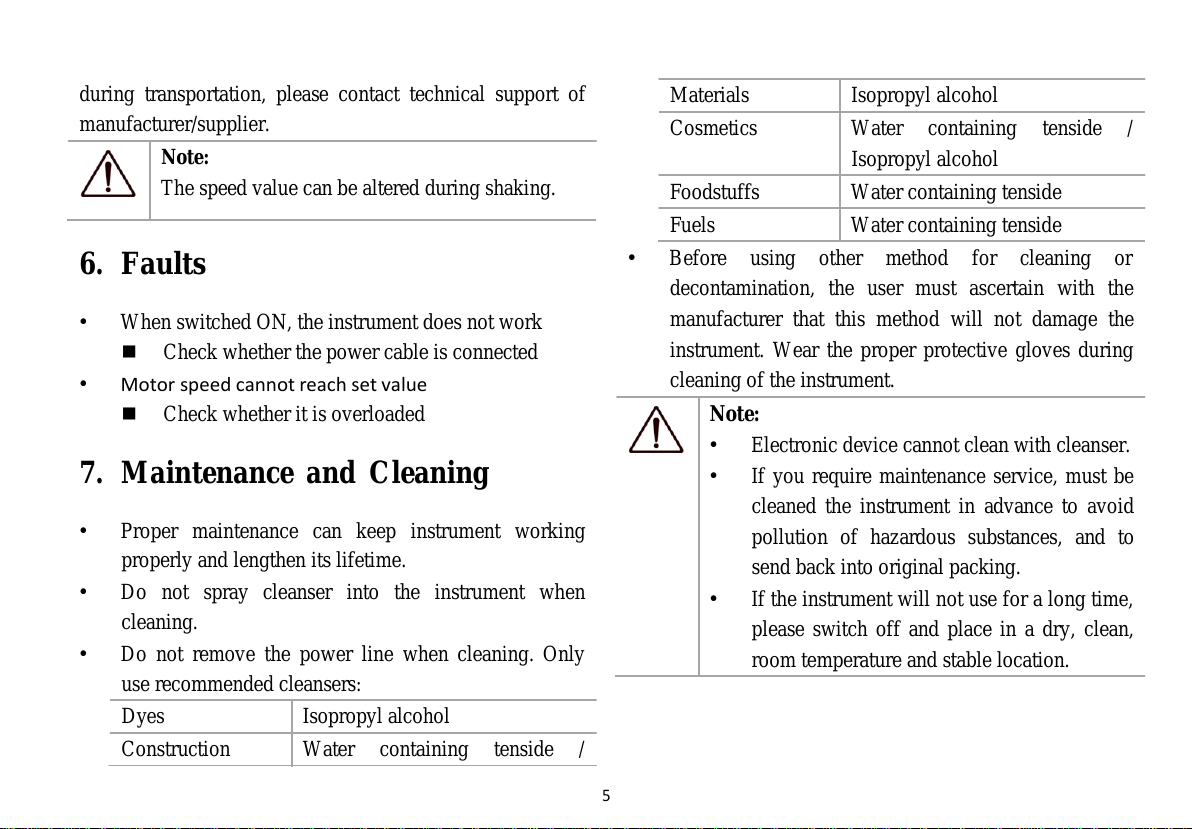

6. Faults
• When switched ON, the instrument does not work
 Check whether the power cable is connected
• Motor speed cannot reach set value
 Check whether it is overloaded

7. Maintenance and Cleaning
• Proper maintenance can keep instrument working
properly and lengthen its lifetime.
• Do not spray cleanser into the instrument when
cleaning.
• Do not remove the power line when cleaning. Only
use recommended cleansers:
Dyes Isopropyl alcohol
Construction Water containing tenside /
5
Materials Isopropyl alcohol
Cosmetics Water containing tenside /
Isopropyl alcohol
Foodstuffs Water containing tenside
Fuels Water containing tenside
• Before using other method for cleaning or
decontamination, the user must ascertain with the
manufacturer that this method will not damage the
instrument. Wear the proper protective gloves during
cleaning of the instrument.
Note:
• Electronic device cannot clean with cleanser.
• If you require maintenance service, must be
cleaned the instrument in advance to avoid
pollution of hazardous substances, and to
send back into original packing.
• If the instrument will not use for a long time,
please switch off and place in a dry, clean,
room temperature and stable location.
All manuals and user guides at all-guides.com

8. Associated standards and regulations
Construction in accordance with the following safety
standards:
EN 61010-1
UL 3101-1
CAN/CSA C22.2(1010-1)
EN 61010-2-10
Construction in accordance with the following EMC
standards:
EN 61326-1
Changes or modifications not expressly approved by the
party responsible for compliance could void the user's
authority to operate the equipment.
NOTE: This equipment has been tested and found to
comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful
interference when the equipment is operated in a
commercial environment. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may
6
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to
cause harmful interference in which case the user will be
required to correct the interference at his own expense.
All manuals and user guides at all-guides.com

9. Specification
Items
Specifications
Items RS-LS5 RS-OS5
Voltage [VAC] 100-240 100-240
Frequency [Hz] 50/60 50/60
Motor
input[W]
Motor
output[W]
Shaking motion
Orbital
diameter[mm]
Max . load capacity
（ with platform )
[Kg]
Motor type
Speed range[rpm]
Dimensions[W×H×D
mm]
Specifications
RS-LS5 RS-OS5
3.1 3.1
5-40 5-40
Weight[kg]
Permissible ambient
temperature[ ℃ ]
rating
16 16
Permissible relative 80% 80%
humidity
Protection class acc. IP21 IP21
DIN EN60529
10 10
Linear Orbital
20 20
3 3
DC motor DC motor
0-200 0-200
330X270X105 330X270X110
7
rating
